MG3-R326810Hand held battery operated infrared and BLE remote control

Comcast XR100‐UQ 2023 Quick Start Guide ACTIVATING RF Pairing o Press and hold DIGIT 1 + DIGIT 3 for 1 second o Continuous GREEN led blink until paired or timed out LED Feedback  Pairing o GREEN led blink every 250ms for duration of advertising (10 seconds)  Key Press o RED if not BLE bonded o GREEN if BLE bonded  Factory Reset o 4 RED blinks before reboot  Unbind BLE o 4 blinks if successful o 2 blinks if unsuccessful Features: Customer Marking Label COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase or decrease the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced remote control/ TV technician for help. This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MG3‐R326810 Canada: IC: 2575A‐R326810 This device complies with RSS‐210 of the Industry Canada Rules: Operation is subject to the following two conditions: (1) This deice may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est confrme aux CNR d’Industrie Canda applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) L’appareil ne doit pas produire de brouillage; (2) L’utilisateur de l’appareil doit accepter dout brouillage dadioélectrique subi, même si le brouillage est susceptible d’en compromettre de fonctionnement.

201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701 CSF 216 3.0 FRENCH USER MANUAL DECLARATION 25 August 2023 Element Materials Technology 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX UK Product Name: Comcast XR100-UQ Remote Control Model (HVIN): R326810 ISED ID: 2575A-R326810 To Whom It May Concern: Please be advised that we currently do not have a User Manual that has been translated into French. A User Manual will be supplied to the end user in both English and French when the product is available to the Canadian market. We declare that the product will not be marketed in Canada without a French User Manual. Thank you for your attention to this matter. Yours faithfully, Jesse Mendez Universal Electronics Inc.,

201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701 Attestation Statement -FCC June 06, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Attestation regarding ‘covered’ equipment and the Covered List FCC ID: MG3-R326810 To whom it may concern, Per 2.911(d)(5)(i), [Universal Electronics Inc.] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Per 2.911(d)(5)(ii), [Universal Electronics Inc.] certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List as an entity producing “covered” equipment. Sincerely, Jesse Mendez Staff Engineer, Electrical Universal Electronics Inc.

201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701 LETTER OF AGENCY June 06, 2023 Element Materials Technology 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Yours faithfully, Jesse Mendez Staff Engineer, Electrical Universal Electronics Inc.

201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701 August 24, 2023 Element Materials Technology 100 Frobisher Business Park Leigh Sinton Road Malvern Worcestershire WR14 1BX, UK Product Similarity Declaration FCC ID: MG3-R326810 IC: 2575A-R326810 Model Number: XR100-UQ We, Universal Electronics Inc., hereby declare that we have a product named as BV SKY LC102 was tested by Element Materials Technology for CE region. Meanwhile, for our marketing purpose, we would like to list the product as XR100-UQ for FCC and ISED regions. Hardware wise the LC102 is the same as the XR100-UQ. Some key labels are different to reflect different software functions. We confirm that all information above is true, and we’ll be responsible for all consequences. Please contact me if you have any questions. Yours sincerely Jesse Mendez Staff Engineer, Electrical

201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701 Request for Confidentiality Letter-FCC June 14, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Request for confidentiality FCC ID: MG3-R326810 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459 and 0.457(d) the documents listed below and attached with this application for certification be provided with confidential status. •Schematics •Operational Description •Frequency Block Diagrams •BOM (Bill of Materials) Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Sincerely, Jesse Mendez Staff Engineer, Electrical Universal Electronics Inc.

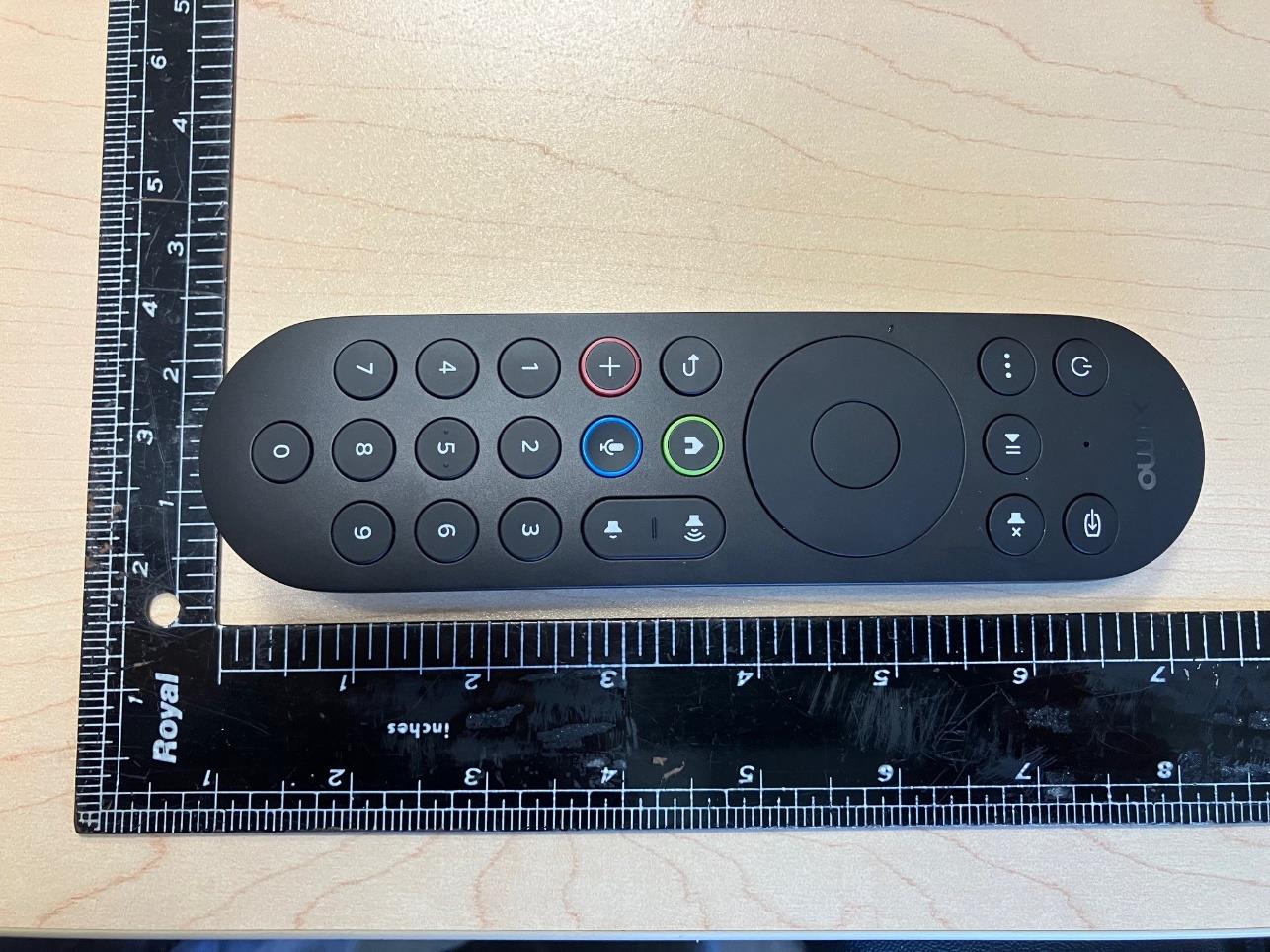

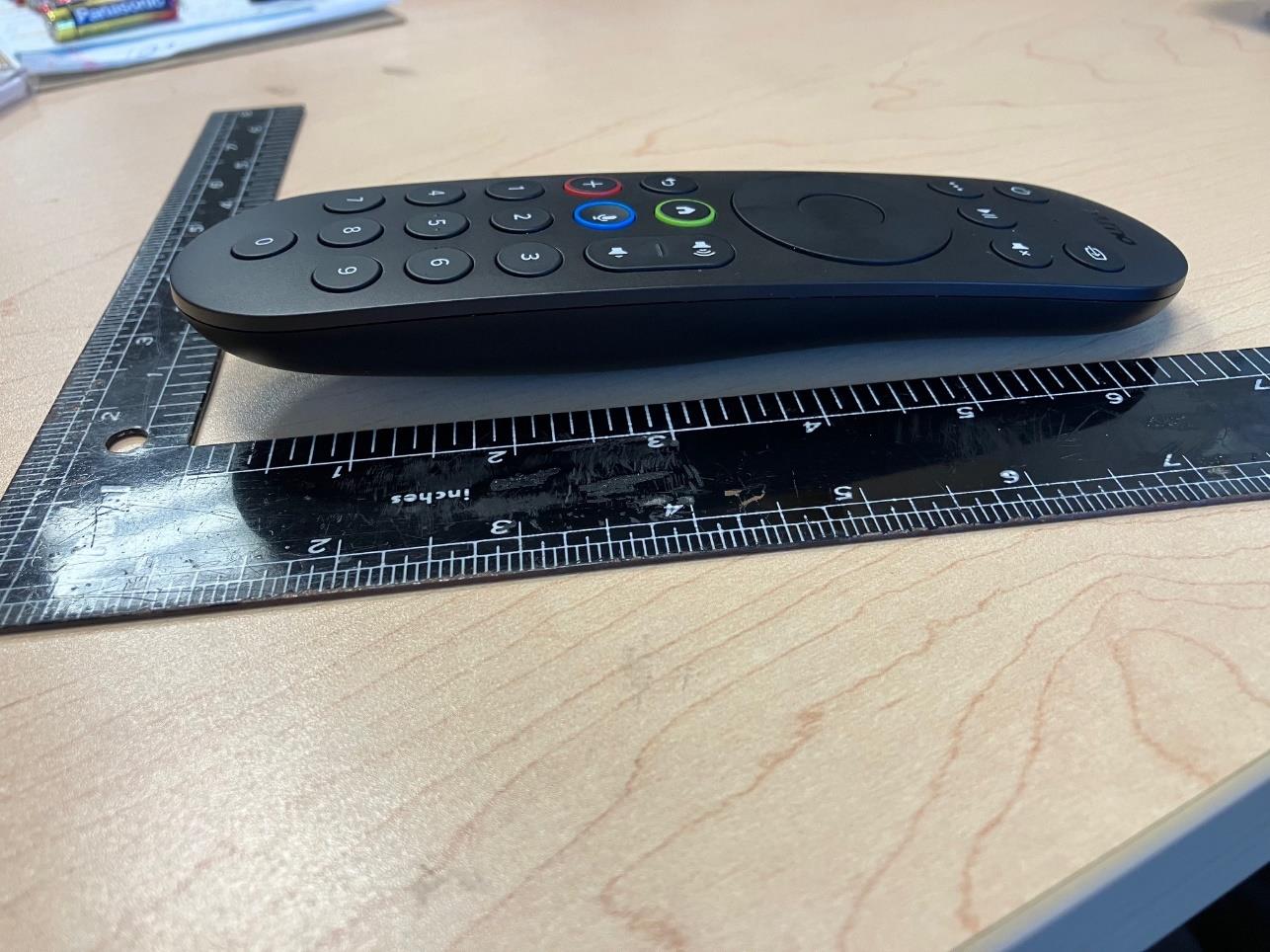

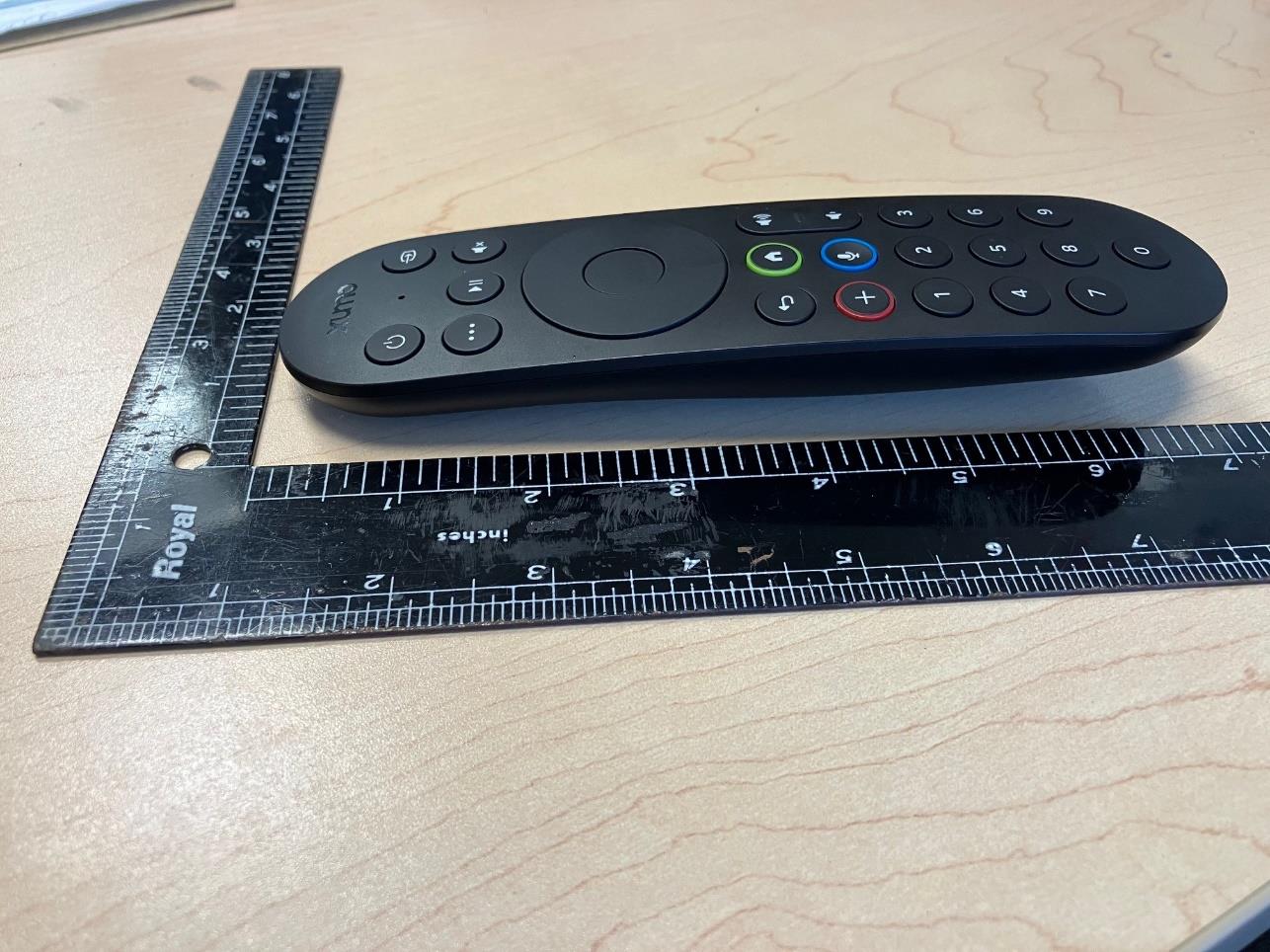

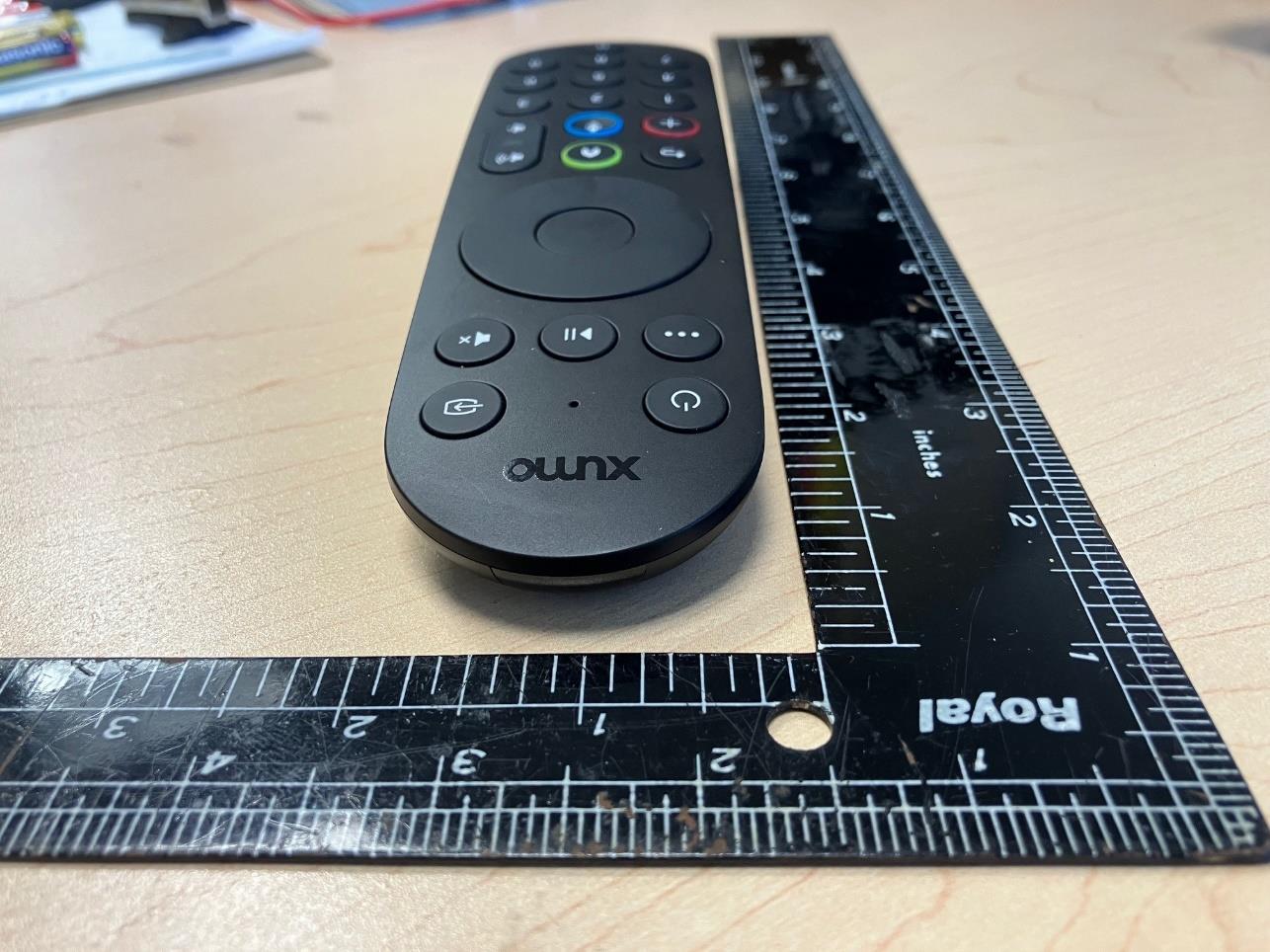

Keypad: Underside: Left Side: Right Side: Top End: Bottom End:

Top of PCBA: Bottom of PCBA (with and without the keypad membrane):

Report Number: TRA-061708-47-00B RF915 11.0 Page 41 of 49 17 RF Exposure 17.1 General SAR test reduction & exclusion guidance KDB 447498 Section 4.3 General SAR test reduction and exclusion guidance For Standalone SAR exclusion consideration, when SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required. The SAR Test Exclusion Threshold for frequencies in the range 100 MHz to 6 GHz, and for test separation distance of ≤ 50 mm, is determined as follows. SAR Exclusion Threshold (SARET) = (NT x TSD A ) / √ f GHz Where, NT = Numeric Threshold (3.0 for 1-g SAR and 7.5 for 10-g SAR) TSD A = Minimum Test separation distance or 50 mm (whichever is lower) f GHz = Transmit frequency in GHz Channel Frequency (MHz) Maximum Conducted Power (mW) SAR Exclusion Threshold at 5 mm (mW) SAR Evaluation 2402 5.90 9.68 Not Required 2442 6.71 9.60 Not Required 2480 6.73 9.53 Not Required Therefore standalone SAR evaluation for general population exposure conditions by measurement or numerical simulation is not required.

Report Number: TRA-061708-47-01B RF915 11.0 Page 42 of 50 17 RF Exposure 17.1 RF EXPOSURE TECHNICAL BRIEF RSS-102 issue 5 2.5.1 Exemption Limits for Routine Evaluation – SAR Evaluation SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance. Channel Frequency (MHz) EIRP (mW) SAR Exclusion Threshold at a distance of 15 mm (mW) SAR Evaluation 2402 6.30 15.26 Not Required 2442 7.16 15.04 Not Required 2480 7.18 15.03 Not Required

NOTE:ThisdocumentisissuedbyShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,thetestreportshallnotbereproducedexceptin fullwithoutpriorwrittenpermissionofthecompany.Thetestresultsapplyonlytotheparticularsample(s)testedandtothespecifictestscarried outwhichisavailableonrequestforvalidationandinformationconfirmedatourwebsite. MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.,FL1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page1of 28 REPORTNo.：SZ23010069E01 TESTREPORT APPLICANT:GemstarTechnology(Yangzhou)Co.Ltd PRODUCTNAME: Remotecontrol MODELNAME: BVSkyLC1022023 TRADENAME:N/A BRANDNAME:N/A STANDARD(S):IEEEStd149-2021 RECEIPTDATE:2023-01-09 TESTDATE:2023-01-10 ISSUEDATE:2023-01-12 Editedby: FangJinshan(Rapporteur) Approvedby: ChiShide(Supervisor) MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page2of28 REPORTNo.：SZ23010069E01 DIRECTORY 1.TechnicalInformation ·········································································································3 1.1.ApplicantandManufacturerInformation ······································································3 1.2.EquipmentUnderTest(EUT)Description····································································3 2.TestResults··························································································································4 2.1.AppliedReferenceDocuments·······················································································4 2.2.TestConditions·················································································································4 2.3.MeasurementUncertainty·······························································································4 2.4.TestResultslists··············································································································5 AnnexATestSetupPhotos···································································································6 AnnexBFigures ······················································································································7 1.2DRadiationPattern ·············································································································7 2.3DRadiationPattern ···········································································································12 AnnexCEUTPhotos ············································································································15 AnnexDGeneralInformation ······························································································28 1.1IdentificationoftheResponsibleTestingLaboratory··············································28 1.2IdentificationoftheResponsibleTestingLocation··················································28 1.3TestEquipmentsUtilized·······························································································28 ChangeHistory VersionDateReasonforchange 1.02023-01-12Firstedition MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page3of28 REPORTNo.：SZ23010069E01 1.TechnicalInformation Note:ProvidebyApplicant. 1.1.ApplicantandManufacturerInformation Applicant: GemstarTechnology(Yangzhou)Co.Ltd ApplicantAddress: Room606,Guofabuilding,#3110RenminRoad, Suzhou,JiangsuProvince,China Manufacturer:N/A ManufacturerAddress:N/A 1.2.EquipmentUnderTest(EUT)Description WirelessType Bluetooth Frequency 2402MHz-2480MHz IMEI N/A SampleNo. 1#&2# MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page4of28 REPORTNo.：SZ23010069E01 2.TestResults 2.1.AppliedReferenceDocuments Leadingreferencedocumentsfortesting: No.IdentityDocumentTitle 1 IEEEStd149-2021 IEEERecommendedPracticeforAntenna Measurements 2.2.TestConditions TestEnvironmentConditions ： RelativeHumidity:25...75% Temperature:+10°Cto+30°C 2.3.MeasurementUncertainty Theuncertaintyiscalculatedusingthemethodssuggestedinthe"GuidetotheExpressionof UncertaintyinMeasurement"(GUM)publishedbyISO.Whenthetestresultisacriticalvalue,we willusethemeasurementuncertaintygivethejudgmentresultbasedonthe95%Confidence intervals. ItemMeasurementUncertainty(dB) Gain±0.5 VSWR±0.2 MeasurementUncertainty(95%ConfidenceInterval)K=2 MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page5of28 REPORTNo.：SZ23010069E01 2.4.TestResultslists 2.4.1.GainandEfficiency Frequency (MHz) Gain(dBi)Efficiency(%)Efficiency(dB) 1#2#1#2#1#2# 24000.230.1338.9037.99-4.10-4.20 24020.280.1739.1338.28-4.08-4.17 24100.240.1338.4637.66-4.15-4.24 24200.100.0637.3936.74-4.27-4.35 2430-0.010.0736.5736.07-4.37-4.43 24400.070.1336.7436.26-4.35-4.41 24500.210.2137.0036.51-4.32-4.38 24600.210.2036.4035.83-4.39-4.46 24700.160.1035.0334.45-4.56-4.63 24800.080.0334.0033.42-4.68-4.76 2490-0.030.0632.8632.21-4.83-4.92 25000.150.2032.7732.10-4.85-4.93 MORLAB ShenzhenMorlabCommunicationsTechnologyCo.,Ltd.FL1-3,BuildingA, FeiYangSciencePark,No.8LongChangRoad,Block67,BaoAnDistrict, ShenZhen,GuangDongProvince,P.R.China Tel:86-755-36698555Fax:86-755-36698525 Http://www.morlab.cnE-mail:[email protected] Page6of28 REPORTNo.…

Text truncated - open the document above for the full version.

RF915 11.0 Report on the Radio Testing For Universal Electronics Inc. on XR100-UQ Report no. TRA-061708-47-00B 29th Aug 2023 RF915 11.0 REPORT ON THE RADIO TESTING OF A Universal Electronics Inc. XR100-UQ WITH RESPECT TO SPECIFICATION FCC 47CFR 15.247 TEST DATE: 13th June 2023 to 14th June 2023 Tested by: Steven Garwell Written by: Steven Garwell Radio Test Engineer Approved by: John Charters Department Manager - Radio Date: 29th Aug 2023 Disclaimers: [1] THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE [2] THE RESULTS CONTAINED IN THIS DOCUMENT RELATE ONLY TO THE ITEM(S) TESTED Report Number: TRA-061708-47-00B Issue: B Report Number: TRA-061708-47-00B RF915 11.0 Page 3 of 49 1 Revision Record Issue Number Issue Date Revision History A 29th Aug 2023 Original B 29 th Aug 2023 General updates and technical corrections throughout document Report Number: TRA-061708-47-00B RF915 11.0 Page 4 of 49 2 Summary TEST REPORT NUMBER: TRA-061708-47-00B WORKS ORDER NUMBER: TRA-061708-00 PURPOSE OF TEST: Certification TEST SPECIFICATION: 47CFR15.247 EQUIPMENT UNDER TEST (EUT): XR100-UQ FCC IDENTIFIER: MG3-R326810 EUT SERIAL NUMBER(S): MAC Address: E4:A6:34:04:BB:53 (radiated), MAC Address: E4:A6:34:04:CA:32 (conducted) AGENT: Universal Electronics Inc. AGENT ADDRESS: 15147 North Scottsdale Road Suite H300 Scottsdale AZ 85254 AGENT CONTACT: Jesse Mendez  714 918-9701  [email protected] TEST DATE: 13th June 2023 to 14th June 2023 TESTED BY: Steven Garwell Element Report Number: TRA-061708-47-00B RF915 11.0 Page 5 of 49 2.1 Test Summary Test Method and Description Requirement Clause 47CFR15 Applicable to this equipment Result / Note Radiated spurious emissions (restricted bands of operation and cabinet radiation) 15.247 (d) PASS AC power line conducted emissions 15.207 Note 1 Occupied bandwidth 15.247 (a) (2) PASS Conducted carrier power Peak 15.247 (b) (3) PASS Max. Out of band emissions 15.247 (d) PASS Power spectral density 15.247 (e) PASS Calculation of duty correction - Note 2 Specific Note: 1. The EUT is a battery powered device. 2. Client declaration – see appendix A General Notes: The results contained in this report relate only to the items tested, in the condition at time of test, and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Any modifications made are identified in Section 8 of this report. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 5.2 of this test report (Deviations from Test Standards). General notes The decision rule for compliance is not inherent within this specification and compliance is based on the customer requesting a simple acceptance rule based on understanding and acceptance of Elements Measurement Uncertainty values. Report Number: TRA-061708-47-00B RF915 11.0 Page 6 of 49 3 Contents 1 Revision Record ............................................................................................................................................ 3 2 Summary ....................................................................................................................................................... 4 2.1 Test Summary ....................................................................................................................................... 5 3 Contents ........................................................................................................................................................ 6 4 Introduction .................................................................................................................................................... 7 5 Test Specifications ........................................................................................................................................ 8 5.1 Normative References ........................................................................................................................... 8 5.2 Deviations from Test Standards ............................................................................................................ 8 6 Glossary of Terms ......................................................................................................................................... 9 7 Equipment under Test ................................................................................................................................. 10 7.1 EUT Identification ................................................................................................................................ 10 7.2 System Equipment ............................................................................................................................... 10 7.3 EUT Mode of Operation ....................................................................................................................... 10 7.4 EUT Radio Parameters ........................................................................................................................ 10 7.4.1 General ........................................................................................................................................ 10 7.4.2 Product specific declarations ....................................................................................................... 11 7.5 EUT Description................................................................................................................................... 11 8 Modifications ................................................................................................................................................ 12 9 EUT Test Setup ....................................................................................…
