MG3-R328451Remote Control

Liberty Global B.V. Babylon Quick Reference Guide Ziggo R328451A99-00001 ACTIVATING RF The flowchart below shows different setup methods that will be supported by the RCU implementation on the STB: Figure 1 – Quickset flowchart The following are descriptions of the Quickset features: Key Codes Download‐ This feature will download a set of IR codes to the remote. Code Test – this feature allows the user to test and see whether a selected code‐set will work with a specific device prior to assigning it to a mode on the remote. Note: This feature is not planned to be implemented on the STB. Auto Setup – The Quickset library in UAPI provides a feature of automated lookup by identifying the attached devices by means of HDMI-EDID look-up or using CEC control information. Automated lookup will allow the programming of devices that support EDID/CEC information automatically without going through the standard device-brand-model lookup route. CEC/EDID information of connected device is obtained and passed to respective API. Based on the information passed, API will retrieve code sets for the device connected which can be used for programming the remote. Manual Setup – Manual setup assists the user with a UI flow and enables to setup RCU manually. The user is instructed to search for brand/model of his device, and the programming sequence is displayed with the correct ID to the user. Optimized Setup Maps – “Optimized setup maps” assists the user with a UI flow, to setup his TV and AMP without searching for the model. After user selects brand, Quickset starts to test RCU keys, and by the user feedback finds the right device and programs it to the RCU. Note: Test keys for OSM are limited to Volume+, Volume- and Mute. One Touch View (OTV) – OTV feature will be executed by pressing STB Power key or TV power Key depending on the state of STB. Features: ‐ UEI UE878NMEH, 512kB Flash, 64K RAM ‐ Battery Type: 2xAAA alkaline batteries ‐ White and Red LED with light guide in top right corner. ‐ BLE 4.2 o HID over GATT (HOGP) o Battery Service o Voice: 16kHz, 16 bits. o OTA ‐ 34+4 clickable keys with metal domes o Including side key for profile selection ‐ Voice ‐ External flash: 512kB. ‐ Background OTA ‐ IR ‐ Quickset o One touch view o Auto Discovery o Brand/Model Search Aside of this project a dual stack will also be started in order to support the following features: ‐ Dual stack behavior (BLE & RF4CE). ‐ Automatic pairing and dynamic binding to BLE and RF4CE. ‐ RF4CE o ZRC2.0, ZRC1.1 o Voice over RF4CE (UAPI): 16kHz, 16 bits. o OTA ‐ ‐ Operating Temperature o 0°C to +50°C Customer Marking Label Caution Please read all safety instructions to ensure personal safety and prevent damage to equipment. Warning ‐ Do no put remote in a fire ‐ Do not disassemble the remote control ‐ Disposal of the remote control ‐ Risk of explosion if the battery is replaced by an incorrect type ‐ battery shall not be exposed to excessive heat such as sunshine, fire or the like ‐ Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion ‐ Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or leakage of flammable liquid or gas ‐ A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas Important Safety Instructions 1. Read these instructions 2. Keep these instructions 3. Head all warnings 4. Follow all instructions COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase or decrease the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced remote control/ TV technician for help. This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. FCC ID: MG3‐R328451

Hyundai C‐Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848 || Fax: +1.510.933.8849 Page 1 of 1 10‐09‐2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC Agent Authorization Letter Applicant Universal Electronics Inc. Model Name(s) LGI Babylon Part Number R328451A99‐00001 FCC ID MG3‐R328451 We, the undersigned, hereby authorize Hyundai C‐Tech, Inc. dba HCT America Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Hyundai C‐Tech, Inc. dba HCT America Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Jesse Mendez Staff Engineer, Electrical Universal Electronics Inc. 201 East Sandpointe Ave 7 th Floor Santa Ana, CA 92707, U.S.A. [email protected]

Hyundai C‐Tech, Inc. dba HCT America, Inc. 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848 || Fax: +1.510.933.8849 Page 1 of 1 10‐09‐2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC Request for Confidentiality We hereby request confidential treatment of information accompanying this application as outlined below: Applicant Universal Electronics Inc. Model Name(s) LGI Babylon Part Number R328451A99‐00001 FCC ID MG3‐R328451 Long‐Term Confidentiality Short‐Term Confidentiality  Block Diagram  Internal Photos  Schematics  Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. We would like request to hold documents listed under Short‐Term Confidentiality to remain confidential up to 180 days. Sincerely, Jesse Mendez Staff Engineer, Electrical Universal Electronics Inc. 201 East Sandpointe Ave 7 th Floor Santa Ana, CA 92707, U.S.A. [email protected]

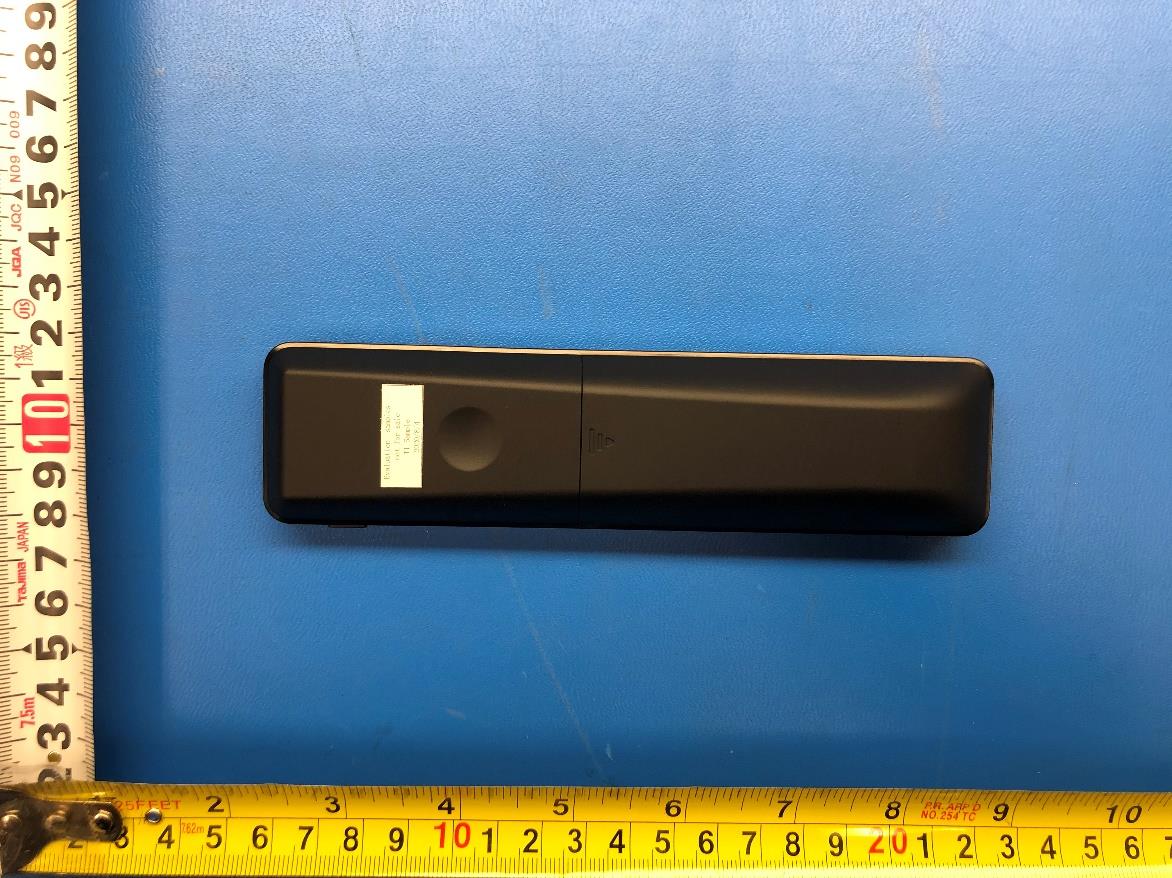

APPENDIX B 1 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.1 PHOTOGRAPHS OF EUT EXTERNAL PHOTOS Applicant Universal Electronics Inc. Model Name R328451A99-00001 FCC ID MG3-R328451 APPENDIX B 2 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Front View Rear View APPENDIX B 3 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Left Side View Right Side View APPENDIX B 4 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Top View Bottom View

APPENDIX B 1 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX B.2 PHOTOGRAPHS OF EUT INTERNAL PHOTOS Applicant Universal Electronics Inc. Model Name R328451A99-00001 FCC ID MG3-R328451 APPENDIX B 2 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Open Chassis - 1 Open Chassis - 2 APPENDIX B 3 / 3 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Main PCB – Top view Main PCB – Bottom view

RF TEST REPORT F C C APPLICANT Universal Electronics Inc MODEL NAME R328451A99-00001 FCC ID MG3-R328451 REPORT NUMBER HA201001-UEI-015-R05 Report No.: HA201001-UEI-015-R05 1 / 41 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue November 19, 2020 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Universal Electronics Inc Applicant Address 201 East Sandpointe Ave 7 th Floor, Santa Ana, CA 92707, U.S.A. FCC ID MG3-R328451 Model Name R328451A99-00001 EUT Type Universal TV Remote Modulation Type GFSK FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 15.247 Test Procedure ANSI C63.10-2013, KDB 558074 D01 v05r02 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By James Choi Sunwoo Kim Test Engineer Technical Manager Report No.: HA201001-UEI-015-R05 2 / 41 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA201001-UEI-015-R05 11/19/2020 Initial Issue Report No.: HA201001-UEI-015-R05 3 / 41 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................................................... 4 2. METHODOLOGY ...................................................................................................................................................... 5 3. INSTRUMENT CALIBRATION .................................................................................................................................... 5 4. FACILITIES AND ACCREDITATIONS............................................................................................................................ 6 5. ANTENNA REQUIREMENTS ..................................................................................................................................... 7 6. MEASUREMENT UNCERTAINTY ............................................................................................................................... 8 7. DESCRIPTION OF TESTS ........................................................................................................................................... 9 8. SUMMARY OF TEST RESULTS ..................................................................................................................................22 9. TEST RESULT ...........................................................................................................................................................24 9.1. 6 dB BANDWIDTH / 99% BANDWIDTH MEASUREMENT ...............................................................................24 9.2. OUTPUT POWER ..........................................................................................................................................26 9.3. POWER SPECTRAL DENSITY .........................................................................................................................27 9.4. CONDUCTED BAND EDGE & SPURIOUS EMISSIONS .....................................................................................28 9.5. RADIATED SPURIOUS EMISSIONS ................................................................................................................30 9.6. RADIATED RESTRICTED BAND EDGES ...........................................................................................................36 10. LIST OF TEST EQUIPMENT.....................................................................................................................................37 APPENDIX A. TEST SETUP PHOTOS .............................................................................................................................38 APPENDIX B. PHOTOGRAPHS OF EUT .........................................................................................................................39 Report No.: HA201001-UEI-015-R05 4 / 41 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. GENERAL INFORMATION EUT DESCRIPTION Base Model R328451A99-00001 ZIGGO Series Model(s) R328451A97-00001 UPC (DAP SWISS) R328451A99-00002 UPC POLAND R3284…

Text truncated - open the document above for the full version.

RF TEST REPORT FCC APPLICANT Universal Electronics Inc MODEL NAME R328451A99-00001 FCC ID MG3-R328451 REPORT NUMBER HA201001-UEI-015-R06 Report No.: HA201001-UEI-015-R06 1 / 42 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TEST REPORT Date of Issue November 19, 2020 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Universal Electronics Inc Applicant Address 201 East Sandpointe Ave 7 th Floor, Santa Ana, CA 92707, U.S.A. FCC ID MG3-R328451 Model Name R328451A99-00001 EUT Type Universal TV Remote Modulation Type OQPSK FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 15.247 Test Procedure ANSI C63.10-2013, KDB 558074 D01 v05r02 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures required. The results of testing in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By James Choi Sunwoo Kim Test Engineer Technical Manager Report No.: HA201001-UEI-015-R06 2 / 42 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA201001-UEI-015-R06 11/19/2020 Initial Issue Report No.: HA201001-UEI-015-R06 3 / 42 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 4 2. METHODOLOGY ............................................................................................................................................... 6 3. INSTRUMENT CALIBRATION .............................................................................................................................. 6 4. FACILITIES AND ACCREDITATIONS ...................................................................................................................... 7 5. ANTENNA REQUIREMENTS ............................................................................................................................... 8 6. MEASUREMENT UNCERTAINTY ......................................................................................................................... 9 7. DESCRIPTION OF TESTS ................................................................................................................................... 10 8. SUMMARY OF TEST RESULTS ........................................................................................................................... 23 9. TEST RESULT ................................................................................................................................................... 25 9.1. 6 dB BANDWIDTH / 99% BANDWIDTH MEASUREMENT .......................................................................... 25 9.2. OUTPUT POWER .................................................................................................................................. 27 9.3. POWER SPECTRAL DENSITY ................................................................................................................... 28 9.4. CONDUCTED BAND EDGE & SPURIOUS EMISSIONS ................................................................................ 29 9.5. RADIATED SPURIOUS EMISSIONS .......................................................................................................... 31 9.6. RADIATED RESTRICTED BAND EDGES ..................................................................................................... 37 10. LIST OF TEST EQUIPMENT ............................................................................................................................. 38 APPENDIX A. TEST SETUP PHOTOS ...................................................................................................................... 39 APPENDIX B. PHOTOGRAPHS OF EUT .................................................................................................................. 40 Report No.: HA201001-UEI-015-R06 4 / 42 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. GENERAL INFORMATION EUT DESCRIPTION Base Model R328451A99-00001 ZIGGO Series Model(s) R328451A97-00001 UPC (DAP SWISS) R328451A99-00002 UPC POLAND R328451A99-00003 TELENET R328451A99-00004 VIRGIN MEDIA R328451A99-00005 T-MOBILE AUSTRIA EUT Type Universal TV Remote P…

Text truncated - open the document above for the full version.

SA R E X E M PT I O N E X H I B I T F C C APPLICANT Universal Electronics Inc MODEL NAME R328451A99-00001 FCC ID MG3-R328451 REPORT NUMBER HA201001-UEI-015-R07 Report No.: HA201001-UEI-015-R07 1 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 T E S T R E P O R T Date of Issue November 19, 2020 Test Site Hyundai C-Tech, Inc. dba HCT America, Inc. 1726 Ringwood Ave, San Jose, CA 95131, USA Applicant Universal Electronics Inc Applicant Address 201 East Sandpointe Ave 7 th Floor, Santa Ana, CA 92707, U.S.A. FCC ID MG3-R328451 Model Name R328451A99-00001 EUT Type Universal TV Remote FCC Classification Digital Transmission System (DTS) FCC Rule Part(s) Part 2 (§2.1091) Test Procedure KDB 447498 D01 v06 The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was in accordance with the procedures specified in §2.947. The results in this report apply only to the product which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech, Inc. dba HCT America, Inc. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 862 Tested By Reviewed By James Choi Sunwoo Kim Test Engineer Technical Manager Report No.: HA201001-UEI-015-R07 2 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 REVISION HISTORY The revision history for this document is shown in table. TEST REPORT NO. DATE DESCRIPTION HA201001-UEI-015-R07 11/19/2020 Initial Issue Report No.: HA201001-UEI-015-R07 3 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 TABLE OF CONTENTS 1. EUT DESCRIPTION ............................................................................................................................................ 4 2. INTRODUCTION ................................................................................................................................................ 5 2.1. LIMIT ..................................................................................................................................................... 5 3. RESULT ............................................................................................................................................................ 6 3.1. SUMMARY OF RESULTS .......................................................................................................................... 6 3.2. CONCLUSION ......................................................................................................................................... 6 Report No.: HA201001-UEI-015-R07 4 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 1. EUT DESCRIPTION Base Model R328451A99-00001 ZIGGO Series Model(s) R328451A97-00001 UPC (DAP SWISS) R328451A99-00002 UPC POLAND R328451A99-00003 TELENET R328451A99-00004 VIRGIN MEDIA R328451A99-00005 T-MOBILE AUSTRIA EUT Type Universal TV Remote Power Supply DC 3V (2 x AAA Alkaline Batteries) RF Specification Bluetooth V4.2 LE (1 Mbps) / ZigBee Frequency Range BLE 1M : 2402 MHz - 2480 MHz ZIGBEE : 2405 MHz – 2480 MHz Max. RF Output Power Max Peak Power (BLE 1M) : 6.267 dBm (4.234 mW) Max Peak Power (ZIGBEE) : 6.272 dBm (4.238 mW) Max tune up power is 7 dBm for both BLE and ZIGBEE Modulation Type GFSK (BLE) / OQPSK (ZigBee) Number of Channels 40 Channels (BLE) / 5 channels (ZigBee) Antenna Specification 2) Antenna Type : PCB trace Peak Gain : 3.57 dBi Transmitter Chain 1 Operating Environment Indoor only Operating Temperature 0 °C – 50 °C Note : 1. Antenna information is based on the document provided. Report No.: HA201001-UEI-015-R07 5 / 8 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA TEL: +1-510-933-8848 FAX: +1-510-933-8849 2. INTRODUCTION 2.1. LIMIT The RF exposure from potable device, as defined by FCC, must be evaluated with respect to FCC-adopted limits for SAR in accordance with 47 CFR §2.1091. If no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table, Appendix A, KDB 447498 D01 v06, ‘General RF Exposure Guidance’. MHz 5 10 15 20 25 30 35 40 45 50 mm 150 39 77 116 155 194 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 164 192 219 246 274 450 22 45 67 89 11…

Text truncated - open the document above for the full version.

APPENDIX A 1 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 APPENDIX A TEST SETUP PHOTOS Applicant Universal Electronics Inc Model Name R328451A99-00001 FCC ID MG3-R328451 APPENDIX A 2 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Radiated Emission Test Setup : Below 1 GHz 9 kHz – 30 MHz 30 MHz – 1 GHz APPENDIX A 3 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 Radiated Emission Test Setup : Above 1 GHz 1 GHz – 18 GHz 18 GHz -25 GHz APPENDIX A 4 / 4 This document may not be copied or reproduced (reprinted) without written consent by Hyundai C-Tech, Inc. dba HCT America, Inc. Hyundai C-Tech, Inc. dba HCT America, Inc., 1726 Ringwood Avenue, San Jose, CA 95131, USA. TEL: +1-510-933-8848 FAX: +1-510-933-8849 RF Conducted Test Setup RF Conducted Test
