MG3-R35602BDirecTV RC83V Remote Control 2022

DIRECTV® Universal Remote Control Quick Reference Guide RC83V remote works in IR and Bluetooth interface. The remote uses Bluetooth 2‐way communication to C71KW. Bluetooth eliminates the need for the remote and the paired devices to be in line of sight to each other. Voice Recognition is available in the RC83V Remote. Voice search will only work when the remote is paired to the C71KW. Pairing your remote to Set top Box To pair the DIRECTV remote control to the STB, perform the following steps: 1. Press and HOLD Rewind and Fast Forward at the same time for 3 second until the visible LED’s starts flashing. 2. Enter digits 961 follow by CH up key. 3. Using the number keys enter the last six digits of the RID number located behind the STB. 4. Press and release ENTER key (the green light flashes twice). Clearing Pairing Press and hold Dash and APPS at the same time for 3 seconds until the LED’s flash. The RCU will unpair from the STB. RESTORING FACTORY DEFAULT SETTINGS To reset all the functions of the remote control to the factory default settings following these steps: 1. Press and hold MUTE and Exit at the same time until the RED LED turns ON. 2. Using the number keys, enter 9‐8‐1. (The feedback flashes 4 times). COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. SETUP CODES FOR TV’s To reset all the functions of the remote control to the factory default settings following these steps AOC 1365, 2402 Apex Digital 2397 Audiovox 1564 Aventura 0171 Coby 2306, 2314, 2315, 2344, 2348, 3478 Commercial Solutions 1447 Curtis 2397 Durabrand 0178, 0171 Dynex 2049 Element 1886 Emerson 1394, 1886, 0178, 0171 Envision 1365 ESA 0171 Funai 0171 GE 1447, 0178 GFM 1886, 0171 GoldStar 0178 Haier 2293 Hallmark 0178 Hitachi 1643 iLo 1394 Insignia 2049, 1423, 1564, 0171, 1517, 2751 LG 1423, 1447, 0178 LXI 0156, 0178 Magnavox 1867, 1454, 2372, 0171, 1365 Marantz 1454 Matsushita 0250 Megatron 0178 Memorex 0178, 0150 MGA 0178, 0150 Mitsubishi 1250, 0178, 0150, 1797 NAD 0156, 0178 NEC 1797 Nikko 0178 Norcent 1365 Optimus 0250 Panasonic 1480, 0250, 1291 Penney 0156, 0178 Philco 1394, 0171 Philips 1867, 1454, 2372, 1394, 0171, 0690 Pioneer 1457 Proscan 1447 Proton 0178 Quasar 0250, 1291 RadioShack 0178 RCA 1447, 2434, 2746 Realistic 0178 Samsung 2051, 0178 Sansui 0171 Sanyo 1142 Scotch 0178 Scott 0178 Sears 0156, 0178, 0171 Seiki 0178 Sharp 0818, 2402 Sony 0810 Soundesign 0178 Squareview 0171 Sylvania 1394, 1886, 0171 Symphonic 1394, 0171 TCL 2434 Technics 0250 Teknika 0150 TMK 0178 Toshiba 1524, 0156 Vidtech 0178 Viewsonic 2049, 1564, 0885, 1365 Vizio 1758, 2757, 0885 Wards 0156, 0178 Waycon 0156 Westinghouse 0885, 2195, 2293, 2499 Wyse 1365 Zenith 1423, 0178, 1365

201 East Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel: 714 918-9701 November 14, 2022 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Gentlemen: This is a letter of authorization to accept that any personnel of Compatible Electronics, Inc. as an Agent for Universal Electronics, 201 East Sandpointe Ave, 7 th Floor, Santa Ana CA 92707, for a period of one year, to sign applications before the certification body on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the certification body in connection with certification of the following Universal Electronics products: Name of Product: Product name: DirecTV RC83V Remote Control 2022 Remote Part Number: R35602BB00-00001 Model: RC83V FCC ID: MG3-R35602B Under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of the FCC Rules and Regulations. Please also accept this letter as an attestation that neither Universal Electronics nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non- voting, have been denied federal benefits under section 5301 of the Anti-Drug Abuse act of 1988, 21 U.S.C. 853(a). In addition, Universal Electronics will notify the Federal Communications Commission if, at any time, the situation changes causing Universal Electronics to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 714 918-9701 Sincerely, Jesse Mendez Staff Engineer, Electrical

201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701, Fax 714 918-4100 November 14, 2022 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, Universal Electronics Inc, would like to declare that the application being submitted for the device with FCC ID: MG3-R35602B has not been submitted to another TCB or FCC for certification. If you have any questions, please do not hesitate to contact us at 714 918-9701. Sincerely, Jesse Mendez Staff Engineer, Electrical

201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701, Fax 714 918-4100 November 14, 2022 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, Universal Electronics Inc., would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at 714 918-9701 Sincerely, Jesse Mendez Staff Engineer, Electrical Note: Normally schematics, detailed block diagrams, and detailed theories of operation are the only information held confidential. Internal photographs are only held confidential in certain circumstances where the access to the information isn’t available to the end user. Test reports, cover letters, external photos, ID labels, setup photos, attestation statements, and RF exposure reports will not be held confidential.

New_job (Visible layers) Scale=1.55 Wed Nov 30 11:51:20 2022

Inside View #1 Inside View #2 Top View of the PCB - View #1 Top View of the PCB - View #2 Top View of the PCB - Closeup #1 Top View of the PCB - Closeup #2 Top View of the PCB - Closeup #3 Top View of the PCB - Closeup #4 Top View of the PCB - Closeup #5 Bottom View of the PCB - View #1 Bottom View of the PCB - View #2 Bottom View of the PCB - Closeup #1 Bottom View of the PCB - Closeup #2 Bottom View of the PCB - Closeup #3 Bottom View of the PCB - Closeup #4

Compatible Electronics, Inc.https://celectronics.com 114 Olinda Drive Brea, CA 92823 This device FCC ID: Prepared By: Date: The maximum power that the transmitter is capable of is 5.08 mW Applied duty cycle? no Using the following formula from section 4.3.1 of KDB 447498 at test separation distances ≤ 50 mm [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [ √ f(GHz)] Duty Cycle 50.00% Value 1-g (mW) 10-g (mW) 1.60 (355) -212 "Value" shall be ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR 1-g power limit 10-g power limit 95 238 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An example of this is the determination of exposure from a device that uses digital technology such as a time-division multiple-access (TDMA) scheme for transmission of a MG3-R35602B Max Peak Power (dBm) Min Separation distance (mm) * Frequency (Ghz) < 50mm power limits for above frequency and distance When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.48 5 7.06 Kyle FujimotoDecember 5, 2022 SAREXJUST-B-0-43 D 02/27/2020

ANTENNA GAIN FOR FCC ID: MG3-R35602B The antenna gain is -1.753 dBi. This is based on the largest field strength to conducted power output differential. The procedure in section 8.1.2 of the test report B21024D1 was used to find the field strength and the procedure in section 8.3 of the test report B21024D1 was used to find the conducted power output. The highest differential was for the low channel which had a conducted output power of 6.633 dBm and a peak field strength of 100.08 dBuV/m at 3 meters. Expected field strength with a 0 dBi antenna = 6.633 dBm + 95.2 = 101.833 dBuV/m Antenna gain = 100.08 dBuV/m (theoretical assuming 0 dBi gain) – 101.833 dBuV/m (measured) = - 1.753 dBi

Report Number: B21024D1 FCC Part 15 Subpart B and C; and FCC Section 15.247 Test Report DirecTV RC83V Remote Control 2022 Model: RC83V Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 1 of 22 FCC PART 15, SUBPART B and C; and FCC SECTION 15.247 TEST REPORT for DIRECTV RC83V REMOTE CONTROL 2022 Model: RC83V Prepared for UNIVERSAL ELECTRONICS, INC. 201 EAST SANDPOINTE AVENUE, 7TH FLOOR SANTA ANA, CALIFORNIA 92707 Prepared by: _____________________ KYLE FUJIMOTO Approved by: ____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: NOVEMBER 1, 2022 REPORT APPENDICES TOTAL BODY A B C D E PAGES 22 2 2 2 13 63 104 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B21024D1 FCC Part 15 Subpart B and C; and FCC Section 15.247 Test Report DirecTV RC83V Remote Control 2022 Model: RC83V Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 2 of 22 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 1.1 Decision rule & risk 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1EUT and Accessory List 10 5.2 Emissions Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Measurement Uncertainty 12 7. CHARACTERISTICS OF THE TRANSMITTER 13 7.1 Channel Number and Frequencies 13 7.2 Antenna 13 8. TEST PROCEDURES 14 8.1 RF Emissions 14 8.1.1 Conducted Emissions Test 14 8.1.2 Radiated Emissions Test 15 8.1.3 RF Emissions Test Results 16 8.1.4 Sample Calculations 17 8.2 DTS Bandwidth 18 8.3 Maximum Peak Conducted Output Power 18 8.4 Emissions in Non-restricted Frequency Bands 19 8.5 RF Band Edges 19 8.6 Spectral Density Test 20 8.7 Duty Cycle Calculation 21 8.8 Variation of the Input Power 21 9. CONCLUSIONS 22  Report Number: B21024D1 FCC Part 15 Subpart B and C; and FCC Section 15.247 Test Report DirecTV RC83V Remote Control 2022 Model: RC83V Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 3 of 22 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Models Covered Under This Report D Diagrams and Charts xTest Setup Diagrams xAntenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURETITLE 1 Conducted Emissions Test Setup 2 Layout of the Semi-Anechoic Test Chamber LIST OF TABLES TABLETITLE 1 Radiated Emission Results Report Number: B21024D1 FCC Part 15 Subpart B and C; and FCC Section 15.247 Test Report DirecTV RC83V Remote Control 2022 Model: RC83V Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 4 of 22 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used by the client to claim product certification, approval or endorsement by NVLAP, NIST or any agency of the U.S. Government. Device Tested: DirecTV RC83V Remote Control 2022 Model: RC83V P/N: R35602BB00-00001 Product Description: The equipment is a remote control used to control DirecTV set top boxes. Dimensions: 2.7 cm (H) x 7 cm (W) x 7 cm (L) Clock(s): 32.768 kHz, 32 MHz, and 40 MHz Modifications: The EUT was not modified in order to meet the specifications. Customer: Universal Electronics, Inc. 201 East Sandpointe Avenue, 7th Floor Santa Ana, California 92707 Test Dates: October 10, 11, 24, and 25, 2022 Test Specification covered by accreditation: Test Specifications : Emissions requirements CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.247 Test Procedures: ANSI C63.4 and ANSI C63.10 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B21024D1 FCC Part 15 Subpart B and C; and FCC Section 15.247 Test Report DirecTV RC83V Remote Control 2022 Model: RC83V Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Newbury Park Division 1050 Lawrence Drive Newbury Park, CA 91320 (805) 480-4044 Page 5 of 22 SUMMARY OF TEST RESULTS TEST DESCRIPTIONRESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on battery power only. 2 Radiated RF Emissions, 9 kHz – 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and the limits of CFR Title 47, Part 15 Subpart C, 15.205, 15.209 and 15.247 (d) See sectio…

Text truncated - open the document above for the full version.

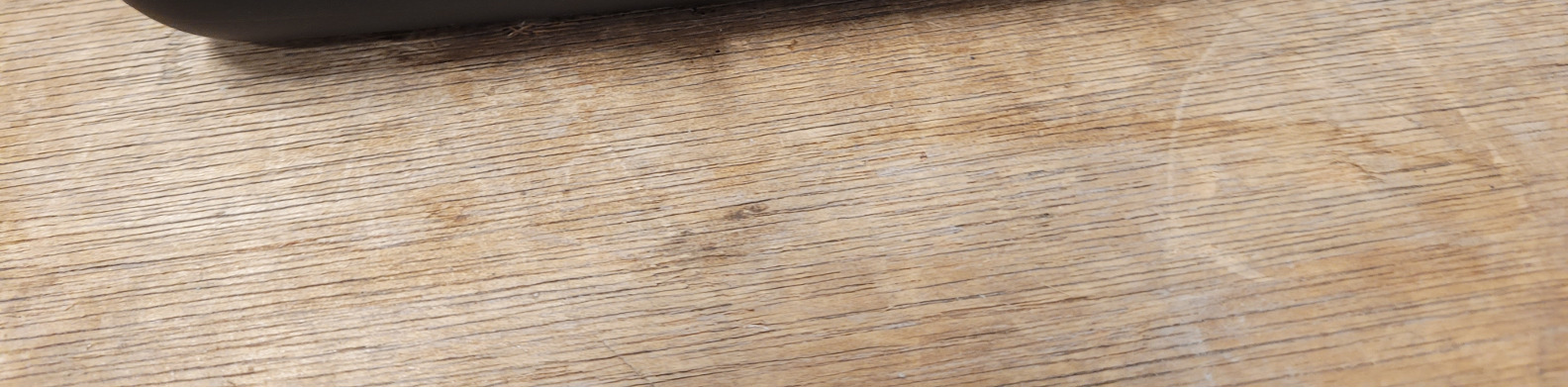

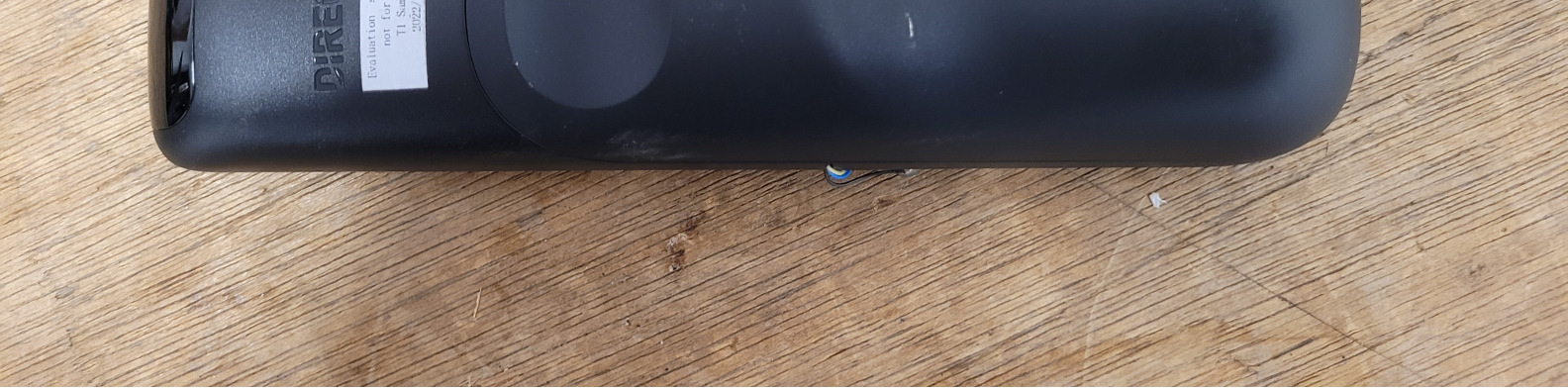

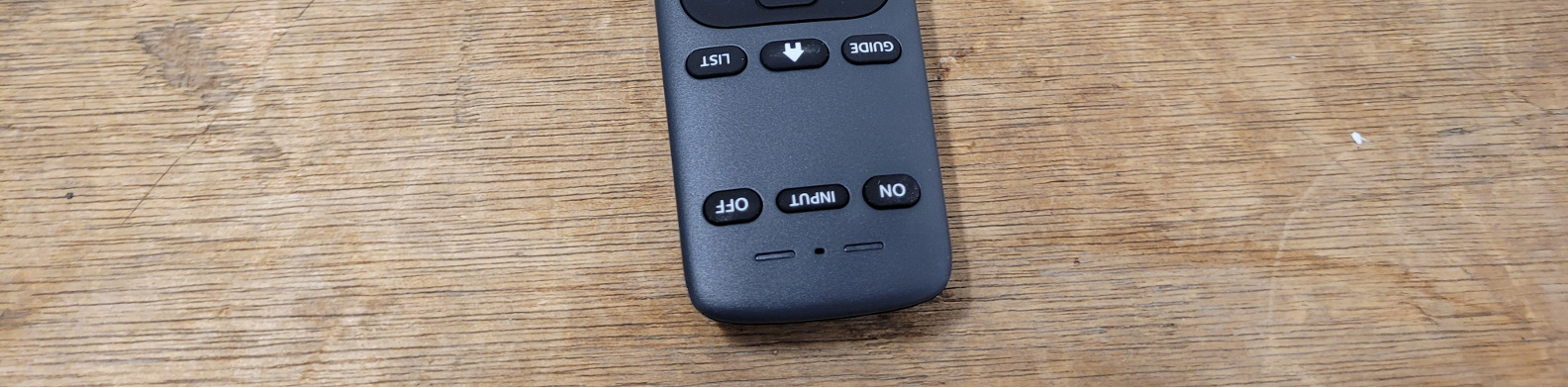

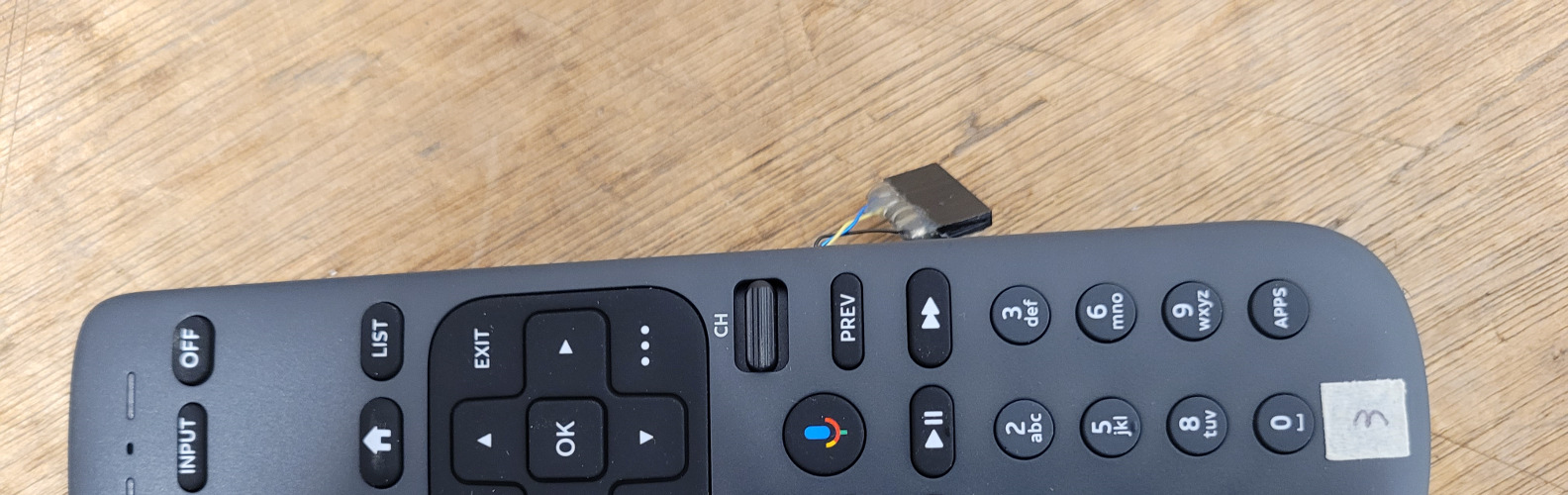

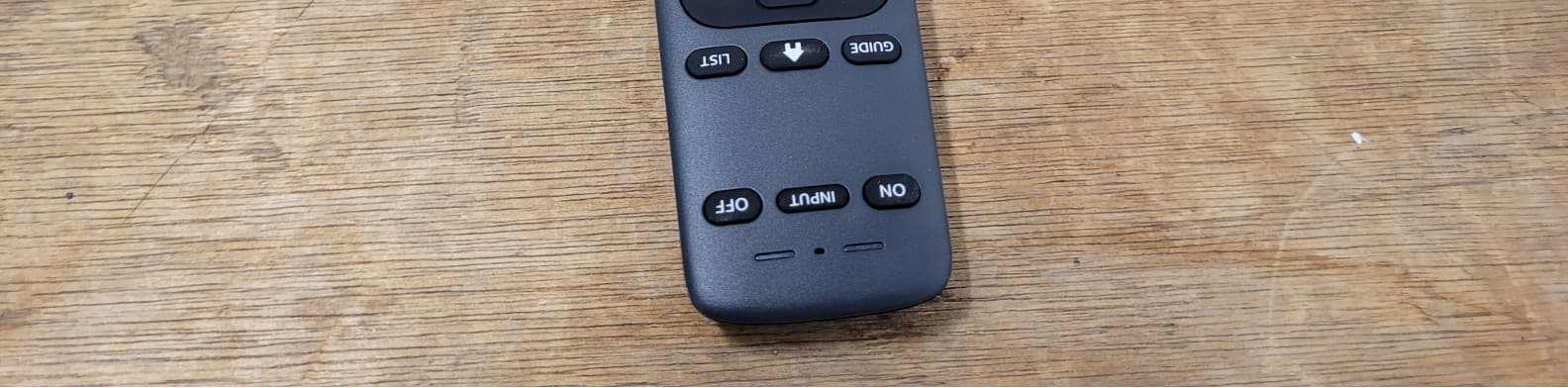

FRONT VIEW UNIVERSAL ELECTRONICS, INC. DIRECTV RC83V REMOTE CONTROL 2022 MODEL: RC83V FCC SUBPART B AND C – RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW UNIVERSAL ELECTRONICS, INC. DIRECTV RC83V REMOTE CONTROL 2022 MODEL: RC83V FCC SUBPART B AND C – RADIATED EMISSIONS – BELOW 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FRONT VIEW UNIVERSAL ELECTRONICS, INC. DIRECTV RC83V REMOTE CONTROL 2022 MODEL: RC83V FCC SUBPART B AND C – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS REAR VIEW UNIVERSAL ELECTRONICS, INC. DIRECTV RC83V REMOTE CONTROL 2022 MODEL: RC83V FCC SUBPART B AND C – RADIATED EMISSIONS – ABOVE 1 GHz PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS
