MG3-TX621UVoice Remote Control

Sony Voice Remote Control RMF-TX621E, RMF-TX621U, RMF-TX621B, RMF-TX621P, RMF-TX621T Quick Reference Guide CONTROLLING YOUR TV (English) 1. Press Power key to turn on the TV. 2. Press and hold [VOL(-)] key and [Google Assistant ] key for 2 seconds initiate pairing with TV. 3. All paring transaction is behind the scene and no setup is required. Control del televisor (Spanish) 1. Pulse la tecla de encendido para encender el televisor . 2. Mantenga presionado [VOL(-)] y la tecla [Google Assistant ] durante 2 segundos iniciar el emparejamiento con TV. 3. Todas las transacciones de pelado está detrás de la escena y no se requiere ninguna configuración. Controlando a sua TV (Portuguese) 1. Pressione a tecla de alimentação para ligar a TV. 2. Pressione e segure [VOL (-) ] e chave [Google Assistant ] durante 2 segundos iniciar o emparelhamento com TV. 3. Todas as transações apara está por trás da cena e nenhuma configuração é necessária. Caution Please read these safety instructions to ensure our personal safety and prevent property damage Warning - Do not put remote in a fire - Do not disassemble the remote control - Disposal of the remote control A warning that batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Important Safety Instruction 1. Read these instruction 2. Keep these instruction 3. Head all warning 4. Follow all instructions 5. Do not use this apparatus near water 6. Clean only with dry cloth 7. Do not install near any heat source such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 8. Only use attachment/accessories specified by manufacture 9. Refer all servicing to qualified service personnel. Service is required when apparatus has been damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, dose not operate normally, or has been dropped. Specification Operating Temperature: -10 degree - 40 degree Battery Type: 2 AAA batteries COMPLIANCE WITH FCC RULES AND REGULATIONS 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase or decrease the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced remote control/ TV technician for help. This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. Warning Statement: Europe-EU Declaration of Conformity and Restrictions Hereby, SONY declares that this Voice Remote Control is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This equipment is marked with the symbol and can be used throughout the European community. This indicates compliance with the RE Directive 2014/53/EU and meets the relevant parts of following technical specifications: EN300328 v2.2.2: 2019 EN301489-1 v2.2.3: 2019 / -17 v3.2.2: 2019 (draft) EN60065: 2014+A11:2017 / EN62368-1:2014+A11:2017 EN62479: 2010 / EN50663: 2017 EN55032: 2015+AC: 2016; EN55035: 2017/AC: 2019 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE Product Specification： Software: X1 Frequency: 2402 to 2480 MHz Maximum power: 5.92dBm Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.…

Text truncated - open the document above for the full version.

RF_160, Issue 04 201 E. Sandpointe Ave, 7 th Floor, Santa Ana, CA 92707, Tel 714 918-9701, Fax 714 918-4100 Declaration of Authorization We Name: Universal Electronics Inc. Address: 201 East Sandpointe Ave 7th Floor Santa Ana CA 92707 USA City: Santa Ana Country: United States Declare that: Name Representative of agent: Jim Chang Agent Company name: SGS Taiwan Ltd. Address: No.134, Wu Kung Road, New Taipei Industrial Park, Wuku District, City: New Taipei City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Voice Remote Control Type designation: RMF-TX621U, RMF-TX621B Trademark: Sony on our behalf. Date: Oct. 9, 2020 City: Santa Ana Name: Jesse Mendez Function: Staff Engineer Electrical Signature:

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: Universal Electronics Inc. Address : 201 East Sandpointe Ave 7th Floor Santa Ana CA 92707 USA City: Santa Ana Country: USA To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: MG3-TX621U Reference number: Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. Planned Release Date STC: 180 days (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: Oct. 9, 2020 Name and signature of applicant: Jesse Mendez Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

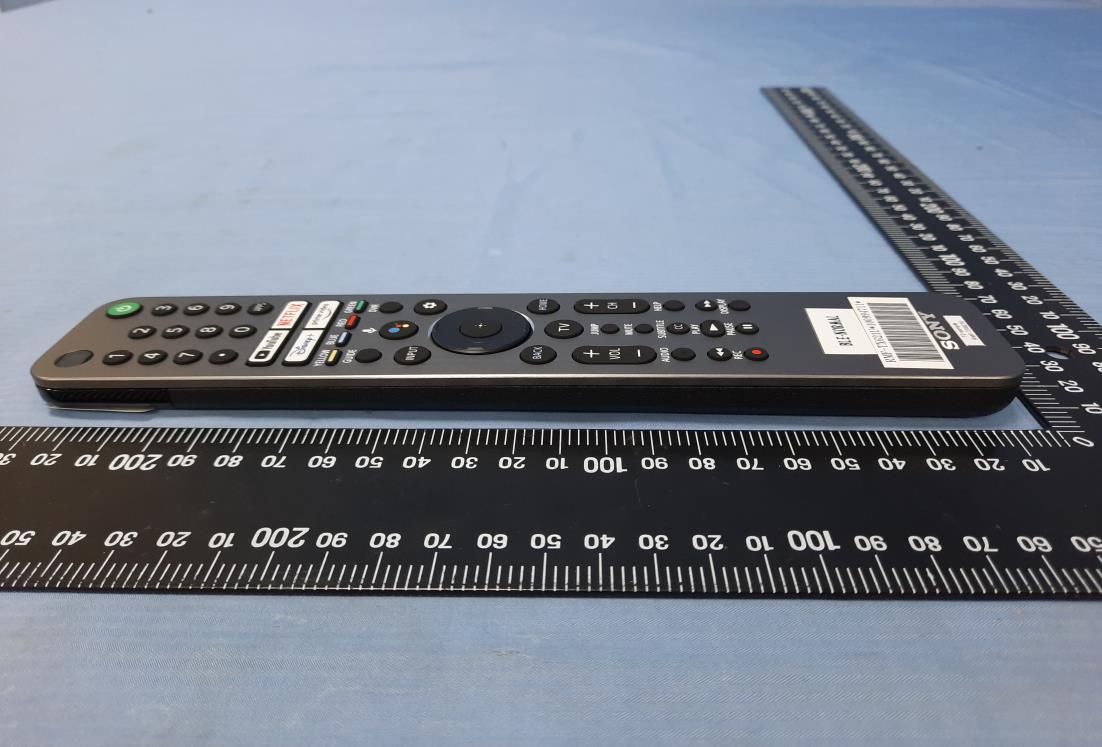

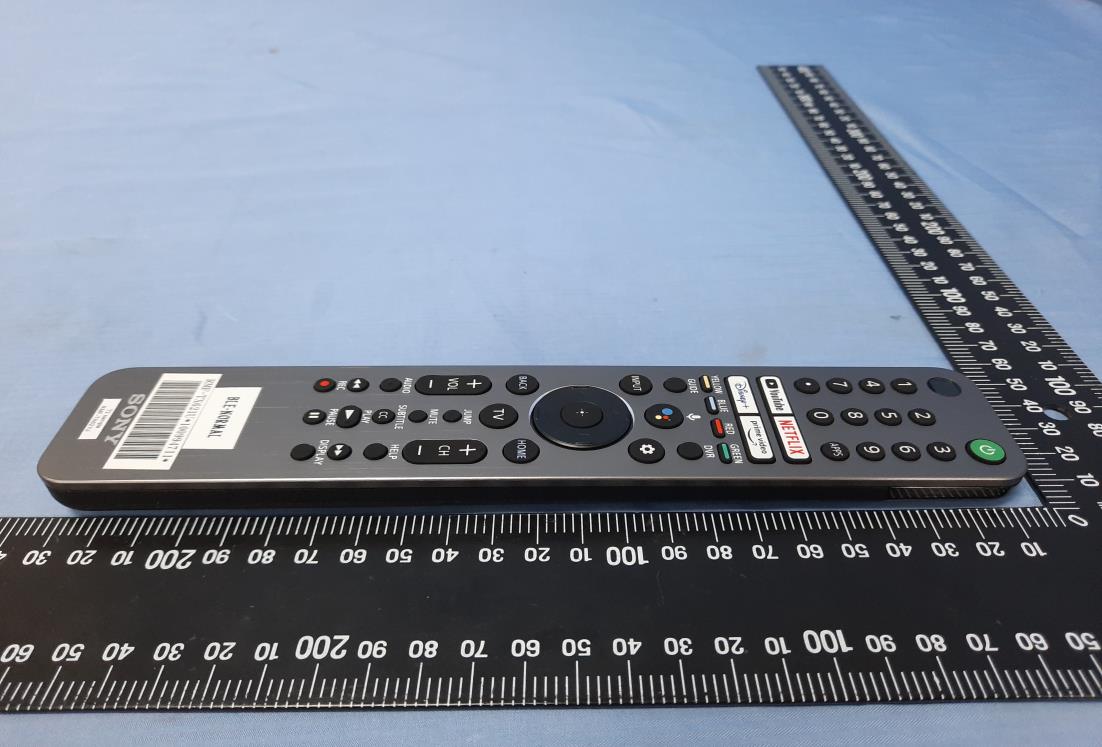

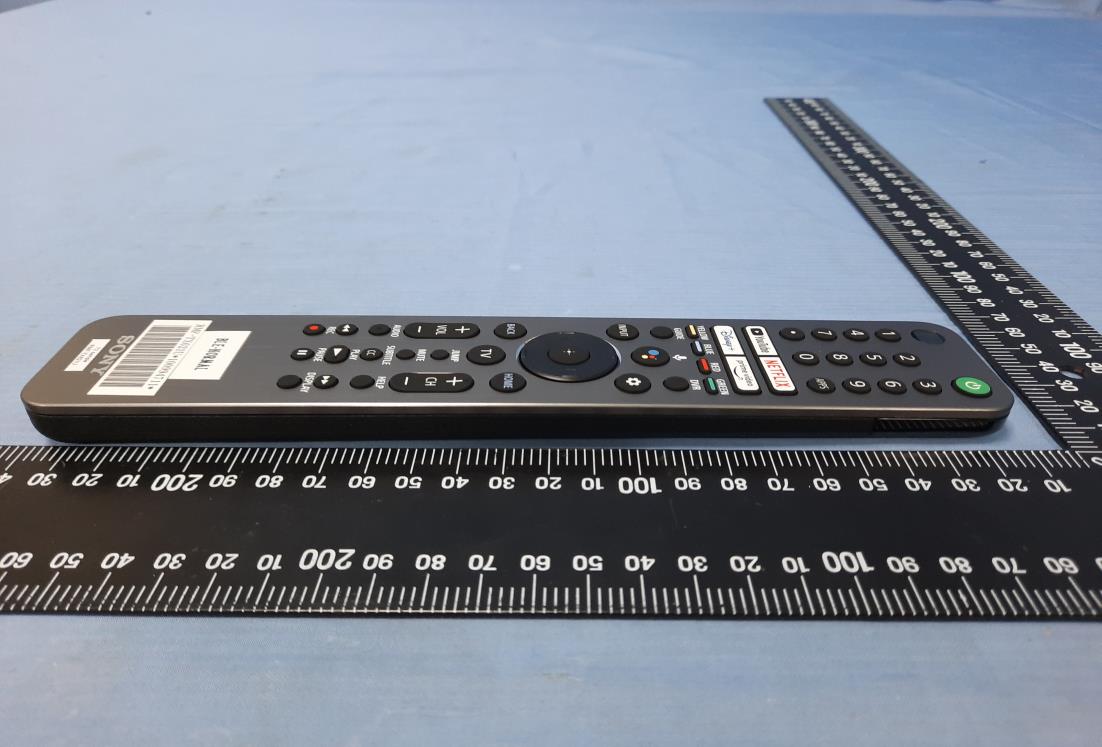

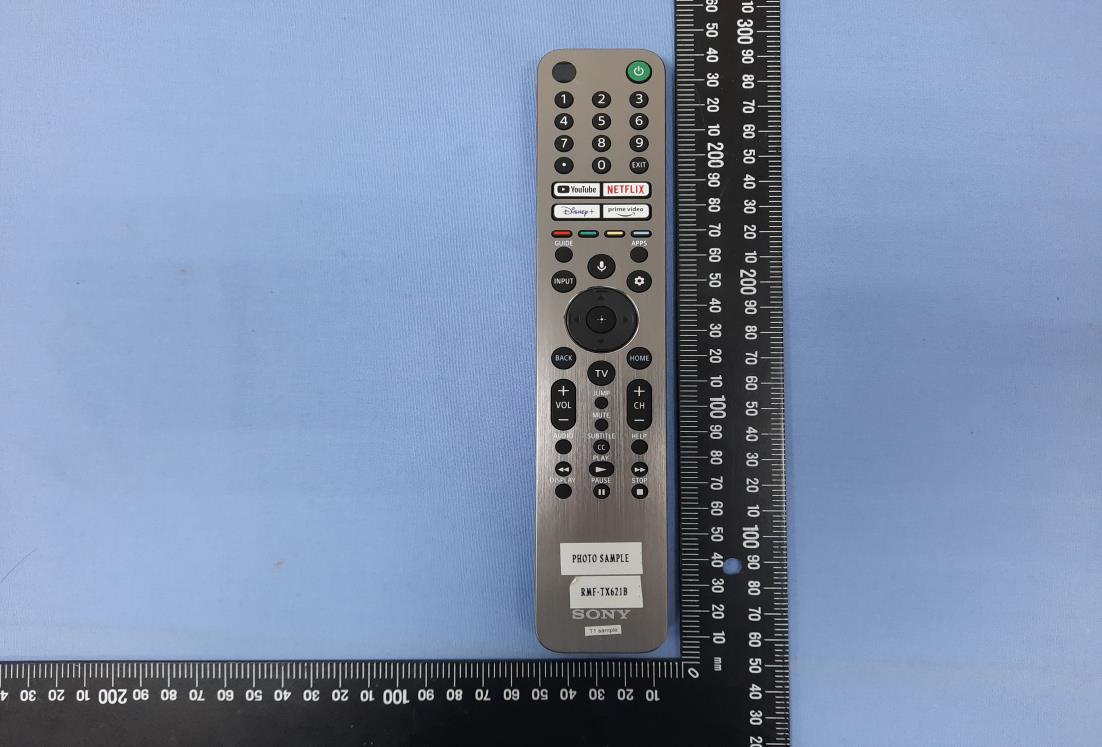

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 1 / 12 Report No.: T200909W02-3 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Model: RMF-TX621U This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 12 Report No.: T200909W02-3 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 12 Report No.: T200909W02-3 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 12 Report No.: T200909W02-3 Rev.: 00 Model: RMF-TX621B This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 5 / 12 Report No.: T200909W02-3 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 6 / 12 Report No.: T200909W02-3 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 7 / 12 Report No.: T200909W02-3 Rev.: 00

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 8 / 12 Report No.: T200909W02-3 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 9 / 12 Report No.: T200909W02-3 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 10 / 12 Report No.: T200909W02-3 Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 11 / 12 Report No.: T200909W02-3 Rev.: 00 Module RF IC This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 12 / 12 Report No.: T200909W02-3 Rev.: 00 Crystal Antenna

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 FCC ID: MG3-TX621U Page: 1 / 1 Report No.: T200909W02-MF Rev.: 00 FCC ID: MG3-TX621U According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The tune-up power is 7.50 dBm +/- 0dB, therefore the highest tune-up power is 7.50 dBm(5.62 mW)@ 2442 MHz When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. So, (5.62mW / 5mm)* (2.442GHz^0.5 )= 1.8 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 1.8 < 3.0 Therefore, standalone SAR measurements are not required for both head and body. Note: 1. The tune up power referred the AVG power of the test report T200909W02-RP for SAR test exclusion purpose.

FCC ID: MG3-TX621U Page: 1 / 42 Report No.: T200909W02-RP1 Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name Voice Remote Control Brand Name Sony Model No. RMF-TX621U, RMF-TX621B Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc. (Wugu Laboratory) Approved by: Kevin Tsai Deputy Manager This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 42 Report No.: T200909W02-RP1 Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 20, 2020 Initial Issue ALL Allison Chen 01 October 27, 2020 See the following note Rev.(01) P.A-1 Allison Chen Rev.(01) 1. Modify test setup photo above 1GHz. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 42 Report No.: T200909W02-RP1 Rev.: 01 Table of contents 1. GENERAL INFORMATION ........................................................................................ 4 1.1 EUT INFORMATION .................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ................................................................................ 5 1.3 ANTENNA INFORMATION ........................................................................................ 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................. 6 1.5 FACILITIES AND TEST LOCATION .......................................................................... 7 1.6 INSTRUMENT CALIBRATION ................................................................................... 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................. 8 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ............................................. 8 2. TEST SUMMARY ....................................................................................................... 9 3. DESCRIPTION OF TEST MODES............................................................................ 10 3.1 THE WORST MODE OF OPERATING CONDITION ................................................ 10 3.2 THE WORST MODE OF MEASUREMENT .............................................................. 11 3.3 EUT DUTY CYCLE ................................................................................................... 12 4. TEST RESULT ......................................................................................................... 13 4.1 AC POWER LINE CONDUCTED EMISSION ........................................................... 13 4.2 6DB BANDWIDTH AND OCCUPIED BANDWIDTH (99%) ...................................... 14 4.3 OUTPUT POWER MEASUREMENT ........................................................................ 18 4.4 POWER SPECTRAL DENSITY ................................................................................ 20 4.5 CONDUCTED BAND EDGE AND SPURIOUS EMISSION ...................................... 23 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION .......................................... 27 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 42 Report No.: T200909W02-RP1 Rev.: 01 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant Universal Electronics Inc. 201 East Sandpointe Ave 7th Floor Santa Ana CA 92707 USA Manufacturer Gemstar Technology (Qinzhou) Co., Ltd Hedong Industrial District, Qinzhou, Guangxi Zhuang Autonomous Region, P.R. China Equipment Voice Remote Control Model No. RMF-TX621U, RMF-TX621B Model Discrepancy 1. Client consigns only one sample to test (model RMF-TX621U). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. Difference of the model numbers (list on thi…

Text truncated - open the document above for the full version.

FCC ID: MG3-TX621U Page: 1 / 42 Report No.: T200909W02-RP2 Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART C Test Standard FCC Part 15.247 Product name Voice Remote Control Brand Name Sony Model No. RMF-TX621U, RMF-TX621B Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.(Wugu Laboratory) Approved by: Kevin Tsai Deputy Manager This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 42 Report No.: T200909W02-RP2 Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 20, 2020 Initial Issue ALL Allison Chen 01 October 27, 2020 See the following note Rev.(01) P.A-1 Allison Chen Rev.(01) 1. Modify test setup photo above 1GHz. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 42 Report No.: T200909W02-RP2 Rev.: 01 Table of contents 1. GENERAL INFORMATION ........................................................................................ 4 1.1 EUT INFORMATION .................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ................................................................................ 5 1.3 ANTENNA INFORMATION ........................................................................................ 5 1.4 MEASUREMENT UNCERTAINTY .............................................................................. 6 1.5 FACILITIES AND TEST LOCATION .......................................................................... 7 1.6 INSTRUMENT CALIBRATION ................................................................................... 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ................................................. 8 1.9 TABLE OF ACCREDITATIONS AND LISTINGS ....................................................... 8 2. TEST SUMMERY ....................................................................................................... 9 3. DESCRIPTION OF TEST MODES............................................................................ 10 3.1 THE WORST MODE OF OPERATING CONDITION ................................................ 10 3.2 THE WORST MODE OF MEASUREMENT .............................................................. 11 3.3 EUT DUTY CYCLE ................................................................................................... 12 4. TEST RESULT ......................................................................................................... 13 4.1 AC POWER LINE CONDUCTED EMISSION ........................................................... 13 4.2 6dB BANDWIDTH AND OCCUPIED BANDWIDTH(99%) ........................................ 14 4.3 OUTPUT POWER MEASUREMENT ........................................................................ 18 4.4 POWER SPECTRAL DENSITY ................................................................................ 20 4.5 CONDUCTED BANDEDGE AND SPURIOUS EMISSION........................................ 23 4.6 RADIATION BANDEDGE AND SPURIOUS EMISSION .......................................... 27 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 42 Report No.: T200909W02-RP2 Rev.: 01 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant Universal Electronics Inc. 201 East Sandpointe Ave 7th Floor Santa Ana CA 92707 USA Manufacturer Gemstar Technology (Qinzhou) Co., Ltd Hedong Industrial District, Qinzhou, Guangxi Zhuang Autonomous Region, P.R. China Equipment Voice Remote Control Model No. RMF-TX621U, RMF-TX621B Model Discrepancy 1. Client consigns only one sample to test (model RMF-TX621U). Therefore, the testing Lab. just guarantees the unit, which has been tested. 2. Difference of the model numbers (lis…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-1 / A-2 Report No.: T200909W02-RP1 Rev.: 01 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-2 / A-2 Report No.: T200909W02-RP1 Rev.: 01 Conducted Emission Set up Photo

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-1 / A-2 Report No.: T200909W02-RP2 Rev.: 01 APPENDIX-A Test Photo Radiation (Below 1GHz) Radiation (Above 1GHz) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: A-2 / A-2 Report No.: T200909W02-RP2 Rev.: 01 Conducted Emission Set Up Photo
