JPN Sony Othello NFC Remote 2013 Sony Remote Control Quick Reference Guide CONTROLLING YOUR TV 1. Press Power key to turn on the TV. 2. Press any key other than power key and color key to initiate pairing with TV. 3. All paring transaction is behind the scene and no setup is required. Color key 1. Press Color key to access RED, Green, Yellow and Blue function 2. Feedback LED stays on 10seconds while color key function is activated 3. Press appropriate key while LED is on COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Increase or decrease the separation between the equipment and receiver.  Consult the dealer or an experienced remote control/ TV technician for help. This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Sony Corporation of America 550 Madison Avenue New York, NY 10022 1‐212‐833‐8800

Block diagram of the JPN Sony Othello NFC Remote 2013 24.00 MHz Crystal Infrared (IR) transmitter Micro-controller ARM Cortex M3 32 Bit SoC System on Chip Keypad input (4 x 4) 2402-2480MHz Bluetooth Transceiver 2 x AAA (batteries) PCB trace Meandered F antenna Visible LED Low voltage detection NFC PCB with loop antenna (Felica Plug) EEPROM (256Kb)

Universal Electronics Universal Electronics

TRaC Global Test Report: TRA-009758-W-US-1 66 Photograph 2

Radio Test Report for Universal Electronics on JPN Sony Othello NFC Remote 2013 Document No: TRA-009758-W-US-1 Total number of pages: 67 TRaC Wireless Test Report : TRA-009758-W-US-1 Applicant : Universal Electronics Apparatus : JPN Sony Othello NFC Remote 2013 Specification(s) : CFR47 Part 15.247 FCCID : MG3-YD001 Purpose of Test : Certification Authorised by : (Radio Products Manager) Issue Date :21 st September 2012 Authorised Copy Number : PDF TRaC Global Test Report: TRA-009758-W-US-1 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 5 1.5 Test Result Summary 6 1.6 Notes relating to the assessment 7 1.7 Deviations from Test Standards 7 Section 2: Measurement Uncertainty 8 2.1 Measurement Uncertainty Values 8 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Appendix A: Formal Emission Test Results 11 A1 Transmitter Peak Output Power 12 A2 Conducted Spurious Emissions 13 A3 Radiated Emissions 15 A4 20dB Bandwidth and Channel Separation 20 A5 Hopping frequencies 21 A6 Channel Occupancy 22 A7 Antenna Gain 23 A8 Unintentional Radiated Emissions 24 A9 Unintentional Radiated Emissions 25 Appendix B: Supporting Graphical Data 26 Appendix C: Additional Test and Sample Details 56 C1 Test samples 57 C2 EUT operating mode during testing 58 C3 EUT Configuration Information 59 C4 List of EUT Ports 60 C5 Details of Equipment Used 61 Appendix D: Additional Information 62 Appendix E: Calculation of the duty cycle correction factor 63 Appendix F: Photographs and Figures 64 3 TRaC Global Test Report: TRA-009758-W-US-1 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: Daniel Winstanley, Sandeep Bharat Author(s): Daniel Winstanley, S Hodgkinson This report must not be reproduced except in full without prior written permission from TRaC Global Ltd. 4 TRaC Global Test Report: TRA-009758-W-US-1 1.2 Tests Requested By All testing in this report was requested by: Universal Electronics 201 E. Sandpointe Ave 8th Floor Santa Ana CA 92707 USA 1.3 Manufacturer Same as above 1.4 Apparatus Assessed The followin g products were assessed between 28 th August and 5 th September 2012 JPN Sony Othello NFC Remote 2013 The above equipment is a FHSS transmitter operating in the 2400 MHz to 2483.5 MHz band. 5 TRaC Global Test Report: TRA-009758-W-US-1 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10:2009 Pass Conducted spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10:2009 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10:2009 N/A Note 1 20dB Bandwidth and Channel Spacing Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart (c) 15.247(b)(2) ANSI C63.10:2009 Pass Hopping Frequencies Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1) ANSI C63.10:2009 Pass Channel Occupancy Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10:2009 Pass Note 1: The JPN Sony Othello NFC Remote 2013 is a battery power device. Abbreviations used in the above table: ANSI C 63.10:2009 is outside the scope of the laboratories UKAS accreditation. Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 6 TRaC Global Test Report: TRA-009758-W-US-1 1.6 Notes relating to the assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature : 20 to 23 C Humidity : 45 to 75 % All dates used in this report are in the format dd/mm/yy. This assessment has been performed in accordance with the requirements of ISO/IEC 17025. 1.7 Deviations from Test Standards…

Text truncated - open the document above for the full version.

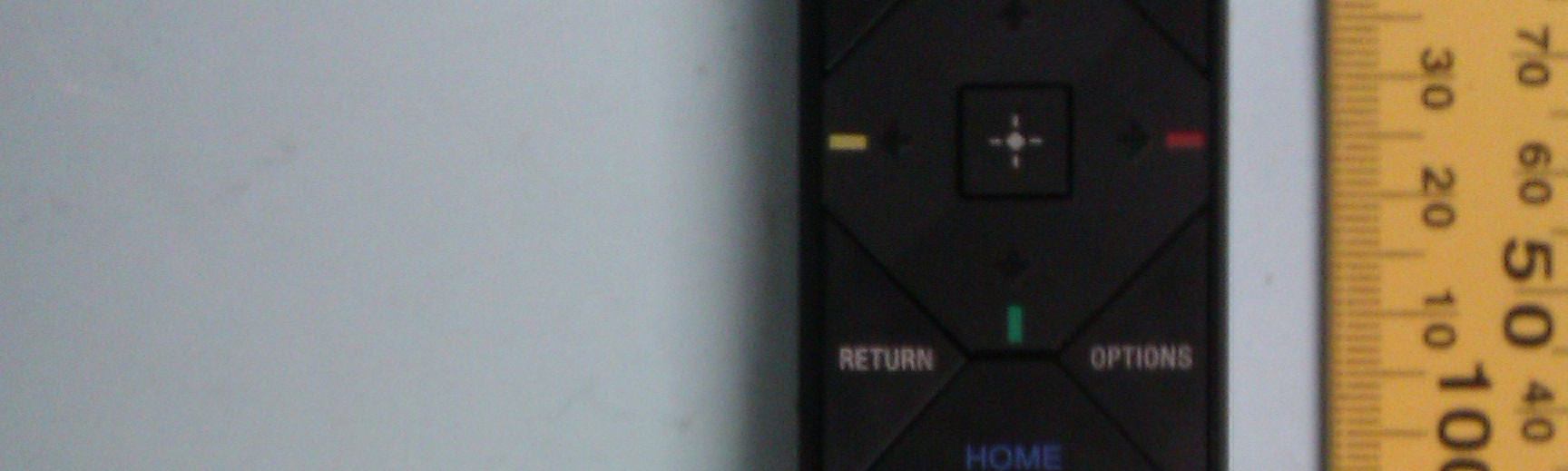

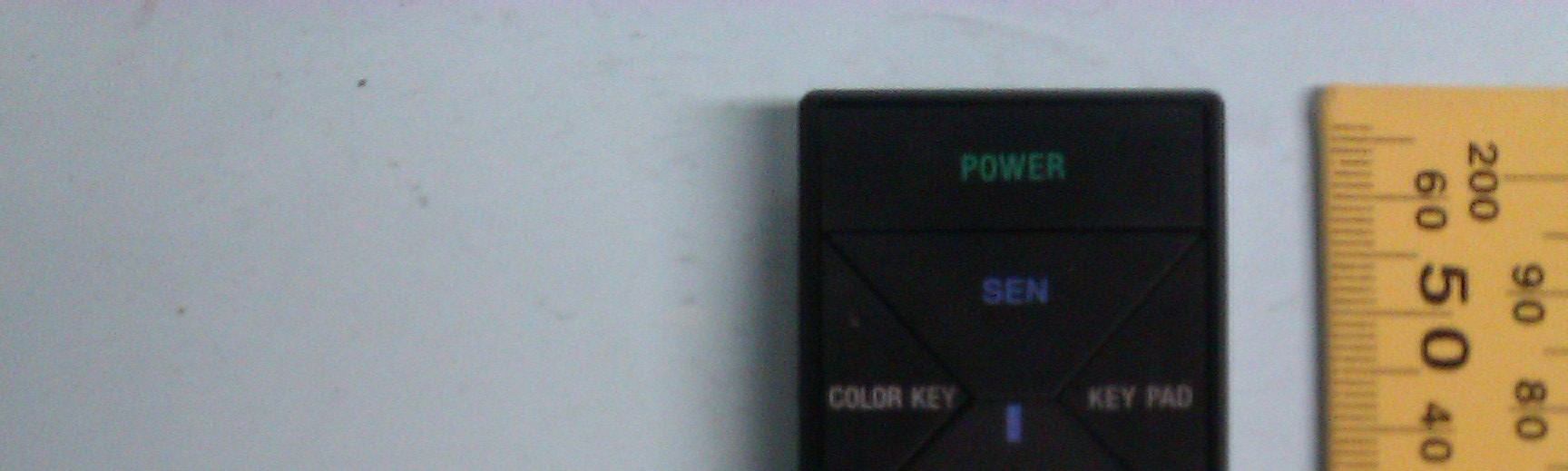

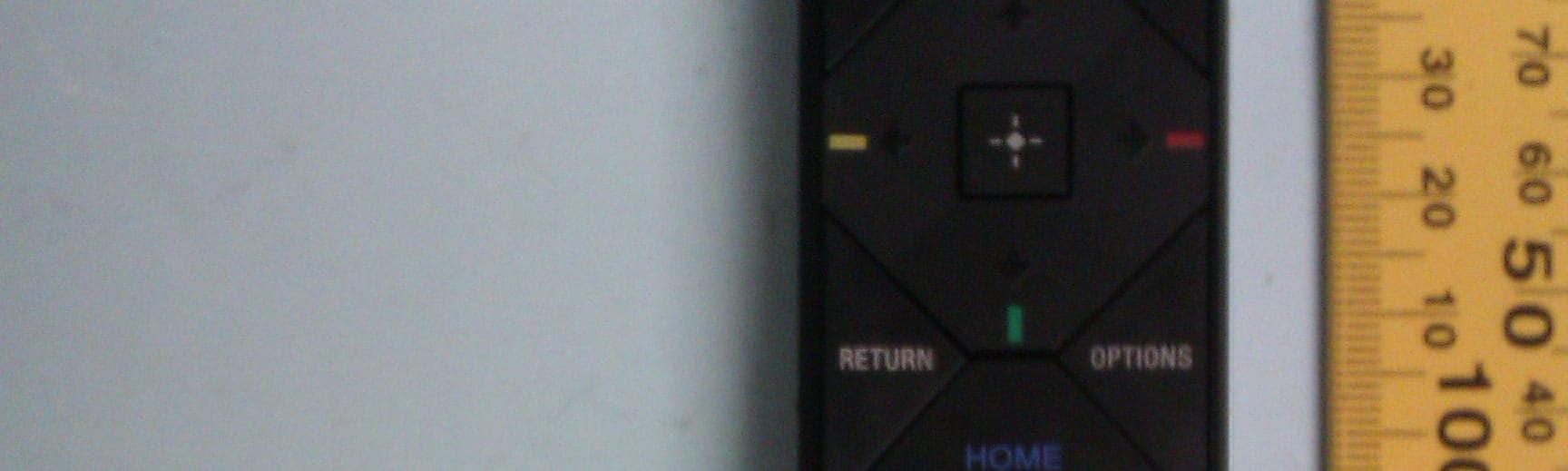

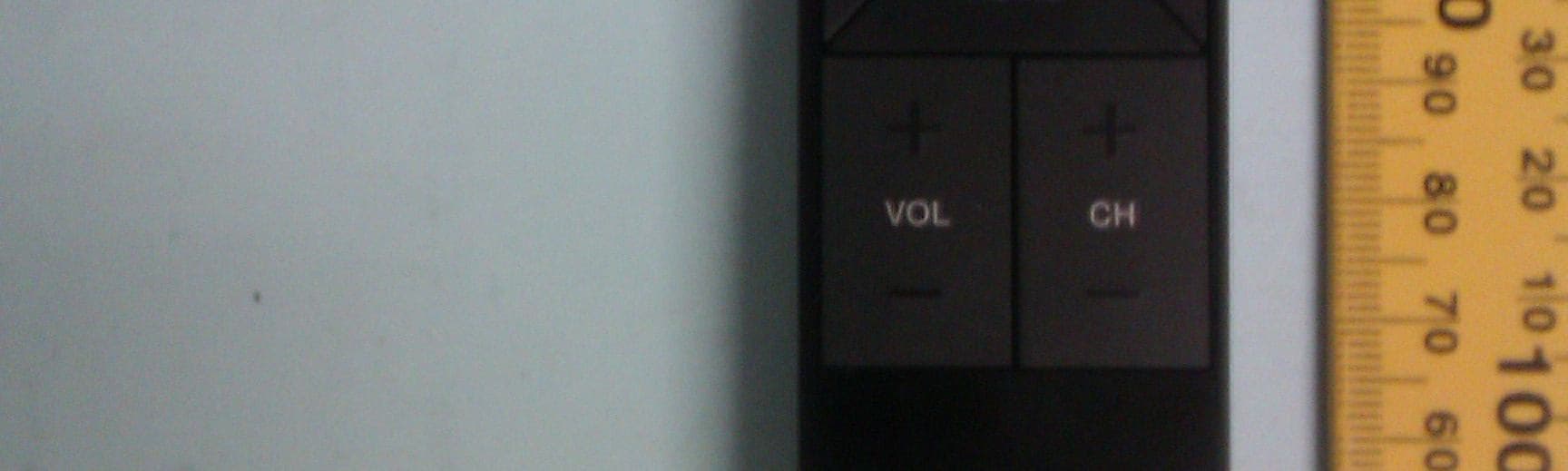

TRaC Global Test Report: TRA-009758-W-US-1 65 Photograph 1
