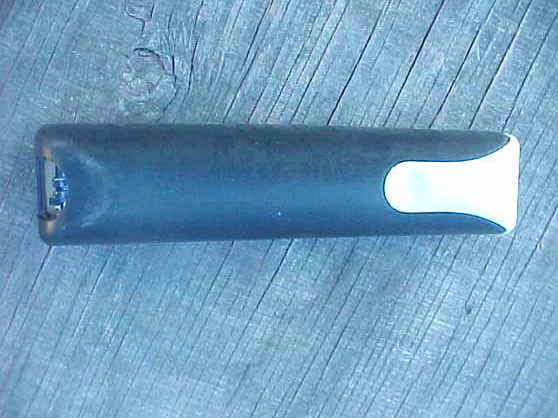

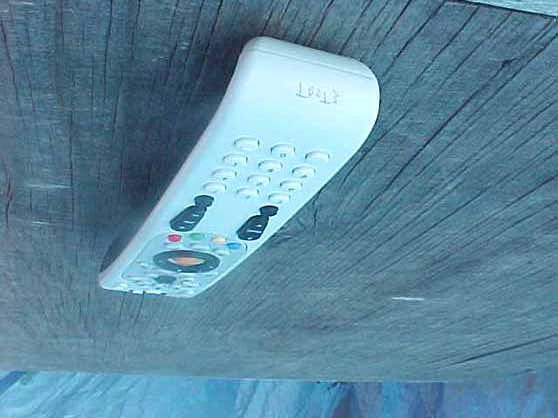

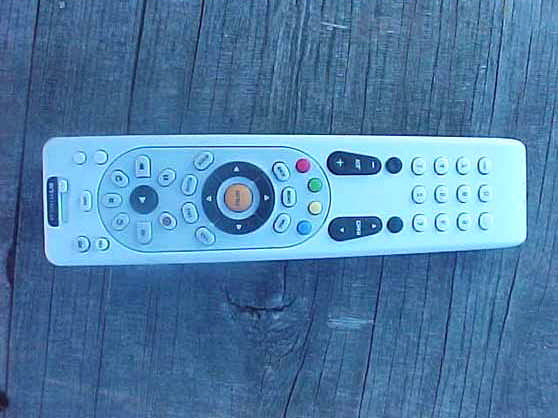

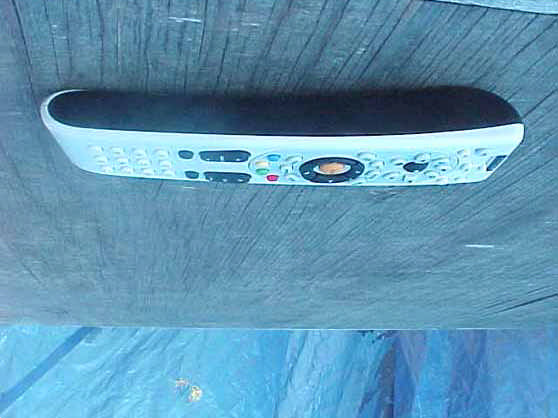

MG32081DirecTV Custom Device

® DIRECTV ® Universal Remote Control User’s Guide DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 1 TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Features and Functions . . . . . . . . . . . . . . . . . . .4 Key Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Installing Batteries . . . . . . . . . . . . . . . . . . . . . .8 Controlling DIRECTV ® Receiver. . . . . . . . . . . . . .9 Programming DIRECTV Remote . . . . . . . . . . . . . . . . . . .9 Setup Codes for DIRECTV Receivers . . . . . . . . . . . . . . .10 Setup Codes for DIRECTV HD Receivers . . . . . . . . . . . . .10 Setup Codes for DIRECTV DVRs . . . . . . . . . . . . . . . . . .10 Programming to Control Your TV. . . . . . . . . . . . . .11 Programming the TV Input Key . . . . . . . . . . . . . . . . . . .11 Deactivate the TV Input Select Key . . . . . . . . . . . . . . . .11 Programming Other Component Controls . . . . . .12 Manufacturer Codes . . . . . . . . . . . . . . . . . . . . . .13 Setup Codes for TVs . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Setup Codes for VCRs . . . . . . . . . . . . . . . . . . . . . . . . . .16 Setup Codes for DVD Players . . . . . . . . . . . . . . . . . . . .19 Setup Codes for Stereo Receivers . . . . . . . . . . . . . . . . .20 Setup Codes for Stereo Amplifiers . . . . . . . . . . . . . . . .22 Searching For Your Code in AV1 or AV2 Mode . . . .23 Verifying The Codes . . . . . . . . . . . . . . . . . . . . . . .23 Changing Volume Lock . . . . . . . . . . . . . . . . . . . .24 Restore Factory Default Settings . . . . . . . . . . . . .25 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . .26 Repair or Replacement Policy . . . . . . . . . . . . . . .27 Additional Information . . . . . . . . . . . . . . . . . . . .28 2 DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 2 INTRODUCTION Congratulations! You now have an exclusive DIRECTV® Universal Remote Control that will control four components, including a DIRECTV Receiver, TV, and two stereo or video components (e.g 2nd TV, DVD, or stereo). Moreover, its sophisticated technology allows you to consolidate the clutter of your original remote controls into one easy-to-use unit that's packed with features such as: zFour-position slide switch for easy component selection zCode library for popular video and stereo components zCode search to help program control of older or discon- tinued components zMemory protection to ensure you will not have to re- program the remote when the batteries are replaced Before using your DIRECTV Universal Remote Control, you may need to program it to operate with your particular com- ponent. Please follow the instructions detailed in this guide to set up your DIRECTV Universal Remote Control so you can start enjoying its features. 3 DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 3 FEATURES AND FUNCTIONS Key Charts Slide the 4-position switch under AV1, AV2 or TV to select the compo- nent you want to control. A green LED under the switch position will con- firm the component being controlled. Press TV INPUTto select the available inputs on your TV. (Note: Additional program- ming is required to activate the TV INPUT key. See instructions on page 11). Press FORMATto cycle through the resolution and screen formats. Each press of the key cycles to the next avail- able format and /or reso- lution. (Not available on all DIRECTV Receivers) Press PWRto turn on or off the selected compo- nent. Press TV POWER ON/OFF to turn the TV and DIRECTV Receiver on or off. (Note: These keys are only active after the TV has been programmed, see page 11). continued on next page... 4 DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 4 FEATURES AND FUNCTIONS Key Charts (continued) Use these keys to con- trol your DVR, VCR, DVD, or CD/DVD play- er. To record a program, press the record key twice. Use GUIDEto display the DIRECTV program guide. Press ACTIVEto access special features, servic- es, DIRECTV NEWS™ and info. Press LISTto display your TO DO list of pro- grams. (Not available on all DIRECTV Receivers) Press EXITto exit menu screens and the pro- gram guide. Use the arrow keys to move around in the program guide and menu screens. Press SELECTto choose highlighted items in the menu screens or in the program guide. continued on next page... 5 DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 5 FEATURES AND FUNCTIONS Key Charts (Continued) Press BACKto return to the previously displayed screen. Press MENUto display the menu. Use INFOto display the current channel and program information when watching live TV or in the guide. Press the YELLOWkey to cycle through the avail- able alternate audio tracks. These colored keys may give you more functionality. Refer to your DIRECTV Receiver’s user guide. (Not available on all DIRECTV Receivers) Use VOLto raise (or lower) the sound vol- ume. The Volume keys are only active when programmed. While watching TV, use CHANS(or T) to select the next higher (or lower) channel. While in the DIRECTV program guide or menu, use PAGES(or T) to page up (or down) through available channels in the pro- gram guide. continued on next page... 6 DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 6 FEATURES AND FUNCTIONS Key Charts (Continued) Press MUTEto turn the sound off or back on. Press PREVto return to the last channel viewed. Press the number keys to directly select a chan- nel (e.g. 207). Press DASHto separate the main and sub-chan- nel numbers. 7 DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 7 INSTALLING BATTERIES 1.On the back of the remote control, push down on the door (as shown), slide the battery cover off, and remove the used batteries. 2.Obtain two (2) new AA alkaline batteries. Match their + and - marks to the + and - marks in the battery case, then insert them. 3.Slide the cover back on until battery door clicks into place. 8 –+ –+ DirecTV-M2081.qxd 10/28/2004 2:15 PM Page 8 CONTROLLING DIRECTV RECEIVER The DIRECTV Universal Remote Control is designed to give you …

Text truncated - open the document above for the full version.

scott To: [email protected] Cc: Mike Subject: FCC ID: MG32081 1/19/2005 Mr. Fujimoto: In order for processing of this application (FCC ID: MG32081) to continue, the following issue(s) will have to be addressed: 1) The block diagram submitted is not sufficient. There is at least one oscillator in the RF section which is shown on the schematics which is not reflected in the block diagram submitted. As per section 2.1033(b)(5) of the rules, the block diagram shall show “the frequency of all oscillators in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency(ies) shall be indicated at each block.” Please submit a more detailed diagram. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e‐mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is MG32081‐1. Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579-0500 Direct: (714) 579-1489 Fax: (714) 579-1850 [email protected] Correspondence by Project Project Number: 1099066944 Correspondence Number Memo MG32081-1 1) The Revised Block Diagram is shown - - the MicroProcessor speed is 8 MHz.

Report Number: B40921D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for DIRECT TV CUSTOM DEVICE 24K-2004 MODEL NUMBER: URC-2081BG0-X Prepared for UNIVERSAL ELECTRONICS, INC. 6101 GATEWAY DRIVE CYPRESS, CALIFORNIA 90630-4841 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: SEPTEMBER 23, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 12 13 46 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40921D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 14 8. CONCLUSIONS 15 Report Number: B40921D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Test Site Report Number: B40921D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630-4841 Test Date: September 21, 2004 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on batteries only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4340 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B40921D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B40921D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Direct TV Custom Device 24K-2004 Model Number: URC-2081BG0-X 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 15 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3 Cognizant Personnel Universal Electronics, Inc. Jesse Mendez Electrical Staff Engineer Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Benigno Chavez Test Technician Michael Christensen Lab Manage…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 100 kHz VBW 100 kHz RF Att 10 dB A I2D Unit dB  V P0 TRG SWT 150 ms Center 433.8248096 MHz15 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.72 dB -77.855711 ms 1 [T1] 19.42 dB  V 127.755511 ms 1 [T1] -0.72 dB -77.855711 ms D1 54 dB  V Date: 21.SEP.2004 10:05:29 Total time of Pulse Train with Blanking Interval Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 100 kHz VBW 100 kHz RF Att 10 dB A I2D Unit dB  V P0 TRG SWT 150 ms Center 433.8248096 MHz15 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.99 dB -50.200401 ms 1 [T1] 19.42 dB  V 127.755511 ms 1 [T1] -0.99 dB -50.200401 ms D1 54 dB  V Date: 21.SEP.2004 10:05:54 Total Time of Pulse Train Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  VSWT 60 ms Center 433.8248096 MHz6 ms/ P0 RBW 120 kHz VBW 100 kHz I2D 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 34.92 dB 2.284569 ms 1 [T1] 16.79 dB  V 8.777555 ms 1 [T1] 34.92 dB 2.284569 ms D1 54 dB  V Date: 21.SEP.2004 10:08:33 Total time of the Extra Large Pulse = 2.284569 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  VSWT 60 ms Center 433.8248096 MHz6 ms/ P0 RBW 120 kHz VBW 100 kHz I2D 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 3.19 dB 1.442886 ms 1 [T1] 48.02 dB  V 13.827655 ms 1 [T1] 3.19 dB 1.442886 ms D1 54 dB  V Date: 21.SEP.2004 10:09:49 Total time of the Large Pulse = 1.442886 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  VSWT 60 ms Center 433.8248096 MHz6 ms/ P0 RBW 120 kHz VBW 100 kHz I2D 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -2.67 dB -841.683367  s 1 [T1] 52.08 dB  V 16.472946 ms 1 [T1] -2.67 dB -841.683367  s D1 54 dB  V Date: 21.SEP.2004 10:10:25 Time of the Small Pulse = 841.683367 uS Total on Time 2 Extra Large Pulses at 2.284569 mS = 4.569138 mS 13 Large Pulses at 1.442886 mS = 18.757518 mS 6 Small Pulses at 841.583362 uS = 5.050100202 mS Total on time = 28.3767562 mS Total Duty Cycle = Total on Time / Plus Train with Blanking Interval Total Duty Cycle = 28.3767562 mS / 77.855711 mS = 36.4478801 %

RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.231) 0.0 COMPANY DATE 9/14/04 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 433.9200 60.4 55.8 AH 1.0 315 X LOW 15.6 2.1 0.0 0.0 0.0 73.6 -7.2 80.8 433.9200 52.1 44.7 AH 1.0 270 Y LOW 15.6 2.1 0.0 0.0 0.0 62.5 -18.3 80.8 433.9200 59.5 55.1 AH 1.0 270 Z LOW 15.6 2.1 0.0 0.0 0.0 72.9 -7.9 80.8 433.9200 53.3 48.6 AV 1.5 315 X LOW 15.6 2.1 0.0 0.0 0.0 66.3 -14.5 80.8 433.9200 60.7 55.0 AV 1.5 90 Y LOW 15.6 2.1 0.0 0.0 0.0 72.7 -8.1 80.8 433.9200 58.8 53.6 AV 1.0 315 Z LOW 15.6 2.1 0.0 0.0 0.0 71.4 -9.4 80.8 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 1 of PAGE 10 Average (A) or Quasi- Peak (Q P ) N/AUniversal ElectronicsDirect TV Custom 4 Device 24K-2004URC-201BG0-XK y le Fu j imoto Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00 RADIATED EMISSIONS (FCC SECTION 15.205 AND 15.231) 0.0 COMPANY DATE 9/14/04 EUT DUTY CYCLE N/A % MODEL PEAK TO AVG N/A dB S/N TEST DIST. 3 Meters TEST ENGINEER LAB D Frequency Peak Antenna Antenna EUT EUT EUT Antenna Cable Amplifier Distance Mixer *Corrected Delta Spec Reading Polar. Height Azimuth Axis Tx Factor Loss Gain Factor Factor Reading ** Limit MHz (dBuV) (V or H) (meters) (deg rees) (X,Y,Z) C hannel (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dB) (dBuV/m) Comments 867.8400 75.1 68.6 AH 1.0 180 X LOW 20.9 3.0 36.4 0.0 56.0 -4.8 60.8 867.8400 62.9 57.3 AH 1.0 90 Y LOW 20.9 3.0 36.4 0.0 44.8 -16.0 60.8 867.8400 75.4 68.6 AH 1.0 90 Z LOW 20.9 3.0 36.4 0.0 56.1 -4.7 60.8 867.8400 68.6 62.6 AV 1.5 45 X LOW 20.9 3.0 36.4 0.0 50.1 -10.7 60.8 867.8400 71.3 65.4 AV 1.0 45 Y LOW 20.9 3.0 36.4 0.0 52.9 -7.9 60.8 867.8400 68.2 62.3 AV 1.0 45 Z LOW 20.9 3.0 36.4 0.0 49.8 -11.0 60.8 * CORRECTED READING = METER READING + ANTENNA FACTOR + CABLE LOSS - AMPLIFIER GAIN ** DELTA = SPEC LIMIT - CORRECTED READING PAGE 2 of PAGE 10 K y le Fu j imoto Average (A) or Quasi- Peak (Q P ) Universal ElectronicsDirect TV Custom 4 Device 24K-2004URC-201BG0-XN/A Doc. No.: EMI_PART15TX-B-0-50 Rev. A 04/11/00

FCC 15.231 in the X-Axis Universal Electronics, Inc.Date: 9/14/04 Direct TV Custom 4 Device 24K-2004Lab: B Model: URC-201BG0-XTested By: Kyle Fujimoto Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 433.92V100.8-100.8Peak 433.92V80.8-80.8Avg 867.84V80.8-80.8Peak 867.84V60.8-60.8Avg 1301.7643.76V74-30.24Peak2.09225 1301.7637.57V54-16.43Avg2.09225 1735.743.32V74-30.68Peak1.96270 1735.734.09V54-19.91Avg1.96270 2169.641.01V80.8-39.79Peak1.46270 2169.631.92V60.8-28.88Avg1.46270 2603.5244.23V80.8-36.57Peak1.83315 2603.5234.38V60.8-26.42Avg1.83315 3037.4444.15V80.8-36.65Peak2.2315 3037.4433.76V60.8-27.04Avg2.2315 3471.3643.84V80.8-36.96Peak2225 3471.3628.82V60.8-31.98Avg2225 3905.2847.48H74-26.52Peak2.1545 3905.2835.38H54-18.62Avg2.1545 4339.242.06V74-31.94Peak1.37270 4339.230.05V54-23.95Avg1.37270 FCC 15.231 in the X-Axis Universal Electronics, Inc.Date: 9/14/04 Direct TV Custom 4 Device 24K-2004Lab: B Model: URC-201BG0-XTested By: Kyle Fujimoto Freq. (MHz) Level (dBuV) Pol (v/h)LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 433.92H100.8-100.8Peak 433.92H80.8-80.8Avg 867.84H80.8-80.8Peak 867.84H60.8-60.8Avg 1301.7651.86H74-22.14Peak1.64180 1301.7645.31H54-8.69Avg1.64180 1735.745.67H74-28.33Peak2.2645 1735.737.92H54-16.08Avg2.2645 2169.640.6H80.8-40.2Peak2.270 2169.630.21H60.8-30.59Avg2.270 2603.5246.71H80.8-34.09Peak1.86270 2603.5227.77H60.8-33.03Avg1.86270 3037.4450.38H80.8-30.42Peak2.2345 3037.4440.82H60.8-19.98Avg2.2345 3471.3645.17H80.8-35.63Peak2.1315 3471.3633.64H60.8-27.16Avg2.1315 3905.2845.62H74-28.38Peak2.5315 3905.2832.77H54-21.23Avg2.5315 4339.242.96H74-31.04Peak1.3270 4339.229.78H54-24.22Avg1.3270 FCC 15.231 in the Y-Axis Universal Electronics, Inc.Date: 9/14/04 Direct TV Custom 4 Device 24K-2004Lab: B Model: URC-201BG0-XTested By: Kyle Fujimoto Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 433.92V100.8-100.8Peak 433.92V80.8-80.8Avg 867.84V80.8-80.8Peak 867.84V60.8-60.8Avg 1301.7653.07V74-20.93Peak2.12225 1301.7646.28V54-7.72Avg2.12225 1735.750.56V74-23.44Peak1.43225 1735.743.82V54-10.18Avg1.43225 2169.645.29V80.8-35.51Peak1.84225 2169.637.44V60.8-23.36Avg1.84225 2603.5243.6V80.8-37.2Peak1.78180 2603.5227.13V60.8-33.67Avg1.78180 3037.4446.52V80.8-34.28Peak1.32225 3037.4436.68V60.8-24.12Avg1.32225 3471.3643.97V80.8-36.83Peak2.2225 3471.3629.73V60.8-31.07Avg2.2225 3905.2847.33V74-26.67Peak1.41180 3905.2836.51V54-17.49Avg1.41180 4339.243.61V74-30.39Peak1.73225 4339.231.45V54-22.55Avg1.73225 FCC 15.231 in the Y-Axis Universal Electronics, Inc.Date: 9/14/04 Direct TV Custom 4 Device 24K-2004Lab: B Model: URC-201BG0-XTested By: Kyle Fujimoto Freq. (MHz) Level (dBuV) Pol (v/h)LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 433.92H100.8-100.8Peak 433.92H80.8-80.8Avg 867.84H80.8-80.8Peak 867.84H60.8-60.8Avg 1301.7643.51H74-30.49Peak2.43270 1301.7636.33H54-17.67Avg2.43270 1735.740.64H74-33.36Peak2.6135 1735.733.19H54-20.81Avg2.6135 2169.646.79H80.8-34.01Peak1.3345 2169.639.55H60.8-21.25Avg1.3345 2603.5250.86H80.8-29.94Peak1.72225 2603.5243.27H60.8-17.53Avg1.72225 3037.4451.72H80.8-29.08Peak1.0745 3037.4441.39H60.8-19.41Avg1.0745 3471.3644.71H80.8-36.09Peak1.470 3471.3633.84H60.8-26.96Avg1.470 3905.2846.05H74-27.95Peak2.07225 3905.2834H54-20Avg2.07225 4339.242.46H74-31.54Peak2.5225 4339.230.83H54-23.17Avg2.5225 FCC 15.231 in the Z-Axis Universal Electronics, Inc.Date: 9/14/04 Direct TV Custom 4 Device 24K-2004Lab: B Model: URC-201BG0-XTested By: Kyle Fujimoto Freq. (MHz) Level (dBuV) Pol (v/h) LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 433.92V100.8-100.8Peak 433.92V80.8-80.8Avg 867.84V80.8-80.8Peak 867.84V60.8-60.8Avg 1301.7644.41V74-29.59Peak2.44270 1301.7638.59V54-15.41Avg2.44270 1735.739.25V74-34.75Peak2.07315 1735.728.62V54-25.38Avg2.07315 2169.643.41V80.8-37.39Peak1.9270 2169.633.32V60.8-27.48Avg1.9270 2603.5250.91V80.8-29.89Peak1.1490 2603.5243.23V60.8-17.57Avg1.1490 3037.4450.16V80.8-30.64Peak1.91225 3037.4440.75V60.8-20.05Avg1.91225 3471.3645.35V80.8-35.45Peak2.5135 3471.3631.5V60.8-29.3Avg2.5135 3905.2847.32V74-26.68Peak1.33270 3905.2834.02V54-19.98Avg1.33270 4339.242.82V74-31.18Peak1.730 4339.229.45V54-24.55Avg1.730 FCC 15.231 in the Z-Axis Universal Electronics, Inc.Date: 9/14/04 Direct TV Custom 4 Device 24K-2004Lab: B Model: URC-201BG0-XTested By: Kyle Fujimoto Freq. (MHz) Level (dBuV) Pol (v/h)LimitMargin Peak / QP / Avg Ant. Height (m) Table Angle (deg)Comments 433.92H100.8-100.8Peak 433.92H80.8-80.8Avg 867.84H80.8-80.8Peak 867.84H60.8-60.8Avg 1301.7653.61H74-20.39Peak1270 1301.7646.52H54-7.48Avg1270 1735.751.15H74-22.85Peak1.15270 1735.743.24H54-10.76Avg1.15270 2169.644.21H80.8-36.59Peak1.91270 2169.635.44H60.8-25.36Avg1.91270 2603.5243.89H80.8-36.91Peak1.04135 2603.5233.02H60.8-27.78Avg1.04135 3037.4445.27H80.8-35.53Peak2.22225 3037.4435.08H60.8-25.72Avg2.22225 3471.3643.6H80.8-37.2Peak2.2225 3471.3628.76H60.8-32.04Avg2.2225 3905.2846.93H74-27.07Peak2.67270 3905.2833.7H54-20.3Avg2.67270 4339.243.66H74-30.34Peak2.18135 4339.231.75H54-22.25Avg2.18135
