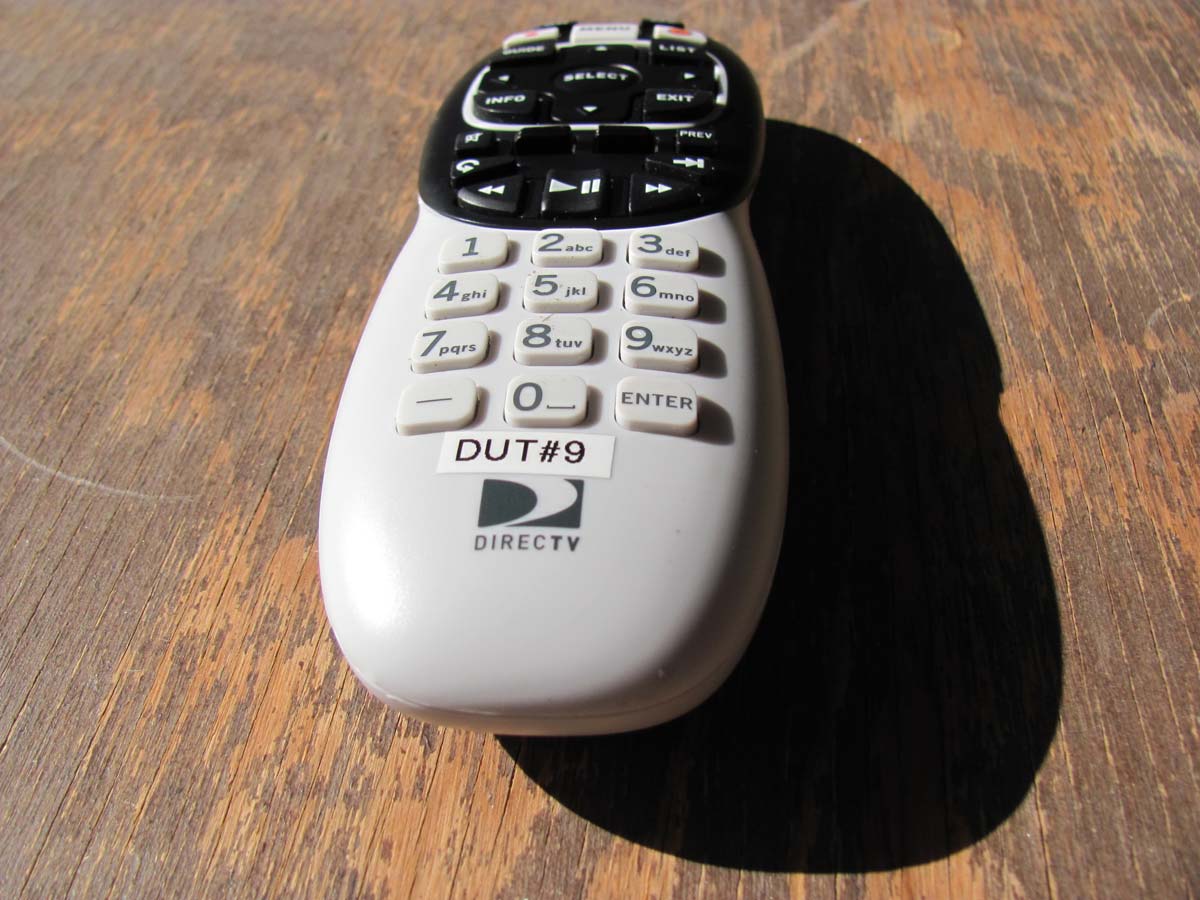

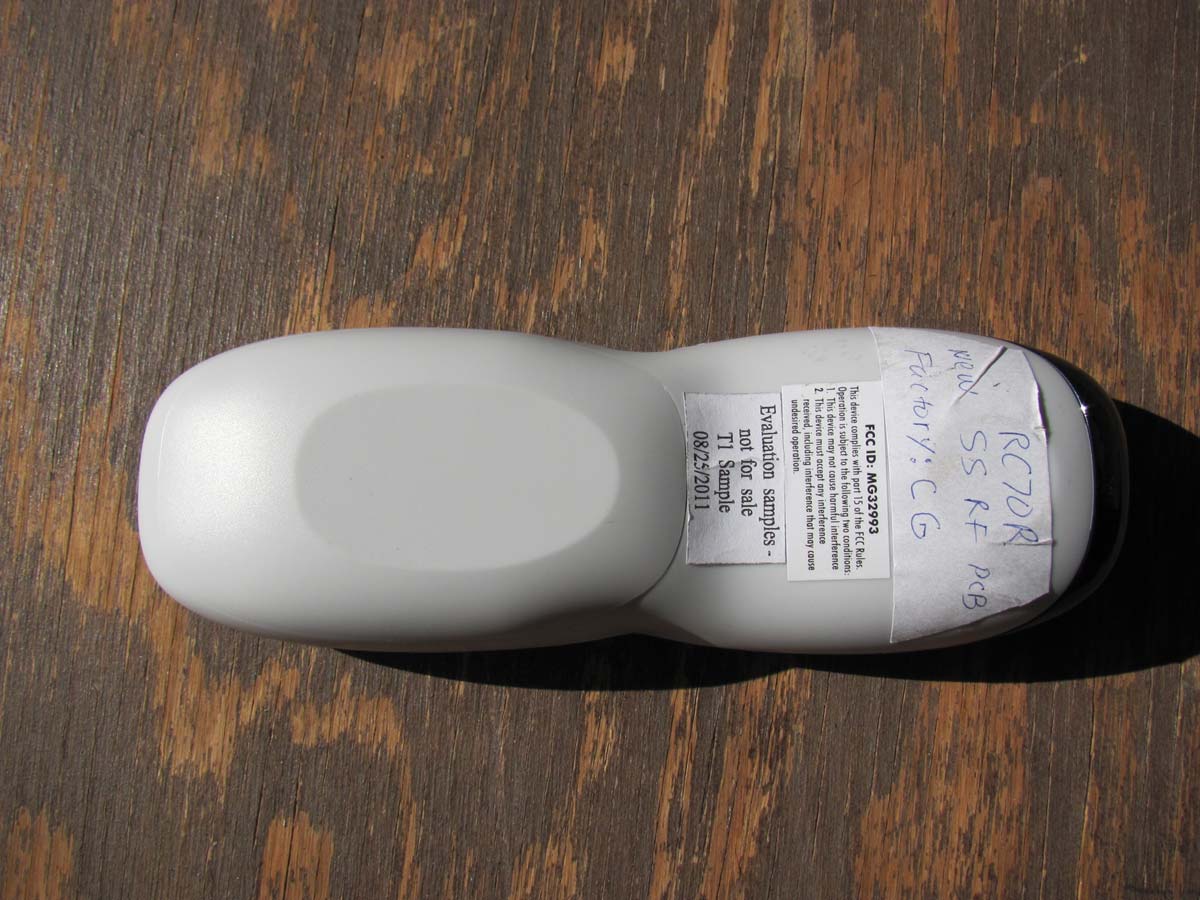

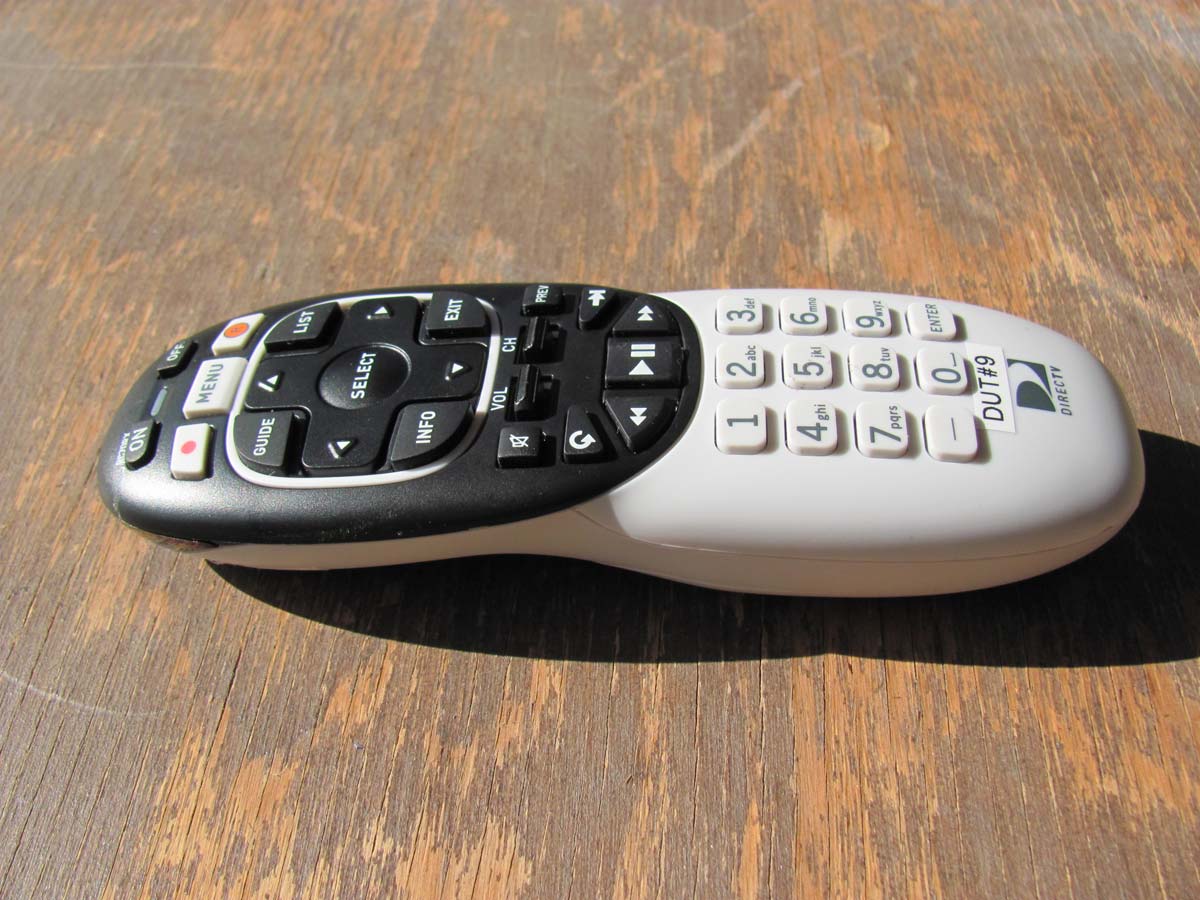

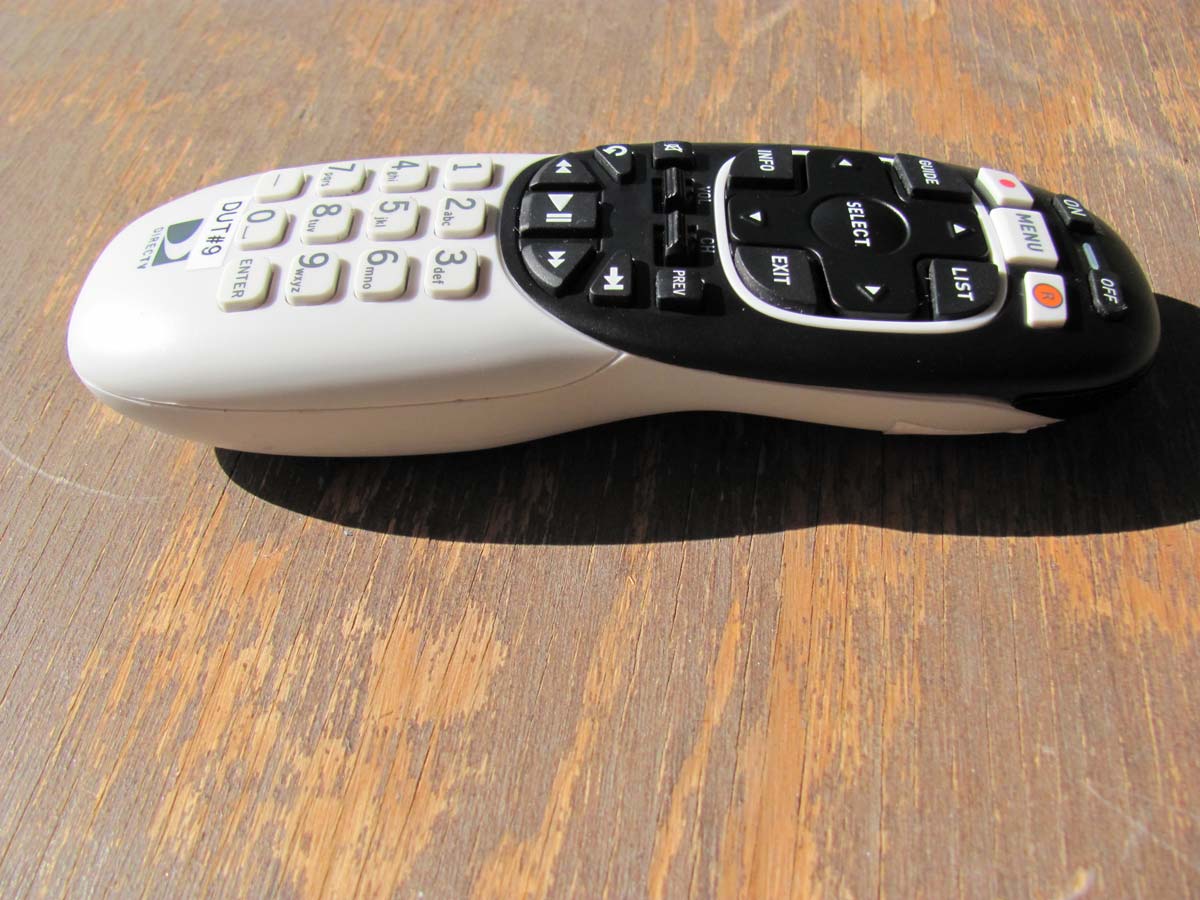

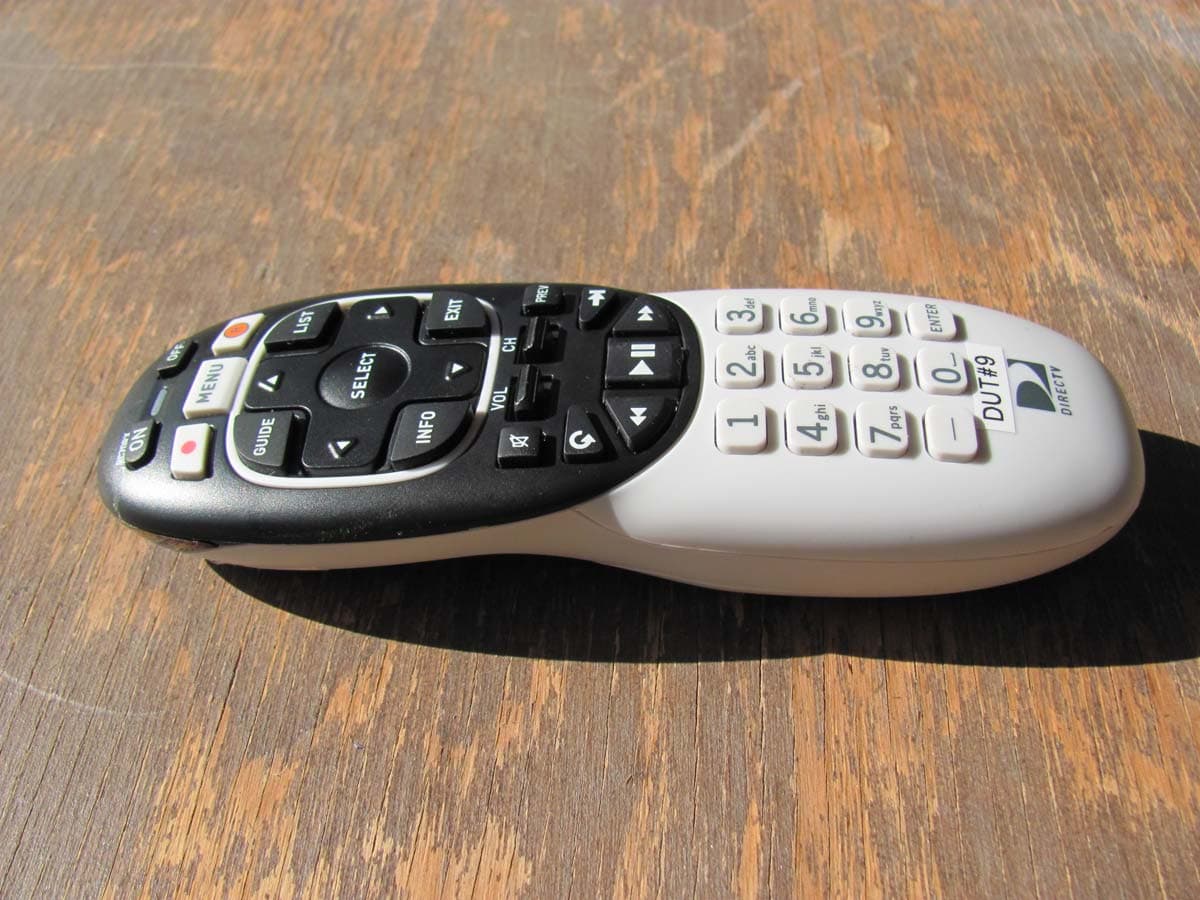

RC70RXMP-19 URC-3002BC0-X-R DIRECTV® Universal Remote Control Quick Reference Guide CONTROLLING YOUR TV 1. Turn on the TV. 2. Locate the 5‐ digit code for your TV. 3. Turn on the TV. 4. Press and hold MUTE and ENTER at the same time until the green light flashes twice. 5. Using the number keys enter the 5‐digit code for your brand of TV. If performed correctly, the green light under the TV flashes twice. 6. Aim the remote at your TV and press VOL or MUTE key once. Your TV should ramp up or down or MUTE. If Volume does not change, repeat steps 3 and 5, trying each code for your brand until you find the correct code. Activating RF To activate the RF Transmitter on the DIRECTV remote control, perform the following steps: 1. Locate the 12 Digit Receiver ID number(RID) on your DIRECTV receiver. THE RID number is located on the back panel of the receiver. 2. Note the last six digits of the RID number. 3. Press and hold MUTE and ENTER at the same time until the green light flashes twice. 4. Using the number keys enter 961 5. Press and Release CH Up. 6. Using the number keys enter the last six digits of the RID number. 7. Press and release SELECT key (the green light flashes twice). Deactivating RF To deactivate the RF Transmitter on the DIRECTV remote control, perform the following steps: 1. Press and hold MUTE and ENTER at the same time until the green light flashes twice. 2. Using the number keys enter 961 3. Press and Release CH Down. RESTORING FACTORY DEFAULT SETTINGS To reset all the functions of the remote control to the factory default settings following these steps: 4. Press and hold MUTE and ENTER at the same time until the green light flashes twice. 5. Using the number keys, enter 9‐8‐1. (The green light flashes 4 times). COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase or decrease the separation between the equipment and receiver. • Connect the equipment into an outlet or circuit different from that to which the receiver is connected.  Consult the dealer or an experienced remote control/ TV technician for help. Operation with non‐approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: DIRECTV, Inc. 2230 E. Imperial Hwy. El Segundo, CA 90245 1‐800‐531‐5000 FCC ID #: MG3 3002 SETUP CODES FOR TV’s To reset all the functions of the remote control to the factory default settings following these steps 3M 10724, 10737, 11616, 11655, 12508, 12838, 12974 A-Mark 10003 Accurian 11803 Action 10873 Admiral 10093, 10463, 10179 Advent 10761, 10782, 10784, 10807, 10815, 10817, 10842, 11528, 11570 Adventura 10046 Aiko 10092 Aiwa 10701, 11362, 11916, 11955 Akai 10812, 11675, 10702, 10765, 10030, 12232, 11935, 11903, 11692, 11689, 11688, 11676, 11385, 11207, 10745, 10672, 10591 Alaron 10179 Albatron 10700, 10843 Ambassador 10177 America Action 10180 Anam 10180, 10068 AOC 10030, 10003, 10019, 10052, 10185, 11089, 11365, 11589, 11590, 12014, 12087, 12402, 12621 Aomni 11623 Apex Digital 10748, 10879, 10765, 10890, 11217, 12397 AquaVision 11861 Archer 10003 Archos 12503 Astar 11531, 11738 Audiovox 11564, 10451, 10180, 10092, 13065, 12513, 11952, 11951, 11937, 11868, 11865, 11803, 11769, 11766, 11284, 10875, 10846, 10802, 10713, 10623, 10003 Aurora Systems 10801 Aventura 10171 Axion 11827, 11937, 13050 Bang & Olufsen 10620, 11620 Belcor 10019 Bell & Howell 10154, 10016 BenQ 11032, 11212, 11315, 11562, 12807 Bradford 10180 Brillian 11007, 11255, 11257 Brockwood 10019 Broksonic 10236, 10463, 10003, 10426, 11905, 11911, 11929, 11935, 11938 Byd:sign 11309 C & M 10700 Cadia 11283 Candle 10030, 10046, 10056, 10186 Canon 10793, 11396, 12590, 12610, 12743 Carnivale 10030 Carver 10054, 10170 Casio 10611, 11205, 13059 CCE 10217, 10329, 10623 Celebrity 10000 Celera 10765 Champion 11362 Changhong 10765 Cinego 11986 Citizen 10060, 10030, 10092, 10039, 10046, 10056, 10186, 10280, 10561, 11669, 11671, 11672, 11928, 11935 Clairtone 10185 Clarion 10180 Classic 11984 Coby 11538, 11634, 11680, 12017, 12306, 12314, 12315, 12326, 12338, 12340, 12344, 12345, 12347, 12348, 12560 Cocom 11611 Commercial Solutions 11447, 10047, 11126 Compaq 10749, 10750 Concerto 10056 Contec 10180, 10185 Craig 10180 Crosley 10000, 10054 Crown 10180, 10039 CTX 10700 Curtis 11200, 11326, 12352, 12397, 12855, 12859 Curtis Mathes 10047, 10054, 10154, 10451, 10093, 10060, 10702, 10030, 10145, 10166, 11661, 11959, 11919, 11347, 10747, 10466, 10068, 10056, 10039, 10016 CXC 10180 CyberHome 10794 Cytron 11326, 12003 Daewoo 10154, 10451, 10092, 11661, 10019, 10039, 10066, 10067, 10402, 10623, 10672, 11909, 11921, 11928 Daytron 10019 Dell 11264, 11178, 11403, 11863 Delta 11369 Denon 10145 Denstar 10628 Diamond Vision 11996, 11997 Digistar 11565 Digital Lifestyles 11765, 11822 Digital Projection Inc. 11725, 11750 Di…

Text truncated - open the document above for the full version.

Correspondence by Project Project Number: Correspondence NumberMemo MG33002-1 1) The user manual instructions state that the use of shielded cables is required, however the device does not have any cables. Please provide a corrected user manual. Response: The owners manual has been revised. 2) Please provide an explanation of how the device meets the operational limitations of 15.231. Response: The EUT shuts off immediately after the button is released.

Report Number: B10929D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RC 70RXMP-19 Model: URC 3002BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 18 FCC PART 15 SUBPART B and C TEST REPORT for RC70RXMP-19 MODEL: URC 3002BC0-X-R Prepared for UNIVERSAL ELECTRONICS, INC. 6101 GATEWAY DRIVE CYPRESS, CALIFORNIA 90630 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: OCTOBER 3, 2011 REPORT APPENDICES TOTAL BODY A B C D E PAGES 18 2 2 2 11 11 46 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B10929D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RC 70RXMP-19 Model: URC 3002BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 18 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.1.3 RF Emissions Test Results 16 8. CONCLUSIONS 18 Report Number: B10929D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RC 70RXMP-19 Model: URC 3002BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 18 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B10929D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RC 70RXMP-19 Model: URC 3002BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 18 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: RC70RXMP-19 Model: URC 3002BC0-X-R S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Gemstar Technology (Yangzhou) Company Limited #1 Junsheng Road, Fanshui Town, Industrial Zone, Baoying Yangzhou, Jiansu Province, China (Post Code: 225819) Customer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630 Test Date(s): September 9 and 29, 2011 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power only. 2 Radiated RF Emissions 10 kHz – 4400 MHz (Transmitter, Receive, and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B10929D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RC 70RXMP-19 Model: URC 3002BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 18 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the RC70RXMP-19, Model: URC 3002BC0-X-R. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromag…
