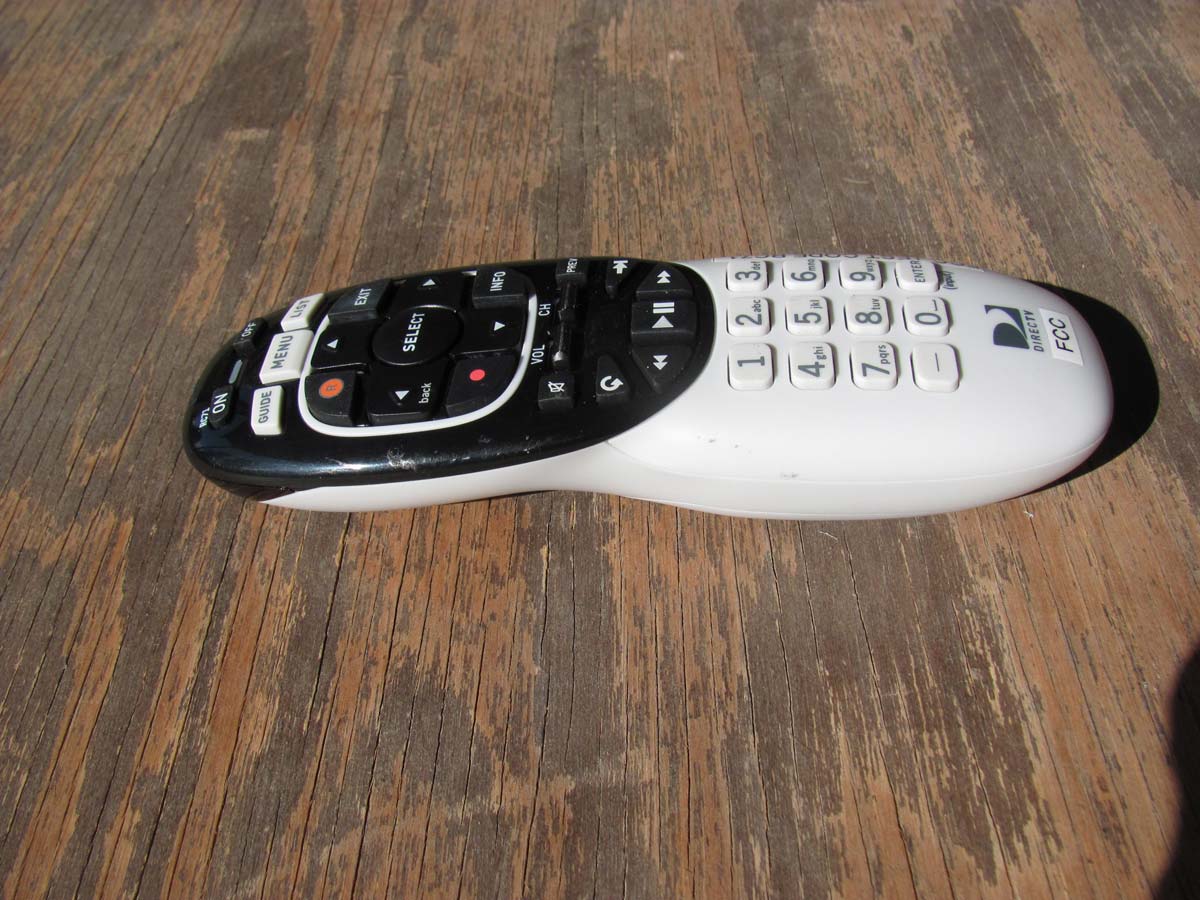

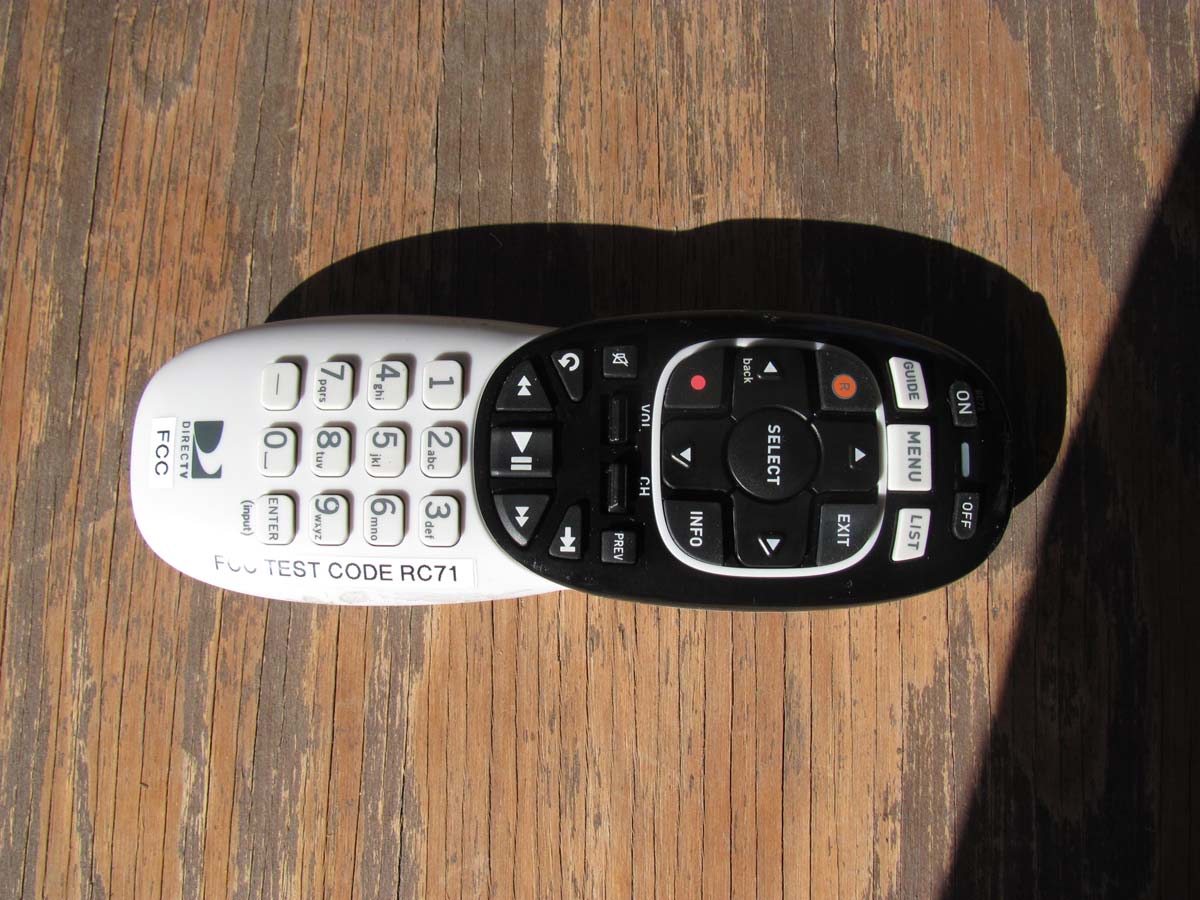

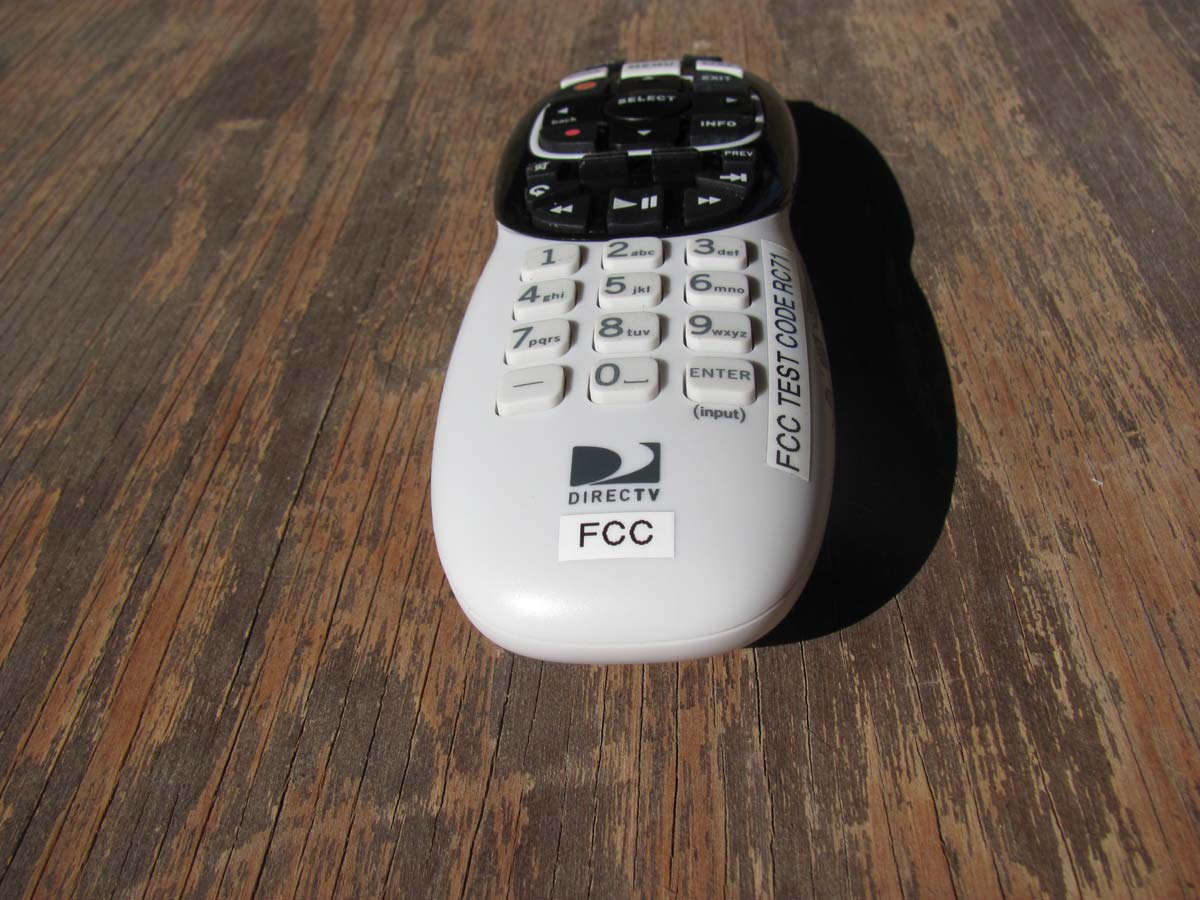

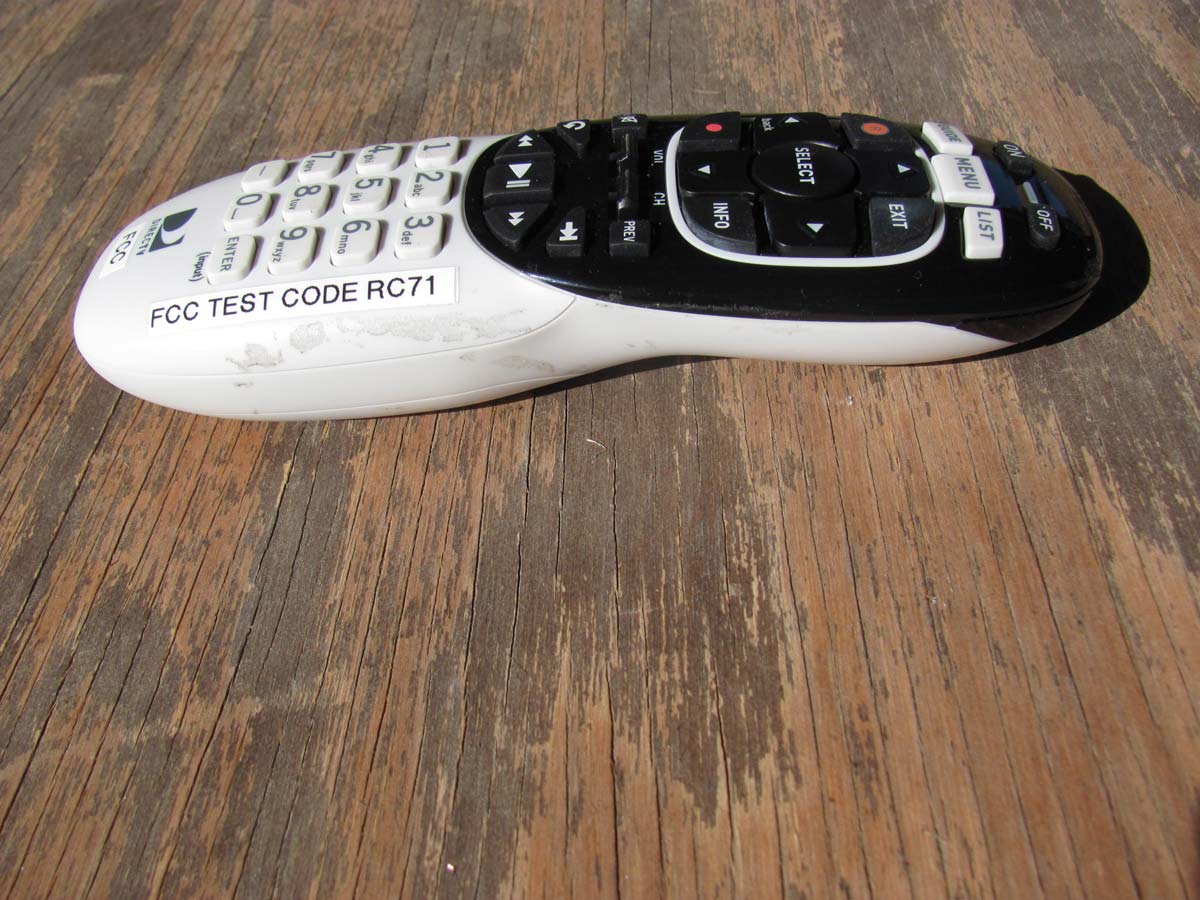

MG33004DirectV RC71 RF4CE 2012

DIRECTV® Universal Remote Control Quick Reference Guide CONTROLLING YOUR TV 1. Turn on the TV. 2. Locate the 5‐ digit code for your TV. 3. Turn on the TV. 4. Press and hold MUTE and SELECT at the same time until the green light flashes twice. 5. Using the number keys enter the 5‐digit code for your brand of TV. If performed correctly, the green light under the TV flashes twice. 6. Aim the remote at your TV and press VOL or MUTE key once. Your TV should ramp up or down or MUTE. If Volume does not change, repeat steps 3 and 5, trying each code for your brand until you find the correct code. Activating RF To pair the DIRECTV remote control to the STB, perform the following steps: 1. Press and HOLD MUTE and SELECT at the same time until the green light flashes twice. 2. Enter digits 961 follow by CH up key. 3. Using the number keys enter the last six digits of the RID number located behind the STB. 4. Press and release ENTER key (the green light flashes twice). Deactivating RF To deactivate the RF Transmitter on the DIRECTV remote control, perform the following steps: 1. Press and hold MUTE and SELECT at the same time until the green light flashes twice. 2. Using the number keys enter 961 3. Press and Release CH Down. (Green LED flashes four times) RESTORING FACTORY DEFAULT SETTINGS To reset all the functions of the remote control to the factory default settings following these steps: 4. Press and hold MUTE and SELECT at the same time until the green light flashes twice. 5. Using the number keys, enter 9‐8‐1. (The green light flashes 4 times). COMPLIANCE WITH FCC RULES AND REGULATIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: • Increase or decrease the separation between the equipment and receiver.  Consult the dealer or an experienced remote control/ TV technician for help. This equipment has been verified to comply with the limits for a Class B computing device, pursuant to FCC Rules. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. FCC Authorization Label This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. Responsible Party: DIRECTV, Inc. 2230 E. Imperial Hwy. El Segundo, CA 90245 1‐800‐531‐5000 SETUP CODES FOR TV’s To reset all the functions of the remote control to the factory default settings following these steps AOC 1365, 2402 Apex Digital 2397 Audiovox 1564 Aventura 0171 Coby 2306, 2314, 2315, 2344, 2348, 3478 Commercial Solutions 1447 Curtis 2397 Durabrand 0178, 0171 Dynex 2049 Element 1886 Emerson 1394, 1886, 0178, 0171 Envision 1365 ESA 0171 Funai 0171 GE 1447, 0178 GFM 1886, 0171 GoldStar 0178 Haier 2293 Hallmark 0178 Hitachi 1643 iLo 1394 Insignia 2049, 1423, 1564, 0171, 1517, 2751 LG 1423, 1447, 0178 LXI 0156, 0178 Magnavox 1867, 1454, 2372, 0171, 1365 Marantz 1454 Matsushita 0250 Megatron 0178 Memorex 0178, 0150 MGA 0178, 0150 Mitsubishi 1250, 0178, 0150, 1797 NAD 0156, 0178 NEC 1797 Nikko 0178 Norcent 1365 Optimus 0250 Panasonic 1480, 0250, 1291 Penney 0156, 0178 Philco 1394, 0171 Philips 1867, 1454, 2372, 1394, 0171, 0690 Pioneer 1457 Proscan 1447 Proton 0178 Quasar 0250, 1291 RadioShack 0178 RCA 1447, 2434, 2746 Realistic 0178 Samsung 2051, 0178 Sansui 0171 Sanyo 1142 Scotch 0178 Scott 0178 Sears 0156, 0178, 0171 Seiki 0178 Sharp 0818, 2402 Sony 0810 Soundesign 0178 Squareview 0171 Sylvania 1394, 1886, 0171 Symphonic 1394, 0171 TCL 2434 Technics 0250 Teknika 0150 TMK 0178 Toshiba 1524, 0156 Vidtech 0178 Viewsonic 2049, 1564, 0885, 1365 Vizio 1758, 2757, 0885 Wards 0156, 0178 Waycon 0156 Westinghouse 0885, 2195, 2293, 2499 Wyse 1365 Zenith 1423, 0178, 1365

Report Number: B20627D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirectV RC71 RF4CE 2012 Model: URC-3004BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15 SUBPART B and C TEST REPORT for DIRECTV RC71 RF4CE 2012 MODEL: URC-3004BC0-X-R Prepared for UNIVERSAL ELECTRONICS, INC. 201 EAST SANDPOINTE AVENUE, 8 TH FLOOR SANTA ANA, CALIFORNIA 92707 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: SEPTEMBER 6, 2012 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 13 21 56 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B20627D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirectV RC71 RF4CE 2012 Model: URC-3004BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 6.3 Facility Environmental Characteristics 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 13 7.1.3 RF Emissions Test Results 15 8. CONCLUSIONS 16 Report Number: B20627D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirectV RC71 RF4CE 2012 Model: URC-3004BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B20627D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirectV RC71 RF4CE 2012 Model: URC-3004BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: DirectV RC71 RF4CE 2012 Model: URC-3004BC0-X-R S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Universal Electronics, Inc. 201 East Sandpointe Avenue, 8 th Floor Santa Ana, California 92707 Manufacturer: Gemstar Technology China Shi Guang Road Zhong Cun Town Panyu, Guangdong, Province, China 511495 Test Date(s): June 27, 2012 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions 10 kHz to 25000 MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B20627D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirectV RC71 RF4CE 2012 Model: URC-3004BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the DirectV RC71…

Text truncated - open the document above for the full version.

RBW 1 MHz VBW 3 MHz SWT 5 ms A IN1 Unit dB  V Ref Lvl 97 dB  V Ref Lvl 97 dB  V RF Att 10 dB Center 2.425 GHz500  s/ 1AP1VIEW 2VIEW2MA 0 10 20 30 40 50 60 70 80 90 -3 97 1 1 Delta 1 [T2] -5.43 dB 1.142285 ms D1 74.6 dB  V Date: 27.JUN.2012 08:45:52 Time of One Pulse = 1.142285 ms RBW 1 MHz VBW 3 MHz A IN1 Unit dB  V Ref Lvl 97 dB  V Ref Lvl 97 dB  V RF Att 10 dB SWT 100 ms Center 2.425 GHz10 ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 90 -3 97 1 1 Delta 1 [T1] -1.57 dB 200.400802  s D1 74.6 dB  V Date: 27.JUN.2012 08:49:15 Total Number of Pulses in a worst case 100 ms = 12 Total Duty Cycle = (12 * 1.142285 ms) = 13.70742 mS / 100 ms = 13.70742%
