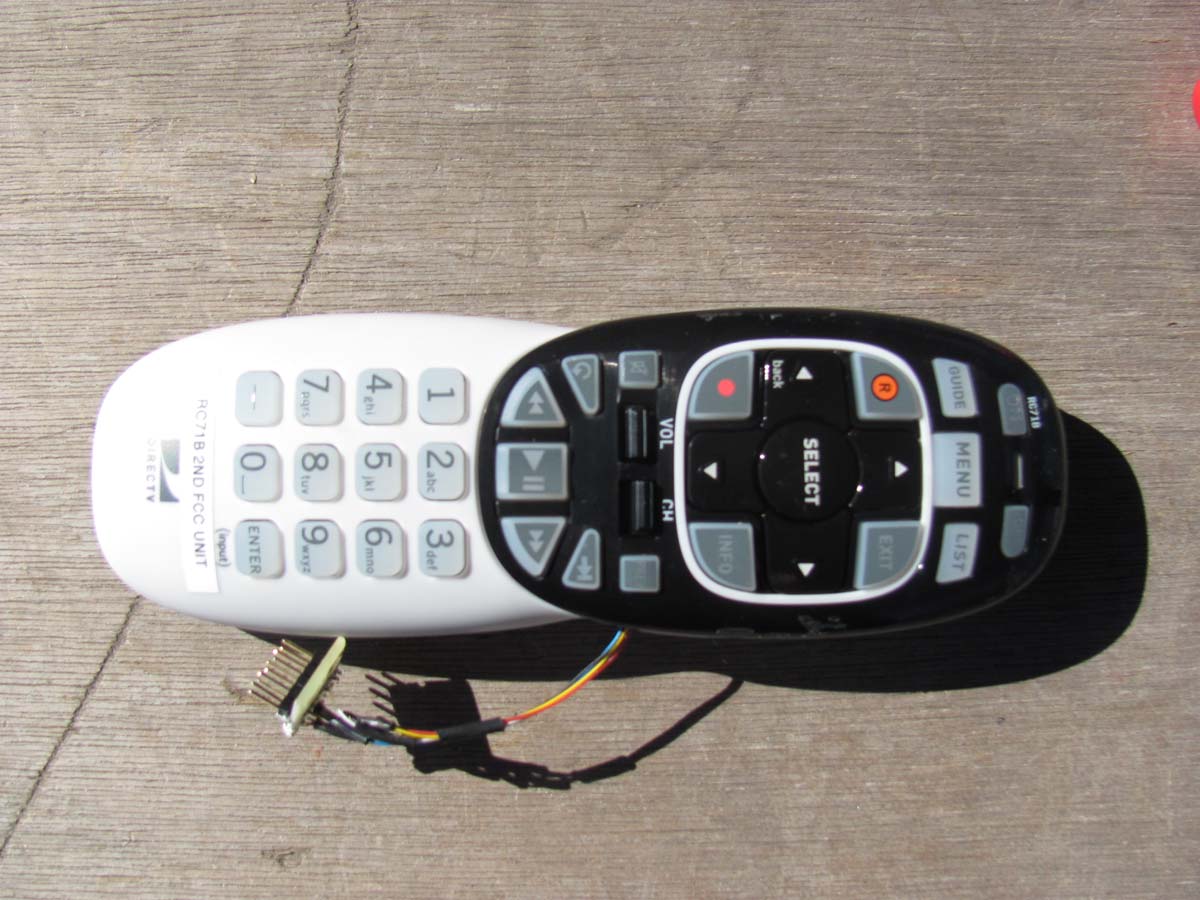

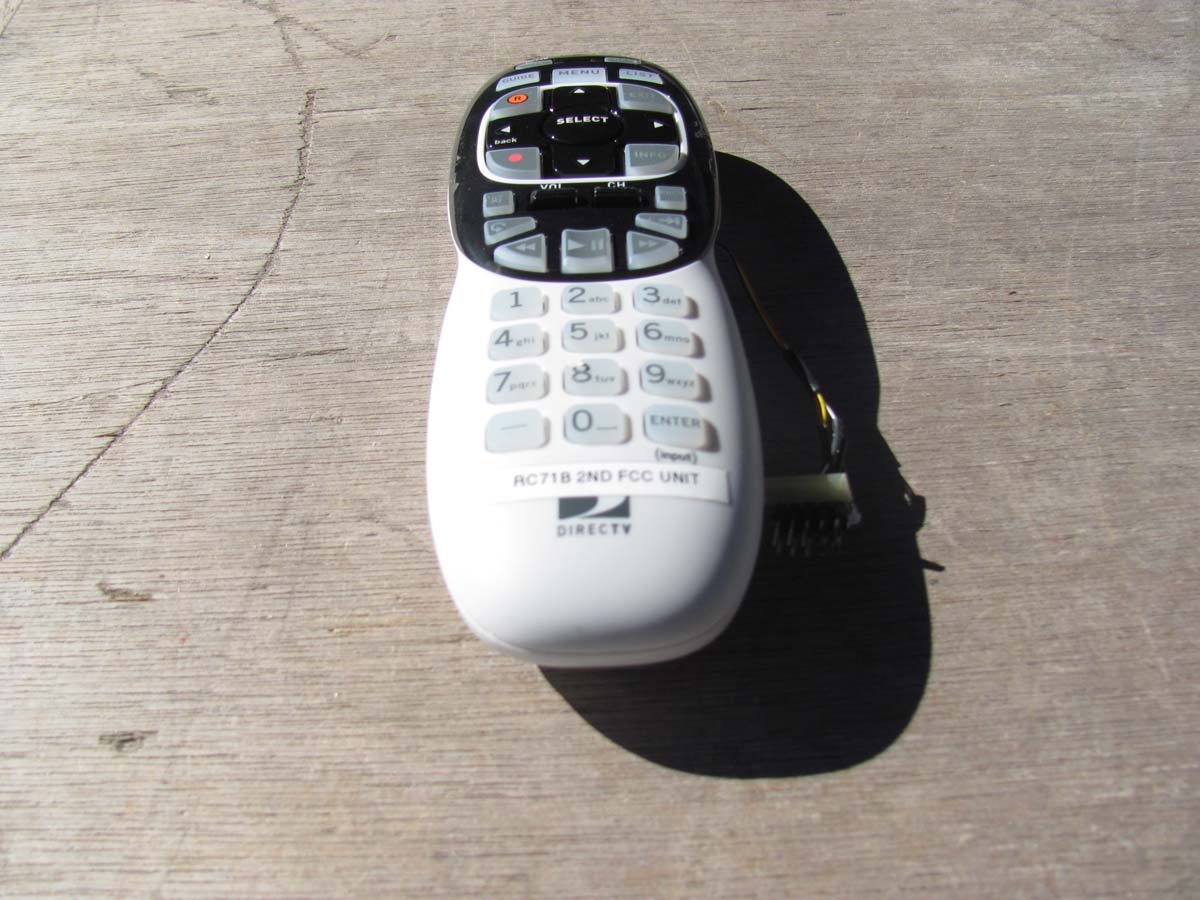

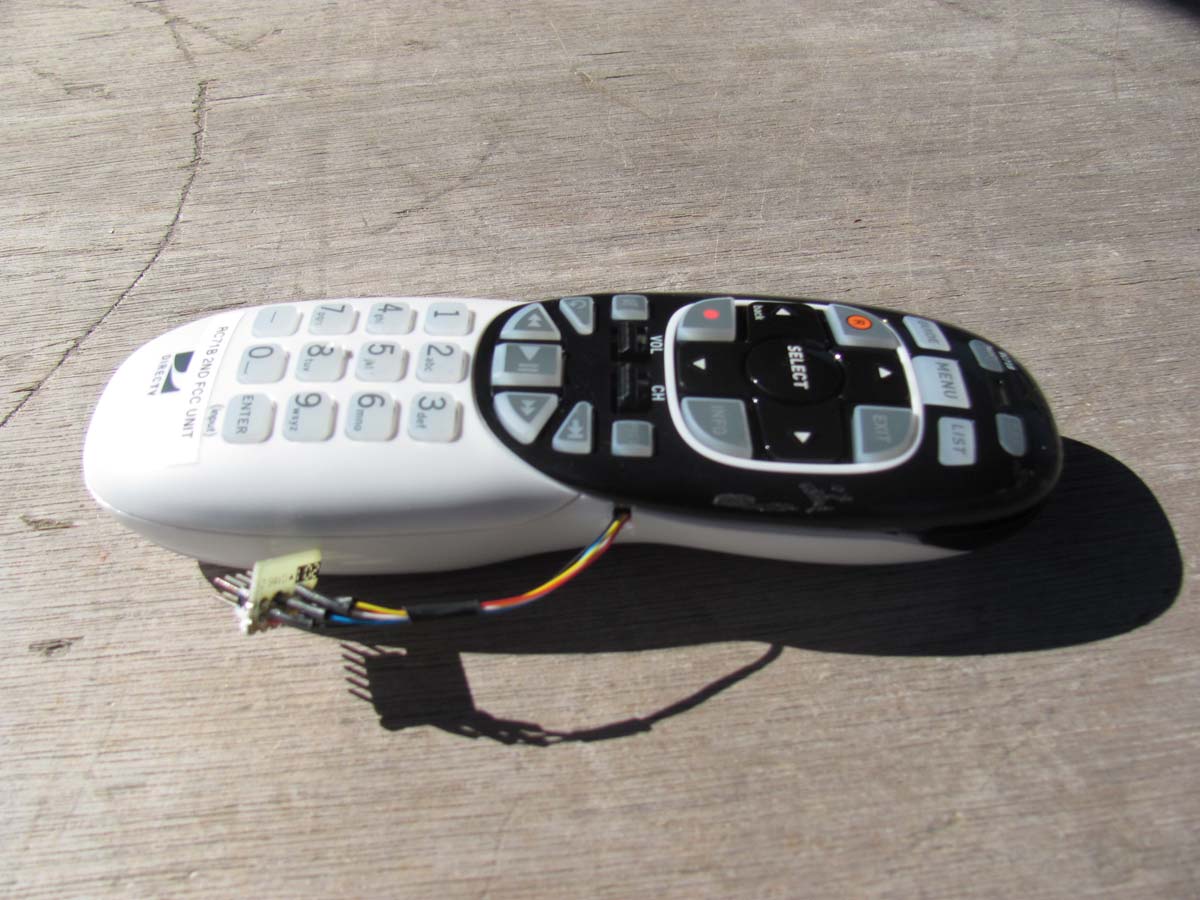

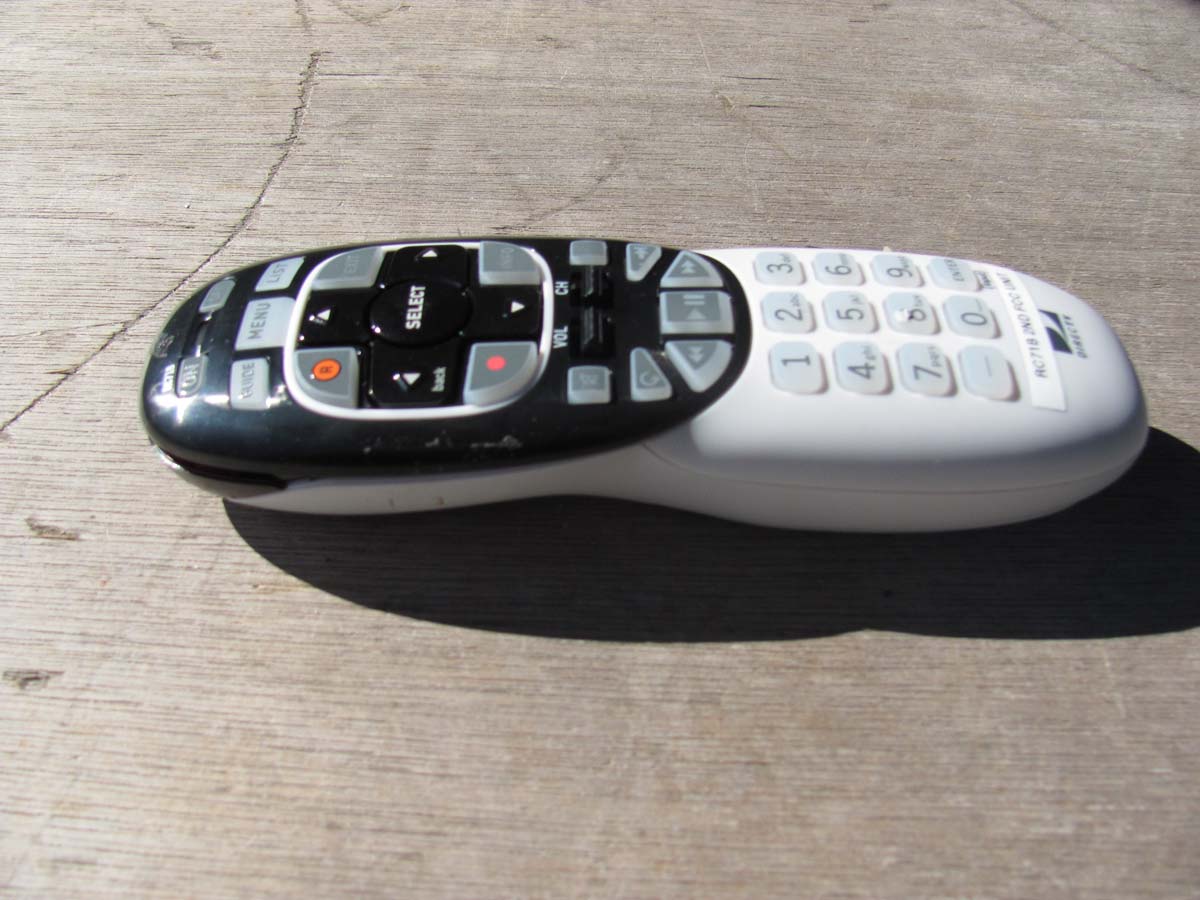

MG33005DirecTV RC71B RF4CE w/ Backlight 2012

Correspondence by Project Project Number: Correspondence NumberMemo MG33005-1 Regarding your questions. 1) Please provide correct schematics. The schematics provided do not match the internal photos of the device. Specifically, the values of C28, R11 and R28, among other components, do not match what is shown in the internal photos. Please see the uploaded revised schematics. 2) The report uses a duty cycle correction factor, however there is no duty cycle information. Please provide information regarding the duty cycle. Please see the uploaded duty cycle plots.

Report Number: B30208D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirecTV RC71B RF4CE w/Backlight 2012 Model: URC-3005BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15 SUBPART B and C TEST REPORT for DirecTV RC71B RF4CE w/Backlight 2012 Model: URC-3005BC0-X-R Prepared for UNIVERSAL ELECTRONICS, INC. 201 EAST SANDPOINTE AVENUE, 8 TH FLOOR SANTA ANA, CALIFORNIA 92707 Prepared by:_____________________ ALEX BENITEZ Approved by:____________________ KYLE FUJIMOTO COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: FEBRUARY 11, 2013 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 13 24 59 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30208D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirecTV RC71B RF4CE w/Backlight 2012 Model: URC-3005BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 6.3 Facility Environmental Characteristics 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 13 7.1.3 RF Emissions Test Results 15 8. CONCLUSIONS 16 Report Number: B30208D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirecTV RC71B RF4CE w/Backlight 2012 Model: URC-3005BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of the Radiated Test Site Report Number: B30208D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirecTV RC71B RF4CE w/Backlight 2012 Model: URC-3005BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: DirecTV RC71B RF4CE w/Backlight 2012 Model: URC-3005BC0-X-R S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Universal Electronics, Inc. 201 East Sandpointe Avenue, 8 th Floor Santa Ana, California 92707 Manufacturer: Gemstar Technology Company, LTD. Gemstar Industrial Park, Shi Guang Road Number 45 Zhongcun Town, Panyu Guangdong Province, China 511495 Test Date(s): November 29, 2012 February 8, 2013 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.209, and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT operates on battery power. 2 Radiated RF Emissions 10 kHz to 25000 MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B30208D1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.249 Test Report DirecTV RC71B RF4CE w/Backlight 2012 Model: URC-3005BC0-X-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification…

Text truncated - open the document above for the full version.

5 dBm -5 dBm 5 dBm -5 dBm RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 UnitdBm Max/Ref Lvl SWT 20 ms Center 2.425 GHz2 ms/ P0 TDF 1VIEW1MA -90 -80 -70 -60 -50 -40 -30 -20 -10 0 -95 5 1 1 Delta 1 [T1] 0.79 dB 1.482966 ms 1 [T1] -73.96 dBm 6.252505 ms 1 [T1] 0.79 dB 1.482966 ms D1 -1.27 dBm D2 -53 dBm Date: 6.FEB.2013 09:32:04 Time of One Pulse – Acquisition Mode (Worst Case) – 1.482966 mS 5 dBm -5 dBm 5 dBm -5 dBm RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 UnitdBm P0 TDF Max/Ref Lvl SWT 200 ms Center 2.425 GHz20 ms/ 1VIEW1AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 -95 5 1 1 Delta 1 [T1] -0.64 dB 2.004008 ms 1 [T1] -73.70 dBm 72.545090 ms 1 [T1] -0.64 dB 2.004008 ms D1 -1.27 dBm D2 -53 dBm Date: 6.FEB.2013 09:31:18 Plot showing the Pulse only appears once per 100 mS 5 dBm -5 dBm 5 dBm -5 dBm RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 UnitdBm Max/Ref Lvl SWT 20 ms Center 2.425 GHz2 ms/ P0 TDF 1VIEW1AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 -95 5 1 1 Delta 1 [T1] -1.86 dB 1.082164 ms 1 [T1] -75.84 dBm 7.494990 ms 1 [T1] -1.86 dB 1.082164 ms D1 -1.27 dBm D2 -53 dBm Date: 6.FEB.2013 09:37:05 Time of One Pulse During Normal Usage – 1.082164 ms 5 dBm -5 dBm 5 dBm -5 dBm RBW 1 MHz VBW 3 MHz RF Att 10 dB A IN1 UnitdBm P0 TDF Max/Ref Lvl SWT 1 s Center 2.425 GHz100 ms/ 1VIEW1AP -90 -80 -70 -60 -50 -40 -30 -20 -10 0 -95 5 1 1 Delta 1 [T1] -0.39 dB 100.200401 ms 1 [T1] -73.69 dBm 106.212425 ms 1 [T1] -0.39 dB 100.200401 ms D1 -1.27 dBm D2 -53 dBm Date: 6.FEB.2013 09:36:15 Plot Showing the Pulse only Appears once every 100 mS Both modes are un der 10%, thus the full 20 dB peak to average ratio can be taken.
