MG33051Motorola URC 600 UHF IR Remote 2010

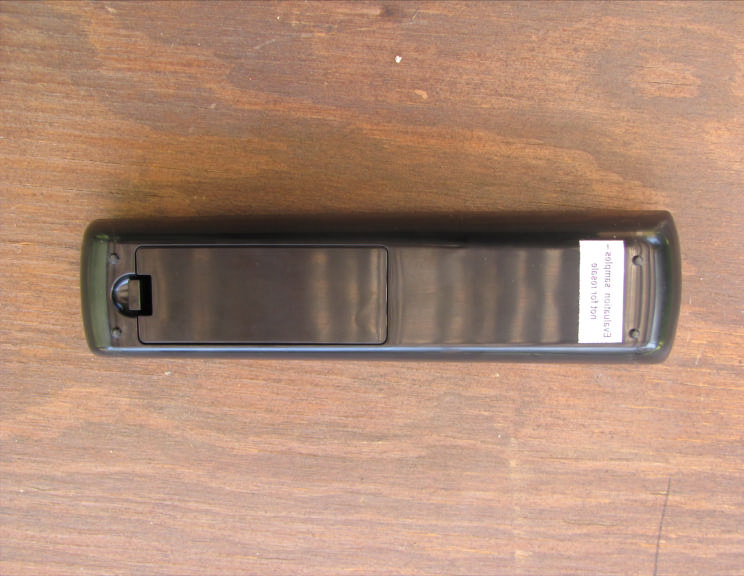

FoldFoldFoldFoldFold FoldFold FoldFoldFoldFoldFoldFoldFold Overview The Shaw Direct ir C600 ir /UHF remote Controls by Universal electronics are our latest genera- tion universal remote controls. Their sophisticated technology allows you to consolidate up to five of your original home enter- tainment remote controls into one easy-to-use product. The remote control requires installing two (2) new AA batter- ies (included) and simple pro- gramming instructions to control your Tv. For best results, please read and perform all instructions listed here. Also, keep this guide for future reference. inSTAlling BATTerieS 1. Pull back the remote control’s battery cover and remove it. 2. insert the two (2) supplied AA batteries according to the + and - marks in the battery case. 3. Push the battery cover back into place. 4. Test the unit by pressing the power key. if batteries are inserted cor- rectly, the red light will blink. nOTe: when batteries need replace- ment, the remote control will stop operating. replace the old batteries replace old batteries with new AA batteries. PrOgrAmming SAT COnTrOl Your remote control address is set at the factory to 01869 to control all of the functions on your motorola satellite receiver. However, if you have more than one satellite receiver, you may want to prevent the remote control in one room from affecting the satellite receiver in another room. To prevent this kind of interference, you must “pair” each remote control with each receiver by assigning a new “address” to each combination. This “address” assignment is made using your remote control as follows: 1. Press the SAT button to select the remote control's SAT mode. 2. Press the Options button to display the Options screen on your Tv. 3. On the System Setting / Setup screen, use the buttons to highlight the Change System Setting / System Setup option, then press enter/OK. 4. On the Systems Setting / Setup screen, use the buttons to highlight the Change installation Setting / System Settings (applies to DSr 5xx, 207, 317 receivers) option than press enter/OK. 5 On the System Settings (applies to DSr 5xx, 207, 317 receivers) screen, use the buttons to highlight the installation Settings option, the press enTer/OK. 6. On the installation Settings screen and use the buttons to highlight the remote Control Address option, then press enTer/OK. 7. Once you are on the remote Control Address screen, dis- regard the instructions on screen and follow the steps using the remote control Keypad... 8. Press and hold the SAT key until the red lights flash twice and release the SAT key. 9. enter in the new 5 Digit SAT address from the below list. 10. Press the enter button to set the same address in your Satellite receiver. The new address will be displayed in the upper right corner of your Tv screen. 11. e xit from the remote Control Address screen. PrOgrAmming DeviCe COnTrOl The Shaw Direct ir C 600 ir /UHF remote Controls are preprogrammed to operate a motorola satellite receiver, a Sony Tv, and Sony DvD player, than the default brands, perform the follow- ing steps; otherwise skip this section. 1. Turn on the Tv. nOTe: Please read steps 2 to 4 completely before proceeding. Highlight or write down the codes and device you wish to program before moving on to step 2. 2. Press and hold Device key (Tv or AUX) until the red lights blinks twice, then release Tv. 3. locate the code for your device in manufacturer’s Codes on the back of this user guide. Brands are listed in alphabetical order with the most popular codes listed first. 4. enter the first five-digit code for your Tv. if you perform this pro- cedure correctly, the red light will blink twice. nOTe: if you enter an invalid code, the red light will display not blink when entering the last digit and exit the programming mode. repeat steps 2 to 4 with a valid code. 5. Aim the remote control at your Tv and press Power once. The device should turn off. if it does not respond, repeat steps 2 to 4, trying each code listed for your brand until you find one that works. if it still does not work, try Searching For Your Code. 6. The Tv code will be stored in the Digital Adapter and will be repro- grammed when the batteries are changed and the Digital Adapter remote is successfully re-paired with the Digital Adapter. Tv Code: AUX Code: Tv Code: SeArCHing FOr YOUr CODe if your brand of Device does not respond to the remote control after trying all of the codes listed, or if your brand is not listed at all, try searching for your code. 1. Turn on your Device. 2. Press and hold Device key (Tv or AUX) until the red lights blinks twice, then release Tv. 3. enter in 9 - 9 - 1. The red light will blink twice. 4. while pointing the remote control at the Device, press and release the CH + key until the Device turns off. (note: You may need to press [CH+] numerous times). nOTe: in the search mode, the remote control will send ir codes from its library to the library of ir codes 5. Press Device key once to lock in the code. The red light will blink twice. CHeCKing THe CODeS if you have set up the remote control using the Searching For Your Code procedure, you may need to find out which five-digit code is operating your Tv. Perform the following steps after setting up your Tv to find out which five-digit code operates your Tv. 1. Press and hold Tv until the red light blinks twice, then release SeT. 2. enter in 9 - 9 - 0. The red light will blink twice. 3. To view the code for the first digit, press 1 once. wait 3 sec- onds and count the number of times the red light blinks (e.g., 3 blinks =3) and write down the number in the left most Tv Code box (at end of this section). nOTe: if a code digit is “0”, the red light will not blink. 4. repeat step 3 four more times for the remaining digits. Use 2 for the second digit, 3 for the third digit, 4 for the fourth digit and 5 for the fifth digit. Finish writing down the code in the Tv Code boxes (at end of this section). CHAnging vOlUme COnTrOl …

Text truncated - open the document above for the full version.

Correspondence by Project Project Number: Correspondence NumberMemo MG33051-1 1. Please provide an explanation on how the devices meets the operational requirements of 15.231 (a). Response: The EUT stops transmitting immediately after the button is released during normal usage.

Report Number: B00802D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Motorola URC 600 UHF IR Remote 2010 UEI P/N: URC-3051BC0-R, Star Choice P/N: URC-3053BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15 SUBPART B and C TEST REPORT for MOTOROLA URC 600 UHF IR REMOTE 2010 UEI P/N: URC-3051BC0-R STAR CHOICE P/N: URC-3053BC0-R Prepared for UNIVERSAL ELECTRONICS, INC. 6101 GATEWAY DRIVE CYPRESS, CALIFORNIA 90630-4841 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: AUGUST 9, 2010 REPORT APPENDICES TOTAL BODY A B C D E PAGES 17 2 2 2 11 10 44 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B00802D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Motorola URC 600 UHF IR Remote 2010 UEI P/N: URC-3051BC0-R, Star Choice P/N: URC-3053BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.2 Bandwidth of the Fundamental 16 8. CONCLUSIONS 17 Report Number: B00802D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Motorola URC 600 UHF IR Remote 2010 UEI P/N: URC-3051BC0-R, Star Choice P/N: URC-3053BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos • Test Setup Diagram • Antenna and Amplifier Factors • Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B00802D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Motorola URC 600 UHF IR Remote 2010 UEI P/N: URC-3051BC0-R, Star Choice P/N: URC-3053BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 17 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Motorola URC 600 UHF IR Remote 2010 UEI P/N: URC-3051BC0-R Star Choice P/N: URC-3053BC0-R S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630-4841 Test Date(s): July 20 and 21; and August 3, 2010 Test Specifications: EMI requirements CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz The EUT does not directly or indirectly connect to the AC mains, thus this test was not performed. 2 Radiated RF Emissions 10 kHz – 4400 MHz (Transmitter Portion) Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.231. 3 Radiated RF Emissions 10 kHz – 4400 MHz (Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B. *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B00802D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Motorola URC 600 UHF IR Remote 2010 UEI P/N: URC-3051BC0-R, Star Choice P/N: URC-3053BC0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 17 1. PURPOS…

Text truncated - open the document above for the full version.

Center 433.92 MHz40 ms/ Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz SWT 400 ms RF Att 10 dB A IN1 Unit dB
V P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.53 dB 100.200401 ms D1 54 dB
V Date: 2.AUG.2010 07:45:08 Time of Pulse with Blanking Interval = 100.200401 mS Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
VSWT 200 ms Center 433.92 MHz20 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 0.62 dB 100.200401 ms D1 54 dB
V Date: 2.AUG.2010 07:45:33 Time of Pulse with Blanking Interval = 100.200401 mS Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
VSWT 200 ms Center 433.92 MHz20 ms/ P0 TDS 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.26 dB 44.889780 ms D1 54 dB
V Date: 2.AUG.2010 07:45:54 Time of First Pulse = 44.889780 mS Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
V P0 TDS TRG SWT 60 ms Center 433.92 MHz6ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 1.68 dB 44.368737 ms D1 54 dB
V Date: 2.AUG.2010 07:51:17 1 Large Pulse and 13 Small Pulses Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 Unit dB
V P0 TDS TRG SWT 60 ms Center 433.92 MHz6ms/ 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 1.55 dB 5.290581 ms D1 54 dB
V Date: 2.AUG.2010 07:51:41 Time of Large Pulse = 5.290581 mS Ref Lvl 92 dB
V Ref Lvl 92 dB
V RBW 100 kHz VBW 300 kHz RF Att 10 dB A IN1 1AP Unit dB
V P0 TD S TRG SWT 60 ms Center 433.92 MHz6 ms/ 1VIE W 1AP 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 -8 9 2 1 1 Delta 1 [T1] 0.98 dB 1.322645 ms D1 54 dB
V Date: 2.AUG.2010 07:52:08 Time of Small Pulse = 1.322645 mS Total Duty Cycle = 5.290581 mS + (13 * 1.322645 mS) / 100 mS = 22.49%
