MG345600Jasco Basic Z-Wave Remote Control

Jasco Z-Wave Remote Control Model 45600 USER GUIDE INTRODUCTION Thank you for purchasing a Jasco Z-wave Remote. Your remote lets you control up to 18 individual Z-wave devices with one easy- to-use, compact unit. You can also set up and control up to 18 different groups and scenes. Each group can include up to 232 Z- Wave nodes and each scene can include up to 32 nodes. You can control your electric lights, turning them on or off, or making them brighter or dimmer. After installing batteries (see next section), you must use the Jasco Z-wave remote to create your control network. For best results, please read and perform all the remaining instructions. Also, keep this guide for future reference. INSTALLING BATTERIES Your Jasco Z-wave Remote requires three AAA batteries (not supplied) for power. Battery Use And Safety • Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries (that is, standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. CAUTION: If you do not plan to use the remote for an extended period, remove the batteries. They can leak chemicals that can destroy electronic parts. WARNING: Dispose of old batteries promptly and properly. Do not burn or bury them. To Install Batteries: 1.Open the battery compartment cover (located on the back of the remote). 2.Place the AAA batteries in the compartment and match the + and - polarity symbols inside. 3.Replace the cover. NOTE: When the red LED on the Jasco Z- wave Remote starts to blink 5 times after a key press, you must replace the batteries. The remote retains all its user settings while replacing the bat- teries. A QUICK LOOK AT THE CONTROLS ADDING A NODE TO THE NETWORK The Jasco Z-wave Remote allows you to control lights around your home. In order to control the lights, they must be Z-wave compatible and you must first add them to your home network. To add a node to your home network, perform the following steps: 1.Press and hold SETUP until both the red and green LEDs blink twice. 2.Press ADD once. 3.Press NODE once. 4.Press NODE again. 5.Press the button on the node so that it sends its information to the remote and receives information from the remote. 6.The green LED blinks twice. You have successfully added the node to your home network. NOTE: If the red LED emits one long, steady blink, you have pressed an invalid key or the node has not been successfully added the node to your home network. Please make sure the remote is close to the node and try again. ADDING A NODE TO YOUR REMOTE You can add a node to your remote control so that it can control an individual node. Adding a node to your remote also adds it to your network. If the node number you are trying to add is already associated with another node, the previous node information is lost. To add a node to your remote, perform the following steps: 1.Press and hold SETUP until both the red and green LEDs blink twice. 2.Press ADD once. 3.Press NODE once. 4.Press a digit (1-9) for the node location you wish to add. Press SHIFT and the digit (1-9) if you are adding nodes 10 through 18. 5.Press the button on the node so that it sends its information to the remote and receives information from the remote. 6.The green LED blinks twice. You have successfully added the node to your remote control. NOTE: If the red LED emits one long, steady blink, you have pressed an invalid key or the node has not been successfully added to your remote. Please make sure the remote is close to the node and try again. NOTE: You can only add a maximum of 18 nodes to your remote. REMOVING AN INDIVIDUAL NODE FROM YOUR REMOTE (DISASSOCIATING FROM REMOTE) 1.Press and hold SETUP until both the red and green LEDs blink twice. 2.Press REMOVE once. 3.Press NODE once. 4.Press a digit (1-9) for the node location you wish to remove. Press SHIFT and the digit (1-9) if you are adding nodes 10 through 18. 5.The green LED blinks twice. You have successfully removed the node from your remote control. NOTE: If the red LED emits one long, steady blink, you have pressed an invalid key or the node has not been successfully removed from your remote control. DELETING A NODE FROM YOUR NETWORK To remove a node from your home network, you must delete it from the network. To delete the node from your network, perform the following steps: 1.Press and hold SETUP until both the red and green LEDs blink twice. 2.Press DELETE once. 3.Press NODE once. 4.Press the button on the node so that it sends its information to the remote and receives information from the remote. 5.The green LED blinks twice. You have successfully deleted the node from your home network. NOTE: If the red LED emits one long, steady blink, you have pressed an invalid key or the node has not been successfully deleted from your home network. CONTROLLING NODES You can control a node to turn it on or off, or change its brightness level. The operation of a specific node varies by product. Refer to the manual for that node to learn its specific operation. Turning a Node On or Off (Assuming the user is in the Node mode already) 1.To turn a node on, press and release the ON key for less than one second. The green LED blinks once. 2.To turn a node off, press and release the OFF key for less than one second. The green LED blinks once. Setting a Node’s Brightness Level 1.To make a node brighter, press and hold the ON key for more than one second. The green LED blinks once. 2.To make a node dimmer, press and hold the OFF key for more than one second. The green LED blinks once. NOTE: If the red LED emits one long, steady blink the remote has not successfully communicated with the node. SETTING UP AND CONTROLLING A GROUP You can create a collection of nodes that you can control as a group. You can set up a maximum of 18 groups. Each group can contain up to 232 nodes. Adding a Node to a Group To add a node to a group, perform the following steps: 1.Press and hold SETU…

Text truncated - open the document above for the full version.

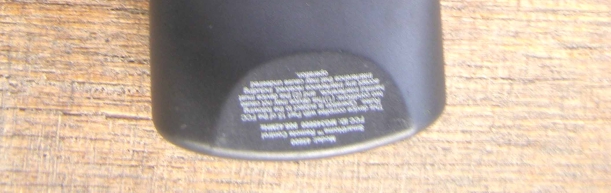

Report Number: B61221B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Jasco Basic Z-Wave Remote Control Model: URC-8900BG0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 15 FCC PART 15, SUBPART B and C TEST REPORT for JASCO BASIC Z-WAVE REMOTE CONTROL MODEL: URC-8900BG0-R Prepared for UNIVERSAL ELECTRONICS, INC. 6101 GATEWAY DRIVE CYPRESS, CALIFORNIA 90630 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JANUARY 5, 2007 REPORT APPENDICES TOTAL BODY A B C D E PAGES 15 2 2 2 12 9 42 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B61221B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Jasco Basic Z-Wave Remote Control Model: URC-8900BG0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 15 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONIFUGRATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test (continued) 14 8. CONCLUSIONS 15 Report Number: B61221B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Jasco Basic Z-Wave Remote Control Model: URC-8900BG0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 15 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of 3 Meter Radiated Site Report Number: B61221B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Jasco Basic Z-Wave Remote Control Model: URC-8900BG0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 15 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Jasco Basic Z-Wave Remote Control Model: URC-8900BG0-R S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Universal Electronics, Inc. 6101 Gateway Drive Cypress, California 90630 Test Date: December 21, 2006 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.249 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz This test was not performed because the EUT is battery powered only and does not connect to the AC public mains. 2 Radiated RF Emissions, 10 kHz – 9100 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.249. Report Number: B61221B1 FCC Part 15 Subpart B and FCC Section 15.249 Test Report Jasco Basic Z-Wave Remote Control Model: URC-8900BG0-R Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 15 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Jasco Basic Z-Wave Remote Control, Model: URC-8900BG0-R. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, P…

Text truncated - open the document above for the full version.
