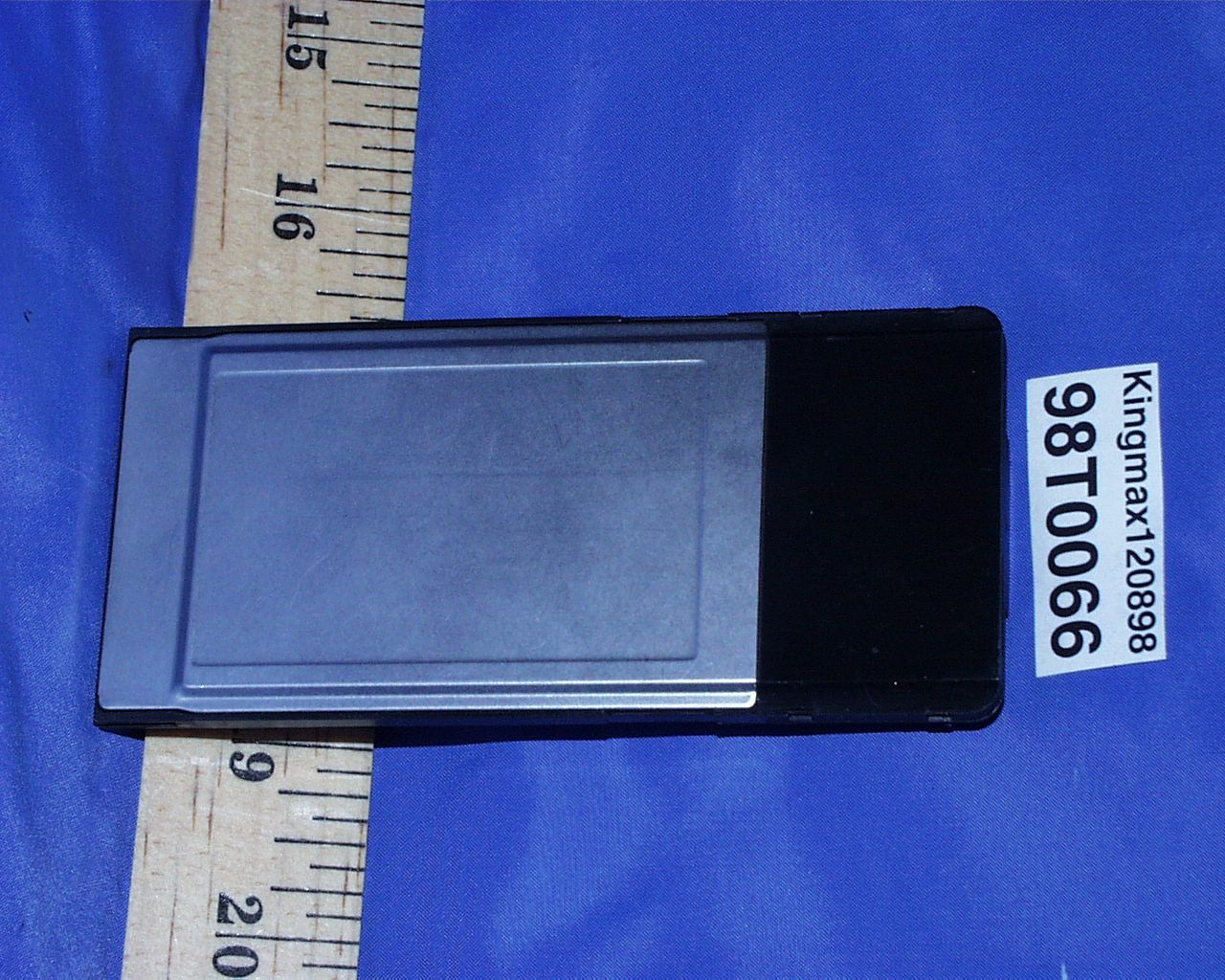

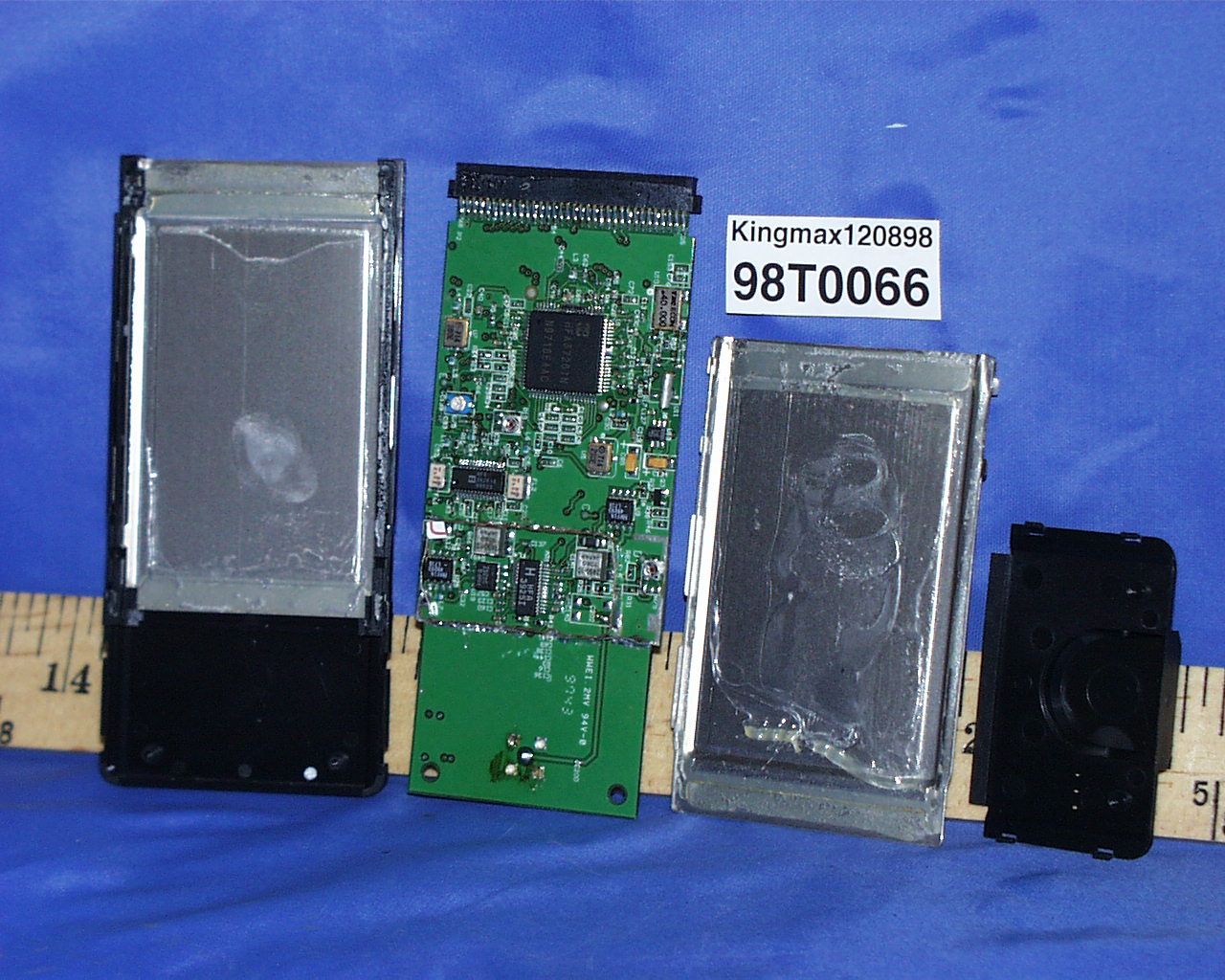

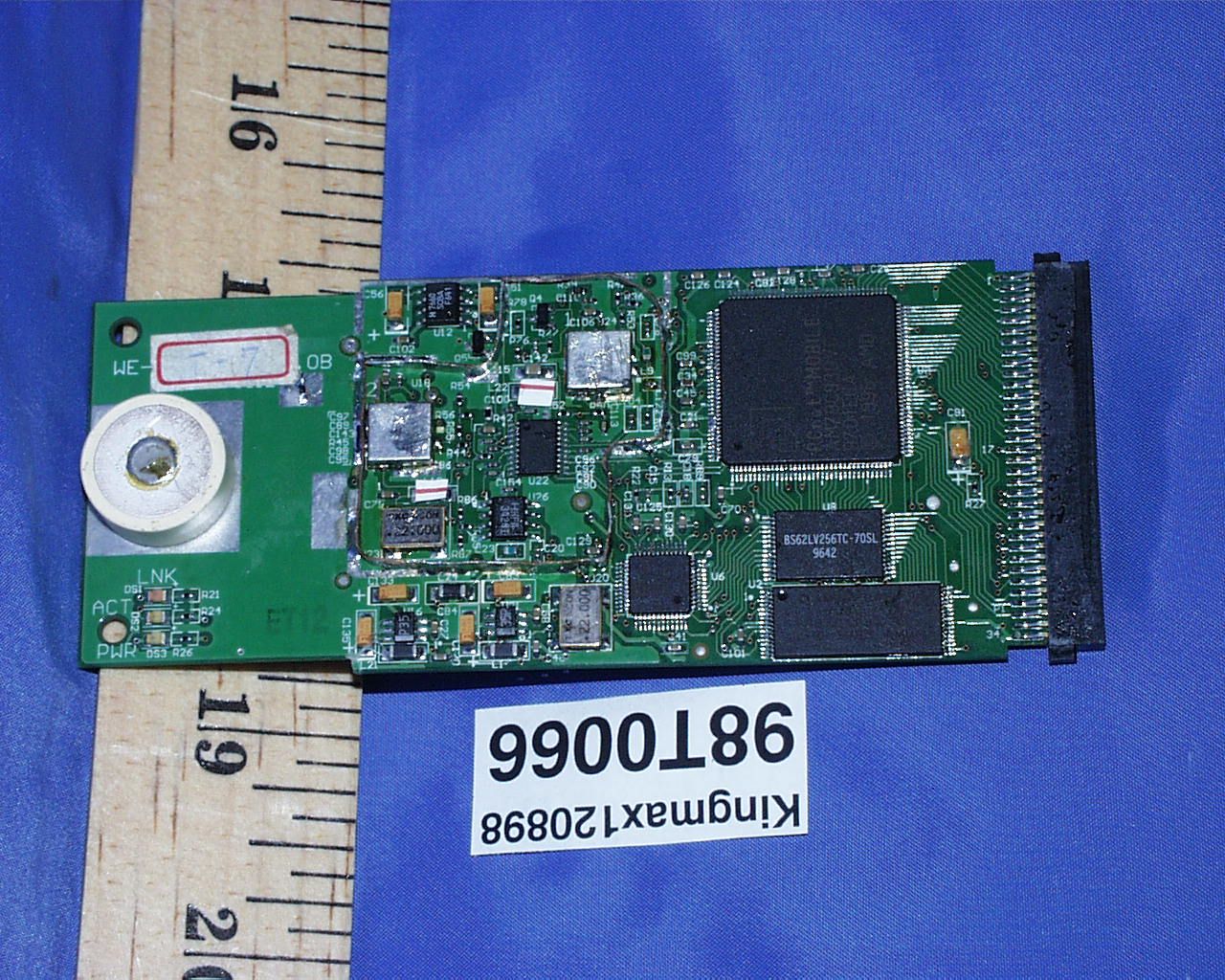

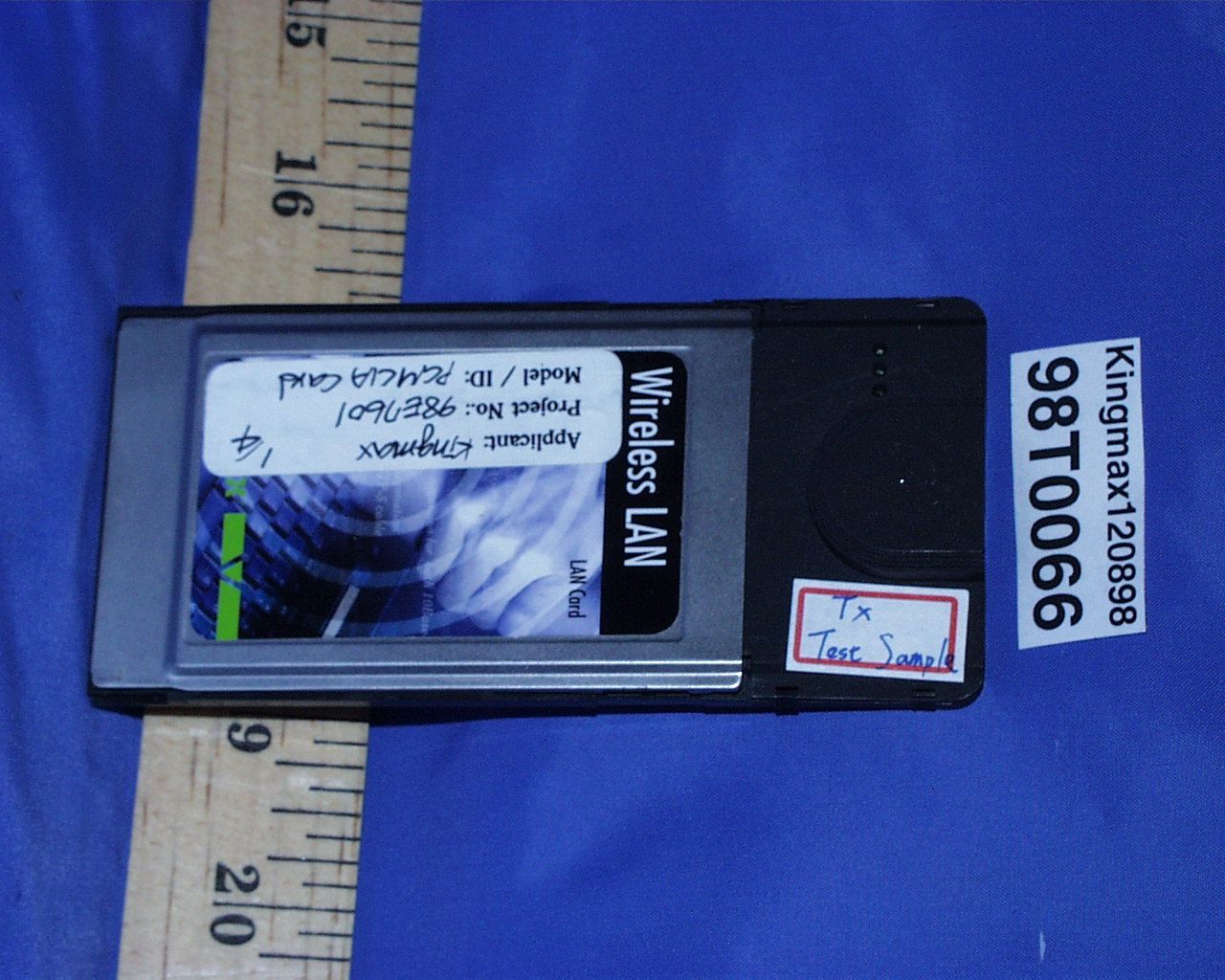

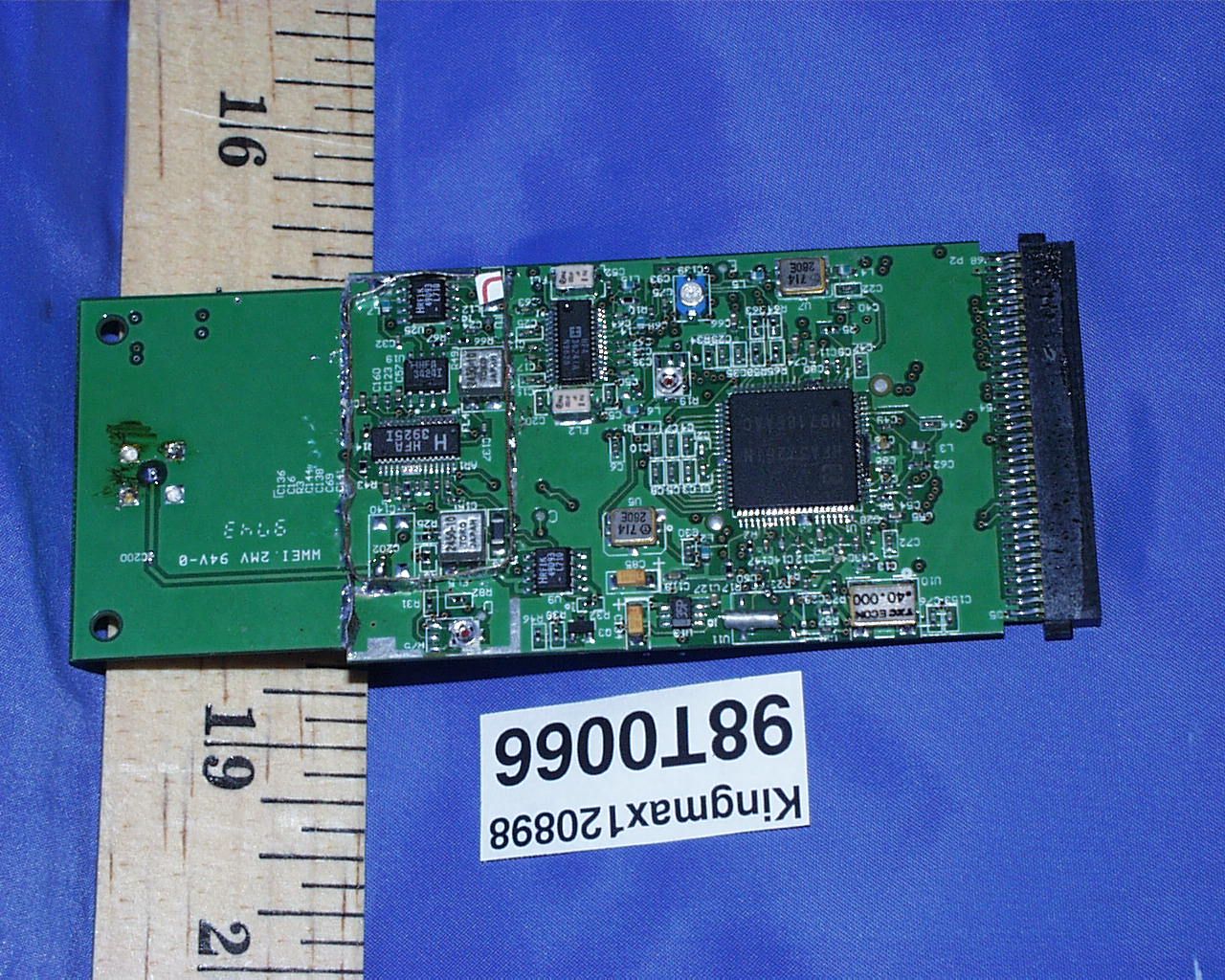

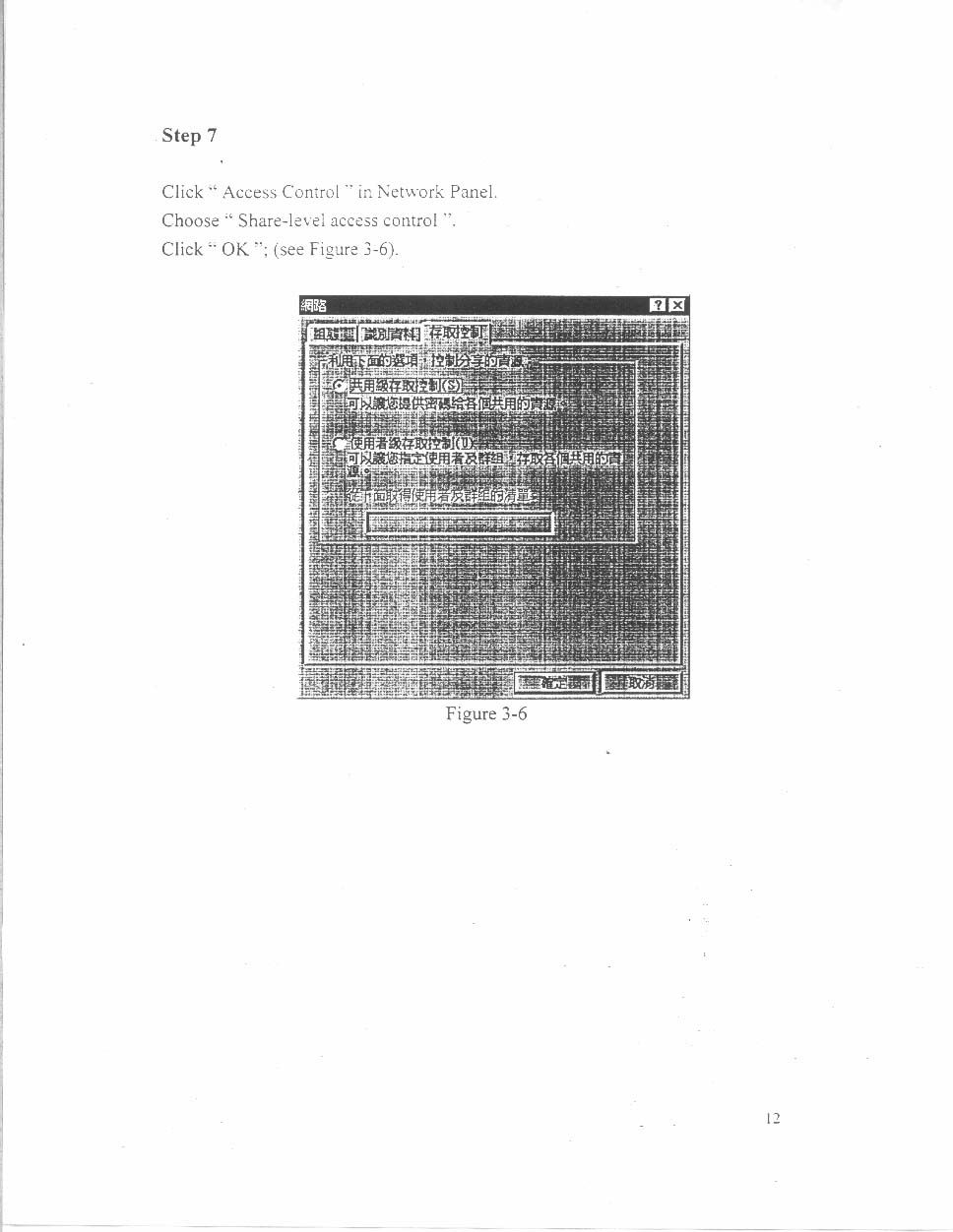

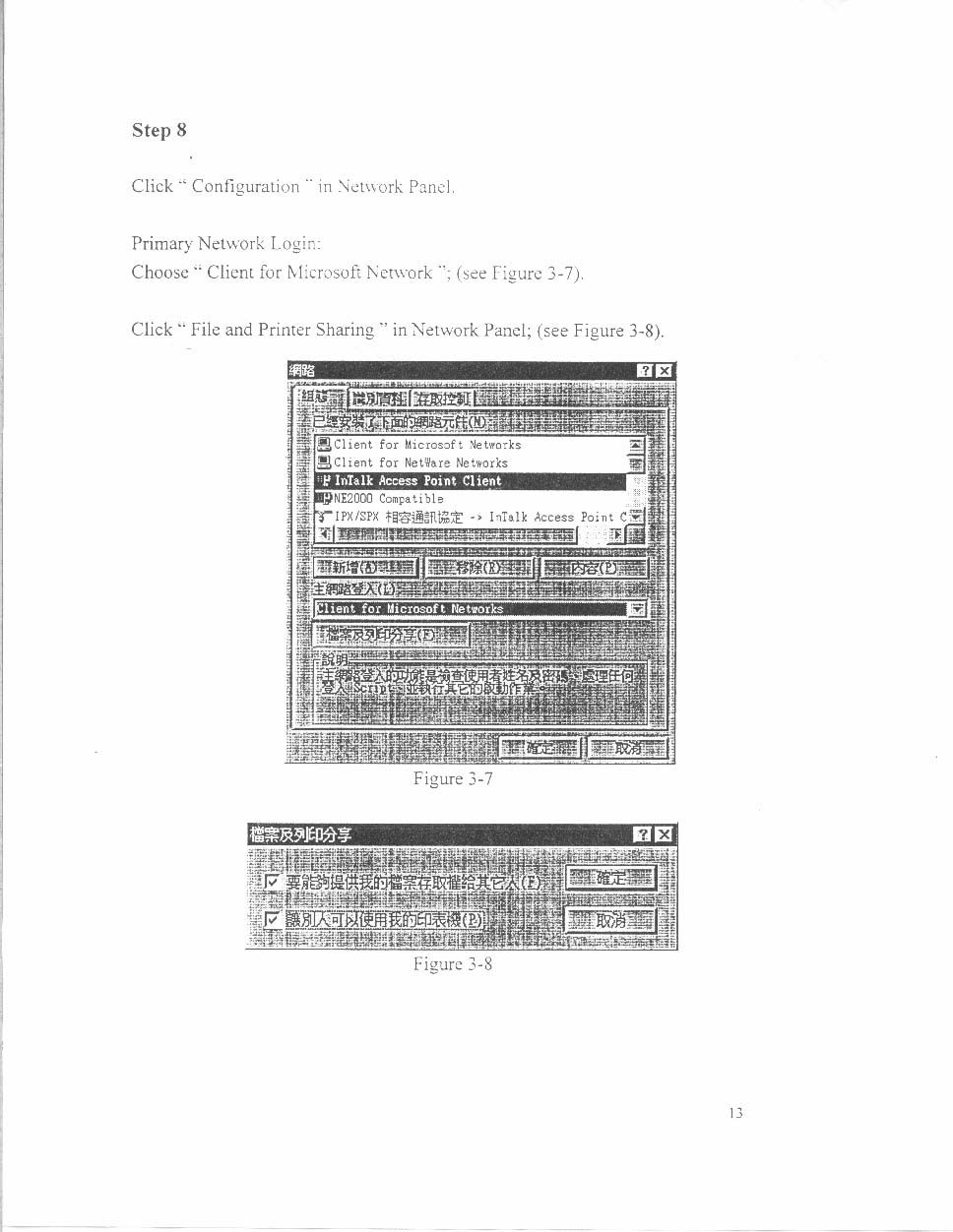

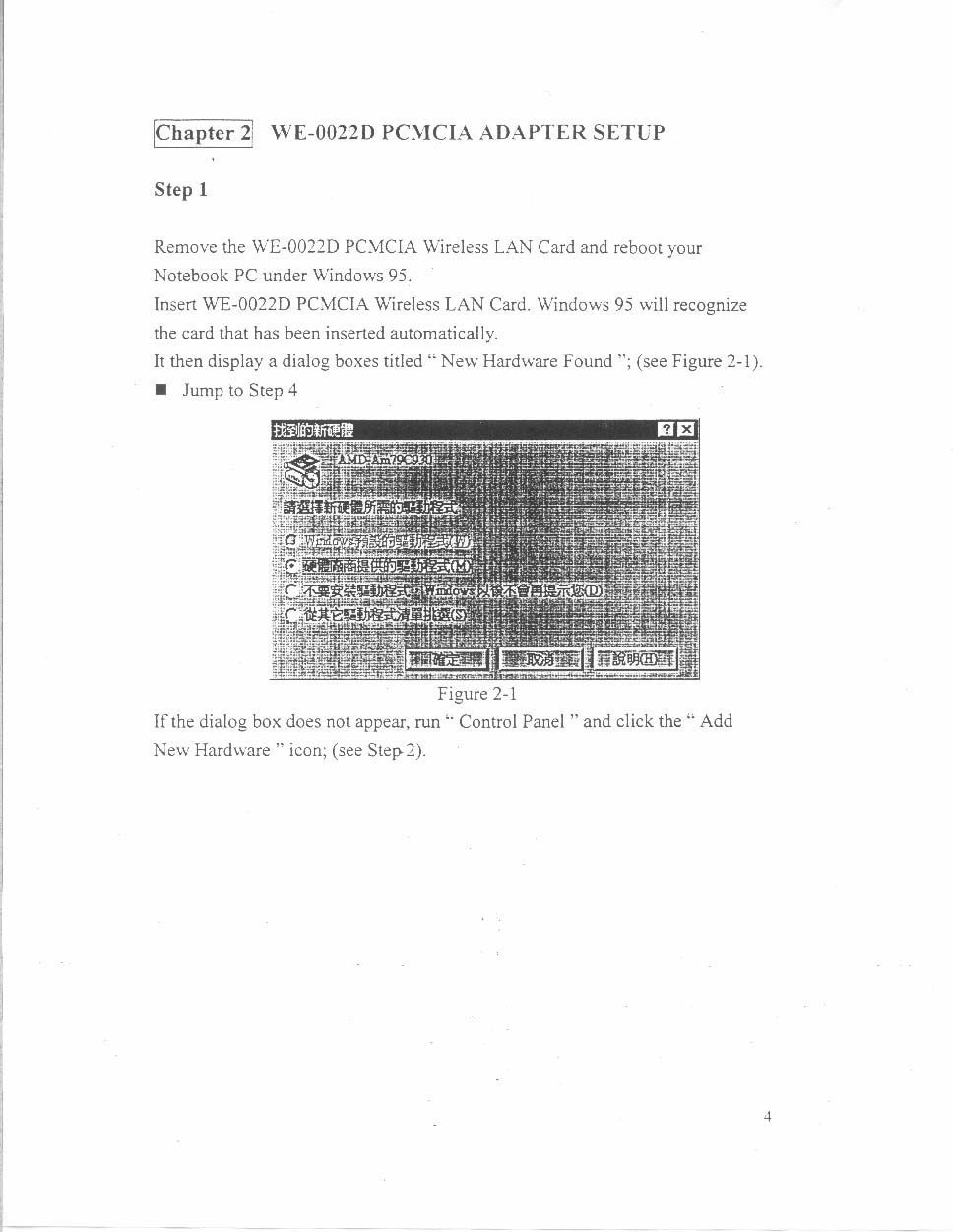

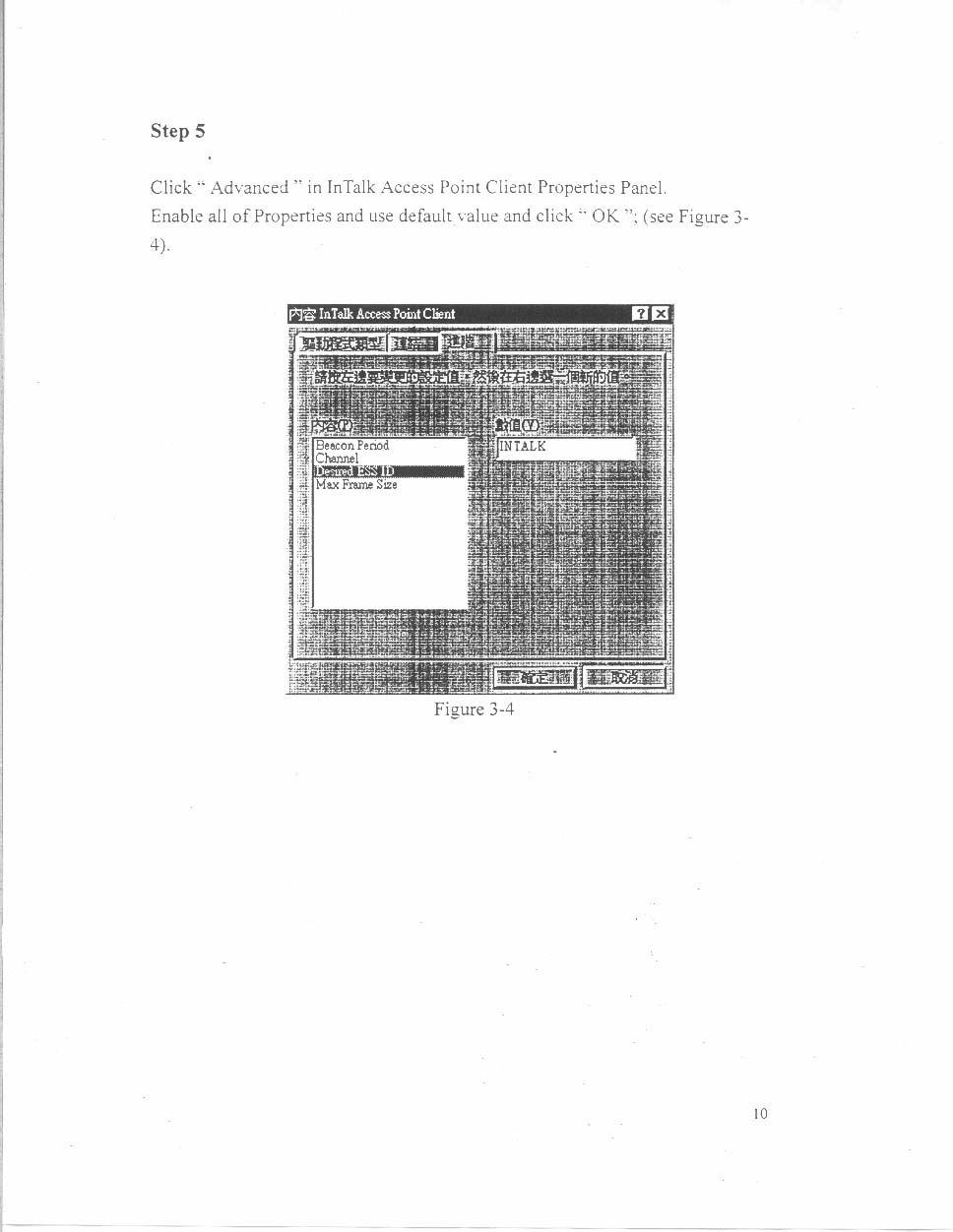

MGA-KWE2000-HFWLAN PCMCIA CARD

PROPOSED FCC ID LABEL FORMAT AND LOCATION APPLICANT: KINGMAX TECHNOLOGY INC. FCC ID:MGA-KWE2000-HF Due to the size of this device, the following compliance statement can be observed in a prominent location in the instruction manual. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesired operations. FCC ID: MGA-KWE2000-HF FCC ID LABEL AREA

1 Semiconductor PRISM and Design® is a registered trademark of Harris Corporation. PRISM™ is a trademark of Harris Corporation. Microsoft® and Windows® are registered trademarks of Microsoft Corporation. Copyright © Harris Corporation 1998 PRISM1KIT-EVAL DSSS PC Card Wireless LAN Description Introduction The PRISM1KIT-EVAL wireless LAN PC card is a complete wireless high speed modem utilizing the Harris PRISM™ Direct Sequence Spread Spectrum (DSSS) wireless transceiver chip set. The card is packaged in an open frame PCMCIA Type II extended coverset for evaluation access and a connector output for use in the laboratory. Evaluation kits include two cards, Microsoft® Windows® 95 software and documentation to get your WLAN evaluation started quickly. The PRISM1KIT- EVAL is not FCC approved as an intentional radiator and is intended for use with cabled connections only (30dB antenna port to antenna port attenuation recommended). An FCC experimental license is required while transmitting over the air with unapproved equipment. Please refer to the WLANKITPR1-KIT for an FCC-approved radio kit for wireless LAN evaluations. This application note details the RF and analog design of these cards. The physical layer (PHY) sections of these PC Cards are described in detail. The medium access control (MAC) section of the PC Cards will be described in detail in the pending AMD application note titled “Wireless LAN DSSS PC Card Reference Design” [1]. Figure 1 shows a block diagram of the reference radio design. This radio has been designed to conform to the draft IEEE 802.11 specification but does not include the antenna diversity selection. The specifications of the PC Card Wireless LAN are as follows: General Specifications • Targeted Standard . . . . . . . . . . . . . . . IEEE 802.11 (Draft) • Data Rate . . . . . . . . . . . . . . . . . . . . . . . . . .1Mbps DBPSK 2Mbps DQPSK • Range . . . . . . . . . . . . . . . . . . . 400ft Indoor (Typ) (Note 1) 3700ft Outdoor (Typ) (Note 1) • Frequency Range . . . . . . . . . . . . . . 2412MHz to 2484MHz • Step Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1MHz • IF Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280MHz • IF Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17MHz • RX/TX Switching Speed . . . . . . . . . . . . . . . . . . . 2μs (Typ) • Operating Voltage . . . . . . . . . . . . . . . . . . 4.5V DC - 5.5V DC • Standby Current . . . . . . .190mA at 1μs Recovery (Note 4) 70mA at 25μs Recovery (Note 4) 60mA at 2ms Recovery (Note 4) 30mA at 15ms Recovery (Note 4) • Operating Temperature Range . . . . . 0 o C to 70 o C (Note 2) • Storage Temperature Range . . . . . . . . . . -55 o C to 125 o C • Mechanical . Type II PCMCIA Card, with Antenna Extension • Antenna Interface . . . . . . . . . . . . . . . . . . . . . . . SMA, 50Ω Receive Specifications • Sensitivity . . . . . -91dBm (Typ), 1Mbps, 8E-2 FER (Note 3) -88dBm (Typ), 2Mbps, 8E-2 FER (Note 3) • Input Third Order Intercept Point . . . . . . . . . -20dBm (Typ) • Image Rejection . . . . . . . . . . . . . . . . . . . . . . . . 65dB (Typ) • IF Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . 80dB (Typ) • Adjacent Channel Rejection . . . . . . . . . . . . . . . 63dB (Typ) at 25MHz Offset • Supply Current . . . . . . . . . . . . . . . . . 287mA (Typ), 2Mbps, 100% Duty Cycle Transmit Specifications • Output Power . . . . . . . . . . . . . . . . . . . . . . +17.5dBm (Typ) • Transmit Spectral Mask. . . . -32dBc (Typ) at First Side-Lobe • Supply Current . . . . 488mA (Typ), 2Mbps, 100% Duty Cycle NOTES: 1. Using M/A-COM AND-C-107 omnidirectional antenna. 2. AM79C930 limited to 0 o C to 70 o C. 3. FER = Frame Error Rate or Packet Error Rate. 4. Recovery times do not include MAC recovery. Receive Processing Referring to the block diagram in Figure 1, the schematic on our web site [2], and the bill of materials in Appendix A, a single antenna is used. Up to two antennas are supported in the HFA3824A [3] Baseband Processor to implement diversity, countering the adverse effects of multipath fading. As space is at a premium in a PC Card environment, only one antenna is used. In an actual system implementation, if one can achieve diversity in at least one end of a link, such as at the access point where it is possible to achieve physical separation between diversity antennas, multipath performance will be improved. Ordering Information PART NUMBERDESCRIPTIONCARDS PER KIT PRISM1KIT-EVALEvaluation Kit2 November 1998AN9624.5 Authors: Carl Andren, Mike Paljug, and Doug Schultz (Integrated RF Solutions, Inc.) 2 Application Note 9624 QUADRATURE HFA3925 HFA3724 HFA3824A DATA CTRL FILTER CUTOFF I/Q LO VCO I ADC DATA IO TX/RCV VCO HFA3524A HFA3624 RF/IF CONVERTER Q MODEM RF POWER AMP DE- MOD MOD/ ENCODE SPREAD LNA FIGURE 1. PRISM PC CARD BLOCK DIAGRAM PCnet™ is a trademark of AMD, Inc. AND TX/RX SWITCH HFA3424 SELECT Q ADC 5TH ORDER TXQ BUTTERWORTH LOW PASS FILTERS QUADRATURE DEMOD RXQ BASEBAND MODULATOR ADC CCA PROCESSOR DUAL SYNTHESIZER OSC 22MHz CLK CONTROL TEST I/O LIMITING IF /RSSI TX/RX SELECT FL6 FL1 U7 LC FILTER U5 FL2 OSC 22MHz AM79C930 PCnet ™MOBILE WIRELESS LAN MAC TO HOSTCOMPUTER 128K FLASH 32K SRAM FL4 RSSI RXI TXI DE- SPREAD HFA3424 BUFFER FL3 3 From the antenna, the received input is applied to FL3 and FL6, a Toko TDF2A-2450T-10 two pole dielectric bandpass filters, which are used to provide image rejection for the receiver. The IF frequency is 280MHz, and low-side injection is used, thereby placing the received image 560MHz below the tuned channel. FL3 and FL6 also provide protection for the RF front-end from out of band interfering signals. The T/R switch is integrated in the HFA3925 [4] RF Power Amplifier (RFPA). The HFA3925 RFPA operates from the unregulated 5V PC Card supply. Following the T/R switch, the HFA3424 [5] Low Noise Amplifier (LNA) is used to set the receiver noise figure. The HFA3424 LNA operates from a regulated 3.5V…

Text truncated - open the document above for the full version.

A A B B C C D D E E 44 33 22 11 H/W Schematics-KWE2000-HF1.0B WLAN A 14Tuesday, January 19, 1999 KINGMAX Title SizeDocument NumberRev Date:Sheetof RX_PE RX_IF RF_LO TX_PE TX_IF TX_PE PA_PE A2VCC VCC A1VCC U15 TERMS GND1 1 GND2 2 GND3 3 GND4 4 ANT 5 U19 HFA3424 GND 1 Vbias 2 RF IN 3 GND 4 GND 8 Vdd 7 RF OUT 6 GND 5 U12 7660 BOOST 1 CAP+ 2 GND 3 CAP- 4 V+ 8 OSC 7 LV 6 Vout 5 U9 SW S1 1 G1 2 S2 3 G2 4 D1 8 D1 7 D2 6 D2 5 U25 SW S1 1 G1 2 S2 3 G2 4 D1 8 D1 7 D2 6 D2 5 C52 100PF FL3 RF OUT 1 GND 2 IN 3 GND 4 FL1 RF OUT 2 GND 1 IN 4 GND 3 C137 100PF C131 100PF FL2 RF IN 4 GND 1 OUT 2 GND 3 U27 HFA3624 GND 1 GND 2 GND 3 GND 4 GND 5 GND 6 GND 7 RX OUT 8 Vg2 9 GND 10 Vdd1 11 GND 12 GND 13 Vg1 14 GND 28 Vdd TR 27 T/R CNTRL 26 RF OUT 25 GND 24 Vdd3 23 GND 22 GND 21 GND 20 GND 19 Vdd2 18 Vg3 17 GND 16 RF IN 15 C59 100PF FL4 RF OUT 1 GND 2 IN 3 GND 4 U4 HFA3925 LNA_RX_Vcc2 1 LNA_RX_OUT 3 GND 4 LNA_RX_Vcc1 5 GND 6 LNA_RX_IN 7 PRE_TX_OUT 8 GND 9 PRE_TX_Vcc2 10 GND 11 PRE_TX_IN 12 GND 13 PRE_TX_Vcc1 14 rx_pe 28 RX_Vcc 27 RXM_RF 26 GND 25 RXM_IF+ 24 RXM_IF- 23 LO_BY 22 LO_IN 21 TXM_IF- 20 TXM_IF+ 19 GND 18 TX_Vcc 16 TX_PE 15 TXM_RF 17 GND 2 R67 100 R49 100 R66 100 C24 24PF C69 24PF 1K R75 1T 1 2T 2 3T 3 200 R19 1T 1 2T 2 3T 3 L6 6NH L11 6NH C39 1000PF C33 1000PF C50 1000PF C68 40PF C139 60PF L14 100NH L15 100NH R10 10K C64 1000PF C93 5PF C67 24PF C20 24PF C102 0.1UF R31 0 R82 510 Q5 NPN R25 3.01K R84 715 R43 715 R14 3.01K C57 0.1UF C38 0.1UF C141 1000PF C136 0.1UF C160 1000PF C123 5PF C16 0.01UF C140 1000PF C138 1000PF C144 5PF R3 1 L8 BEAD Q3 NPN R46 15K R38 4.7K R32 330 C151 5PF L7 125NH C32 470PF L12 BEAD C63 1000PF C25 1000PF C17 1000PF C19 1000PF C75 1000PF + C56 4.7UF +C51 4.7UF R90 10 A A B B C C D D E E 44 33 22 11 22MHz 2.1GHz 560MHz H/W Schenatic-KWE2000-HF1.0B WLAN A 24Tuesday, January 19, 1999 KINGMAX Title SizeDocument NumberRev Date:Sheet of OSC START IF_LO LE DATA CLOCK RADIO_PE RF_LO A3VCC VCC U22 HFA3524 Vcc1 1 Vp1 2 Do RF 3 GND 4 fin RF 5 fin*RF 6 GND 7 OSCin 8 GND 9 Fo/LD 10 Vcc2 20 Vp2 19 Do IF 18 GND 17 fin IF 16 fin*IF 15 GND 14 LE 13 DATD 12 CLOCK 11 U18 SMV2100 Vt 1 Vcc 3 RF OUT 2 U24 SMV560 Vt 1 Vcc 3 RF OUT 2 U26 HFA3424 GND 1 Vbias 2 RF IN 3 GND 4 GND 8 Vdd 7 RF OUT 6 GND 5 Q4 PNP 3 2 1 R55 1K R54 100 R85 750 R86 750 R87 100 R56 1K R45 100 C143 24PF C95 1000PF C98 22PF C71 0.1UF L19 BEAD C121 0.1UF C109 100PF L22 BEAD R78 100 R77 15K R76 4.7K C142 2200PF C97 0.001UF C86 0.47UF C89 0.033UF R42 11K R44 10K C100 100PF C94 0.01UF C96 0.01UF C92 100PF OSC40 U23 OE 1 GND 2 OUT 3 Vdd 4 C27 0.1UF +C133 4.7UF L24 BEAD L23 15NH U16 3.5 CNTL 1 GND1 2 BYPASS 3 VIN 6 GND2 5 VOUT 4 L21 BEAD C120 0.1UF +C135 4.7UF R52 12 R50 2K C113 0.1UF C91 0.1UF C115 100PF C104 25PF R88 10K C106 0.1UF C110 100PF C122 100PF C78 100PF L9 560NH R36 1K R53 18 R47 12K R39 10 C154 470PF C90 100PF R91 10 A A B B C C D D E E 44 33 22 11 H/W Schematic-KWE2000-HF1.0B WLAN A 34Tuesday, January 19, 1999 KINMAX Title SizeDocument NumberRev Date:Sheet of RX_IF 2VREF TX_Q TX_I RX_Q RX_I SEL1 SEL0 RADIO_PE TX_PE RX_PE TX_IF IF_LO RSSI A2VCC A2VCC VCC U21 3.5 CNTL 1 GND1 2 BYPASS 3 VIN 6 GND2 5 VOUT 4 L5 33NH L4 56NH R5 261 C47 100PF C9 100PF R65 680 R58 680 C66 0.1UF R63 100K R64 100K C80 0.1UF C29 10PF R34 910 C11 100PF C58 0.1UF C46 0.1UF +C84 4.7UF L1 BEAD C10 0.01UF C7 0.01UF C2 0.01UF C1 0.01UF C5 0.01UF C8 0.01UF C3 0.01UF C4 0.01UF C61 100PF C49 100PF C13 47PF C55 0.1UF R9 560 C44 100PF C54 100PF C62 20PF L3 10NH C72 100PF C65 100PF C43 100PF C48 100PF C14 100PF C12 100PF C28 47PF C42 0.1UF R4 1K R2 220 R17 3.6K +C85 4.7UF C119 0.1UF C147 0.01UF C60 47PF R23 56 L2 470NH C30 100PF C22 100PF C40 0.1UF C35 10PF R94 10 U1 HFA3724 LIM1_BYP+ 1 LIM1_IN+ 2 LIM1_IN- 3 LIM1_BYP- 4 GND 5 GND 6 GND 7 GND 8 LPF_Vcc 9 2V REF 10 LPF_BYP 11 LPF_TXI_IN 12 LPF_TXQ_IN 13 LPF_RXI_OUT 14 LPF_RXQ_OUT 15 LPF_SEL1 16 LPF_SEL0 17 LPF_TUNE1 18 LPF_TUNE0 19 GND 20 LPF_RX_PE 21 LPF_TX_P E 22 LPF_T XQ- 23 LPF_T XQ+ 24 LPF_TXI- 25 LPF_TXI+ 26 LPF_ RXQ- 27 LPF_ RXQ+ 28 LPF_RXI- 29 LPF_RXI+ 30 GND 31 GND 32 MOD_RXI+ 33 MOD_RXI- 34 MOD_RXQ+ 35 MOD_RXQ- 36 MOD_TXI+ 37 MO D_TXI- 38 MOD_T XQ+ 39 MOD_ TXQ- 40 LIM2_RSSI 60 RSSI_RL2 59 GND 58 LIM2_OUT+ 57 LIM2_OUT- 56 LIM2_Vcc 55 LIM2_PE 54 GND 53 GND 52 GND 51 LO_GND 50 MOD_IF_IN- 49 MOD_IF_IN+ 48 MOD_Vcc 47 MOD_LO_OUT 46 MOD_Vcc 45 MOD_LO_IN 44 MOD_RX_PE 43 MOD_TX_IF_OUT 42 MOD_TX_PE 41 LIM1_RSSI 80 RSSI_RL1 79 GND 78 LIM1_OUT+ 77 LIM1_OUT- 76 LIM1_Vcc 75 LIM1_PE 74 GND 73 GND 72 GND 71 GND 70 GND 69 GND 68 GND 67 GND 66 GND 65 LIM2_BYP- 64 LIM2_IN- 63 LIM2_IN+ 62 LIM2_BYP+ 61 R93 10 U5 IF GND5 8 IN 1 GND1 2 GND2 3 GND3 4 GND4 6 GND6 7 OUT 5 C36 0.1UF U7 IF GND5 8 IN 1 GND1 2 GND2 3 GND3 4 GND4 6 GND6 7 OUT 5 C74 0.1UF +C83 4.7UF R96 10 A A B B C C D D E E 44 33 22 11 32.768KHz H/W Schematic-KWE2000-HF1.0B WLAN C 44Tuesday, January 19, 1999 KINGMAX Title SizeDocument NumberRev Date:Sheet of DO[0..7]MA[0..14] D[0..7] A[0..14] D3 D6 D7 D0 D1 D2 D5 D4 A10 A11 A9 A8 A13 A14 A12 A7 A6 A5 A4 A1 A0 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 14 13 12 11 10 8 7 6 5 4 3 2 1 0 9 DO0 DO1 DO2 DO3 DO4 DO5 DO6 DO7 DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0 A9 A13 A0A7 A12 A4A8 A14 D3 A3A6 D2 A10 D6 D4 D7 A11 A1 D5 A5 10 11 9 8 13 14 16 15 12 7 6 5 4 3 2 1 0 DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0 D1D0 40MHz CLOCK 22MHz CLOCK 40MHz CLOCK A2 A3 A2 22MHz CLOCK LE SEL0 SEL1 PA_PE OSC START TX_I TX_Q CLOCK DATA RX_Q RSSI RX_I 2VREF TX_PE RX_PE RADIO_PE RADIO_PE A1VCC VCC VCCA1VCC VCC VCC A1VCC VCC VCC VCC VCC A1VCC VCC A2VCC A1VCC A1VCC VCC A1VCC VCC A1VCCVCC A1VCC A1VCC A1VCCA1VCC A1VCC C37 0.1UF OSC40 U10 INH 1 GND 2 OUT 3 Vdd 4 C127 0.1UF +C81 10UF P1 CON34 D3 2 D4 3 D5 4 D6 5 D7 6 CE1* 7 A10 8 OE* 9 A11 10 A9 11 A8 12 A13 13 A14 14 WE*/PGM* 15 IREQ* 16 A16 19 A15 20 A7 22 A12 21 A5 24 A6 23 A4 25 A3 26 A2 27 A1 28 A0 29 D0 30 D1 31 D2 32 GND1 1 GND2 34 GND3 35 Vcc1 17 Vcc2 51 Vpp 1 18 IOIS16* 33 CD1* 36 D11 37 D12 38 D13 39 D14 40 D15 41 CE2* 42 RFSH 43 IORD* 44 IOWR* 45 A17 46 A18 47 A19 48 A20 49 A21 50 A22 53 A23 54 A24 55 A25 56 RFU …

Text truncated - open the document above for the full version.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FCC ID: MGA-KWE2000-HF DIRECT SEQUENCE SPREAD SPECTRUM DATA TRANSCEIVER MODEL NO: KWE2000-HF BRAND NAME: KINGMAX S/N: 5001 REPORT NO: 98T0066-1 DECEMBER 2, 1998 Prepared for KINGMAX TECHNOLOGY INC. NO. 70, KUANG FU NORTH ROAD, HSIN CHU INDUSTRIAL PARK HU KOU, HSIN CHU 303, TAIWAN, R.O.C. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. DBa COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, U.S.A. TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE ............................................................................................................ 1 2.DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ........................................................................... 2 3.TEST LOCATION ............................................................................................................................................ 2 4.SUPPORT EQUIPMENT ................................................................................................................................. 2 5.TEST PROCEDURES AND TEST RESULTS............................................................................................... 3 R ADIATED EMISSIONS (GENERAL REQUIREMENTS) .................................................................................................. 3 T EST REQUIREMENT: 15.205 .................................................................................................................................... 3 R ADIATED EMISSIONS............................................................................................................................................... 7 T EST REQUIREMENT: 15.109 .................................................................................................................................... 7 AC L INE CONDUCTED EMISSIONS............................................................................................................................ 9 T EST REQUIREMENT: 15.207 .................................................................................................................................... 9 M INIMUM 6 DB BANDWIDTH FOR DSSS................................................................................................................. 11 T EST REQUIREMENT: 15.247(A)1(I)-(II).................................................................................................................. 11 RF P OWER OUTPUT................................................................................................................................................ 13 T EST REQUIREMENT: 15.247(B)..............................................................................................................................13 O UT OF BAND MEASUREMENTS.............................................................................................................................. 15 T EST REQUIREMENT: 15.247(C)..............................................................................................................................15 DSSS P OWER DENSITY........................................................................................................................................... 19 T EST REQUIREMENT: 15.247(D) ............................................................................................................................. 19 P ROCESSING GAIN OF A DSSS ................................................................................................................................ 22 T EST REQUIREMENT: 15.247(E)............................................................................................................................. 22 TEST SETUP PHOTO ............................................................................................................................................. 25 F IG. 1 ...................................................................................................................................................................... 25 F IG. 2 ...................................................................................................................................................................... 26 F IG. 3 ...................................................................................................................................................................... 27 Attachment #1 EUT Photographs Attachment #2 Proposed FCC ID Label Format Attachment #3 Theory of Operation and Block Diagram Attachment #4 Schematic Diagram REPORT NO.98T0066-1FCC ID:MGA-KWE2000-HF DATE:12/02/1998 EUT: DIRECT SEQUENCE SPREAD SPECTRUM DATA TRANSCEIVER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.DOCUMENT NO: CCSUP4010B 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME :KINGMAX TECHNOLOGY INC. NO. 70, KUANG FU NORTH ROAD HSIN CHU INDUSTRIAL PARK HU KOU, HSIN CHU 303, TAIWAN, R.O.C. CONTACT PERSON :MR. DAVID WANG / SECTION MANAGER TELPHONE NO:886-3-5985288 ext.568 EUT DESCRIPTION :DIRECT SEQUENCE SPREAD SPECTRUM DATA TRANSCEIVER MODEL NAME:KWE2000-HF DATE TESTED :DECEMBER 02,1998 LIMIT APPLY TO: FCC PART 15 SECTION 15.247 TECHNICAL LIMITSTEST RESULT Minimum 6dB Bandwidth@ > 500kHzPassed RF Power Output < 1 WattPassed Out of Band MeasurementsPassed DSSS Power Density < 8dBm @ 3kHz bandwidthPassed Processing Gain of a DSSS > 10dBPassed LIMIT APPLY TO: FCC PART 15 SECTION 15.205/SECTION 15.209 Restricted Band of OperationPassed LIMIT APPLY TO: FCC PART 15 SECTION 15.109 Radiated Emission LimitsPassed LIMIT APPLY TO: FCC PART 15 SECTION 15.207 AC Line Conducted EmissionPassed The above equipment was tested by Compliance Engineering Services Inc. for compliance with the requirements …

Text truncated - open the document above for the full version.
