March 10, 2000 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We made a mistake on the electronic 731 form for FCC ID: MH9-HNT2400, EA96890. We listed the frequency range as 2400 - 2483.5 MHz for frequency range. This should have been 2407-2477 MHz. Please correct as appropriate. If you have any questions, please feel free to contact me at (770)741-0717. Sincerely, Timothy R. Johnson

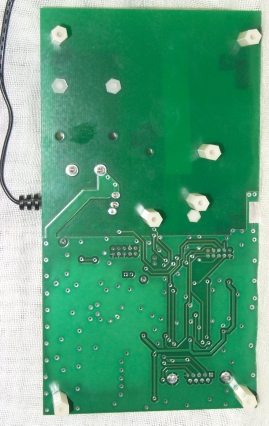

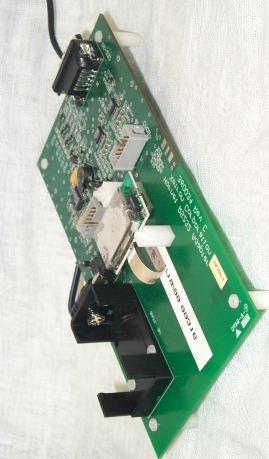

SECTION 5 PHOTOGRAPHS FCC ID: MH9-HNT2400 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1.EUT and Interface Board Used for Testing Photo 2.Top View of EUT and Interface Board Used for Testing Photo 3.Bottom View of Interface Board Used for Testing Photo 4.View Showing EUT Mounted to Interface Board Photo 5.EUT, Top View Photo 6.EUT, Top View Shield Removed Photo 7.EUT, Bottom View FCC ID: MH9-HNT2400 Photo 1.EUT and Interface Board Used for Testing FCC ID: MH9-HNT2400 Photo 2.Top View of EUT and Interface Board Used for Testing FCC ID: MH9-HNT2400 Photo 3.Bottom View of Interface Board Used for Testing FCC ID: MH9-HNT2400 Photo 4.View Showing EUT Mounted to Interface Board FCC ID: MH9-HNT2400 Photo 5.EUT, Top View FCC ID: MH9-HNT2400 Photo 6.EUT, Top View Shield Removed FCC ID: MH9-HNT2400 Photo 7.EUT, Bottom View

FCC ID: MH9-HNT2400 SECTION 3 LABELING INFORMATION FCC ID: MH9-HNT2400

April 26, 2000 Mr. Tim Johnson US Tech 3505 Francis Circle Alpharetta, GA. 30201 Dear Tim: This letter is in response to the FCC request for more information regarding labeling of the Hornet radio. All units will contain a FCC Identification label on the shield per the enclosed labeling description. The Operators Manual will be updated to notify all users that all products containing the Hornet radio must be clearly marked with an external label stating the following: “Contains FCC ID: MH9-HNT2400”. In addition, Xetron will make these labels available to all customers. Sincerely, Larry P. Ochs Product Manager

FCC ID: MH9-HNT2400 2.7 Peak Radiated Spurious Emission in the Frequency Range 30 -25000 MHz (FCC Section 15.247(c)) A preliminary scan was performed on the EUT to determine frequencies that were caused by the transmitter portion of the product. Significant emissions that fell within restricted bands were then measured on an OAT’s site. Radiated measurements below 1 GHz were tested with a RBW = 120 kHz. Radiated measurements above 1 GHz were measured using a RBW = VBW = 1 MHz. The results of peak radiated spurious emissions falling within restricted bands are given in Table 4a (low), Table 4b, (mid), Table 4c (high) and Figure 4a-4d (low), Figure 4e-4h (mid) and Figure 4i-4l (high). FCC ID: MH9-HNT2400 Table 4a Peak Radiated Spurious Emissions (Low) Freq. (GHz) Test Data (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 4.814-54.6*34.234.77.91096.05000 7.221-62.1**33.837.17.8637.95000 9.628-56.1**34.338.69.41695.75000 12.037-65.6**32.541.310.71102.25000 Table 4b Peak Radiated Spurious Emissions (Mid) Freq. (GHz) Test Data (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 4.861-52.4*34.134.88.01455.55000 7.292-59.4**33.837.27.9873.75000 9.722-54.6**34.438.69.52019.15000 12.154-63.9**32.441.210.71485.75000 Table 4c Peak Radiated Spurious Emissions (High) Freq. (GHz) Test Data (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 4.954-54.2*34.135.08.31255.25000 7.432-54.7**33.837.47.91545.45000 9.909-55.5**34.538.79.61844.05000 12.387-68.1**32.341.010.7816.25000 * = Data adjusted by + 1 dB for high pass filter ** = Tested at 1 meter to achieve better dynamic range. Data adjusted by + 1 dB for high pass filter and 20 log (1/3) = -9.54 dB for conversion from 1 to 3 meter. SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-54.6 - 34.2 + 34.7 + 7.9 + 107)/20) = 1096.0 CONVERSION FROM dBm TO dBuV = 107 dB Tester FCC ID: MH9-HNT2400 Signature: Name: Tim R. Johnson FCC ID: MH9-HNT2400 Figure 4a Peak Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 4b Peak Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 4c Peak Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 4d Peak Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 4e Peak Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 4f Peak Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 4g Peak Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 4h Peak Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 4i Peak Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 Figure 4j Peak Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 Figure 4k Peak Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 Figure 4l Peak Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 2.8 Average Spurious Emission in the Frequency Range 30 - 25000 MHz (FCC Section 15.247(c)) The results of average radiated spurious emissions falling within restricted bands are given in Table 5a (low), Table 5b, (mid), Table 5c (high) and Figure 5a-5d (low), Figure 5e-5h (mid) and Table 5i-5l (high). FCC ID: MH9-HNT2400 Figure 5a Average Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 5b Average Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 5c Average Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 5d Average Radiated Spurious Emission 15.247(c) Low FCC ID: MH9-HNT2400 Figure 5e Average Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 5f Average Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 5g Average Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 5h Average Radiated Spurious Emission 15.247(c) Mid FCC ID: MH9-HNT2400 Figure 5i Average Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 Figure 5j Average Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 Figure 5k Average Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 Figure 5l Average Radiated Spurious Emission 15.247(c) High FCC ID: MH9-HNT2400 Table 4a Average Radiated Spurious Emissions (Low) Freq. (GHz) Test Data (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 4.814-68.2*34.234.77.9230.05000 7.221-76.4**33.837.17.8122.25000 9.628-68.3**34.338.69.4415.85000 12.037-81.1**32.541.310.7186.55000 Table 4b Average Radiated Spurious Emissions (Mid) Freq. (GHz) Test Data (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 4.861-65.5*34.134.88.0322.55000 7.292-73.0**33.837.27.9183.05000 9.722-67.6**34.438.69.5453.15000 12.154-80.7**32.441.210.7193.25000 Table 4c Average Radiated Spurious Emissions (High) Freq. (GHz) Test Data (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 4.954-67.6*34.135.08.3266.55000 7.432-67.4**33.837.47.9359.85000 9.909-68.0**34.538.79.6440.85000 12.387-84.9**32.341.010.7118.85000 * = Data adjusted by + 1 dB for high pass filter and worse case duty cycle of 20 log (0.2706) = -11.4 dB ** = Tested at 1 meter to achieve better dynamic range. Data adjusted by + 1 dB for high pass filter, worse case duty cycle of 20 log (0.2706) = -11.4 dB, and 20 log (1/3) = -9.54 dB for conversion from 1 to 3 meter. SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-68.2 - 34.2 + 34.7 + 7.9 + 107)/20) = 230.0 CONVERSION FROM dBm TO dBuV = 107 dB FCC ID: MH9-HNT2400 Tester Signature: Name: Tim R. Johnson 2.9 Power Line Conducted Emissions for Transmitter FCC Section 15.207 The conducted voltage measurements have been carried out in accordance with FCC Section 15.207, with a spectrum analyzer connected to a LISN and the EUT placed into a continuous mode of transmit. The results are given in Table 6. FCC I…
