MM2FE0409Energy Saving Lamp

User’s Manual This light device has been tested and found to comply with the limits for Consumer RF Lighting Device, Pursuant to Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1. Use only on 120 volt, 60 hertz. 2. Never disassemble or modify-any changes could void the user’s authority to operate the device. 3. Not for use in totally enclosed fixtures. 4. Risk of electric shock-do not use where directly exposed to water. 5. This device is not intended for use with emergency exit fixtures or emergency exit lights. 6. This product could produce interference when used near a TV, radio, wireless remote control or maritime safely communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or, plug the lamps or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb during operation or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor.

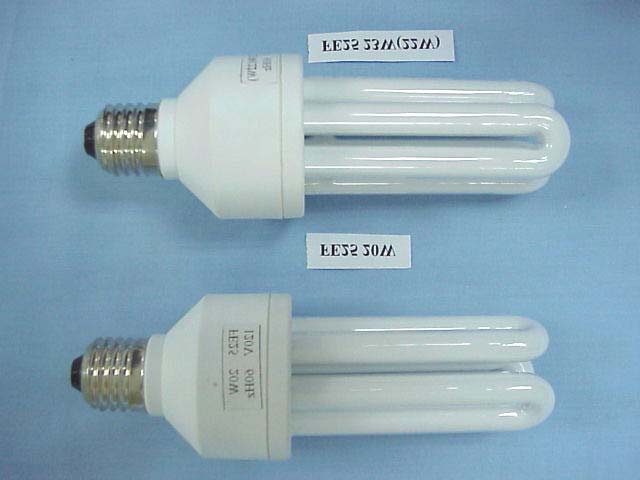

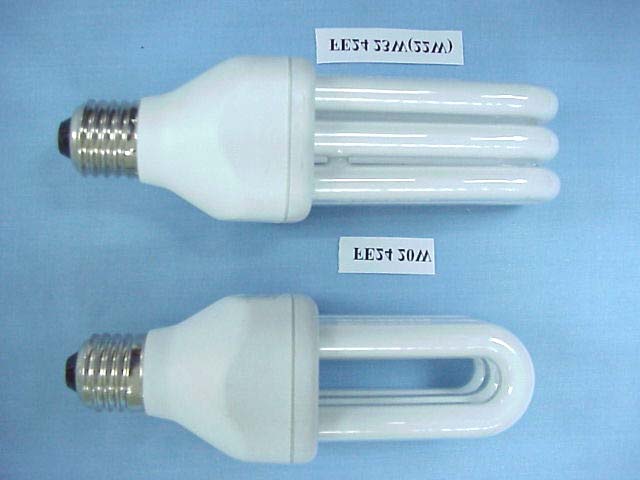

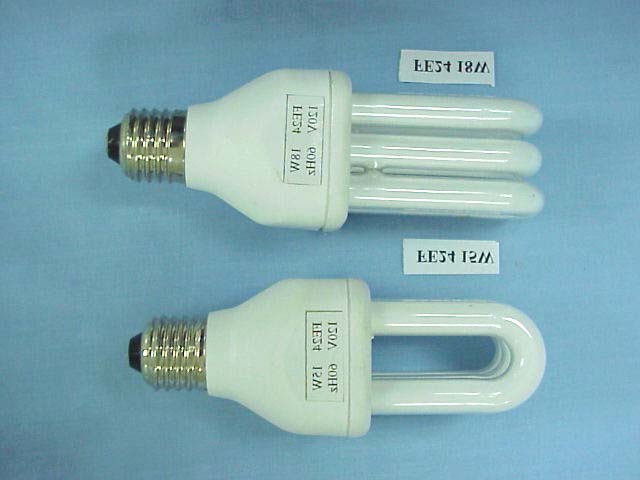

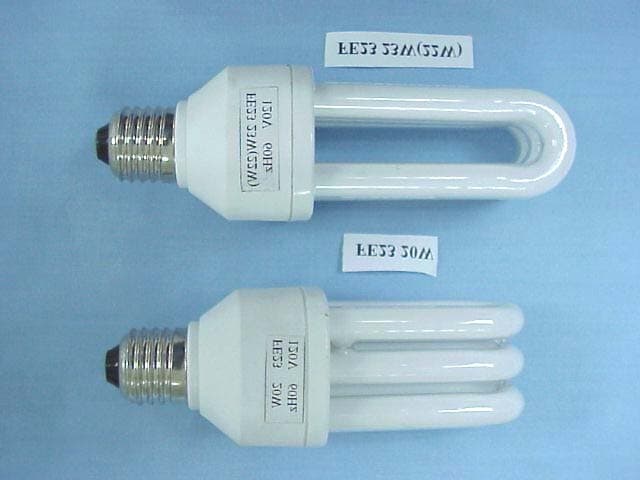

F IGURE 1 E NERGY S AVING L AMP (M/N: FE23 15W/18W) G ENERAL A PPEARANCE F IGURE 2 E NERGY S AVING L AMP (M/N: FE23 20W/23W(22W)) G ENERAL A PPEARANCE F IGURE 3 E NERGY S AVING L AMP (M/N: FE23 26W(25W)) G ENERAL A PPEARANCE F IGURE 4 E NERGY S AVING L AMP (M/N: FE24 15W/18W) G ENERAL A PPEARANCE F IGURE 5 E NERGY S AVING L AMP (M/N: FE24 20W/23W(22W)) G ENERAL A PPEARANCE F IGURE 6 E NERGY S AVING L AMP (M/N: FE24 26W(25W)) G ENERAL A PPEARANCE F IGURE 7 E NERGY S AVING L AMP (M/N: FE25 15W/18W) G ENERAL A PPEARANCE F IGURE 8 E NERGY S AVING L AMP (M/N: FE25 20W/23W(22W)) G ENERAL A PPEARANCE F IGURE 9 E NERGY S AVING L AMP (M/N: FE25 26W(25W)) G ENERAL A PPEARANCE F IGURE 10 E NERGY S AVING L AMP (M/N: FE35 15W/18W) G ENERAL A PPEARANCE F IGURE 11 E NERGY S AVING L AMP (M/N: FE35 20W/23W(22W)) G ENERAL A PPEARANCE F IGURE 12 E NERGY S AVING L AMP (M/N: FE35 26W(25W)) G ENERAL A PPEARANCE

Label Drawing FE23 15W 120V 60Hz FCC ID: MM2FE0409 FE23 18W 120V 60Hz FCC ID: MM2FE0409 FE23 20W 120V 60Hz FCC ID: MM2FE0409 FE23 22W 120V 60Hz FCC ID: MM2FE0409 FE23 23W 120V 60Hz FCC ID: MM2FE0409 FE23 25W 120V 60Hz FCC ID: MM2FE0409 FE23 26W 120V 60Hz FCC ID: MM2FE0409 FE24 15W 120V 60Hz FCC ID: MM2FE0409 FE24 18W 120V 60Hz FCC ID: MM2FE0409 FE24 20W 120V 60Hz FCC ID: MM2FE0409 FE24 22W 120V 60Hz FCC ID: MM2FE0409 FE24 23W 120V 60Hz FCC ID: MM2FE0409 FE24 25W 120V 60Hz FCC ID: MM2FE0409 FE24 26W 120V 60Hz FCC ID: MM2FE0409 FE25 15W 120V 60Hz FCC ID: MM2FE0409 FE25 18W 120V 60Hz FCC ID: MM2FE0409 FE25 20W 120V 60Hz FCC ID: MM2FE0409 FE25 22W 120V 60Hz FCC ID: MM2FE0409 FE25 23W 120V 60Hz FCC ID: MM2FE0409 FE25 25W 120V 60Hz FCC ID: MM2FE0409 FE25 26W 120V 60Hz FCC ID: MM2FE0409 FE35A 15W 120V 60Hz FCC ID: MM2FE0409 FE35A 18W 120V 60Hz FCC ID: MM2FE0409 FE35A 20W 120V 60Hz FCC ID: MM2FE0409 FE35A 22W 120V 60Hz FCC ID: MM2FE0409 FE35A 23W 120V 60Hz FCC ID: MM2FE0409 FE35A 25W 120V 60Hz FCC ID: MM2FE0409 FE35A 26W 120V 60Hz FCC ID: MM2FE0409

Label Location Information Refer to the below red arrow: (for example)

F IGURE 1 E NERGY S AVING L AMP (M/N: FE23 15W/18W) C OVER R EMOVED F IGURE 2 E NERGY S AVING L AMP (M/N: FE23 15W/18W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 3 E NERGY S AVING L AMP (M/N: FE23 15W/18W) M AIN B OARD (S OLDERED S IDE ) F IGURE 4 E NERGY S AVING L AMP (M/N: FE23 20W/23W(22W)) C OVER R EMOVED F IGURE 5 E NERGY S AVING L AMP (M/N: FE23 20W/23W(22W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 6 E NERGY S AVING L AMP (M/N: FE23 20W/23W(22W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 7 E NERGY S AVING L AMP (M/N: FE23 26W(25W)) C OVER R EMOVED F IGURE 8 E NERGY S AVING L AMP (M/N: FE23 20W/23W(22W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 9 E NERGY S AVING L AMP (M/N: FE23 20W/23W(22W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 10 E NERGY S AVING L AMP (M/N: FE24 26W(25W)) C OVER R EMOVED F IGURE 11 E NERGY S AVING L AMP (M/N: FE224 15W(18W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 12 E NERGY S AVING L AMP (M/N: FE24 15W(18W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 13 E NERGY S AVING L AMP (M/N: FE24 20W/23W(22W)) C OVER R EMOVED F IGURE 14 E NERGY S AVING L AMP (M/N: FE24 20W/23W(22W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 15 E NERGY S AVING L AMP (M/N: FE24 20W/23W(22W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 16 E NERGY S AVING L AMP (M/N: FE24 26W(25W)) C OVER R EMOVED F IGURE 17 E NERGY S AVING L AMP (M/N: FE24 26W(25W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 18 E NERGY S AVING L AMP (M/N: FE24 26W(25W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 19 E NERGY S AVING L AMP (M/N: FE25 15W/18W) C OVER R EMOVED F IGURE 20 E NERGY S AVING L AMP (M/N: FE25 15W/18W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 21 E NERGY S AVING L AMP (M/N: FE25 15W/18W) M AIN B OARD (S OLDERED S IDE ) F IGURE 22 E NERGY S AVING L AMP (M/N: FE25 20W/23W(22W)) C OVER R EMOVED F IGURE 23 E NERGY S AVING L AMP (M/N: FE25 20W/23W(22W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 24 E NERGY S AVING L AMP (M/N: FE25 20W/23W(22W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 25 E NERGY S AVING L AMP (M/N: FE25 26W(25W)) C OVER R EMOVED F IGURE 26 E NERGY S AVING L AMP (M/N: FE25 26W(25W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 27 E NERGY S AVING L AMP (M/N: FE25 26W(25W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 28 E NERGY S AVING L AMP (M/N: FE35 15W/18W) C OVER R EMOVED F IGURE 29 E NERGY S AVING L AMP (M/N: FE35 15W/18W) M AIN B OARD (C OMPONENT S IDE ) F IGURE 30 E NERGY S AVING L AMP (M/N: FE35 15W/18W) M AIN B OARD (S OLDERED S IDE ) F IGURE 31 E NERGY S AVING L AMP (M/N: FE35 20W/23W(22W)) C OVER R EMOVED F IGURE 32 E NERGY S AVING L AMP (M/N: FE35 20W/23W(22W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 33 E NERGY S AVING L AMP (M/N: FE35 20W/23W(22W)) M AIN B OARD (S OLDERED S IDE ) F IGURE 34 E NERGY S AVING L AMP (M/N: FE35 26W(25W)) C OVER R EMOVED F IGURE 35 E NERGY S AVING L AMP (M/N: FE35 26W(25W)) M AIN B OARD (C OMPONENT S IDE ) F IGURE 36 E NERGY S AVING L AMP (M/N: FE35 26W(25W)) M AIN B OARD (S OLDERED S IDE )

Schematics

Zhejiang YanKon Group Co., LTD FCC ID: MM2FE0409 Page 1 of 58 [ Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01083 Application for FCC Certificate On Behalf of Zhejiang YanKon Group Co., LTD Energy Saving Lamp Model No.: FE23 15W FE23 18W FE23 20W FE23 23W(22W) FE23 26W(25W) FE24 15W FE24 18W FE24 20W FE24 23W(22W) FE24 26W(25W) FE25 15W FE25 18W FE25 20W FE25 23W(22W) FE25 26W(25W) FE35 15W FE35 18W FE35 20W FE35 23W(22W) FE35 26W(25W) FCC ID: MM2FE0409 Prepared For : Zhejiang YanKon Group Co., LTD No.129 Feng Shan Rd, Shang Yu City, Zhejiang, China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F01083 Date of Test : Oct 09-10, 2001 Date of Report : Oct 17, 2001 Zhejiang YanKon Group Co., LTD FCC ID: MM2FE0409 Page 2 of 58 [ Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01083 TABLE OF CONTENTS Page 1 GENERAL INFORMATION.......................................................................................................... 4 1.1 Description of Equipment Under Test ........................................................................................4 1.2 Description of Test Facility ........................................................................................................ 5 1.3 Measurement Uncertainty .......................................................................................................... 5 2 AC POWERLINE CONDUCTED EMISSION TEST ................................................................. 6 2.1 Test Equipment........................................................................................................................... 6 2.2 Block Diagram of Test Setup ..................................................................................................... 6 2.3 Conducted Emission Limits ....................................................................................................... 6 2.4 Test Configuration ...................................................................................................................... 7 2.5 Operating Condition of EUT ...................................................................................................... 7 2.6 Test Procedures........................................................................................................................... 7 2.7 Test Results................................................................................................................................. 8 3 FIELD STRENGTH TEST ........................................................................................................... 20 3.1 Test Equipment......................................................................................................................... 20 3.2 Block Diagram of Test Setup ................................................................................................... 20 3.3 Test Configuration .................................................................................................................... 20 3.4 Operating Condition of EUT .................................................................................................... 20 3.5 Test Procedure .......................................................................................................................... 21 3.6 Test Result ................................................................................................................................ 21 4 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 58 Zhejiang YanKon Group Co., LTD FCC ID: MM2FE0409 Page 3 of 58 [ Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01083 TEST REPORT FOR FCC CERTIFICATE Applicant : Zhejiang YanKon Group Co., LTD Manufacturer : Zhejiang YanKon Group Co., LTD EUT Description : Energy Saving Lamp (A) Model No.: FE23 15W FE23 18W FE23 20W FE23 23W(22W) FE23 26W(25W) FE24 15W FE24 18W FE24 20W FE24 23W(22W) FE24 26W(25W) FE25 15W FE25 18W FE25 20W FE25 23W(22W) FE25 26W(25W) FE35 15W FE35 18W FE35 20W FE35 23W(22W) FE35 26W(25W) (B) Serial No.: YK20012301 YK20012302 YK20012303 YK20012304 YK20012305 YK20012401 YK20012402 YK20012403 YK20012404 YK20012405 YK20012501 YK20012502 YK20012503 YK20012504 YK20012505 YK20013501 YK20013502 YK20013503 YK20013504 YK20013505 (C) Power Supply: 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 18 CONSUMER DEVICES (2000) AND MP-5/1986 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 RF Lighting Device limits both conducted emissions and field strength. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the applicant to claim product endorsement by NVLAP or any agency of the U.S. Government. Date of Test : Oct 09-10, 2001 Prepared by : Test Engineer : STELLA TANG (Assistant) JIM HSU (Engineer) Reviewer : Approved Signatory : BYRON KWO (Supervisor) ALEX CHIU (Assistant Manager) Zhejiang YanKon Group Co., LTD FCC ID: MM2FE0409 Page 4 of 58 [ Audix Technology (Shanghai) Co., Ltd. Report No: ACI-F01083 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : Energy Saving Lamp Type of EUT : ; Production … Pre-product … Pro-type Model Number : FE23 15W, FE23 18W, FE23 20W, FE23 23W(22W) FE23 26W(25W) FE24 15W, FE24 18W, FE24 20W, FE24 23W(22W) FE24 26W(25W) FE25…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. AC Powerline Conducted Emission Test (M/N: FE23 SERIES) (M/N: FE24 SERIES) (M/N: FE25 SERIES) (M/N: FE35 SERIES) 2. Field Strength Test
