MQUST-903A900 MHz CORDLESS PHONE

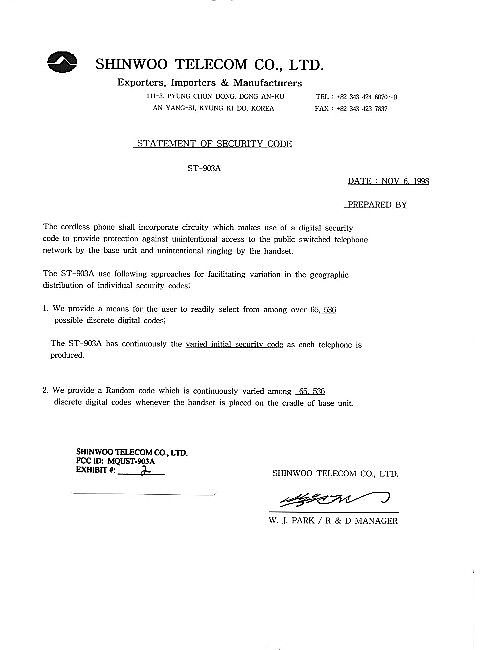

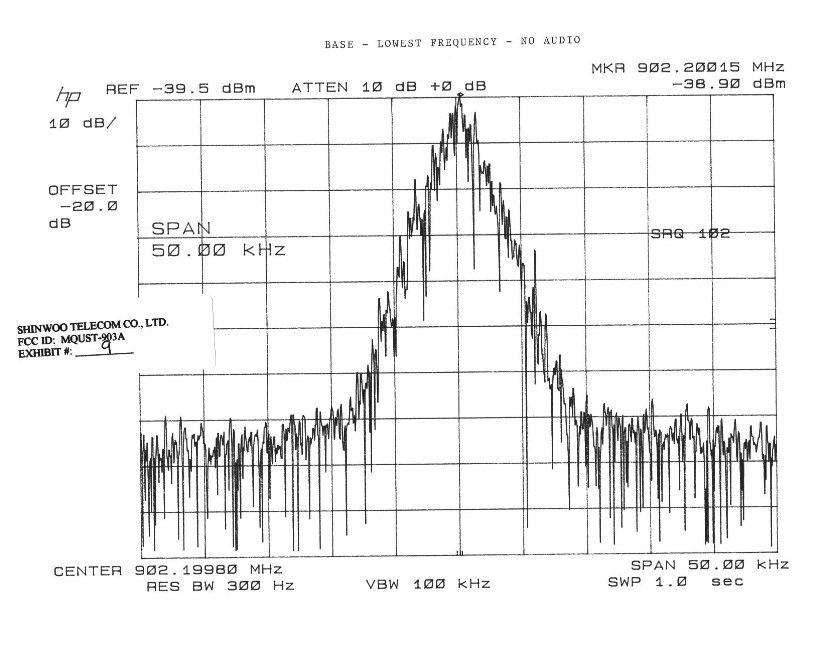

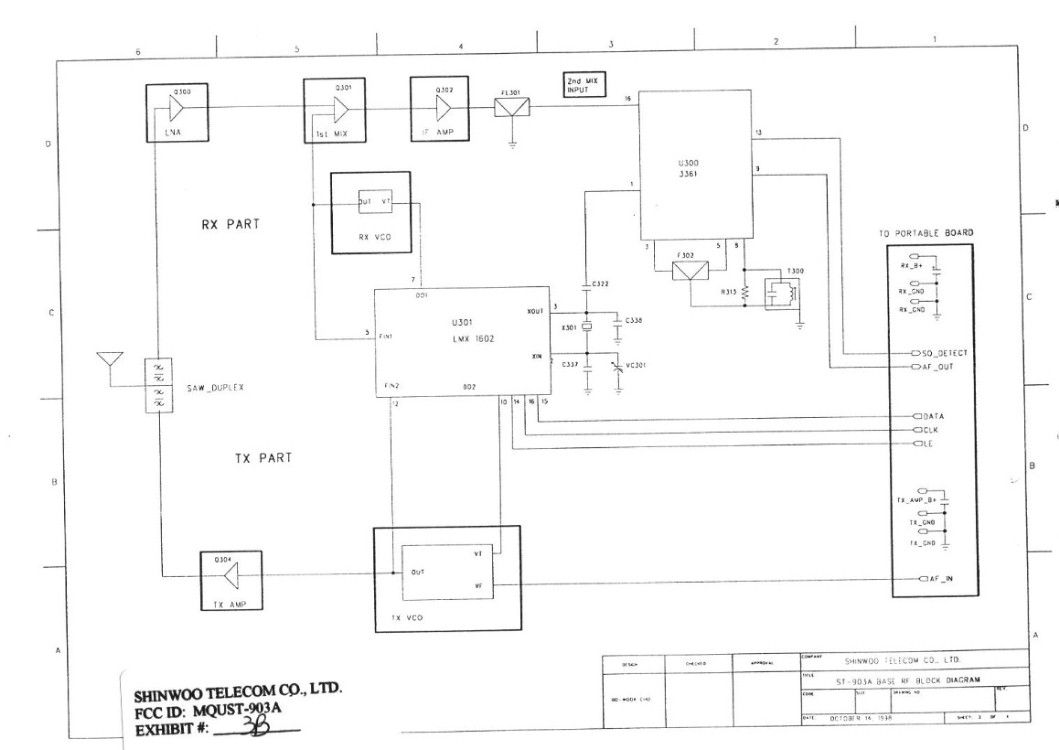

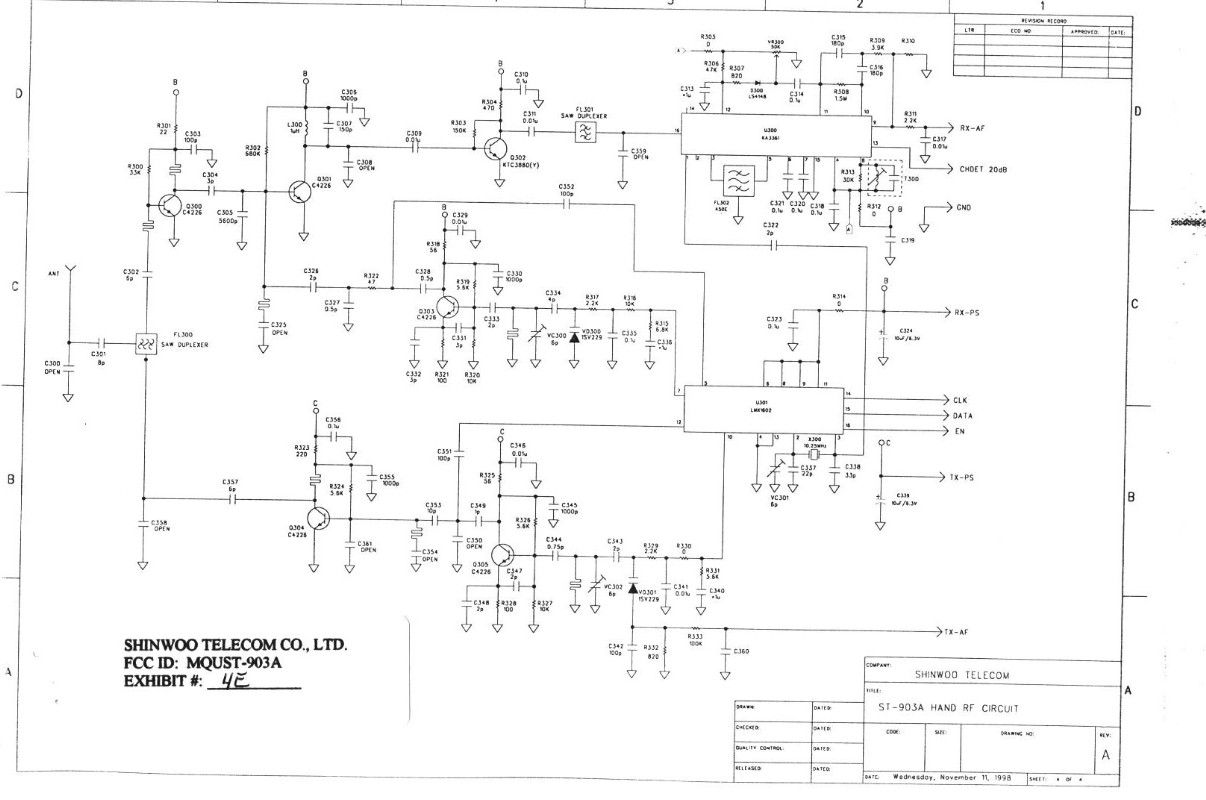

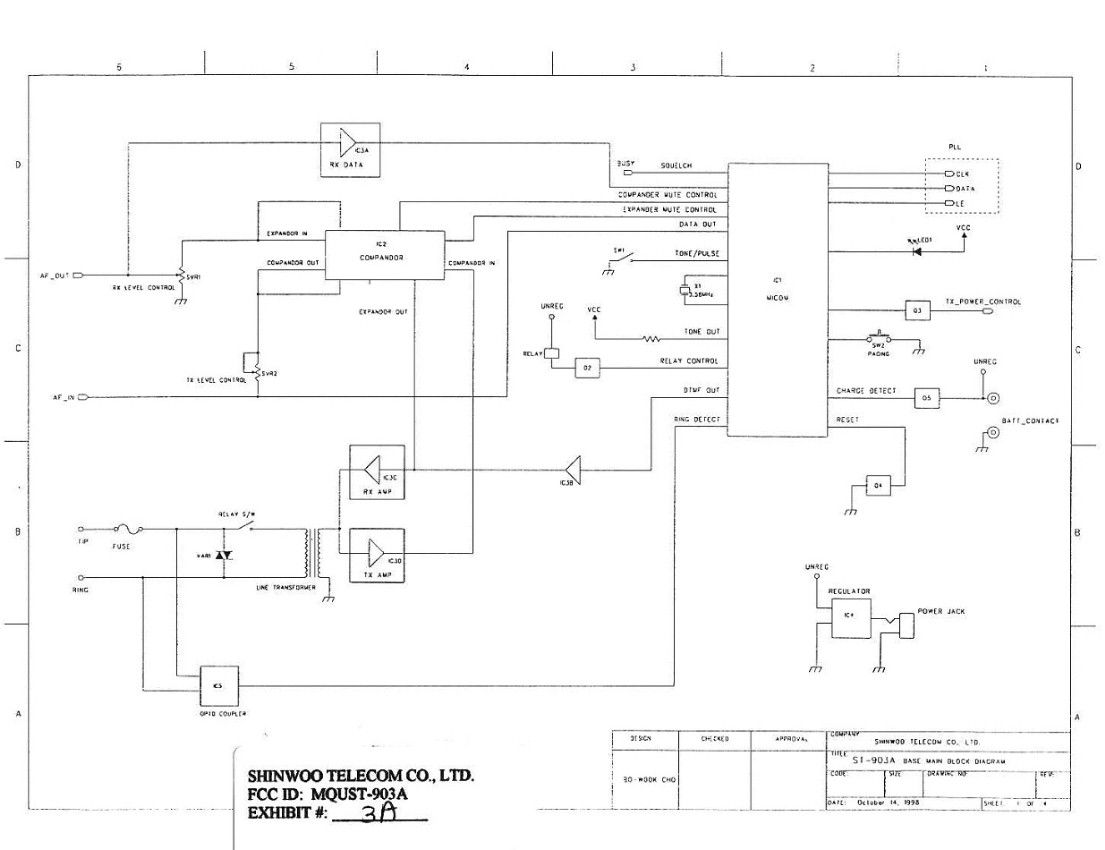

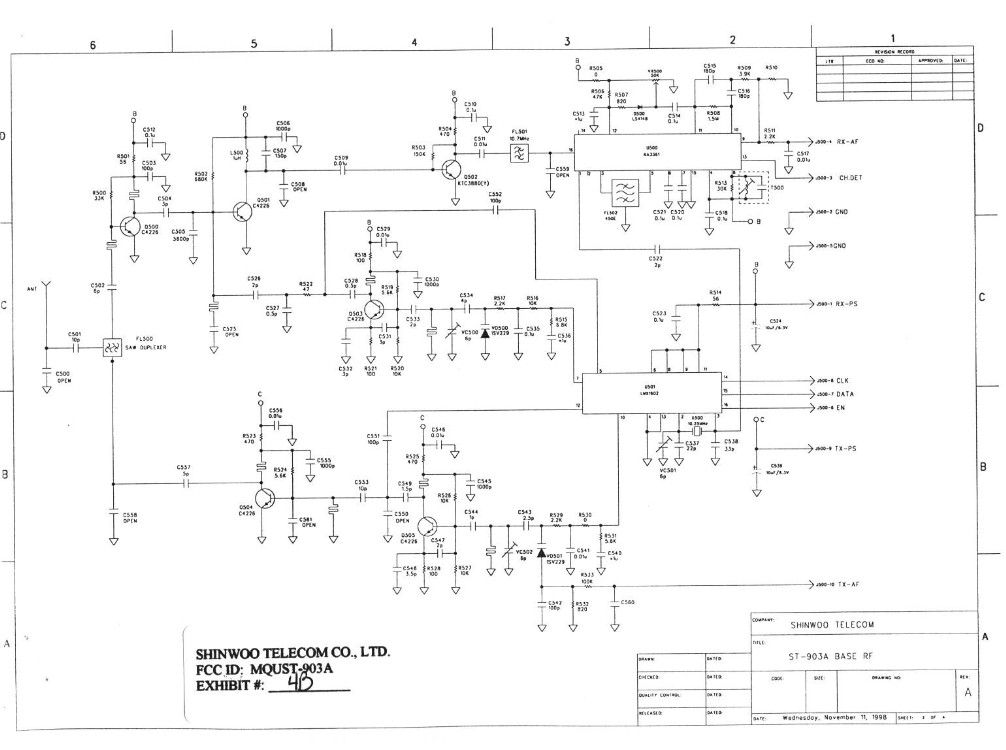

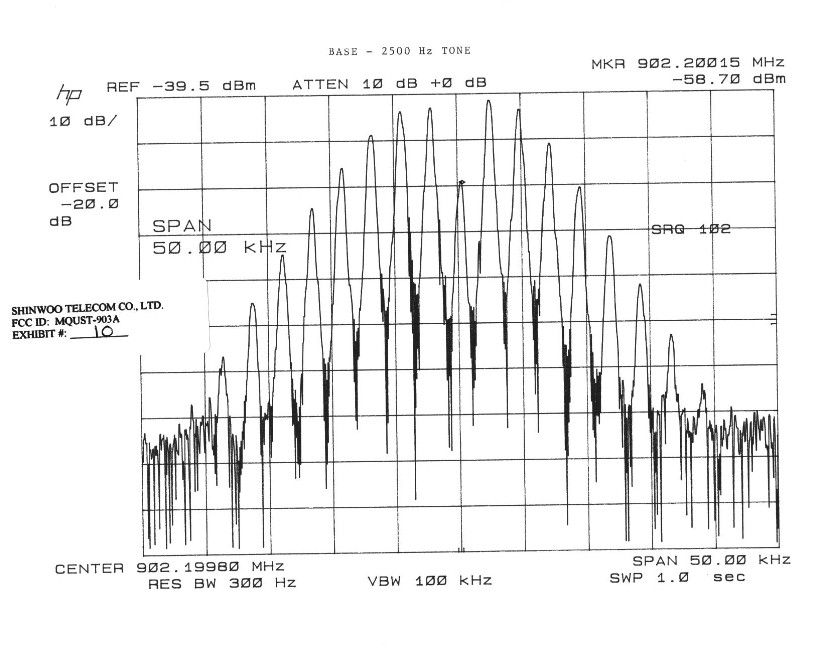

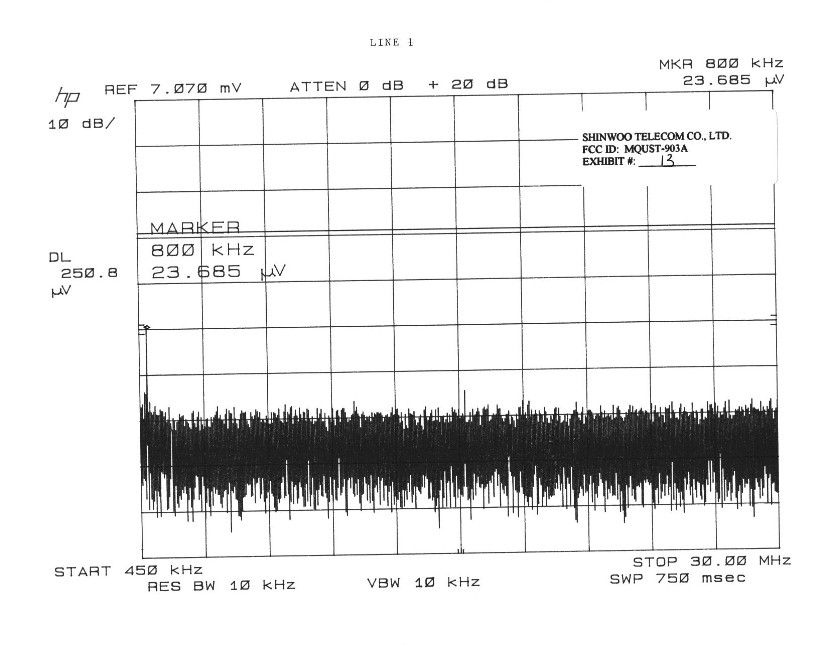

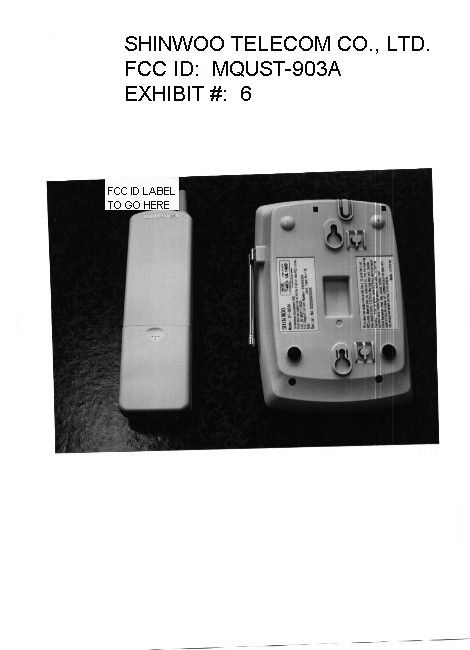

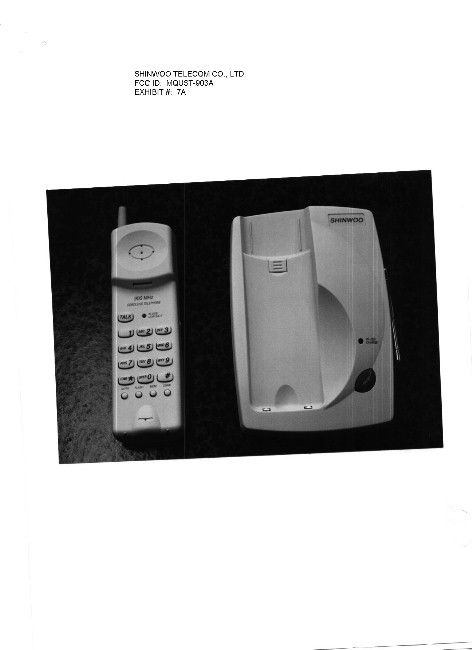

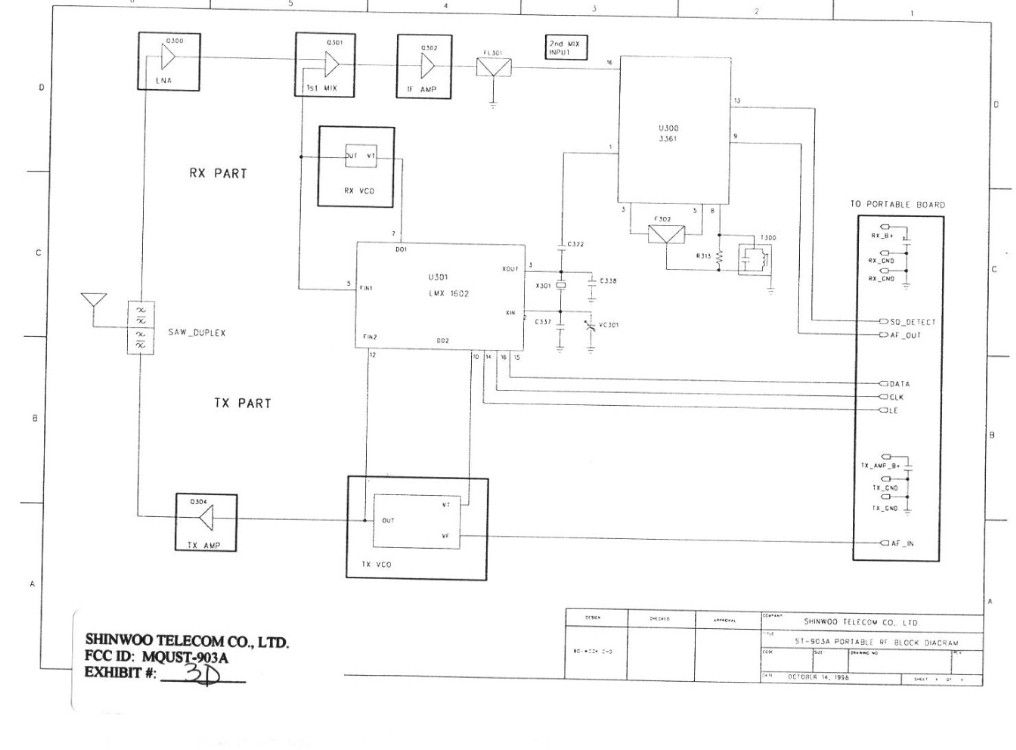

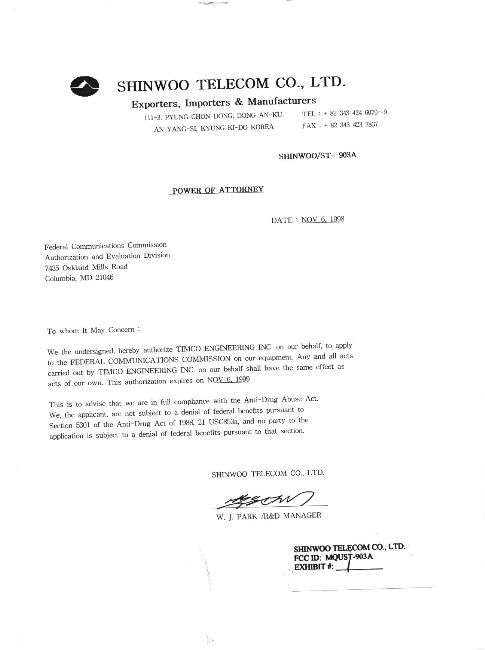

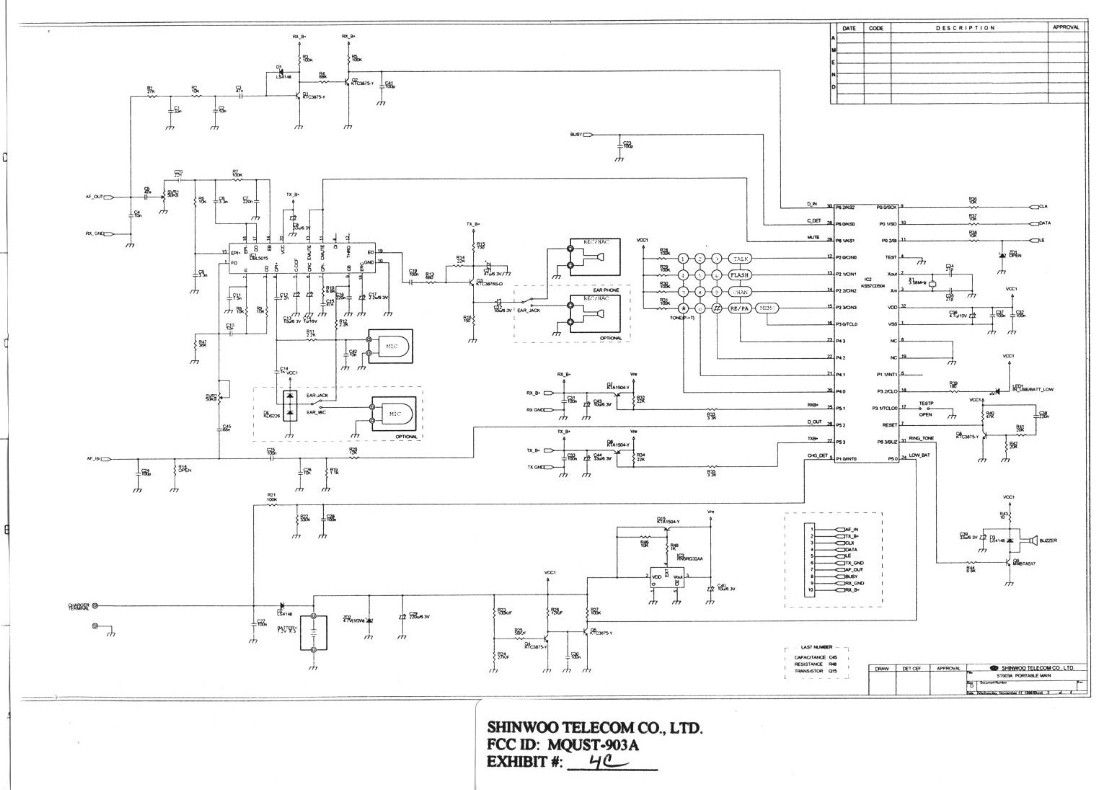

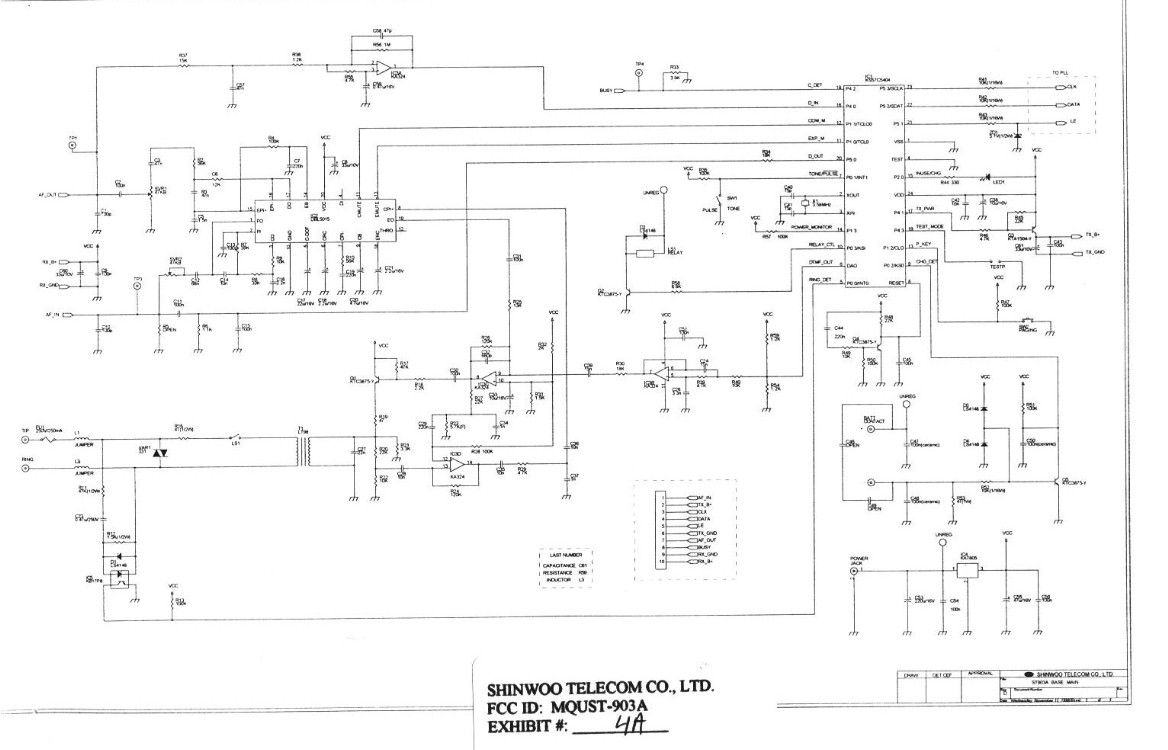

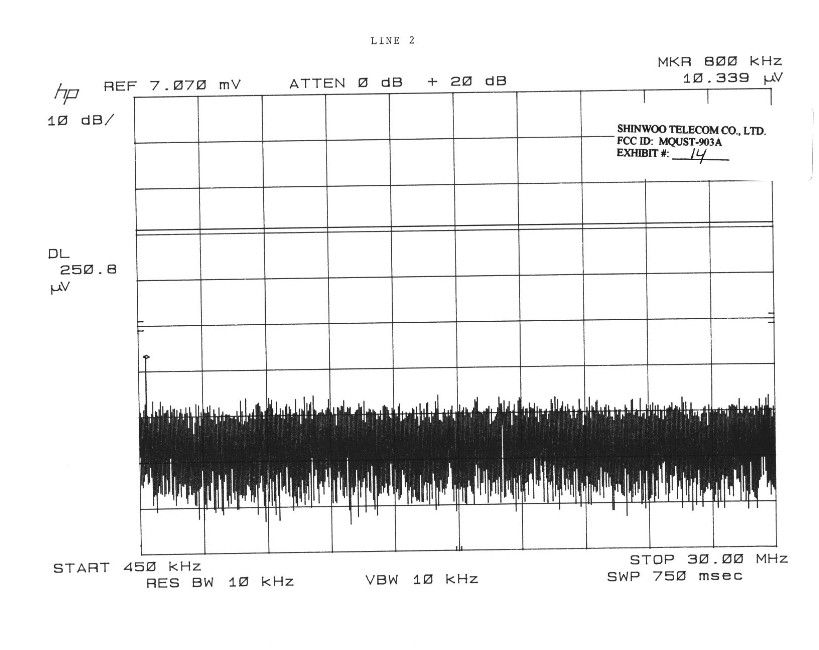

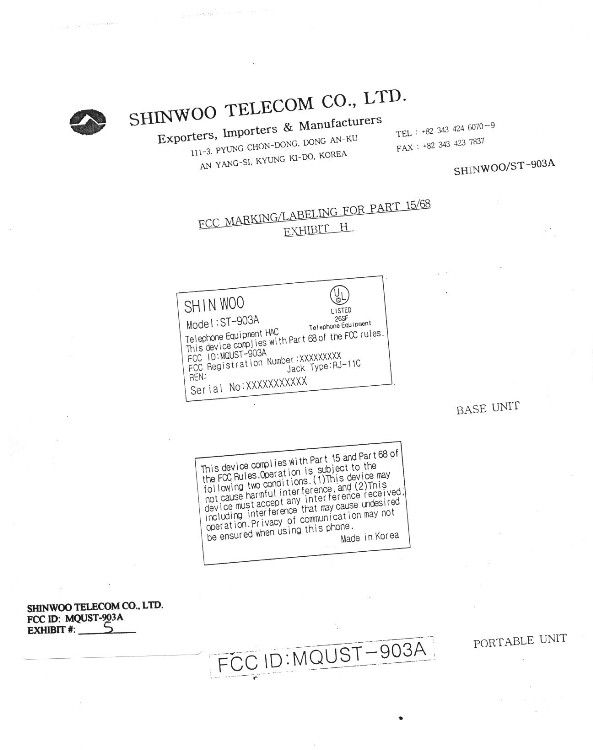

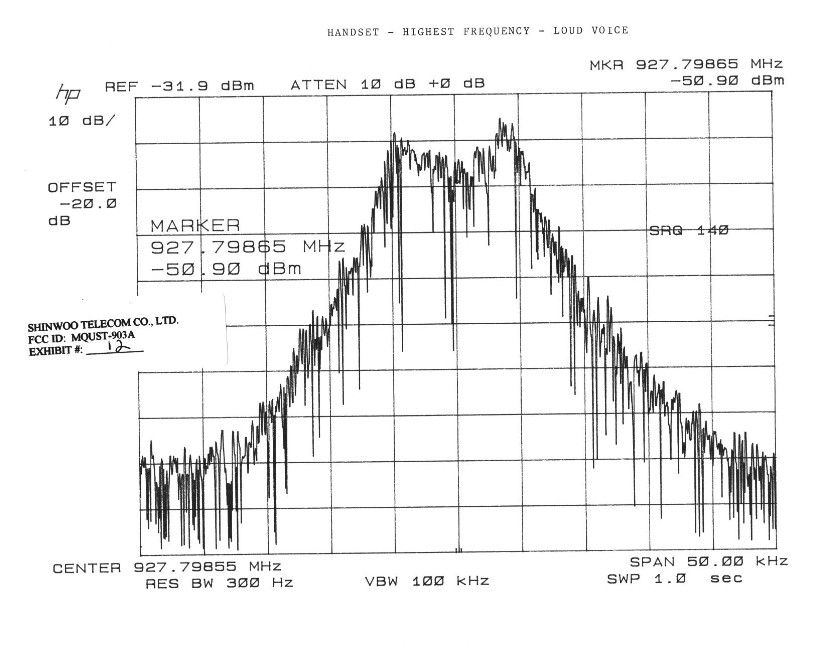

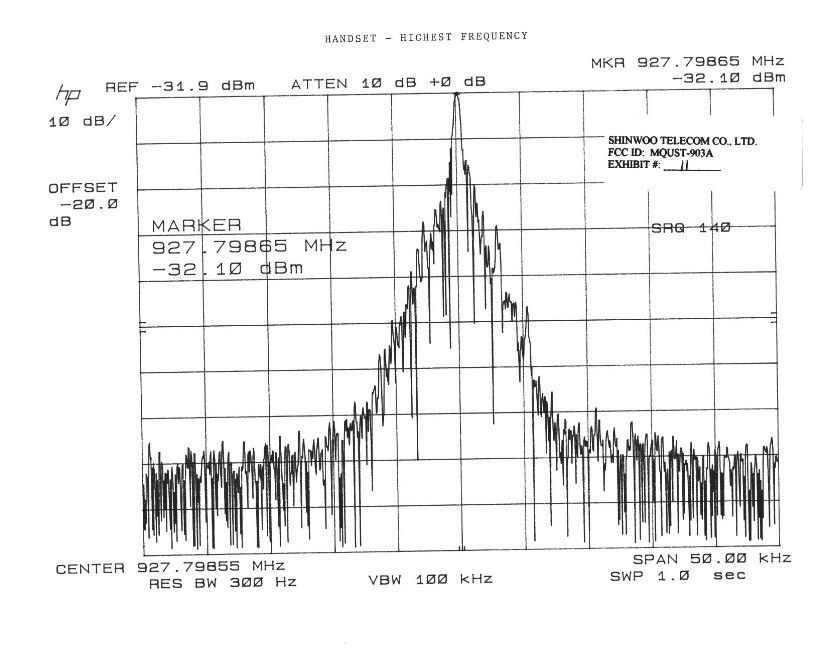

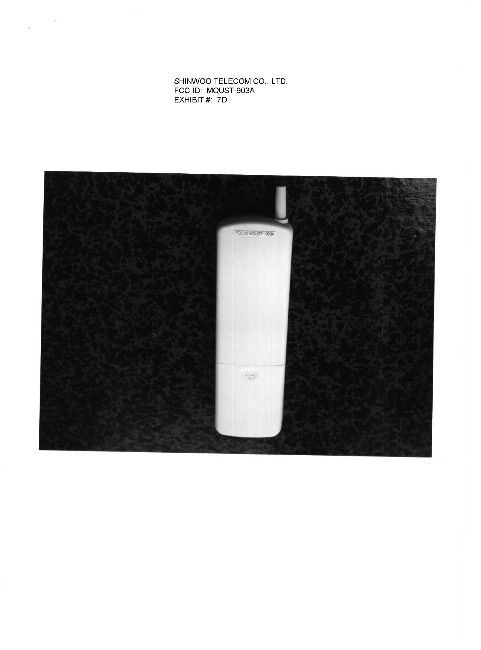

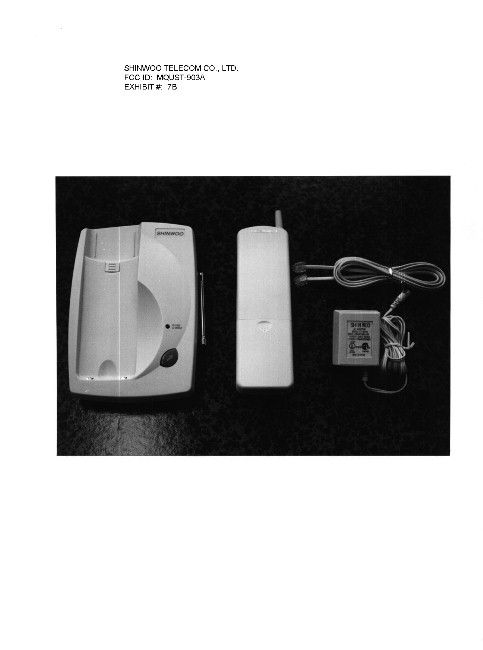

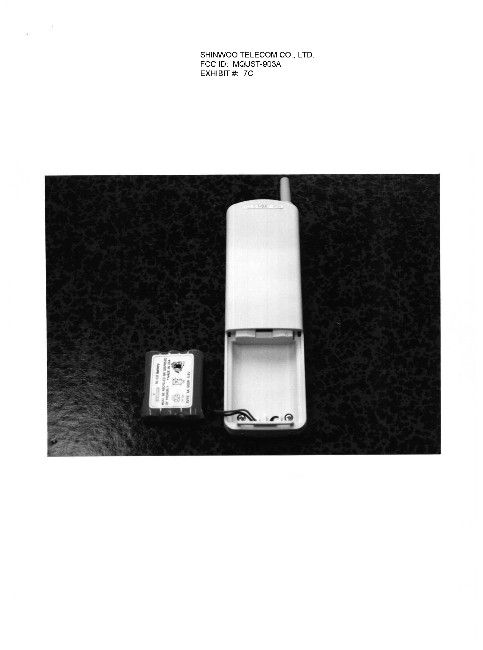

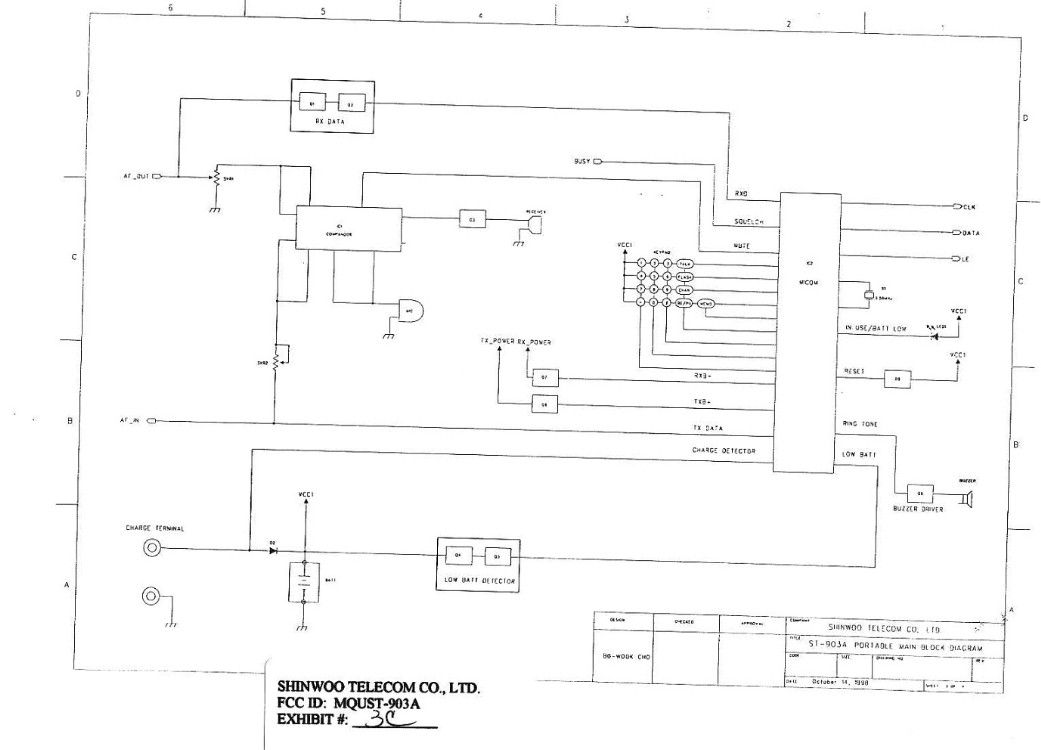

APPLICANT: SHINWOO TELECOM CO., LTD. FCC ID: MQUST-903A TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1-2......TEST EQUIPMENT LIST AND TEST PROCEDURE PAGE 3........15.214(d) - SECURITY CODING INFORMATION AND BASE UNIT CIRCUIT DESCRIPTION PAGE 4........HANDSET UNIT CIRCUIT DESCRIPTION PAGE 5........RADIATION INTERFERENCE TEST DATA - BASE PAGE 6........RADIATION INTERFERENCE TEST DATA - HANDSET PAGE 7........OCCUPIED BANDWIDTH TEST DATA PAGE 8........POWERLINE CONDUCTED TEST DATA EXHIBITS CONTAINING: EXHIBIT 1......POWER OF ATTORNEY LETTER EXHIBIT 2......SECURITY CODE INFORMATION EXHIBIT 3A.....BLOCK DIAGRAM - BASE MAIN EXHIBIT 3B.....BLOCK DIAGRAM - BASE RF EXHIBIT 3C.....BLOCK DIAGRAM - HANDSET MAIN EXHIBIT 3D.....BLOCK DIAGRAM - HANDSET RF EXHIBIT 4A.....SCHEMATIC - BASE MAIN EXHIBIT 4B.....SCHEMATIC - BASE RF EXHIBIT 4C.....SCHEMATIC - HANDSET MAIN EXHIBIT 4D.....SCHEMATIC - HANDSET RF EXHIBIT 5......FCC ID LABEL SAMPLES EXHIBIT 6......SKETCH OF FCC ID LABEL LOCATIONS EXHIBIT 7A.....EXTERNAL PHOTO - FRONT HANDSET AND BASE EXHIBIT 7B.....EXTERNAL PHOTO - FRONT BASE AND REAR HANDSET EXHIBIT 7C.....EXTERNAL PHOTO - REAR HANDSET WITHOUT BATTERY COVER EXHIBIT 7D.....EXTERNAL PHOTO - REAR HANDSET WITH BATTERY COVER EXHIBIT 7E.....EXTERNAL PHOTO - REAR HANDSET AND BASE BOTTOM EXHIBIT 7F.....EXTERNAL PHOTO - HANDSET SITTING IN BASE UNIT EXHIBIT 7G.....INTERNAL COMPONENT VIEW PHOTO - BASE AND HANDSET EXHIBIT 7H.....INTERNAL SOLDER SIDE PHOTO - BASE AND HANDSET EXHIBIT 7I.....EXTERNAL PHOTO - TOP SIDE BASE UNIT EXHIBIT 8A-8O..INSTRUCTION MANUAL EXHIBIT 9......OCCUPIED BANDWIDTH PLOT-LOWEST FREQ. NO AUDIO - BASE EXHIBIT 10.....OCCUPIED BANDWIDTH PLOT-2500 Hz TONE - BASE EXHIBIT 11.....OCCUPIED BANDWIDTH PLOT-HIGHEST FREQ - HANDSET EXHIBIT 12.....OCCUPIED BANDWIDTH PLOT-HIGHEST FREQ - LOUD VOICE -HS EXHIBIT 13.....POWERLINE CONDUCTED PLOT - LINE 1 EXHIBIT 14.....POWERLINE CONDUCTED PLOT - LINE 2 APPLICANT: SHINWOO TELECOM CO., LTD. FCC ID: MQUST-903A REPORT #: F:\CUS\S\SHINWOO\SHI321B8.RPT PAGE: TABLE OF CONTENTS TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B - Opt 462, w/ preselector 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B - OPT H02 Cal. 6/26/98 2. Signal Generator, Hewlett Packard 8640B, cal. 10/1/98 3. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 5/15/98 4. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA-30 10/15/98 5. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 8/15/98 6. Electro-Metric Antennas Model TDS-25-1, TDS-25-2, 5/15/97 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. 12/3/97 8. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. 12/3/97 9. Special low loss cable was used above 1 GHz TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 83oF with a humidity of 75%. APPLICANT: SHINWOO TELECOM CO., LTD. FCC ID: MQUST-903A REPORT #: F:\CUS\S\SHINWOO\SHI321B8.RPT PAGE #: 1 TEST PROCEDURE (CONT) ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed flush with the back of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correc- tion factors are stated in terms of dB. The gain of the Preselec- tor was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STANDARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appropriate sweep speed. The ambient temperature of the UUT was 83oF with a humidity of 75%. APPLICANT: SHINWOO TELECOM CO., LTD. FCC ID: MQUST-903A REPORT #: F:\CUS\S\SHINWOO\SHI321B8.RPT PAGE #: 2 APPLICANT: SHINWOO TELECOM CO., LTD. FCC ID: MQUST-903A SECURITY CODING INFORMATION 15.214(d) - THIS DEVICE COMPLIES WITH THE SECURITY CODE REQUIRE- MENTS OF 15.214(d)(1)(2) AND (3). SEE INFORMATION IN EXHIBIT 2. CIRCUIT DESCRIPTION BASE UNIT The incoming signal comes in on the antenna and is fed through the duplexer to the LNA, Q500 and then to a SAW bandpass filter,FL501. The frequency rang of the base receiver is 926- 928MHz. From the bandpass filter the signal is fed to the mixer, Q501 which converts the signal down to 26.05MHz. From Q501 the signal is fed to the IF filter FL502 and then to the intergrated circuit U500. In the U500 the signal is converted down to 450KHz and then to the detector for FM signal. From the detector the audio is fed to a low pass filter and to the Channel Detector Indicator. From the low pass filter the audio is fed into another low pass filter and shaper and then to the CPU, U311. From the CPU, U…

Text truncated - open the document above for the full version.
