MRA-109153

FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 1 of 16 FCC PART 15, SUBPART B & C TEST REPORT for VHF TELEMETRY TRANSMITTER Model: 4200 FCC ID: MRA-109153 Prepared for ZYMED MEDICAL INSTRUMENTATION INC. 1201-B N. RICE AVE. OXNARD, CA 93030 COMPATIBLE ELECTRONICS INC. 2337 TROUTDALE DRIVE AGOURA, CALIFORNIA 91301 (818) 597-0600 DATE: MARCH 20, 2000 REPORTAPPENDICESTOTAL BODYABCD PAGES162271542 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 2 of 16 TABLE OF CONTENTS Section / TitlePAGE GENERAL REPORT SUMMARY4 SUMMARY OF TEST RESULTS4 1. PURPOSE5 2. ADMINISTRATIVE DATA6 2.1 Location of Testing6 2.2 Traceability Statement6 2.3 Cognizant Personnel6 2.4 Date Test Sample was Received6 2.5 Disposition of the Test Sample6 2.6 Abbreviations and Acronyms6 3. APPLICABLE DOCUMENTS7 4. Description of Test Configuration8 4.1 Description of Test Configuration - EMI8 4.1.1 Cable Construction and Termination9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2 EMI Test Equipment11 6. TEST SITE DESCRIPTION12 6.1 Test Facility Description12 6.2 EUT Mounting, Bonding and Grounding12 7. Test Procedures13 7.1 RF Emissions13 7.1.1 Conducted Emissions Test13 7.1.2 Radiated Emissions Test14 7.1.3RF Emissions Test Results15 8. CONCLUSION16 FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 3 of 16 LIST OF APPENDICES APPENDIXTITLE AModifications to the EUT BAdditional Models Covered Under This Report CDiagrams, Charts and Photos • Test Setup Diagrams • Antenna and Effective Gain Factors • Radiated Emissions Photos DData Sheets LIST OF TABLES TABLETITLE 1 Radiated Emissions Test Results LIST OF FIGURES FIGURETitle 1 Plot Map And Layout of Test Site FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form except in full, without the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:VHF Telemetry Transmitter Model: 4200 S/N: none Product Description:This is a VHF transmitter used to transmit multiple ECG channels to a host computer. Modifications:The EUT was not modified during the testing. Manufacturer:Zymed Medical Instrumentation, Inc. 1201-B North Rice Avenue Oxnard, CA 93030 Test Date:March 14, 2000 Test Specifications: EMI requirements FCC Title 47, Part 15 Subpart B & C Test Procedure: ANSI C63.4: 1992. Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHz.This device is battery operated and does not draw power from public mains; therefore no conducted test was required. 2Radiated RF Emissions, 30 MHz – 1000 MHz.Complies with the Class B limits of FCC Title 47, Part 15 Subpart B. 3Radiated RF Emissions, 10kHz to 2.16GHz.Complies with the limits of FCC Title 47, Part 15 Subpart C 15.109, 15.209, 15.242. FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 5 of 16 1.PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the VHF Telemetry Transmitter Model: 4200. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined in FCC Title 47, Part 15, Subpart C, 15.109 and 15.209 and 15.242. FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 6 of 16 2.ADMINISTRATIVE DATA 2.1Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 2337 Troutdale Drive, Agoura, California 91301. 2.2Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST). 2.3Cognizant Personnel Zymed Medical Instrumentation, Inc. George BornazyanHardware Engineer Compatible Electronics, Inc. Joey J. MadlangbayanTest Engineer Jeff S. KlingerLab Manager 2.4Date Test Sample was Received The test sample was received on March 14, 2000. 2.5Disposition of the Test Sample The test sample remains at Compatible Electronics. 2.6Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page 7 of 16 3.APPLICABLE DOCUMENTS The following documents are referenced or used…

Text truncated - open the document above for the full version.

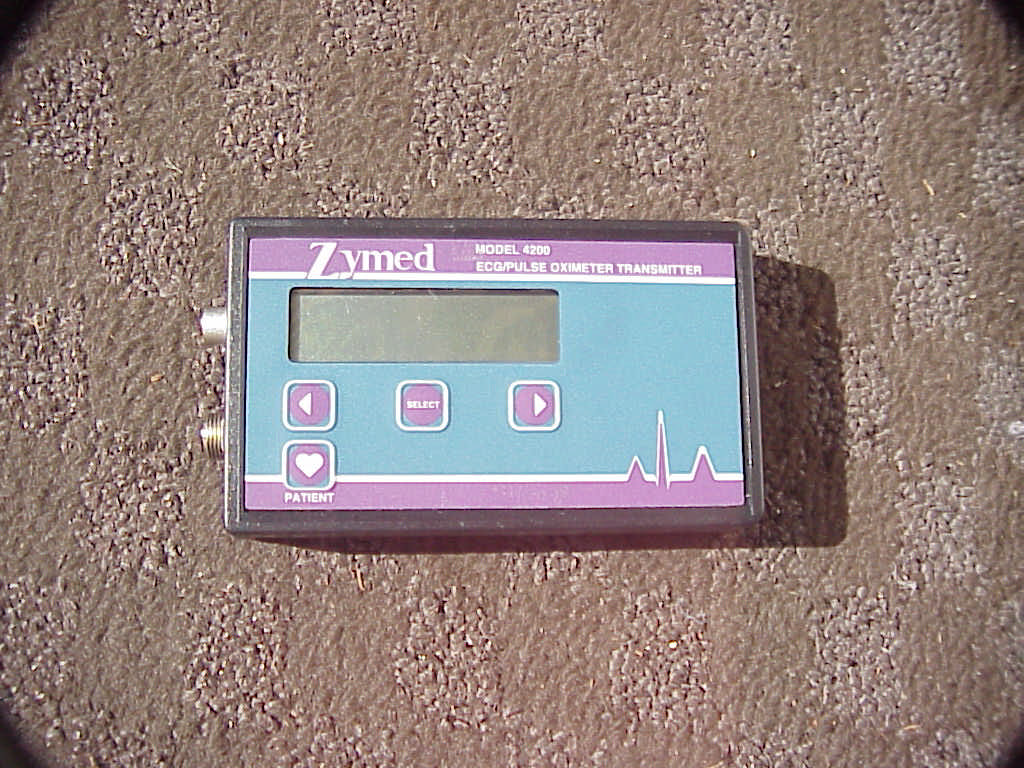

FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C5 X-AXIS ZYMED, INC. VHF TELEMETRY TRANSMITTER Model: 4200 FCC PART 15 SUBPART B & C - RADIATED EMISSIONS – 3-14-2000 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C6 Y-AXIS ZYMED, INC. VHF TELEMETRY TRANSMITTER Model: 4200 FCC PART 15 SUBPART B & C - RADIATED EMISSIONS – 3-14-2000 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS FCC ID: MRA-109153 Report Number: A00314F1 2337 TROUTDALE DRIVE, AGOURA, CALIFORNIA 91301 PHONE: (818) 597-0600 FAX: (818) 597-1187 Page C7 Z-AXIS ZYMED, INC. VHF TELEMETRY TRANSMITTER Model: 4200 FCC PART 15 SUBPART B & C - RADIATED EMISSIONS – 3-14-2000 PHOTOGRAPH SHOWING THE EUT CONFIGURATION FOR MAXIMUM EMISSIONS
