MUDKF-2200Family Radio Transceiver

SAFETY INFORMATION Your wireless handheld portable transceiver contains a low power transmitter. When the Push-to Talk (PTT) button is pushed it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand- held wireless devices. WARNING: To maintain compliance with the FCC' s RF exposure guidelines, this transmitter and its antenna must maintain a separation distance of at least 2 inches (5 centimeters) from your face. Speak in a normal voice, with the antenna pointed up and away from the face at the required separation distance. The belt clip is for storage purposes only. DO NOT TRANSMIT WHILE USING THE BELT CLIP. To transmit, hold the device away from your body and ensure that the antenna is at least 2 inches (5 centimeters) from your body when transmitting. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. SAFETY INFORMATION WARNING:

TIMCO ENGINEERING, INC. 849 N.W. STATE ROAD 45 P.O. BOX 370 NEWBERRY, FL 32669 888-472-2424 OR 352-472-5500 EMAIL: [email protected] November 8, 2000 Mr. Frank Coperich Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: KACE ELECTRONICS ASIA INC.’S FCC ID: MUDKF-2200 CONFIRMATION #: EA98688 CORRESPONDENCE ID #: 16436 Dear Mr. Coperich: With reference to your email dated 10/5/00, correspondence ID 16436; 1. We forwarded your email to Kace and they sent us a new sample and upon retesting the audio frequency response, found it does meet the requirements. A new plot has been uploaded to the file. 2. I have uploaded a new audio low pass filter plot. I have also uploaded a block diagram of the test set up for this test. 3. I have uploaded a Page 1 of the user’s manual. 4. The separation distance for normal use would be 3” – 5”. If you have any questions or require any further information, please advise. Regards, Sharon A. Hoffman/TIMCO ENGINEERING, INC.

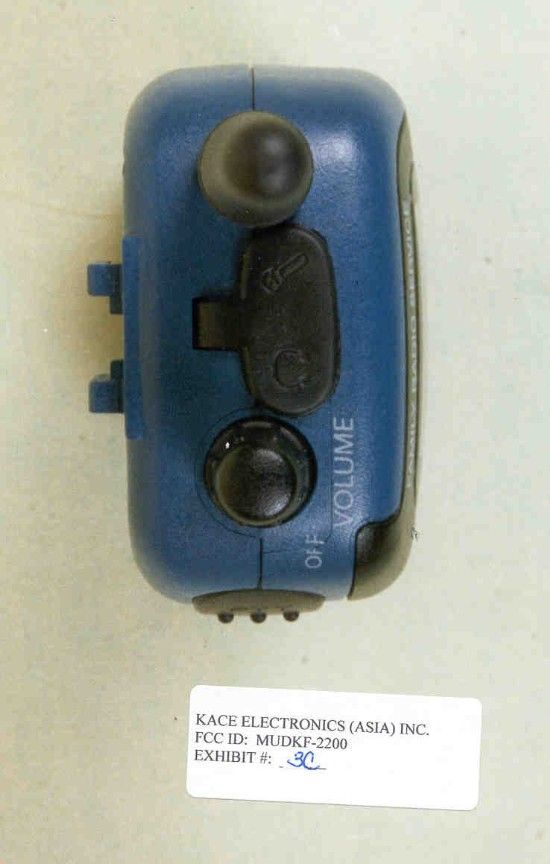

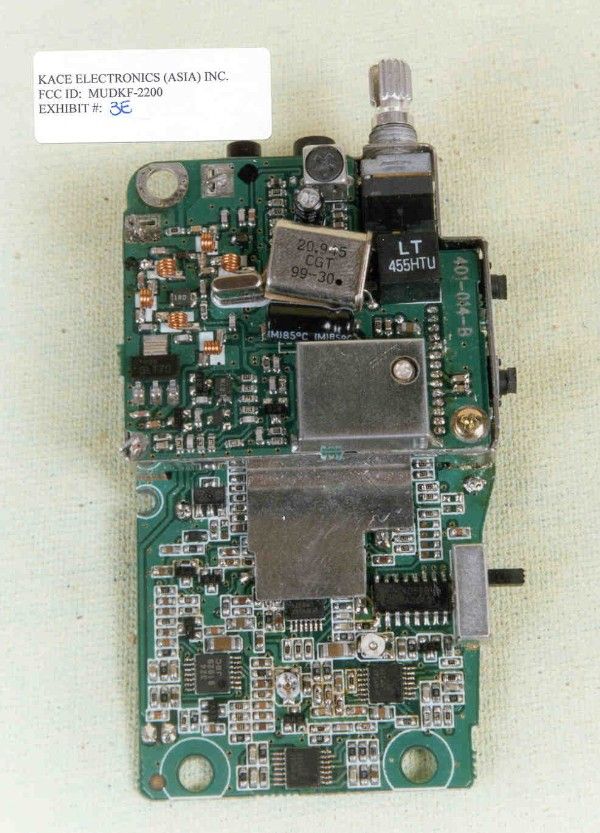

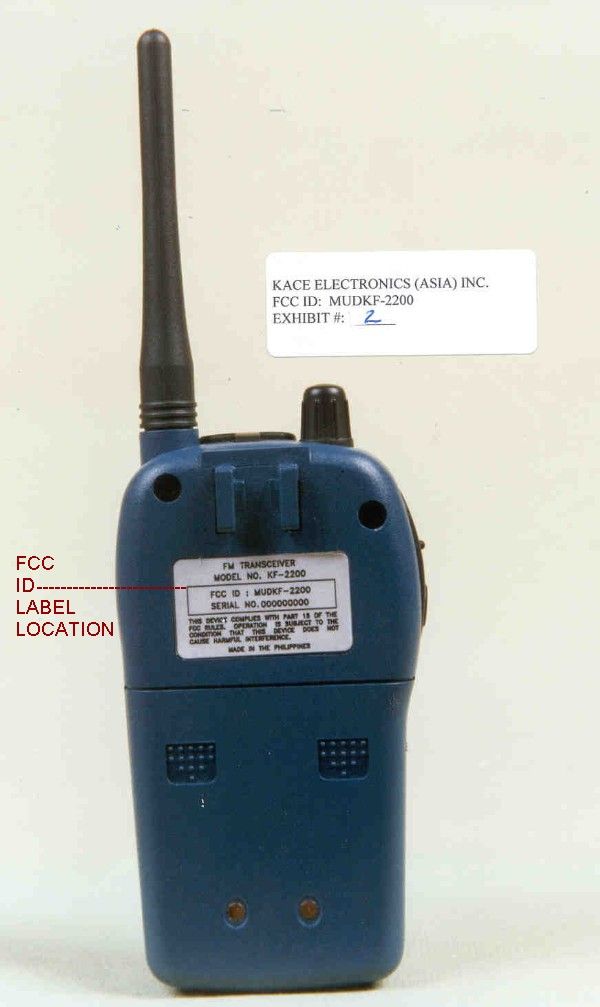

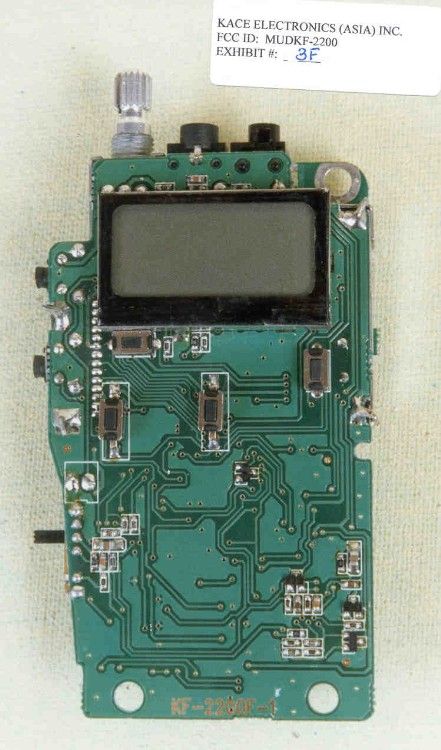

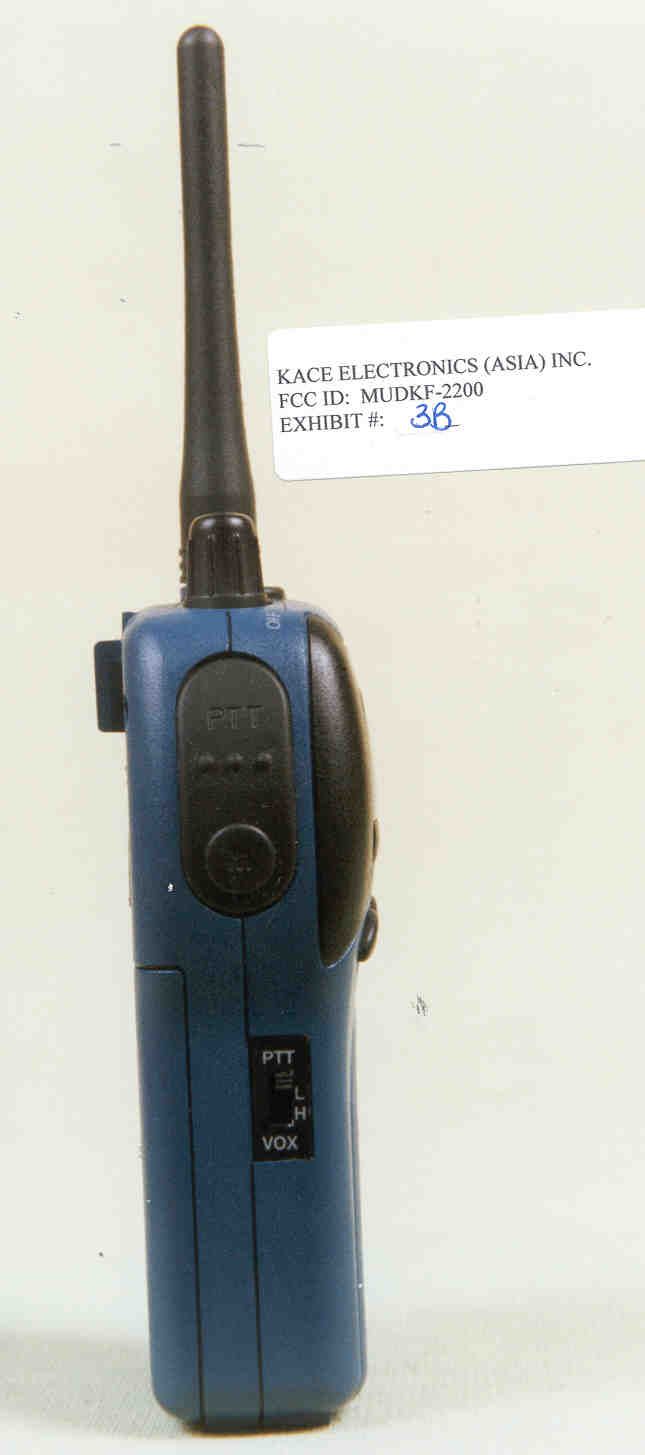

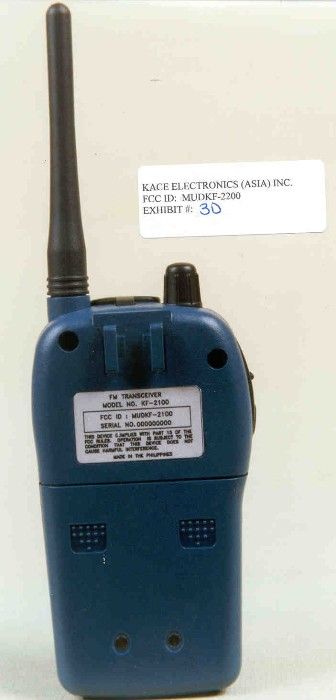

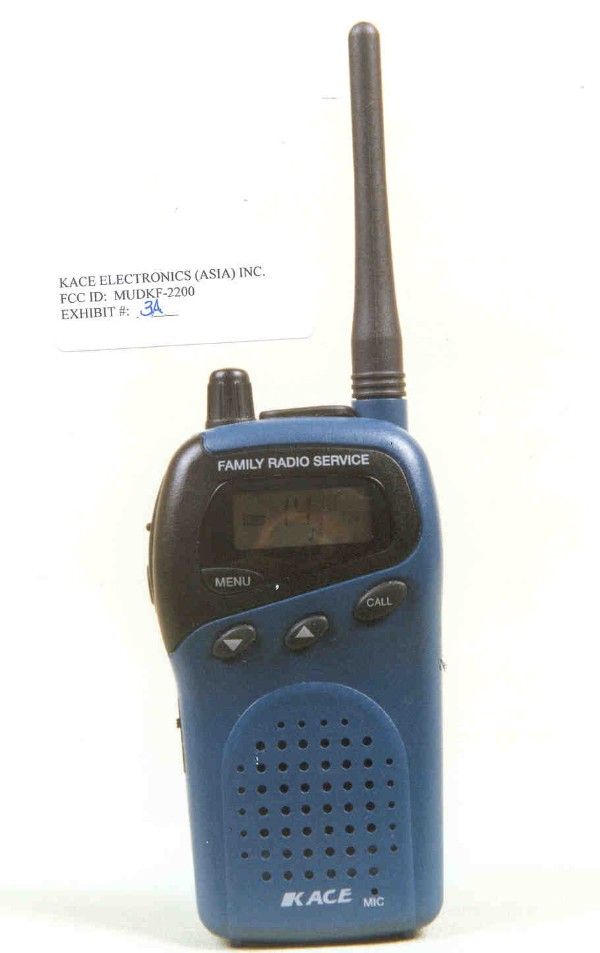

TABLE OF CONTENTS LIST APPLICANT: KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS PAGE 4......OCCUPIED BANDWIDTH PAGE 5-6....UNWANTED RADIATION PAGE 7......FREQUENCY STABILITY PAGE 8......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........FCC ID SKETCH OF LOCATION EXHIBIT 3A........EXTERNAL PHOTOGRAPH - FRONT VIEW EXHIBIT 3B........EXTERNAL PHOTOGRPAH - SIDE VIEW EXHIBIT 3C........EXTERNAL PHOTOGRAPH - TOP VIEW EXHIBIT 3D........EXTERNAL PHOTOGRAPH - REAR VIEW EXHIBIT 3E........INTERNAL PHOTOGRAPH - COMPONENT VIEW EXHIBIT 3F........INTERNAL PHOTOGRAPH - COPPER VIEW EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5.........SCHEMATIC EXHIBIT 6A-6B.....TUNING PROCEDURE EXHIBIT 7A-7D.....THEORY OF OPERATION EXHIBIT 8A-8S.....USER'S MANUAL EXHIBIT 9.........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 10A.......MODULATION LIMITING - 300 Hz EXHIBIT 10B.......MODULATION LIMITING - 1000 Hz EXHIBIT 10C.......MODULATION LIMITING - 3000 Hz EXHIBIT 11........OCCUPIED BANDWIDTH PLOT EXHIBIT 12........OCCUPIED BANDWIDTH PLOT - CW EXHIBIT 13........AUDIO LOW PASS FILTER GRAPH APPLICANT: KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 REPORT #: T:\CUS\K\KACE\274A0\274A0.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2) KACE ELECTRONICS (ASIA) INC. will manufacture the FCCID: MUDKF-2200 FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. 2.1033 (c) TECHNICAL_DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 8. 2.1033(c) (4) Type of Emission: 10K4F3E 95.629 Bn = 2M + 2DK M = 3000 D = 2.2K Bn = 2(3.0)+2(2.2) = 10.4K Authorized Bandwidth 12.5KHz 2.1033(c)(5) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.500Watts effective 95.637 radiated power. There can be no provisions for 95.647 increasing the power or varing the power. The Maximum Output Power Rating: 500 milliWatts effective radiated power. 95.645 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 4.5 Volts DC Ice = 0.12A. Pin = 0.54 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included 7A-7B. APPLICANT: KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 REPORT #: T:\CUS\K\KACE\274A0\274A0.RPT PAGE #: 1 TECHNICAL DESCRIPTION CONTINUED 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6 of this report. The block diagrams are included as EXHIBIT 5 of this report. 2.1033(c)(11) A photograph or a drwaing of the equipment identifica- tion label is included as exhibit No. 2. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF_power_output. 95.637 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 500 milliWatts ERP R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ | | |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. APPLICANT: KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 REPORT #: T:\CUS\K\KACE\274A0\274A0.RPT PAGE #: 2 2.1047(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See Exhibit # 9. 2.1047(b) Audio_input_versus_modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Exhibits 10A-10C. 95.635(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater tha the attenuation at 1KHz. See the proceeding page. 2.989(c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100 to 250% the sidebands must be attenuated by at least 35dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP). The transmitter was modulated with 2500 Hz, adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the unmodulated carrier at the top of the screen. The test procedure diagram and occupied bandwidth PLOTS follow. APPLICANT: KACE ELECTRONICS …

Text truncated - open the document above for the full version.

Kace Electronics KF-2200 0 5 10 15 20 25 100100010000 Frequency rms mVolts audio response KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 JOB #: 274A0 EXHIBIT #: 9

Modulation Limiting Kace Electronics KF-2200 0 500 1000 1500 2000 2500 3000 0 1020304050 rms mVolts Deviatio n 300 Hz KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 JOB #: 274A0 EXHIBIT #: 10A

Modulation Limiting Kace Electronics KF-2200 0 500 1000 1500 2000 2500 3000 05101520 rms mVolts Deviation 1000 Hz KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 JOB #: 274A0 EXHIBIT #: 10B

Modulation Limiting Kace Electronics KF-2200 0 500 1000 1500 2000 2500 024681012 rms mVolts Deviatio n 3000 Hz KACE ELECTRONICS (ASIA) INC. FCC ID: MUDKF-2200 REPORT #: 274A0 EXHIBIT #: 10C

Kace Electronics KF-2200 0 2 4 6 8 10 12 14 16 100100010000 Freque ncy rms mVolts audio response
