FCC ID MXM-HIGHPOINT200 - 1 - Spike Technologies, Inc HighPoint BDS System (FCC ID MXM–HIGHPOINT200) Application for Certification 47 CFR Parts 21 and 74 Exhibit M Users Manual DRAFT FCC ID MXM-HIGHPOINT200 - 2 - SPIKE TECHNOLOGIES, INC. INSTALLATION and OPERATION MANUAL FCC ID: MXM-HighPoint200 Revision 1.0 January 8, 2000 Revision 1.1 April 25, 2000 DRAFT FCC ID MXM-HIGHPOINT200 - 3 - Warnings and Notes To assure safety to on site personnel and to avoid damage to equipment the installation personnel should review the following warnings and safety precautions before installation begins. Electrical Safety CAUTION: Dangerous voltages exist in the AC power supply. Before installation activity begins, locate the AC power cutoff switch, make certain all on site personnel know the location of the power cut off switch in case of accidental contact. Make certain power is not on when performing the AC power connections. Do not remove the cover, plug or unplug the unit when the surrounding conditions are wet or when it is raining. Failure to follow these recommendations could result in death or serious injury to personnel or damage to the equipment. Follow all applicable local, regional and national codes when making AC power connections, grounding, and mounting of hardware. Outdoor mounted equipment, including antennas and cabling should never be installed during or prior to electrical storm activity. Any of these symbols may be used to mark a device as being electrostatic sensitive. Electro Static Discharge DRAFT FCC ID MXM-HIGHPOINT200 - 4 - WARNING: Use Electrostatic Discharge precautions (ESD). Static electricity can seriously damage this equipment. Damage from static discharges can be prevented with just a few simple precautions: a) Always use properly grounded wrist straps when handling the equipment. b) Workbenches where equipment is tested should have grounded antistatic mats. c) For equipment located indoors, tile floors around the equipment should be waxed with a static dissipative wax or grounded antistatic mats should be placed around the equipment racks. Equipment rooms with rugs should be avoided, however if it cannot be avoided, grounded antistatic mats must be placed around the equipment rack. d) Keep the equipment in the original packing material and sheltered until it is to be installed. e) Never use white styrofoam, clear plastic bags or paper to pack the units. Cellophane and masking tape should never come in direct contact with the units. Only use approved antistatic bags and styrofoam (pink in color) to pack and store the units (even temporarily or during transportation). f) Always ground the equipment to prevent static build up, this with also help prevent lightning damage. g) Do not handle the units unnecessarily. h) Handle defective modules with the same precautions as good modules. Professional Installation WARNING: This equipment must be professionally installed. Instructions for installation are included herein. Installation personnel should be factory trained and be familiar with setting up microwave communications links and the test equipment required for this purpose. DRAFT FCC ID MXM-HIGHPOINT200 - 5 - Transceiver Theory of Operation Two functional block diagrams representing the headend and subscriber transceivers are presented in fig.5 and fig..6 respectively. Fig. 3.5 Headend Transceiver Block Diagram Base Station Transceiver Block Diagram Receive RF Input LNA Gain 10 MHz Reference Oscillator IF Transmit RF Output PA Analog Atten. Gain Analog Atten. Digital Attenuator Digital Attenuator External Reference Gain BPF Ceramic BPF Ceramic BPF Ceramic RX IF 35.75 MHz -52 dBm TX IF 95 MHz +4 dBm D U P L E X E R BPF BPF BPF Digital Microcontroller & LO Circuits DRAFT FCC ID MXM-HIGHPOINT200 - 6 - Fig. 3.6 Subscriber Transceiver Block Diagram Transceiver Configurations Each transceiver has frequency coverage of approximately 50 MHz and thus there are two subbands per transceiver. The frequency ranges and transmit-to-receive frequency splits (approximately 100 MHz) are simply guidelines. The design is flexible enough to allow a variety of frequency ranges and Transmit/Receive separations to accommodate almost any channel plan in the 2.5 to 2.7 GHz frequency band. Subscriber Transceiver Block Diagram Receive RF Input LNA Gain 10 MHz Reference Oscillator IF Transmit RF Output PA Analog Atten. Gain Analog Atten. Digital Attenuator Digital Atten. External Reference Gain BPF Ceramic BPF Ceramic BPF Ceramic RX IF 35.75 MHz -52 dBm TX IF 120 MHz +4 dBm D U P L E X E R BPF BPF BPF Digital Microcontroller & LO Circuits DRAFT FCC ID MXM-HIGHPOINT200 - 7 - Differences Between Headend and Subscriber Transceivers Electrically, the differences between a headend and subscriber transceiver are minimal. They include a transposition of TX and RX frequencies as well as different TX and RX IF frequencies. The results are different local oscillator frequencies used in the conversion process. From a mechanical point of view, the two transceivers are packaged differently. The headend transceiver slides into a cabinet card rack in the base station cabinet and does not have to be weather tight (the cabinet is). Also the DC power for the headend transceiver is provided by a back-plane connection from a DC power supply located within the base station cabinet. The subscriber transceiver is mounted outdoors near the antenna and has to be weather tight and have adequate thermal mass for heatsinking purposes. The subscriber transceiver receives DC power through the IF cable, and therefore requires only a single cable to be installed between indoor and outdoor equipment. This requires extra circuitry to be added to the transceiver IF cable diplexer to extract the DC power for the transceiver. There is also a communications channel that is diplexed onto the IF cable at a low carrier frequency (500 kHz). The communications channel allows remote diagnostics and configuration of the transceiver by using a …

Text truncated - open the document above for the full version.

FCC ID MXM-HIGHPOINT200 - 1 - Spike Technologies, Inc HighPoint BDS System (FCC ID MXM–HIGHPOINT200) Application for Certification 47 CFR Parts 21 and 74 Exhibit C Cover Letters FCC ID MXM-HIGHPOINT200 - 2 - February 11, 2000 VIA ELECTRONIC SUBMISSION Office of Engineering and Technology Laboratory Federal Communications Commission 4735 Oakland Mills Rd. Columbia, MD 21046-1609 Re: Equipment Authorization Applicant: Spike Technologies, Inc. ion:February 8-10, 2000 t:Form 731 Confirmation Number: EA96729 MXM-HIGHPOINT200 Request for Confidentiality and Submission of Additional Exhibits Dear Sir/Madam: Spike Technologies, Inc. (“Spike”), hereby requests confidential treatment of portions of the above-referenced application for equipment authorization pursuant to Section 0.459 of the Commission’s Rules. Specifically, it is hereby requested that Exhibits F, G, H, J and M of the instant application be withheld from public inspection. These Exhibits contain information of unique value to Spike, including technical data and other information which would customarily be carefully guarded from its competitors. In addition, submitted herewith are updated versions of Exhibits J and K to be associated with Spike’s application. These now include all the necessary information in softcopy format. Please contact undersigned if there are any questions pertaining to this submission. Very truly yours, David Clark Enclosures

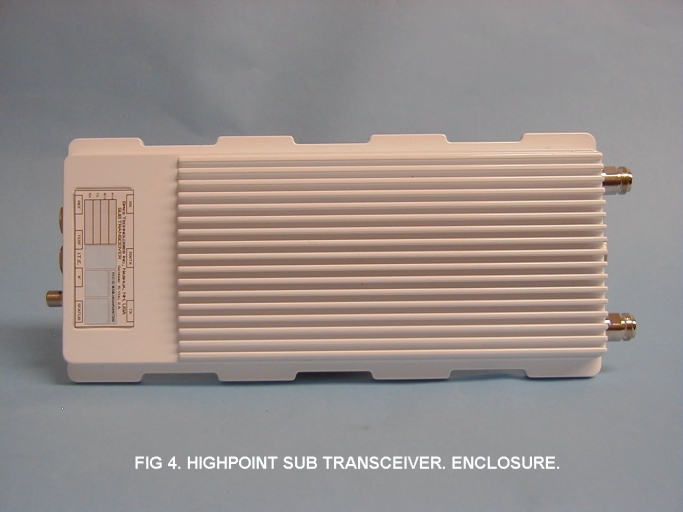

FCC ID MXM-HIGHPOINT200 - 1 - Spike Technologies, Inc HighPoint BDS System (FCC ID MXM–HIGHPOINT200) Application for Certification 47 CFR Parts 21 and 74 Exhibit D External Photos FCC ID MXM-HIGHPOINT200 - 2 - FCC ID MXM-HIGHPOINT200 - 3 -

FCC ID MXM-HIGHPOINT200 - 1 - Spike Technologies, Inc HighPoint BDS System (FCC ID MXM–HIGHPOINT200) Application for Certification 47 CFR Parts 21 and 74 Exhibit E ID Label Information FCC ID MXM-HIGHPOINT200 - 2 - Equipment Identification Label A drawing of the Equipment Identification Labels for both the hub and sub transceivers are provided below in figures 6.1 and 6.2. HUB TRANSCEIVER Rat ings: 13.6 Vdc, 2 A Spike Technol ogies Inc., Nashua, NH, USA I.T.E. P/N S/N TX RX FCC ID MXM-HIGHPOINT200 Figure 6.1: Hub Transceiver ID Label SUB TRANSCEIVER Rat ings: 15 Vdc, 2 A Spike Technol ogies Inc., Nashua, NH, USA TXRX/ TXRX REFTESTIFSTATUS I.T.E. P/N S/N TX RX FCC ID MXM-HIGHPOINT200 Figure 6.2: Sub Transceiver ID Label FCC ID MXM-HIGHPOINT200 - 3 - FCC ID MXM-HIGHPOINT200 - 4 - FCC ID MXM-HIGHPOINT200 - 5 -

Reply to Correspondence Reference Number: 13075 731 Confirmation Number: EA96729 Applicant: Spike Technologies, Inc ____________________________________________________________________________________ FCC Item 1. 1. The info submitted for this filing indicates this transmitter is a subscriber unit - located at the subscriber side of the link. Table 1 of 1.1307 requires a label to be attached to Part 21 MDS and Part 74 ITFS subscriber transceiver or transverter antennas to provide adequate notice on RF exposure and to reference applicable FCC rules on this label. Please review rules in 1.1307 and provide a copy of this label to be placed on the subscriber unit antenna, including supporting information for determining applicable minimum separation distance etc. based on the antennas used for the subscriber unit. Either measurement results or estimations may be used to support the info on the label. Please include the antenna info and also indicate the size of the label and its location on the antenna, it should be visible to persons exposed within the vicinity of the antenna. Spike Reply to Item 1: The following label will be placed on our Subscriber Antennas. The label is provided in a 1:1 scale. The dimensions are 2.3 cm wide by 9 cm long. Figure 1. RF Exposure Warning Label A minimum separation distance of 2 feet (61cm) is required between personnel and this antenna to comply with radio- frequency exposure limit of 1.0 mW/cm 2 The minimum separation distance was calculated by using the following information. Frequency: 2500 MHz Antenna Gain: 24 dBi Transceiver Output Power: 22 dBm MPE Limit: 1.0 mW/cm 2 The equation for calculating the power density from a known antenna is: S = PG/(4πR 2 ) P = power at the antenna terminals, mW G = gain of the antenna, linear isotropic gain R = distance, cm Rearranging the equation to calculate the separation distance results in: R = (PG/(4πS)) 1/2 P = 22 dbm = 158.5 mW G = 24dbi = 251 S = 1.0 mW/cm 2 R = 56.3 cm = 22.15 inches We rounded up to 24 inches = 2 feet = 61 cm. The label will be placed directly on the antenna. Figures 2 and 3 show the location of the label on the subscriber antenna. Figure 2. RF Exposure Label on the antenna. Figure 3. RF Exposure Label, Close Up FCC Item 2. 2. Only the RF exposure label is handled during equipment approval. RF exposure compliance for fixed transmitters are typically addressed at the time of site licensing or other similar licensing procedures, by the appropriate bureau(s). This will be indicated or clarified on the grant of equipment authorization to avoid confusion. Spike Reply to Item 2: Acknowledged.

Reply to Correspondence Reference Number: 13490 and 13509 731 Confirmation Number: EA96729 Applicant: Spike Technologies, Inc ____________________________________________________________________________________ FCC Item 1. 1. The info submitted for this filing indicates this transmitter is a subscriber unit - located at the subscriber side of the link. Table 1 of 1.1307 requires a label to be attached to Part 21 MDS and Part 74 ITFS subscriber transceiver or transverter antennas to provide adequate notice on RF exposure and to reference applicable FCC rules on this label. Please review rules in 1.1307 and provide a copy of this label to be placed on the subscriber unit antenna, including supporting information for determining applicable minimum separation distance etc. based on the antennas used for the subscriber unit. Either measurement results or estimations may be used to support the info on the label. Please include the antenna info and also indicate the size of the label and its location on the antenna, it should be visible to persons exposed within the vicinity of the antenna. Spike Reply to Item 1: The following label will be placed on our Subscriber Antennas. The label is provided in a 1:1 scale. The dimensions are 2.3 cm wide by 8 cm long. Figure 1. RF Exposure Warning Label To comply with FCC RF exposure compliance requirements, a minimum separation distance of 2 feet (61cm) is required between this antenna and all persons. The minimum separation distance was calculated by using the following information. Frequency: 2500 MHz Antenna Gain: 24 dBi Transceiver Output Power: 22 dBm MPE Limit: 1.0 mW/cm 2 The equation for calculating the power density from a known antenna is: S = PG/(4πR 2 ) P = power at the antenna terminals, mW G = gain of the antenna, linear isotropic gain R = distance, cm Rearranging the equation to calculate the separation distance results in: R = (PG/(4πS)) 1/2 P = 22 dbm = 158.5 mW G = 24dbi = 251 S = 1.0 mW/cm 2 R = 56.3 cm = 22.15 inches We rounded up to 24 inches = 2 feet = 61 cm. The label will be placed directly on the antenna. Figures 2 and 3 show the location of the label on the subscriber antenna. Figure 2. RF Exposure Label on the antenna. Figure 3. RF Exposure Label, Close Up The Spike Installation team have been advised to properly mount the antenna so that the label is visible to personnel that may be exposed to the antenna. The installation manual will also be updated to include instructions to ensure this. Copies of the revised applicable pages from the installation manual are included in the following two pages. A full copy of the manual is also provided under a separate file. Assembling and Mounting of QLP Parabolic Antenna(s) • To assemble mast, first insert the cable that is attached to the feed through the hole in the center of the reflector (fig. 4.38). • Turn reflector so that the two slots near the center hole of the reflector are situated so that one is on top of the hole and the other on the bottom. • Insert the feed camps (2 ea.) labeled #1 into the slots. • Insert the feed into the clamps verifying that the wide portion of the feed is orientated in the horizontal plane. • Insert Bolt #2 into the hole provided through clamp #1, feed and second clamp #1. • Put the nut #3 on the bolt #2 and tighten. The antenna is now assembled and ready for mounting. • To mount Antenna inset the U-bolts #4 from the front, through the holes as shown in above drawing. The orientation of these U-bolts will vary depending on whether the mast is horizontal or vertical. • On the backside of the antenna slide a mast cradle (2 ea.) #5 on to each U-bolt. • Put the antenna on the mast with the mast cradles touching the mast. WARNING: The antenna must be mounted so that the RF Exposure Warning Label is visible to personnel that may approach the antenna. This label includes the following warning sign . • Slide the second pair of mast cradles on the U-bolts • The second antenna, if used should be placed a minimum of 6 in. above or below the first antenna when mounting to a vertical mast. • When mounting to a horizontal mast a minimum of 1 foot of separation should be maintained. • Put nuts (4 ea.) #6 on the U-bolts and tighten. Do not over tighten, the antenna will need to be adjusted for alignment. Verify the required orientation of the antenna prior to assembly. WARNING: The antenna must be mounted so that the RF Exposure Warning Label is visible to personnel that may approach the antenna. This label includes the following warning sign . Position the antenna and insert the mounting studs. Slide one mast cradle over the studs provided with the antenna. Put the antenna on the mast so that the mast cradle rests on the mast. Slide second mast cradle over mounting studs. Thread nuts onto the studs. Tighten the nuts finger tight. Do not tighten completely, the antenna will need to be moved for alignment purposes. FCC Item 2. 2. Only the RF exposure label is handled during equipment approval. RF exposure compliance for fixed transmitters are typically addressed at the time of site licensing or other similar licensing procedures, by the appropriate bureau(s). This will be indicated or clarified on the grant of equipment authorization to avoid confusion. Spike Reply to Item 2: Acknowledged.

FCC ID MXM-HIGHPOINT200 - 1 - Spike Technologies, Inc HighPoint BDS System (FCC ID MXM–HIGHPOINT200) Application for Certification 47 CFR Parts 21 and 74 Exhibit K Test Report FCC ID MXM-HIGHPOINT200 - 2 - Spike Technologies, Inc HighPoint BDS System (FCC ID MXM–HIGHPOINT200) Technical Report Application for Certification 47 CFR Parts 21 and 74 FCC ID MXM-HIGHPOINT200 - 3 - Table of Contents 1.0 Test Data 1.1 List of Tests Performed 1.2 Test Setup 1.3 Test Equipment List 1.4 Description of Measurement Facilities 1.5 Frequency Spectrum to be Investigated 1.6 RF power output 1.7 Modulation Characteristics 1.8 Occupied Bandwidth 1.9 Spurious Emissions at Antenna Terminals 1.10 Field Strength of Spurious Radiation 1.11 Frequency Stability FCC ID MXM-HIGHPOINT200 - 4 - Appendices Appendix AField Strength of Spurious Radiation Report FCC ID MXM-HIGHPOINT200 - 5 - 1.0 Test Data The measured data that follows is presented in a format to show the applicable rule sections which define performance requirements and limits; the measurement procedure; and the test results, including any plotted data obtained in the test. The HighPoint BDS Hub and Sub Transceivers were found to comply with the requirements of 47 CFR Part 21 and Part 74. 1.1 List of tests performed 47 CFR47 CFR47 CFR Part 2 Part 21 Part 74 RF Power Output2.1046 21.107, 21.90474.935 Modulation Characteristics2.104721.12274.970 Occupied Bandwidth2.104921.10574.936 Spurious Emissions at antenna terminals2.105121.90874.936 Field Strength of Spurious Radiation2.105321.90874.936 Frequency Stability2.105521.10174.961 1.2 Test Configuration One base station transceiver; HUB s/n N938670024, and one subscriber transceiver; SUB s/n N931530003 were subjected to the above tests. The HUB transceiver was built to transmit on ITFS channel A3 at 2527 MHz. The SUB transceiver was built to transmit on ITFS channel G3 at 2671 MHz. Smartbits 2000 Subscriber Modem RF/DC Bias T HighPoint BDS SUB Transceiver HighPoint BDS HUB Transceiver HeadEnd (HUB) Modem D ip le x er Translator +15 VDC P/S IF IF Tx Rx Tx Rx Attenuation FCC ID MXM-HIGHPOINT200 - 6 - 1.3 Test Equipment List TypeManufacturerModel Signal GeneratorHewlett Packard8648D Signal GeneratorHewlett Packard83752A Spectrum AnalyzerHewlett Packard8593E Spectrum AnalyzerHewlett PackardE4407B Frequency CounterHewlett Packard5342A WattmeterBoonton4200 Power Supply (2)ELPAC Power Systems2700 Hub ModemIntegrityNeptune Sub ModemIntegrityAtlas TranslatorWavecomUC4040D Variable AttenuatorsHewlett Packard8494A, 8496A Power DividerNARDA4456-4 Fixed PadsMA/COM2082-6194-xx PlotterHewlett PackardDeskJet 600C Temperature ChamberAssociated Environmental Systems---- Multi Performance Analysis SystemNetCom SystemsSmartbits 2000 1.4 Description of Measurement Facilities The testing, as recorded herein, was performed at two facilities. The Field Strength of Spurious Radiation was performed at National Technical Systems (NTS) in Boxborough, MA. NTS is an independent test laboratory in the area of Environmental and Electromagnetic Compatibility testing. NTS operates an outdoor Open Area Test Site (OATS) and a full 3m anechoic chamber both of which meet the site attenuation requirements ANSI C63.4. NTS’s facilities are accredited by NVLAP. The remaining tests were performed at Spike Technologies, Inc. regulatory and systems Lab in Nashua, NH. This lab includes the necessary signal sources, analyzers and environmental chambers to perform the required tests. FCC ID MXM-HIGHPOINT200 - 7 - 1.5 Frequency of Investigation 1.5.1 Requirement 2.1057 Frequency spectrum to be investigated. (a) In all of the measurements set forth in §§2.1051 and 2.1053, the spectrum shall be investigated from the lowest radio frequency signal generated in the equipment, without going below 9 kHz, up to at least the frequency shown below: (1) If the equipment operates below 10 GHz: to the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (b) Particular attention should be paid to harmonics and subharmonics of the carrier frequency as well as to those frequencies removed from the carrier by multiples of the oscillator frequency. Radiation at the frequencies of multiplier stages should also be checked. (c) The amplitude of spurious emissions which are attenuated more than 20 dB below the permissible value need not be reported. The lowest generated frequency in the transceivers is the 500 kHz derivated clock for RS 232 communication with the radio. This allows for remote frequency selection and gain setting. The sub transceiver is built to transmit at 2671 MHz. Therefore, testing was performed to the 10 th harmonic of this or 26.71 GHz. The frequency range of investigation was: 500 kHz to 26.71 GHz. FCC ID MXM-HIGHPOINT200 - 8 - 1.6 RF Power Output 1.6.1 Requirement 2.1046 Measurements required: RF power output. (a) For transmitters other than single sideband, independent sideband and controlled carrier radiotelephone, power output shall be measured at the RF output terminals when the transmitter is adjusted in accordance with the tune-up procedure to give the values of current and voltage on the circuit elements specified in §2.983(d)(5). The electrical characteristics of the radio frequency load attached to the output terminals when this test is made shall be stated. (b) For single sideband, independent sideband and single channel, controlled carrier radiotelephone transmitters, the procedure specified in paragraph (a) of this paragraph shall be employed and, in addition, the transmitter shall be modulated during the test as follows. In all tests, the input level of the modulating signal shall be such as to develop rated peak envelope power or carrier power, as appropriate, for the transmitter. (c For measurements conducted pursuant to paragraphs (a) and (b) of this section, all calculations and methods used by the applicant for determining carrier power or peak envelope power, as appropriate, on the basis of measured po…
