MY5ATOMSResidential Garage Door Opener

Quick Installation Guide Recommended Tools Step Ladder Adjustable Wrench Pliers Flat and Phillips Screwdriver Wire Stripper Safety Glasses WARNING ! IMPORTANT INSTALLATION INSTRUCTIONS WARNING – To reduce the risk of severe injury or death: 1) READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS. 2) Install only on a properly operating and balanced door. A door that is operating improperly could cause severe injury. Have qualified service personnel make repairs to cables, spring assemblies, and other hardware before installing the operator. 3) Remove all pull ropes and remove, or make inoperative, all locks (unless mechanically and/or electrically interlocked to the power unit) that are connected to the door before installing the operator. 4) Install the door operator at least 8 ft (2.44 m) or more above the floor if the operator has exposed moving parts. If the operator must be installed less than 8 ft (2.44 m) above the floor, then exposed moving parts must be protected by covers or guarding, provided by the operator manufacturer. 5) Do not connect the door operator to the source of power until instructed to do so. 6) Locate the control station: (a) within sight of the door, and (b) at a minimum height of 5 feet so small children cannot reach it. 7) Install the Entrapment Warning Placard next to the control station in a prominent location. 8) For products having a manual release, instruct the end user on the operation of the manual release. Step 1 – Installing the chain 1a. Assemble the T-rail 1b. Place the chain to the opener. Step 2 – Install the safety beam and wall button. 2a. Connect the safety beam, wall button wires to the opener. 2b. Install the opener to the hanging brackets. Step 3 – Indication 3a. When power up the opener. The dot in the LED display stays on. 3b. When power up the opener. The red LED on the Wall Button stays on. 3c. When power up the opener. The red and green LEDs on the Safety Beam Sensors stays on once aligned properly. Step 4 – Programming the Remote Control 4a. Press and hold the [Set] button in the opener for 1 second, the LED shown [P] segments. 4b. Press the button on the remote. 4c. Once the button on the remote is programmed. The LED segment will off and emits one beep indicating the programming successfully. Step 5 – Erase all the Remote Control from opener Note: To erase any unwanted remote control, first erase all remotes. 5a. Press the [Set] button for 15 seconds, when the opener emits 4 beeps, release the Learn/Set button. The LED display shows “E”. 5b. Press the [Set] button again to erase all the programmed remotes. 5c. The LED segment will off indicating the erasing successfully. Step 6 – Adjust the Up and Down Limits Warning: Trolley MUST be engaged before setting limits. 6a. Power up the opener. The dot in the LED display stays on. Step 7 – Operation 7a. To activate the opener with remote control, press the button that is programmed to the desired opener. FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Le présent appareil est conforme aux Partie 15 des règlements de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARRANTY If, within one year from date of purchase, this product should become defective (except battery), due to faulty workmanship or materials, it will be repaired or replaced, without charge. Proof of purchase and a Return Authorization Number are required. CUSTOMER SERVICE 17 Shread Avenue, Brampton, Ontario, Canada L6Y 1J3 Email:[email protected] http://www.skylinkhome.com ©2015 SKYLINK GROUP US Office Securelink Inc., 1180-D East Francis Street, Ontario, CA 91761, USA Tel: (909) 673-1778

SKYLINK TECHNOLOGIES INC., 17 Sheard Avenue, Brampton, Ontario, L6Y 1J3, Canada. Tel: (905) 456-8883 Fax: (905) 456-7819 022311 – 6 Authority to Act as Agent Date: November 17, 2015 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: CMA Industrial Development Foundation Limited/ Mr. Andrew Wong is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 Months By: _________________________ ______Joe Ng______ (Signature 1 ) (Print name) Title: _____Manager_____ On behalf of: _Skylink Technologies Inc (Company Name) 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

022311 – 6 Request for Confidentiality Date: November 17, 2015 Subject: Confidentiality Request for: MY5ATOMS Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Skylink technologies Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: ______ /Manager Joe Ng__________ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

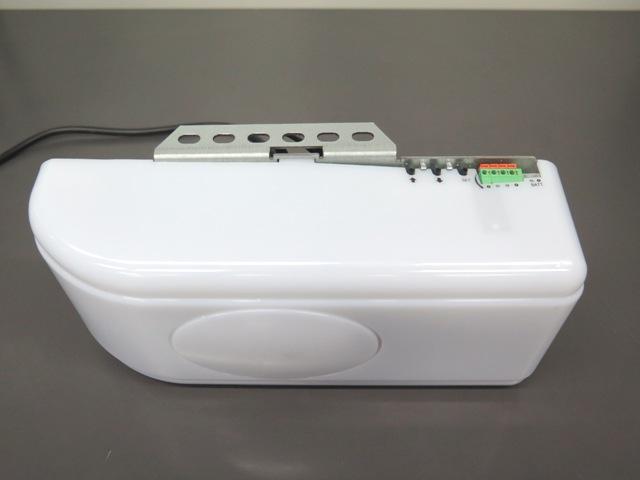

External Photo External Photo

LABELING DIAGRAM DATE : 28 Oct. 2015 PAGE : 1 OF 1 PROPRIETARY INFORMATION WARNING! Risk of entrapment. After adjusting either the force of limits or travel adjustments, insure that the door reverses on a 1-1/2-inch (or a 2 by 4 board laid flat) high obstruction on the floor. WARNING! For continued protection against fire, replace only with same type and rating of fuse. 120VAC 60Hz 2.5A For Indoor Use Only Assembled in China RESIDENTIAL GARAGE DOOR OPENER This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : MY5ATOMS Model : AT-600 IC : 3133B-ATOMS ® CONFORMS TO UL STD. 325 DISCONNECT BEFORE SERVICING CERTIFIED TO CSA STD. C22.2 No.247 WARNING! Risk of entrapment. After adjusting either the force of limits or travel adjustments, insure that the door reverses on a 1-1/2-inch (or a 2 by 4 board laid flat) high obstruction on the floor. WARNING! For continued protection against fire, replace only with same type and rating of fuse. 120VAC 60Hz 2.5A For Indoor Use Only Assembled in China RESIDENTIAL GARAGE DOOR OPENER This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : MY5ATOMS Model : AT-603 IC : 3133B-ATOMS ® CONFORMS TO UL STD. 325 DISCONNECT BEFORE SERVICING CERTIFIED TO CSA STD. C22.2 No.247 WARNING! Risk of entrapment. After adjusting either the force of limits or travel adjustments, insure that the door reverses on a 1-1/2-inch (or a 2 by 4 board laid flat) high obstruction on the floor. WARNING! For continued protection against fire, replace only with same type and rating of fuse. 120VAC 60Hz 2.5A For Indoor Use Only Assembled in China RESIDENTIAL GARAGE DOOR OPENER This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : MY5ATOMS Model : AT-800 IC : 3133B-ATOMS ® CONFORMS TO UL STD. 325 DISCONNECT BEFORE SERVICING CERTIFIED TO CSA STD. C22.2 No.247 WARNING! Risk of entrapment. After adjusting either the force of limits or travel adjustments, insure that the door reverses on a 1-1/2-inch (or a 2 by 4 board laid flat) high obstruction on the floor. WARNING! For continued protection against fire, replace only with same type and rating of fuse. 120VAC 60Hz 2.5A For Indoor Use Only Assembled in China RESIDENTIAL GARAGE DOOR OPENER This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : MY5ATOMS Model : AT-803 IC : 3133B-ATOMS ® CONFORMS TO UL STD. 325 DISCONNECT BEFORE SERVICING CERTIFIED TO CSA STD. C22.2 No.247 LABEL SIZE : 90 X 38MM WARNING! Risk of entrapment. After adjusting either the force of limits or travel adjustments, insure that the door reverses on a 1-1/2-inch (or a 2 by 4 board laid flat) high obstruction on the floor. WARNING! For continued protection against fire, replace only with same type and rating of fuse. 120VAC 60Hz 2.5A For Indoor Use Only Assembled in China RESIDENTIAL GARAGE DOOR OPENER This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID : MY5ATOMS Model : ATOMS IC : 3133B-ATOMS ® CONFORMS TO UL STD. 325 DISCONNECT BEFORE SERVICING CERTIFIED TO CSA STD. C22.2 No.247 W A R N I N G ! R i s k o f e n t r a p m e n t . A f t e r a d j u s t i n g e i t h e r t h e f o r c e o f l i m i t s o r t r a v e l a d j u s t m e n t s , i n s u r e t h a t t h e d o o r r e v e r s e s o n a 1 - 1 / 2 - i n c h ( o r a 2 b y 4 b o a r d l a i d f l a t ) h i g h o b s t r u c t i o n o n t h e f l o o r . W A R N I N G ! F o r c o n t i n u e d p r o t e c t i o n a g a i n s t f i r e , r e p l a c e o n l y w i t h s a m e t y p e a n d r a t i n g o f f u s e . 1 2 0 V A C 6 0 H z 2 . 5 A F o r I n d o o r U s e O n l y A s s e m b l e d i n C h i n a R E S I D E N T I A L G A R A G E D O O R O P E N E R T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C R u l e s . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g c o n d i t i o n s : ( 1 ) t h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . F C C I D : M Y 5 A T O M S M o d e l : A T - A T O M S I C : 3 1 3 3 B - A T O M S ® C O N F O R M S T O U L S T D . 3 2 5 D I S C O N N E C T B E F O R E S E R V I C I N G C E R T I F I E D T O C S A S T D . C 2 2 . 2 N o . 2 4 7 CAN RSS-Gen/CNR-Gen C A N R S S -G e n /C N R -G e n CAN RSS-Gen/CNR-Gen CAN RSS-Gen/CNR-Gen CAN RSS-Gen/CNR-Gen CAN RSS-Gen/CNR-Gen

Internal Photo Internal Photo Internal Photo Internal Photo

Test Report Report No. : AT0075124 (8) Date : 27 Nov 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 36 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: MY5ATOMS IC: 3133B-ATOMS Application No. : LT047751(2) Applicant : Skylink Technologies 17 Sheard Avenue, Brampton Ontario, L6Y 1J3, Canada Sample Description : One(1) item of submitted sample stated to be: Sample Description Model No. Residential garage door opener ATOMS, AT-600, AT-603, AT-803, AT-800 Radio Frequency : 433MHz Transmitter; 318MHz Receiver Rating : AC 120 V No. of submitted sample : Two (2) piece (s) Sample registration No. : RT051650-002 Date Received : 17 Nov 2015. Test Period : 17 Nov 2015 to 25 Nov 2015. Test Requested : FCC 47CFR Part 15 Certification. Industry Canada Interference Causing Equipment Standard RSS-210. Test Method : 47 CFR Part 15 (10-1-15 Edition) ANSI C63.10 – 2013 RSS-210 Issue 8 RSS-GEN Issue 4 Test Result : See attached sheet(s) from page 2 to 36. Conclusion : The submitted sample was found to comply with requirement of FCC 47CFR Part 15 Subpart C and Industry Canada RSS-210 Issue 8. The Test Report AT0075656(7) issued on 27 Nov 2015 which found to comply with requirement of FCC Part 15 B Declaration of Conformity and Industry Canada RSS-210 Issue 8. Test Report Report No. : AT0075124 (8) Date : 27 Nov 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 2 of 36 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: MY5ATOMS IC: 3133B-ATOMS Remark : All five models are the same in circuitry and components; and therefore model ATOMS was chosen to be the representative of the test sample. The difference between the tested model and the declared model(s) is/are the Model no. Test Report Report No. : AT0075124 (8) Date : 27 Nov 2015 Page 3 of 36 FCC ID: MY5ATOMS IC: 3133B-ATOMS Table of Contents 1 General Information ................................................................................................................................... 4 1.1 General Description ............................................................................................................................ 4 1.2 Location of the test site ....................................................................................................................... 6 1.3 List of measuring equipment............................................................................................................... 7 1.4 Measurement Uncertainty ................................................................................................................... 7 2 Description of the radiated emission test ................................................................................................... 8 2.1 Test Summary ..................................................................................................................................... 8 2.2 Test Procedure .................................................................................................................................... 8 2.3 Test Setup ........................................................................................................................................... 9 2.3 Test Setup ......................................................................................................................................... 10 2.4 Test Result ........................................................................................................................................ 11 2.5 Radiated Emission Measurement Data ............................................................................................. 12 2.5 Radiated Emission Measurement Data ............................................................................................. 13 3 Description of the Line-conducted Test ................................................................................................... 14 3.1 Test Procedure .................................................................................................................................. 14 3.2 Test Result ........................................................................................................................................ 14 3.3 Test Setup ......................................................................................................................................... 14 3.4 Graph and Table of Conducted Emission Measurement Data .......................................................... 14 4 Photograph ............................................................................................................................................... 15 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 15 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 15 5 Supplementary document ......................................................................................................................... 16 5.1 Bandwidth ......................................................................................................................................... 16 5.2 Duty cycle ......................................................................................................................................... 16 5.3 Transmission time ............................................................................................................................. 17 6 Appendices ............................................................................................................................................... 18 Test Report Report No. : AT0075124 (8) Date : 27 Nov 2015 Page 4 of 36 FCC ID: MY5ATOMS IC: 3133B-ATOMS 1 General Information 1.1 General Description The equipment under test (EUT) is a transceiver for garage door opener. It…

Text truncated - open the document above for the full version.

Test Setup Photo – Radiated Emission Front View (9kHz – 30MHz) Rear View (9kHz – 30MHz) Test Setup Photo – Radiated Emission Front View (30MHz – 1GHz) Rear View (30MHz – 1GHz) Test Setup Photo – Radiated Emission Front View (1GHz – 4.4GHz) Rear View (1GHz – 4.4GHz) Test Setup Photo – Conducted Emission Front View Rear View Test Setup Photo – Conducted Emission Front View
