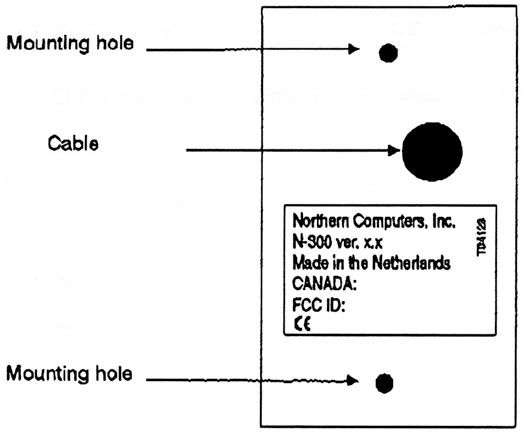

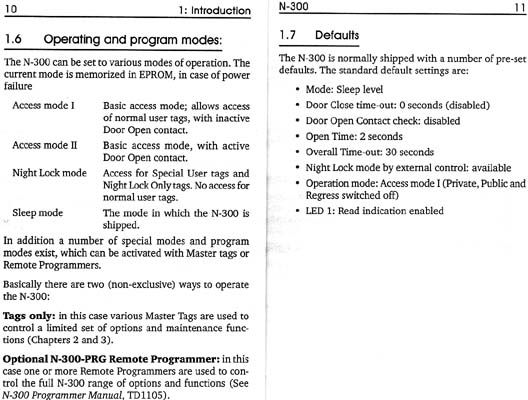

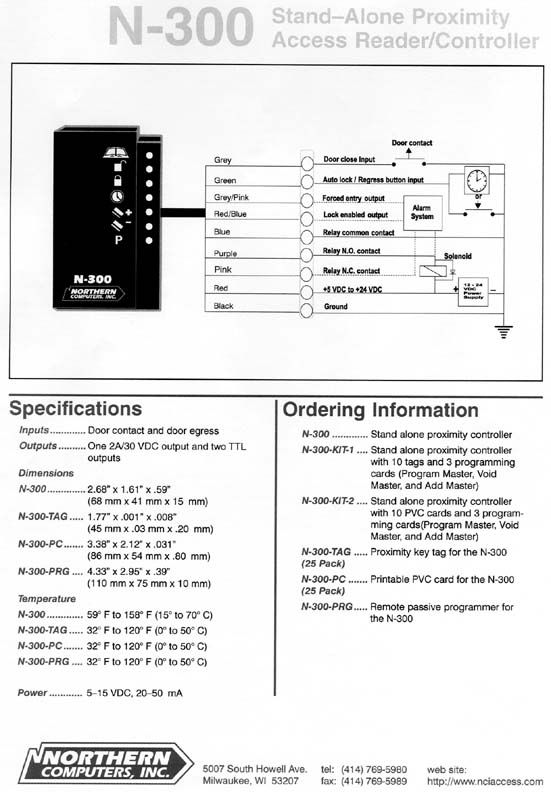

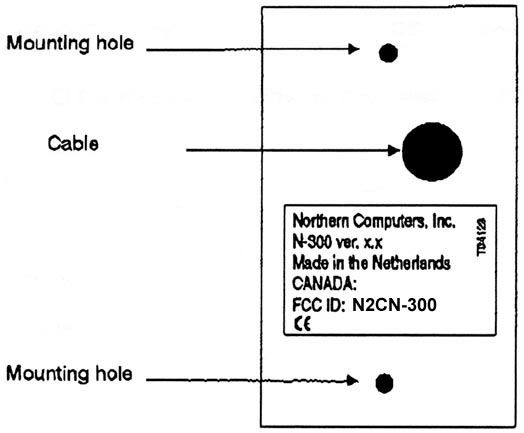

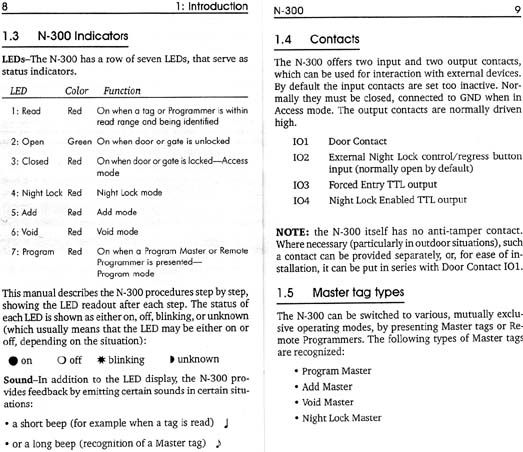

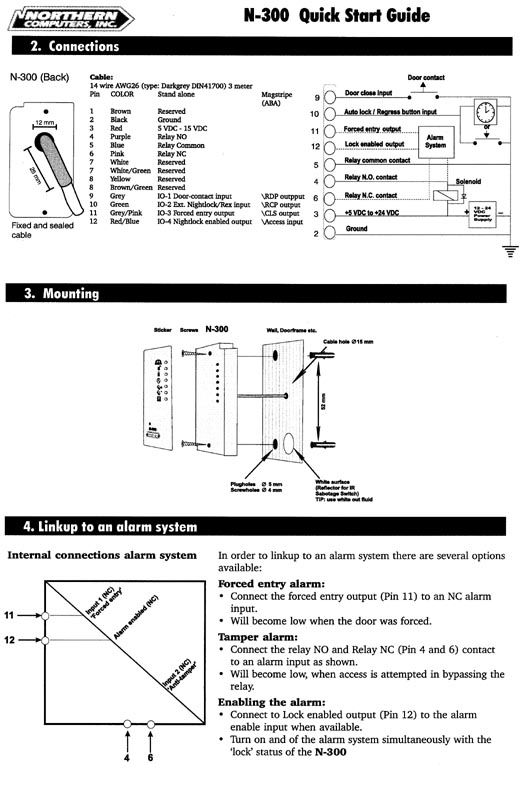

N2CN-300Security System

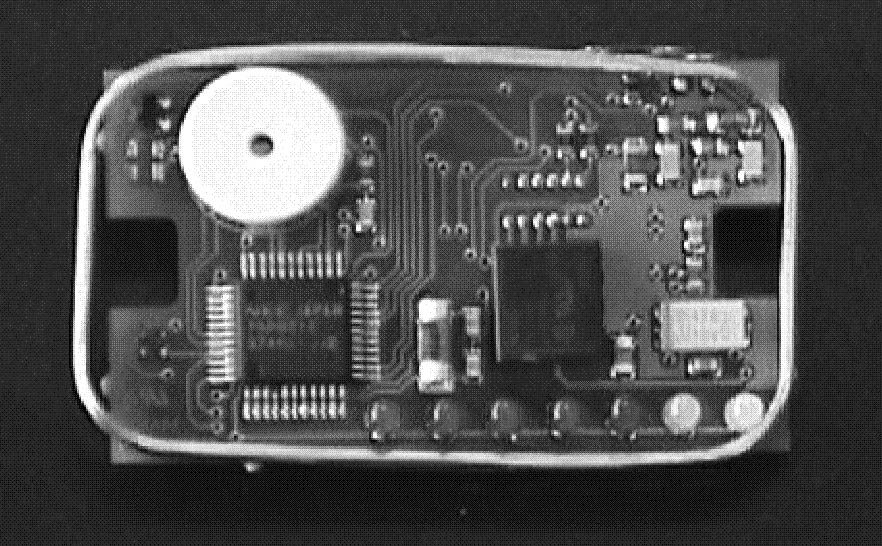

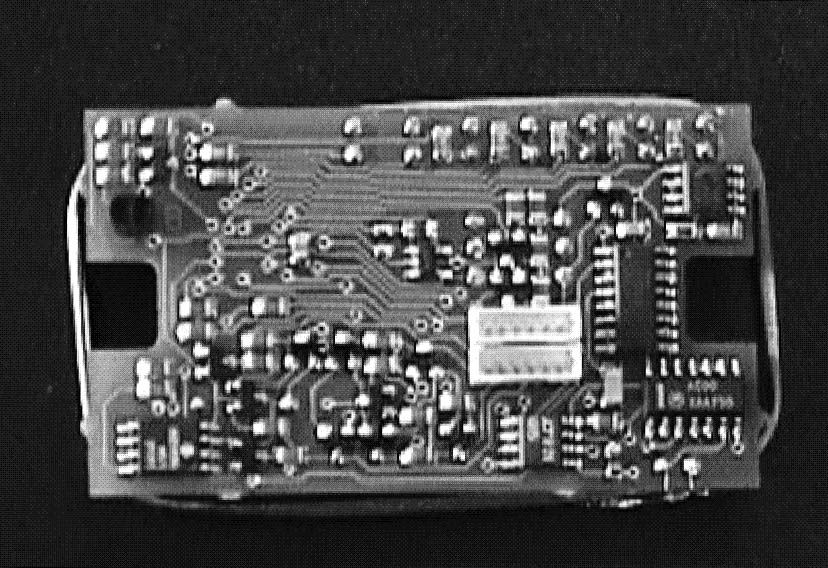

Figure 1 - PCB Side 1 Figure 2 - PCB Side 2

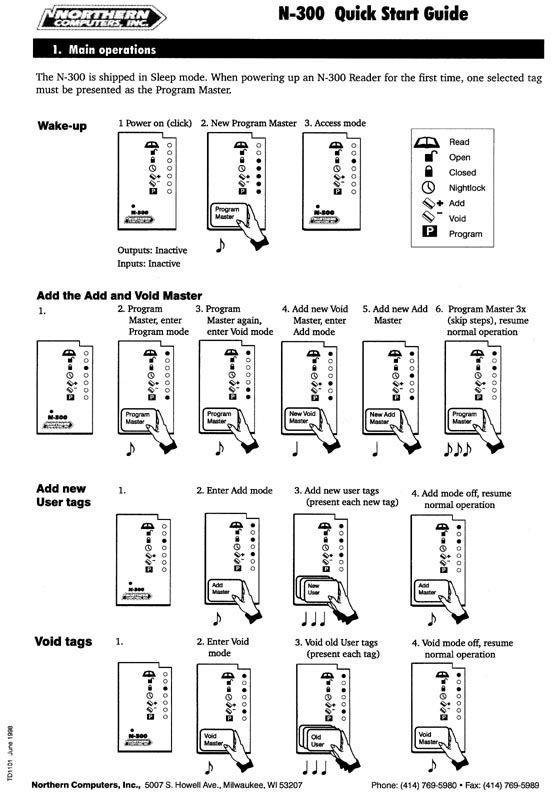

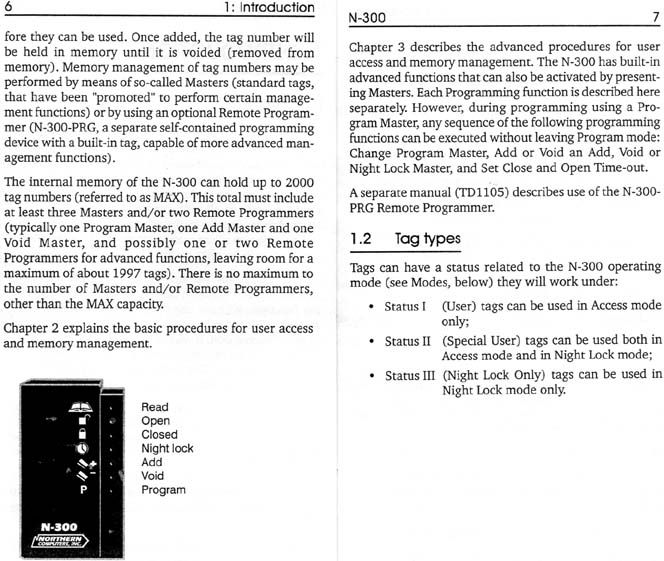

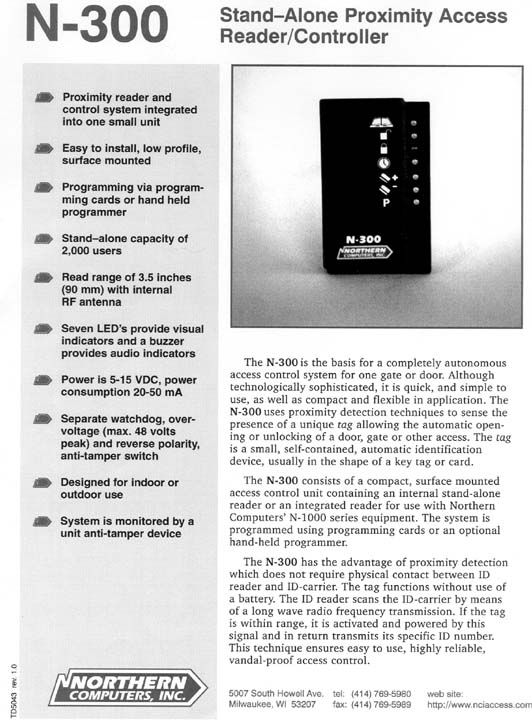

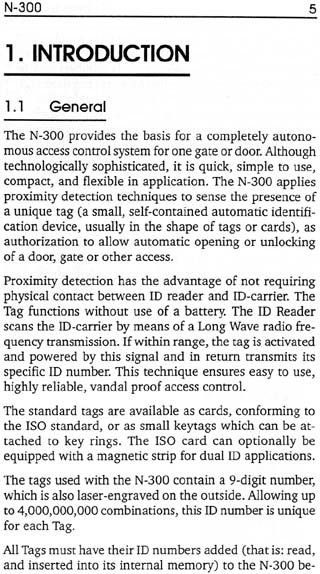

CIRCUIT DESCRIPTION FOR N-300 CARD READER The Transmit circuit in the N-300 Card Reader is a basic Colpitts type oscillator operating at 125 kHz. This transmission is a continuous square wave emission. The ID cards transponders programmed with an ID code. When the card is presented to the reader, the oscillator in the card is powered and excited with the 125 kHz square wave. The card subsequently emits its ID code for the reader to verify. The card is a purely passive circuit on its own.

KTL Ottawa Safety - EMI - Telecom - ISO Guide 25 ENGINEERING TEST REPORT ON: CROSSPOINT MICROPROXS XM-2; NORTHERN COMPUTERS PART NO. N-300 FCC ID: N2CN-300 IN ACCORDANCE WITH: FCC PART 15, SUBPART C PARAGRAPH 15.209 FOR LOW FREQUENCY TRANSMITTERS PROJECT NO.: 8R00584.1 TESTED FOR: NORTHERN COMPUTERS INC. 5007 S. HOWELL AVENUE MILWAUKEE, WI 53207 TESTED BY: KTL OTTAWA INC. 3325 RIVER ROAD, R.R. 5 OTTAWA, ONTARIO K1V 1H2 JUNE 1998 This document contains 7 pages including this one. KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 15, SUBPART C PROJECT NO.: 8R00584.1 EQUIPMENT: CrossPoint Microproxs XM-2, Northern Computers Part No. N-300 FCC ID: N2CN-300 Page 2 of 7 EQUIPMENT:CrossPoint Microproxs XM-2; Northern Computers; N-300 MODEL NO.: Microproxs XM-2: N-300 SERIAL NO.: None GENERAL: These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low frequency, low power devices. ABSTRACT: NAME OF TESTPARA. NO.RESULTS Radiated Emissions15.209Complies THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. - None TESTED BY:_________________________________ DATE:______________ Wayne Clarke, Technologist APPROVED BY:______________________________ DATE:______________ W. Waterhouse, RF Engineering Lab Manager KTL OttawaFCC PART 15, SUBPART C PROJECT NO.: 8R00584.1 EQUIPMENT: CrossPoint Microproxs XM-2, Northern Computers Part No. N-300 FCC ID: N2CN-300 Page 3 of 7 GENERAL EQUIPMENT INFORMATION TRANSMITTER Frequency Range: 117.1 kHz Frequency of Sample Tested: 117.1 kHz Tunable Bands: One Number of Channels: One Channel Spacing: Not Applicable Emission Designator: 3K2N0N Crystal Frequencies: Not Applicable User Frequency Adjustment: None KTL OttawaFCC PART 15, SUBPART C PROJECT NO.: 8R00584.1 EQUIPMENT: CrossPoint Microproxs XM-2, Northern Computers Part No. N-300 FCC ID: N2CN-300 Page 4 of 7 NAME OF TEST: Radiated EmissionsPARA. NO.: 15.209 TESTED BY: Wayne ClarkeDATE: June 18, 1998 TEST CONDITIONS:Outdoor Range Standard Test Voltage MINIMUM STANDARD:The field strength of emissions from the device shall not exceed the following limits: Frequency (MHz) Field Strength (μ μμ μV/m) Field Strength (dBμ μμ μV/m @ 3m) 0.009 - 0.4902400/F(kHz) @ 300m-------------------------------------- 0.490 - 1.70524000/F(kHz) @ 30m-------------------------------------- 1.705 - 3030 @ 30m-------------------------------------- 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 TEST RESULTS:Complies. The worst-case emission level is 50.7 dBμV/m @ 10m at 0.1171 MHz. This is 34.9 dB below the specification limit. MEASUREMENT DATA:See attached table. KTL Ottawa FCC PART 15, SUBPART C PROJECT NO.: 8R00584.1 EQUIPMENT: CrossPoint Microproxs XM-2, Northern Computers Part No. N-300 FCC ID: N2CN-300 Page 5 of 7 STANDARD: FCC Part 15, Subpart C E.U.T. S/N.: None DETECTOR: Average TESTED BY: Wayne Clarke TEST DISTANCE(metres): 10 ANTENNA: Active Loop DATE: June 18, 1998 TEST RECEIVER: ESH3 ANTENNA MODEL: HFH2-Z2 E.U.T. MODEL NO.: Microproxs XM-2 RECEIVER BW: 10 kHz ANTENNA S/N.: FA000631 FREQ. POL. ANTENNA TABLE RECEIVED ANTENNA AMP DUTY FIELD LIMIT MARGIN HEIGHT AZIMUTH SIGNAL FACTOR GAIN CYCLE STRENGTH (MHz) (V/H) (m) (Degrees) (dBuV) (dB)* (dB)** (dB) (dBuV/m) (dBuV/m) (dB) 0.1171 V 50.7 50.7 85.3 34.6 NOTES: * Includes cable loss when amplifier is not used.** Includes cable loss( ) Denotes failing emission level.• E.U.T. searched to 10 th harmonic. • KTL OttawaFCC PART 15, SUBPART C PROJECT NO.: 8R00584.1 EQUIPMENT: CrossPoint Microproxs XM-2, Northern Computers Part No. N-300 FCC ID: N2CN-300 Page 6 of 7 KTL OttawaFCC PART 15, SUBPART C PROJECT NO.: 8R00584.1 EQUIPMENT: CrossPoint Microproxs XM-2, Northern Computers Part No. N-300 FCC ID: N2CN-300 Page 7 of 7 TEST EQUIPMENT LIST Equipment List - Radiated Emissions CAL Cycle EquipmentManufacturerModel #Serial/Asset #Last Cal.Next Cal. 1YearReceiverRohde & SchwarzESH3892473/002July 25/97July 25/98 1YearSpectrum AnalyzerHewlett-Packard8566B2311A02238Sept. 30/97Sept. 30/98 1YearSpectrum Analyzer DisplayHewlett-Packard8566B2314A04759Sept. 30/97Sept. 30/98 1YearQuasi-Peak AdapterHewlett Packard85650A2043A00302Sept. 30/97Sept.30/98 PlotterHewlett Packard7470A2210A08836N/AN/A 2 YearActive Loop AntennaRohde & SchwarzHFH2-Z2FA000631Feb. 7/96Feb. 6/00 Note:N/A = Not Applicable NCR = No Cal Required

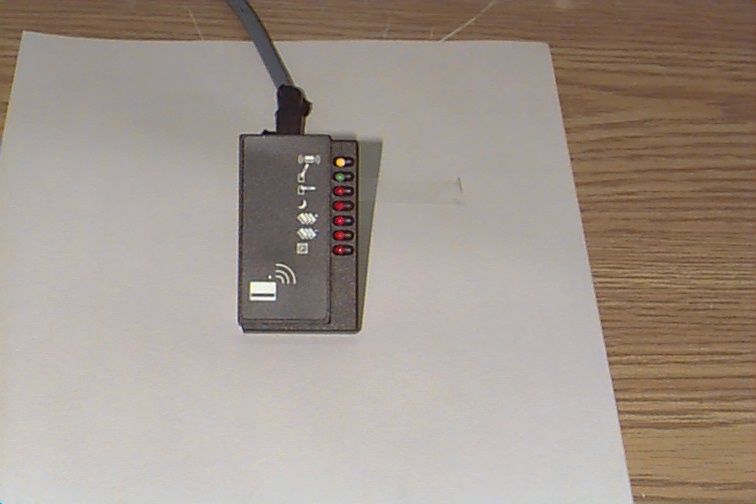

RADIATED PHOTOGRAPHS (Worst Case) FRONT VIEW BACK VIEW
