N2EPR45Two Way Radio Transceiver

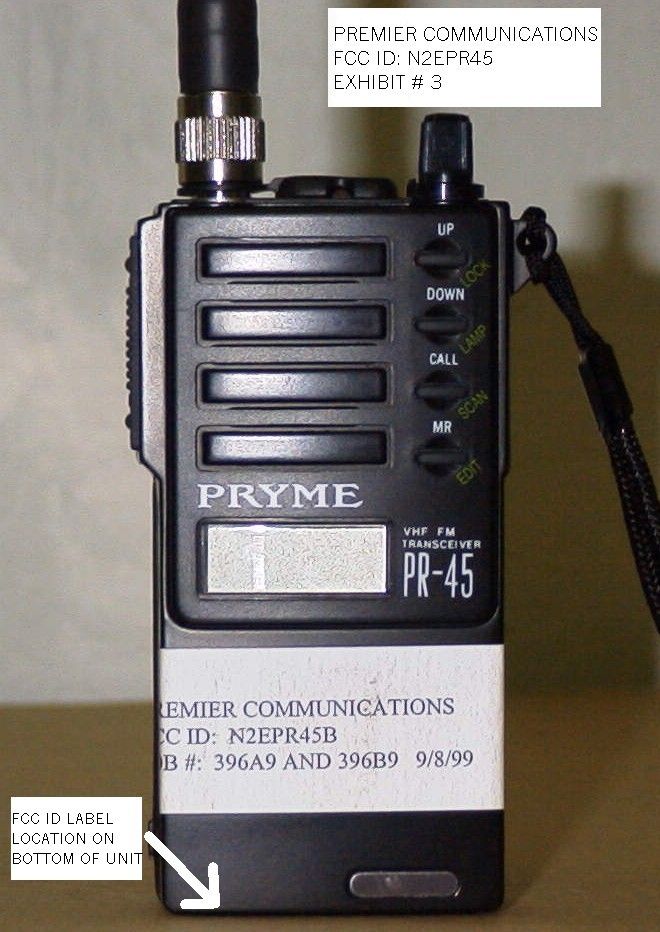

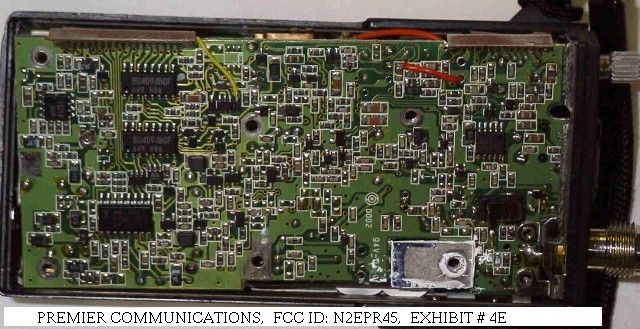

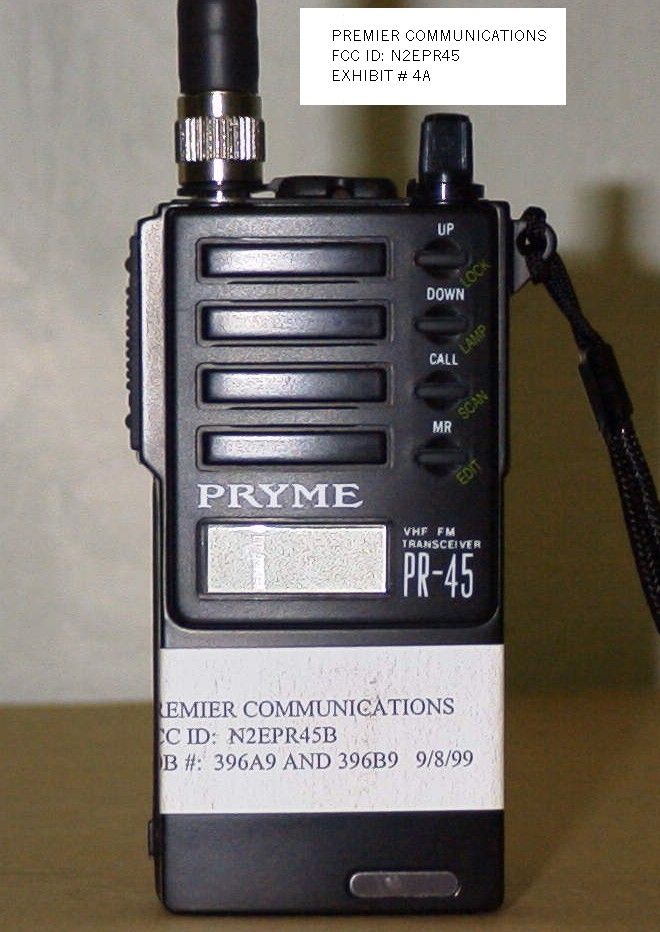

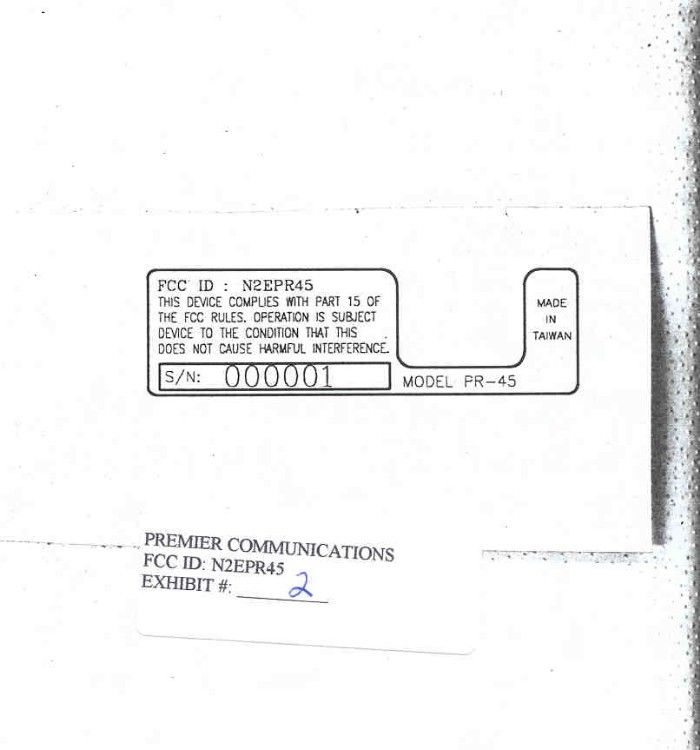

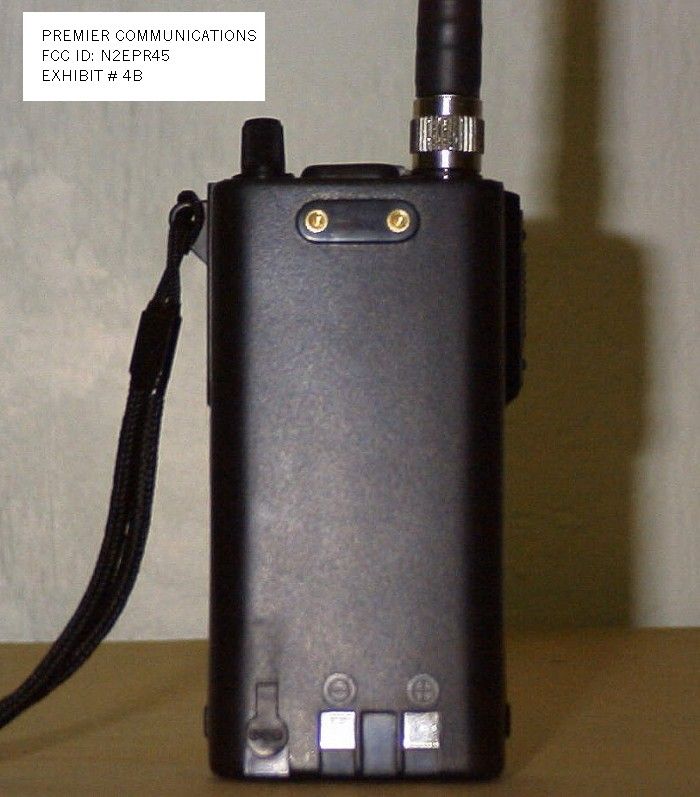

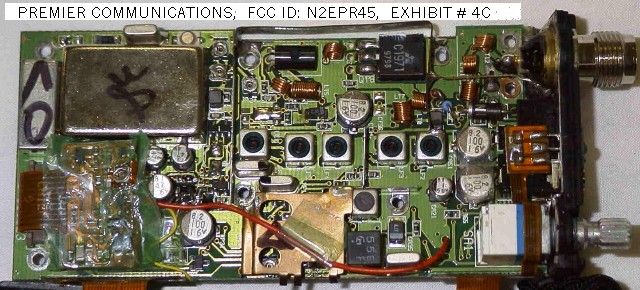

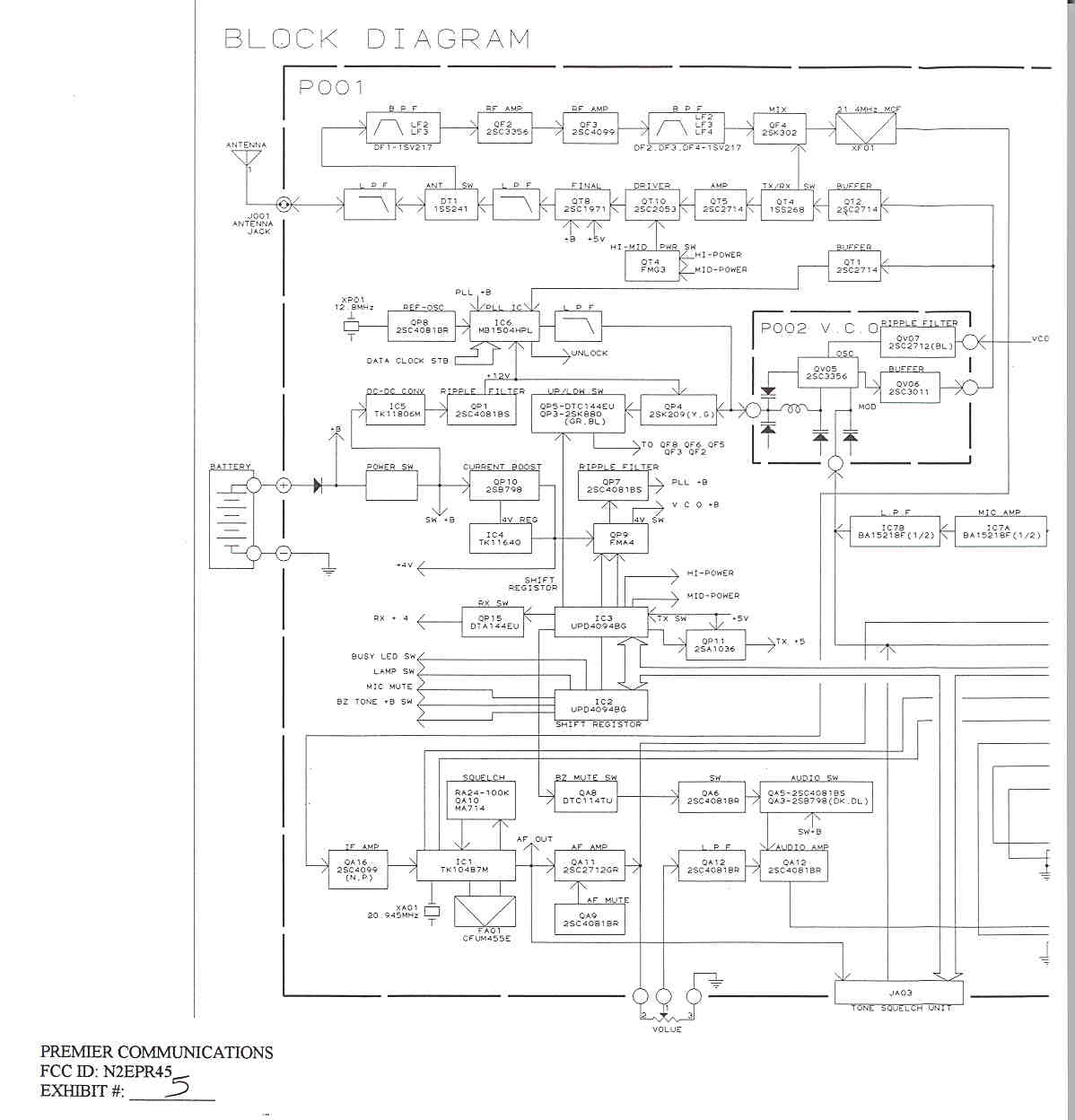

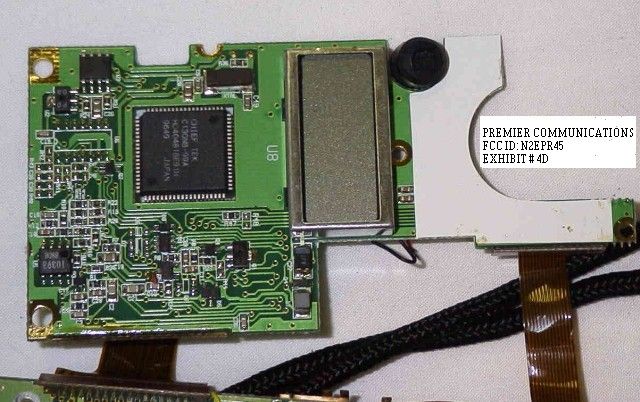

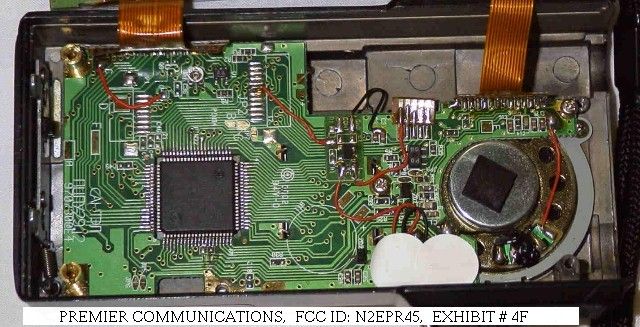

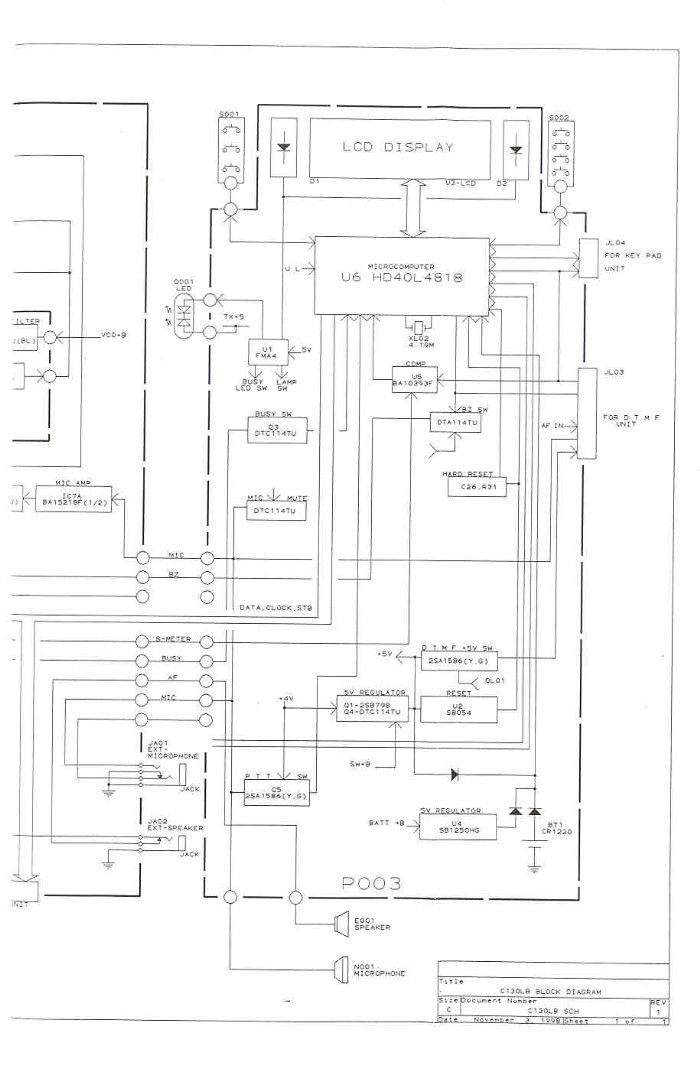

TABLE OF CONTENTS LIST APPLICANT: PREMIER COMMUNICATIONS FCC ID: N2EPR45 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED PAGE 3......RF POWER OUTPUT AND MODULATION CHARACTERISTICS PAGE 4......OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 6......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 7......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 8......FREQUENCY STABILITY PAGE 9......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBIT CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE EXHIBIT 3.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 4B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 4C-4D.....INTERNAL COMPONENT SIDE PHOTOGRAPHS EXHIBIT 4E-4F.....INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 5.........BLOCK DIAGRAM EXHIBIT 6.........SCHEMATIC EXHIBIT 7A-7B.....TUNING PROCEDURE EXHIBIT 8A-8D.....CIRCUIT DESCRIPTIONS EXHIBIT 9.........USER'S MANUAL EXHIBIT 10........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 11A.......MODULATION LIMITING PLOT - 300 Hz EXHIBIT 11B.......MODULATION LIMITING PLOT - 1000 Hz EXHIBIT 11C.......MODULATION LIMITING PLOT - 3000 Hz EXHIBIT 12........AUDIO LOW PASS FILTER GRAPH EXHIBIT 13........OCCUPIED BANDWIDTH CW PLOT EXHIBIT 14........OCCUPIED BANDWIDTH PLOT APPLICANT: PREMIER COMMUNICATIONS FCC ID: N2EPR45 REPORT #: T:\CUS\P\PREMIER\PRE396Z9\PRE396A9.RPT PAGE: TABLE OF CONTENTS GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.983 (a,b,c) PREMIER COMMUNICATIONS will sell the MODEL NO. N2EPR45 VHF transmitter in quantity, for use under FCC RULES PART 22 & 90. 2.983 (d) TECHNICAL DESCRIPTION (1) Type of Emission: 10K0F3E For 25KHz 10K0F3E For 12.5KHz For 25KHz Bn=2M+2DK M = 3000 D = 1.8KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(1.5K)(1) = 6.0K + 3.0K = 9.0K ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. For 12.5KHz Bn=2M+2DK M = 3000 D = 1.8KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(1.5K)(1) = 6.0K + 3.0K = 9.0K ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) (2) Frequency Range: 38-50 MHz (3) Power Range and Controls: There are NO user Power controls. (4) Maximum Output Power Rating: 0.5/2.5/5.0 Watts , into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY Vce = 12.0 Volts 5.0W Ice = 0.970mA 2.5W Ice = 0.670mA 0.5W Ice = 0.40mA Pin =11.65 Watts Pin = 8.1 W for 2.5W O/P Pin = 4.8W for 0.5W O/P APPLICANT: PREMIER COMMUNICATIONS FCC ID: N2EPR45 REPORT #: T:\CUS\P\PREMIER\PRE396Z9\PRE396A9.RPT PAGE #: 1 (6) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT . 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6. The block diagram is included as EXHIBIT 5. (8) Instruction book. The instruction manual is included as EXHIBIT #9. (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #7A-7B. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in the instruction manual. 2.983 (11) Description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting power. In addition to the interstage filtering the multi- section low pass filter made up of C1004,L1001, C1005, L1002, C1010, C1014 & C1015. Limiting Modulation: The transmitter audio limiting circuitry is contained in the loop filter IC01. Limiting Power: There is no provision for limiting power. (12) Digital modulation. This unit does NOT use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submitted below. APPLICANT: PREMIER COMMUNICATIONS FCC ID: N2EPR45 REPORT #: T:\CUS\P\PREMIER\PRE396Z9\PRE396A9.RPT PAGE #: 2 2.985(a) RF power output. RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage of 12.0 VDC, and the transmitter properly adjusted the RF output measures: POWER HIGH INPUT POWER: (12.0V)(0.97) = 11.6 Watts OUTPUT POWER: 5.8 Watts Efficiency: 45% POWER Medium Power INPUT POWER: (12.0V)(0.67) = 8.04 Watts OUTPUT POWER: 3.0 Watts Efficiency: 37.3% POWER LOW Power INPUT POWER: (12.0V)(0.40) = 4.80 Watts OUTPUT POWER: 0.5 Watts Efficiency: 10.4% METHOD OF MEASURING RF POWER OUTPUT /-----------\ /---------\ |Transmitter|---------------------|50 ohm | |under test | |Resistive| \-----------/ |Wattmeter| | \---------/ /-----------\ |Power | |Supply | \-----------/ 2.987(a) Voice Modulation characteristics: (a) AUDIO FREQUENCY RESPONSE See the EXHIBIT #10. 2.987(a) AUDIO LOW PASS FILTER The audio low pass filter is included and the plot is shown as EXHIBIT #12. Rules 90.210(b,d, & e) for mobile stations with a low pass filter. 2.987(b) Audio input versus modulation A plot of the audio input versus deviation is shown in in EXHIBIT #11A-11C, APPLICANT: PREMIER COMMUNICATIONS FCC ID: N2EPR45 REPORT #: T:\CUS\P\PREMIER\PRE396Z9\PRE396A9.RPT PAGE #: 3 2.989(c) Occupied bandwidth: 90.210(b,) Data in the plots shows that on any frequency removed from the assigned frequency by more than 50%, but not more than 100%: At least 25dB. On any frequency removed from the assigned frequency by more than 100%, but not more than 250%: At least 35dB. On any frequency removed from the assigned frequency by more than 250%, of the authorized bandwidth: At least 43+log(P)dB. 90.210( d) 12.5KHz channel bandwidth equipment. For transmit- ters de signed to operate with a 12.5KHz channel bandwidth, any emission must be attenuated below the power (P) of the highest emission contained within the authorized bandwidth as follows; (1) On any frequency from the center of the authorized bandwidth f0 to 5.625kHz removed from fP0: Zero dB. (2) On any frequency removed from the center of the authorized band- width by a displacement frequency 7.27(fd-2.88kHz)dB. (3) On any freque…

Text truncated - open the document above for the full version.

Modulation Limiting Premier Communications N2EPR45B 0 1000 2000 3000 4000 5000 6000 7000 00.020.040.060.080.1 rms Volts Deviation 300 Hz PREMIER COMMUNICATIONS FCC ID: N2EPR45 EXHIBIT # 11A

Modulation Limiting Premier Communications N2EPR45B 0 500 1000 1500 2000 2500 3000 3500 00.010.020.030.040.050.06 rms Volts Deviation 1000 Hz PREMIER COMMUNICATIONS FCC ID: N2EPR45 EXHIBIT # 11B
