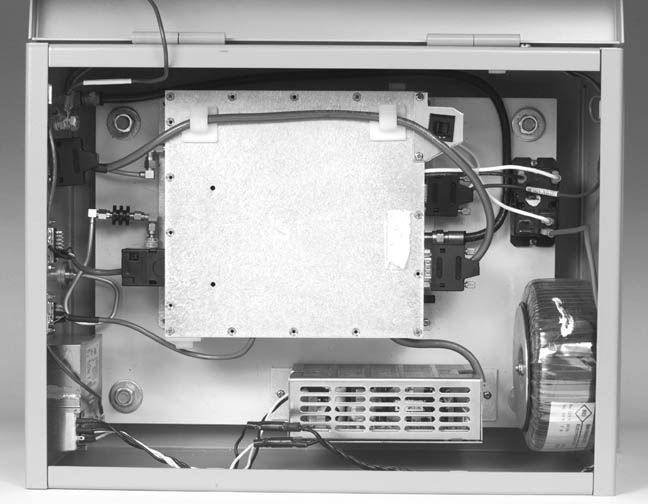

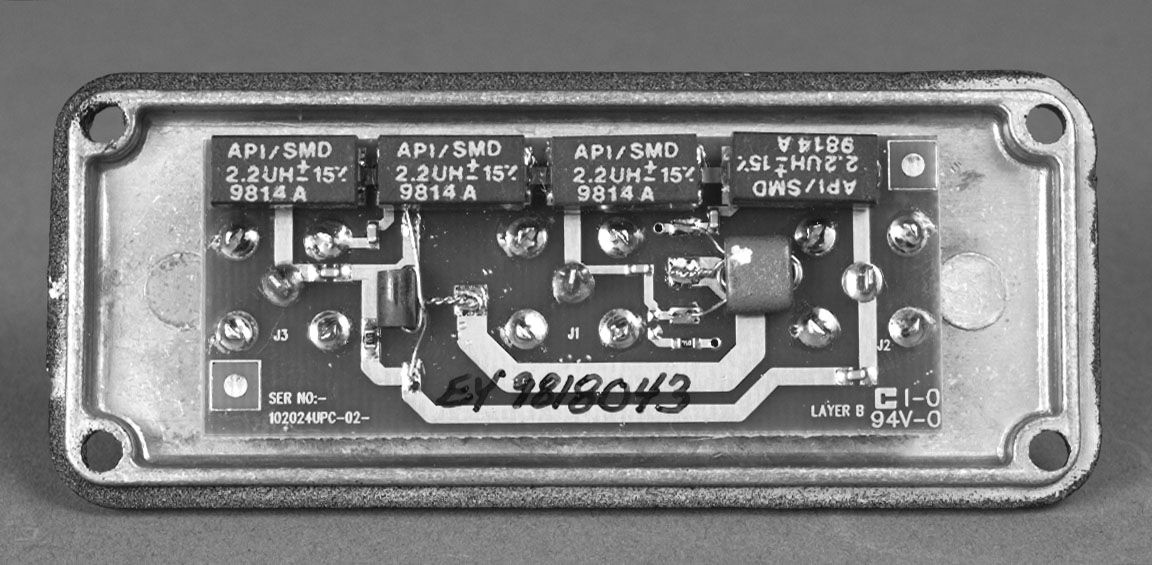

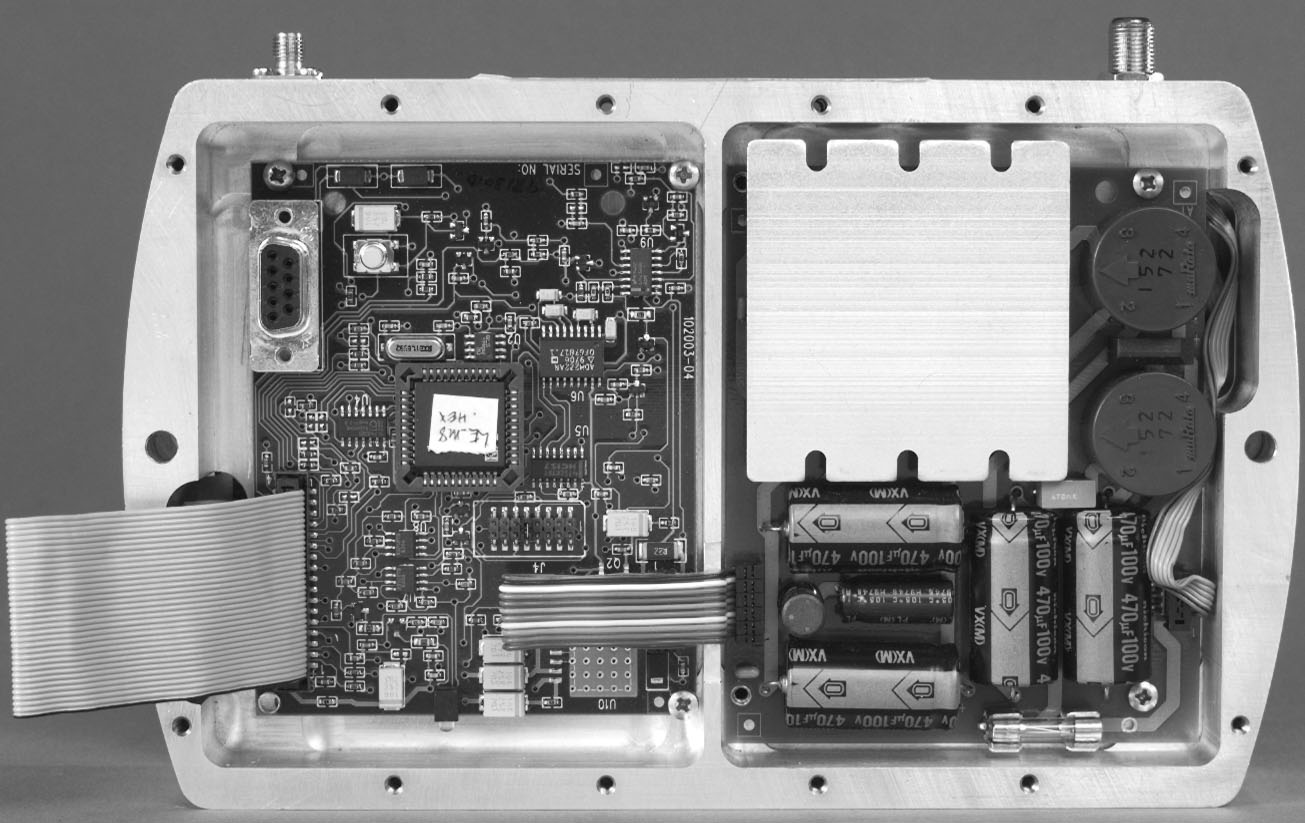

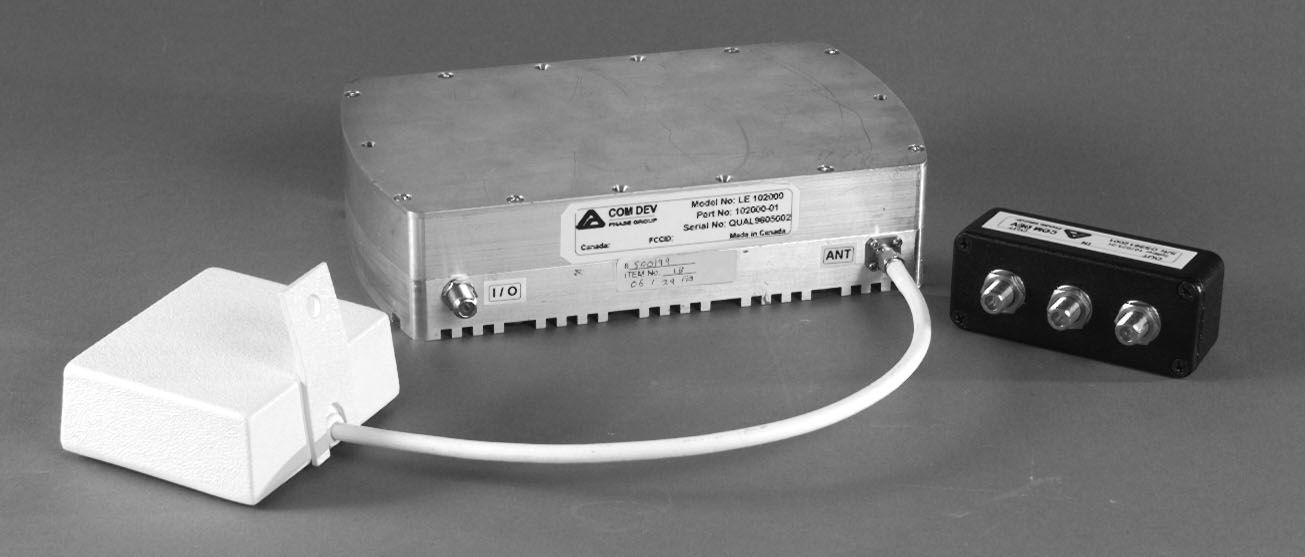

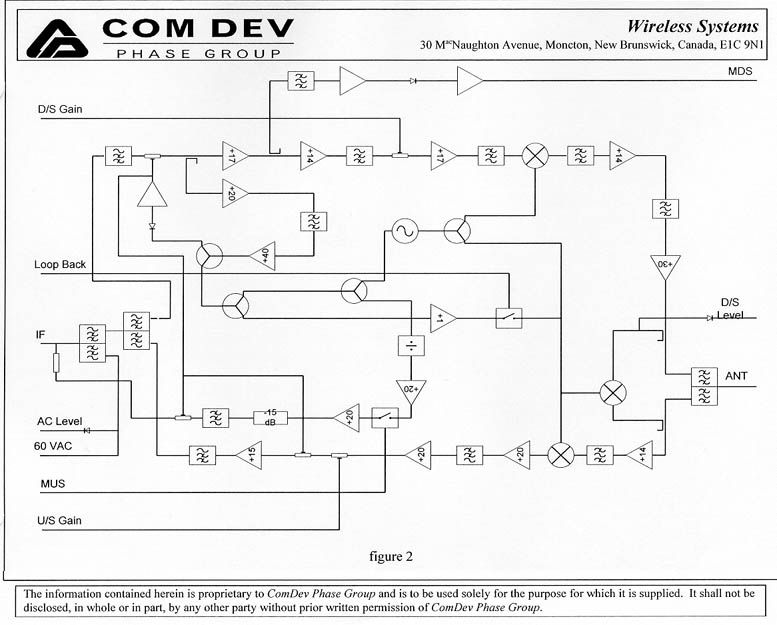

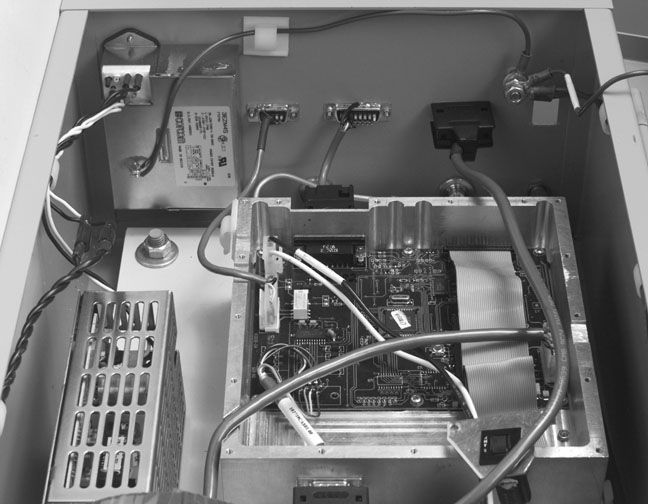

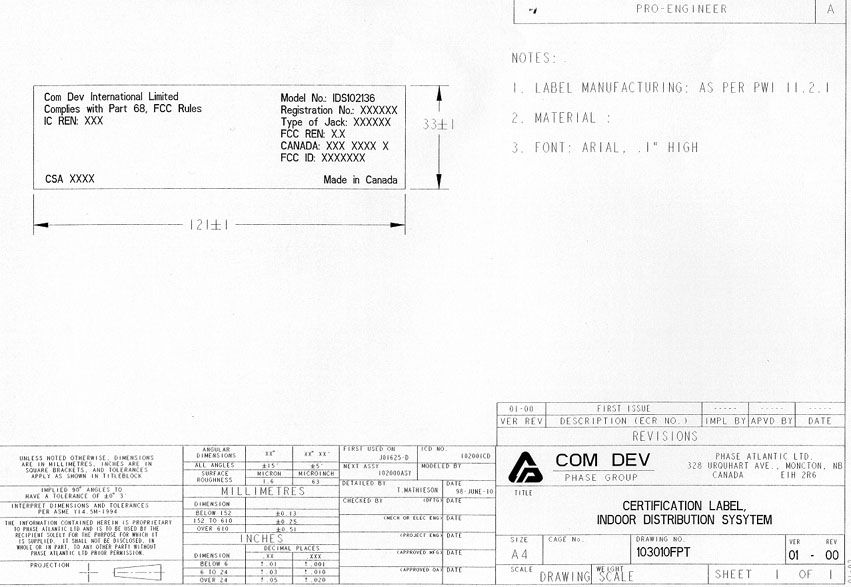

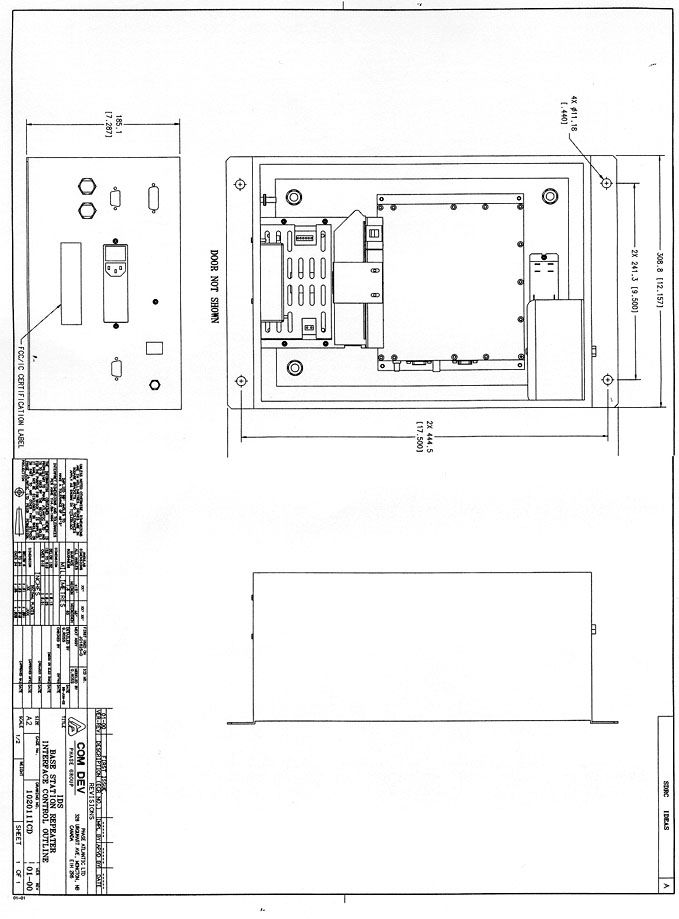

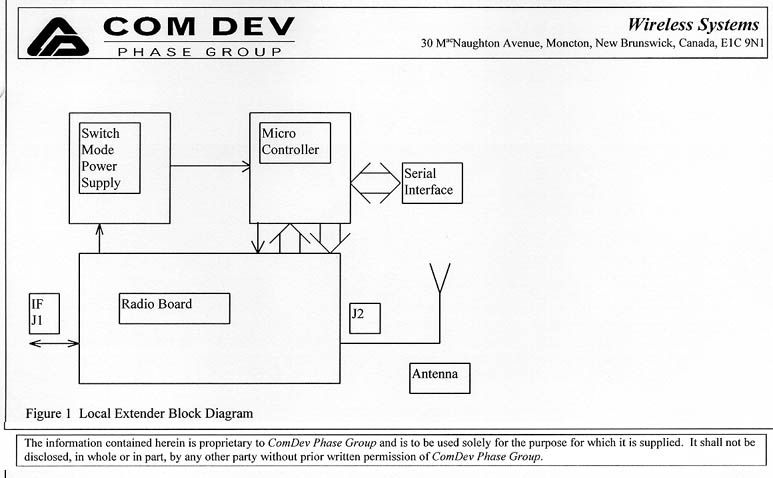

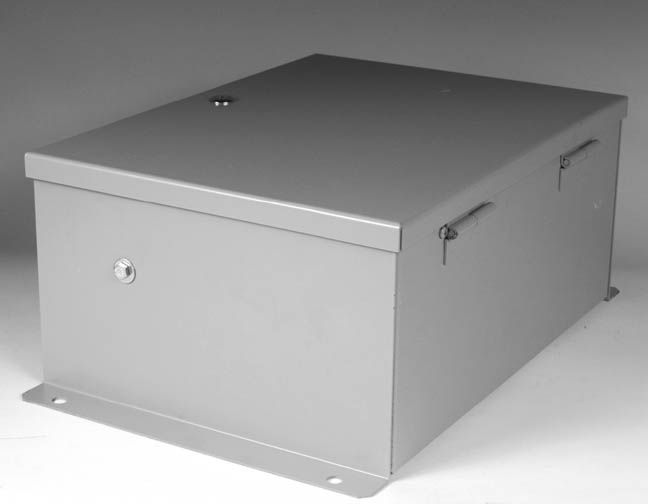

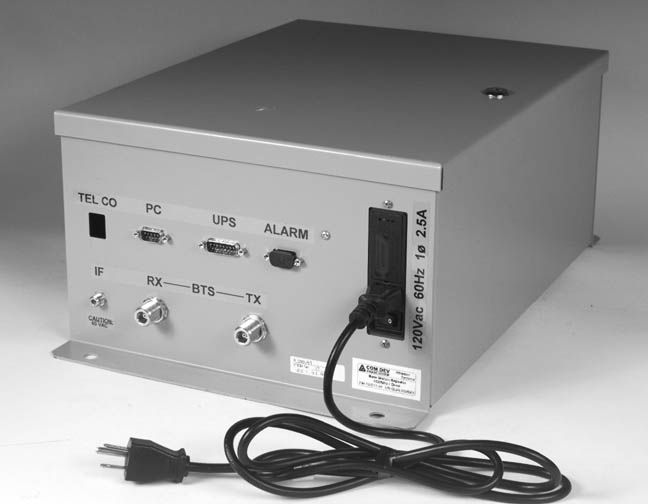

KTL Ottawa Safety - EMI - Telecom - ISO Guide 25 Master: ktlPT24RPTR Date: May 13, 1998 ENGINEERING TEST REPORT ON: THE COM DEV PHSASE GROUP WIRELESS SYSTEMS "INDOOR DISTRIBUTION SYSTEM DIRECT MODEM" FCC ID: N2F102136 IN ACCORDANCE WITH: FCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 TESTED FOR: COM DEV PHASE GROUP WIRELESS SYSTEMS 30 MACNAUGHTON AVENUE MONCTON, N.B. E1H 2R6 TESTED BY: KTL OTTAWA INC. 3325 RIVER ROAD, R.R. 5 OTTAWA, ONTARIO K1V 1H2 NVLAP LAB CODE: 100351-0 MAY 1998 This document contains 65 pages including this one. KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 2 of 55 Table of Contents Section 1. Summary of Test Results General Summary of Test Data Section 2. General Equipment Specification Specifications Description of Modifications for Class II Permissive Change Modifications Made During Testing Theory of Operation System Diagram Section 3. RF Power Output Test Results Measurement Data Power Over Bandwidth Graphs Section 4. Occupied Bandwidth Occupied Bandwidth (CDMA) Test Results CDMA Input and Output Graphs Occupied Bandwidth (GSM) Test Results GSM Input and Output Graphs Occupied Bandwidth (NADC) Test Results NADC Input and Output Graphs Section 5. Spurious Emissions at Antenna Terminals Test Results Test Data Graphs Section 6. Field Strength of Spurious Test Results Test Data Test Data - Radiated Emissions - Uplink Test Data - Radiated Emissions - Downlink Photographs of Test Setup Pre-Scan Data KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 3 of 55 Table of Contents, continued Section 7. Frequency Stability Test Results Measurement Data Graphs Section 8. Test Equipment List Annex A - Test Methodologies RF Power Output Occupied Bandwidth (CDMA) Occupied Bandwidth (GSM) Occupied Bandwidth (NADC) Spurious Emission at Antenna Terminals Field Strength of Spurious Frequency Stability Annex B - Test Diagrams R.F. Power Output Occupied Bandwidth Spurious Emissions at Antenna Terminals Field Strength of Spurious Frequency Stability KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 4 of 55 Section 1.Summary of Test Results Manufacturer:COM DEV Phase Group Wireless Systems Model No.:BSRModel No.:102011Serial No.:QUAL 9805001 LE102000QUAL 9805002 SPL102023QUAL 9805002 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: ___________________________________ DATE: __________________ Kevin Carr, Technologist TECHNICAL REVIEW: __________________________ DATE: __________________ Tom Tidwell, Technologist APPROVED BY: ________________________________ DATE: __________________ W. Waterhouse, RF Engineering Lab Manager KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 5 of 55 Summary Of Test Data NAME OF TESTPARA. NO.SPEC.MEAS.RESULT RF Power Output24.232100W0.170 mWComplies Occupied Bandwidth (CDMA)24.238Input/OutputPlotsComplies Occupied Bandwidth (GSM)24.238Input/OutputPlotsComplies Occupied Bandwidth (NADC)24.238Input/OutputPlotsComplies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBmPlotsComplies Field Strength of Spurious Emissions24.238(a)-13 dBm E.I.R.P. ChartComplies Frequency Stability24.235N/AN/AN/A Footnotes For N/A’s:The E.U.T. contains common ref. for up/down conversions. Test Conditions:Temperature: 23 °C Humidity:30 % KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 6 of 55 Section 2.General Equipment Specification Supply Voltage Input: 120 VAC, 60 Hz Frequency Range:Downlink: 1930.0 to 1944.95 MHz Frequency Range:Uplink: Not Applicable 20 dB Bandwidth: Not Applicable Type of Modulation and CDMAGSMNADC Designator: (F9W)(GXW)(DXW) AGC Threshold: Not Applicable Output Impedance: 50 ohm Gain: -12 (Nominal) Max Input Power: 30 dBm RF Output (Rated):Single: 23.7 dBm Composite: 20.7 dBm / 2 Channel Frequency Translation: F1-F1F1-F2N/A Band Selection: SoftwareDuplexer Change Fullband Coverage KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 7 of 55 Description of Modifications For Class II Permissive Change KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 8 of 55 Modifications Made During Testing KTL OttawaFCC PART 24, SUBPART E BROADBAND PCS REPEATERS PROJECT NO.: 8R00086 EQUIPMENT: Indoor Distribution System Direct Modem FCC ID: N2F102136 Page 9 of 55 Theory of Operation The BSR is an indoor bi-directional repeater, designed to provide solutions to building penetration losses. The uplink is hardwired t…

Text truncated - open the document above for the full version.

Frequency Stability with Temperature Variations For Project: 8R00086 Saved under file: 8r86 Frequency being tested: 1940.000000 MHz Frequency (MHz) Time (min.)-30 øC-20 øC-10 øC0 øC10 øC 0.0 1940.000000 1940.000000 1940.000000 1940.000000 1940.000001 0.5 1940.000001 1939.999999 1940.000001 1940.000000 1940.000000 1.0 1940.000000 1940.000000 1940.000000 1940.000000 1940.000000 1.5 1940.000000 1940.000000 1940.000000 1940.000001 1939.999999 2.0 1939.999999 1940.000000 1939.999999 1940.000000 1940.000000 2.5 1940.000000 1940.000001 1940.000000 1939.999999 1940.000000 3.0 1940.000000 1940.000000 1940.000000 1940.000000 1940.000001 3.5 1940.000001 1940.000001 1940.000000 1940.000000 1940.000000 4.0 1940.000000 1939.999999 1940.000001 1940.000001 1940.000000 4.5 1939.999999 1940.000000 1940.000000 1940.000000 1940.000000 5.0 1940.000000 1940.000000 1939.999999 1940.000000 1940.000001 Frequency (MHz) Time (min.)20 øC30 øC40 øC50 øC 0.0 1940.000000 1940.000000 1940.000000 1940.000000 0.5 1940.000000 1940.000001 1940.000000 1939.999999 1.0 1940.000001 1940.000000 1940.000001 1940.000000 1.5 1940.000000 1940.000001 1940.000000 1940.000000 2.0 1940.000000 1940.000000 1940.000000 1940.000000 2.5 1939.999999 1940.000000 1939.999999 1939.999999 3.0 1940.000000 1939.999999 1940.000000 1940.000000 3.5 1940.000000 1940.000000 1940.000000 1940.000000 4.0 1940.000001 1940.000000 1939.999999 1940.000001 4.5 1940.000000 1940.000000 1940.000000 1940.000000 5.0 1940.000000 1939.999999 1940.000000 1940.000000 Maximum Deviation TemperatureMHzppm -30øC 0.000001 0.00 -20øC 0.000001 0.00 -10øC 0.000001 0.00 0øC 0.000001 0.00 10øC 0.000001 0.00 20øC 0.000001 0.00 30øC 0.000001 0.00 40øC 0.000001 0.00 50øC 0.000001 0.00 Frequency Stability with Voltage Variations For Project: 8R00924 Saved under file: 8r924v Frequency being tested: 1940.000000 MHz Frequency (MHz) Time (min.)85%100%115% 0.0 1940.000000 1940.000000 1940.000000 0.5 1939.999999 1940.000000 1940.000000 1.0 1940.000000 1940.000000 1940.000000 1.5 1940.000000 1940.000000 1940.000000 2.0 1940.000000 1940.000000 1940.000000 2.5 1940.000000 1940.000000 1939.999999 3.0 1940.000000 1940.000000 1940.000000 3.5 1940.000000 1940.000000 1940.000000 4.0 1940.000000 1940.000000 1940.000000 4.5 1940.000000 1940.000000 1939.999999 5.0 1940.000000 1940.000000 1940.000000 Maximum Deviation VoltageMHzppm 85% 0.000001 0.00 100% 0.000000 0.00 115% 0.000001 0.00
