N2RP-50RXCar Alarm

USER’S MANUAL KEYLESS ENTRY SYSTEM Defiance MODEL : P-50 This device complies whit Part 15 of the FCC rules. Any changes or Modifications made to the system whitout the express approval of Stevens Car Care Products, inc. could void user’s authority to operate this equipment. FCC ID: N2RP-50RX This device complies whit FCC rules Part 15. Operation is subject To the following two conditions. (1) This device may not couse Harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. OPERATING INSTRUCTION 1. Functions of remote control transmitter button #1 : Door lock (one flash) / unlock (two flashes) button #2 : Channel 2 (by pressing for 2 seconds) button # and #2 simultaneously : Channel 3 (by pressing for 2 second) 2. Valet mode To put the system into the valet mode, press the button #1 for 3 seconds in the ignition on. To confirm valet mode the system will flash light one time. To turn valet mode off repeat the process, the system would be off in valet mode and to confirm the system will flash lights two time. All operation of the system will be OFF in the valet mode. 3. 2 Stage door unlock A. The driver's door only will unlock by pressing the button #1 in the armed mode. If you again press the button 1 within 5 seconds, the all passenger's door will unlock. B. 2 Stage door unlock ON/OFF. Factory set 2 stage door unlock will be OFF. Enter the valet mode and turn the ignition OFF. Thereafter press the button #2 for 3 seconds within 20 seconds. 2 Stage door unlock will be OFF by flashing the lights 2 times. The system will be returned original by repeating this process. 4. Automatic locking After locking the door by passive locking, the door can be unlock if you press the button #1 by mistake. In case of that, the system will be automatically locked after 30 seconds (When the system is selected in passive arming). 5. Ignition controlled door lock/unlock. Factory set will be OFF. To be "ON" this feature, press the button #1 for 3 seconds within 20 seconds in the ignition OFF after putting into the valet mode. The system will flash the light one time to confirm "ON" and two times to confirm "OFF". 6. Remote coding If the power is "ON" after completing the installation, the system will be in disarmed mode. A. Remote Coding Turn ON/OFF the ignition 6 times and then turn ON. The system will flash the lights one time. You are in remote coding mode. Press the button #1 for remote coding within 10 seconds. The system will flash the lights one time to confirm new code. B. Code erasing Turn ON/OFF the ignition 12 times. The system will flash lights 2 times to confirm code erasing. The system will be in the valet mode when the code erases.  After remote coding and code erasing, exit the valet mode. 7. When the system is in the ignition "ON" and "OFF", it will be operated only channel 3 and the system is in the ignition "OFF" it will be operated channel 1 & channel 2. 8. Interior Light Control The system may be interfaced to the vehicle's interior lights. When the system is disarmed, the vehicle's interior lights will turn on for 20 seconds. The interior lights will turn off after 20 seconds or when the ignition is turned on.

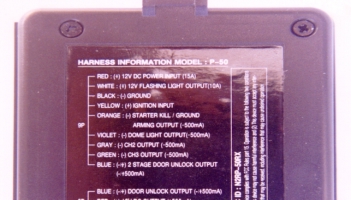

EXTERNAL TOP SIDE EXTERNAL BOTTOM SIDE FCC ID : N2RP-50RX

PROPOSED FCC ID. LABEL AND MARKING BOTTOM SIDE

PROPOSED FCC ID. LABEL AND MARKING BOTTOM SIDE

Please note the FCC ID on the right side of the receiver module.

INTERNAL TOP SIDE INTERNAL BOTTOM SIDE FCC ID : N2RP-50RX FCC ID : N2RP-50RX

Circuit Illustration Of RF Receiver Model: P-50 High frequency receiver circuit is composed of RF input, Oscillator with mixing part and OP-AMP. RE received by antenna is amplified to C2 and C1 input part. The composition of Q1 and filter circuit is composed of R1,R2, R3,R4,R5 & Q2 is amplified by C6 and receiving frequency is Confirmed by L1and C5. The adjustment of receiving frequency is controlled by L1. The received RF signal is connected to C2 and mixed after Q2 input. L2 is a high-frequency choke coil. The deteciton of modulation signal is amplified by U4A (of IC) input and C11 filtering through RP. Amplifying signal is received by U4B(of IC) input through C14 and is forming the frequency wave. Also this signal is operated by Input program of U1(of IC) of final receiving data through Number 18 pin.

KTL Korea Testing Laboratory ( 1 / 9 ) TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory . Tested and reported by Reviewed by Soun-Kweon Seol , Senior Engineer Seok-Jin Kim , EMC Team Leader KOREA ACADEMY OF INDUSTRIAL TECHNOLOGY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 99-341-041 Name and address of the applicant Young Jin Electronics Co., Ltd. Young Jin Bldg. 335-151, Sangdo-3Dong, Dongjak-Ku, Seoul, Korea 156-033 Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : August 16, 1999 Test item(s) ; Superregenerrative Receiver(Car Alarm) Model/type ref. ; P-50 Manufacturer ; Young Jin Electronics Co., Ltd. Additional information ; -Required Authorization :Certification FCC ID. : N2RP-50RX Test date : August 31, 1999 Issue date : September 1, 1999 Ref. Report No. 99 - 341 - 041 Sheet 2 of 9 Sheets TABLE OF CONTENTS . GENERAL INFORMATION ...................................................................................................................... 3 1. Grantee Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT ...................................................................................... 4 1. Labelling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) . RADIATED EMISSION MEASUREMENT (Section 15.109)........................................................... 5-8 1. Test Procedure 2. Photograph for the worst case configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data . TEST EQUIPMENTS USED FOR MEASUREMENT...................................................................... 9 Ref. Report No. 99 - 341 - 041 Sheet 3 of 9 Sheets . GENERAL INFORMATION 1. Grantee Name and : Stevens Car Care Products Inc. Mailing Address 36542 Vine St Eastlake, OH, U.S.A. 44095 2. Manufacturer's Name and : Young Jin Electronics Co.,Ltd. Mailing Address Young Jin Bldg. 335-151, Sangdo-3Dong, Dongjak-Ku, Seoul, Korea 156-033 3. Equipment Descriptions 3.1 Tuning Frequency : 310.0MHz 3.2 Detect Method : Superregenerative Detector 3.3 Used Oscillator : 4.0MHz(Resonator) 3.4 Power Supply : DC 12.0V (Car Battery) 4. Rules and Regulations : FCC Part 15, Subpart B 5. Measuring Procedure : ANSI C63.4-1992 6. Place of Measurement : Absorber-lined room(3-Meter) of KTL 7. Date of Measurement 7.1 Line Conducted : Not Applicable 7.2 Radiated Emission : August 31, 1999 Ref. Report No. 99 - 341 - 041 Sheet 4 of 9 Sheets . GENERAL REQUIREMENTS OF THE EUT 1. Labelling Requirement (Section 15.19) 1.1 Location on Enclosure : Bottom Side 1.2 How Applied : By Ink-printing on Adhesive Label 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 1 of the attached manual for details. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Ref. Report No. 99 - 341 - 041 Sheet 5 of 9 Sheets . RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna(Biconical antenna : 30 to 300MHz, Log-periodic antenna : 200 to 1000MHz or Horn Antenna : 1 to 18GHz) was placed at the distance of 1 meter from the EUT. In order to cohere the individual components of the characteristic broadband emission from the receiver(EUT), a RF generator(CW signal) and a log-periodic antenna were used. The frequency and output level of the generator were adjusted for highest observed coherent receiver emissions on the spectrum analyzer with RF Amplifier. An attempt was made to maximize the emission level with the various configurations of the test sample. The effect of changing the position of the cable was observed to find the worst case configuration while rotating the table and varying antenna height and its polarization. Radiated and spurious emissions were checked from 25 MHz to 4500 MHz according to section 15.33. 1.2 Final Radiated Emission Test at a Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL Absorber-Lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement was made in same test set up and configuration which produced maximum emission level. Receiving antenna was installed at 3-meter distance from the EUT, and was connected to an EMI receiver or spectrum analyzer with RF amplifi…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS RADIATED EMISSION
