www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 8 of 19 1.6 User Manual www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 9 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 10 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 11 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 12 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 13 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 14 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 15 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 16 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 17 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 18 of 19 www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 19 of 19

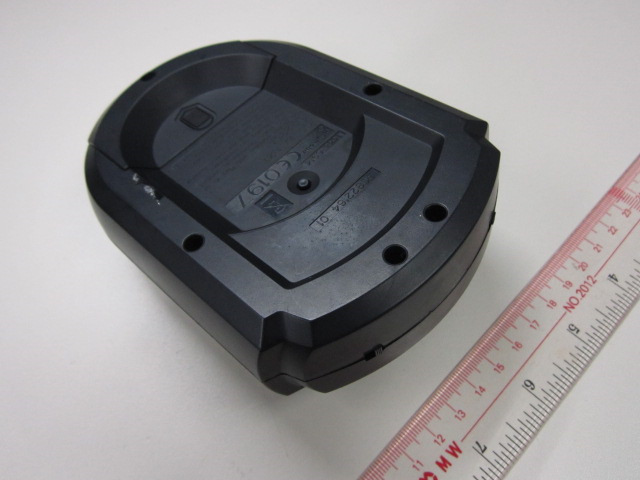

www.tuv.com Test Report No.: 14041234 001 Appendix 3 page 2 of 7 External View External View www.tuv.com Test Report No.: 14041234 001 Appendix 3 page 3 of 7 External View
www.tuv.com Test Report No.: 14041234 001 Appendix 4 page 2 of 19 1.1 FCCID Label Artwork
www.tuv.com Test Report No.: 14041234 001 Appendix 3 page 4 of 7 Internal View Internal View www.tuv.com Test Report No.: 14041234 001 Appendix 3 page 5 of 7 Internal View Internal View www.tuv.com Test Report No.: 14041234 001 Appendix 3 page 6 of 7 Internal View Internal View www.tuv.com Test Report No.: 14041234 001 Appendix 3 page 7 of 7 Internal View Internal View
www.tuv.com Test Report No.: 14041234 001 Date: 24.11.2015 page 2 of 9 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 Remarks ....................................................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 β Subpart C ................................................................................. 6 Subclause 15.203 β Antenna Requirement ............................................................................ Pass .......... 6 Subclause 15.207 β Disturbance Voltage on AC Mains .......................................................... N/A .......... 6 Subclause 15.215 (c) β 20 dB Bandwidth ............................................................................... Pass .......... 6 Subclause 15.249 (a) β Field Strength of Fundamental and Harmonics ............................. Pass .......... 7 Subclause 15.249 (d), 15.205 β Out Of Band Radiated Emission ........................................ Pass .......... 9 Appendix 1 β Test Results 3 pages Appendix 2 β Test Setup Photos 3 pages Appendix 3 β Photo documentation 7 pages Appendix 4 β Product documentation 19 pages Appendix 5 β RF Exposure Information 2 pages www.tuv.com Test Report No.: 14041234 001 Date: 24.11.2015 page 3 of 9 Product information Manufacturers declarations Transmitter Operating frequency range 2403 - 2475MHz Type of modulation GFSK Number of channels 3 Type of antenna Wire Antenna Power level fix Connection to public utility power line No Nominal voltage V nor : 9.0 V Product function and intended use The equipment under test (EUT) is a radio control toy transceiver operating at 2.4GHz. It is powered by battery only. FCCID: N2T30822164 Models Product description 6914TX Radio Controlled Toy Transmitter Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment - Nil www.tuv.com Test Report No.: 14041234 001 Date: 24.11.2015 page 4 of 9 Independent Operation Modes The basic operation modes are transmitting control signal for the RC toy car. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. Remarks Nil www.tuv.com Test Report No.: 14041234 001 Date: 24.11.2015 page 5 of 9 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type Cal.Date Cal.Due date 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) April 5 2015 April 4 2017 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) N/A N/A ESU EMI Test Receiver R&S ESU26 June 8 2015 June 7 2016 Loop Antenna Zhinan ZN30900A June 8 2015 June 7 2016 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 Mar. 08 2015 Mar. 08 2016 Double-ridged horn antenna SCHWARZBECK 9120D Mar. 08 2015 Mar. 08 2016 RF Amplifier HP 8347A Mar. 08 2015 Mar. 08 2016 RF Amplifier HP 8349B June 8 2015 June 7 2016 EMI Test Software AUDIX E3 June 8 2015 June 7 2016 Coaxial cable GTS N/A N/A N/A Coaxial Cable GTS N/A June 8 2015 June 7 2016 Thermo meter N/A N/A June 8 2015 June 7 2016 Spectrum Analyzer Rohde & Schwarz FSP30 Jan 12 2015 Jan. 12 2017 www.tuv.com Test Report No.: 14041234 001 Date: 24.11.2015 page 6 of 9 Results FCC Part 15 β Subpart C Subclause 15.203 β Antenna Requirement Pass FCC Requirement: No antenna other than that furnished by the responsible party shall be used with the device Results: Antenna type: Fixed Integral wire antenna Verdict: Pass Subclause 15.207 β Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.215 (c) β 20 dB Bandwidth Pass Test Specification : ANSI C63.10 β 2013 Mode of operation : Tx mode Port of testing : Enclosure RBW/VBW : 100 kHz / 300 kHz Supply voltage : 9.0VDC, 6F22 size new battery Temperature : 23ΒΊC Humidity : 50% Requirement: The intentional radiators must be designed to ensure that the 20dB bandwidth of the emission, is contained within the frequency band designated in the rule section under which the equipment is operated. Results: For test protocols refer to Appendix 1, page 2-3. Frequency (MHz) 20 dB left (MHz) Limit (MHz) 20 dB right (MHz) Limit (MHz) 2403 2402.360 > 2400 2404.480 < 2483.5 2440 2439.460 > 2400 2441.460 < 2483.5 2475 2474.020 > 2400 2475.700 < 2483.5 www.tuv.com Test Report No.: 14041234 001 Date: 24.11.2015 page 7 of 9 Subclause 15.249 (a) β Field Strength of Fundamental and Harmonics Pass Test Specification : ANSI C63.10 β 2013 Mode of operation : Tx mode Port of testing : Enclosure Frequency range : 9kHz β 25β¦
Text truncated - open the document above for the full version.
www.tuv.com Test Report No.: 14041234 001 Appendix 1 page 2 of 3 20dB Bandwidth Tx frequency: 2403MHz Ref -20 dBm 2.40236 GHz Att 10 dB 2.40236 GHz A 2.40236 GHz 1 PK 2.40236 GHz MAXH 2.40236 GHz Center 2.403 GHz 2.40236 GHz Span 10 MHz 2.40236 GHz 1 MHz/ 2.40236 GHz SWT 2.5 ms 2.40236 GHz * 2.40236 GHz * 2.40236 GHz RBW 100 kHz 2.40236 GHzVBW 300 kHz 2.40236 GHz 2.40236 GHz 2.40236 GHz 2.40236 GHz 2.40236 GHz 2.40236 GHz 2.40236 GHz 2.40236 GHz 2.40236 GHz 2.40236 GHz -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 2.40236 GHz 1 Marker 1 [T1 ] -48.40 dBm 2.402360000 GHz 1 Delta 1 [T1 ] 2.15 dB 2.120000000 MHz MARKER 1 2.40236 GHz Comment: test print Date: 21.AUG.2015 16:31:58 Tx frequency: 2440MHz Ref -20 dBm 2.43946 GHz Att 10 dB 2.43946 GHz A 2.43946 GHz Center 2.44 GHz 2.43946 GHz Span 10 MHz 2.43946 GHz 1 MHz/ 2.43946 GHz SWT 2.5 ms 2.43946 GHz * 2.43946 GHz * 2.43946 GHz RBW 100 kHz 2.43946 GHzVBW 300 kHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 2.43946 GHz 1 PK 2.43946 GHz MAXH 2.43946 GHz -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 2.43946 GHz 1 Marker 1 [T1 ] -47.17 dBm 2.439460000 GHz 1 Delta 1 [T1 ] 0.18 dB 2.000000000 MHz MARKER 1 2.43946 GHz Comment: test print Date: 21.AUG.2015 17:25:05 www.tuv.com Test Report No.: 14041234 001 Appendix 1 page 3 of 3 Tx frequency: 2475MHz Ref -20 dBm 2.47402 GHz Att 10 dB 2.47402 GHz A 2.47402 GHz 1 PK 2.47402 GHz MAXH 2.47402 GHz 2.47402 GHz 2.47402 GHz 2.47402 GHz 2.47402 GHz 2.47402 GHz 2.47402 GHz 2.47402 GHz 2.47402 GHz 2.47402 GHz Center 2.475 GHz 2.47402 GHz Span 10 MHz 2.47402 GHz 1 MHz/ 2.47402 GHz * 2.47402 GHz * 2.47402 GHz RBW 100 kHz 2.47402 GHzVBW 300 kHz 2.47402 GHz SWT 2.5 ms 2.47402 GHz -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 2.47402 GHz 1 Marker 1 [T1 ] -45.62 dB m 2.474020000 GHz 1 Delta 1 [T1 ] 1.75 dB 1.680000000 MHz MARKER 1 2.47402 GHz Comment: test print Date: 21.AUG.2015 17:17:03
www.tuv.com Test Report No.: 14041234 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power (mW) 2403 -3.5 0.447 2440 -2.8 0.525 2475 -2.9 0.507 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances β€50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] Β· [ βf(GHz)] β€3.0 for 1-g SAR and β€7.5 for 10-g extremity SAR, where β’ f(GHz) is the RF channel transmit frequency in GHz β’ Power and distance are rounded to the nearest mW and mm before calculation β’ The result is rounded to one decimal place for comparison β’ 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.447/5)* β2.40 3 = 0.139 <3.0 (0.525/5)*β2.440 = 0.164 <3.0 (0.507/5)*β2.475 = 0.160 <3.0 Conclusion: No SAR is required.
www.tuv.com Test Report No.: 14041234 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14041234 001 Appendix 2 page 3 of 3 Setup for radiated emission
8 - 10/F., Goldin Financial Global Square Β· Kowloon Β· Hong Kong
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | - |

RC Toy with Bluetooth Transceiver
Equipment Class
DTS - Digital Transmission System
RC Toy with Bluetooth Transceiver
Equipment Class
DTS - Digital Transmission System
Radio Control Toy Transceiver (2.4GHz)
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Radio Control Toy Transceiver (2.4GHz)
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Radio Control Toys Transceiver (2.4GHz)
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
