N3H-ERS1380NBLicensed Non-Broadcast Station

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 1 of 21 ERS1380NBManual.doc 05/31/2001 ERS1380NB Owners Operator Manual ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 2 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 3 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 4 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 5 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 6 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 7 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 8 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 9 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 10 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 11 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 12 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 13 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 14 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 15 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 16 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 17 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 18 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 19 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 20 of 21 ERS1380NBManual.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 21 of 21 ERS1380NBManual.doc 05/31/2001

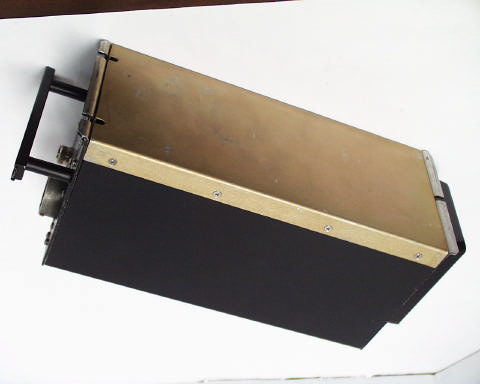

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 1 of 2 ERS1380NBExtPho.doc 05/31/2001 External Photographs of Ers1380NB ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 2 of 2 ERS1380NBExtPho.doc 05/31/2001

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 1 of 1 ERS1380NBLabel.doc 05/31/2001 FCC ID Label placement and Label for ERS1380NT

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 1 of 1 ERS1380NBIntPho.doc 05/31/2001 Internal Photographs of ERS1380NB ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 2 of 1 ERS1380NBIntPho.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 3 of 1 ERS1380NBIntPho.doc 05/31/2001

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 1 of 1 ERS1380NBOpDes.doc 06/12/2001 ERS1380NB OPERATIONAL DESCRIPTION 1. UNIT DESCRIPTION – The unit is a VHF FM transceiver operating in the 150 - 174 MHz frequency band. The radio unit is to be mounted in a remote location and controlled from a local mounted control head. The power on off, channel, function, and volume controls are located on the front of the control unit. The unit operates on 27-volt battery supply. The recommended antenna is a broadband blade or quarter wave whip. The unit operates with frequency modulation and is designed for voice communications. 2. INTENDED PURPOSE – These transceivers are utilized by the forestry service department and are intended to replace the wide band version currently in use for voice communications.

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 1 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ERS1380NB Theory of Operation ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 2 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 3 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 4 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 5 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 6 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 7 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 8 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 9 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 10 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 11 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 12 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 13 of 14 ERS1380NBTheoryOp.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 14 of 14 ERS1380NBTheoryOp.doc 05/31/2001

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 1 of 14 ERS1380NBTunPro.doc 05/31/2001 ERS1380NB Maintaenance Manual ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 2 of 14 ERS1380NBTunPro.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 3 of 14 ERS1380NBTunPro.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 4 of 14 ERS1380NBTunPro.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 5 of 14 ERS1380NBTunPro.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 6 of 14 ERS1380NBTunPro.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 7 of 14 ERS1380NBTunPro.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 8 of 14 ERS1380NBTunPro.doc 05/31/2001 ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2, 74 and 90Page 9 of 14 ERS1380NBTunPro.doc 05/31/2001

ROGERS LABS, INC.Genex Electronics 4405 W. 259th TerraceMODEL: FRS 300 Louisburg, KS 66053Test #: 010419 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 95Page 1 of 3 ERS1380NBSchem.doc 06/13/2001 ERS1380NB Schematics ROGERS LABS, INC.Genex Electronics 4405 W. 259th TerraceMODEL: FRS 300 Louisburg, KS 66053Test #: 010419 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 95Page 2 of 3 ERS1380NBSchem.doc 06/13/2001 ROGERS LABS, INC.Genex Electronics 4405 W. 259th TerraceMODEL: FRS 300 Louisburg, KS 66053Test #: 010419 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 95Page 3 of 3 ERS1380NBSchem.doc 06/13/2001

TEST REPORT For APPLICATION of CERTIFICATION For Eureka Radio Systems, Inc. 600-C Botello Road GOLETA, CA 93117 George Bernard, President Phone: 1 805 967-0325 MODEL: ERS1380NB VHF TRANSCEIVER FREQUENCY: 150 – 174 MHz FCC ID: N3H-ERS1380NB Test Date: May 29, 2001 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Eureka Radio Systems, Inc. 4405 West 259 th TerraceMODEL: ERS 1380NB Louisburg, KS 66053Test #:010529FCC ID#: N3H ERS1380NB SN:1209 Phone/Fax: (913) 837-3214Test to: FCC Parts 2,15,74 and 90Page 2 of 24 CERTIFICATION\ERS1380NB 05/30/01 TABLE OF CONTENTS FORWARD:3 LIST OF TEST EQUIPMENT3 2.1033(C)APPLICATION FOR CERTIFICATION4 2.1046RF POWER OUTPUT5 Measurements Required:5 Test Arrangement:5 Results:5 2.1047MODULATION CHARACTERISTICS7 Measurements Required:7 Test Arrangement:7 Results:8 2.1049OCCUPIED BANDWIDTH10 Measurements Required:10 Test Arrangement:10 Results:10 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS12 Measurements Required:12 Test Arrangement:12 Results:13 2.1053FIELD STRENGTH OF SPURIOUS RADIATION13 Measurements Required:13 Test Arrangement:13 Results:15 2.1055FREQUENCY STABILITY16 Measurements Required:16 Test Arrangement:16 Results:17 TRANSIENT FREQUENCY BEHAVIOR, PER 90.21418 Test Arrangement:18 Measurement Data:19 APPENDIX21 NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Eureka Radio Systems, Inc. 4405 West 259 th TerraceMODEL: ERS 1380NB Louisburg, KS 66053Test #:010529FCC ID#: N3H ERS1380NB SN:1209 Phone/Fax: (913) 837-3214Test to: FCC Parts 2,15,74 and 90Page 3 of 24 CERTIFICATION\ERS1380NB 05/30/01 FORWARD: In accordance with the Federal Communications Code of Federal Regulations, dated October 1, 2000, Part 2 Subpart J, Paragraphs 2.907, 2.911, 2.913, 2.915, 2.925, 2.926, 2.1031 through 2.1057, applicable paragraphs of Parts 15, 74, and 90, the following is submitted: List of Test Equipment A Hewlett Packard 8591EM and or 8562A Spectrum Analyzer was used as the measuring device for the emissions testing. The analyzer settings used are described in the following table. Refer to the Appendix for a complete list of Test Equipment. HP 8591EM SPECTRUM ANALYZER SETTINGS CONDUCTED EMISSIONS: RBWAVG. BW DETECTOR FUNCTION 9 kHz30 kHzPeak/Quasi Peak RADIATED EMISSIONS (30 – 1000 MHz): RBWAVG. BW DETECTOR FUNCTION 120 kHz300 kHzPeak/Quasi Peak HP 8562A SPECTRUM ANALYZER SETTINGS RADIATED EMISSIONS (1 – 40 GHz): RBWAVG. BW DETECTOR FUNCTION 1 MHz1 MHzPeak/Average ANTENNA CONDUCTED EMISSIONS: RBWAVG. BW DETECTOR FUNCTION 120 kHz300 kHzPeak NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Eureka Radio Systems, Inc. 4405 West 259 th TerraceMODEL: ERS 1380NB Louisburg, KS 66053Test #:010529FCC ID#: N3H ERS1380NB SN:1209 Phone/Fax: (913) 837-3214Test to: FCC Parts 2,15,74 and 90Page 4 of 24 CERTIFICATION\ERS1380NB 05/30/01 2.1033(c)Application for Certification (1) Manufacturer:Eureka Radio Systems, Inc. 600-C Botello Road GOLETA, CA 93117 (2)Identification:Model:ERS1380NB S/N: 1209 FCC I.D.: N3H-ERS1380NB (3)Instruction Book: Refer to exhibit for Instruction Manual. (4)Emission Type:16K0F3E / 10K0F3E (5)Frequency Range:150 to 174 MHz, (6)Operating Power Level: 10 Watts (7)Max P o :10 Watts (8) Power into final amplifier: 19.3 Watts (13.8V @ 1.4A) (9)Tune Up Procedure for Output Power: Refer to Exhibit for Transceiver Alignment Procedure. (10) Circuit Diagrams; description of circuits, frequency stability, spurious suppression, and power and modulation limiting: Refer to Exhibit for Circuit Diagrams. Refer to Exhibit for Theory of Operation. (11)Photograph or drawing of the Identification Plate: Refer to appendix for Photograph or Drawing of identification plate. (12)Drawings of Construction and Layout: Refer to Exhibit for Drawings of Components Layout and Chassis Drawings. (13) Detail Description of Digital Modulation: Not applicable. NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Eureka Radio Systems, Inc. 4405 West 259 th TerraceMODEL: ERS 1380NB Louisburg, KS 66053Test #:010529FCC ID#: N3H ERS1380NB SN:1209 Phone/Fax: (913) 837-3214Test to: FCC Parts 2,15,74 and 90Page 5 of 24 CERTIFICATION\ERS1380NB 05/30/01 2.1046RF Power Output Measurements Required: Measurements shall be made to establish the radio frequency power delivered by the transmitter into the standard output termination. The power output shall be monitored and recorded and no adjustment shall be made to the transmitter after the test has begun, except as noted below: If the power output is adjustable, measurements shall be made for the highest and lowest power levels. Test Arrangement: The radio frequency power output was measured at the antenna terminal by replacing the antenna with a spectrum analyzer, 41-dB attenuation and cable. The spectrum analyzer had an impedance of 50Ω to match the impedance of the standard antenna. A HP 8591EM Spectrum Analyzer was used to measure the radio frequency power at the antenna port. The data was taken in dBm and converted to watts as shown in the following Table. Refer to Figures 1 through 3 showing the output power of the transmitter. Data taken per Paragraph 2.1046(a) and applicable parts of Parts 74 and 90. P dBm = power in dB above 1 milliwatt. Milliwatts = 10 (PdBm/10) Watts = (Milliwatts)(0.001)(W/mW) 40.0 dBm = 10 (40.0/10) = 10,000 mW = 10.0 Watts Results: FREQUENCYP dBm P mw P w 156.0040.010,00010.0 166.0040.310,91410.9 173.9939.69,1419.1 The specifications of Paragraph 2.1046(a) and applicable Parts of 74 and 90 are met. There are no de…

Text truncated - open the document above for the full version.

ROGERS LABS, INC.ERS, Inc. 4405 W. 259th TerraceMODEL: ERS1380NB Louisburg, KS 66053Test #: 010529 Phone/Fax: (913) 837-3214Test to: FCC Parts 2 and 74 and 90Page 1 of 1 ERS1380NBSAR.doc 05/31/2001 SPECIFIC ABSORPTION RATE CALCULATION Calculations per 2.1093 of CFR 47. These calculations are based upon a typical human figure as approximated below. The height is 5’ 8” (173 cm.) and the weight is 160 lbs. (72.6kg). The calculated absorption cross section for this figure is 143 cm squared. CALCULATED UNCONTROLLED, GENERAL POPULATION SAR S = PG/(4πR 2 ) Where S = power density in mw/cm 2 P = input power to antenna in mw. G = power gain of antenna R = distance from antenna in cm. The antenna structure is to be mounted outside the vehicle maintaining a minimum separation distance of 1 meter. For a minimum distance of 1000 centimeters and 10 watt (10,000mW) operation with a ¼ wave whip antenna, S is: S = 10000(1)/(4π(1000) 2 ) = 795.77E-6 mw/cm 2 For a body cross sectional area of 143 cm squared, (0.000795)(143) = 16.27 mw is absorbed. For a body mass of 72.6 kg, this is 0.01627/72.6 = 224.14E-6 watts/kg (0.000224 watts/kg) This is well within the .08 watts/kg limit prescribed by CFR 47 paragraph 2.1093.

NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Eureka Radio Systems, Inc. 4405 West 259 th TerraceMODEL: ERS 1380NB Louisburg, KS 66053Test #:010529FCC ID#: N3H ERS1380NB SN:1209 Phone/Fax: (913) 837-3214Test to: FCC Parts 2,15,74 and 90Page 1 of 2 CERTIFICATION\ERS1380NBAFR 06/13/01 Results: Figure 4 displays the graph made showing the audio frequency response of the modulator. The frequency generator was set to 1 kHz and injected into the audio input port of the EUT. The amplitude was adjusted to obtain 50% modulation at 1000 Hz. This level was then taken as the 0-dB reference. The frequency of the generator was then varied and the output level recorded while holding the input levels constant. Audio Frequency (Hz)Response normalized to 1KHz (12.5)Response normalized to 1kHz (25) 100-20-20 200-14.0-14.5 300-10.0-10.0 400-8.0-8.0 500-6.0-6.0 600-5.0-4.5 700-3.0-3.0 800-1.5-2.0 900-1.0-1.0 10000.00.0 12002.02.0 15004.03.5 18005.05.0 20006.05.5 25006.05.0 30006.04.0 5000-50-50 Figure 4: Audio Response Characteristics. Narrow Band Audio Frequency Response -50 -40 -30 -20 -10 0 10 100100010000 Frequency Inpuit Voltage Response normalized to 1000 Hz (dB) Wide Band Audio Frequency Response -50 -40 -30 -20 -10 0 10 100100010000 Frequency Inpuit Voltage Response normalized to 1000 Hz (dB) NVLAP Accredited LaboratoryNVLAP Lab Code: 200087-0 ROGERS LABS, INC.Eureka Radio Systems, Inc. 4405 West 259 th TerraceMODEL: ERS 1380NB Louisburg, KS 66053Test #:010529FCC ID#: N3H ERS1380NB SN:1209 Phone/Fax: (913) 837-3214Test to: FCC Parts 2,15,74 and 90Page 2 of 2 CERTIFICATION\ERS1380NBAFR 06/13/01 Figure 5 shows the deviation response for each of three frequencies while the input voltage was varied. The frequency is held constant and the frequency deviation is read from the deviation meter. Figure 5: Deviation Characteristics. Wide Band Frequency Deviation Response 0 1000 2000 3000 4000 5000 -25-20-15-10-50510152025 Audio Input Level (dB) Deviation (Hz) Deviation at 300 Hz Deviation at 1000 Hz Deviation at 2500 Hz Deviation at 5000 Hz Narrow Band Frequency Deviation Response -500 0 500 1000 1500 2000 2500 -25-20-15-10-50510152025 Audio Input Level (dB) Deviation (Hz) Deviation at 300 Hz Deviation at 1000 Hz Deviation at 2500 Hz Deviation at 5000 Hz
