Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

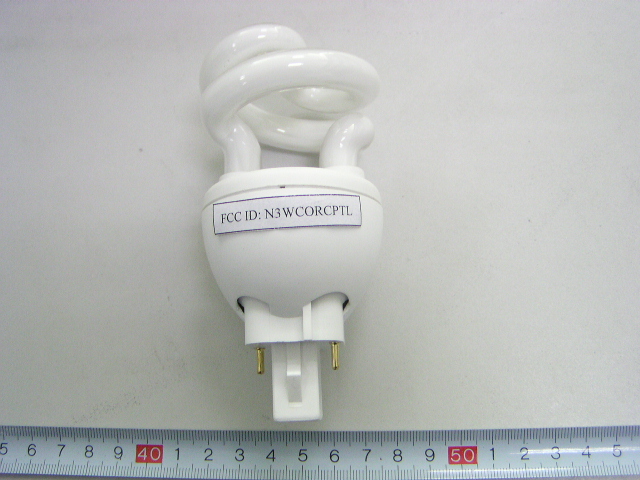

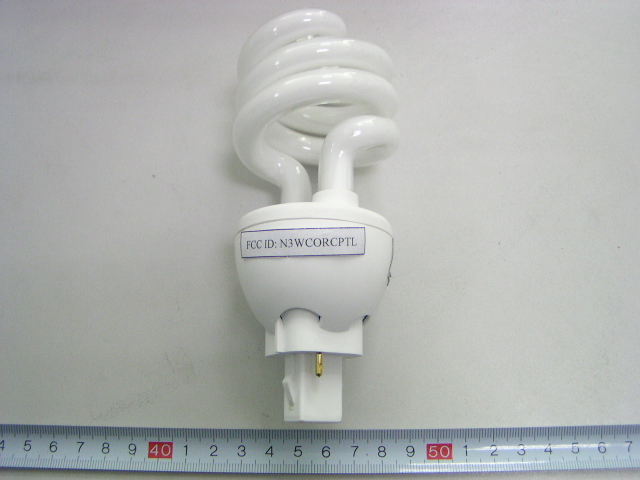

External Photos CPTL13W: EUT View CPTL20W: EUT View CPTL25W: EUT View
ID Label FCC Label FCC ID: N3WCORCPTL
ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. CPTL13W CPTL20W CPTL25W
Internal Photos CPTL13W: EUT- Inside View CPTL13W: EUT–PCB View (1) CPTL13W: EUT–PCB View (2) CPTL20W: EUT- Inside View CPTL20W: EUT–PCB View (1) CPTL20W: EUT–PCB View (2) CPTL25W: EUT- Inside View CPTL25W: EUT–PCB View (1) CPTL25W: EUT–PCB View (2)
Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For SHUNDE CORSO ELECTRONICS CO., LTD DAMEN QU,DALIANG,SHUNDE DISTRICT,FOSHAN CITY, GUANGDONG PROVINCE,CHINA FCC ID: N3WCORCPTL This Report Concerns: Original Report Equipment Type: CFL Test Engineer: Henry Yang Report Number: RSZ07012351 Test Date: 2007-01-26 Report Date: 2007-02-01 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (Shenzhen). 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 SHUNDE CORSO ELECTRONICS CO., LTD FCC ID: N3WCORCPTL Report # RSZ07012351 Page 2 of 15 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA................................................................................................................................................9 SHUNDE CORSO ELECTRONICS CO., LTD FCC ID: N3WCORCPTL Report # RSZ07012351 Page 3 of 15 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The SHUNDE CORSO ELECTRONICS CO., LTD’s model: CPTL, or the “EUT” as referred to in this report is a CFL which measures approximately: CPTL 13W: 12.0 cm L x 5.6 cm W x 5.6 cm H, CPTL 20W: 14.0 cm L x 5.7 cm W x 5.7 cm H, CPTL 25W: 15.5 cm L x 5.7 cm W x 5.7 cm H rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0701114. Provided by the manufacturer, we received EUT on 2007-01-23. Objective The following test report is prepared on behalf of SHUNDE CORSO ELECTRONICS CO., LTD in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurement was performed at Bay Area Compliance Laboratory Corp. (Shenzhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Laboratory Corp. (Shenzhen) to collect radiated and conducted emission measurement data is located in the 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, GuangDong, China. Test site at Bay Area Compliance Laboratory Corp. (Shenzhen) has been fully described in re…
Text truncated - open the document above for the full version.
Test Setup Photos CPTL13W: Conducted Emissions - Front View CPTL13W: Conducted Emissions - Side View CPTL20W: Conducted Emissions - Front View CPTL20W: Conducted Emissions - Side View CPTL25W: Conducted Emissions - Front View CPTL25W: Conducted Emissions - Side View
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 18 | 0.04 MHz - 0.05 MHz | - |

PART 18 CONSUMER DEVICE
Equipment Class
8CC - Part 18 Consumer Device
PART 18 CONSUMER DEVICE
Equipment Class
8CC - Part 18 Consumer Device
PART 18 CONSUMER DEVICE
Equipment Class
8CC - Part 18 Consumer Device
Electronic Adapter
Equipment Class
8CC - Part 18 Consumer Device
Electronic Ballast
Equipment Class
8CC - Part 18 Consumer Device
