N3X-IWCUOBU5OBU

Industrial Technology Research Institute (ITRI)
OBU - FCC ID N3X-IWCUOBU5 - Industrial Technology Research Institute (ITRI)
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Mar 11, 2015
Application Purpose
Original Equipment
Date of Application
Feb 25, 2015
Equipment Note
OBU
Frequency Range
5860.00000000 - 5920.00000000
Company
Industrial Technology Research Institute (ITRI)
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Document Name: IWCU User Guide Version:4.10 工業技術研究院機密資料 禁止複製、轉載、外流 │ ITRI CONFIDENTIAL DOCUMENT DO NOT COPY OR DISTRIBUTE 1 ITRI WAVE/DSRC Communication Unit (IWCU) IWCU User Guide V4.10 Document Name: IWCU User Guide Version:4.10 工業技術研究院機密資料 禁止複製、轉載、外流 │ ITRI CONFIDENTIAL DOCUMENT DO NOT COPY OR DISTRIBUTE 2 Table of Contents IWCU USER GUIDE ............................................................................................................... 1 1 INTRODUCTION ................................................................................................................. 4 2 CONFIGURATION .............................................................................................................. 5 2.1 INITIAL NETWORK CONFIGURATION .................................................................................. 5 2.2 CMD INTERFACE ................................................................................................................ 5 2.2.1 Network Configuration .............................................................................................. 5 2.2.1.1 Ethernet Configuration Setting ........................................................................... 5 2.2.1.2 Channel Status .................................................................................................... 6 2.2.2 WME Services and WSMP/UDP Converter ............................................................. 6 2.2.2.1 WSA Repeat Setting ........................................................................................... 6 2.2.2.2 Service and Converter Setting ............................................................................ 7 2.2.3 System Log .............................................................................................................. 10 2.2.4 User Account and Password .................................................................................... 11 2.2.5 Recover Initial Configuration .................................................................................. 12 2.3 WEB INTERFACE .............................................................................................................. 12 2.3.1 Upgrade Firmware ................................................................................................... 12 2.3.2 Network Configuration ............................................................................................ 14 2.3.2.1 Network Configuration Setting ........................................................................ 14 2.3.2.2 Channel Status .................................................................................................. 15 2.3.3 WME Services and WSMP/UDP Converter ........................................................... 15 2.3.3.1 Service and Converter Setting .......................................................................... 15 2.3.3.2 WSA Repeat Setting ......................................................................................... 17 Document Name: IWCU User Guide Version:4.10 工業技術研究院機密資料 禁止複製、轉載、外流 │ ITRI CONFIDENTIAL DOCUMENT DO NOT COPY OR DISTRIBUTE 3 2.3.4 System Log .............................................................................................................. 17 2.3.5 User Account and Password .................................................................................... 18 2.3.6 Recover and Reboot ................................................................................................ 19 Document Name: IWCU User Guide Version:4.10 工業技術研究院機密資料 禁止複製、轉載、外流 │ ITRI CONFIDENTIAL DOCUMENT DO NOT COPY OR DISTRIBUTE 4 1 Introduction  SSH login IP Address: 192.168.10.30 User Account: root Password: password  Web Server Authentication Interface: http://192.168.10.30 User Account: admin Password: iwcu2009  Abbreviation - CCH Control Channel - DSRC Dedicated Short Rrange Communication - IP Internet Protocol - IPv4 Internet Protocol Version 4 - IPv6 Internet Protocol Version 6 - IWCU ITRI WAVE/DSRC Communication Unit - PSC Provider Service Context - PSID Provider Service Identifier - SCH Service Channel - UDP User Datagram Protocol - WAVE Wireless Access in Vehicular Environments - WCU WAVE/DSRC Communication Unit - WSMP WAVE Short Message Protocol - WSA WAVE Service Advertisements - WME WAVE Management Entity Document Name: IWCU User Guide Version:4.10 工業技術研究院機密資料 禁止複製、轉載、外流 │ ITRI CONFIDENTIAL DOCUMENT DO NOT COPY OR DISTRIBUTE 5 2 Configuration 2.1 Initial Network Configuration Network interfaces are configured initially as follows:  br0 (ethernet) interface up  IPv4 address: 192.168.10.30  Mask : 255.255.255.0  wave0 interface up  Channel number: 178 (5890 MHz)  IPv4 address: 192.168.2.30  Mask : 255.255.255.0  wave1 interface up  Channel number: 0  IPv4 address: 192.168.3.30  Mask : 255.255.255.0 2.2 Cmd Interface 2.2.1 Network Configuration User can place your own startup commands in /etc/config/startup.sh to set network configuration or continue run your programs in the background and the first line of your own startup.sh must be “sh /usr/local/startup.sh”.You should pay attention to “System will come to a halt owing to the failure to do this”. 2.2.1.1 Ethernet Configuration Setting User can use the command dsrc-ifset to set the Ethernet/Wireless device’s IP address and netmask. dsrc-ifset <device> <IP> up|down Document Name: IWCU User Guide Version:4.10 工業技術研究院機密資料 禁止複製、轉載、外流 │ ITRI CONFIDENTIAL DOCUMENT DO NOT COPY OR DISTRIBUTE 6 dsrc-ifset <device> <IP> up netmask <mask> <device> - Device name (br0/wave0/wave1) <IP> - IPv4 format <mask> - Network mask For example: [root@herakles /root]#dsrc-ifset br0 192.168.1.1 up netmask 255.255.255.0 2.2.1.2 Channel Status The channel status can be retrieved by using the command dsrc-ch. For example: [root@herakles /root]# dsrc-ch Wave0 channel = 178 Wave1 channel = 0 2.2.2 WME Services and WSMP/UDP Converter WME system provides wsmp service as well as provider service and u…

Text truncated - open the document above for the full version.

External Photos

Report No:14C0467R-RFUSP22V00 Page: 53 of 61 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

ID Label/Location Info

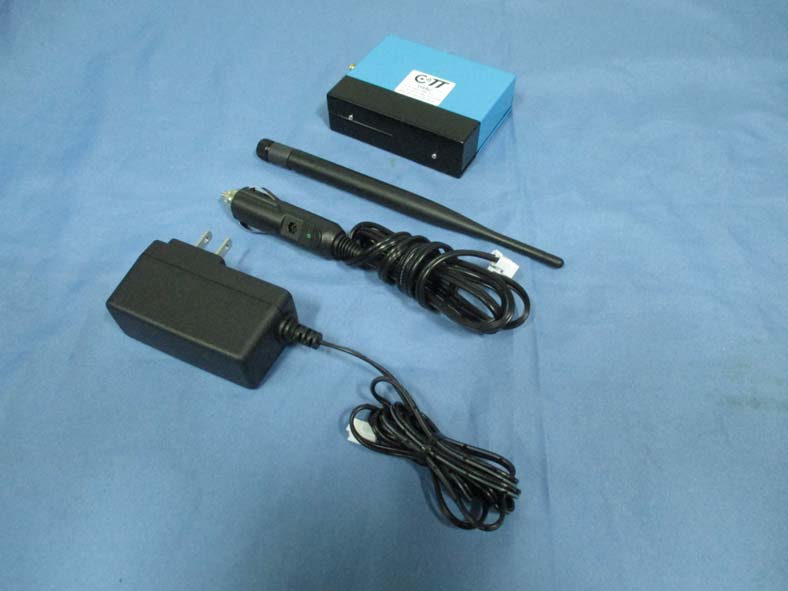

Industrial Technology Research Institute No. 195, Sec. 4, Chung Hsing Rd., Chutung, Hsinchu, 31040Taiwan, R.O.C. FCC ID.: N3X-IWCUOBU5 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. OBU Model No.: IWCU OBU 5.0 FCC ID : N3X-IWCUOBU5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ITRI, CTT Model number.: IWCU OBU 5.0

Internal Photos

Report No:14C0467R-RFUSP22V00 Page: 54 of 61 (3) EUT Photo (4) EUT Photo Report No:14C0467R-RFUSP22V00 Page: 55 of 61 (5) EUT Photo (6) EUT Photo Report No:14C0467R-RFUSP22V00 Page: 56 of 61 (7) EUT Photo (8) EUT Photo Report No:14C0467R-RFUSP22V00 Page: 57 of 61 (9) EUT Photo (10) EUT Photo Report No:14C0467R-RFUSP22V00 Page: 58 of 61 (11) EUT Photo (12) EUT Photo Report No:14C0467R-RFUSP22V00 Page: 59 of 61 (13) EUT Photo (14) EUT Photo Report No:14C0467R-RFUSP22V00 Page: 60 of 61 (15) EUT Photo (16) EUT Photo Report No:14C0467R-RFUSP22V00 Page: 61 of 61 (17) EUT Photo (18) EUT Photo

RF Exposure Info

Report No. 14C0467R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation declaration Product Name :OBU Model No. :IWCU OBU 5.0 FCC ID. :N3X-IWCUOBU5 Applicant : Industrial Technology Research Institute Address : No. 195, Sec. 4, Chung Hsing Rd., Chutung, Hsinchu, 31040Taiwan, R.O.C. Date of Receipt : 2014/12/17 Date of Declaration : 2015/01/21 Report No. : 14C0467R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 14C0467R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. Report No. 14C0467R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product OBU Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5dBi or 3.16 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b (ANT 0+1) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 172 5860 134.2765 0.08441 178 5890 133.9677 0.08422 180 5900 49.5450 0.03115 182 5910 49.7737 0.03129 184 5920 131.8257 0.08287 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Test Report

Report No:14C0467R-RFUSP22V00 Page: 1 of 61 FCC Test Report Product Name:OBU Model No. :IWCU OBU 5.0 FCC ID. :N3X-IWCUOBU5 Applicant : Industrial Technology Research Institute Address : No. 195, Sec. 4, Chung Hsing Rd., Chutung, Hsinchu, 31040Taiwan, R.O.C. Date of Receipt: 2014/12/17 Issued Date : 2015/01/21 Report No. :14C0467R-RFUSP22V00 Report Version : V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Corporation. Report No:14C0467R-RFUSP22V00 Page: 2 of 61 Test Report Certification Issued Date : 2015/01/21 Report No. : 14C0467R-RFUSP22V00 Product Name : OBU Applicant : Industrial Technology Research Institute Address : No. 195, Sec. 4, Chung Hsing Rd., Chutung, Hsinchu, 31040Taiwan, R.O.C. Manufacturer : Industrial Technology Research Institute Model No. : IWCU OBU 5.0 FCC ID. : N3X-IWCUOBU5 EUT Voltage : Mode 1: AC 100-240V, 50/60Hz Mode 2: DC 12V Trade Name : ; Applicable Standard : 47 CFR FCC Part 95 Test Result : Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : (Jimmie Liu / Senior Engineer ) Approved By : ( Roy Wang / Director ) Report No:14C0467R-RFUSP22V00 Page: 3 of 61 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No:14C0467R-RFUSP22V00 Page: 4 of 61 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 6 1.1. EUT Description .......................................................................................................................... 6 1.2. Test Mode.................................................................................................................................... 7 1.3. Tested System Details................................................................................................................. 8 1.4. Configuration of tested System ................................................................................................... 8 1.5. EUT Exercise Software ............................................................................................................... 9 1.6. Test Facility ............................................................................................................................... 10 2. Emission Bandwidth................................................................................................................... 11 2.1. Test Equipment ......................................................................................................................... 11 2.2. Test Setup ................................................................................................................................. 11 2.3. Limits ......................................................................................................................................... 11 2.4. Test Procedure .......................................................................................................................... 11 2.5. Uncertainty ................................................................................................................................ 11 2.6. Test Result ................................................................................................................................ 12 3. Maximum Transmitter Power ..................................................................................................... 15 3.1. Test Equipment ......................................................................................................................... 15 3.2. Test Setup ................................................................................................................................. 15 3.3. Limits ......................................................................................................................................... 16 3.4. Test Procedure .......................................................................................................................... 16 3.5. Uncertainty ................................................................................................................................ 16 3.6. Test Result ................................................................................................................................ 17 4. Transmit Spectrum Mask ........................................................................................................... 18 4.1. Test Equipment ............................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No:14C0467R-RFUSP22V00 Page: 47 of 61 6.7. Test Photo Test Mode : Mode 1: Transmit ( Power by Adapter ) Description: Front View of Radiated Emission Test Setup (Bi-Log) Test Mode : Mode 1: Transmit ( Power by Adapter ) Description: Back View of Radiated Emission Test Setup (Bi-Log) Report No:14C0467R-RFUSP22V00 Page: 48 of 61 Test Mode : Mode 2: Transmit ( Power by Battery ) Description: Front View of Radiated Emission Test Setup (Bi-Log) Test Mode : Mode 2: Transmit ( Power by Battery ) Description: Back View of Radiated Emission Test Setup (Bi-Log) Report No:14C0467R-RFUSP22V00 Page: 49 of 61 Test Mode : Mode 1: Transmit ( Power by Adapter ) Description: Front View of Radiated Emission Test Setup (Horn) Test Mode : Mode 1: Transmit ( Power by Adapter ) Description: Back View of Radiated Emission Test Setup (Horn) Report No:14C0467R-RFUSP22V00 Page: 50 of 61 Test Mode : Mode 2: Transmit ( Power by Battery ) Description: Front View of Radiated Emission Test Setup (Horn) Test Mode : Mode 2: Transmit ( Power by Battery ) Description: Back View of Radiated Emission Test Setup (Horn)

Contact Information

Applicant

Hsia-Hsin Li(Manager)
[email protected]+88635915708Fax: +88635836236

Technical Contact

QuieTek CorporationNeil Yeh
[email protected]886-3-592-8858

N0. 75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, · Taiwan

Non-Technical Contact

QuieTek CorporationSabrina Tsai
[email protected]886-3-592-8858

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD.Warren Lin
[email protected]+886-3-582-8001Fax: +886-3-582-8958

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
195L5.86 GHz - 5.92 GHz130.00 mW8M28D1D8.2123000000 ppm
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted. This modular transmitter module is approved only for use in DSRCS onboard units. To satisfy RF exposure, only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter and must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating with any other antenna or transmitter within a host device, except in accordance with the FCC multi-transmitter policy. End-users and installers must be provided with the antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
