N4AEFTR1201RF Light

USER’S MANUAL & SCHEMATIC(BLOCK DIAGRAM) PRODUCTSELF-BALLASTED LAMP FCC IDN4AEFTR1201 MODEL NO.EFTR 1223SERIAL NO.N/A APPLICANT & ADDRESS KUMHO ELECTRIC, INC. 690, Byung Jom-Ri, Taean-Up, Whasung-Gun Kyunggi-Do, Korea REPORT NO.E987R-012ISSUE DATEJuly 21, 1998 PREPARED BY :ONETECH CORPORATION 2 F. KUNHAN B/D, 1557-11, SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA (TEL)02-587-9037(FAX)02-587-9039 INDUSTRIAL, SCIENTIFIC AND MEDICAL(ISM) EQUIPMENT CERTIFICATION TO FCC PART 18 REQUIREMENT 1. PRODUCT SPEC. 1) COMMODITY: COMPACT FLUORESCENT LAMP (SELF-BALLASTED LAMP) 2) MODEL NO: EFTR 1223 3) POWER CONSUMPTION : 23W VOLTAGE: AC 120V 4) INPUT CURRENT : 350mA 5) FREQUENCY  FREQUENCY OF INPUT POWER STAGE: 60Hz  BALLAST OPERATING FREQUENCY : 65KHz 6) LIFE : 10,000Hrs 2. USER’S GUIDE 1) LAMP  ELECTRONIC BALLAST  FLICKERLESS, SOFT START OPERATING  RELIABLE OPERATING TEMPERATURE RANGE : -10 ~ 40 2) CAUTION  NOT FOR USE WITH DIMMING CIRCUIT, ELECTRONIC TIMERS  DO NOT USE IN TOTALLY ENCLOSED RECESSED FIXTURE  RISK OF ELECTRIC SHOCK - USE IN DRY LOCATIONS ONLY  DO NOT USE MORE THAN 25 LAMP S PER 20 AMP.  INSTALL AND REMOVE LAMP FROM FIXTURE BY GRASPING THE PLASTIC BODY OF LAMP INFORMATION TO THE USER  THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXIT FIXTURE OR EMERGENCY EXIT LIGHTS.  THIS PRODUCT MAY CAUSE RADIO INTERFERENCE WITH RADIOS, CORDLESS PHONES OR REMOTE CONTROLLED DEVICES. IF INTERFERENCE OCCURS, RELOCATE THIS PRODUCT AWAY FROM THE DEVICE OR MOVE THIS PRODUCT OUT OF THE LINE OF SIGHT WITH THE REMOTE CONTROL RECEIVER.  DO NOT TOUCH LAMP AS SOON AS TURN OFF LAMP BEASUSE IT’S VERY HOT.

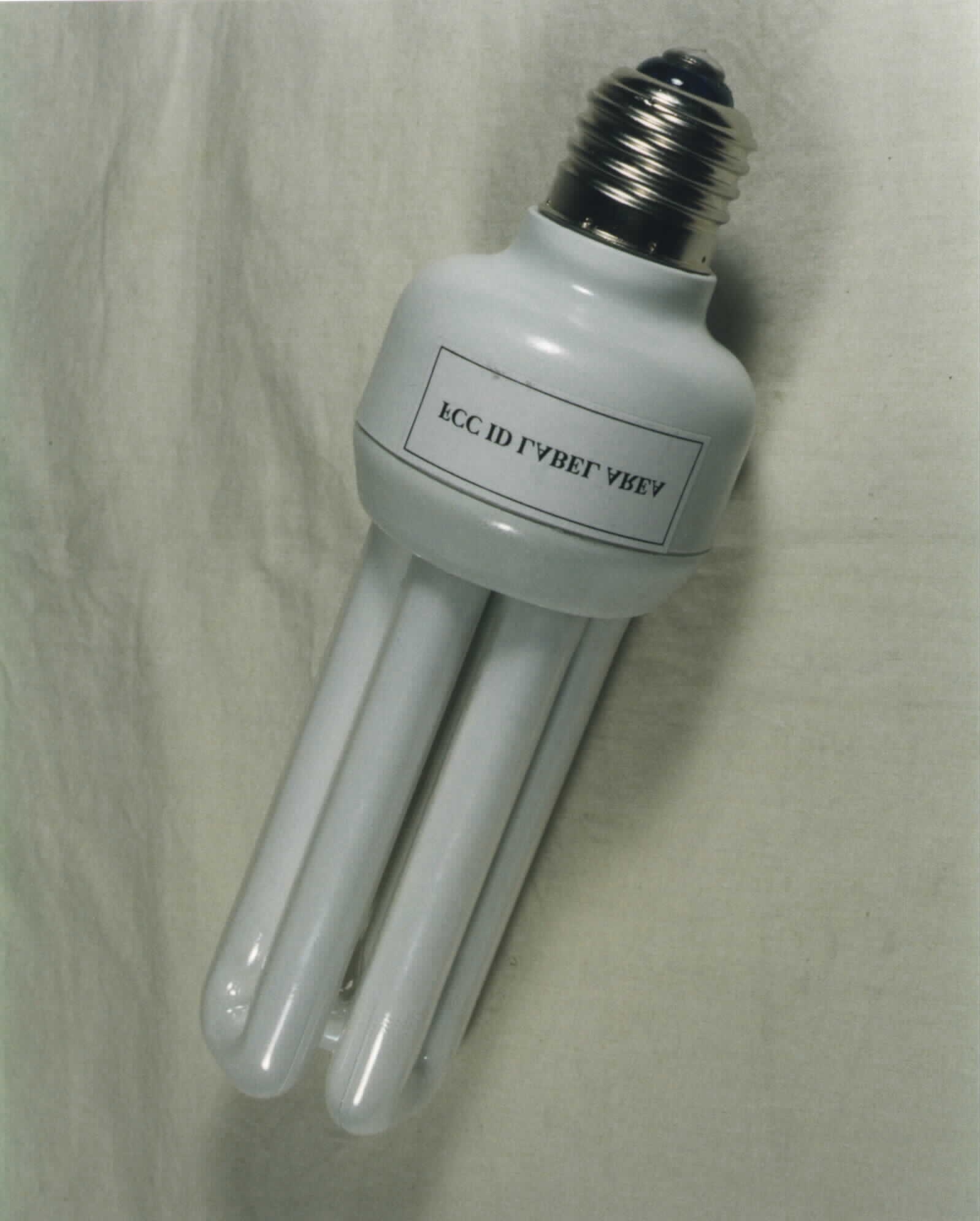

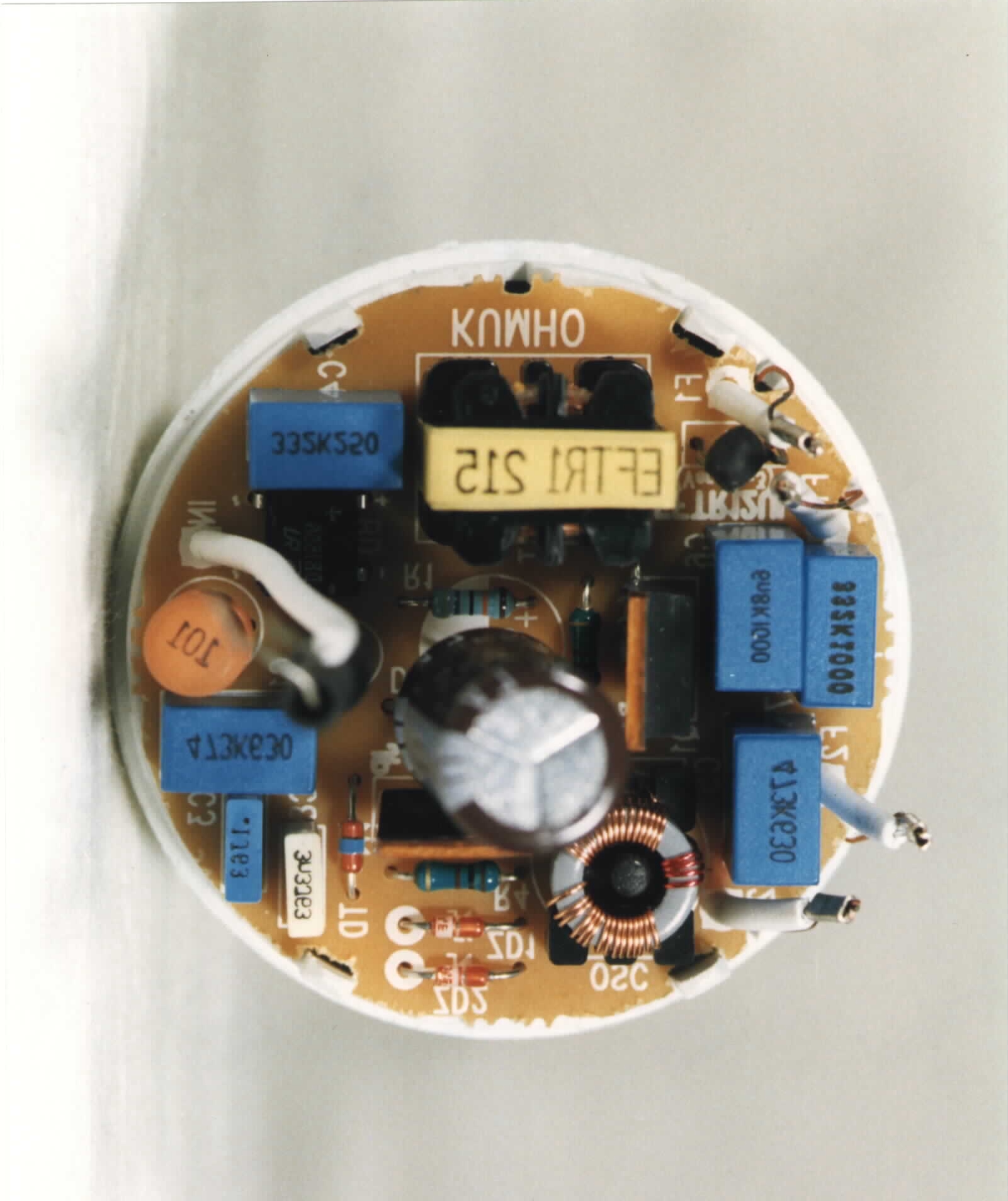

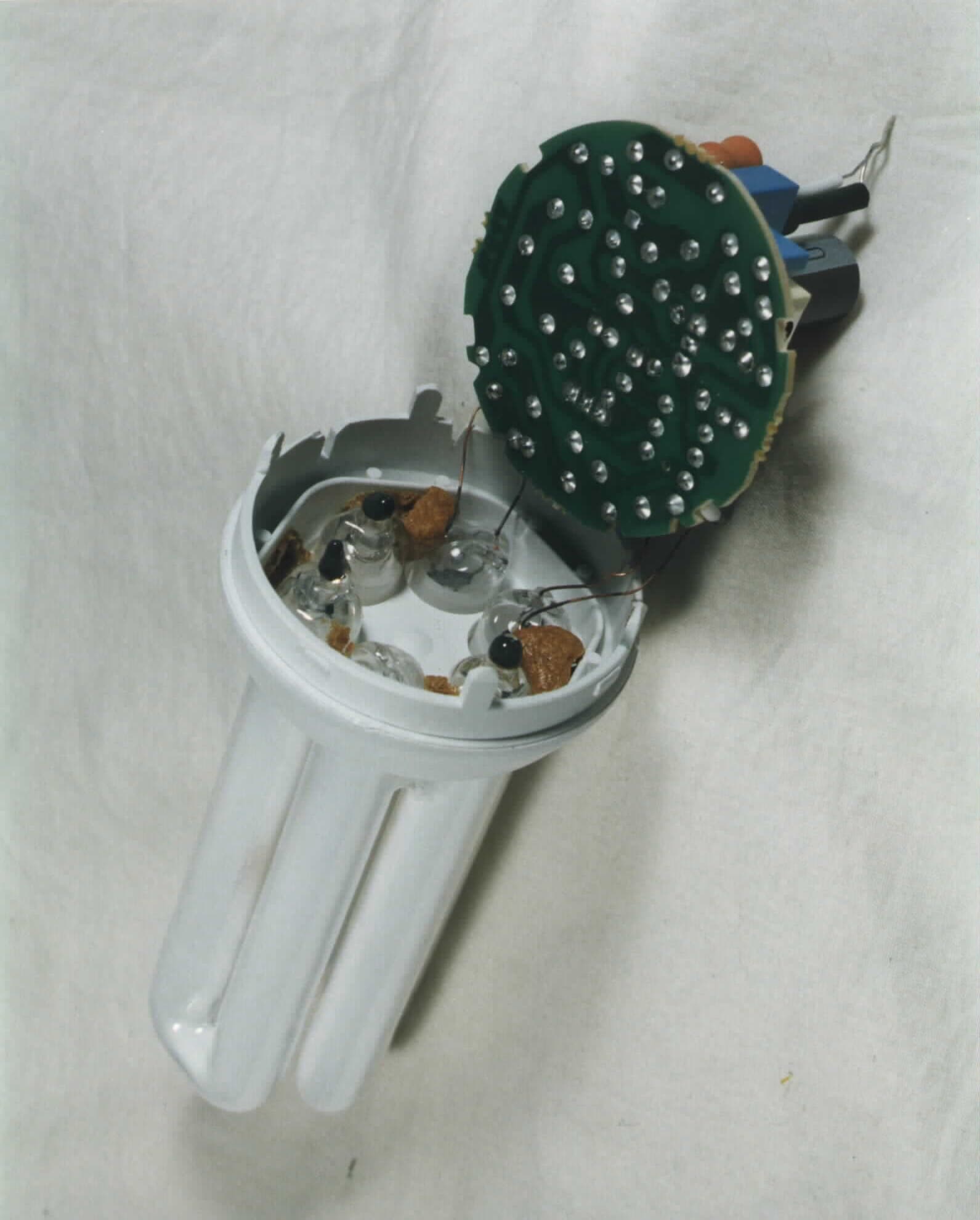

PHOTO REPORT PRODUCTSELF-BALLASTED LAMP FCC IDN4AEFTR1201 MODEL NO.EFTR 1223SERIAL NO.N/A APPLICANT & ADDRESS KUMHO ELECTRIC, INC. 690, Byung Jom-Ri, Taean-Up, Whasung-Gun Kyunggi-Do, Korea REPORT NO.E987R-012ISSUE DATEJuly 21, 1998 PREPARED BY :ONETECH CORPORATION 2 F. KUNHAN B/D, 1557-11, SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA (TEL)02-587-9037(FAX)02-587-9039 INDUSTRIAL, SCIENTIFIC AND MEDICAL(ISM) EQUIPMENT CERTIFICATION TO FCC PART 18 REQUIREMENT

ONETECH Corp. 2F. KUNHAN BD, 1557-11 SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA TEL:587-9037 FAX:587-9039 ONETECH IDENTIFICATION LABEL : PROPOSED FCC ID LABEL The label included following statement will be attached on the side of product. FCC ID : N4AEFTR1201, MODEL NO. : EFTR 1223 120V 60Hz 350mA 23W KUMHO ELECTRIC, INC.

REPORT NO : E987R-012FCC ID : N4AEFTR1201 DATE : July 21, 1998 TECHNICAL INFORMATION : ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCTSELF-BALLASTED LAMP FCC IDN4AEFTR1201 MODEL NO.EFTR 1223SERIAL NO.N/A APPLICANT & ADDRESS KUMHO ELECTRIC, INC. 690, Byung Jom-Ri, Taean-Up, Whasung-Gun Kyunggi-Do, Korea REPORT NO.E987R-012ISSUE DATEJuly 21, 1998 PREPARED BY :ONETECH CORPORATION 2 F. KUNHAN B/D, 1557-11, SEOCHO-DONG, SEOCHO-KU, SEOUL 137-070 KOREA (TEL)02-587-9037, (FAX)02-587-9039 INDUSTRIAL, SCIENTIFIC AND MEDICAL(ISM) EQUIPMENT CERTIFICATION TO FCC PART 18 REQUIREMENT REPORT NO : E987R-012FCC ID : N4AEFTR1201 DATE : July 21, 1998 REPORT NO : E987R-012FCC ID : N4AEFTR1201 DATE : July 21, 1998 TABLE OF CONTENTS page 1. VERIFICATION OF COMPLIANCE........................................................................................... 1 2. SCOPE............................................................................................................................................... 2 3. PRODUCT INFORMATION .........................................................................................................2 4. TEST FACILITY ............................................................................................................................. 2 4.1 General Information .................................................................................................................................................2 4.2 Open Field Test..........................................................................................................................................................2 4.3 Preliminary Test ........................................................................................................................................................2 5. MEASUREMENT INSTRUMENTATION................................................................................... 3 5.1 Measuring Instrument Calibration..........................................................................................................................3 5.2 Detector Function Selection and Bandwidth...........................................................................................................4 5.3 Units of Measurement ...............................................................................................................................................4 6. ANTENNAS ...................................................................................................................................... 4 7. AMBIENT CONDITION ................................................................................................................ 5 8. TEST METHODS ............................................................................................................................ 5 8.1 Test Configuration ....................................................................................................................................................5 8.2 Grounding ..................................................................................................................................................................5 8.3 Data Report format ...................................................................................................................................................5 8.4 Line Conducted Test Procedure...............................................................................................................................5 8.5 Radiated Test Procedure ..........................................................................................................................................6 9. EQUIPMENT DEFINITION AND LIMITATIONS .................................................................... 7 9.1 ISM Equipment Definition .......................................................................................................................................7 9.2 Equipment Limitations .............................................................................................................................................7 10. SUMMARY..................................................................................................................................... 9 11. CONDUCTED AND RADIATED MEASUREMENT PHOTOS ........................................... 10 12. FINAL CONDUCTED AND RADIATED EMISSION TESTS SUMMARY ........................ 12 12.1 Conducted Emissions Tests ......................................................................................Error! Bookmark not defined. 12.2 Radiated Emission Tests .......................................................................................................................................14 13. FIELD STRENGTH CALCULATION...................................................................................... 15 REPORT NO : E987R-012FCC ID : N4AEFTR1201 DATE : July 21, 1998 - 1 - 1. VERIFICATION OF COMPLIANCE N4AEFTR1201 REPORT NO : E987R-012FCC ID : N4AEFTR1201 DATE : July 21, 1998 REPORT NO : E987R-012FCC ID : N4AEFTR1201 DATE : July 21, 1998 - 2 - 2. SCOPE The Federal Communications Commission (FCC) establishes rules and regulations to regulate industrial, scientific, and medical equipment(ISM) that emits electromagnetic energy on frequencies within the radio frequency spectrum in order to prevent harmful interference to authorized radio communication services. An electromagnetic emissions test has been performed on the applicant/manufacturer’s product to establish compliance with these rules. The test data contained in this report was obtained utilizing test procedures, equipment, and site that in either approved by or prescribed by the FCC. The test procedures described herein are the established methods for the measurement of radio noise emitted from ISM equipment as defined in section 18.107 of the FCC rules. The technical standards for ISM equipment are set forth in subpart C of Part 18 of FCC rul…
