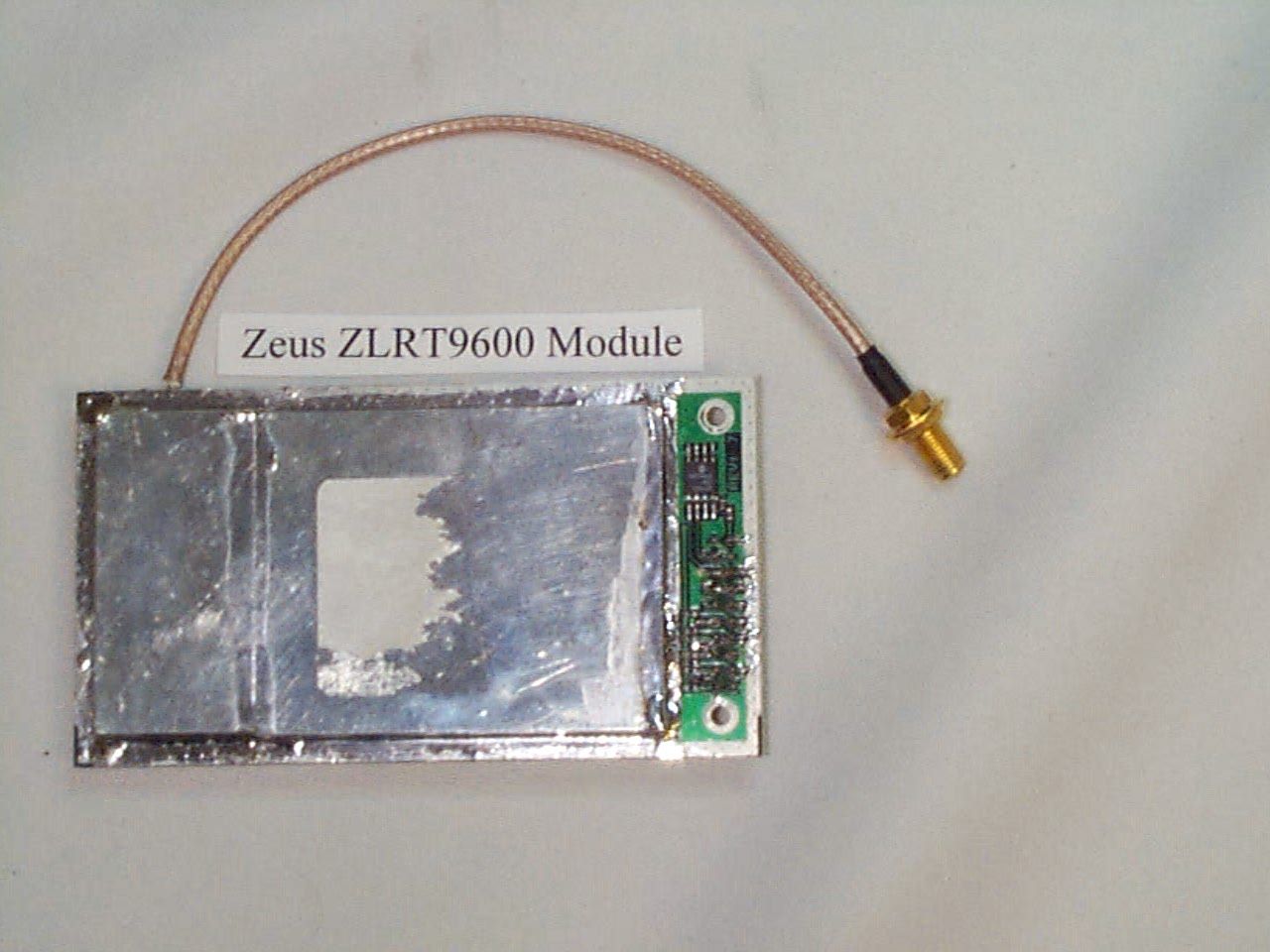

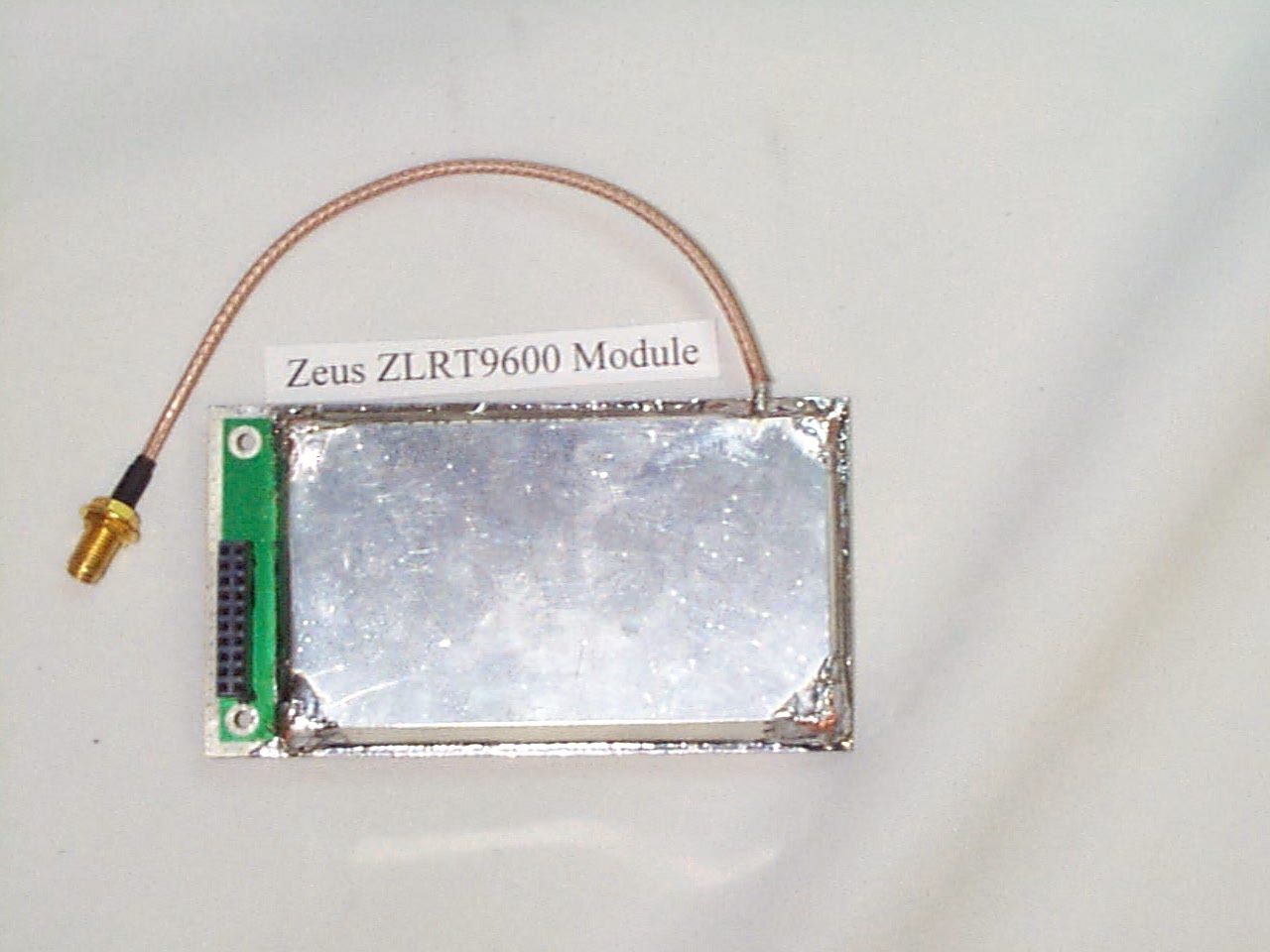

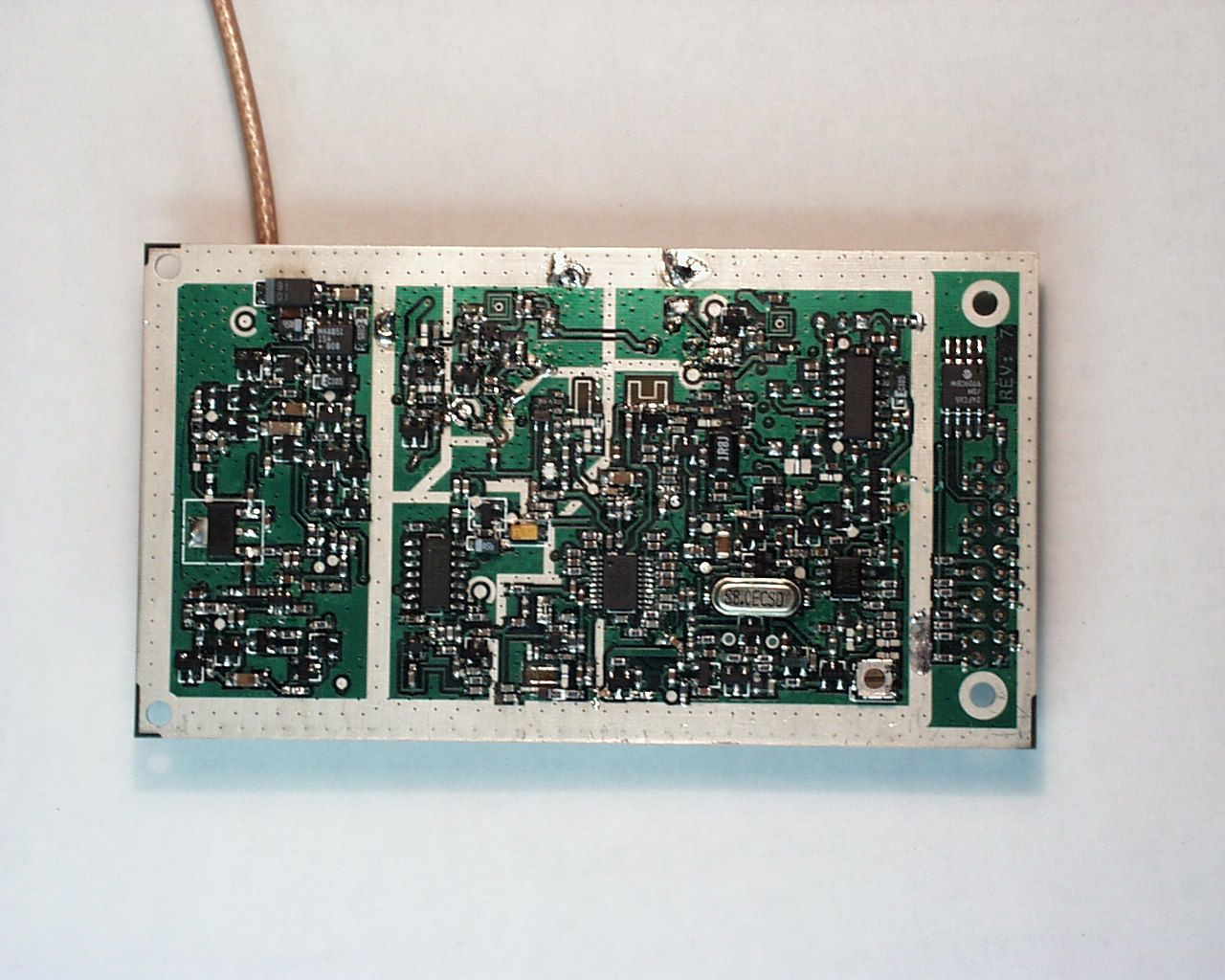

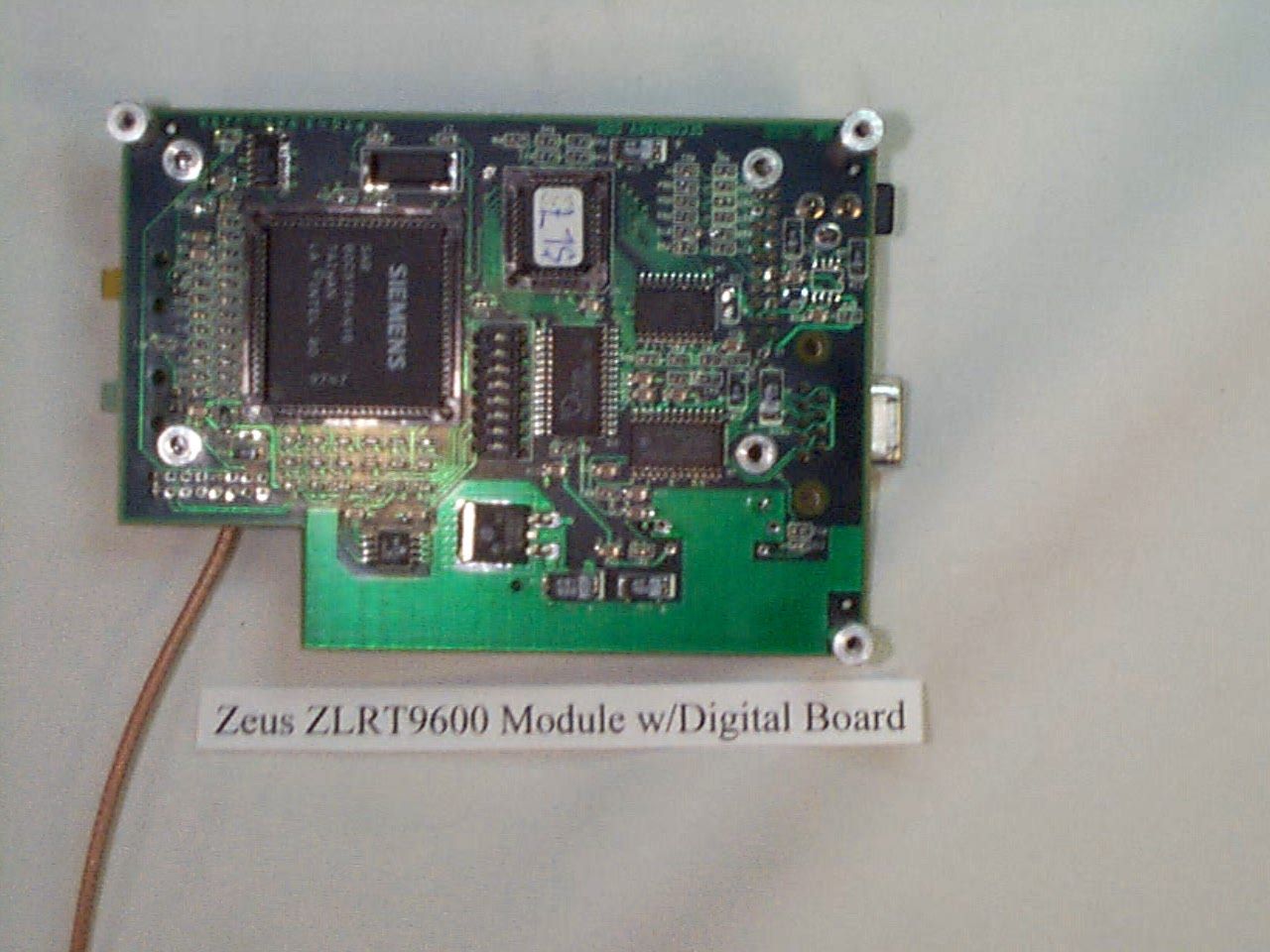

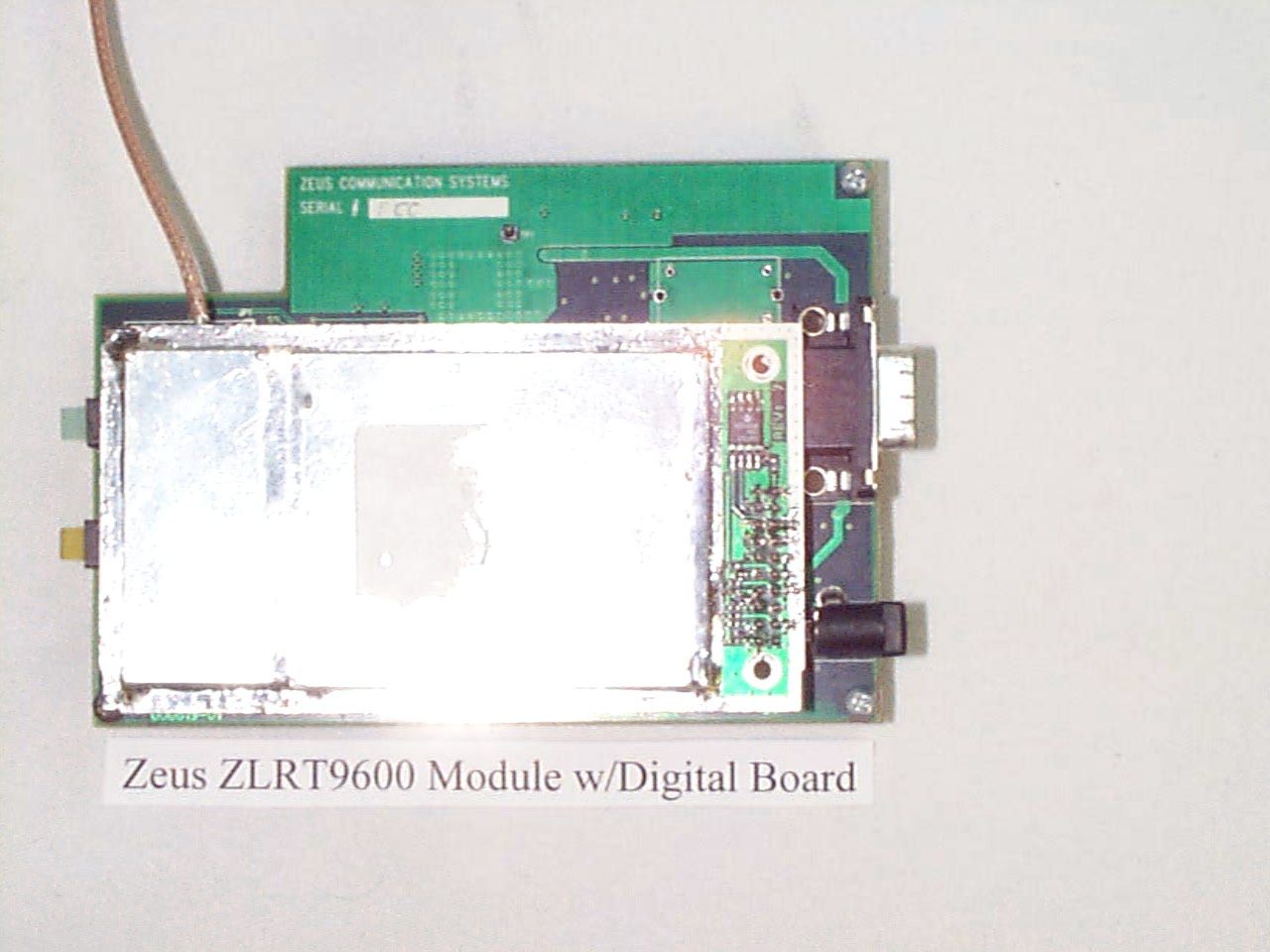

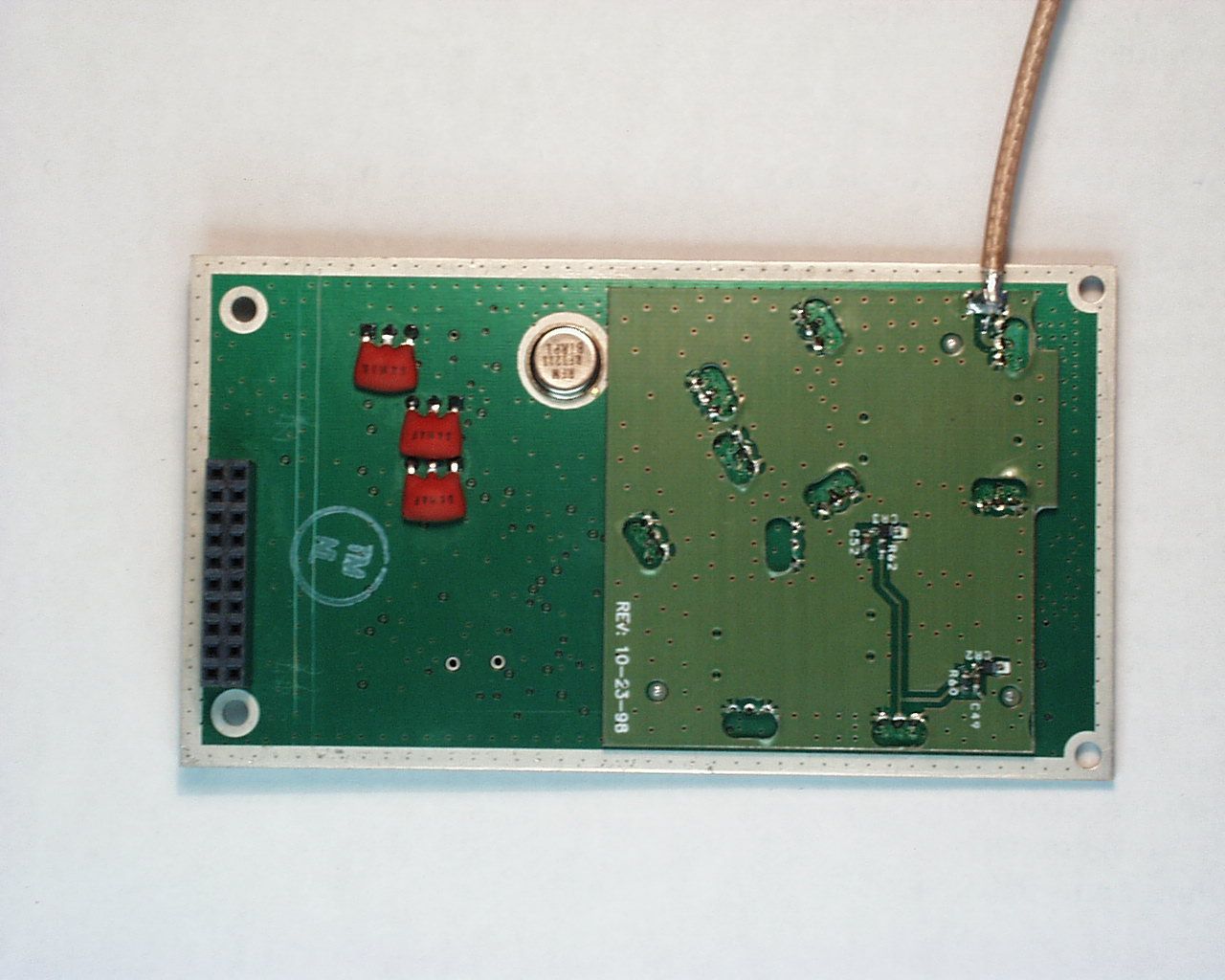

N4JLRT006Data Radio Module

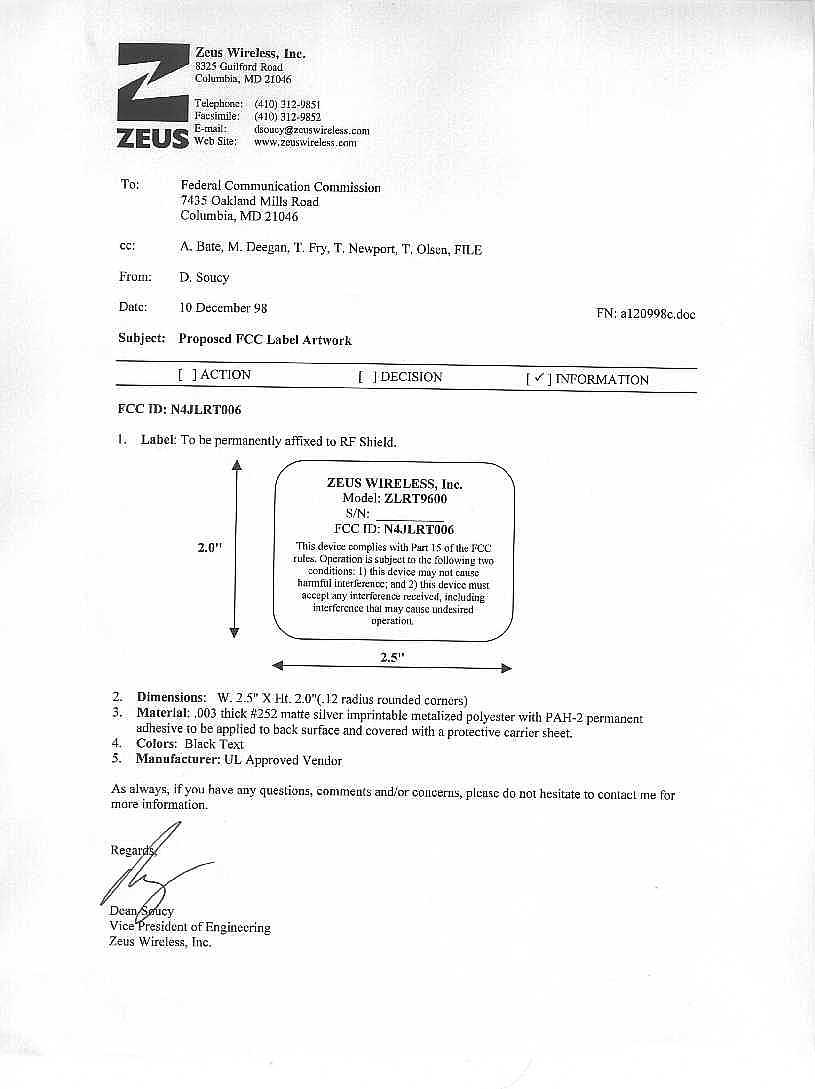

This label will be placed on the top side of the unit.

27916 Declaration of Conformity In accordance with FCC Rules and Regulations FCC Rule Part 15 for Digital Devices Manufacturer’s Name:Zeus Wireless, Inc. Type of Equipment:Digital Controller (Connector ‘A’) Model Number:1A01 / ZLRT9600 Year of Manufacture: 1999 I, the undersigned, hereby declare that the equipment specified above conforms to the above requirements. Zeus Wireless, Inc._____________________________ 8325 Guilford Road(Signature) Columbia, MD 21046 Dean Soucy . (Full Name) Vice President of Engineering . (Title) March 15 th 1999 . (Date) Test Facility: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, MD 20879 NVLAP: 200066-0

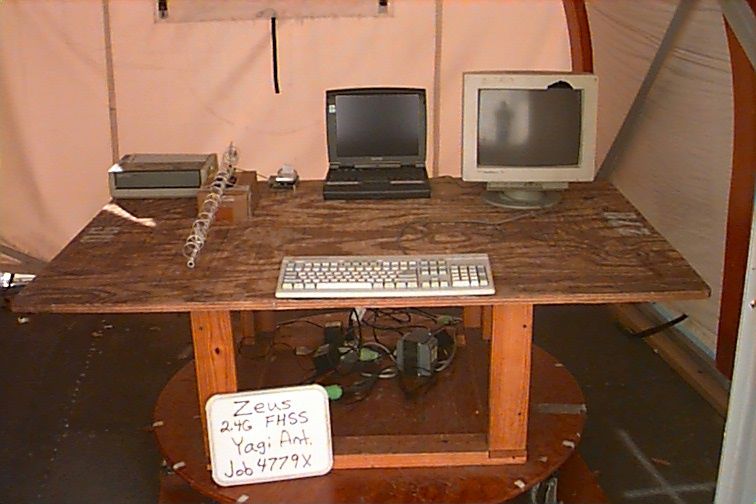

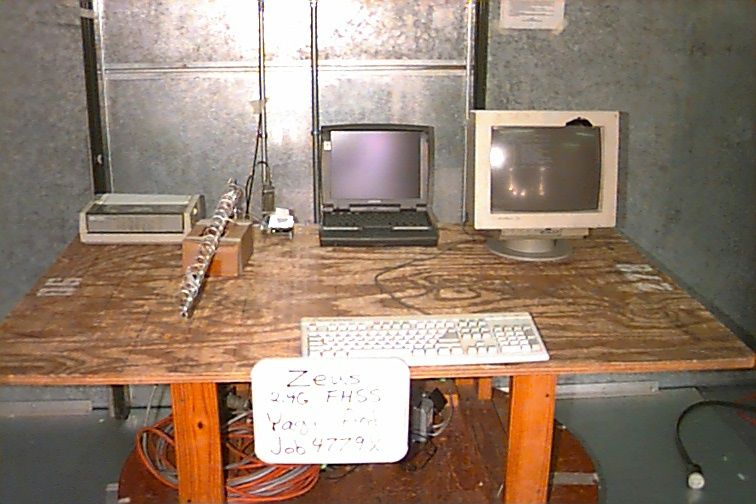

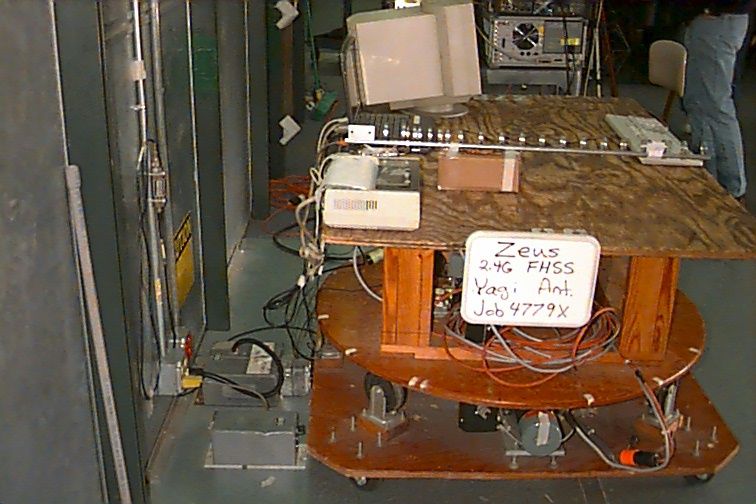

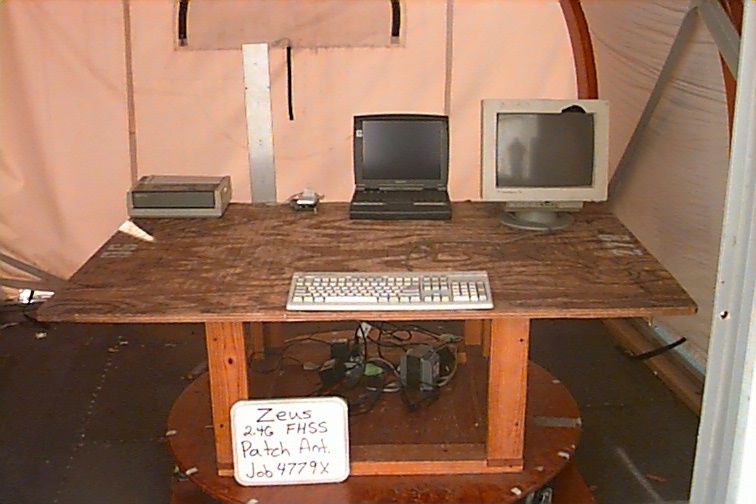

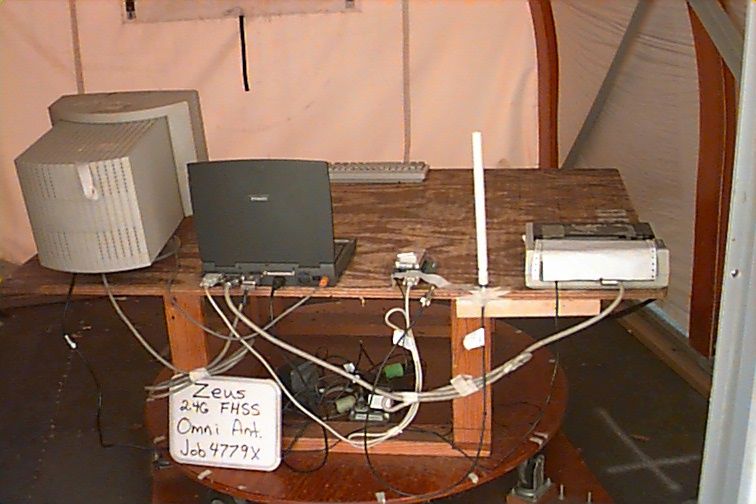

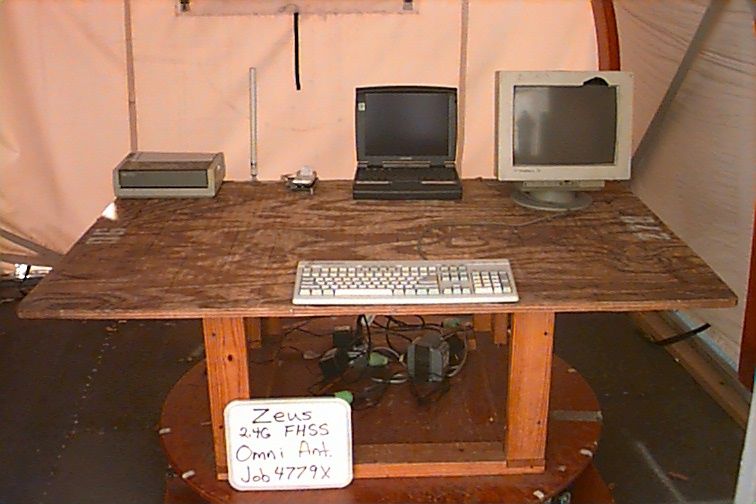

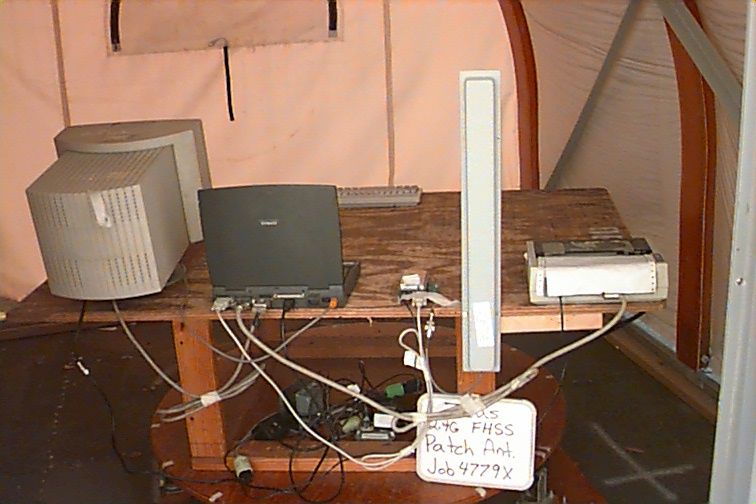

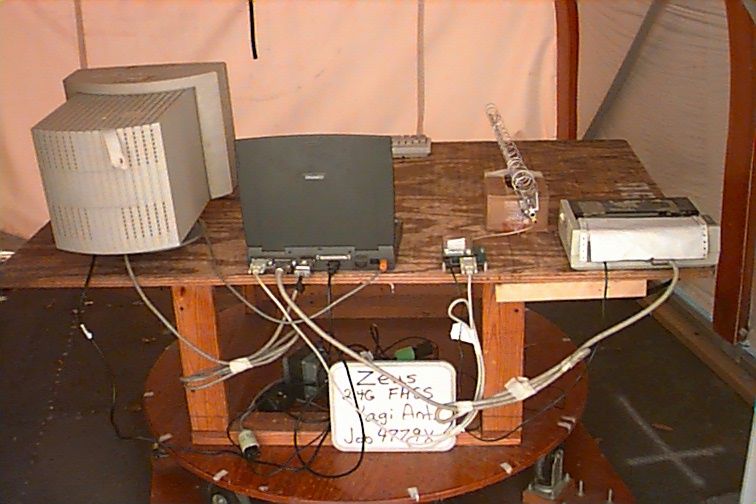

FCC CERTIFICATION TEST REPORT for Zeus Wireless, Inc. 8325 Guilford Road Columbia, MD 21046 FCC ID: N4JLRT006 December 9, 1998 WLL PROJECT #: 4779X This report may not be reproduced except in full and with the prior written consent of Washington Laboratories, Ltd. Zeus Wireless, Inc. FCC ID: N4JLRT006 WLL Project # 4779X i TABLE OF CONTENTS Statement of Qualifications Letter of Agency Letter of Confidentiality ____________________________________________________ 1.0Introduction 1.1Summary 2.0Description of Equipment Under Test (EUT) 2.1On-board Oscillators 3.0Test Configuration 3.1Testing Algorithm 3.2Conducted Emissions Testing 3.3Radiated Emissions Testing 3.3.1 Radiated Data Reduction and Reporting 3.4 Spurious Emissions At The Antenna Terminal Testing 3.5 Carrier Bandwidth Testing 3.6 Power Output Testing 3.7 Radio Frequency Radiation Exposure TABLES Table 1.Conducted Emissions Results Table 2.Radiated Emissions Results (Yagi Antenna) Table 3.Radiated Emissions Results (Patch Antenna) Table 4.Radiated Emissions Results (Omni Antenna) Table 5.Radiation Exposure Minimum Distance Requirements Table 6.System Under Test Table 7.Interface Cables Used Table 8.Measurement Equipment Used EXHIBITS Exhibit 1.Spurious Emissions At The Antenna Terminal Plots Exhibit 2.20dB Bandwidth Plots Zeus Wireless, Inc. FCC ID: N4JLRT006 WLL Project # 4779X ii Zeus Wireless, Inc. FCC ID: N4JLRT006 WLL Project # 4779X iii Zeus Wireless, Inc. FCC ID: N4JLRT006 WLL Project # 4779X iv Zeus Wireless, Inc. FCC ID: N4JLRT006 WLL Project # 4779X 1 FCC CERTIFICATION TEST REPORT for Zeus Wireless, Inc. FCC ID: N4JLRT006 1.0Introduction This report has been prepared on behalf of Zeus Wireless, Inc. to support the attached Application for Equipment Authorization. The test and application are submitted for an Intentional Radiator under Section 15.247 of the FCC Rules and Regulations. The Equipment Under Test was a Zeus Wireless, Inc. Frequency Hopping Spread Spectrum Transmitter Module, Model: ZLRT9600. All measurements herein were performed according to the 1992 version of ANSI C63.4. The measurement equipment conforms to ANSI C63.2 Specifications for Electromagnetic Noise and field Strength Instrumentation. Calibration checks are made periodically to verify proper performance of the measuring instrumentation. All measurements are performed at Washington Laboratories, Ltd. test center in Gaithersburg, MD. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. All results reported herein relate only to the equipment tested. This report shall not be used to claim product endorsement by NVLAP or any agency of the US Government. 1.1Summary The Zeus Wireless, Inc. Frequency Hopping Spread Spectrum Transmitter complies with the limits for an Intentional Radiator under Section 15.247. 2.0Description of Equipment Under Test (EUT) The Zeus Wireless, Inc. Frequency Hopping Spread Spectrum Transmitter, Model: ZLRT9600 is a 2.4 GHz low power transmitter module that is used for wireless data telemetry applications at 9.6kbps. The module interfaces with a digital section via a 20-pin header located on the underside of the module. Power to the module is provided via an external AC to DC wall mount transformer which connects to the digital board. Filtered DC power is then supplied to the transmitter module through pins on the 20-pin header connector. The transmitter module also contains a 6” RF cable with a reverse polarity “SMA” type RF connector for the transmit/receive antenna. The digital board contains a 9-pin D-sub connector for RS-232 interface. Peak Power:2401.3 = 22.2 dBm 2441.3 = 21.7 dBm 2477.3 = 21.0 dBm Zeus Wireless, Inc. FCC ID: N4JLRT006 WLL Project # 4779X 2 The unit will be used with one of the following antennas: ManufacturerModel #GainDimensionNote Yagi Antennas (Length) Down East Microwave1209LY11.5 dBi12 Inches Down East Microwave1221LY17.5 dBi36 Inches(1) AstronP-24066 dBi4 Inches AstronP-24099 dBi8 Inches AstronP-241212 dBi16 Inches AstronP-241515 dBi32 Inches(1) AntenexYB24001515 dBi30 Inches(1) CushcraftPC2415N16.1 dBi26 Inches(1) MaxradMYP-240088.8 dBi7-1/4 Inches MaxradMYP-2401313.5 dBi18 Inches(1) Telex2409AA8.8 dBi7-1/4 Inches Telex2415AB15 dBi18 Inches(1) Telex2417AA10.7 dBi4-1/2 Inches Telex2418AA5 dBi4-1/2 Inches HyperGainHG2414Y14 dBiInches(1) Patch Antennas CushcraftS2406P12NF6 dBi6 Inches CushcraftS2307MP10SMF7.5 dBi6 Inches CushcraftS2401290P12NF12 dBi24 Inches Note: (1) May be used in Point-to-Point communication links only. ManufacturerModel #GainDimension Omni. Antennas (Length) Zeus24012 dBi6 Inches Zeus (Connector)25012 dBi6 Inches M/A-COM3380-8030-01276 dBi12 Inches CushcraftS2400BP12NFUnity8 Inches CushcraftS2400BH12NFUnity9 Inches CushcraftS2403BP12NF5 dBi11.5 Inches CushcraftS2403BH12NF5 dBi11.5 Inches AntenexFMC240066 dBi12 Inches Telex2426AA5 dBi14 Inches Telex2434AA5 dBi11 Inches Telex2427AA5 dBi12 Inches MaxradMPA-24501 dBi4.3 Inches MaxradMQW-2400SM1 dBi2.5 Inches MaxradMHW-2400C2 dBi7.0 Inches Maxrad2400SM2 dBi5.3 Inches Maxrad2400C2 dBi7.0 Inches MaxradMHWS2400RPC2 dBi7.0 Inches MaxradMHWS2400RPS2 dBi7.0 Inches Zeus Wireless, Inc. FCC ID: N4JLRT006 WLL Project # 4779X 3 2.1On-board Oscillators The Zeus Wireless, Inc. Frequency Hopping Spread Spectrum Transmitter contains the following oscillators: 8 MHz Crystal, VCO of Fundamental, 1 st IF 315 MHz VCO, 2 nd IF 325.7 MHz fixed VCO, 3.0Test Configuration To complete the test configuration required by the FCC, the Frequency Hopping Spread Spectrum Transmitter Module was installed into the Zeus Digital Control Module (Class B device) which was connected to a certified computer via an RS-232 serial interface. The EUT was tested in three orthogonal planes as the unit may be mounted in various…

Text truncated - open the document above for the full version.

ZLRT9600 Integration Guide 27917Copyright © 1999 Zeus Wireless, Inc. 1. APPROVED ANTENNAS: The ZLRT9600 Module is designed to be used only with certain antenna products. Zeus offers the antennas listed below as compliant with FCC Certification for the ZLRT9600. Zeus uses a unique mechanical connection for all external mount antennas to ensure that only compliant antennas are used with the ZLRT9600 Module. The manufacturers below must agree to provide the customer antennas, built to particular Zeus specifications, with this unique mechanical connection. Zeus does not endorse the use of any other antenna than those listed below. ManufacturerModel #Gain (dBi) Dimension (Inches) Note Yagi Antennas ZeusZY700011.512 ZeusZY750016.126(1) AstronP-240664 AstronP-240998 AstronP-24121216 MaxradMYP-240088.87.25 Telex2418AA54.5 Telex2409AA8.87.25 Telex2417AA10.74.5 Patch Antennas ZeusZP51007.54.5 x 6 x 1.5 Cushcraft S2401290P12NF1224 Omni. Antennas ZeusZD110026 Zeus (Connector)250126 ZeusZA2100612 MaxradMPA-245014.3 MaxradMQW-2400SM12.5 Note: (1) May be used in Point-to-Point communication links only. Each ZLRT9600 comes pre-configured for point-to-point operation and can therefore be used with all of the antennas listed below. Zeus offers a host to multi-point option for sale to its customers, which requires the customer to emplace a special hardware key and Network Management Software Program to enable this functionality. The software installation process clearly states that a Host unit should not be configured with any high gain antenna as contained in Note (1). ZLRT9600 Integration Guide 27917Copyright © 1999 Zeus Wireless, Inc. NOTICE TO OPERATORS Notice to user/installer using the 16 dBi Yagi antenna in conjunction with the ZLRT9600 module. FCC rules limit the use of this antenna, when connected to the ZLRT9600 module, to fixed single-point to single-point applications only. This specification excludes the use of Host-to-Multipoint, Omni-directional applications and multiple co-located intentional radiators transmitting the same information. The user/installer of this product is responsible for ensuring that the system is used exclusively for fixed, point-to-point operation. Notice to user/installers using the Approved Antenna list in conjunction with the ZLRT9600 module. The field strength radiated by any one of the following antennas, when connected to a transmitting ZLRT9600 module, may exceed FCC mandated RF exposure limits. FCC rules require professional installation of these antennas in such a way that the general public will not be closer than the minimum aperture clearance listed below. End users of these systems must also be informed that RF exposes limits may be exceeded if personnel come closer than the minimum aperture clearance of any of these antennas. ManufacturerModel #Minimum Aperture Clearance Yagi Antennas ZeusZY700020 cm ZeusZY750030 cm AstronP-240610 cm AstronP-240915 cm AstronP-241220cm MaxradMYP-2400815 cm Telex2418AA10 cm Telex2409AA15 cm Telex2417AA15 cm Patch Antennas ZeusZP510015 cm Cushcraft S2401290P12NF20 cm Omni. Antennas ZeusZD11005 cm Zeus (Connector)25015 cm ZeusZA210010 cm MaxradMPA-24505 cm MaxradMQW-2400SM5 cm
