N56ARG-PVS15LEDPersonal View Screen

OPERATION MANUAL PERSONAL VIEW SCREEN FITNESS ENTERTAINMENT SOLUTIONS MODEL NO.: ARG-PVS15 HDTV HDMI PC INPUT FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party Responsible for compliance could void the user’s authority to operate this equipment. DEAR ARG CUSTOMER, Congratulations and thank you for purchasing ARG’s Personal View Screen. This device is specially designed for health clubs. It is Easy to mount, Convenient to operate, has High-quality LED panel & provides High-fidelity audio enjoyment. All of ARG’s high quality products are designed to provide many years of reliable service; they are uncomplicated to use so anyone can operate them with ease and confidence. I am certain that after using your newly purchased product you will join ARG’s long list of satisfied customers. This manual contains basic product information to ensure trouble free operation, so please take time to read through this manual thoroughly before using your new PVS. If for any reason you have additional questions you can call our headquarters toll- free at (888)-468-4552 and talk to one of our professional Sales Team Members who will be happy to help you Monday through Friday between the hours of 8:00AM and 5:00PM Central Standard Time; you can also email ARG at [email protected] or visit our website at www.argaudio.com for additional resources and product options. Everyone at ARG is firmly committed to our motto, which isn’t just a tagline, it’s our assurance that ARG’s high quality products will meet your expectations for many years to come. Every word...every sound...heard. Understood. Again, on behalf of everyone at ARG, Thank you! Rick Allerdings, President CONTENTS Important Safety & Cautions Instructions p.4-5 Installing the wall-mount bracket p. 6 TV components p. 6  Package contents p. 6  Front p. 6-7  Back p. 7-8  Wired Controller p. 8 Making Connections p. 9-10 Setup/Installation Menu p. 10 Adjusting the picture p. 10-11 Adjusting the sound p. 11-12 Setting Main Setup Menu p. 12  Turning Parental Controls On/Off p. 12-13  Time setting p. 13  Using Closed Caption p. 13-14  Menu setting p. 14-15  Restore Default p. 15 Channel Setup p. 15-16 Maintenance p. 16 Product Specifications p. 16-17 Troubleshooting p. 17-19 Warranty p. 20 Important safety instructions This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. To ensure your safety and prolong the service life of your PVS, please read the following precautions carefully before using the product. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this device near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not place the device in direct sunlight. 9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 10. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 11. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device. 12. Only use attachments/accessories specified by the manufacturer. 13. Unplug this device during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. The device shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on it. CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE Cautions Lightning For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges. Power Lines An outside antenna system should not be located in the vicinity of overheated power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installi…

Text truncated - open the document above for the full version.

Audio Resource Group, Inc. FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Audio Resource Group, Inc. Address 440 Ramsland Ave, Hannaford, ND58448, USA City Hannaford Country United States declare that the following representative (agent): Name (person) Justin Zhang Company name Shenzhen Toby Technology Co., Ltd. Address 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Personal View Screen Type or Model(s) ARG-PVS15LED, ARG-PVS15LCD, ARG-PVS17LED, ARG-PVS17LCD, ARG-PVS19LED, ARG- PVS19LCD, 107157-001, 107158-001, 107159-001, 107160-001, 107161-001, 107162-001, 107163-001, 107164-001, 107165-001, 107166-001, 107167-001 Tradename or Brand(s) ARG We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hannaford , United States 04/26/2012 Rick Allerdings Director

Audio Resource Group, Inc. FCC Confidentiality Request Number: CF303 Version: V02 Date:17-06-2011 To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Audio Resource Group, Inc. Address 440 Ramsland Ave, Hannaford, ND58448, USA City Hannaford Country United States request for this certification filing under: Grantee Code Product Number FCC ID: N56 ARG-PVS15LED to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description x Operational Description Circuit Description xBlock Diagrams Block Diagram x Schematics Diagrams Schematic Diagram Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Hannaford , United States 04/26/2012 Rick Allerdings Director

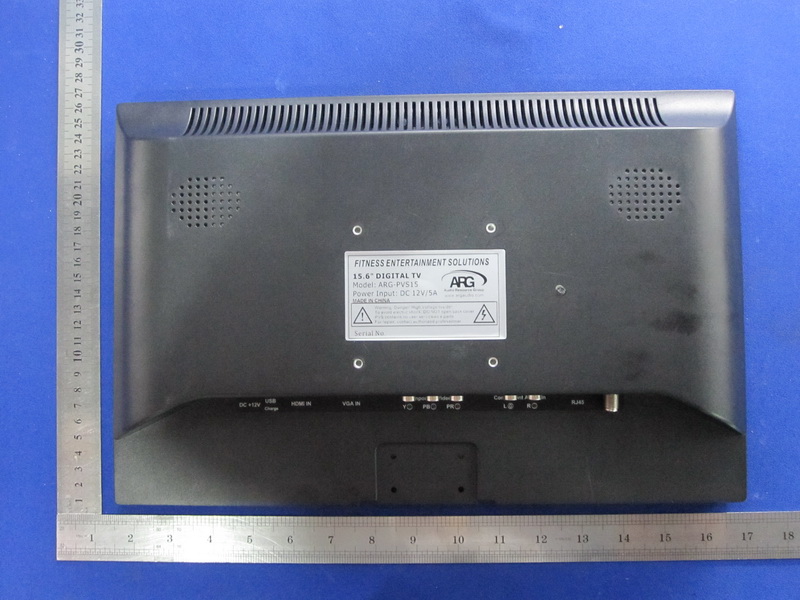

Report No.: TB-FCC123753 Page: 3 of 11 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC123753 Page: 4 of 11 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC123753 Page: 5 of 11 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Report No.: TB-FCC123753 Page: 1 of 11 TB-RF-074-1.0 Appendix IID Label ARG FCC ID: N56ARG-PVS15LED

Report No.: TB-FCC123753 Page: 2 of 11 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

Report No.: TB-FCC123753 Page: 6 of 11 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Report No.: TB-FCC123753 Page: 7 of 11 TB-RF-075-1.0 Photo 9 Appearance of Screen Photo 10 Appearance of Screen Report No.: TB-FCC123753 Page: 8 of 11 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC123753 Page: 9 of 11 TB-RF-075-1.0 Photo 13 Appearance of back cover

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC123753 Page: 1 of 23 TB-RF-074-1.0 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park, Nanshan District, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Test Report FCC ID: N56ARG-PVS15LED Computing Device Peripheral Report No. : TB-FCC123753 Applicant : Audio Resource Group, Inc. Equipment Under Test (EUT) EUT Name : Personal View Screen Model No. : ARG-PVS15LED Serial No. : Please see page 3. Brand Name : Not supplied by client Receipt Date : 2012-04-16 Test Date : 2012-04-17 to 2012-04-26 Issue Date : 2012-04-27 Standards : FCC Part 15: 2009, Subpart B, Class B Test Method : ANSI C63.4-2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC123753 Page: 2 of 23 TB-RF-074-1.0 Contents CONTENTS.............................................................................................................................................2 1. GENERAL INFORMATION ABOUT EUT.............................................................................3 1.1 Client Information.................................................................................................................3 1.2 General Description of EUT (Equipment Under Test)...................................................3 1.3 Block Diagram Showing the Configuration of System Tested......................................3 1.4 Description of Support Units..............................................................................................4 1.5 Description of Test Mode....................................................................................................4 1.6 Test Facility...........................................................................................................................5 2. TEST SUMMARY.......................................................................................................................6 3. CONDUCTED EMISSION TEST.............................................................................................7 3.1 Test Standard and Limit......................................................................................................7 3.2 Test Setup.............................................................................................................................7 3.3 Test Procedure.....................................................................................................................7 3.4 Test Equipment Used..........................................................................................................8 3.5 EUT Operating Mode..........................................................................................................8 3.6 Deviation...............................................................................................................................8 3.7 Test Data...............................................................................................................................8 4. RADIATED EMISSION TEST................................................................................................15 4.1 Test Standard and Limit....................................................................................................15 4.2 Test Setup...........................................................................................................................15 4.3 Test Procedure...................................................................................................................16 4.4 Test Equipment..................................................................................................................16 4.5 EUT Operating Condition.................................................................................................16 4.6 Deviation.............................................................................................................................17 4.7 Test Data.............................................................................................................................17 Report No.: TB-FCC123753 Page: 3 of 23 TB-RF-074-1.0 1. General Information About EUT 1.1 Client Information Applicant : Audio Resource Group, Inc. Address : 440 Ramsland Ave, Hannaford, ND58448, USA Manufacturer : Audio Resource Group - Shenzhen Branch Address : 305, Bldg B, Hongchen Biz Ctr, Buxin Dongxiao RD, Luohu District, Shenzhen, GD518023, China 1.2 General Description of EUT (Equipment Under Test) EUT Name : Personal View Screen Model No. : ARG-PVS15LED Serial No. : ARG-PVS15LCD, ARG-PVS17LED, ARG-PVS17LCD, ARG-PVS19LED, ARG-PVS19LCD, 107157-001, 107158-001, 107159-001, 107160-001, 107161-001, 107162-001, 107163-001, 107164-001, 107165-001, 107166-001, 107167-001 Model difference : The different models are identical in schematic, structure and critical component, the only different is the appearance of the product. Power Supply : AC Adapter: Input: 100~240V 50/60Hz 1.6A Output: DC 12V 5A Connecting I/O Port(s) : Please refer to the User's Manual Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User’s Manual. 1.3 Block Diagram Showing the Configuration of System Tested Report No.: TB-FCC123753 Page: 4 of 23 TB-RF-074-1.0 1.4 Description of Support Units Name Model S/N Manufacturer Used “√” Printer HP1505n VNF3G06957 HP √ LCD Monitor E170Sc ---- DELL √ PC OPTIPLEX380 ---- DELL √ Keyboard L100 U01C DELL √ Mouse M-UARDEL7 ---- DELL √ 1.5 Description of Tes…

Text truncated - open the document above for the full version.

Report No.: TB-FCC123753 Page: 10 of 11 TB-RF-075-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (Charging Mode) Photo of Setup for Radiated Emission (Charging Mode) Report No.: TB-FCC123753 Page: 11 of 11 TB-RF-075-1.0 Photo of Setup for Conducted Emission Photo of Setup for Conducted Emission
