N5HG2MOUSE-TXCordless Computer Mouse

USER’S MANUAL EXCLUSIVELY FOR g2 CORDLESS MOUSE SYSTEM Model : 1113 PP MULTIMEDIA SDN. BHD.

TABLE OF CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Concept of g2 Cordless Mouse System . . . . . . . . . . . . . . . . . . . . . . 1 CONTENT OF PACKAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 SETUP AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . 3 System requirements . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 3 How to put the Batteries for g2 Cordless Mouse . . . . . . . . . . . . . . . 3 Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 SOFTWARE SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Loading the g2 Cordless Mouse Driver . . . . . . . . . . . . . . . . . . . . . . 5 Windows 3.1 and DOS Environment . . . . . . . . . . . . . . . . . . . . . 5 Windows 95 & Windows 91 Environment . . . . . . . . . . . . . . . . . 5 Procedure A: Direct Installation . . . . . . . . . . . . . . . . . . . . . . . . . 5 Procedure B: Using Plug and Play’s New Hardware Found . . . . 6 USING THE G2 CORDLESS MOUSE SYSTEM . . . . . . . . . . 7 PP Multimedia Sdn. Bhd., 1998 . All rights reserved. IBM XT, AT, 386, 486, PS/2, and IBM are registered trademarks and/or trademarks of International Business Machines Corporation. Windows’98, Windows’95 and Windows 3.1, DOS are the registered trademarks and /or trademarks of the Microsoft Corporation. IMATION SuperDisk is a registered trademark and/or trademarks of 3M Corporation. InstallShield is a registered trademarks and/or trademarks of InstallShield Corporation. All other trademarks are the property of their respective owners. Disclaimer: PP Multimedia shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, PP Multimedia reserves the right to change product specifications without notice. Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from PP MULTIMEDIA SDN. BHD., 1998.

g2 Cordless Mouse System User's Manual FCC REQUIREMENTS RADIO & TELEVISION INTERFERRENCE _______________________________________________________________ WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help. CAUTION: (a) Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. (b) Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits. g2 Cordless Mouse System User's Manual1 Introduction Welcome to the world of g2 Cordless Mouse System! Congratulations! Concept of g2 Cordless Mouse System. A major purpose of a mouse is to act as a pointer device to:
Position the cursor;
Highlight text for editing functions;
Select commands through the use of pop-up menus;
Double click the shortcuts; and also
Draw free-hand graphics or create line and shapes as you desire. With the tremendous increase of home users and electronics commerce worldwide through the internet and business networks, the messy wires linking your mouse and, the new generations of CPU has been built-in with LCD Monitor, have make us, PP Multimedia Sdn. Bhd. felt that the used of cordless mouse is a new trend and freedom to all users, to free ourselves from the tangled and hustled of wires in our workstation. You must agree that we always have to swing the wires of the mouse to avoid it to be somehow stuck.! Let's keep our workstation CLEAR and FREE! Now you can keep your g2 Cordless Mouse locked in your drawer after work! g2 Cordless Mouse System User's Manual2 Content of Package Before you start the setup and installation of your g2 Cordless Mouse, kindly ensure that you have all the following items in your package:
1 x g2 Cordless Mouse* Channel X(X indicates the Channel Number)
1 x g2 Receiver Channel X
1 x KCH’s PS/2 to Serial Port Adapter
1 x 3.5" G2 Cordless Mouse Driver Disk
1 x User's Manual X* G2 Cordless Mouse is a right hand design. Not Provided in this package are:-
2 x New 1.5 Volts AAA (UM-4) size of Alkaline (we strongly recommend) Batteries Please avoid using 2 different type or aging of batteries, as this may damage your g2 Cordless, they will affect the performance of your mouse. Preserve our Earth, Please Use Mercury Free Type of Batteries in Our Life! g2 Cordless Mouse System User's Manual3 Setup and Installation System requirements: In order to connect your g2 Cordless Mouse to your computer, you will need a minimum hardware and software configuration as follows:
An IBM PC with Windows ′98, Windows ′95, Windows 3.1 or DOS Compatible system
PC or MS-DOS Version 3.3 or later
One 3.5" Floppy Drive, or IMATION SuperDisk Drive or compatible
A PS/2 or an 9-Pin Serial (RS-232) mouse Port Your g2 Mouse Driver Software provides with this package will support any video display adapter up to Super VGA resolution. How to put the Batteries for g2 Cordless Mouse Kindly insert 2 pieces of 1.5 Volts of AAA (UM-4) size of Alkaline batteries (we recommend) into the battery compartment as follows: 1) Remove the Battery Cover of your g2 Cordless Mouse by sliding the cover downwards, as indicated on the mouse; 2) Insert the batteries according to the direction as indicated inside the compartment, ensure the + & - end have good contract with the batteries. 3) Closed the cover by sliding it upwards. Warning: As your g2 mouse will enter into sleeping mode once it is idle for 5 seconds. Always remove the batteries under the following circumstances:
Traveling (movement of mouse will consume the power of batteries)
Storage for a long period (to avoid battery leakage due to expiry) g2 Cordless Mouse System User's Manual4 Connecting the Hardware Connect your g2 Receiver to your computer's PS/2 mouse port or Serial port, which generally located at the rear panel of your system case. Check your manual or I/O card manual for more details. (a) PS/2 Type Plug the g2 Receiver's PS/2 cable into your computer's PS/2 mouse port, or (b) 9- Pin Serial Type Plug your KCH custom made adapter into your computer's 9-pin Serial port, hand tighten the screws, plug in the g2 Receiver's PS/2 cable into your KCH Adapter. Your computer may have more than one Serial Port conventionally identified as COM1, COM2, etc. You can connect the adapter to either COM1 or COM2. To ensure your SAFETY during the connection of g2 Receiver, kindly follow these instructions:
Turn OFF your computer completely.
Locate the PS/2 port or serial port you want to use (If you are replacing your existing ordinary wired mouse or trackball, that is the port).
Plug in accordingly. g2 Cordless Mouse System User's Manual5 Software Se…

Text truncated - open the document above for the full version.

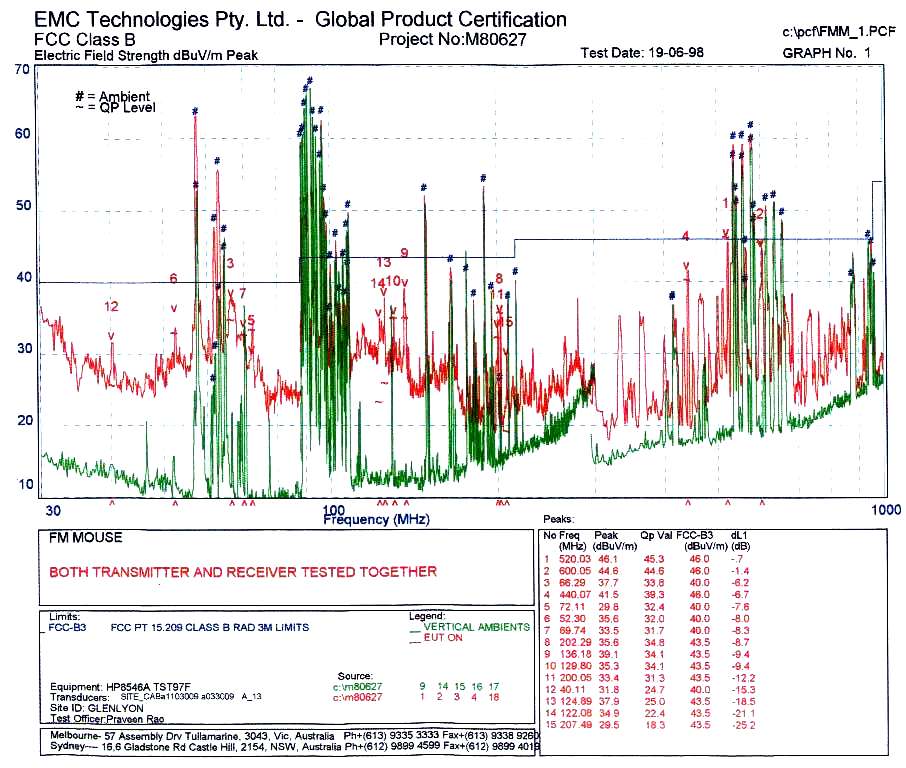

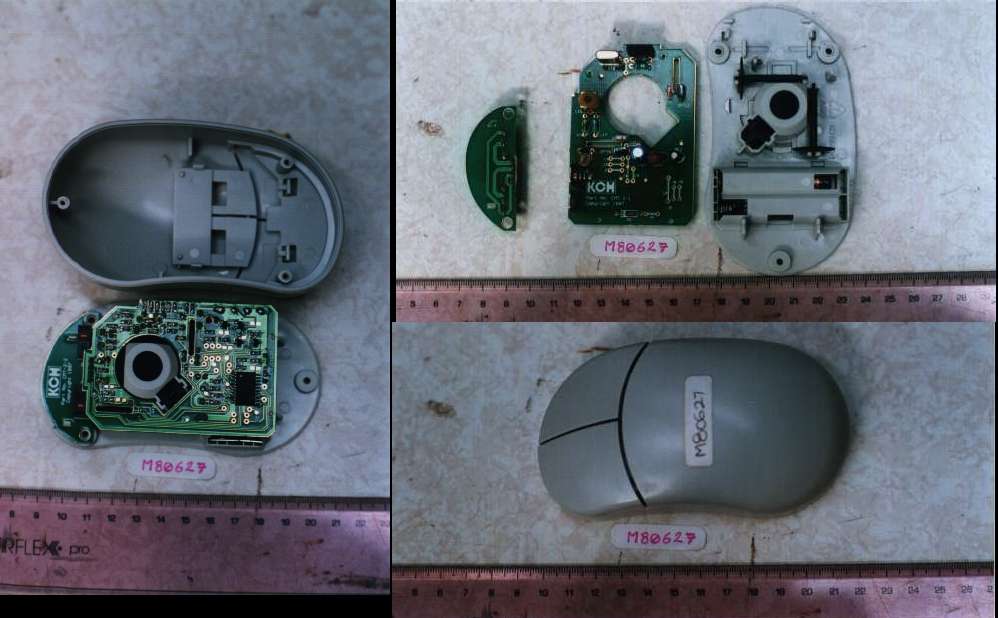

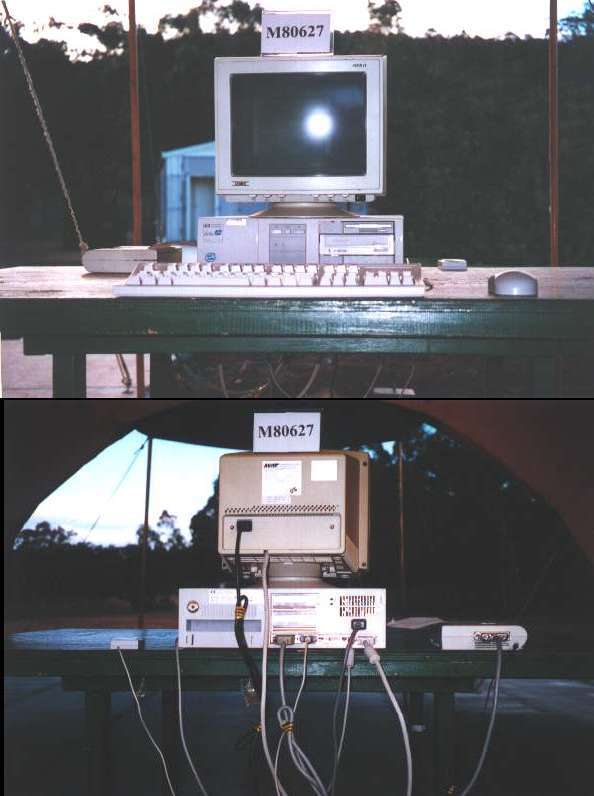

To:Federal Communications Commission4 th September 1998 Equipment Approval Services PO. Box 358315 Pittsburgh PA 15251-5315, USA From: Praveen Rao EMC Technologies Pty. Ltd. 57, Assembly Drive Tullamarine, Victoria 3043 Australia EMC Reference : M80627 Subject :FCC ID : N5HG2MOUSE-TX Form 731 Confirmation Number : EA91547 Dear Sir/Madam, Please find enclosed the following exhibits in conjunction with the FCC certification of the G2 CORDLESS COMPUTER MOUSE. 1. EMI test report------------------------------------------------ M80627Tx-1F 2. Test Sample Photographs------------------- ----------------- EXTPHOTO.JPG INTPHOTO.JPG 3. Test Sample Schematics/PCB Layouts and Parts List ---- SCHEMAT.DOC 4. FCC ID Labelling --------------------------------------------- IDLABEL.DOC 5. User’s Instructions Manual ---------------------------------- USERMAN1.DOC USERMAN2.DOC USERMAN3.DOC 6. Graphs of EMI Measurements ------------------------------ GRAPH1.JPG GRAPH2.JPG GRAPH3.JPG GRAPH4.JPG We trust that the information provided will allow you to expedite the approval. Please contact the undersigned by Fax on +613 9338 9260 or via Email : [email protected] if you require any further information. Yours Sincerely, Praveen Rao Laboratory Manager EMC Technologies Pty. Ltd.

Label of g2 Cordless Mouse Transmitter PP MULTIMEDIA g2 Cordless Mouse Model : 1113 Label 1 Channel : 1 S/N : Made In Malaysia FCC ID: N5HG2MOUSE-TX 1)This device may not cause harmful interference and, 2) This device must accept any interference received, including interference that may cause undesired operation Label 2 Label Location : Transmitter MOUSE bottom panel LABEL Battery Label 1 Label 2

Schematics for application N5HG2MOUSE-TX schematic #1 schematic #2 schematic #3 schematic #4 schematic #5 schematic #6 schematic #7 schematic #8 schematic #9 schematic #10 schematic #11

Page 1 of 14 EMI TEST REPORT for CERTIFICATION to FCC PART 15.227 TRANSMITTER FCC ID: N5HG2MOUSE-TX Manufacturer: PP Multimedia SDn. Bhd. Test Sample: G2 Cordless Computer Mouse Model: 1113 Report Number: M80627Tx-F Date: 28 th August 1998 FCC ID: N5HG2MOUSE-TX Report No. M80627Tx-1F Page 2 of 14 __________________________________________________________________________________ EMC Technologies Pty Ltd, 57 Assembly Drive Tullamarine, Vic 3043 Australia Phone: +613 9335 3333 Fax: +613 9338 9260 EMI TEST REPORT FOR CERTIFICATION TO FCC PART 15.227 TRANSMITTER FCC ID: N5HG2MOUSE-TX CERTIFICATION of COMPLIANCE with FCC PART 15 REGULATIONS. EMC Technologies Report Number: M80627Tx-1F Date: 28 th August 1998 CONTENTS 1. SUMMARY of TEST RESULTS 2. GENERAL INFORMATION 3. SYSTEM TEST CONFIGURATION 4. RADIATED EMI MEASUREMENTS 5. RADIATED EMI RESULTS 6. CONCLUSION APPENDIX A. INSTRUMENTATION CALIBRATION DETAILS APPENDIX B. TEST SAMPLE PHOTOGRAPHS. APPENDIX C. TEST SAMPLE CIRCUIT ASSEMBLY DIAGRAMS APPENDIX D. LABELLING - DRAWING AND LOCATION APPENDIX E. USER INSTRUCTION. APPENDIX F. GRAPHS of EMI MEASUREMENTS FCC ID: N5HG2MOUSE-TX Report No. M80627Tx-1F Page 3 of 14 __________________________________________________________________________________ EMC Technologies Pty Ltd, 57 Assembly Drive Tullamarine, Vic 3043 Australia Phone: +613 9335 3333 Fax: +613 9338 9260 EMI TEST REPORT FOR CERTIFICATION TO FCC PART 15.227 TRANSMITTER Report Number: M80627Tx-1F Test Sample: G2 Cordless Computer Mouse Model: 1113 FCC ID: N5HG2MOUSE-TX Manufacturer: PP Multimedia SDn. Bhd. 100M, Jalan SS21/39, Damasara Utama 47400 Petaling Jaya, Selangor, Malaysia Phone: + 603 718 3606 Fax: + 603 576 6119 Responsible Party: Charlie Chia Keng Chai Executive Director PP Multimedia Sdn. Bhd. Equipment Type: Intentional Radiator, Low Power Transmitter Test Standards: FCC Part 15 Section 227 Intentional Radiators. ANSI C63.4-1992 OET Bulletin No. 63, October 1993 Tested for: Quality Assurance Services Locked Bag 2032 Strathfield NSW 2135 Australia Phone : +612 9746 4900 Fax : +612 9746 8460 Test Dates: 19 th and 23 rd June 1998 Test Officer: Chieu Huynh Attestation:I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature:Praveen Rao Laboratory Manager EMC Technologies Pty Ltd FCC ID: N5HG2MOUSE-TX Report No. M80627Tx-1F Page 4 of 14 __________________________________________________________________________________ EMC Technologies Pty Ltd, 57 Assembly Drive Tullamarine, Vic 3043 Australia Phone: +613 9335 3333 Fax: +613 9338 9260 EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.227 REQUIREMENTS on the G2 Cordless Computer Mouse 1.0 SUMMARY of RESULTS. This report details the results of EMI tests and measurements performed on the G2 Cordless Mouse in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Rules for intentional radiators. The results and photographs of all the EUT are detailed in this report. The EUT complied with requirements for 15.227 at fundamental frequencies and spurious emissions of section 15.209. Transmitter Fundamental Frequency:Complied, margin of 35.8 dB. Transmitter Spurious:Complied, margin of 0.7 dB. The measurement procedure was in accordance with ANSI C63.4-1992, and OET Bulletin No. 63. The instrumentation conformed to these requirements. 2.0GENERAL INFORMATION 2.1 General Description of Test Setup Test Sample:G2 Cordless Computer Mouse Model: 1113 FCC ID: N5HG2MOUSE-TX Equipment Type: Intentional Radiator, Low Power transmitter 2.2 Technical Specifications Power Source: 2x AAA Batteries Frequency:Channel 1: 26.970 MHz Channel 2: 27.060 MHz Channel 3: 27.090 MHz Channel 4: 27.233 MHz Baud Rate:4800 bps Modulation:FSK Frequency Stabality:± 20ppm Accuracy:400 dpi Operating Temperature:-5º C ~ 60º Dimension:118.5 x 67 x 36.4 mm FCC ID: N5HG2MOUSE-TX Report No. M80627Tx-1F Page 5 of 14 __________________________________________________________________________________ EMC Technologies Pty Ltd, 57 Assembly Drive Tullamarine, Vic 3043 Australia Phone: +613 9335 3333 Fax: +613 9338 9260 2.3 Test Sample Functional Description. The EUT is a 2 x AAA battery operated short range remote Wireless external Mouse . The Mouse is designed to be factory configured in four channels and the channels cannot be changed by the end user. A receiver module is connected to the Mouse port of a personal computer. The Superheterodyne receiver is undergoing the notification process in conjunction with this application. 2.4 Test Procedure Radiated emissions measurements were performed in accordance with the procedures of ANSI C63.4-1992. Radiated emission tests were performed at an EUT distance of 3 metres. OET Bulletin 63 dated October 1993 was used for reference. 2.5 Test Facility • FCC Registration Radiated Emission measurements were performed at EMC Technologies open area test site (OATS) situated near the town of Glenlyon, Victoria, Australia. The above site has been fully described in a report submitted to the FCC office, and accepted in a letter dated September 24, 1996 FCC file reference 31040/SIT 1300F2. 2.6 Units of Measurements Radiated Emissions Measurements are reported in units of dB relative to one microvolt per metre (dB μ V/m) at a distance of 3 metres from the EUT. 2.7 Test Equipment Calibration All measurement instrumentation and transducers were calibrated in accordance with the applicable standards by an independent NATA registered laboratory such as Hewlett- Packard Australia Limited. All equipment calibration is traceable to Australia national standards at the National Measurements Laboratory (NML). The reference antenna calibration was performed by NML and the working antennas (biconical and log- periodic) calibrated by the direct comparison method. The complete list of test equipment used for the measurements, including ca…
