Coffee Cup Bluetooth Speaker Model : SP-1078 User Guide Enjoy your music wirelessly in great sound quality 1 Features Accessories  Y cable X 1  User guide For first use Although the battery is partially charged at the factory, it is important to fully charge the battery before first use. Charging battery with Y cable 1. Connector MicroUSB cable to speaker 2. Plug Type A male USB connector to USB female socket 3. LED indicator light will turn to red while charging and turn off when charging is completed. Operation mode select OFF: Power off mode BT: Bluetooth mode AUX: AUX in mode Internal Microphone MicroUSB socket for AUX in and Battery charging LED indicator 2 Note: Battery low , LED indication Red and play notice sound every 20 seconds. Note: The battery charging can work at all operation modes. Power on and Pairing 1. Switch operation mode to Bluetooth mode 2. Speaker is now enter the pairing mode, please refer to your Bluetooth device manual for pairing operation Pairing ID is SP-1078 Password is 0000 Bluetooth mode *Using hands free function When using phone to answer the call, you could answer through this speaker microphone. Note: If pairing fail, please switch to Bluetooth mode again. AUX in 1. Switch operation mode to AUX in mode MicroUSB TypeA USB USB socket of PC / Laptop OR USB adapter Connect to 3 2. Speaker is now enter the AUX in mode, please connect speaker to audio device. FCC Caution: "Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment." FCC Statement: "This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help." Connect to audio device for example MP3 player, Tablet, Mobile phone, etc... 4

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 4.0 Accesspro Electronics Co., Ltd. ( 2014/07/01) To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, __ Accesspro Electronics Co., Ltd. __hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name) Product： Bluetooth speaker Model Name： SP-1078 Trade name: N/A FCC ID： N5MSP-1078 Sincerely, Date: 2014/07/01 Name: James Wu Title: Manager Tel: +886-2- 87896760 Company: Accesspro Electronics Co., Ltd. Address: Room 3B27, 3F. No. 5, Sec.5 , Hsin Yi Road, Taipei, Taiwan SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 4.0

Accesspro Electronics Co., Ltd. 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 Accesspro Electronics Co., Ltd. 2014/07/01 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: N5MSP-1078 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Date: 2014/07/01 Name: James Wu Title: Manager Tel: +886-2- 87896760 Company: Accesspro Electronics Co., Ltd. Address: Room 3B27, 3F. No. 5, Sec.5 , Hsin Yi Road, Taipei, Taiwan SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0

Accesspro Electronics Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2014/07/01 SUBJECT: FCC Application for ( FCC ID: N5MSP-1078) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to -government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Date: 2014/07/01 Name: James Wu Title: Manager Tel: +886-2-87896760 Company: Accesspro Electronics Co., Ltd. Address: Room 3B27, 3F. No. 5, Sec.5 , Hsin Yi Road, Taipei, Taiwan

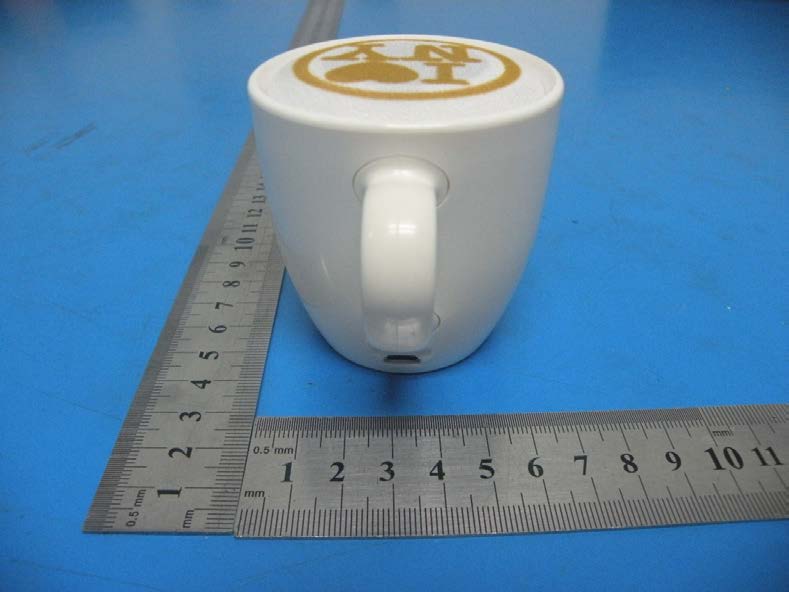

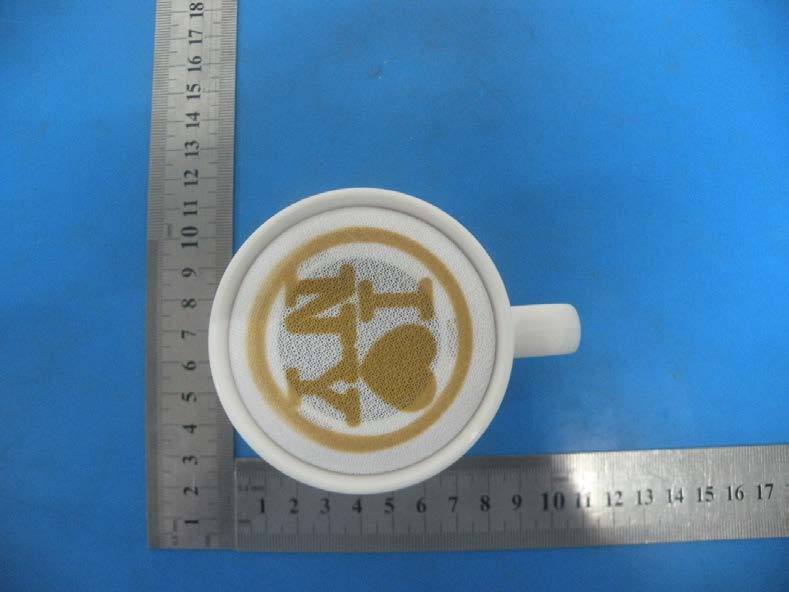

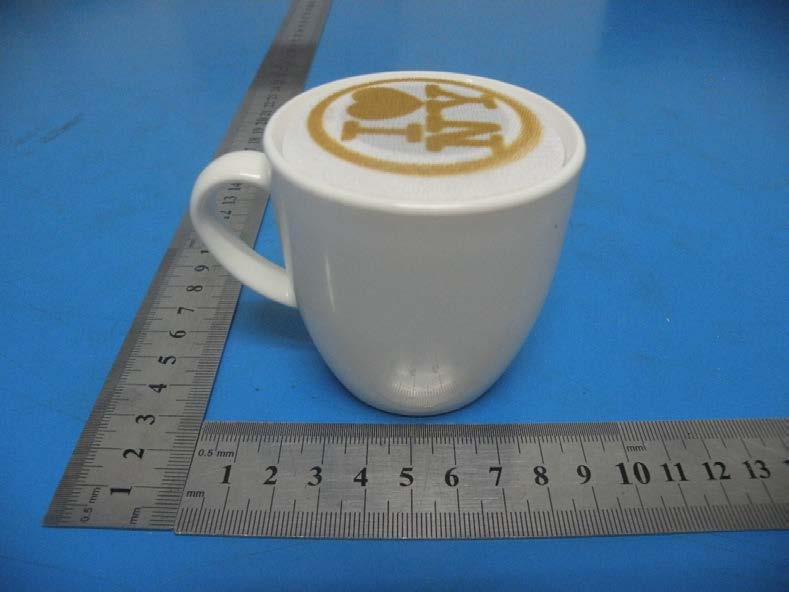

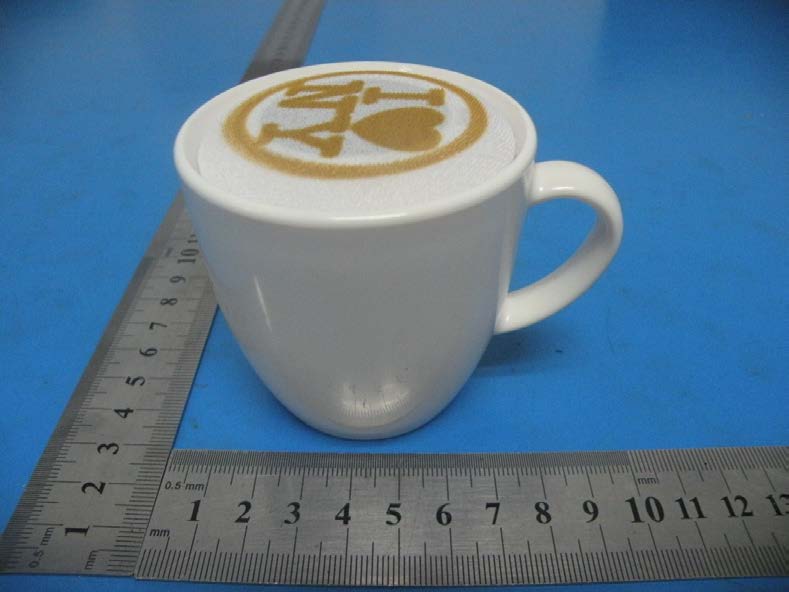

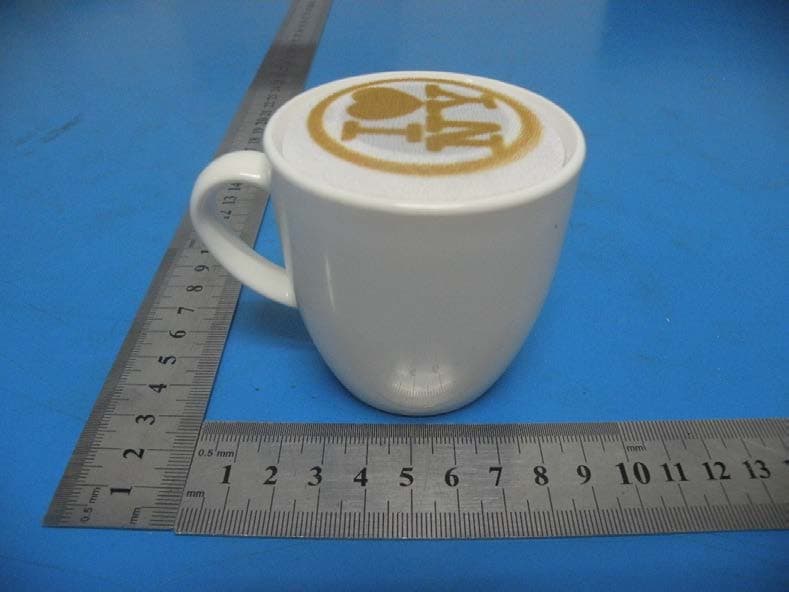

Full View Top View Bottom View Rear View Left View Right View Front View

Label: Label Location FCC ID: N5MSP-1078 Accesspro Electronics Co., Ltd. Model No.: SP-1078 Model name: Bluetooth speaker This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To p Vi e w To p Vi e w Antenna Bottom View

FCC ID: N5MSP-1078 RF EXPOSURE TEST FCC ID: N5MSP-1078 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: N5MSP-1078 Maximum measured transmitter power. GFSK frequency range (MHz) Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) Exclusion Thresholds Results Limit 2402 1.98 1.58 0.490 3.0 2441 1.84 1.53 0.478 3.0 2480 1.87 1.54 0.485 3.0 Conclusion: No SAR is required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] f(GHz) is the RF channel transmit frequency in GHz  Distance=5mm 8-DPSK frequency range (MHz) Maximum Peak Conducted Output Power (dBm) Maximum Conducted Output Power (mW) Exclusion Thresholds Results Limit 2402 1.52 1.42 0.440 3.0 2441 1.41 1.38 0.431 3.0 2480 1.45 1.40 0.441 3.0 Conclusion: No SAR is required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] f(GHz) is the RF channel transmit frequency in GHz  Distance=5mm

FCC RADIO TEST REPORT FCC ID: N5MSP-1078 Product： Bluetooth speaker Trade Name： N/A Model Number： SP-1078 Serial Model： N/A Report No.： BZT-2014NT0626144F Prepared for Accesspro Electronics Co., Ltd. Room 3B27, 3F. No. 5, Sec.5 , Hsin Yi Road, Taipei, Taiwan Prepared by BZT Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Page 2 of 69 Report No.: BZT-2014NT0626144F TEST RESULT CERTIFICATION Applicant’s name ............ Accesspro Electronics Co., Ltd. Address ............................. Room 3B27, 3F. No. 5, Sec.5 , Hsin Yi Road, Taipei, Taiwan Manufacture's Name ....... Accesspro Electronics Co., Ltd. Address ............................. Shan Sha Village Industry Zone, Heng Li Town Product description Product name ...................... Bluetooth speaker Model and/or type reference ......................... SP-1078 Serial Model： N/A Ratings DC 5V From PC with AC 120V/50Hz or DC 3.7V from Battery Standards ......................... FCC Part15.247 Test procedure .................... ANSI C63.4-2 003 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test .......................................... Date (s) of performance of tests ............ 27 June. 2014 ~31 June. 2014 Date of Issue ......................................... 01 July . 2014 Test Result ............................................. Pass Testing Engineer : (Lynn Chen) Technical Manager : (Carlen Liu) Authorized Signatory : (To m m y zhang) Page 3 of 69 Report No.: BZT-2014NT0626144F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 30 4 . NUMBER OF HOPPING CHANNEL 46 4.1 APPLIED PROCEDURES / LIMIT 46 4.1.1 TEST PROCEDURE 46 4.1.2 DEVIATION FROM STANDARD 46 4.1.3 TEST SETUP 46 4.1.4 EUT OPERATION CONDITIONS 46 4.1.5 TEST RESULTS 47 Page 4 of 69 Report No.: BZT-2014NT0626144F Table of Contents Page 5 . AVERAGE TIME OF OCCUPANCY 49 5.1 APPLIED PROCEDURES / LIMIT 49 5.1.1 TEST PROCEDURE 49 5.1.2 DEVIATION FROM STANDARD 49 5.1.3 TEST SETUP 49 5.1.4 EUT OPERATION CONDITIONS 49 5.1.5 TEST RESULTS 50 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 54 6.1 APPLIED PROCEDURES / LIMIT 54 6.1.1 TEST PROCEDURE 54 6.1.2 DEVIATION FROM STANDARD 54 6.1.3 TEST SETUP 54 6.1.4 EUT OPERATION CONDITIONS 54 6.1.5 TEST RESULTS 55 7 . BANDWIDTH TEST 60 7.1 APPLIED PROCEDURES / LIMIT 60 7.1.1 TEST PROCEDURE 60 7.1.2 DEVIATION FROM STANDARD 60 7.1.3 TEST SETUP 60 7.1.4 EUT OPERATION CONDITIONS 60 7.1.5 TEST RESULTS 61 8 . PEAK OUTPUT POWER TEST 65 8.1 APPLIED PROCEDURES / LIMIT 65 8.1.1 TEST PROCEDURE 65 8.1.2 DEVIATION FROM STANDARD 65 8.1.3 TEST SETUP 65 8.1.4 EUT OPERATION CONDITIONS 65 8.1.5 TEST RESULTS 66 9 . ANTENNA REQUIREMENT 67 9.1 STANDARD REQUIREMENT 67 9.2 EUT ANTENNA 67 10 . EUT TEST PHOTO 68 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 69 Report No.: BZT-2014NT0626144F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 69 Report No.: BZT-2014NT0626144F 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 69 Report No.: BZT-2014NT0626144F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Bluetooth speaker Trade Name N/A Model Name SP-1078 Serial Model N/A Model Difference N.A Product Description The EUT is a Bluetooth speaker Operation Frequency: 2402~2480 MHz Modulation Type: FHSS Bit Rate of Transmitter GFSK(1Mbps), π/4 DQPSK(2 Mbps), 8-DPSK(3Mbps) Number Of Channel 79 CH Antenna Designation: Please see Note 3. Antenna Gain(Peak) 0dBi Output Power(Conducted): 1.98 dBm (Max.) EIRP： 2.98 dBm(Max.)…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber Conducted Emission Test Setup
