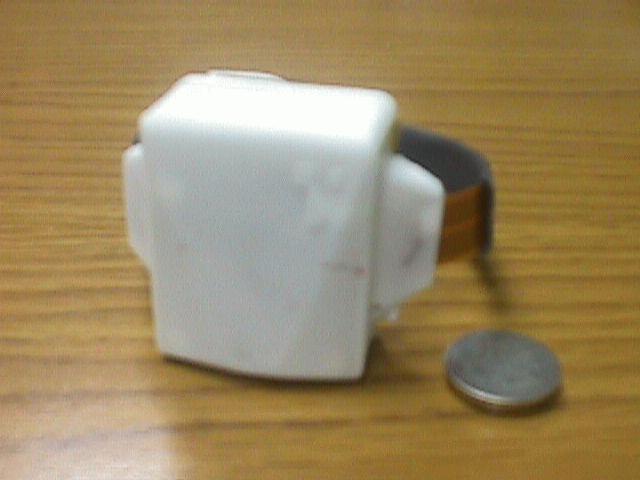

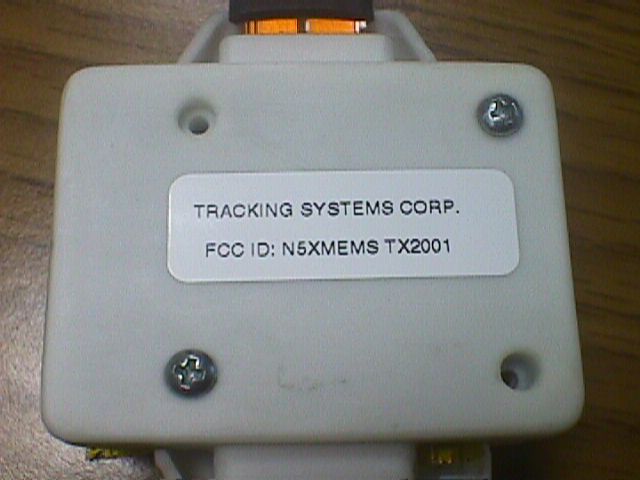

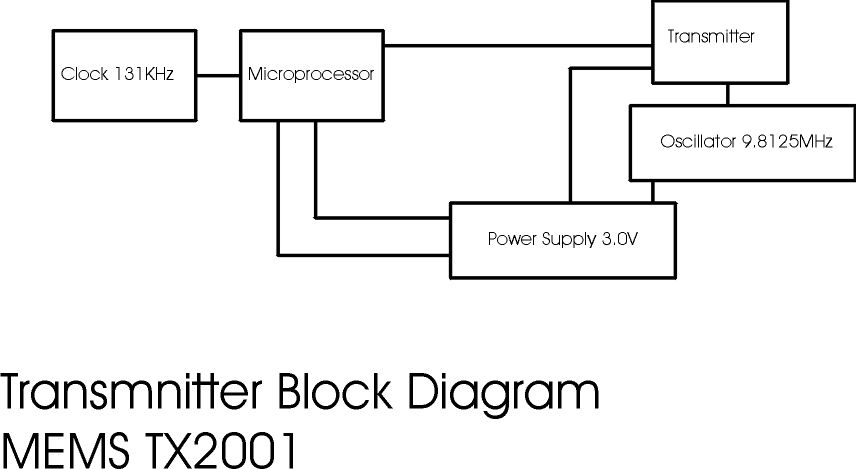

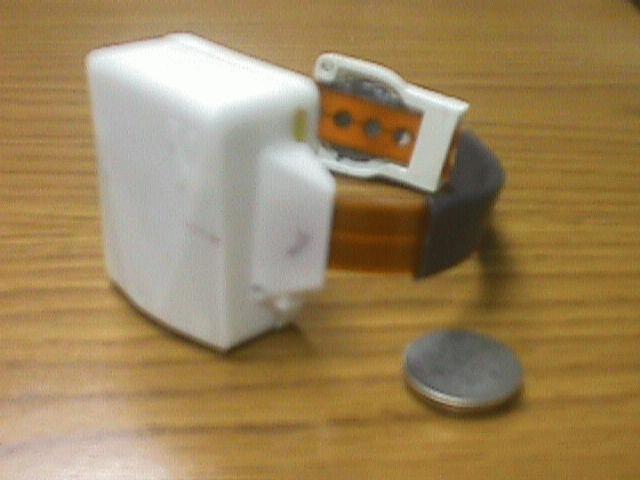

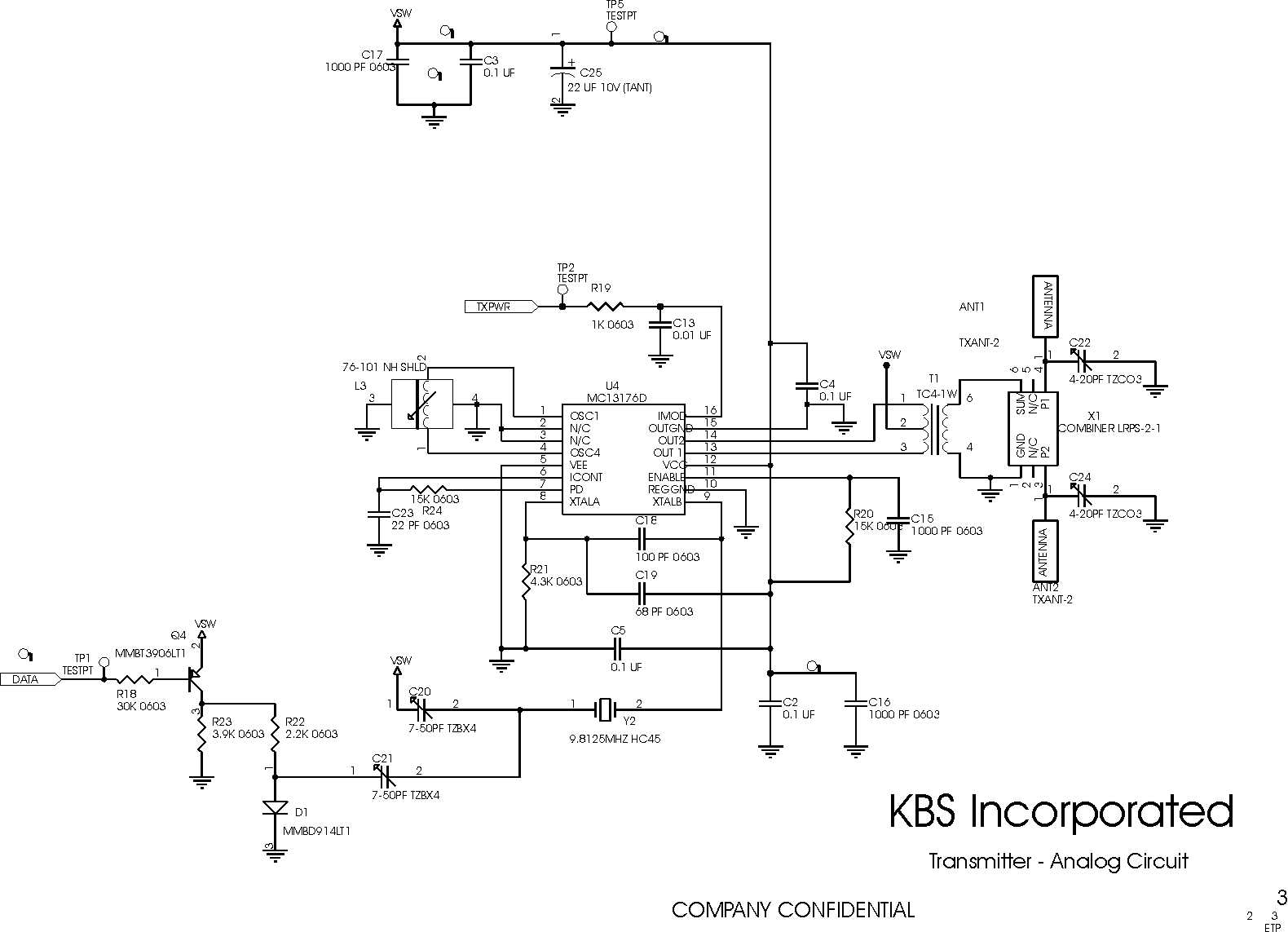

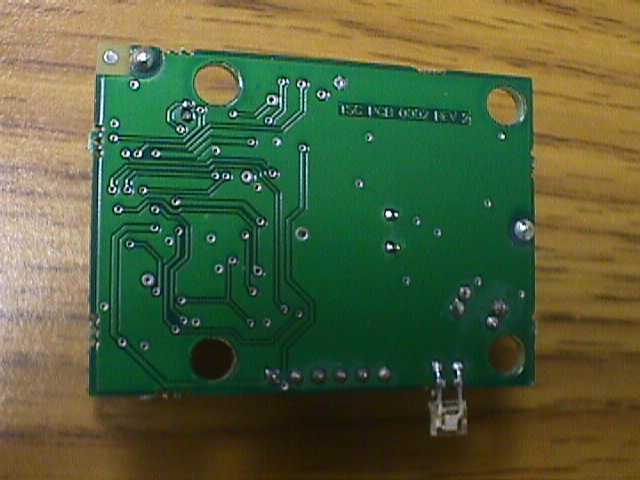

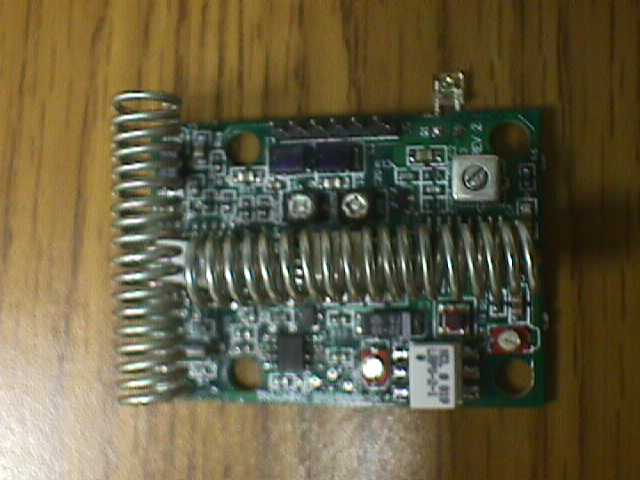

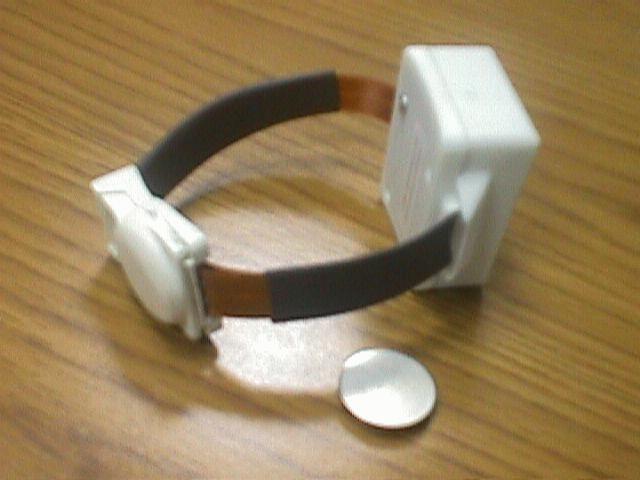

N5XMEMSTX2001Home Detention System

1 Introduction This manual details the installation of the RF Only Monitoring System in the home of a client. Installer Tools The following tools and resources simplify the installation process: • .Administrator Key • .Fiber-optic cable • .Base Unit LED Indicators • .Base Unit Buzzer. · Status Indicators The Base Unit LED indicators and buzzer provide the installer with system status information. There are three LED indicators labeled Power, Status, Busy. The meaning of each indicator and buzzer code is outlined below: BUZZER FUNCTION1 BEEP 2 BEEPS a.Valid Transmission ( Diagnostic mode ) b. Key turned to Diagnostic. Key turned to On. LED FUNCTIONSOLID ONFLASHINGOFF Power (green )AC power goodNo AC, battery poweredNo AC, Base Unit shut down. Status ( yellow )Transmitter in range * ( optional ) System tampered (Transmitter and/or Base Unit) Transmitter out of range* ( optional ) Busy (red )Telephone line in useTelephone line problem (e.g. disconnect, multiple phones off- hook) Telephone line free * If the system is tampered the Transmitter-in-range status is indicated by a flashing Status LED that is predominantly on ( on for at least 5 seconds ). Transmitter-out-of-range is indicated by a flashing Status LED that is predominantly off (off for at least 5 seconds ). a. Install Transmitter a. Identify Components ( Refer to Fig. 2 ) The Transmitter kit contains the following items: • .Transmitter/Strap assembly • .Battery • .O-Ring • .Clasp. · Attach to Client To attach the Transmitter to the client Place the Transmitter/Strap assembly around the narrow part of the client’s leg, just above the ankle 2 1.Thread the free end of the strap through the slot in the battery holder 2.Choose an eyelet in the strap that makes a comfortable, secure fit and slide the notch on the battery holder through the eyelet 3.Place a battery, positive (+) side up, into the battery holder and add an o-ring to the holder 4.Hinge the Clasp on the slots provided on the battery holder and snap it shut over the battery. 5. Install Base Unit The Base Unit kit consists of • .A Base Unit • .One Administrator Key • .One 12 foot telephone cord • .One Class 2 power supply · Locate Base Place the Base unit on a sturdy surface located at least 30 inches above the floor. The chosen location must be close enough to both power and telephone wall outlets to allow safe connection. Keep the following points in mind when choosing a location for the Base Unit: • .If possible, choose a central location within the dwelling • .Do not place the unit beside or on top of large metal objects such as refrigerators, stoves and other appliances • .Keep the unit away from sources of interference such as television sets and microwave ovens. · Power Base ( Refer to Fig. 1 ) To prepare the Base Unit for client monitoring 1.Connect the class 2 power supply between the Base Unit Power connector and the AC wall outlet . All three LED indicators will be lit momentarily then flash off after the buzzer sounds. The LEDS will then turn on sequentially from top (Power Led ) to bottom, as part of a self test. At the end of a successful self test, the green Power LED will remain on 2.Connect the telephone cord between the Base Unit’s Line connector and the telephone wall outlet 3.Connect the client supplied telephone to the Phone connector of the Base unit. Take the telephone receiver off-hook and make sure a dial tone is present 4.Place the Base Unit in Diagnostic mode by changing the position of the Key Switch to the first position in a clockwise direction from the Off position. Diagnostic mode is indicated by a single beep from the Base Unit 5.connect the fiber-optic cable between the Base Unit’s Fiber connector and the transmitter’s programming window 6.Call the monitoring center and have them program the Base Unit and reset the transmitter. 6. Optimize RF Link Disconnect the fiber-optic cable once the monitoring center indicates successful programming of the Base Unit and transmitter. Perform a range test by instructing the client to walk into the various areas of the dwelling. The Base Unit will emit a beep for each transmission it receives, approximately once every 20 seconds. Move the Base Unit and/or call the monitoring center to vary the Base Unit’s range if necessary. 3 Complete Installation To complete the system installation 7.Turn the key-switch clockwise to the On position ( Base Unit beeps twice ). 8.Remove the Administrator key. 9.Instruct the client on the use of the system. 3. System Removal To remove the system 10. Inform the monitoring center 11. Use a pair of snips to cut the snaps off the Transmitter Battery Clasp. Do not cut the strap! 12. Remove the Clasp and pull the perforated end of the strap out of the Battery Holder 13. Using the Administrator Key, turn the key switch counter-clockwise to the Off position 14. Disconnect the Class 2 power supply, telephone and telephone cord 15. Return all system components to their appropriate packaging. 0 Front Back Fig. 1 Base Unit 4 0Fig. 2 Transmitter Kit NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver. 5
. Connect the equipment into an outlet on a cir…

Text truncated - open the document above for the full version.

EXHIBIT A INFORMATION SUPPLIED TO THE USER This Device Complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION SUPPLIED TO USER EXHIBIT A

---- KBS CONFIDENTIAL ---- KBS Incorporated RF Only Monitoring System Project RFOnlsp4.doc17/16/01 RF Only Monitoring System Specifications RF Only Monitoring System Prepared by: KBS Incorporated 1498 NW 3 rd Street Deerfield Beach, FL Release:June 5, 1998 Version:E.01.06 Acceptance Sign-off ________________________________________________________ TSC RepresentativeKBS Representative __________________________________ DateDate This document contains information of a proprietary nature and is classified KBS Confidential. All information contained herein shall be kept in confidence. None of this information shall be divulged to persons other than KBS employees authorized by the nature of their duties to receive such information, or individuals or organizations authorized by KBS Incorporated in accordance with existing policy regarding release of company information. Reverse engineering of any or all of the information in this document is prohibited. ---- KBS CONFIDENTIAL ---- KBS Incorporated RF Only Monitoring System Project RFOnlsp4.doc27/16/01 Change History DateChange Description 06-05-1998Updated per Addendum from TSC 03-06-1998Revised per conference with Eric Hanselman & John Sciortino 02-10-1998Revised per conference call with Eric Hanselman 09-22-1997Revised per TelCon with Eric Hanselman 08-20-1997Revised Baud rate, Tilt time 07-29-1997Original document ---- KBS CONFIDENTIAL ---- KBS Incorporated RF Only Monitoring System Project RFOnlsp4.doc37/16/01 TABLE OF CONTENTS 1. RF ONLY MONITORING SYSTEM INTRODUCTION6 2. RF ONLY MONITORING SYSTEM GENERAL DESCRIPTION6 3. RF ONLY MONITORING SYSTEM FEATURES7 3.1. The Product Feature Set7 3.2. The Product Feature Set Not Included7 4. MONITOR UNIT7 4.1. Monitor Indicators8 4.2. Monitor Telephone Interface9 4.3. Monitor Functions9 5. MONITOR UNIT MODES10 5.1. Monitor Unit Off Mode10 5.2. Monitor Unit Diagnostic Mode11 5.3. Monitor Unit On Mode11 6. RF ONLY MONITORING SYSTEM NORMAL OPERATION11 6.1. Event Control11 6.2. Client Transmitter Monitoring11 6.3. Spurious Transmission Monitoring12 6.4. AC Power Monitoring12 6.5. Battery Charging13 6.6. Monitor Unit Tilt Monitoring13 6.7. Telephone Line Monitoring13 6.8. Telephone Line Control13 ---- KBS CONFIDENTIAL ---- KBS Incorporated RF Only Monitoring System Project RFOnlsp4.doc47/16/01 7. TRANSMITTER UNIT15 7.1. Transmitter Functions15 8. CENTRAL STATION COMMUNICATION17 TABLE 1 -- MONITOR SYSTEM EVENTS19 9. RF ONLY MONITORING SYSTEM TEMPERATURE RANGE20 9.1. Transmitter Unit20 9.2. Monitor Unit20 10. RF ONLY MONITORING SYSTEM MECHANICAL DESIGN20 10.1. General20 10.2. Dimensions21 10.3. Monitor Unit Features21 10.4. Graphic Printing21 10.5. 3-Position Key Switch22 10.6. Feet22 10.7. Phone Cord22 11. RF ONLY MONITORING SYSTEM ELECTRICAL23 11.1. Unit Power23 11.2. Memory23 11.3. Antenna23 12. RF ONLY MONITORING SYSTEM REGULATORY REQUIREMENTS23 13. RF ONLY MONITORING SYSTEM RELIABILITY REQUIREMENTS23 13.1. Elevated Temperature Operation24 13.2. Storage Temperature Cycling24 13.3. Humidity24 ---- KBS CONFIDENTIAL ---- KBS Incorporated RF Only Monitoring System Project RFOnlsp4.doc57/16/01 13.4. Drop24 13.5. Vibration24 13.6. Electrostatic Discharge25 13.7. Ink Wear25 13.8. Flammability25 TABLE 2 - PHYSICAL & ELECTRICAL SPECIFICATIONS26 ---- KBS CONFIDENTIAL ---- KBS Incorporated RF Only Monitoring System Project RFOnlsp4.doc67/16/01 1. RF Only Monitoring System Introduction This specification represents the technical description of the RF Only Monitoring System Project. The design must conform to current technology standards and utilize components with standard 8-16 week vendor delivery lead times. The system must be efficient to manufacture with a minimum of technical overhead required. The remainder of this document describes the RF Only Monitoring System up to host protocol. The Host Monitoring Service software will not be described in this document. 2. RF Only Monitoring System General Description The RF Only Monitoring System product is a desktop unit and RF transmitter specifically designed for monitoring a client’s movement in and out of a defined area. The RF Only Monitoring System is designed to electronically collect the client movement as well as the system statuses. The RF Only Monitoring System contains multiple microcontrollers which perform the participant tracking, automatic system diagnostics and event reporting. The RF Only Monitoring System consists of two major components, the Monitor Unit and the Transmitter Unit. The Monitor Unit will store and automatically report the presence or absence of the individual by virtue of an RF (radio frequency) link between the Monitor Unit and the Transmitter Unit. The RF Only Monitoring System is designed to detect if system maintenance is needed or client has tampered with the unit. This information, stored in the RF Only Monitoring System, will be made available to a Host Monitoring Service via connection over a standard telephone line. Information to and from the RF Only Monitoring System is uploaded and downloaded through modem communication over the standard telephone line in a client’s home. While the client is at home, the Monitor Unit continually supervises the confinement of the client. The Transmitter Unit, which is worn by the user, regularly transmits a unique identifier sequence for the client. The Transmitter signal is designed to discourage duplication or tracing. The Transmitter Unit is hardened, watertight and is expected to survive the harsh environment associated with securing upon the client’s extremity. Yet the unit is comfortable enough to be worn for a year or more. The RF Only Monitor System product will be low-cost. The target cost for the Monitor and Transmitter Units is $400 in large quantities. ---- KBS CONFIDENTIAL ---- KBS Incorporated RF Only Monitoring System Project RFOnlsp4.doc77/16/01 3. RF Only Monitoring System Features 3.1. The Product Feature Set The RF Only Monitoring System will contain the following feature…

Text truncated - open the document above for the full version.

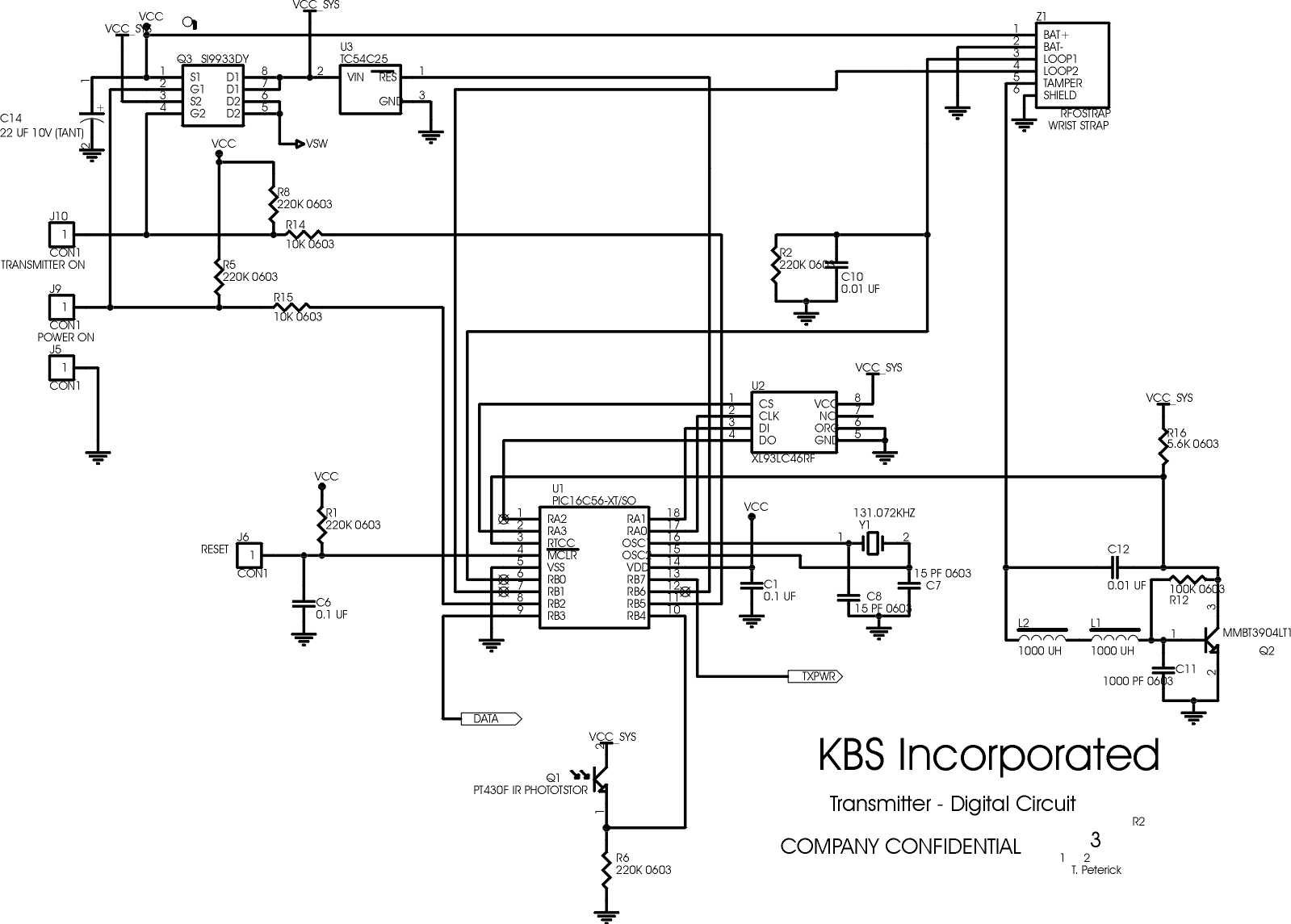

1 EMI Research and Development Laboratory Department of Electrical Engineering Florida Atlantic University Boca Raton, Florida 33431 (561) 338-1650 Technical Report No. 98-058 "EMI Evaluation of the KBS, Inc. TSC 002 Transmitter to FCC "B" Radiated Emission Requirements" Performed: 26 August 1998 Customer: KBS Inc. Attn: Thomas Peteric 1498 NW 3rd. Street Deerfield Beach, Florida 33442 Company Official responsible for product(s) tested: _____________________________ Thomas Peteric Tel. (954) 360-7200 ext 284 Performed by: Patrick D. Satchell Reported by: _______________________________ Patrick D. Satchell FAU EMI R & D Laboratory Approved by: ________________________________ Vichate Ungvichian ,Ph.D., P.E. Director, FAU EMI R & D Laboratory KBS, Inc. Technical Report 98-058 1. INTRODUCTION The KBS, Inc. Technical Report 98-058 2 The KBS, Inc.TSC 002 Transmitter operating at 314 MHz was evaluated and the duty cycle was given as 21% ( 0.021/0.1). The Average value was calculated by using the formulae indicated on Pages 4 and 5 of this report. The results reported in this 7 page document apply only to the specific items of equipment, configurations, and procedures supplied to the Florida Atlantic University EMI Research Laboratory by The Audio Group, Inc. under the test conditions listed herein. 2. OBJECTIVE This evaluation was performed to verify conformance of the TSC 002 Transmitter with reference to the U.S. Federal Communications Commission (FCC) Code of Federal Regulations (CFR), Title 47 - Telecommunication, Part 15 - Radio Frequency Devices, Subpart C - Intentional Radiators, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. 3. CONCLUSION The KBS, Inc. TSC 002 Transmitter met the FCC Class "B" radiated requirements as described in the following pages. 4. TEST PROCEDURES AND RESULTS 4.1 TEST PROCEDURES The measurement techniques identified in measurement procedure ANSI C63.4-1992 "American National Standard of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz" were followed as close as practical during this evaluation. Complete details and specific procedures used in this evaluation are discussed in the Tests Results section. It should be noted that The KBS, Inc. had discussed this device with FCC personnel (Mr. Tom Phillips) as indicated in page 7 of this report. The calculated average value was lower than the peak value due to the duty cycle as indicated in Pages 4 and 5 of this report. The KBS, Inc. Technical Report 98-058 3 4.2 TEST RESULTS 4.2.1 RADIATED EMISSIONS The KBS TSC 002 Transmitter unit was placed on the wooden table 80 centimeters above the ground plane floor of the FCC listed Semi-Anechoic test site. Photographs 1 and 2 show the physical configuration that produced the worst case emissions from the unit. For the fundamental (314 MHz) frequency, an EMCO 1385 Log Periodic Antenna was position 3 meters from the unit. the received signal was fed directly to the HP 8566B Spectrum Analyzer. The analyzer was operated with a resolution video bandwidth of 1 MHz through the HP 8650A Quasi Peak Adapter that was in normal mode. For second and third harmonic (628 MHz and 942 MHz) frequencies, an EMCO 3185 Log Periodic Antenna was positioned 3 meters from the unit. The received signal was fed through an HP 8447D Amplifier and displayed on the HP 8566B Spectrum Analyzer. The analyzer was operated with a resolution and video bandwidth of 1 MHz through the HP 85650A Quasi Peak Adapter that was in normal mode. The Spectrum Analyzer was operated in the "peak" detector mode at all times with 'Trace A' in 'Max Hold' and 'Trace B' in 'Clear Write'. The turntable was then rotated 360 degrees and the antenna scanned in height from 1 to 4 meters until the maximum emission level was observed. This procedure was repeated with the antenna in both the horizontal and vertical polarizations and with the "TSC 002 Transmitter" unit in the two orthogonal axis orientations. For spurious (harmonic) emission frequencies above 1 GHz, an EMCO 3115 Double Ridged Guide Antenna was positioned 3 meters from the unit. The received signal was fed through an HP 83017A Amplifier and a low loss heliax cable to the HP 8566B Spectrum Analyzer. The spectrum analyzer was operated with a resolution bandwidth of 1 MHz and video bandwidth on Auto in the "peak" detector mode with 'Trace A' in 'Max Hold' and 'Trace B' in 'Clear Write'. The turntable was again rotated and the antenna scanned in height for the maximum emission level in both horizontal and vertical polarizations with the "TSC 002 Transmitter" unit oriented in the two orthogonal axis positions. Tables 1 and 2 show the antenna induced voltage (dBuV) at the spectrum analyzer with the respective cable loss (dB), amplifier gain (dB), and antenna factors (dB) used to determine the field intensity (dBuV/m and uV/m) level at each frequency for both antenna polarizations and unit positions. The KBS, Inc. Technical Report 98-058 4 TABLE 1. FIELD STRENGTH - SIDE ORIENTATION FREQ MHz ANT. POL. PEAK Reading . dBuV C.L. dB G.A. dB A.F. dB Calculate d Peak value dBuV/m Average Value uV/m Allowable Limit uV/m 314VERT47.62.3N/A13.963.8325.32,399 314HOR50.62.3N/A13.966.8459.42,399 628VERT60.63.526.618.956.4138.7240 628HOR60.63.526.618.956.4138.7240 942VERT44.54.626.621.944.334.5240 942HOR43.64.626.621.943.431.1240 1,256VERT53.76.532.030.558.7180.8240 1,256HOR51.36.532.030.556.3137.2240 1,570VERT45.47.131.231.152.487.5240 1,570HOR45.77.131.231.152.790.6240 1,884VERT46.57.731.033.957.1150.4240 1,884HOR44.37.731.033.954.9116.7240 2,198VERT42.58.129.734.555.4123.7240 2,198HOR40.58.129.734.553.498.2240 2,512VERT40.08.629.534.453.599.4240 2,512HOR39.48.629.534.452.992.7240 2,826VERT39.89.029.535.955.2120.8240 2,826HOR39.79.029.535.955.1119.5240 3,140VERT38.49.427.736.656.7143.6240 3,140HOR39.09.427.736.657.3153.9240 IND. dBuV + C.L.dB - G.A.dB + A.F.dB = TOTAL dBuV/m IND. dBuV = Indu…
