N6QMJCAMERAIP Camera

I. I. I. I.Login Login Login LoginScreen Screen Screen Screen a、YoucanchooseIE、Firefoxorothermobiledevicestoviewthevideo： b、ForIEbrowser,pleasedownloadandinstalltheActiveX,afterthat,youcanviewthe video. c、Languageselection（whenchoose“Auto”,itwillautomaticallybecompatiblewith yourcomputerlanguage）： II. II. II. II.Live Live Live LiveVideo Video Video Video a.Clickthebutton:”Home”buttonatleft,wecanbacktopreviousinterface.。 b.Atright,therearemulti-livesetting,pan/tilt,imagesetting,two-wayaudio,videorecord, snapshotbutton. 1. 1. 1. 1.Multiple Multiple Multiple MultipleChannels Channels Channels ChannelsSelection Selection Selection Selection a、Pleaseaddyourdevicesbasedonthequantityyouhavebeforeselectingmulti-livedevices, redarrowareaisfordifferentcamerasyouhave. b、Redarrowdirectingareaisfor1,4,9windows. c、Selecttherelatedcamera,youcouldmakesnapshots,recordingorsettings. 2. 2. 2. 2.PTZ PTZ PTZ PTZand and and andPreset Preset Preset PresetPosition. Position. Position. Position. a.Up,down,left&rightarrowisforcontrollingthepan/tilt,doublearrowsandringarrowisused forcruising. b.Sstandsforpresetposition,clickitthenyouwillseethepresetpositionsettings,thenumber standsforcurrentposition., c、ClickGOandwillappearthechoiceofpresetposition,youcanchoosethepositionyou’dlike. 3. 3. 3. 3.Resolution Resolution Resolution ResolutionSelection Selection Selection Selection： a.Resolutionratio,3choices,theyare640×480、320×240、160×120 b.Frameratehave30、25、20,total3modesyoucouldchoose.。 4. 4. 4. 4.Graphic Graphic Graphic GraphicAdjustment Adjustment Adjustment Adjustment Youcouldchooseflipvertical,fliphorizontal,brightnessadjustingandcontrast.Youcouldrest withclickingthedefault. 5. 5. 5. 5.Record, Record, Record, Record,Snapshot, Snapshot, Snapshot, Snapshot,and and and andTwo-way Two-way Two-way Two-wayAudio Audio Audio Audio a、Youcouldclickrelatedbuttontogetsuchfunctionupside. b、Afteryoumakethesnapshots,pleaseclicksavebuttontheredarrowdirect.Thenselectthe storageareaonyourcomputer. c、Clickrecordandthenyouwillseearedpointontherightup-side,thatmeansit’srecording now. 6. 6. 6. 6.Short-cut Short-cut Short-cut Short-cutButtons Buttons Buttons Buttons Whenmouseisusingatthewindows,therewillappeartheshort-cutbuttons,Fromleftto right:Pause/Play；Record；Alarmstop；Wide&narrowscreenswitching. III. III. III. III.Parameter Parameter Parameter ParameterSetting Setting Setting Setting Clicktheredarrowdirectingarea,youwillseethedeviceinformationthere. 1. 1. 1. 1.Alarm Alarm Alarm AlarmSetting Setting Setting Setting a、Setthemotiondetectionandvoicealarm,picturescanbesenttomailboxorFTPserver. Besides,canrecordvideowhenalarm. b、Onthemenu,wealsoprovidemotiondetectionsensitivityadjustmentandpresetsettingwhen alarm. c、Youalsocouldchoosedailyschedulethere. d、Afterfinishthesetting,pleasestoreyoursettingsthencouldworks. 2. 2. 2. 2.E- E- E- E-m m m mail ail ail ailSetting Setting Setting Setting a、Pleaseenterwritesender’andreceiver’semailintheproperarea.Pleaseadd;whenhave manyemailaddressesthere. b、SMTPServeristhesameasthesender’semailSMTP. c、SMTPportis25. d、Usernameandpasswordpleaseusethesender’sinformationthere. e、Afterfinishingentering,pleasesaveittomakethesettingwork.Youcouldmakeatestto checkwhetheritworksornot. 3. 3. 3. 3.FTP FTP FTP FTPSetting Setting Setting Setting a、PleaseenterrightseveraddressfortheFTP.在FTP b、FTPportis21. c、UsernameandpasswordisthesameasyouuseonFTP. d.Uploadthemenuandmakeitasyoursavemenu. e.Afterthefilling,pleasesaveitandthenthesettingworks.Youcouldmakeatestonittocheck ifitworks. 4. 4. 4. 4.Record Record Record RecordP P P Parameter arameter arameter arameter a、Clicktherecordingandalarmroute,youcouldchangetheroutthere. b、Recordingqualityeditboxcouldchangethequalityofthevideo,pleasesaveitafterthe settings. 5. 5. 5. 5.Network Network Network NetworkSetting Setting Setting Setting a、Youcouldchangethedevicenameonthenameeditbox. b、IfyournetworksupportDHCPservice,pleaseclickdynamicobtainingIPaddress,thecamera willautomaticobtainingtheIPaddress. c、IPaddresseditframeshowsthecurrentIPaddressifthedevice,youcouldmodifyitthere.. d、Subnetmaskeditboxshowsthecurrentdevicesubnetmask,youcouldreviseitthere. e、Defaulteditboxshowsthecurrentgateway,youcouldreviseitthere f、WEBporteditboxshowsthecurrentdevice’sWEB.youcouldreviseitthereWEB g、PleasecircleUPNP,itcanmakethecameraautomaticallyachieveportforwardingtoyour wirelessrouter,connectyourroutertoachieveinternetview.yourwirelessrouteralsoshould haveUPNPfunction. h、Afterfinishing,pleaseremembertosaveittomakeiteffect. 6. 6. 6. 6.WIFI WIFI WIFI WIFISetting Setting Setting Setting IPcamerasupportsWIFI:IEEE802.11b/g a、Clickscan,andyouwillseetheWifithere,chooseyourownWifiandconnectit. b、ChoosetherightSecurityModeandWPAAlgorithmsandthenyouwillseepassphrase andthenentertheWifipassword,clickapplyandthenworks. c.Ifdisconnect,itshowsredcircle,whensucceed,itshowsgreencircle. d.Allthesettingsupsideneedbethesameasyousetonyourrouter,pleasecheckyouracesspoint orthemanualbookoftheroutertocheckitorconsultthewebadministrator. 7. 7. 7. 7.DDNS DDNS DDNS DDNS Dynamicrealmnameisusedasastaticrealmnametovisitadynamicone.Whenyouaccessto ISPnetwork,thedevicewillgetatemporarydynamicIPaddress,thedynamicrealnamewill tracktheaddress.Eventheaddresschanged,youalsocoulduseastaticrealmtovisitthis devicefromremote. a、BuiltinDDNSiswhatweofferyouonthegiftbox,,usernameandthepasswords. b、IfyouwanttosettingtheDDNSyourself,pleasesettingthemonthethirdpartDDNSsetting areatoselecttherightseverandthenentertherightaccount,commandandrealmname.Save itandthenworks. c、Ifyouneedinternettovisitthecamera,pleaseopenUPNPoropentheportontherouter,you couldrefertothemanualbookandalsoconsultthewebmaster. 8. 8. 8. 8.Multi-live Multi-live Multi-live Multi-liveChannels Channels Channels ChannelsSetting Setting Setting Setting AddothercamerasandclicktheareathephotosshowsandentertherightIPAddressorrealm name,port,username,password,andtheysaveit.Youcouldclickthemultigraphicsthere. 9. 9. 9. 9.Camera Camera Camera CameraBasic Basic Basic BasicStatus Stat…

Text truncated - open the document above for the full version.

TENVIS Technology Co., Ltd. 301, Building 6, No.3, Puxiaxia'an Street, Liuyue, Henggang Town, Longgang District, Shenzhen Tel.: 0755-89352578 Fax.: 0755-89352578 Agent Authorization Letter May 21, 2013 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Hanson Chueng/ Shenzhen Timeway Technology Consulting Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely,

TENVIS Technology Co., Ltd. 301, Building 6, No.3, Puxiaxia'an Street, Liuyue, Henggang Town, Longgang District, Shenzhen Tel.: 0755-89352578 Fax.: 0755-89352578 Long Term Confidentiality Request Letter May 21, 2013 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (IP Camera, Model: JPT3815W, IPROBOT 2, JPT3815W+, MINI319W, MINI319W+,1P601W, 02W, IP391W , MINIROBOT 2, IP602W FCC ID: N6QMJCAMERA) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Schematics, Operational Description, Block Diagram) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely,

TENVIS Technology Co., Ltd. 301, Building 6, No.3, Puxiaxia'an Street, Liuyue, Henggang Town, Longgang District, Shenzhen Tel.: 0755-89352578 Fax.: 0755-89352578 Statement We TENVIS Technology Co., Ltd. Hereby that The product IP Camera, models no. JPT3815W, IPROBOT 2, JPT3815W+, MINI319W, MINI319W+,1P601W, 02W, IP391W , MINIROBOT 2, IP602W, JPT3816W，JPT3818W， JPT3819W are all identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Company Name: TENVIS Technology Co., Ltd

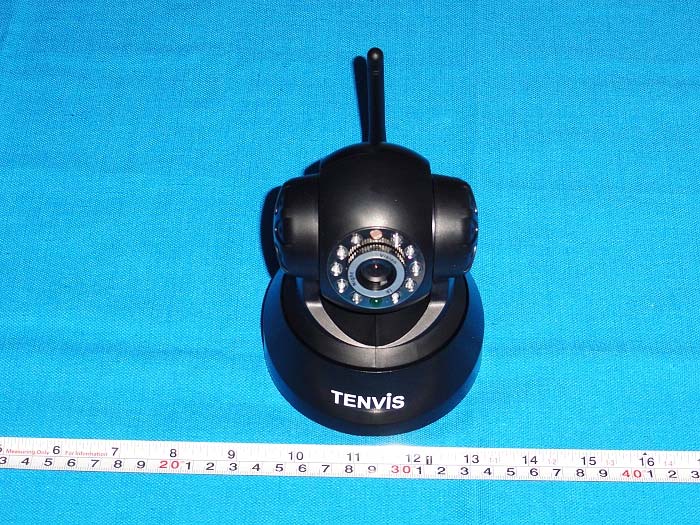

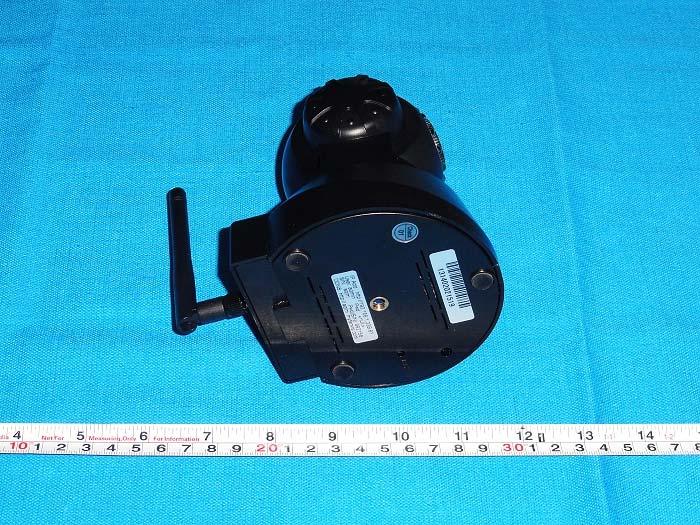

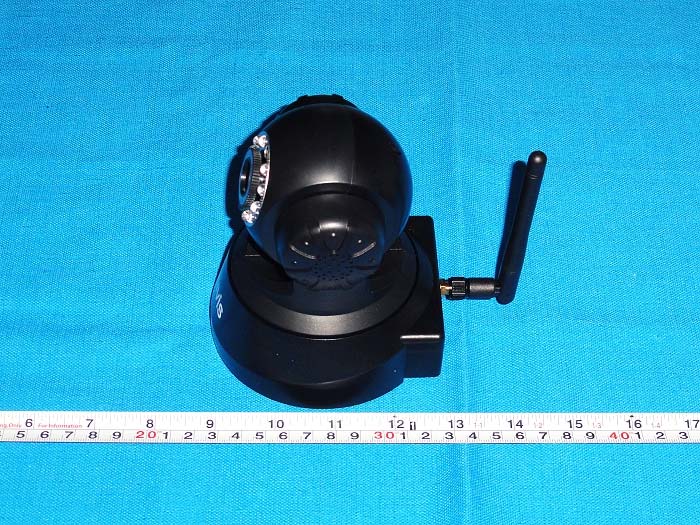

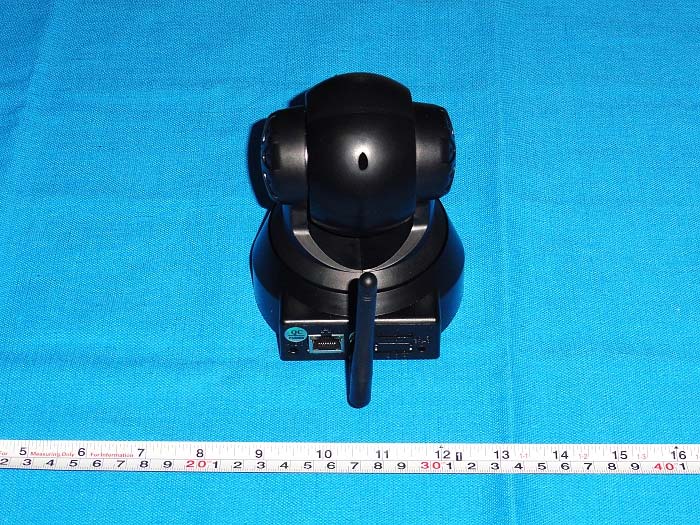

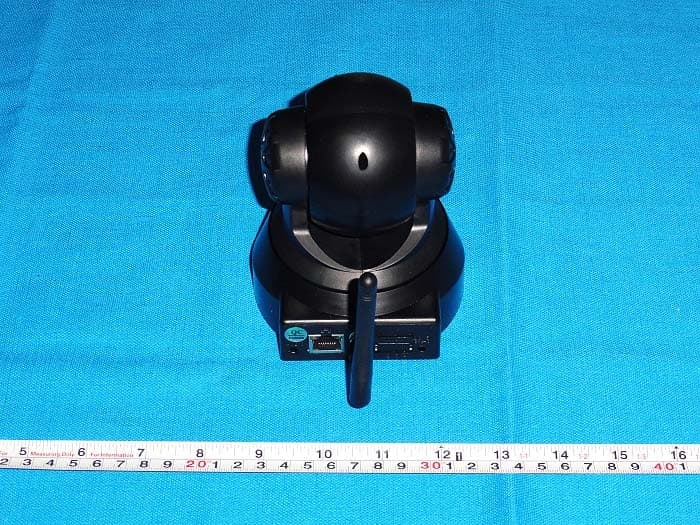

Photo for the EUT Outside view Outside view Outside view Outside view Inside view

FCC LABEL TENVIS Technology Co., Ltd. Product: IP Camera FCC ID: N6QMJCAMERA This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Inside view Inside view Inside view Inside view Inside view Inside view

Maximum Permissible Exposure Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 , ︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m 2 ) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit Antenna Gain: 2dBi Antenna Gain (Numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 1.585 20.99 125.6 0.04 1 Compiles Note: the worse case was recorded.

ISO/IEC17025Accredited Lab. Report No: FCC 1305087 File reference No: 2013-05-30 Applicant: TENVIS Technology Co., Ltd. Product: IP Camera Trademark: TENVIS Model No: JPT3815W, IPROBOT2, JPT3815W+, MINI319W, MINI319W+, 1P601W, 02W, IP391W, MINIROBOT2, IP602W, JPT3816W，JPT3818W，JPT3819W Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: May 30, 2013 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO., LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 1305087 Page 2 of 118 Date: 2013-05-30 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. Report No: 1305087 Page 3 of 118 Date: 2013-05-30 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 5 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 9 3.1 Summary of Test Results..................................................................................... 9 3.2 Test Standards.................................................................................................. 9 4.0 EUT Modification............................................................................................. 9 5.0 Power Line Conducted Emission Test...................................................................... 10 5.1 Schematics of the Test........................................................................................ 10 5.2 Test Method and Test Procedure............................................................................ 10 5.3 Configuration of the EUT.................................................................…

Text truncated - open the document above for the full version.

14.0 Photo of testing Conducted Emissions Radiated Emissions
