N7Q-GOALCAM-TXVideo Transmitter

1 NHL IN-NET GOALCAM User’s Manual January 2013 Rev 3.3 1/23/2013 6:07:15 PM 192 Technology Drive, Suite V, Irvine, CA 92618 PH: 949.777.5435 FX: 949.777.5436 www.vidovation.com The design of the GoalCam and the GoalCam manual is proprietary. No part of the GoalCam Manual may be copied or modified without the written consent of VidOvation Corporation. Copyright 2012 VidOvation Corporation. Printed in the U.S.A. 2 Table of Contents Overview ....................................................................................................................................................... 3 GoalCam-TX Kit Contents .......................................................................................................................... 4 GoalCam-RX Kit Contents .......................................................................................................................... 4 Additional Items Required for GoalCam Installation ................................................................................ 4 Cloud Based File and Document Sharing with Dropbox ........................................................................... 4 Maintenance ................................................................................................................................................. 5 Safety ............................................................................................................................................................ 5 GoalCam-TX Transmitter ............................................................................................................................... 6 GoalCam-RX Receiver.................................................................................................................................... 7 Installing GoalCam Receiver ......................................................................................................................... 8 Power and Signal Outputs: ....................................................................................................................... 8 LED Status LEDs: ........................................................................................................................................ 8 Receiver Rough Alignment: ....................................................................................................................... 8 Receiver Fine Alignment: .......................................................................................................................... 9 Polarization Alignment: ............................................................................................................................. 9 Installing GoalCam Transmitter Mounting Bracket .................................................................................... 13 Installing GoalCam Auxiliary Battery ........................................................................................................... 22 Attachment of the GoalCam-TX Transmitter to Goal Bracket .................................................................... 22 Installing External Auxiliary Battery (Transmitter) ...................................................................................... 23 Aligning Camera (Transmitter) .................................................................................................................... 23 Suggested USB to RS232 adapter from Plugable.com ........................................................................ 24 HD 720p CAMERA SPECIFICATIONS ........................................................................................................ 26 OSD CONFIGURATION CONTROL ........................................................................................................ 26 Aligning Transmitter RF Signal .................................................................................................................... 28 Service Contract .......................................................................................................................................... 29 Limited Warranty ........................................................................................................................................ 30 FCC and IC Compliance ............................................................................................................................... 30 Glossary ....................................................................................................................................................... 31 3 Overview The In-Net GoalCam 60GHz wireless technology is a customizable solution that fits the most demanding sports needs. This one-of-a-kind wireless technology delivers fully uncompressed video with no bit or resolution manipulation. Utilizing a 60 GHz wireless platform, the GoalCam offers uncompressed and un-coded broadcast quality video at a competitive price. The RF transmitter and camera are integrated into a custom ruggedized extruded aluminum housing with polycarbonate shock resistant domes on each end. In addition, an integrated safety and quick release positive registration bracket is included that adjusts to all mounting applications. For mobility, the GoalCam incorporates internal lithium-ion batteries that support up to 5 hours of operation per charge. The receiver unit mounts overhead to receive the 1.5 G HD-SDI signal which is available through two buffered BNC re-clocked HD-SDI outputs on the rear panel. The purpose of the GoalCam system is to capture and record live video of the goal line to support officials in reviewing disputed calls during every game.  60 GHz wireless In-Net Goal Camera System  Zero frame delay  Zero interference  No channel coding  Ruggedized and water resistant enclosure  Integrated 720p 60 camera  Maximum 150 ft. wireless transmission distance  Uncompressed 1.5G HD-SDI video  Flexible safety and quick release bracket  Shock resistant and sh…

Text truncated - open the document above for the full version.

192 Technology Dr., Ste V Irvine, CA 92618 USA 1-(949)-777-5435 FAX 1-(949)-777-5436 [email protected] www.vidovation.com May 4 th , 2012 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Re: Agent Authorization To Whom It May Concern: This letter will authorize Compliance Testing LLC to act as our Agent in all FCC matters. This appointment is effective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. VidOvation Corporation Jim Jachetta President & CEO

192 Technology Dr., Ste V Irvine, CA 92618 USA 1-(949)-777-5435 FAX 1-(949)-777-5436 [email protected] www.vidovation.com Date: 8/18/2015 Subject: Confidentiality Request FCC ID: N7Q-GOALCAM-TX IC ID: 10345A-GOALCAMTX Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Permanent Block Diagrams Short Term External Photos Short Term Internal Photos Permanent Operation Description/Theory of Operation Permanent Parts List & Placement/BOM Permanent Tune-Up Procedure Permanent Schematics Short Term Test Setup Photos Short Term User’s Manual VidOvation Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing 192 Technology Dr., Ste V Irvine, CA 92618 USA 1-(949)-777-5435 FAX 1-(949)-777-5436 [email protected] www.vidovation.com or release of the product to the public. Applicant is also aware that they are responsible to notify Compliance Testing in the event information regarding the product or the product is made available to the public. Compliance Testing will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, __________________________________________ Signature Print Name: Jim Jachetta Title: President & CEO

Page 1 of 1 FCC ID: N7Q-GOALCAM-TX IC ID: 10345A-GOALCAMTX CT Project: TCB – p1220017 From: Shawn McMillen Date: RTs 08/14/2015 Pursuant to 15.255 this devices needs to meet the following requirements: (e) Except as specified paragraph (e)(1) of this section, the peak transmitter conducted output power shall not exceed 500 mW. Depending on the gain of the antenna, it may be necessary to operate the intentional radiator using a lower peak transmitter output power in order to comply with the EIRP limits specified in paragraph (b) of this section. 8/25/15 - CT - The conducted output power at -10.6 dBm is below the 500 mw limit. (b) Except as indicated in paragraph (b)(1)(ii) of this section, the average power of any emission shall not exceed 40 dBm and the peak power of any emission shall not exceed 43 dBm 8/25/15 - CT - The EIRP at 9.4 dBm is well below the radiated limit of 40 dBm. Response by: Greg Corbin Submitted by Date:

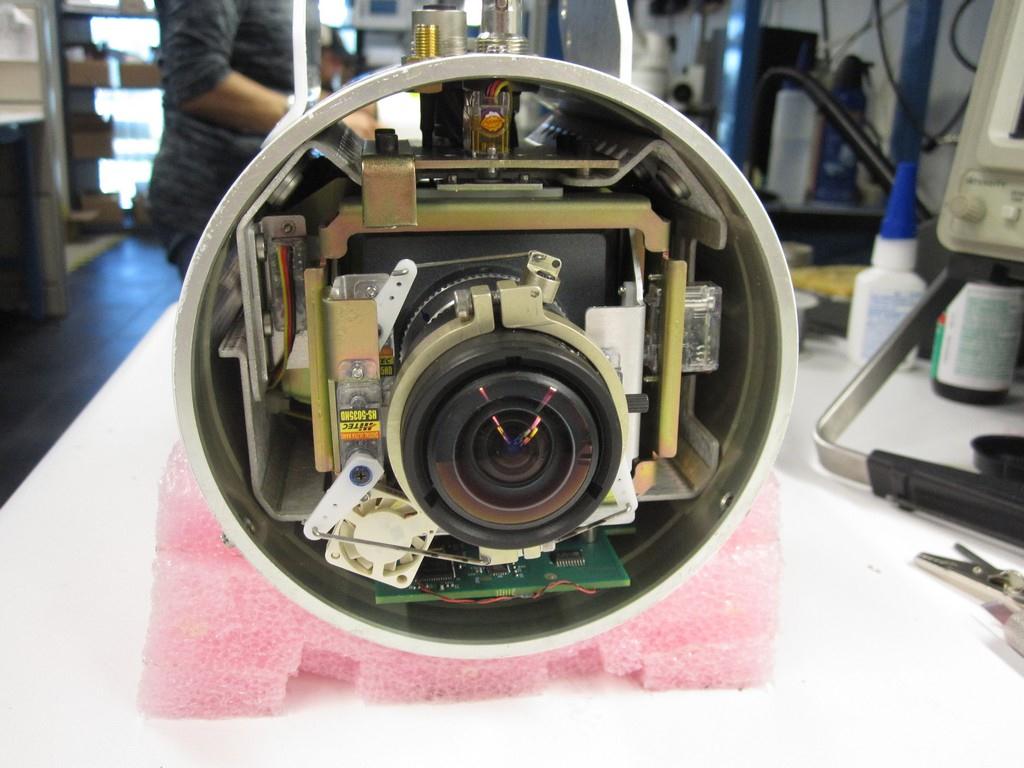

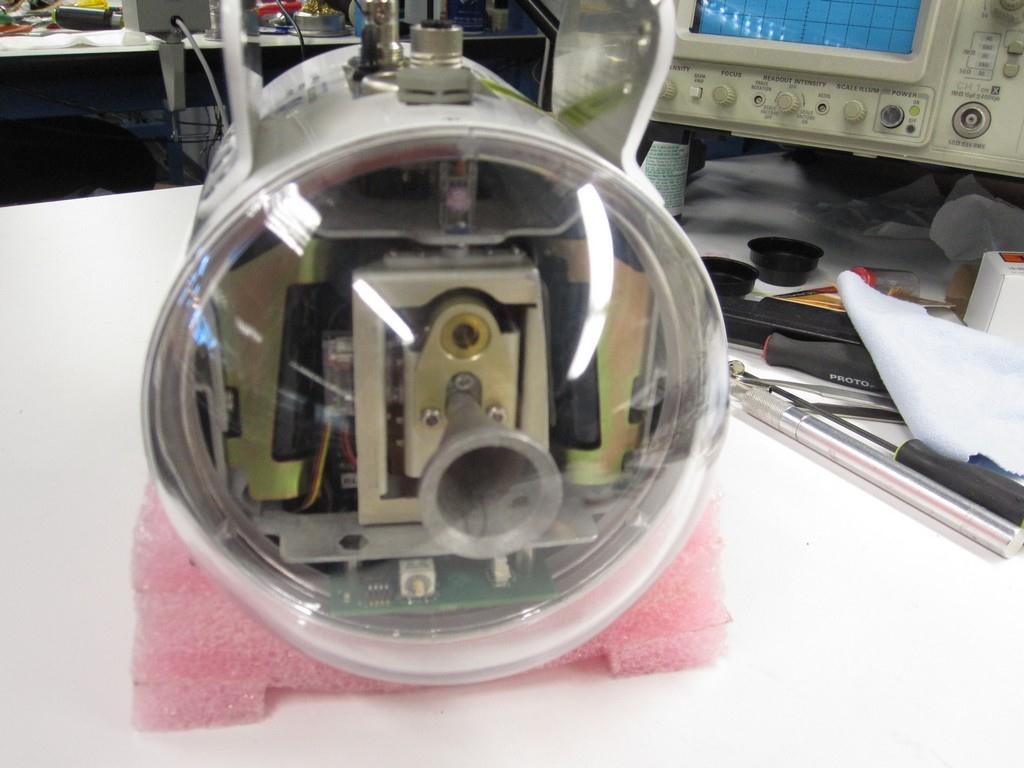

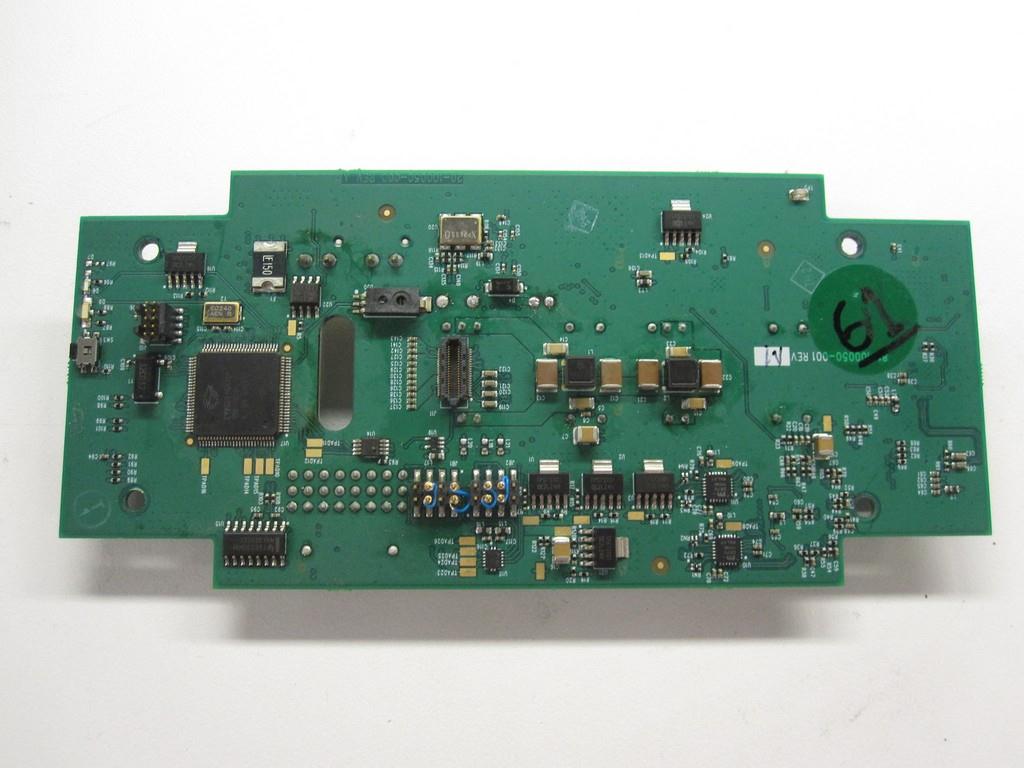

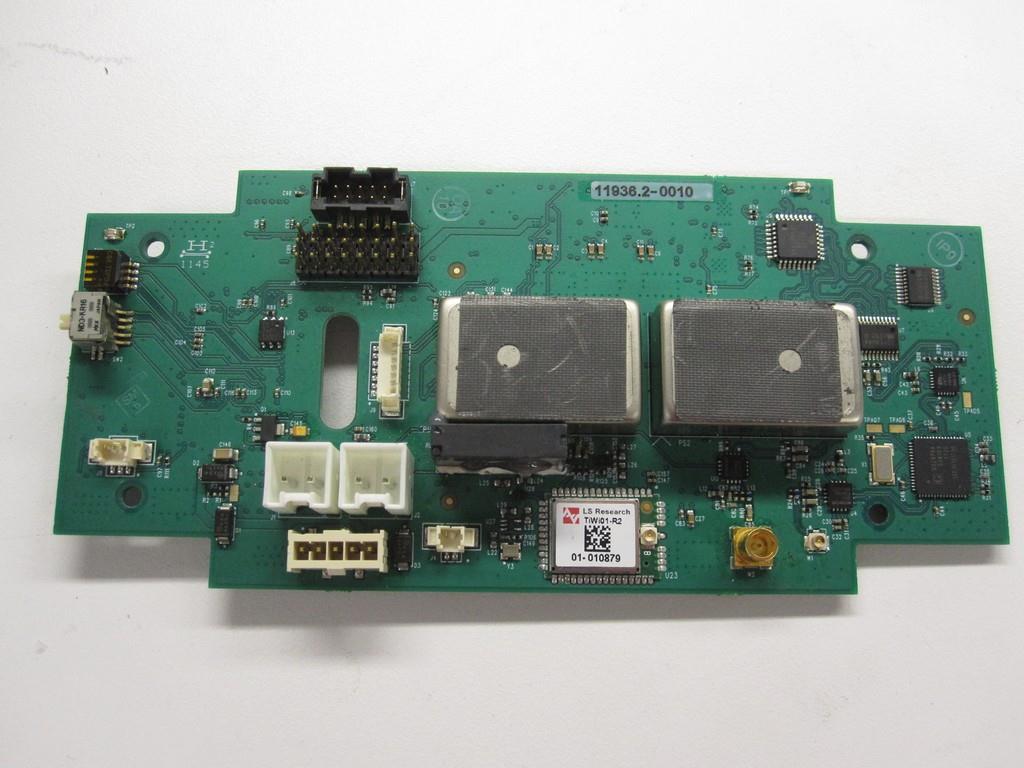

Page 1 of 5 External/Internal Photos: VidOvation Corporation FCC ID: N7Q-GOALCAM-TX IC: 10345A-GOALCAMTX Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

p1220017_FCC_Part 1.1310_Rev 3.0 Page 1 of 4 Test Report Prepared for: VidOvation Corporation Model: GoalCam-TX Description: VidOvation In-Net Wireless GoalCam Camera System for Goal Verification Serial Number: 05064-TX FCC ID: N7Q-GOALCAM-TX To FCC Part 1.1310 Date of Issue: August 12, 2015 On the behalf of the applicant: VidOvation Corporation 192 Technology Dr. Suite V Irvine, CA 92618 Attention of: Jim Jachetta, President Ph: (949) 777-5435 E-mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1220017 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1220017_FCC_Part 1.1310_Rev 3.0 Page 2 of 4 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 9, 2012 John Erhard Original Document 2.0 August 10, 2015 Greg Corbin Updated MPE calculation based on new power measurements 3.0 August 11, 2015 Amanda Reed Updated FCC/IC site numbers p1220017_FCC_Part 1.1310_Rev 3.0 Page 3 of 4 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1220017_FCC_Part 1.1310_Rev 3.0 Page 4 of 4 Description This is a mobile device used in Uncontrolled Exposure environment. Limits - Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Frequencies, MHz 60483 Power, Radiated, W (P) 0.00871 Antenna Gain Isotropic NA Antenna Gain Numeric (G) N/A Antenna Type Horn Distance (R) 20 cm Power Density Calculations Formula = S = PG / 4πR² Power Density (S) = 0.001732 mW/cm² Limit = 1.0 mW/cm² The Power Density is below the Limit. END OF TEST REPORT

p1220017_FCC_Part 15.255_Rev 5.0 Page 1 of 15 Test Report Prepared for: VidOvation Corporation Model: GoalCam-TX Description: VidOvation In-Net Wireless GoalCam Camera System for Goal Verification Serial Number: 05064-TX FCC ID: N7Q-GOALCAM-TX To FCC Part 15.255 Date of Issue: August 12, 2015 On the behalf of the applicant: VidOvation Corporation 192 Technology Dr. Suite V Irvine, CA 92618 Attention of: Jim Jachetta, President Ph: (949) 777-5435 E-mail: [email protected] Prepared by Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1220017 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1220017_FCC_Part 15.255_Rev 5.0 Page 2 of 15 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 9, 2012 John Erhard Original Document 2.0 December 17, 2014 Mike Graffeo Updated Power Density test results 3.0 August 10, 2015 Greg Corbin Recorded new output power data with RF diode detector, updated power density based on new data, recorded new OCC BW data 4.0 August 11, 2015 Amanda Reed Updated Radiated Spurious test procedure 5.0 August 12, 2015 Greg Corbin Corrected typo in Calculated Output equation on page 9 p1220017_FCC_Part 15.255_Rev 5.0 Page 3 of 15 Table of Contents Description Page Standard Test Conditions Engineering Practices ............................................................................. 6 Test Results Summary ..................................................................................................................... 8 Conducted Output Power ................................................................................................................. 9 Power Density ................................................................................................................................. 10 Occupied Bandwidth ....................................................................................................................... 11 Radiated Spurious Emissions ......................................................................................................... 12 Frequency Stability ......................................................................................................................... 14 Test Equipment Utilized .................................................................................................................. 15 p1220017_FCC_Part 15.255_Rev 5.0 Page 4 of 15 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1220017_FCC_Part 15.255_Rev 5.0 Page 5 of 15 The applicant has been cautioned as to the following 15.21: Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator the responsible part may employ other methods of ensuring that the special accessories are provided to the consumer, without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1220017_FCC_Part 15.255_Rev 5.0 Page 6 of 15 Standard Test Conditions Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI C63.10-2009 and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Measurement results, unless otherwise noted, are worst-case measurements. Environmental Conditions Temperature (°C) Humidity (%) Pressure (mbar) 26.20 20.00 970.900 EUT Description Model: GoalCam-TX Description: VidOvation In-Net Wireless GoalCam Camera System for Goal Verification Firmware: N/A Software: N/A Additional Information None EUT Operation…

Text truncated - open the document above for the full version.

Page 1 of 3 Test Setup Photos FCC ID: N7Q-GOALCAM-TX IC: 10345A-GOALCAMTX Conducted RF Page 2 of 3 Radiated Above 1GHz Page 3 of 3 Radiated Below 1 GHz
