N8BVRC2100VRC2100

VRC2100 Vending Reader Installation Guide The CBORD Group, Inc. Ithaca, NY VRC2100 Vending Reader Installation Guide Regulatory Compliance Statements Safety Compliance: The VRC2100 is a low voltage Class 2 device designed for indoor operation with MDB vending machines. There are no user serviceable parts or fuses inside. FCC Class-A Notice: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at the user’s own expense. FCC 15.19(a)(3)Warning for Contactless versions: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) L'appareil ne doit pas produire de brouillage, et (2) L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Any modifications made to this device that are not approved by The CBORD Group, Inc., may void the authority granted to the user by the FCC to operate this equipment. Version: 1.04.05 (Initial version) TP-830351-001A, APN #815-0135 June 2012 Changes are periodically made to the information contained in this document. Every effort is made to ensure that all information is correct. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means— electronic, mechanical, photocopying, recording, or otherwise—without prior written permission from the copyright owner. The CBORD Group, Inc. 61 Brown Road Ithaca, NY 14850 T: 607.257.2410 F: 607.257.1902 www.cbord.com © 2012 The CBORD Group, Inc. All rights reserved. CBORD and CS Gold are registered trademarks of The CBORD Group, Inc. Odyssey HMS and Odyssey PCS are trademarks of The CBORD Group, Inc. All other brand and product names are believed to be trademarks, registered trademarks, or service marks of their respective owners. VRC2100 Vending Reader i Installation Guide Table of Contents 1 Introduction ..................................................................................................... 1 1.1 Software Requirements .................................................................................... 1 1.2 Training ......................................................................................................... 1 1.3 Customer Support ........................................................................................... 1 2 Specifications ................................................................................................... 2 3 Installation ....................................................................................................... 3 3.1 Install the VRC2100 Vending Reader ................................................................. 3 3.2 Install the VRC2100 Surface Mount Vending Reader ............................................ 4 3.3 Network Configuration ..................................................................................... 6 3.4 Configure the XPORT for Odyssey...................................................................... 7 3.5 Configure the XPORT for CS Gold .................................................................... 10 3.6 Controller Configuration ................................................................................. 11 3.7 Menu Items .................................................................................................. 13 4 Network-Based Configuration and Firmware Update ...................................... 16 4.1 Remote Configuration .................................................................................... 16 4.2 Remotely Read and Change VRC2100 Configuration .......................................... 19 4.3 Slave Operation ............................................................................................ 20 4.4 Firmware Update .......................................................................................... 21 5 CS Gold Settings ............................................................................................. 23 6 Parts and Accessories ..................................................................................... 24 VRC2100 Vending Reader ii Installation Guide VRC2100 Vending Reader 1 Installation Guide 1 Introduction 1.1 Software Requirements One of the following versions of CS Gold ® software is required:  CS Gold version 5.0.33 or later  CS Gold version 6.0.6 or later 1.2 Training For information about training courses and prerequisites, go to www.cbord.com/support/training. 1.3 Customer Support CBORD ® is committed to providing full support to both customers and suppliers through person-to-person as well as online support options. Phone number: 1-866-789-2977 Email address: [email protected] VRC2100 Vending Reader 2 Installation Guide 2 Specifications The following table lists the specifications for the VRC2100: Specification Description Operating Environment Indoors Operating Temperature 0° to 50° C Operating Humidity 0 to 90% RH, non-condensing Voltage Input 24V DC nom. (37.5V DC max.), supplied by MDB bus Mounting…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 7/1/10 CB0R0004 Information about the Applicant Grantee (Company Name) CBORD Group, Inc. FCC Contact Person John C. Darjany Address 61 Brown Road City, State, Zip Ithaca, NY 14850 Job Number CB0R0004 Model VRC2100 FCC ID N8BVRC2100 Agent Approval Type Original Equipment Class DXX Part 15, Low Power Communication Device Transmitter DCD-Part 15 Low Power Transmitter Below 1705 kHz Rule Part 15.225 (15C) Overview The model VRC2100, FCC ID: N8BVRC2100, is manufactured by CBORD Group, Inc. and contains a dual output radio; operating at 125 kHz under FCC rule part 15.209 and operating at 13.56 MHz under rule part 15.225. The device is used to read RF IDs on products for a vending machine operation. Confidentiality requested for allowed files. Request is properly addressed and referenced. No short term confidentiality requested. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 6/18/2012

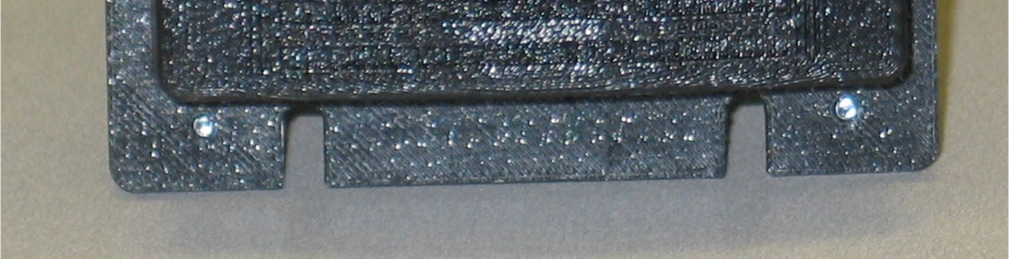

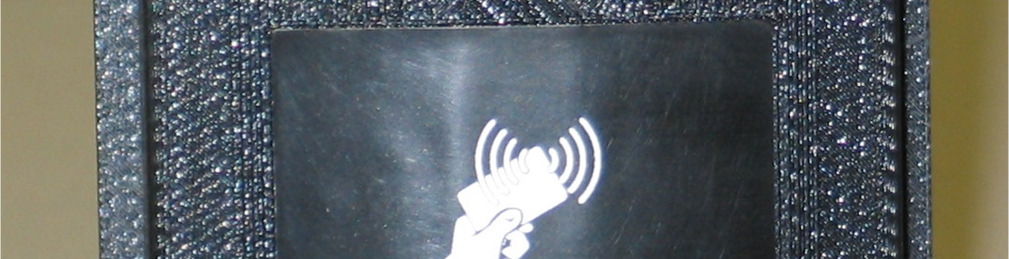

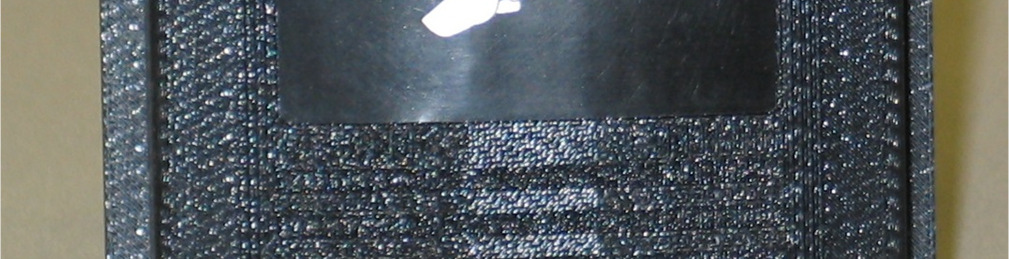

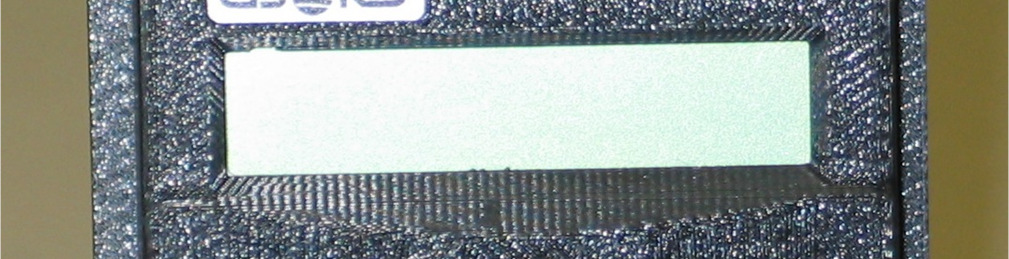

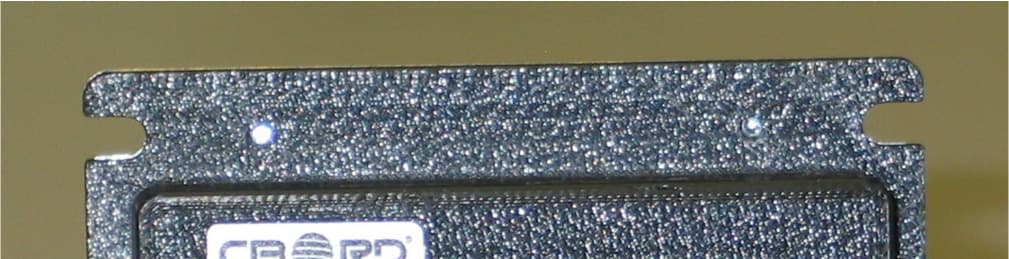

CBORD VRC2100 External Photos 6/4/2012 VRC2100 Front View VRC2100 Right View FCC ID: N8BVRC2100 VRC2100 Rear View VRC2100 Left View VRC2100 Top View VRC2100 Bottom View

CBORD model VRC2100 Vending Reader Label and Location 6/4/2012 Label and Location FCC ID: N8BVRC2100

CBORD model VRC2100 Vending Reader Internal Photos of Radio board and Antenna Board 6/1/2012 Page 1 of 2 Radio Board Bottom View Radio Board Top View Antenna Board Top View Antenna Board Bottom View Page 2 of 2

XceedID Corporation OEM100 FCC Part 11, 15, 18 Certification 2.1033(b) (4) and (5) 05/25/12 The information contained in this report is considered to be Proprietary and Confidential information of XceedID Corporation. Due to the sensitive nature of this information, XceedID Corporation requests that the information not be revealed to the general public in any form. 1. Antenna Information (2.1033(b) (4)): The XceedID Corporation OEM100 access control reader and credential programmer is a dual frequency device that operates at 125 kHz and 13.56 MHz only. The readers operate by emitting an AC magnetic field at the specified frequencies. The 13.56 MHz antenna consists of two balanced 1 turn antennas. These two antennas terminate to ground, are 180 degrees out of phase and are tuned to minimum impedance of 150 ohms at a frequency of 14.2 MHz. The antennas are constructed from pcb traces around the perimeter of the pcb. All readers are constructed with a dual pcb subassembly. The antenna pcb contains the, 125 kHz antenna, 13.56 MHz tuning circuit and the 13.56 MHz antenna.

CBORD Group, Inc. VRC2100 Vending Reader with RFID Report #: CBOR0004.1 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington WTD 12.5.23 CERTIFICATE OF TEST Last Date of Test: May 31, 2012 CBORD Group, Inc. Model: VRC2100 Vending Reader with RFID Emissions Test Description Specification Test Method Pass/Fail Field Strength of Fundamental FCC 15.209:2012 ANSI C63.10:2009 Pass Field Strength of Spurious Emissions FCC 15.209:2012 ANSI C63.10:2009 Pass AC Powerline Conducted Emissions FCC 15.207:2012 ANSI C63.10:2009 Pass Deviations From Test Standards None Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200676-0 Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 41 Tesla Ave. Irvine, CA 92618 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834B-1). This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. REV 2012.05.24 REVISION HISTORY Revision Number Description Date Page Number 00 None REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ REV 2012.05.24 LOCATIONS Oregon Labs EV01-EV12 22975 NW Evergreen Pkwy, #400 Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-OC13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs WA01-WA04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-MN08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs SU01-SU07 14128 339 th Ave. SE Sultan, WA 98294 (360) 793-8675 VCCI EV01: C-1071, R-1025, G-84 EV07: C-2687, T-1658 EV11: R-2318 OC06: C-2766, T-1659 OC07: G-548 OC08: R-1943, G-85 OC10: A-0029 MN03: C-3464, T-1634 MN04: R-3125 MN05: G-141 SU01: C-3265, T-1511 SU02: R-871, G-83 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834C-1 WTD 12.5.23 PRODUCT DESCRIPTION Client and Equipment Under Test (EUT) Information Company Name: CBORD Group, Inc. Address: 6330 Gateway Drive, Suite A City, State, Zip: Cypress, CA 90630 Test Requested By: John Darjany Model: VRC2100 Vending Reader with RFID First Date of Test: May 30, 2012 Last Date of Test: May 31, 2012 Receipt Date of Samples: May 30, 2012 Equipment Design Stage: Production Equipment Condition: No Damage Information Provided by the Party Requesting the Test Functional Description of the EUT (Equipment Under Test): This system had two transmitters which operate at 125 kHz and 13.56 MHz (RFID). Testing Objective: To demonstrate compliance to FCC 15.209 requirements for the 125 kHz transmitter. WTD 12.5.23 CONFIGURATIONS Configuration 1 CBOR0004 EUT Description Manufacturer Model/Part Number Serial Number Contactless Reader Module and Antenna CBORD Group, Inc. OEM100/VRC2100 V0600005 Peripherals in test setup boundary Description Manufacturer Model/Part Number Serial Number Power Supply Generic 124044 0544 Ethernet Switch Linksys EZXS55W, V2 135001527 Ethernet Switch Power Supply Linksys MKD-4175700 None Cables Cable Type Shield Length (m) Ferrite Connection 1 Connection 2 DC Cable No 1.8m No EUT AC Mains Ethernet Cable No 2.0m No EUT Ethernet Switch DC Cable No 1.8m No Ethernet Switch Ethernet Switch Power Supply PA = Cable is permanently attached to the device. Shielding and/or presence of ferrite may be unknown. WTD 12.5.23 MODIFICATIONS Equipment Modifications Item Date Test Modification Note Disposition of EUT 1 5/30/2012 Field Strength of Spurious Emissions Tested as delivered to Test Station. No EMI suppression devices were added or modified during this test. EUT remained at Northwest EMC following the test. 2 5/30/2012 AC Powerline Conducted Emissions Tested as delivered to Test Station. N…

Text truncated - open the document above for the full version.

photo FFB.JPG SAM_0699.JPG FIELD STRENGTH OF FUNDAMENTAL PSA-ESCI 2012.05.07 photo SAM_0700.JPG SAM_0701.JPG FIELD STRENGTH OF FUNDAMENTAL PSA-ESCI 2012.05.07 photo SAM_0698.JPG SAM_0699.JPG FIELD STRENGTH OF SPURIOUS EMISSIONS PSA-ESCI 2012.05.07 photo SAM_0700.JPG SAM_0701.JPG FIELD STRENGTH OF SPURIOUS EMISSIONS PSA-ESCI 2012.05.07 photo ce1.JPG ce2.JPG AC POWERLINE CONDUCTED EMISSIONS PSA-ESCI 2012.05.07
