N8J-WFMD001Wireless module

WM-AC201 User’s Manual 1 PROPRIETARY NOTE This item is the property of JEM Inc., Taipei, Taiwan and trade secret information. This item may not be transferred from the custody of JEM Inc., except as authorized by JEM Inc. and then only by way of loan for limited purposes. It must not be reproduced in whole or in part and must be returned to JEM Inc. upon request and in all events upon completion of the purpose of the loan. Neither this item nor the information it contains may be used by or disclosed to persons not having a need for such use or disclosure consistent with the purpose to the loan without prior written consent of JEM Inc. JEM Product user’s manual 802.11AC 2T2R Module Model : WM-AC201 Datasheet Number: UM-WM-AC201 Reversion 1.0 Author: JEM, TAIWAN WM-AC201 User’s Manual 2 Revision and history: Rev . Description: Originated or modified by: Checked by: Approved by: 1.0 Initial Release James Hsieh - WM-AC201 User’s Manual 3 About ......................................................................................................................................................... 3 Product description ................................................................................................................................... 3 Product features................................................................................................................................. 4 Application ........................................................................................................................................ 4 Mechanism ........................................................................................................................................ 5 Pin Definition .................................................................................................................................... 5 Pin out Specification ......................................................................................................................... 7 General Specification ................................................................................................................................ 8 Antenna support list .................................................................................................................................. 9 About This specification is a preliminary product specification that written by Joinsoon Electronics MFG. Co., Ltd for the “WM-AC201 AC 2T2R Module”. Product description WM-AC201 is a highly integrated 802.11a/b/g/n/ac 2T2R module that support 2-stream 802.11ac solutions with Multi-user MIMO. It integrates a high performance 1GHz MIPS24Kc processor, Fast Ethernet switch with RGMII, USB2.0 controller, DRAM and flash memory controller, and useful peripheral interfaces. It combines a WLAN MAC, a 2T2R capable WLAN baseband. It provides a complete solution for a high throughput performance integrated wireless LAN device. It is designed to provide excellent performance with low power consumption and enhance the advantages of robust system and cost-effective. It is targeted at competitive superior performance, better power management applications The RTL8197F delivers high-performance with low power consumption for applications such as 11ac dual band smart routers, IoT gateway, VPN gateway, VoIP gateway, Network Storage, LTE routers etc. WM-AC201 User’s Manual 4 Product features  IEEE802.11a/b/g/n and 802.11ac compliant.  Operates at 2.4GHz and 5GHz frequency bands.  CPU MIPS 24Kc speed up to 1GHZ  Chipset embedded DDRII 128MB  Support STBC, transmit Bean Forming.  Modulation: BPSK, QPSK,16 QAM, 64-QAM, 256-QAM, OFDM.  WPA, WPA2 and hardware accelerated AES encryption/decryption.  Support 2T/2R transmission rate 300Mbps in 802.11n, and 867Mbps in 802.11ac (Physical rate) at 20MHz /40Mhz /80MHz Bandwidth.  Support Multiple SSID  QOS: Traffic Control & WMM/WMM-PS  Various peripheral: USB host, UART, WAN Port, GPIO.. and so on.  USB2.0 support for date rates up to 480Mbps high speed  2 IPEX Antenna Connectors (with 2 switches for 2.4G/5G selection)  Support AP client for internet access.  Support PC/NB wireless access interface  Support UPnP medial (DLNA compatible ) access  Dimension 62x33x5 mm Application  Mobile Internet Device  TV  IP-cam  STB WM-AC201 User’s Manual 5 Mechanism Pin Definition I : Input AI : Analog Input O : Output AO : Analog Output P : Digital Power AI/O : Analog Bi-Directional Input/Output G : Digital Ground I/O: Bi-Directional Input/Output J13 18pin(9*2) Pin No. Name In/Out/P/G Function 1 VDD P 3V3 Power Input 2 VDD P 3V3 Power Input 3 GND G Ground 4 GND G Ground 5 GPIOE2 B General-purpose pin E2 6 GPIOE3 B General-purpose pin E3 7 GPIOE4 B General-purpose pin E4 8 GPIOE1 B General-purpose pin E1 9 GPIOH0 B General-purpose pin H0 10 GPIOG6 B General-purpose pin G6 WM-AC201 User’s Manual 6 11 GPIOH1 B General-purpose pin H1 12 GND G Ground 13 GND G Ground 14 USB_HSDM1 AI/O USB Port1 Host Device Data Minus Pin 15 GPIOH2 B General-purpose pin H2 16 USB_HSDP1 AI/O USB Port1 Host Device Data Plus Pin 17 CPIOA5 B General-purpose pin A5 18 GND G Ground J14 14pin(7*2) Pin No. Name In/Out/P/G Function 1 GPIOC3 B General-purpose pin C3 2 GPIOH4 O General-purpose pin H4 3 GPIOC2 B General-purpose pin C2 4 GPIOH3 O General-purpose pin H3 5 GPIOB1 B General-purpose pin B1 6 TXOP_P4 AO 10/100M Ethernet Transmit Pair 7 GPIOB5 B General-purpose pin B5 8 TXON_P4 AO 10/100M Ethernet Transmit Pair 9 GPIOB4 B General-purpose pin B4 10 RXIP_P4 AI 10/100M Ethernet Receive Pair 11 GPIOB3 B General-purpose pin B3 12 RX_N_P4 AI 10/100M Ethernet Receive Pair 13 GPIOB2 B General-purpose pin B2 14 VDD P 3V3 Power Input J18 7pin(7*1) Pin No. Name In/Out/P/G Function 1 GPIOC5 P General-purpose pin C5 2 GPIOC6 P General-purpose pin C6 3 GPIOC7 G General-purpose pin C7 4 GPIOD0 G General-purpose pin D0 5 GPIOB6 B General-purpose pin B6 6 GND G Ground 7 VDD P 3V3 Power Input WM-AC201 User’s Manual 7 Pin out Specific…

Text truncated - open the document above for the full version.

Date: July 14, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: N8J-WFMD001 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class B All other devices has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Joinsoon Electronics Mfg. Co. Ltd. Address : 19F, No. 79, Sec. 1, Hsin Tai Wu Rd. Hsi-Chin Chen Taipei Hsien Taiwan Signature : _________________________________ Name and Job Title. : James Hsieh, Supervisor, Engineering Dept. E-mail : [email protected] Tel. : 886-2-2698-4882#374

DTS-UNII Declaration Letter Date: July 14, 2020 We have declared below featured for FCC equipment authorization, Device FCC ID: N8J-WFMD001 (1) DFS Device -- Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) Passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2400 – 2483.5 Yes , No Yes , No Yes , No Yes , No 5150 - 5850 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No We don’t provide any controls or software to allow operation outside the USA frequency. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. Sincerely, Applicant : Joinsoon Electronics Mfg. Co. Ltd. Address : 19F, No. 79, Sec. 1, Hsin Tai Wu Rd. Hsi-Chin Chen Taipei Hsien Taiwan Signature : _________________________________ Name and Job Title. : James Hsieh, Supervisor, Engineering Dept. E-mail : [email protected] Tel. : 886-2-2698-4882#374

Modular Approval Request Letter Date: July 14, 2020 Subject: Modular Approval Attestation FCC ID: N8J-WFMD001 Dear Reviewer, We, Sporton International Inc., are authorized by Joinsoon Electronics Mfg. Co. Ltd., to have their Wireless module approved under single module approval authorization. The requirements regulated in 47 CFR 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RTL8197FS. 3. The requirement of power supply regulation: The part number of the power regulator is RT8097AHGB. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE and SAR RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant : Joinsoon Electronics Mfg. Co. Ltd. Address : 19F, No. 79, Sec. 1, Hsin Tai Wu Rd. Hsi-Chin Chen Taipei Hsien Taiwan Signature : _________________________________ Name and Job Title. : James Hsieh, Supervisor, Engineering Dept. E-mail : [email protected] Tel. : 886-2-2698-4882#374

Letter of Authorization Date: July 14, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: N8J-WFMD001 Product Name: Wireless module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Manager e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Joinsoon Electronics Mfg. Co. Ltd. Address : 19F, No. 79, Sec. 1, Hsin Tai Wu Rd. Hsi-Chin Chen Taipei Hsien Taiwan Signature : _________________________________ Name and Job Title. : James Hsieh, Supervisor, Engineering Dept. E-mail : [email protected] Tel. : 886-2-2698-4882#374

Confidentiality Request Letter Date: July 14, 2020 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: N8J-WFMD001 To whom it may concern: Short-term Confidentiality pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 45 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Joinsoon Electronics Mfg. Co. Ltd. Address : 19F, No. 79, Sec. 1, Hsin Tai Wu Rd. Hsi-Chin Chen Taipei Hsien Taiwan Signature : _________________________________ Name and Job Title. : James Hsieh, Supervisor, Engineering Dept. E-mail : [email protected] Tel. : 886-2-2698-4882#374

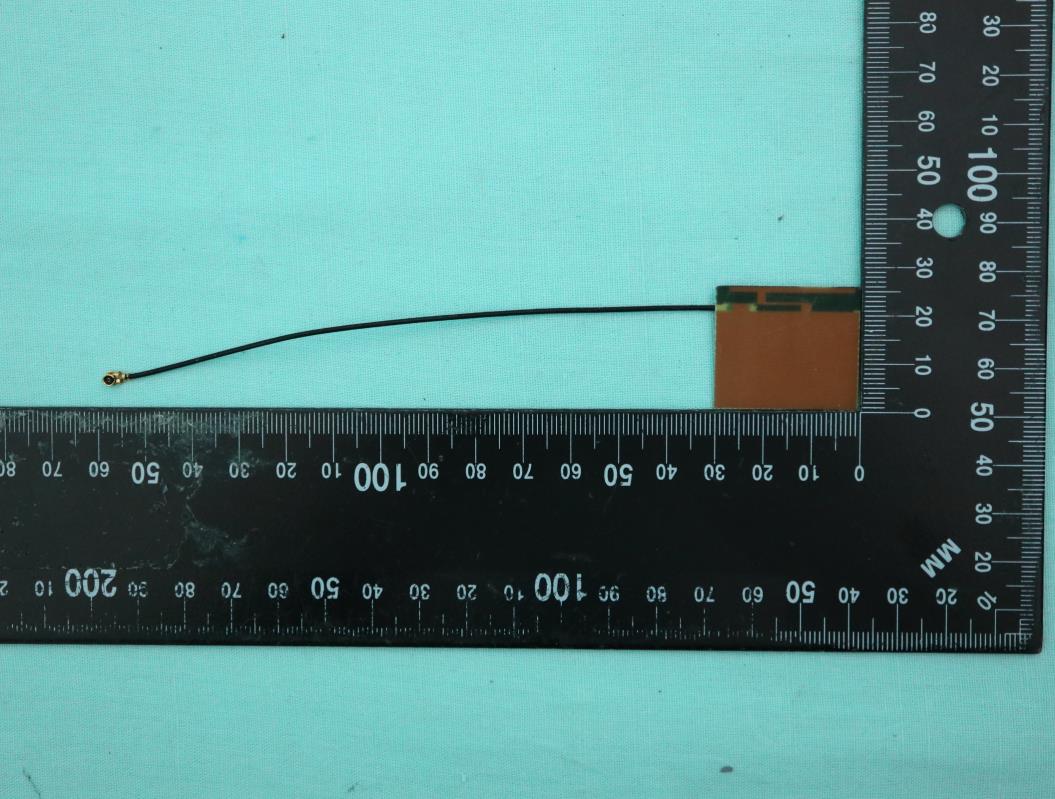

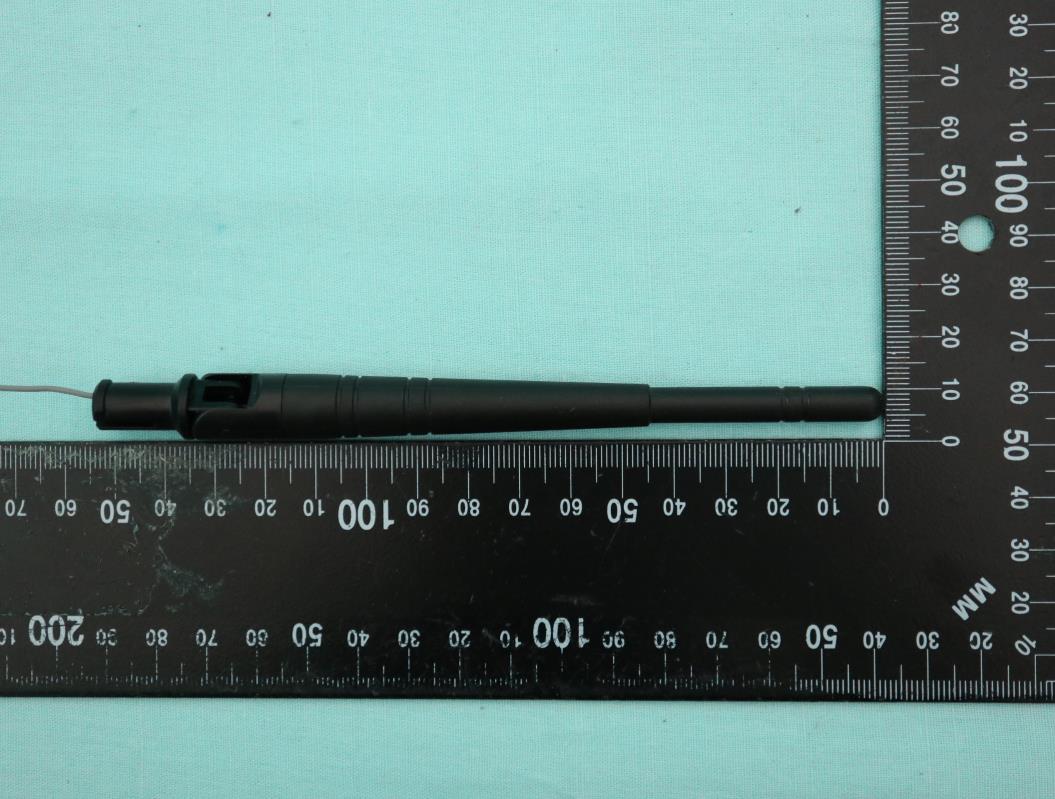

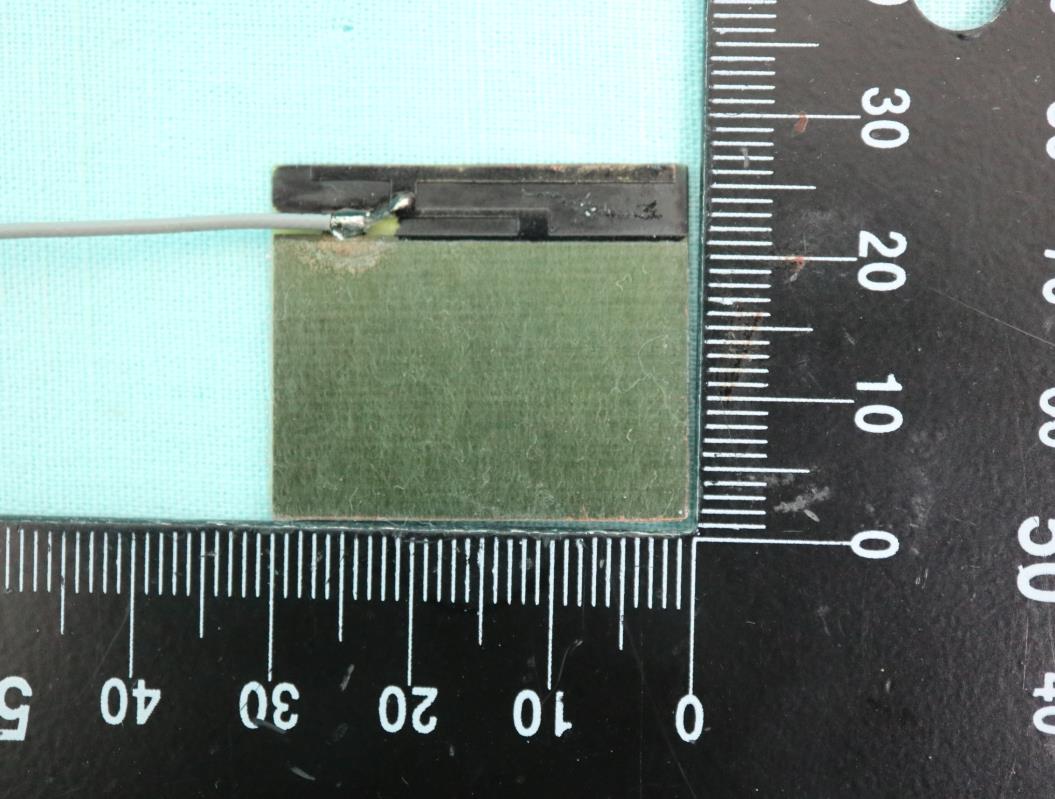

Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 1 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 5 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 9 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 PIFA Antenna (JEM / JEMPCBWIFI-2) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 10 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 11 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 PIFA Antenna (JEM / JEMPCBWIFI-1) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 12 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 13 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Dipole Antenna (JEM / JEMPDIPOLEWIFI-1) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 14 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Dipole Antenna (JEM/ ) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 15 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 ─────THE END─────

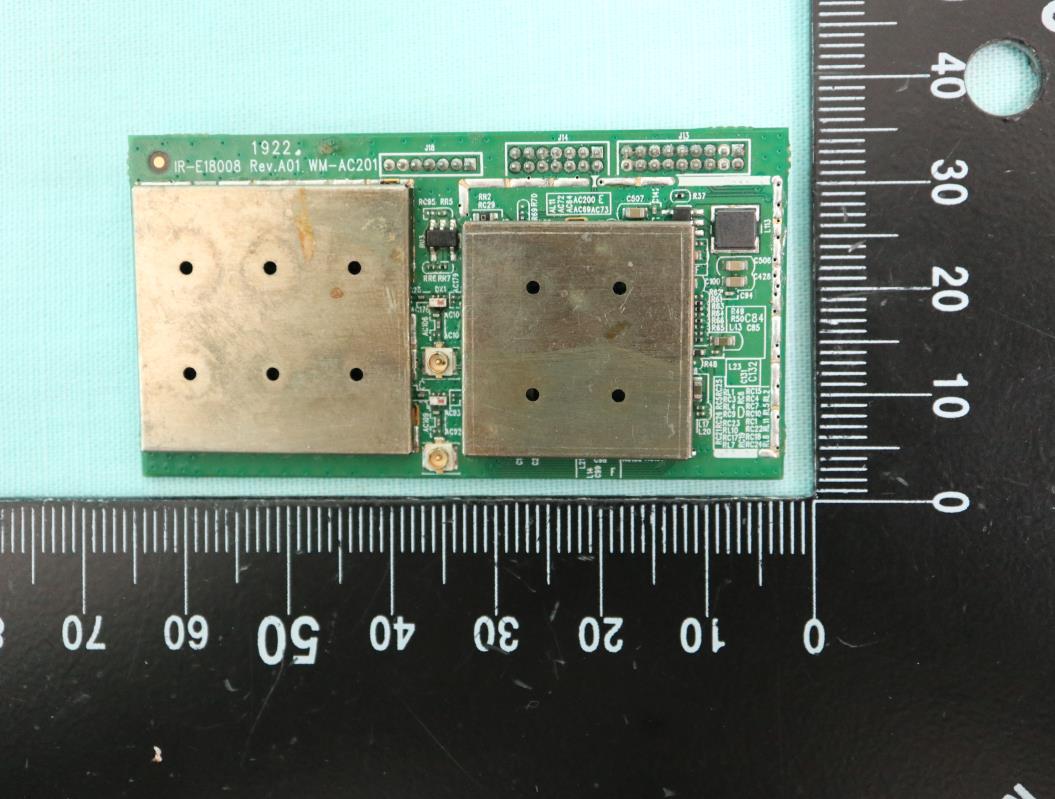

Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 1 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 2 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 3 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 4 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 5 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 6 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 7 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 8 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 9 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 PIFA Antenna (JEM / JEMPCBWIFI-2) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 10 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 11 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 PIFA Antenna (JEM / JEMPCBWIFI-1) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 12 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 13 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Dipole Antenna (JEM / JEMPDIPOLEWIFI-1) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 14 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Dipole Antenna (JEM/ ) Photographs of EUT Report No. : EP992607 SPORTON International Inc. Page No. : 15 of 15 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 ─────THE END─────

Radio Exposure Evaluation Report Report No. : FA992607 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: N8J-WFMD001 Radio Exposure Evaluation Report FCC ID : N8J-WFMD001 Equipment : Wireless module Brand Name : JEM Model Name : WM-AC201 Applicant : JOINSOON ELECTRONICS MFG., CO., LTD. 19F, NO. 79, Sec 1, Sintai 5th Rd., Sijhih Dist., New Taipei City 221, Taiwan(R.O.C) Manufacturer : JOINSOON ELECTRONICS MFG., CO., LTD. 19F, NO. 79, Sec 1, Sintai 5th Rd., Sijhih Dist., New Taipei City 221, Taiwan(R.O.C) Standard : 47 CFR Part 2.1091 The product was received on Oct. 02, 2019, and testing was started from Oct. 26, 2019 and completed on Oct. 27, 2019. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of United States government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA992607 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: N8J-WFMD001 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA992607 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: N8J-WFMD001 History of this test report Report No. Version Description Issued Date FA992607 01 Initial issue of report Jun. 12, 2020 Radio Exposure Evaluation Report Report No. : FA992607 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: N8J-WFMD001 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Ben Tseng Report Producer: Michelle Tsai Radio Exposure Evaluation Report Report No. : FA992607 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: N8J-WFMD001 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Radio Exposure Evaluation Report Report No. : FA992607 TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-327-0973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: N8J-WFMD001 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR992607AN TEL : 886-3-3273456 Page Number : 1 of 29 FAX : 886-3-3270973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: N8J-WFMD001 FCC Test Report FCC ID : N8J-WFMD001 Equipment : Wireless module Brand Name : JEM Model Name : WM-AC201 Applicant : JOINSOON ELECTRONICS MFG., CO., LTD. 19F, NO. 79, Sec 1, Sintai 5th Rd., Sijhih Dist., New Taipei City 221, Taiwan(R.O.C) Manufacturer : JOINSOON ELECTRONICS MFG., CO., LTD. 19F, NO. 79, Sec 1, Sintai 5th Rd., Sijhih Dist., New Taipei City 221, Taiwan(R.O.C) Standard : 47 CFR FCC Part 15.407 The product was received on Oct. 02, 2019, and testing was started from Oct. 21, 2019 and completed on Mar. 25, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. : FR992607AN TEL : 886-3-3273456 Page Number : 2 of 29 FAX : 886-3-3270973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: N8J-WFMD001 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 8 1.3 Testing Location Information .................................................................................................................. 8 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ......................................................................................................... 9 2.1 Test Condition ........................................................................................................................................ 9 2.2 Test Channel Mode ................................................................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 13 2.4 Support Equipment ............................................................................................................................... 14 2.5 Test Setup Diagram ............................................................................................................................. 15 3 TRANSMITTER TEST RESULT .......................................................................................................... 17 3.1 AC Power-line Conducted Emissions .................................................................................................. 17 3.2 Emission Bandwidth ............................................................................................................................. 19 3.3 Maximum Conducted Output Power .................................................................................................... 20 3.4 Peak Power Spectral Density ............................................................................................................... 22 3.5 Unwanted Emissions ............................................................................................................................ 24 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 28 A PPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF EMISSION BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF PEAK POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF UNWANTED EMISSIONS APPENDIX F. TEST RESULTS OF RADIATED EMISSION CO-LOCATION APPENDIX G. TEST PHOTOS P HOTOGRAPHS OF EUT V01 FCC Test Report Report No. : FR992607AN TEL : 886-3-3273456 Page Number : 3 of 29 FAX : 886-3-3270973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: N8J-WFMD001 History of this test report Report No. Version Description Issued Date FR992607AN 01 Initial issue of report Jun. 12, 2020 FCC Test Report Report No. : FR992607AN TEL : 886-3-3273456 Page Number : 4 of 29 FAX : 886-3-3270973 Issued Date : Jun. 12, 2020 Report Template No.: HE1-D1 Ver2.6 Report Version : 01 FCC ID: N8J-WFMD001 Summary of Test Result Report Clause Ref. Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.407(a) Emission Bandwidth PASS - 3.3 15.407(a) Maximum Conducted Output Power PASS - 3.4 15.407(a) Peak Power Spectra…

Text truncated - open the document above for the full version.
