N9G-XM1356Inductive proximity card reader

Version 1.0: October 2003 page 1 - 2 Quick Guide XM13.56 Reader/Writer QUICK GUIDE XM13.56 READER/WRITER INTRODUCTION Thank you for using the XM13.56 Reader/Writer. This product offers: • Reading and writing for ISO14443 compliant and Mifare tag technology (1KB, 4KB and Ultralight) • Reading and writing for ISO15693 compliant tag technology (e.g. I-CODE and Tag-it) • Upgradeable firmware • ISO track 2, Clock & Data, ABA and Wiegand Interface (serial number reading only) • Programmable via RS485 • 4 IOs • Buzzer • and more. This Quick Guide describes the connections and specifications of the reader. For detailed programming information, please refer to the API Manual. CONNECTIONS In the following table, the connections of the reader/writer are listed. Wire Mifare Reader XM13.56 Brown Extra Ground Violet Optional Power (+5 VDC) Black Ground Red Power (+12 VDC) Yellow RS-485B in + Blue RS-485B out - White RS-485A in + Pink RS-485A out - Grey IO-1 Magstripe Data / Wiegand Data 0 Green IO-2 Magstripe Clock / Wiegand Data 1 Grey/Pink IO-3 Magstripe CLS / Wiegand Strobe Red/Blue IO-4 Magstripe Access / Wiegand Access Note IO1-4 are buffered IOs. Output is an open collector with a pull up resistor (10KOhm) to 5 Volt (via a diode). The output current is 50 mA maximum. The maximum current for the IOs together is 100mA. The outputs are not protected against a too large current draw or transients/spikes. The reader must not be mounted on metal. Version 1.0: October 2003 page 2 - 2 Quick Guide XM13.56 Reader/Writer SPECIFICATIONS In the following table the specifications of the reader/writer are listed. Feature Description Operating Frequency 13.56 MHz ± 7 KHz Operating voltage +5V (via a special wire), or +7.5V Ö +15.5 VDC stabilized. Current consumption 100 mA ± 5 mA Operating temperature -20∞C to +60∞C IP Rating IP67 Cable length 3 meters Certification CE and FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ï Reorient or relocate the receiving antenna ï Increase the separation between the equipment and receiver ï Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ï Consult the dealer or an experienced radio/TV technician for help

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Request for confidentiality Date April 26, 2004 Our reference 04K0361b Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, Pursuant to section 0.457 of the FCC rules we herewith request the following exhibits, related to this application for FCC ID: N9G-XM1356, to be withheld from public inspection and to be kept confidential. The contents of these exhibits may not be disclosed to other parties than Cross Point B.V. and TNO Electronic Products & Services (EPS) B.V.: 1. Bill of materials 2. Circuit diagram 3. Operational description 4. Block diagram The reason for this request for confidentiality is that the information contained in the exhibits as listed above has been classified as company confidential. Disclosure of any portion of this information to other parties would cause substantial competitive harm. Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

TNO Electronic Products & Services (EPS) B.V. Nederlandse Organisatie voor toegepast-natuurwetenschappelijk onderzoek / Netherlands Organisation for Applied Scientific Research Smidshornerweg 18 P.O. Box 15 9822 ZG Niekerk The Netherlands www.tno.nl T +31 594 505005 F +31 594 504804 E [email protected] Subject Cover letter Date April 26, 2004 Our reference 04K0361a Your reference - Page 1 of 1 Our General Terms and Conditions, as filed at the Chamber of Commerce in Groningen, are applicable to all orders given to TNO Electronic Products & Services (EPS) B.V. TNO Electronic Products & Services (EPS) B.V. is registered at the Chamber of Commerce in Groningen with no. 27247331. Return address: P.O. Box 15, 9822 ZG Niekerk, The Netherlands Telefication B.V. Attn.: W. Blom Edisonstraat 12a 6902 PK Zevenaar The Netherlands Dear Mr. Blom, On behalf of our customer Cross Point B.V., we hereby would like to apply for FCC certification of the following device: FCC ID : N9G-XM1356 Brand : Cross Point Model number : XM13.56 Description : Inductive proximity card reader The following PDF files (exhibits) are electronically submitted: 1. Cover letter containing the request for FCC certification 2. Request for confidentiality 3. Test report in conformity with 47 CFR Part 15 4. Bill of materials 5. Circuit diagram 6. Block diagram 7. Operational description 8. Interior photographs 9. Exterior photographs 10. Test setup photographs 11. Authorization letter 12. User manual 13. Label information Best regards, TNO Electronic Products & Services (EPS) B.V. P.A.J.M. Robben, B.Sc.E.E. Marketing Manager

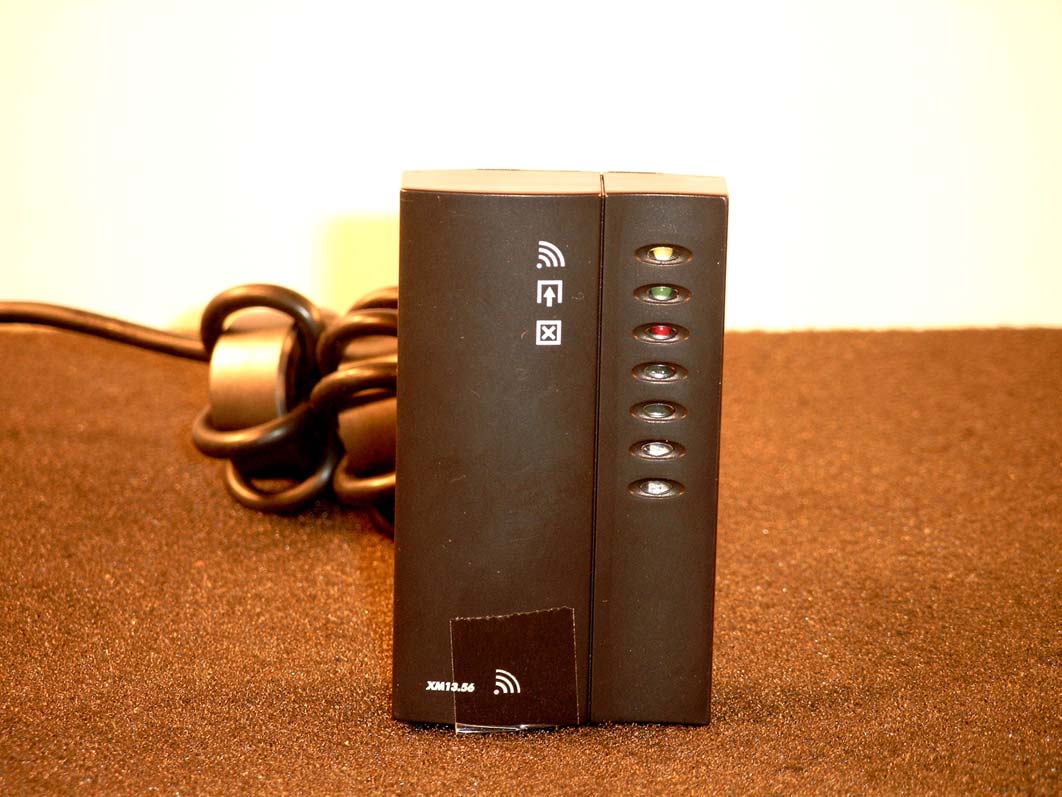

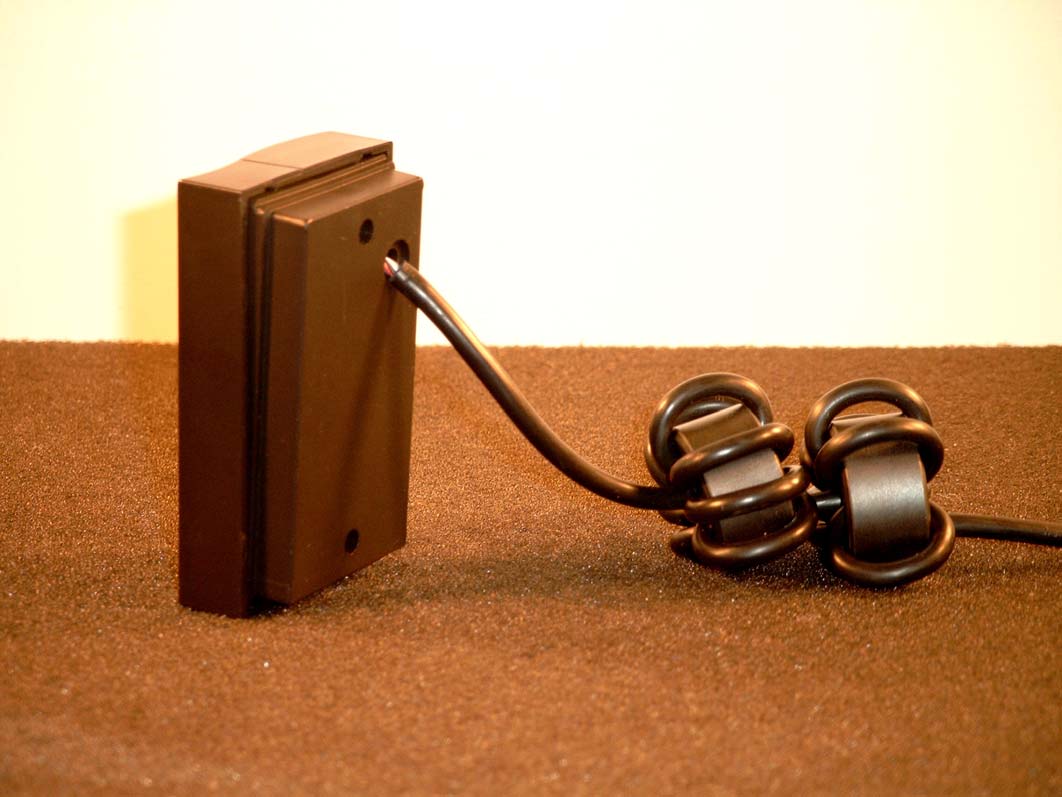

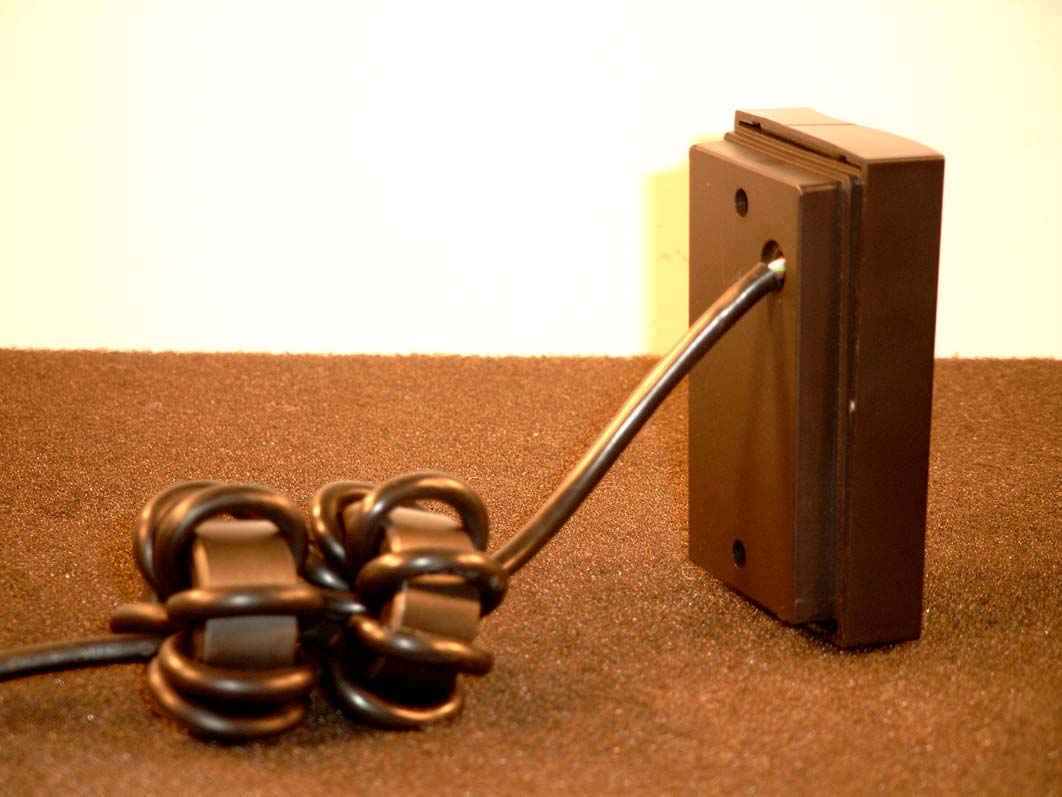

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03062503.p02 Page 1 of 7 EXTERIOR PHOTOGRAPHS OF AN INDUCTIVE PROXIMITY CARD READER, BRAND CROSS POINT, MODEL XM13.56. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p02 Page 2 of 7 Description of test item Test item : Inductive proximity card reader Manufacturer : Cross Point B.V. Brand : Cross Point Model : XM13.56 Serial number : n.a. Revision : n.a. Receipt number : 1 Receipt date : July 4, 2003 Applicant information Applicantís representative : Mr. J. Wiggerink Company : Cross Point B.V. Address : Waanderweg 64 Postal code : 7812 HZ City : Emmen PO-box : 2112 Postal code : 7801 CC City : Emmen Country : The Netherlands Telephone number : + 31 (0)591 668 866 Telefax number : + 31 (0)591 668 867 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p02 Page 3 of 7 Table of contents 1 Exterior photographs. .............................................................................................................................................................4 1.1 Front side of EUT...........................................................................................................................................................4 1.2 Left side of EUT.............................................................................................................................................................5 1.3 Right side of EUT...........................................................................................................................................................6 1.4 Back side of EUT. ..........................................................................................................................................................7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p02 Page 4 of 7 1 Exterior photographs. 1.1 Front side of EUT. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p02 Page 5 of 7 1.2 Left side of EUT. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p02 Page 6 of 7 1.3 Right side of EUT. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p02 Page 7 of 7 1.4 Back side of EUT.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03062503.p03 Page 1 of 6 INTERIOR PHOTOGRAPHS OF AN INDUCTIVE PROXIMITY CARD READER, BRAND CROSS POINT, MODEL XM13.56. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p03 Page 2 of 6 Description of test item Test item : Inductive proximity card reader Manufacturer : Cross Point B.V. Brand : Cross Point Model : XM13.56 Serial number : n.a. Revision : n.a. Receipt number : 1 Receipt date : July 4, 2003 Applicant information Applicantís representative : Mr. J. Wiggerink Company : Cross Point B.V. Address : Waanderweg 64 Postal code : 7812 HZ City : Emmen PO-box : 2112 Postal code : 7801 CC City : Emmen Country : The Netherlands Telephone number : + 31 (0)591 668 866 Telefax number : + 31 (0)591 668 867 This report is in conformity with NEN-EN-ISO/IEC 17025. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p03 Page 3 of 6 Table of contents 1 Interior photographs. ..............................................................................................................................................................4 1.1 EUT with front side removed. ........................................................................................................................................4 1.2 Top side of PCB. ............................................................................................................................................................5 1.3 Bottom side of PCB........................................................................................................................................................6 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p03 Page 4 of 6 1 Interior photographs. 1.1 EUT with front side removed. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p03 Page 5 of 6 1.2 Top side of PCB. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p03 Page 6 of 6 1.3 Bottom side of PCB.

Testing and certification of, consultancy and research concerning, electronic and electric appliances, systems, installations and telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Project number: 03062503.r03 Page 1 of 16 TEST REPORT CONCERNING THE COMPLIANCE OF AN INDUCTIVE PROXIMITY CARD READER, BRAND CROSS POINT, MODEL XM13.56, WITH 47 CFR PART 15 (2003-12-08). FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-12-08) Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.r03 Page 2 of 16 MEASUREMENT/TECHNICAL REPORT Cross Point B.V. Model : XM13.56 FCC ID: N9G-XM1356 April 26, 2004 This report concerns: Original grant/certification Class 2 change Verification Equipment type: Inductive proximity card reader system for use with RF-ID tags operating on 13.56 MHz Deferred grant requested per 47 CFR 0.457(d)(1)(ii) ? Yes No n.a. Report prepared by: Name : H.J. Pieters Company name : TNO Electronic Products & Services (EPS) B.V. Address : Smidshornerweg 18 Postal code/city : 9822 ZG Niekerk Mailing address : P.O. Box 15 Postal code/city : 9822 TL Niekerk Country : The Netherlands Telephone number : + 31 594 505 005 Telefax number : + 31 594 504 804 E-mail : [email protected] The data taken for this test and report herein was done in accordance with 47 CFR Part 15 and the measurement procedures of ANSI C63.4-1992. TNO Electronic Products & Services (EPS) B.V. at Niekerk, The Netherlands, certifies that the data is accurate and contains a true representation of the emission profile of the Equipment Under Test (EUT) on the date of the test as noted in the test report. I have reviewed the test report and find it to be an accurate description of the test(s) performed and the EUT so tested. Date: April 26, 2004 Signature: P. de Beer TNO Electronic Products & Services (EPS) B.V. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-12-08) Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.r03 Page 3 of 16 Description of test item Test item : Inductive proximity card reader Manufacturer : Cross Point B.V. Brand : Cross Point Model : XM13.56 Serial number : n.a. Revision : n.a. Receipt number : 1 Receipt date : July 4, 2003 Applicant information Applicantís representative : Mr. J. Wiggerink Company : Cross Point B.V. Address : Waanderweg 64 Postal code : 7812 HZ City : Emmen PO-box : 2112 Postal code : 7801 CC City : Emmen Country : The Netherlands Telephone number : + 31 (0)591 668 866 Telefax number : + 31 (0)591 668 867 Test(s) performed Location : Niekerk Test(s) started : July 4, 2003 Test(s) completed : October 21, 2003 Purpose of test(s) : Type approval / certification Test specification(s) : 47 CFR Part 15 (2003-12-08) Test engineer : H.J. Pieters Report written by : H.J. Pieters Project leader: : P.A.J.M. Robben This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Test specification(s): Description of EUT: Manufacturer: Brand mark: Model: FCC ID: 47 CFR Part 15 (2003-12-08) Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.r03 Page 4 of 16 Table of contents 1 General information. ..............................................................................................................................................................5 1.1 Product description.........................................................................................................................................................5 1.1.1 Introduction. ...........................................................................................................................................................5 1.1.2 Choice of operating frequency. ..............................................................................................................................5 1.1.3 Operating principles. ..............................................................................................................................................5 1.2 Related submittal(s) and/or Grant(s). .............................................................................................................................5 1.3 Tested system details......................................................................................................................................................5 1.4 Test methodology. ..........................................................................................................................................................6 1.5 Test facility.....................................................................................................................................................................6 1.6 Product labeling..............................................................................................................................................................6 2 System test configuration. ......................................................................................................................................................7 2.1 Justification. ...................................................................................................................................................................7 2.2 EUT mode of operation. ......................................................................................................................................…

Text truncated - open the document above for the full version.

Testing and certification of electric, electronic and radio equipment/installations including telecommunication systems TNO Electronic Products & Services (EPS) B.V. P.O. Box 15 9822 ZG Niekerk (NL) Smidshornerweg 18 9822 TL Niekerk (NL) Telephone: +31 594 505005 Telefax: +31 594 504804 E-mail: [email protected] Web: www.eps.tno.nl Project number: 03062503.p01 Page 1 of 7 47 CFR PART 15 TEST SETUP PHOTOGRAPHS OF AN INDUCTIVE PROXIMITY CARD READER, BRAND CROSS POINT, MODEL XM13.56. FCC listed Industry Canada VCCI registered : : : 90828 IC3501 R-1518, C-1598 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p01 Page 2 of 7 Description of test item Test item : Inductive proximity card reader Manufacturer : Cross Point B.V. Brand : Cross Point Model : XM13.56 Serial number : n.a. Revision : n.a. Receipt number : 1 Receipt date : July 4, 2003 Applicant information Applicantís representative : Mr. J. Wiggerink Company : Cross Point B.V. Address : Waanderweg 64 Postal code : 7812 HZ City : Emmen PO-box : 2112 Postal code : 7801 CC City : Emmen Country : The Netherlands Telephone number : + 31 (0)591 668 866 Telefax number : + 31 (0)591 668 867 This report is in conformity with NEN-EN-ISO/IEC 17025: 2000. This report shall not be reproduced, except in full, without the written permission of TNO Electronic Products & Services (EPS) B.V. The test results relate only to the item(s) tested. Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p01 Page 3 of 7 Table of contents 1 Radiated emission test setup...................................................................................................................................................4 1.1 Radiated emission test setup (front). ..............................................................................................................................4 1.2 Radiated emission test setup (back)................................................................................................................................5 2 Conducted emission test setup................................................................................................................................................6 2.1 Conducted emission test setup (front). ...........................................................................................................................6 2.2 Conducted emission test setup (back). ...........................................................................................................................7 Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p01 Page 4 of 7 1 Radiated emission test setup. 1.1 Radiated emission test setup (front). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p01 Page 5 of 7 1.2 Radiated emission test setup (back). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p01 Page 6 of 7 2 Conducted emission test setup. 2.1 Conducted emission test setup (front). Description of EUT: Manufacturer: Brand mark: Model: FCC ID: Inductive proximity card reader Cross Point B.V. Cross Point XM13.56 N9G-XM1356 Project number: 03062503.p01 Page 7 of 7 2.2 Conducted emission test setup (back).
