N9O-RFV1

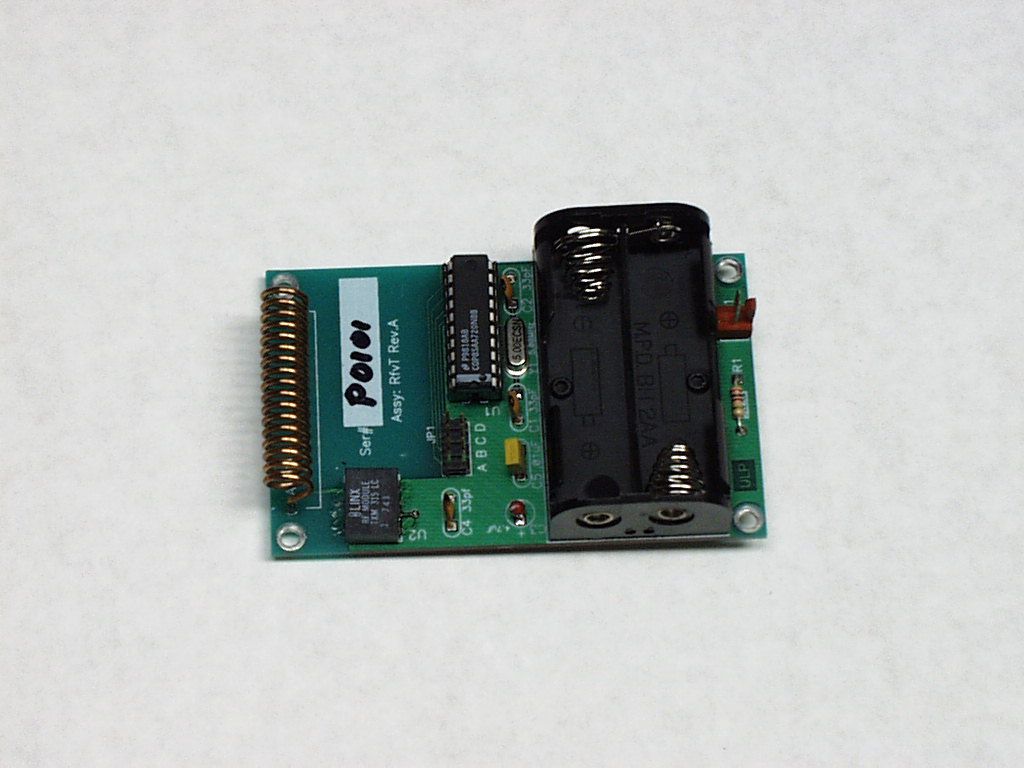

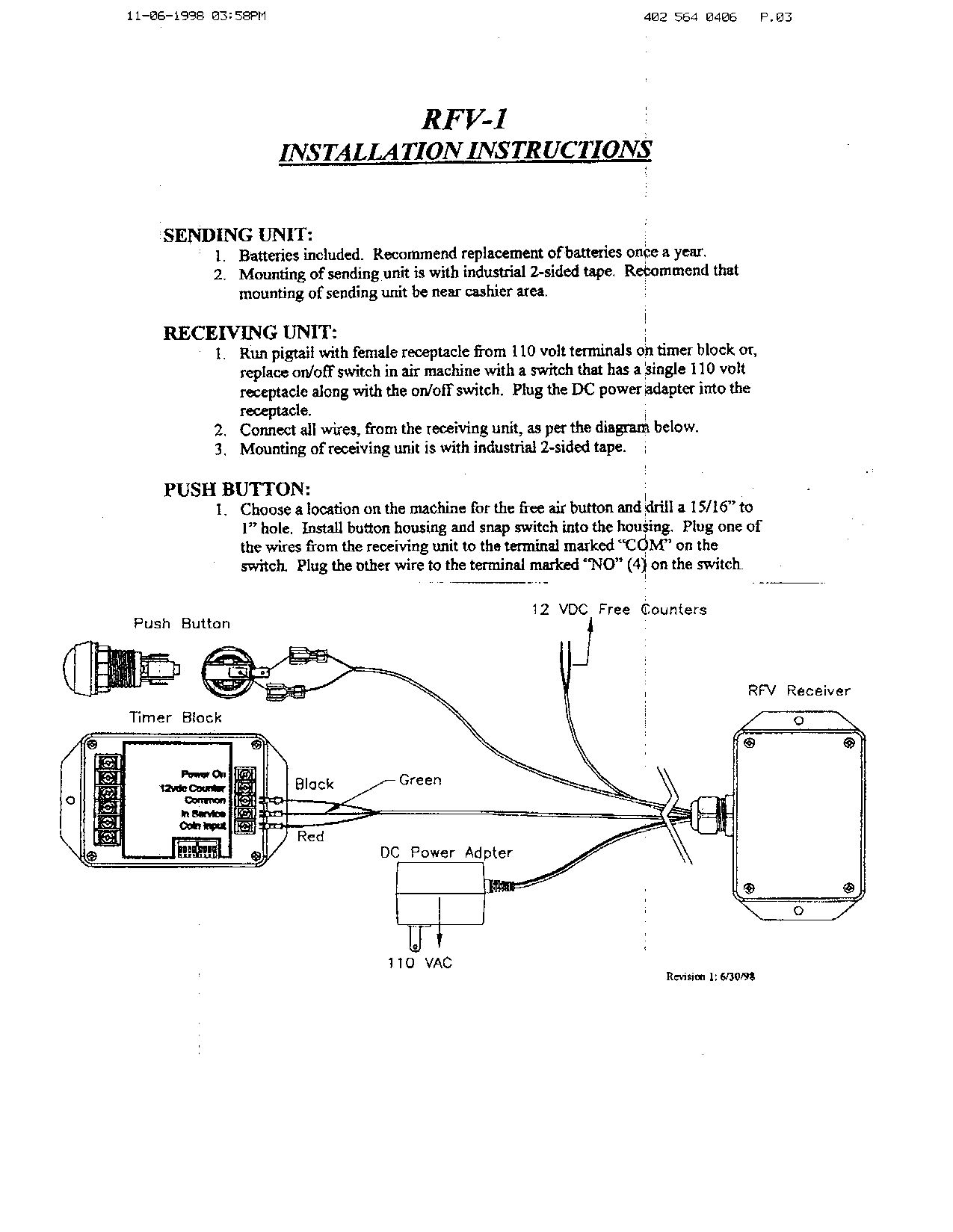

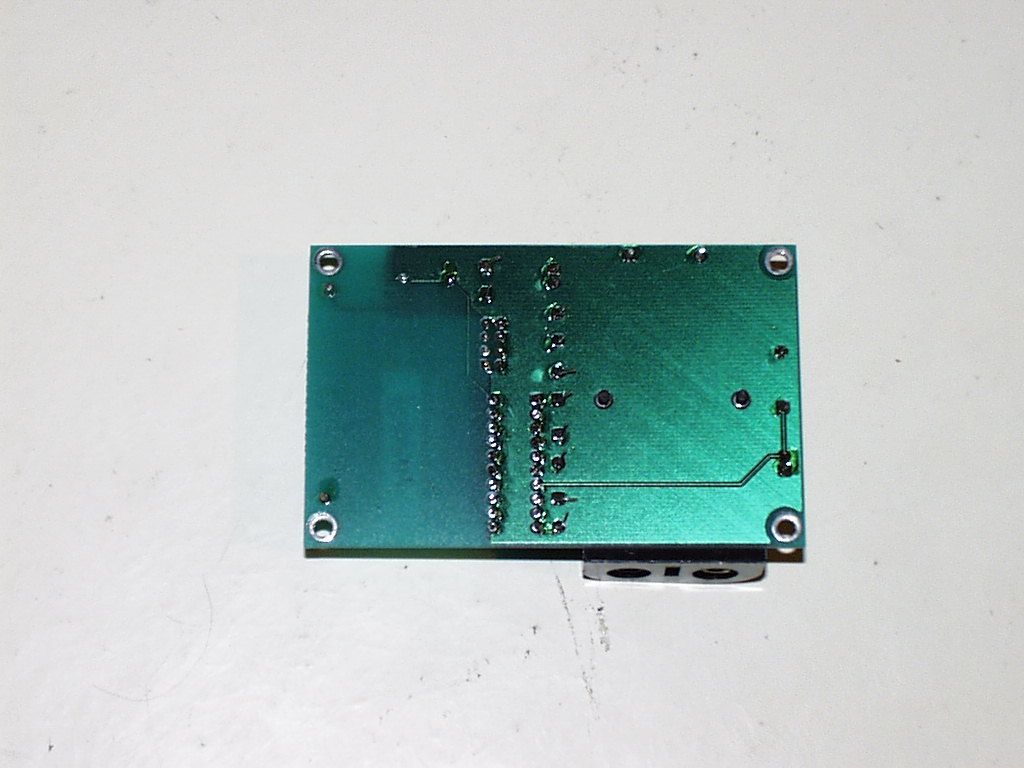

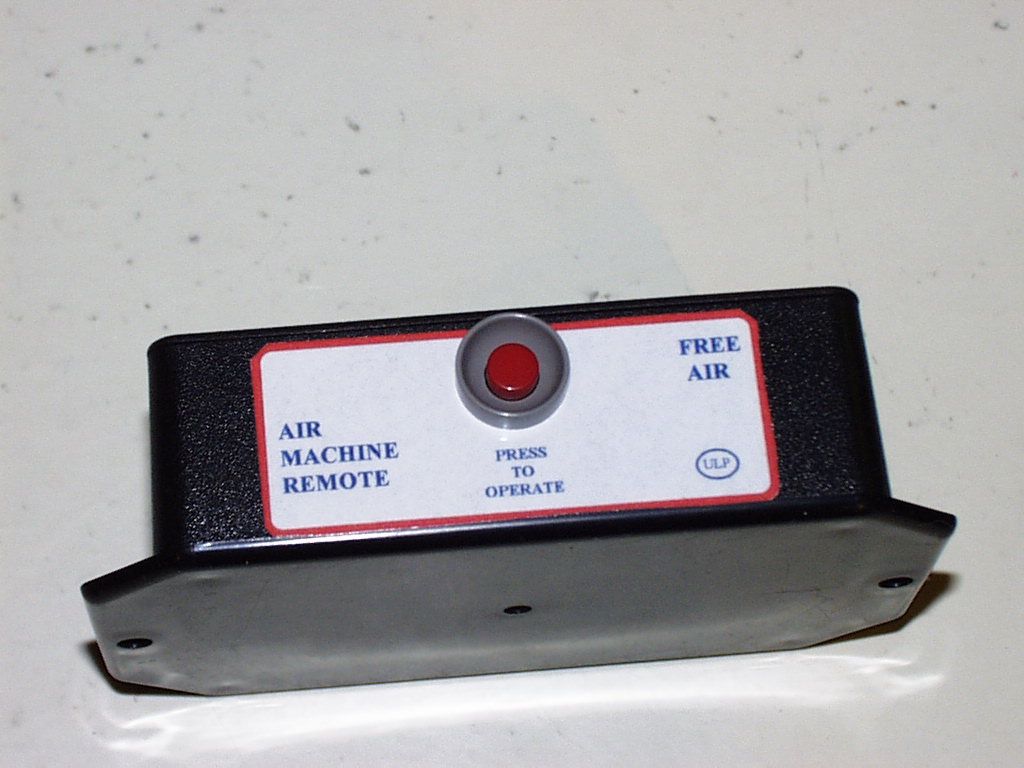

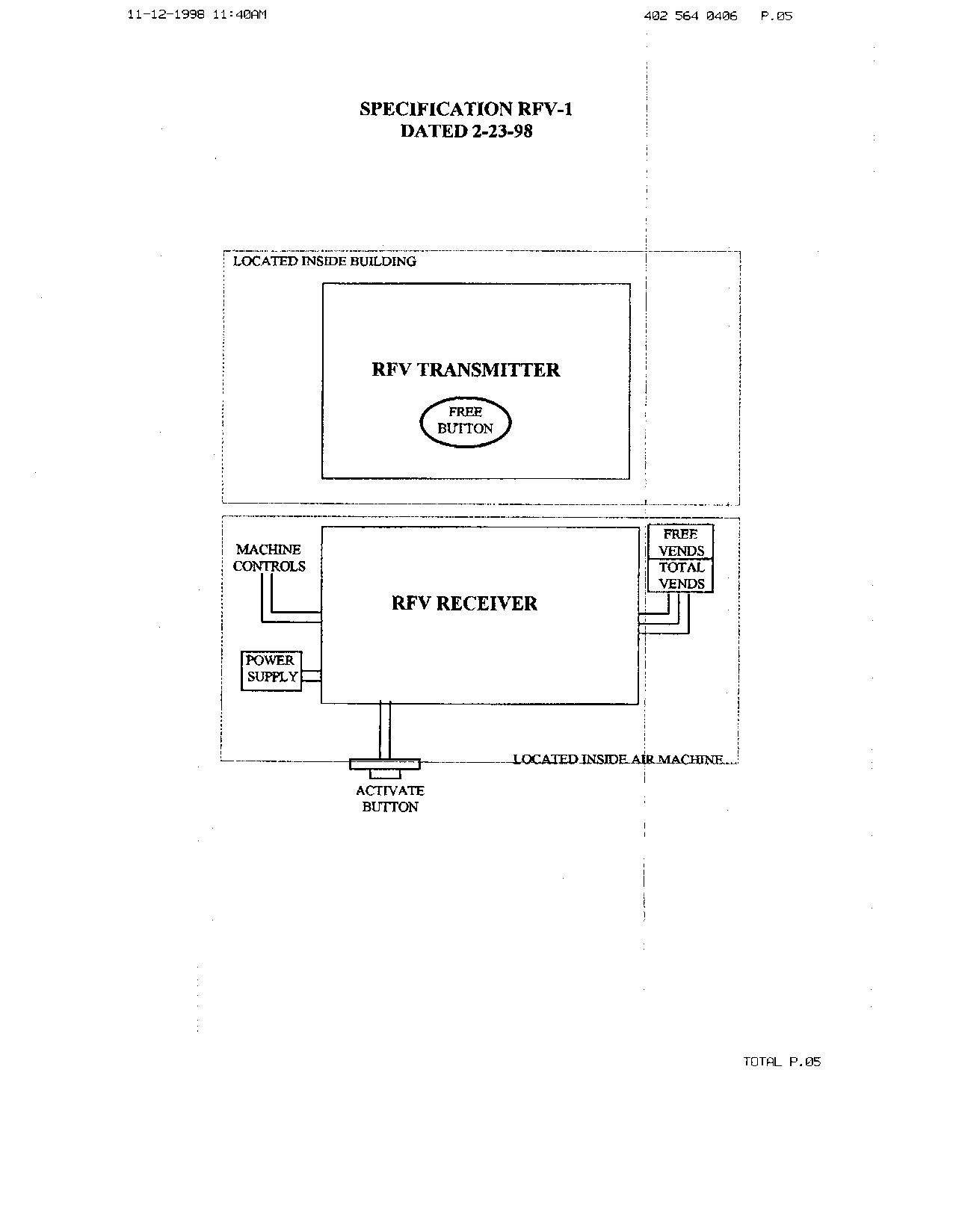

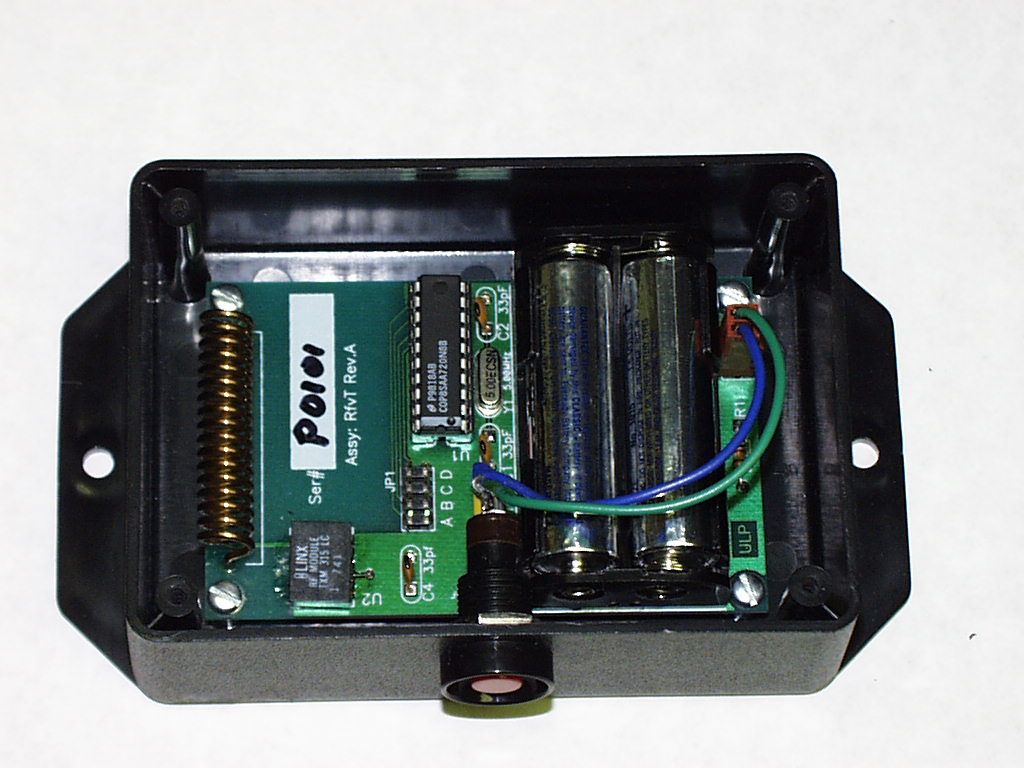

RFV-1 INSTALLATION INSTRUCTIONS SENDING UNIT: 1. Batteries included. Recommend replacement of batteries once a year. 2. Mounting of sending unit is with industrial 2-sided tape. Recommend that mounting of sending unit be near cashier area. RECEIVING UNIT: 1. Run pigtail with female receptacle from 110 volt terminals on timer block or, replace on/off switch in air machine with a switch that has a single 110 volt receptacle along with the on/off switch. Plug the DC power adapter into the receptacle. 2. Connect all wires, from the receiving unit, as per the diagram below. 3. Mounting of receiving unit is with industrial 2-sided tape. PUSH BUTTON: 1. Choose a location on the machine for the free air button and drill a 15/16” to 1” hole. Install button housing and snap switch into the housing. Plug one of the wires from the receiving unit to the terminal marked “COM” on the switch. Plug the other wire to the terminal marked “NO” (4) on the switch. Revision 1: 6/30/98 FCC COMPLIANCE Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These units are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

FCC ID: N9O-RFV1 ENGINEERING STATEMENT For Certification of Technik Mfg., Inc. Air Machine Remote Transmitter FCC ID: N9O-RFV1 Model No. RFV-1 I am an Electromagnetic Compatibility test engineer with TUV Product Service, Boulder, Colorado. My education and experience are a matter of record with the Federal Communications Commission. TUV Product Service Corporation has been authorized by Technik Mfg., Inc., 1005 17th Street, P.O. Box 1617, Coluumbus, NE 68602 to make FCC Part 15 Certification measurements on the RFV-1. These tests were made by me or under my supervision at our Pinewood Springs Laboratory which is registered with the FCC under Paragraph 15 of the FCC Rules. Test data required by the FCC for FCC Part 15 Certification is included in this report. It is submitted that the above equipment meets FCC requirements and FCC Part 15 Certification is hereby requested. ________________________ Shawn Singh Engineer TUV Product Service Dated: 20 November 1998

C:\Ready_To_Convert\Doc\20554.DOCdate 07/09/01 Technik Mfg, Inc. 1005 17 TH Street P.O. Box 1617 Columbus, NE 68602 Request for Confidentiality FCC ID : N9O-RFV1 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Technik Mfg, Inc. requests that all information including theory of operation and schematic within this application, except information that must be publicly available, be withheld from public inspection. The information contained within this application is confidential to Technik Mfg, Inc. and took considerable time, effort, and expertise to develop. If the information were available to other potential competing companies, they could forgo most of the development time and expense, providing them with a potentially damaging and unfair competitive advantage. Thank you, Dennis L. Carstens President Technik Mfg, Inc.

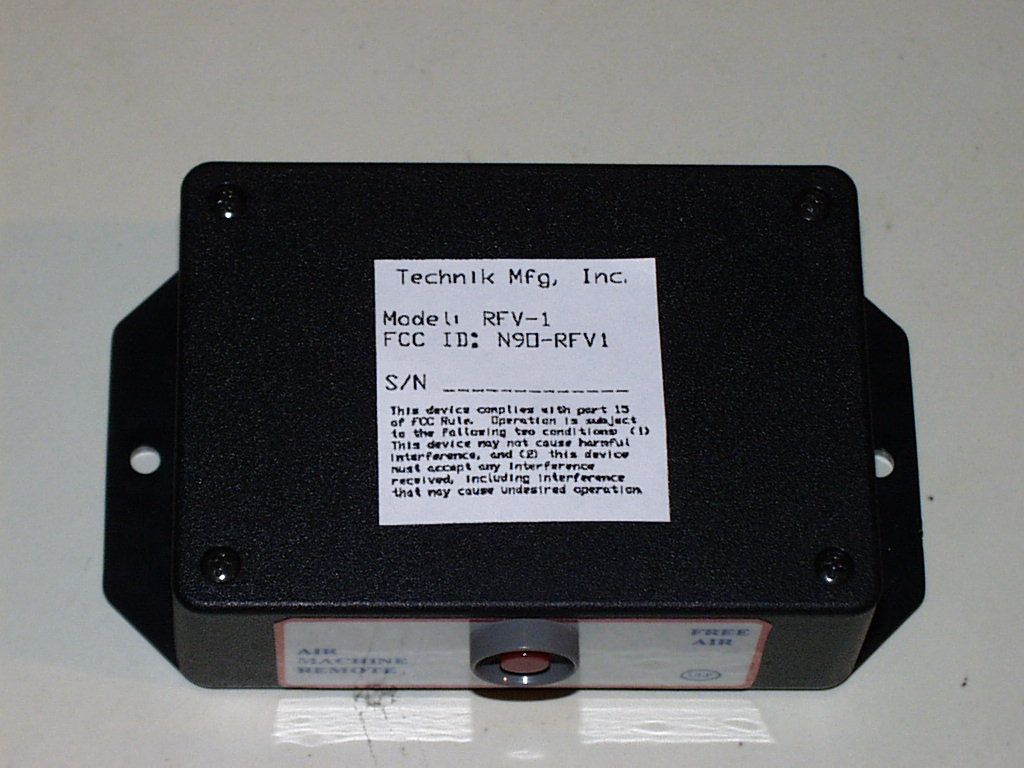

COLUMBUS NEBRASKA MFG INC TECHNIK Label with clear coating adhesive backed with peel protection. DC This device complies with part 15 of FCC Rule. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.0 2.0 009-097 Lbl-FCC/RFV 11-12-98 Technik Mfg, Inc. Model: RFV-1 FCC ID: N9O-RFV1 S/N: _____________

FCC ID: N9O-RFV1 File No. B241849901, Page 1 of 6 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 EMC EMISSION - TEST REPORT Test Report No. B849901 Issue Date23 November 1998 Model / Serial No.RFV-1 / 1 Product TypeAir Machine Remote Transmitter ClientTechnik Manufacturing, Inc. ManufacturerTechnik Manufacturing, Inc. License holderTechnik Manufacturing, Inc. Address1005 17 Street, P.O. Box 1617 Columbus, NE 68602 Test Criteria AppliedFCC Part 1515.231C Periodic Operation in the band 40.66-40.70 MHz and above 70 MHz. Paragraphs (a) to (c). Test Start Date:22 October 1998 Test End Date:22 October 1998 Test Result nn PASSoo FAIL Test Report Project No. B241849901 Total Pages including Appendices39 Reviewed By : Felix J. ChavezReviewed By : Shawn Singh TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval of TÜV Product Service. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI FCC ID: N9O-RFV1 File No. B241849901, Page 2 of 6 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 DIRECTORY - EMISSIONS Page(s) Documentation Test report1 - 3 Directory2 Test Regulations3 General Remarks3 Test Equipment Used4-6 Appendix A Transmitter Data Sheets A1 - A2 Appendix B Detailed Test Data Sheets B1 - B8 Appendix C Plot of 20 dB bandwidth C1 - C2 Appendix D Plots of Calculated Duty Cycle D1 - D4 Appendix E Test Plan/Constructional Data Form E1 - E11 Appendix F Measurement of Protocol F1 - F3 Attachment G Test-setup Photographs G1 - G3 FCC ID: N9O-RFV1 File No. B241849901, Page 3 of 6 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 EMISSIONS TEST REGULATIONS : The tests were performed according to following regulations : n - Federal Communication Commission part 15o - Class An - Class B n - Federal Communication Commission part 15, Subpart Cn - 15.209n - 15.231 -------------------------------------------------------------------------------- All tests performed according to ANSI C63.4 Emission Test Results: Conducted emissions 150 kHz - 30 MHz Test Resultoo - PASS oo - FAILnn - Not Applicable Passing MargindBatMHz Remarks: Radiated emissions (electric field) 30 MHz - 1000 MHz (Unintentional Radiator) Test Resultnn - PASS oo - FAILoo - Not Applicable Passing Margin20.1dBat30MHz Remarks: Radiated emissions (electric field) 315 MHz - 3150 MHz (Intentional Radiator) Test Resultnn - PASS oo - FAILoo - Not Applicable Passing Margin3.6dBat315MHz Remarks: GENERAL REMARKS: Modifications required to pass: None Test Specification Deviations: Additions to or Exclusions from: None FCC ID: N9O-RFV1 File No. B241849901, Page 4 of 6 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 Test Equipment Used FCC ID: N9O-RFV1 File No. B241849901, Page 5 of 6 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1 File No. B241849901, Page 6 of 6 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901, Page A1 of A2 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 Appendix A Transmitter Data Sheets FCC ID: N9O-RFV1File No. B241849901, Page A2 of A2 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page B1 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 Appendix B Detailed Test Data Sheets FCC ID: N9O-RFV1File No. B241849901 , Page B2 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page B3 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page B4 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page B5 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page B6 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page B7 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page B8 of B8 TÜV PRODUCT SERVICE INC40 Meadow RoadPinewood Springs, Lyons, CO 80540Tel: 303 786 7999Fax: 303 449 3004Rev.No 1.0 FCC ID: N9O-RFV1File No. B241849901 , Page C1 of C2 TÜV …
