N9W-MSR100Magnetic Card Reader

ProgrammableMagneticCardReaderPage1of3 Tel+8675588363580 Fax+8675582531204 [email protected] http://www.ylk-ic.com Unit1001,FourseasBuilding208-212, NathanRoad,Kowloon, HongKong 2011.01 ProgrammableMagneticCardReaderPage2of3 Fetures Fetures Fetures Fetures •Withindicationoflight •Lowpowerconsumption,goodcompatibility •ISO7811/12/13/14 •EasyProgrammable •RS232/PS2/USB •Cardscanbeswipedandreadinbothdirections. •Readerscanbeaffixedtomostcomputerkeyboardsortoanyflatsurface, • CanbeconnectedtoanyPCorMacviakeyboardwedgeorUSBinterface. Specification Specification Specification Specification •TechnicDetails:RecordingDensity:201BPI,75BPIor210BPI •RecordingCapacity:79Characters,40Charactersor107Characters •PowerSupply:+5VDC±5% •PowerConsumption:65mA(max.) •HeadFunction:Readonly1.5mm •CardThickness:Plastic0.76±0.08mm • OperationSpeed:10-150cm/sec •ErrorRate:Lessthan0.5% •Interface:PS/2,RS232orUSBisavailable •Dimension:90x26x28mm •OperationLocus:Indoorsonly •CableLength:150cm •LifetimeofHeader:800,000cardpasses(1pass:oneswipe) •Weight:Appro.100g ProgrammableMagneticCardReaderPage3of3 Driver Driver Driver Driver Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment。 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: N9W-MSR100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

unique electronic international limited PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 11.05.2012 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Shenzhen Certification Technology Service Co., Ltd. Address 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name Magnetic card reader Model Name MSR100 Brand Name We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name Sammi Lee Position sales manager Company Name unique electronic international limited Address Rm 7F, Bld Jinghui, Jingxin Garden, Futian 518034, China Tel +86-755-88363580 Fax +86-755-82531204 Email [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

unique electronic international limited Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: unique electronic international limited FCC ID : N9W- MSR100 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name Sammi Lee Position sales manager Company Name unique electronic international limited Address Rm 7F, Bld Jinghui, Jingxin Garden, Futian 518034, China Tel +86-755-88363580

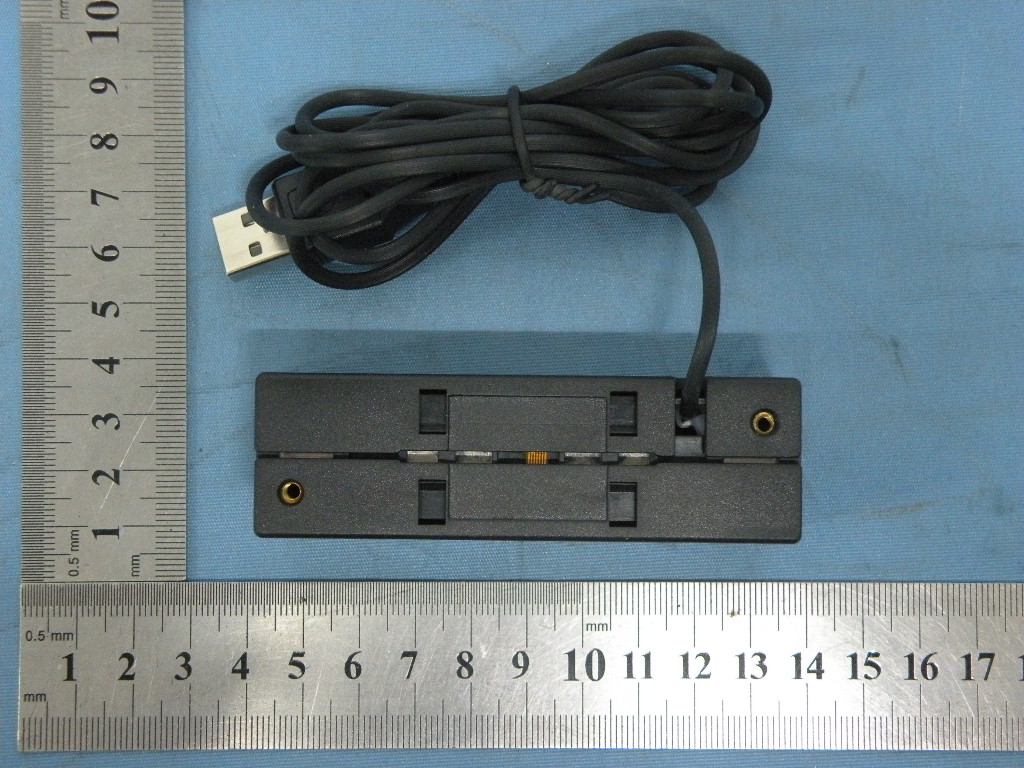

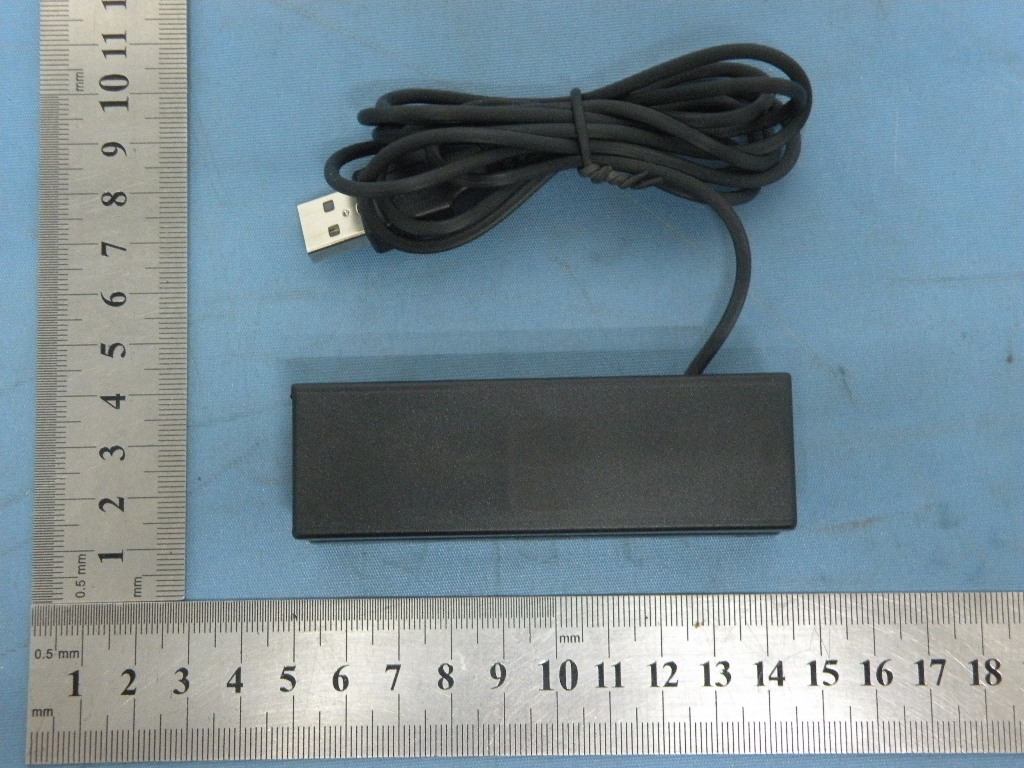

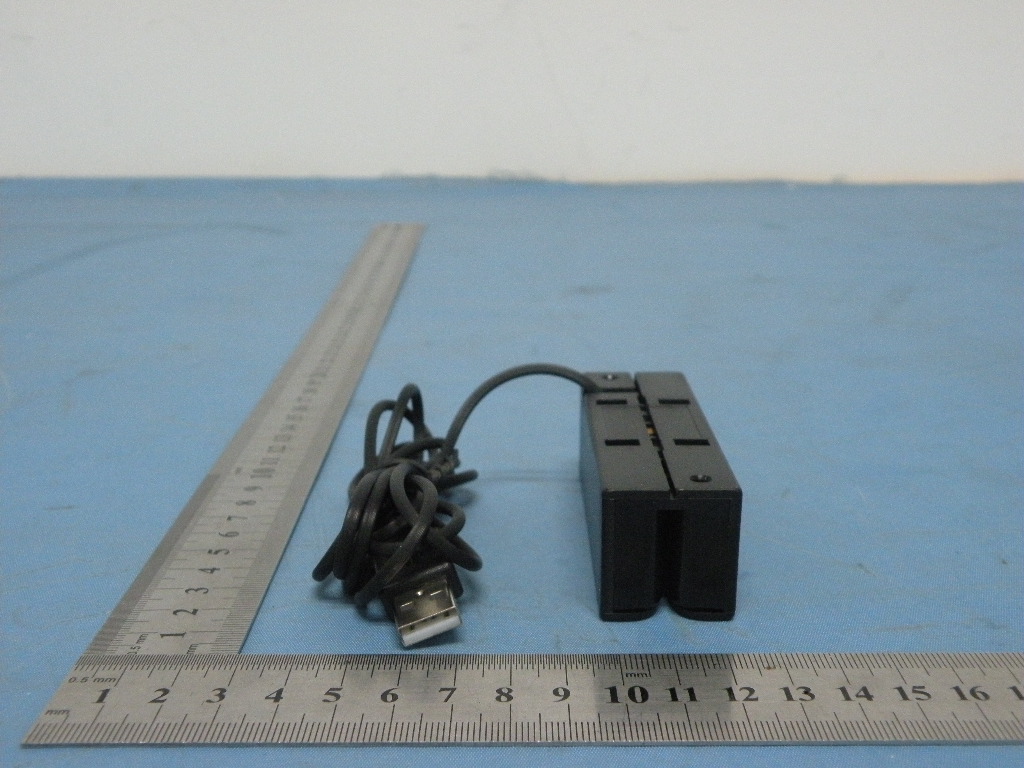

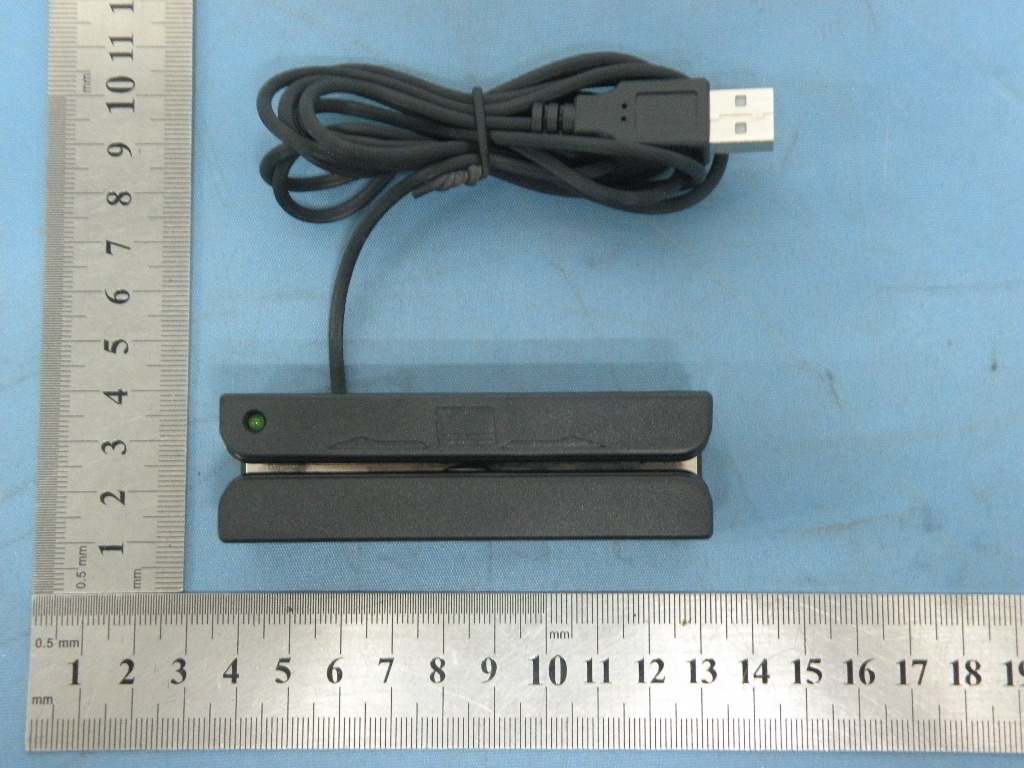

To p Vi e w Bottom View Front View Left View Rear View Right View

Label Location F CC ID: N9W-MSR100

To p Vi e w Bottom View To p Vi e w Bottom View

Shenzhen Certification Technologh Service Co., Ltd 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao’an District, Shenzhen 518126, P.R. China FCCID: N9W-MSR100 Page 1 of 22 TEST REPORT FCC ID: N9W-MSR100 Applicant unique electronic international limited Address Rm 7F, Bld Jinghui, Jingxin Garden, Futian 518034, China Equipment under Test (EUT): Name : Magnetic card reader Model : MSR100 Standards : FCC PART 15, Subpart B Class B 2011 Report No. : STE120418408 Date of Test : April 20-April 23, 2012 Date of Issue : April 25, 2012 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: STE120418408 FCCID: N9W-MSR100 Page 2 of 22 TABLE OF CONTENTS Description Page Test Report Declaration ...............................................................3 1. Summary of standards and results.................................................................................... 4 1.1. Description of Standards and Results......................................................................... 4 2. GENERAL INFORMATION ............................................................................................ 5 2.1. Description of Device (EUT) ..................................................................................... 5 2.2. Tested Supporting System Details ............................................................................. 5 2.3. Block Diagram of connection between EUT and simulators ..................................... 6 2.4. Test Facility ................................................................................................................ 6 2.5. Measurement Uncertainty .......................................................................................... 6 3. POWER LINE CONDUCTED Emission test .................................................................. 7 3.1. Test Equipment........................................................................................................... 7 3.2. Block Diagram of Test Setup ..................................................................................... 7 3.3. Power Line Conducted Emission Test Limits ............................................................ 7 3.4. Configuration of EUT on Test.................................................................................... 8 3.5. Operating Condition of EUT ...................................................................................... 8 3.6. Test Procedure ............................................................................................................ 8 3.7. Conducted Disturbance at Mains Terminals Test Results.......................................... 8 4. Radiated emission Test ..................................................................................................... 11 4.1. Test Equipment......................................................................................................... 11 4.2. Block Diagram of Test Setup ................................................................................... 11 4.3. Radiated Emission Limit .......................................................................................... 12 4.4. EUT Configuration on Test ...................................................................................... 12 4.5. Operating Condition of EUT .................................................................................... 13 4.6. Test Procedure .......................................................................................................... 13 4.7. Radiated Disturbance Test Results........................................................................... 13 5. Photograph ........................................................................................................................ 16 5.1. Photos of Power Line Conducted Emission Test ..................................................... 16 5.2. Photos of Radiated Emission Test (In Anechoic Chamber)..................................... 17 6. Photos of the EUT ............................................................................................................. 18 Report No.: STE120418408 FCCID: N9W-MSR100 Page 3 of 22 TEST REPORT VERIFICATION Applicant : unique electronic international limited Manufacturer : unique electronic international limited EUT Description : Magnetic card reader (A) Model No. : MSR100 (B)Trademark :N/A (C) Serial No. :N/A (D) Power Supply : DC 5V From PC (E) Test Voltage : DC 5V From PC Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart B Class B 2011 The device described above is tested by Shenzhen Certification Technology Service Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B Class B limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Certification Technology Service Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in p…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber Photos of Power Line Conducted Emission Test
