RX Series Video Recording Transmitter RX304 User Guide Notice: Signal Communications Limited reserves the right to make improvements to the product described in this manual at any time and without notice. This manual is copyrighted. All rights are reserved. This manual should not be copied, reproduced or translated in whole or part without prior consent from Signal Communications Limited. Tele Eye is a trademark of Signal Communications Limited and is registered in China, European Communities, Hong Kong, US and other countries. All other trademarks are the property of their respective owners. Copyright (c) 2005 Signal Communications Limited (A member of Tele Eye Group). All rights reserved. Release Version 1.02 Limits of Liability and Disclaimer of Warranty Signal Communications Limited has taken care in preparation of this manual, but makes no expressed or implied warranty of any kind and assume no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages in connection with or arising out of the use of the information or accessories contained herein. Features and specifications are subject to change without prior notice. FCC Statement on Class B WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determine by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. Declaration 1. EN 61000-4-2 Under the environment with the electrostatic discharge, the sample may malfunction and require user to reset the sample. 2. EN 61000-4-4 Under the environment with the electrical fast transient, the sample may malfunction and require user to reset the sample. 3. EN61000-4-5 Under the environment with the electrical surge, the sample may malfunction and require user to reset the sample Table of Contents SECTION 1 INTRODUCTION A. Introduction 1 B. Features 2 C. Removing the Packages 3 D. Convention Used in This Manual 4 E. Front Panel Description 5 F. Rear Panel Description 8 SECTION 2 HARD DISK INSTALLATION, FORMATTING AND SCANNING A. Hard Disk Installation 11 B. Hard Disk Formatting 14 C. Hard Disk Scanning 16 D. Hard Disk Recommendation List 18 SECTION 3 BASIC INSTALLATION FOR LOCAL AND REMOTE MONITORING A. Setup Tele Eye RX for Local CCTV Monitor 19 B. Setup Tele Eye RX for LAN Connection with Static IP 22 C. Setup Tele Eye RX for Broadband or Narrowband Internet Connection with Static IP 33 D. Setup Tele Eye RX for Broadband or Narrowband Internet Connection with Dynamic IP 44 E. Setup TeleEye RX for Modem Connection 56 SECTION 4 BASIC OPERATION FOR LOCAL AND REMOTE MONITORING A. Local CCTV Monitor : Live Monitoring, Recording and Playback 66 I. Live Monitoring 66 II. Recording 67 III. Playback 68 B. Tele Eye RX Reception Software WX-30 : Live Monitoring, Recording and Playback 70 I. Live Monitoring 70 II. Recording 71 III. Playback 72 SECTION 5 OSD MENU OPERATION A. Main Menu 73 B. Recording Log Menu 87 C. PTZ Menu 89 D. Recording Menu 91 E. Event Menu 92 SECTION 6 ADVANCE OPERATION A. Install Tele Eye RX with Alarm Sensors and Relay Control Port 99 B. Install Tele Eye RX with Tamper Circuit and External Resistor 100 C. Event Handling 103 I. Arm/Disarm 104 II. Security Switch 108 III. Alarm 111 IV. Motion 120 V. Videoloss 123 VI. System Tamper 125 VII. Power Failure 127 D. Event Action 129 I. Recording 130 II. Switch 132 III. Dialback 133 IV. Buzzer 138 V. Event LED 140 VI. Live Camera 141 VII. PTZ 143 E. Backup to CD-R 145 F. Connection with PTZ Cameras 148 APPENDIX A sureLINK TECHNOLOGY 152  How to Apply for sureLINK Address 153 APPENDIX B GENERAL TERMS DISCUSSION 156 APPENDIX C SPECIFICATION 157 Tele Eye RX User Guide Page 1 Introduction 1 INTRODUCTION A. Introduction Tele Eye RX Series Video Recording Transmitter operates with its revolutionary multi- rate video coder to fulfill the highest video coding requirements for simultaneous transmission and recording. Seamless video transmission by Tele Eye RX can be performed in low and medium bandwidth communication networks including ADSL, ISDN and PSTN; whilst DVD- quality videos can be transmitted through LAN and recorded into local hard drive with optimum speed at 25fps and resolution in 720x576 pixels. Real time recording of up to 100/120fps on all video channels can also be achieved at CIF resolution. Tele Eye RX provides professional and real life security control of premises with its sophisticated event management scheme. It responses to wide range of events triggered by external alarm sensor, video motion, power interruption and tamper. There is an arm/disarm control for the event management mechanism. Every external alarm input is configurable with an individual entry/exit delay, fire zone and tamper detection setting. Various actions like sending video back to a designated receiving PC, video recording…

Text truncated - open the document above for the full version.

TW2824 Quad Multiplexer Video out SDRAM DM642_A ARM HDD PHY 232 driver IO HPI32 Audio Codec SDRAM CDRW Ethernet 485 driver 485 driver Modem pt RS485_A RS485_B Alarm&Rel ay RCA Analog Video Splitter CH1 - CH4 Flash SDRAM DC supply Power regulator 3v3 1v4 (DSP) 1v8 (ARM) 2v5 (TW) 5V (HDD) 12V (HDD) RX304 block diagram TW2804 Video Decoder REC 1 - 4 REM 1,2 PB 4 ch. analog FPGA REM 3,4 Keypad Y2 32.768kHz Y4 14.745MHz OSC5 25MHz OSC1 50MHz OSC3 54MHz OSC2 54MHz OSC4 12.288MHz OSC6 25MHz

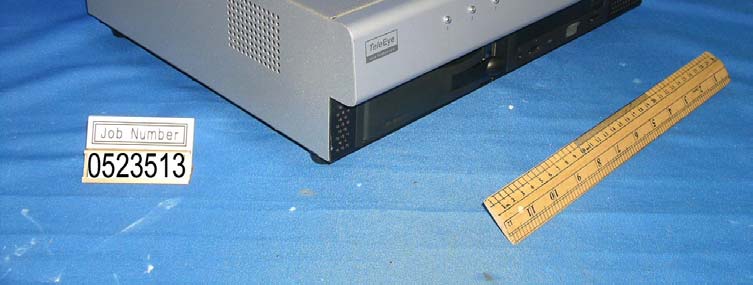

External Photo FCC ID : NAGSCRX-051020 External Photo - front External Photo - rear

FCC ID Location 75mm 25mm

Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 1 Internal Photo - 2 Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 3 Internal Photo - 4 Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 5 Internal Photo - 6 Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 7 Internal Photo - 8 Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 9 Internal Photo - 10 Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 11 Internal Photo - 12 Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 13 Internal Photo - 14 Internal Photo FCC ID : NAGSCRX-051020 Internal Photo - 15

RX304/RX334/RX364 Technical Description 1. Power Supply The video recording transmitter operates at 12V DC with a dedicated switching DC power adapter which rectifies and regulates the input 100-240V AC, 50/60Hz to 12V DC with maximum 5A output current. 2. On/Off Switch When the switch is pressed to “On” side, the power transmitter will start booting. The Power LED in the front panel will light up in blue while other LEDs will scanning until booting is finished. The Power board will regulate the input 12V DC to 3.3V (U4, D4, L2) and 5.5V (U1, D5, L1) and provide these voltages to the Main board (CONN2). Also 12V and 5V DC is supply to the removable hardisk and built-in CD writer. (CONN5, CONN6) 3. Alarm/Relay/RS485 Port The transmitter has alarm detection and relay switch control function. The alarm signals are input from J1 and filtered and compared with predefined voltage levels to detect the alarm state (U7). The state is digital and feed to the main processor through JP11. Meanwhile, control signals from the main processor will control the relays (RL1-RL4) and provide a dry contact on/off control through the connector J1. The transmitter can send and receive signal from peripherals with RS485 interface. Digital data from the main processor (through JP11) is shift to RX485 differential signal by transceiver (U8) and connect to the peripherals through CONN3. 4. Video Port and Audio Port The main function of the recording transmitter is performing live video display, video recording and video transmission. Analog video is input from (CONN4, CONN5) and filtered by the passive components and feed into U7 and U8. U7 and U8 will digitized the analog video and then send to U1 for digital compression. For live video display, digitized video will loopback to U8 and encode to composite video format. The resulting analog video is output to CONN5. For video recording, compressed video will send to U2 and stored to hardisk through JP20. For video transmission, compressed video is send to U2 and then send to remote clients through Ethernet transceiver U26 and CONN9. Audio is input from CONN3 and digitized by U5. The resulting signal is send to U1 for compression and then sends to U2 for storage and transmission. 5. Main Processor U2 is the main processor which will perform compressed video and audio storage and transmission. The main processor is powered by U47 with core voltage 1.8V and clocked by Y2 and Y4. The booting information is provided by U24 and U28. The main processor has several port attached with it such as CONN9 for Ethernet connection, JP18 for USB device connection, and J1 for RS232 device connection. The main processor is connected to the power board by JP1 for alarm status input and relay control output. The RS485 signal is send to power board by JP1 as well. JP3 is used for connecting the main processor and the panel board which will perform key detection for user interaction and LED on/off control. 6. Compression Unit U1 is the compression unit which will perform raw digital video and audio compression. The compression unit is powered by U43 with core voltage 1.4V, and clocked by OSC1. Temporary compression data is stored in U13 and U14 by the compression unit. 7. Component Description Power Board: CategoryLabelDescriptionDescription ICU1Voltage regulator 5V voltage regulator ICU4Voltage regulator 3.3V voltage regulator ICU7Voltage comparator Voltage comparator with 4 bit output ICU8RS485 transceiver Duplex RS485 transceiver InductorL1, L2InductorHigh current inductor DiodeD4, D5DiodeHigh current diode Connector CONN2ConnectorATX power connector Connector CONN5, CONN6 ConnectorHardisk and CD writer power connector Connector CONN3ConnectorRS485 connector Connector J1ConnectorDB37 connector Connector JP11Connector40 pin connector Main Board: CategoryLabelNameDescriptionDescription ICU1DM642ACompression unitGeneral purpose digital signal processor ICU2EP9315Main processorARM architecture processor ICU5TLV320A23Audio codecAudio analog to digital converter ICU7TW2804Video codecVideo analog to digital converter ICU8TW2824Video codecVideo analog to digital converter ICU24, U28JL28F640J3CMemoryNon-volatile memory ICU47FAN1117AD-1.8Voltage regulator1.8V voltage regulator ICU43TPS54310PWPVoltage regulator1.4V voltage regulator ICU13, U14HY57V283220MemoryRandom access memory Connector CONN3CONN_RCA1X3RCA connectorRCA audio connector Connector CONN4, CONN5 CONN_BNC3X2 CONN_BNC3X2 BNC connectorBNC video connector Connector CONN9 CONN_RJ45_FRE_E5TAB- GTL7Y5 RJ45 connectorRJ45 Ethernet connector ConnectorJ1DB9RS232 connectorRS232 connector ConnectorJP1BOX HEADER20X2Connector40 pin connector ConnectorJP3BOX HEADER13X2Connector26 pin connector ConnectorJP18 CONN_USB_DUALConnectorUSB connector CrystalY232.768kHz32.768k32.768k Hz crystal CrystalY414.7456MHz14.745M14.745M Hz crystal OscillatorOSC1220MHz25M25M Hz oscillator

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA 1 Signal Communications Limited 16/F, Millennium City III, 370 Kwun Tong Road, Kowloon, Hong Kong 33 RDVR 8 channel system 2-Dec-2005 09:29:09 RDVR_4ch_TOP.Sch Title Size: Number: Date: File: Revision: Sheet of Time: B CTL1CTL0DSPA_HPI_CSnHPIHPI_DDARM_AAARM_TW_CSnARM_WRnARM_RDnARMINT2PWR_RSTnWDT_CLKHPI_RDYn_INTLED_INTn_INT1 IDE_RSTn RESETn IDE_MRnDSP_MRn Video Compression System Video Compression System.Sch DSPA_HPI_CSn ARMARM_BWRn Column key Row _INT2 ARM_BAA[0..4] TW_BCSn FLASH_RSTn HPI ETH_RSTnEP9315_RSTnEP9315_PORnCTL[0..5] Row SYS_RSTn DSPA_HPI_CSnDSPB_HPI_CSn HPI_CTL1HPI_CTL0 ARM_BWRn ARM_BRDn PWRRELAY1RELAY2RELAY3RELAY4 Column KEY DIN0DIN1DIN2DIN3HD_DECT WDT_CLK TX CTL IDE_RSTn HPI_RWn ARM_WAITn _INT LED ETH_INTn _INT1 DSP_MRn IDE_MRn EP9315_MAIN EP9315_MAIN.Sch DIN0 DIN1 DIN2 DIN3 CTL[0..5] PWRRELAY1 RELAY2 RELAY3 RELAY4 RESETn CTL0 ALM_CTL1 ALM_CTL2 ALM_CTL3 ALM_CTL4 ALM_CTL3 PWR AL_DIN0 ALRelay5 AL_DIN3 RELAY1 RELAY8 RELAY3 RELAY4 TX Power board connector Panel board connector VDD3V3 LED0 LED1 LED2 LED3 LED4 LED5 KEY KEY1 KEY12 KEY13 KEY14 KEY6 KEY2 KEY11 KEY22 KEY23 KEY4 KEY16 HD_DECT HD_DECT PWR_RSTn Power Regulation Power Regulation.Sch PWR_RSTn PWR_RSTn 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 JP1BOX HEADER20X2 TXCTL RX IDE_RSTn KEY25 KEY5 VDD3V3 RX 4 channel main board top IDE_RSTnRESETn 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 JP3BOX HEADER13X2 R32 30 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA 2 Signal Communications Limited 16/F, Millennium City III, 370 Kwun Tong Road, Kowloon, Hong Kong 33 Video Compression System 2-Dec-2005 09:29:09 Video Compression System.Sch Title Size: Number: Date: File: Revision: Sheet of Time: B INT1nINT2n DM642_RSTn I2C_SCL I2C_SDA CLKOUT6 RESTnSTATUS0SEL DSP_CLKA DM642A_CLK.sch DSP_POWERA DM642A_POWER.sch HPI_CTL1HPI_CS DSPA_HPI_CSn HPI_RWn HPI_DD[0..31] ARM_AA[0..4]ARM_TW_CSnARM_WRnARM_RDn ARM_AA[0..7] DSPA_INT HCSn0 HCSn1 HAEn HRDn HCIHDAT[10..2] PBCLK_DSPAPBVALID_DSPAPBIN_DSPA[0..7]HCSn0_DSPAHCSn1_DSPAHAENHRDnHCIHDAT[10..2]INTnDSPA_SCLDSPA_SDA REC1_4_VDOUT[0..7] REC1_4_VCLK REC1_4_VALID VSEL_A0VSEL_A1VSEL_A2 IN VDOUT[0..7] VALIDVALID VDOUT[0..7] CLK TW_RSTnVSEL_A3 TW2824A_INTn CLK_27MHz VSEL_A4VSEL_A5 TWA_STATUS1_0TWA_STATUS1_1TWA_STATUS2_0TWA_STATUS2_1 Digital Video System Digital Video System.Sch REC1_4_VDIN[0..7]REC1_4_VLCKREC1_4_VALIDREMA1_VALIDREMA2_VALIDCLKVDIN[0..7]REMA2_VDIN[0..7] PBA_VDOUT[0..7] PBA_VLCK VALID REMA2_VCLK AIC_I2C_SCL AIC_I2C_SDA VP2_CLK0 DM642A_videoport DM642A_videoport.Sch PBVALID PBCLK PB_VOUT[0..7] DSPA_HPI_INTn HPI_DD[0..31] DM642_RSTn HPI_CTL1 HPI_CSDSPA_HPI_CSn HPI_RWn DSPA_HPI_INTn HDAT[0..7] HWRn HRDn HAEn _HCSn0_HCSn1 ARM_CEnARM_WRnARM_RDnARM_AA[0..7]ARM_AA[0..4]WDT_CLKPWR_RSTnMCLK ETH_INT ETH_INTnDSPA_INTnINTn DSPA_INT TW2824A_INT DSP_RSTn IDE_RSTn RESETn A_STATUS3_0A_STATUS1_1A_STATUS2_0A_STATUS2_1SW_STATUS0SW_STATUS1STATUS_SELDSP_MRnIDE_MRn TW_Host_Arbitration TW_Host_Arbitration.Sch DM642A_PBVALID DM642A_PBCLK DM642A_PB_VOUT[0..7] DM642A_MEMORY DM642A_MEMORY.Sch Video Compression System DSPA_SDA DSPA_SCL WDT_CLK PWR_RSTn HPI_DD[0..31]HPI_CTL1HPI_Sn2HPI_CSnHPI_RDYn HPI_INTn GPIO9 GPIO10GPIO11GPIO12 HPI_CSHPI_Sn1HPI_RWnDSP_LED GPIO15GPIO14 DM642A_HPI DM642A_HPI.Sch ARM_RDn DSPA_SDA DSPA_SCL - DSPA I2C use for controlling AIC and TW2804 ARM_WRn ARM_RDn ARM_WRn HPI_RDYn HA_MCLK CLKOUT6 CLKOUT6 HA_MCLK DSP_LED ETH_INTn ETH_INT TW2824A_INTn INTn TW2824A_INT DM642_RSTn IDE_RSTn RESETn RESETn RESETn TWA_STATUS1_0 TWA_STATUS1_1 TWA_STATUS2_0 TWA_STATUS2_1 A_STATU3_0 A_STATUS1_1 A_STATUS2_0 A_STATUS2_1 SW_STATAUS_0 SW_STATAUS_1 RESTn STATUS_0 SEL2 STATUS_SEL IDE_MRn DSP_MRn 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA 3 Signal Communications Limited 16/F, Millennium City III, 370 Kwun Tong Road, Kowloon, Hong Kong 33 DM642A Clock, Interrupts and Resets 2-Dec-2005 09:29:09 DM642A_CLK.Sch Title Size: Number: Date: File: Revision: Sheet of Time: B I2C_SCLI2C_SDA VDD2V5 R8 6K R9 6K RSTn Check wire length to see if the term. needed GP0[3] cannot be pulled up, as PCI is disabled INT1nINT2n DSPA_PLLVDD DM642A Clock & Interrupt System TP TP3 TP TP TP4 TP GP0[3]Reference to P.2 of DM642 EVB, no connection TP TP2 TP CLKMODE1 AE4 CLKIN AC2 Clocks / Interrupts / CLKMODE0 AA2 Timers / IIC GP0[0] M5 RESERVED GP0[3]/PCIEEAI L5 SDA0 D3 EXTINT4/GP0[4] F4 SCL0 E4 EXTINT5/GP0[5] F3 GP0[1]1/CLKOUT4 D6 EXTINT6/GP0[6] F2 CLKOUTF AC4 EXTINT7/GP0[7] E1 CLKOUTT AD3 NMI B4 LENDIAN/TOUT1 B5 RESETn P4 TINP1 A5 PLL_VDD V6 MAC_EN/TOUT0 C5 CLKINF AB3 TINP0 A4 AMUX1 AA3 GP0[2]2/CLKOUT6 C6 TSTSTRB E14 PLL_LD AF3 RSV W7 DM642 U1A DM642 VDD 4 GND 2 OUT 3 NC 1 OSC OSC1 220MHz DSPA_CLKIN DSPA_I2C_SCL DSPA_I2C_SDA INT1n INT2n GP0[0] TP TP19 TP RST CLKIN CLKOUT6 REC_STATUS_SEL STATUS0STATUS1 STATAUS_0 STATAUS_1 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA 4 Signal Communications Limited 16/F, Millennium City III, 370 Kwun Tong Road, Kowloon, Hong Kong 33 DM642A Power 2-Dec-2005 09:29:10 DM642A_POWER.sch Title Size: Number: Date: File: Revision: Sheet of Time: B VDD3V3 VDD3V3 C50.1uF C60.1uF C70.1uF C80.1uF C90.1uF VDD3V3 C10 0.1uF C11 0.1uF C12 0.1uF C13 0.1uF C14 0.1uF VDD3V3 C16 0.1uF C17 0.1uF C18 0.1uF C19 0.1uF C20 0.1uF VDD3V3 C21 0.1uF C22 0.1uF C23 0.1uF C24 0.1uF C25 0.1uF VDD3V3 C26 0.1uF C27 0.1uF C28 0.1uF C29 0.1uF C30 0.1uF VDD3V3 C31 0.1uF C32 0.1uF C33 0.1uF C34 0.1uF C35 0.1uF VDD3V3 C36 0.1uF C37 0.1uF C38 0.1uF C39 0.1uF C40 0.1uF VDD3V3 C41 0.1uF C42 0.1uF + C15 66uF/10V + C43 66uF/10V + C44 66uF/10V VDD3V3 All cap. must be within 1.25cm of the chip VD1V4 VDD1V4 C48 0.1uF C49 0.1uF C50 0.1uF C51 0.1uF C52 0.1uF VDD1V4 C53 0.1uF C54 0.1uF C55 0.1uF C56 0.1uF C57 0.1uF VDD1V4 C58 0.1uF C59 0.1uF C60 0.1uF C61 0.1uF C62 0.1uF VDD1V4 C45 0.1uF C46 0.1uF C47 0.1uF DVDD A2 DVDD A25 DVDD B1 DVDD B2 DVDD B14 DVDD B25 DVDD B26 DVDD C3 DVDD C24 DVDD D4 DVDD D23 DVDD E5 DVDD E7 DVDD E8 DVDD E10 DVDD E17 DVDD E19 DVDD E20 DVDD E22 DVDD F9…

Text truncated - open the document above for the full version.

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com June 8, 2006 Signal Communications Ltd. 16/F., Millennium City 3, 370 Kwun Tong Road, Kowloon, Hong Kong. Dear Mr. Lam : Enclosed you will find your file copy of a Part 15 Certification (FCC ID: NAGSCRX-051020). For your reference, TCB will normally take another 20 days for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Chow Chi Ming, Billy Assistant Manager Enclosure • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Signal Communications Ltd. Application For Certification (FCC ID: NAGSCRX-051020) TeleEye RX Series 0523513 BC/ Sandy Lee June 8, 2006 INTERTEK TESTING SERVICES FCC ID: NAGSCRX-051020 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual INTERTEK TESTING SERVICES FCC ID: NAGSCRX-051020 MEASUREMENT/TECHNICAL REPORT Signal Communications Ltd. - MODEL: TeleEye RX304 CAMERIO RX304 TeleEye RX364 CAMERIO RX364 FCC ID: NAGSCRX-051020 June 8, 2006 This report concerns (check one:) Original Grant X ii Class II Change Equipment Type: Computer Peripheral (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8491 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NAGSCRX-051020 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 5 2.5 Measurement Uncertainty .................................................................................. 5 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 10 3.3 Radiated Emission Data ................................................................................... 11 3.4 Conducted Emission Configuration Photograph................................................ 15 3.5 Conducted Emission Data .....................................................................................16 4.0 Equipment Photographs................................................................................... 20 5.0 Product Labelling.............................................................................................. 22 6.0 Technical Specifications................................................................................... 24 7.0 Instruction Manual............................................................................................ 26 INTERTEK TESTING SERVICES FCC ID: NAGSCRX-051020 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Setup Photo Conducted Emission conducted photos.doc Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC …

Text truncated - open the document above for the full version.

Report No.: 0523513 Recording Mode (LAN Connection) AC Mains “L” Ctrl No.: PAGE 1 Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A N/A Report No.: 0523513 Recording Mode (LAN Connection) AC Mains “L” Ctrl No.: N/A Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 43.2 66.0 0.21500 53.3 63.0 13.42000 41.9 60.0 18.24500 41.7 60.0 23.13000 47.1 60.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.15000 41.4 56.0 0.21500 51.5 53.0 0.36000 28.3 48.7 0.50000 31.3 46.0 0.64500 31.2 46.0 0.93000 29.3 46.0 1.22000 30.6 46.0 1.93500 31.4 46.0 2.29500 32.1 46.0 3.37000 31.2 46.0 5.23500 29.8 50.0 7.95500 32.0 50.0 8.24000 31.1 50.0 13.42000 38.3 50.0 18.24500 38.3 50.0 23.13000 44.1 50.0 * limit Report No.: 0523513 Recording Mode (LAN Connection) AC Mains “N” Ctrl No.: PAGE 1 Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A N/A Report No.: 0523513 Recording Mode (LAN Connection) AC Mains “N” Ctrl No.: N/A Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 43.2 66.0 0.21500 53.3 63.0 13.42000 41.9 60.0 18.24500 41.7 60.0 23.13000 47.1 60.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.15000 41.4 56.0 0.21500 51.5 53.0 0.36000 28.3 48.7 0.50000 31.3 46.0 0.64500 31.2 46.0 0.93000 29.3 46.0 1.22000 30.6 46.0 1.93500 31.4 46.0 2.29500 32.1 46.0 3.37000 31.2 46.0 5.23500 29.8 50.0 7.95500 32.0 50.0 8.24000 31.1 50.0 13.42000 38.3 50.0 18.24500 38.3 50.0 23.13000 44.1 50.0 * limit Report No.: 0523513 Recording Mode (Stand-Alone) AC Mains “L” Ctrl No.: PAGE 1 Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A N/A Report No.: 0523513 Recording Mode (Stand-Alone) AC Mains “L” Ctrl No.: N/A Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 41.9 66.0 0.21500 52.5 63.0 9.28500 40.2 60.0 23.76000 38.4 60.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.15000 39.3 56.0 0.21500 50.5 53.0 0.50000 30.5 46.0 0.64500 30.4 46.0 0.93000 29.7 46.0 1.21500 29.1 46.0 1.64500 29.8 46.0 2.64500 30.2 46.0 3.07500 30.0 46.0 4.14500 28.7 46.0 7.86000 30.7 50.0 9.14000 35.3 50.0 23.76000 36.5 50.0 * limit Report No.: 0523513 Recording Mode (Stand-Alone) AC Mains “N” Ctrl No.: PAGE 1 Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A N/A Report No.: 0523513 Recording Mode (Stand-Alone) AC Mains “N” Ctrl No.: N/A Tested By:Ben, Report No.:0523513 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 41.9 66.0 0.21500 52.5 63.0 9.28500 40.2 60.0 23.76000 38.4 60.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.15000 39.3 56.0 0.21500 50.5 53.0 0.50000 30.5 46.0 0.64500 30.4 46.0 0.93000 29.7 46.0 1.21500 29.1 46.0 1.64500 29.8 46.0 2.64500 30.2 46.0 3.07500 30.0 46.0 4.14500 28.7 46.0 7.86000 30.7 50.0 9.14000 35.3 50.0 23.76000 36.5 50.0 * limit

Test Setup FCC ID : NAGSCRX-051020 Radiated - front Radiated - rear

Test Setup FCC ID : NAGSCRX-051020 Conduct Photo - 1 Conduct Photo - 2 Test Setup FCC ID : NAGSCRX-051020 Conduct Photo - 3
