NB5-CSCAN6000CSCANNER

Our API has advanced features like, Deskew, Crop, B/W, Feed/ Exit Control, Branding, Barcode Recognition and can contain up to 99 variants of OMR formats in 1 configuration for FAST data processing. This API is available for Linux and Windows OS’s, written in C++ and .NET . The cSCAN 6000-C has an A6 size form path. User service accessibility is simplified via a hinged transport design which allows total access to the rollers and lenses for cleaning and other preventative maintenance operations. The cSCAN 6000-C comes standard with a simplex read- head. Options include either a 2nd read head to scan both sides of a form in 1 pass or a 1” thermal brander. Chatsworth Data has designed and manufactured data capture equipment since 1971. The company currently supplies equipment to a number of diverse vertical markets that include education, gaming/lottery, government, healthcare, survey, vote tabulation, and many more. The cSCAN 6000-C image scanner was specifically developed to support Point Of Sale (POS), gaming, lottery and other commercial data capture applications that require a robust design to handle the rigors of every day use. The small footprint, and lightweight/ portability of this scanner lends itself well for use at retail counters, betting shops, workstation desktops, and general forms data capture on-the-go. The interface options are TWAIN, or our proprietary API. cSCAN 6000-C Applications The design of the cSCAN 6000-C does well to support data capture requirements for: • Lotteries • Totalisator Systems • Promotional Games • Bingo/Keno • Medical Data Management • Educational & Commercial Testing • Election Systems • Surveys • Customer Satisfaction • Registration Systems • General Data Input • Bank Check Processing cSCAN 6000-C High Speed Desktop Image & OMR Scanner Chatsworth Data/CDC Data LLC, 9735 Lurline Avenue • Chatsworth, CA 91311 USA• Phone: +1 818-350-5070 • Toll-free: 877-380-6855 • Fax: +1 818-350-5090 [email protected] • www.chatsworthdata.com • Scan forms from 3.25 - 4.1 inches wide (82.55 - 104 mm) • USB 1.1, 2.0 compatible • Simplex or Duplex CIS head option • Optional 1” thermal brander • Reads many variations of OMR form types and barcodes • 200, 100 DPI bitmap image output in about a second • Fast 17 inches per second scan • Rugged design • User serviceable • CE, FCC approved Scanner API: Available for both Windows and Linux operating systems, our API provides the various tools necessary to process forms for Optical Mark/Barcode Recognition and general Image Data Capture making it ideally suited for: 1. Education 2. Vote Tabulation 3. Medical Records 4. Gaming and Lottery 5. Document Management for Businesses and Government Available in both Windows and Linux. Our API provides the Scanning Speed: Max 450mm (17.70”/sec) Normal 350mm (13.78”/sec) Throughput: Approx. 22-30 cards per minute Form Size: Max width -104mm (4.1”), Min 82.55mm (3.25”) Max Length - 290mm (11.42”) Feed Method: Manual insertion with powered transport feed through, software controlled, eject front or eject rear Paper Path: The cSCAN 6000-C scanner has a paper path that is easily accessible for clearing jams and cleaning the CIS head. A simple hinged connection allows the upper assembly to open for complete access to the paper path Communication Interface: USB 2.0, USB 1.1 Scan Technique: Single red drop high speed CIS (Contact Image Sensor) Form Marking: #2 Pencil Blue or black ball point pen Blue or black felt-tip pen Pre-printed marks Dimensions: (w/stacker) 169mm x 244mm x 170mm 6.65” x 9.60” x 6.69” (w/o stacker) 112mm x 164mm x 170mm 4.41” x 6.46” x 6.69” Weight: 1.6 kg, (3.53 lb) Operating Conditions: 0° C to +50° C (+32°F to 122°F) 10 to 85% relative humidity, non-condensing Power: DC input: +24 volts @ 1.2 Amps (motor running) 2.4 Amps (Surge) Commercial Grade Reliability and Support All Chatsworth Data scanners are built with commercial use in mind. Our 39+ years in the data capture business has enabled us to design and build the scanner that is ideally suited for long term use in a rigorous environment with minimal downtime. Our new cSCAN series image scanners bring value and competence to any system that will be required to operate in such conditions. All of our products are backed by a company that prides itself on customer support and whose reputation for doing so is internationally recognized throughout the data capture industry. When you require support or if you have any questions regarding our products, please contact us at anytime and we will be glad to assist you. cSCAN6000-C DS 030211 General Specifications cSCAN 6000-C High Speed Desktop Image & OMR Scanner Certificate# 43619 Scan Resolution: 200 DPI , 256 gray scale MTBF: 50,000 Hours (CIS only) Supported OS: Windows 98,2000,XP Linux (Redhat, Suse, Gentoo) Storage: -25° C to +60° C (-13° F to 140° F) 5 to 95% relative humidity, non-condensing Output Format: 1 Bit (B/W), 8 Bit (256 Grayscale) bmp image file (jpg, tiff, etc) Optional features: Duplex CIS Heads Integrated Thermal Printer CDC Data LLC 9735 Lurline Avenue • Chatsworth CA 91311 1 877-380-6855 (in the US) • • 1 818-350-5070 (Worldwide) Fax 1 818-350-5090 www.chatsworthdata.com For more information contact: Chatsworth Data—Sales Ph: +1 (818) 350-5072 Fax: +1 (818) 350-5090 [email protected]

Appendix E. Block Diagram Report no. ETLE101129.0689, Page E1 of E1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 April 07, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Chatsworth Data hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Scanner / cSCAN6000C (FCC ID: NB5-CSCAN6000C) We affirm that between SIEMIC and Chatsworth Data, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Armando Ponce / Vice President Chatsworth Data 9735 Lurline Avenue, Chatsworth, CA 91311, USA

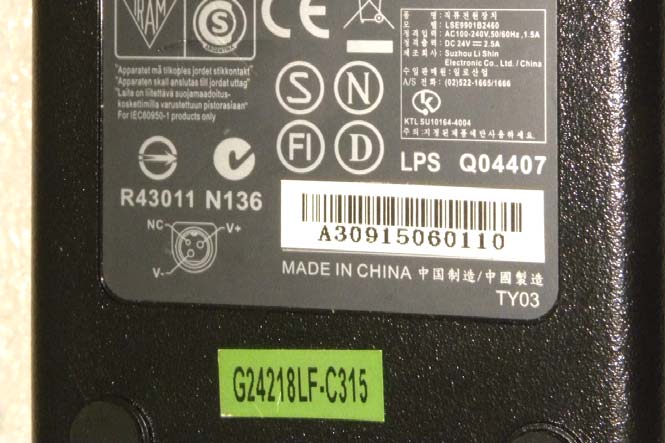

Appendix C. External Photographs Report no. ETLE101129.0689, Page C1 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE101129.0689, Page C2 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Side view of EUT Appendix C. External Photographs Report no. ETLE101129.0689, Page C3 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C View of ports Appendix C. External Photographs Report no. ETLE101129.0689, Page C4 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C View of Adapter Appendix C. External Photographs Report no. ETLE101129.0689, Page C5 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C View of Adapter label Appendix C. External Photographs Report no. ETLE101129.0689, Page C6 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C View of cable

Appendix A. FCC ID Label and Location Report no. ETLE101129.0689, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Chatsworth Data Scanner FCC ID : NB5-CSCAN6000C Model No. : cSCAN6000C POWER : Power supply from the AC/DC Adapter Input: AC 100 V – 240 V; 50 Hz/60 Hz; 1.5 A Output: DC 24 V; 2.5 A Serial No. : NONE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: WITEK SYSTEM INC. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE101129.0689, Page D1 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Inside view of EUT #1-1 Appendix D. Internal Photographs Report no. ETLE101129.0689, Page D2 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Inside view of EUT #1-2 Appendix D. Internal Photographs Report no. ETLE101129.0689, Page D3 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Inside view of EUT #2-1 Appendix D. Internal Photographs Report no. ETLE101129.0689, Page D4 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Inside view of EUT #2-2 Appendix D. Internal Photographs Report no. ETLE101129.0689, Page D5 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Top side view of main board Appendix D. Internal Photographs Report no. ETLE101129.0689, Page D6 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Bottom side view of main board

Report no. ETLE101129.0689, Page 2 of 17 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:NB5-CSCAN6000C Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Report no. ETLE101129.0689, Page 3 of 17 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:NB5-CSCAN6000C FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Scanner  Model Number : cSCAN6000C  S/N : -  Frequency Range : OSC  24.000 MHz  Rule Part(s) : FCC Part 15 Subpart B  Test Procedure : ANSI C63.4-2003  FCC Classification : Class B Personal computers and peripherals  Dates of Tests : January 13, 2011 to January 14, 2011  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. (FCC Designation Number : KR0022) 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea  Test Report No. : ETLE101129.0689 Applicant Name : Chatsworth Data Address : 9735 Lurline Avenue, Chatsworth, CA 91311, USA Attention : Armando Ponce / Vice President Report no. ETLE101129.0689, Page 4 of 17 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:NB5-CSCAN6000C 1. INTRODUCTION The measurement tests for radiated and conducted emission test were conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Chatsworth Data, Model: cSCAN6000C. Report no. ETLE101129.0689, Page 5 of 17 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:NB5-CSCAN6000C 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Scanner (model: cSCAN6000C). 2.2 General Specification Scan Resolution: 200 dpi, 256 gray scale Paper Path: The cSCAN6000C scanner has a paper path that is easily accessible for clearing jams and cleaning the optic head. A simple hinged connection allows the upper assembly to open for complete access to the paper path Feed Method: Manual insertion with powered transport feed through, software controlled, eject front or eject rear Scanning Speed: Max 450 mm (17.70”/sec) Normal 350 mm (13.78”/sec) Throughput: Approx. (22 - 30) cards per minute Form Size: Max width 104 mm (4.1”) Min width 82.55 mm (3.25”) Max Length 290 mm (11.42”) Communication Interface: USB 2.0, USB 1.1 Scan Technique: Single red drop high speed CIS (Contact Image Sensor) Output Format: 1 bit (B/W), 8 bit (256 Grayscale) Bmp image file (jpg, tiff, etc) Form Marking: #2 Pencil Blue or black ball point pen Blue or black felt-tip pen Pre-printed marks Supported OS: Windows 98, 2000, XP Linux (Redhat, Suse, Gentoo) Power: DC input: +24 V @ 1.2 A (motor running) 2.4 A (Surge) Operating Conditions: 0 °C to + 50 °C (+ 32 °F to + 122 °F) 10 %R.H. to 85 %R.H., non-condensing Storage: - 25 °C to + 60 °C (+ 13 °F to + 140 °F) 5 %R.H. to 95 %R.H., non-condensing Weight: 1.6 kg (3.53 lb) Dimensions: (w/stacker) 169 mm x 244 mm x 170 mm 6.65” x 9.60” x 6.69” (w/o stacker) 112 mm x 164 mm x 170 mm 4.41” x 6.46” x 6.69” MTBF: 50 000 h (CIS only) Optional Features: Duplex CIS Heads Integrated Thermal printer Report no. ETLE101129.0689, Page 6 of 17 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:NB5-CSCAN6000C Item Specification Scan source Single sided Contact Image Sensing Width: up to 104 mm (lottery application: 82.55 mm) Scan size Length: up to 290 mm Scanning Resolution 200 dpi Scanning Speed Max. 400 mm/sec at B/W, 256 Gray Out put Format 1 bit (b/w), 4 bit (16 gray), 8 bit (256 gray) Image format BMP, JPG, TIF and raw image data Interface USB 2.0 & 1.1 (Windows, Linux driver support) Paper thickness 0.1 mm ~ 0.2 mm Power +24 VDC/2.5 A MTBF 50 000 h (CIS only) Dimension 162.0 mm (W) x 110.5 mm (H) x 155.0 mm (D) Weight 1.7 kg Temperature -20 °C ~ +60 °C Humidity 10 %R.H. ~ 90 %R.H. non-condensing API Programming support(library files) Scanner SDK Linux/window available Option Thermal Brander Dual CIS Sensor (Dual Scan) Shade free Scan Image processing Library OMR Library Barcode Recognition Library UV Sensor light for counterfeit detection Report no. ETLE101129.0689, Page 7 of 17 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Te…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE101129.0689, Page B1 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE101129.0689, Page B2 of B2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:NB5-CSCAN6000C Radiated Emission Test Setup
