NC82-965046/49MHz 10 Channel Cordless Phone w/ CID

29650 EQUIPMENT APPROVAL INFORMATION Your telephone equipment is approved to the Public Switched Telephone Network and is in compliance with parts 15 and 68, FCC Rules and Regulations and the Technical R equirements for Telephone Terminal Equipment published by ACTA. 1. Notification to the Local Telephone Company On the bottom of this equipment is a label that contains, among other information, a product identifier in the form US:AAAEQ##TXXXX. You must, upon request, provide this information to your telephone company. The digits represented by ## in the product identifier indicate the Ringer Equivalency Number (REN) for this equipment. The REN is useful in determining the number of devices you may connect to your telephone line and still have all of t hese devices ring when your telephone number is called. In most (but not all) areas, the sum of the RENs of all devices connected to one line should not exceed 5. To be certain of the number of devices you may connect to your line as determined by the REN, contact your local telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided wi th this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. Notes ♦ This equipment may not be used on coin service provided by the telephone company. ♦ Party lines are subject to state tariffs, and therefore, you may not be able to use your own telephone equipment if you are on a party line. Check with your local telephone company. ♦ Notice must be given to the telephone company upon permanent disconnection of your telephone from your line. ♦ If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this product does not disable your al arm equipment. If you have questions about what will dis able alarm equipment, consult your telephone company or a qualified installer. 2. Rights of the Telephone Company Should your equipment cause tro uble on your line which may harm the telephone network, the telephone company shall, where practicable, notify you that temp orary discontinuance of service may be required. Where prior notice is not practicable and the circumstances warrant such action, the telephone company may temporarily discontinue service immediately. In case of such temporary discontinuance, the tel ephone company must: (1) promptly notify you of such temporary discontinuance; (2) afford you the opportunity to correct the situation; and (3) inform you of your right to bring a complaint to the Commission pursuant to procedures set forth in Subpart E of Part 68, FCC Rules and Regulations. The telephone company may take changes in its communications facilities, equipment, operations or procedures w here such action is required in the operation of its business and not inconsistent with FCC Rules and Regulations. If these changes are ex pected to affect the use of performance of your telephone equipment, the telephone company must give you adequate notice, in writing, to allow you to maintain uninterrupted service. Your Caller ID phone enables you to: ‧ Identify callers before you answer the phone. ‧ Record up to 48 Caller ID messages sequentially. ‧ Know the caller number while you were away . To get the most from your new phone, we suggest that you take a few minutes right now to read th rough this user's guide. HEARING AID COMPATIBLITY (HAC) This telephone system meets FCC standards for Hearing Aid Compatibility. US NUMBER LOCATED ON THE CABINET REN NUMBER IS LOCATED ON THE CABINET INTERFERENCE INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable prot ection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful in terference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ♦ Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). ♦ Reorient or relocate the increase the separation between the telecommunications equipment and receiving antenna. ♦ Connect the telecommunications equipment into an outlet on a circuit different from that to which the receiving antenna is connected. If these measures do not eliminate t he interference, please consult your dealer or an experienced radio/tele vision technician for additional suggestions. Also, the Federal Comm unications Commission has prepared a helpful booklet, “How To Identify and Resolve Radio/TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402. Please specify stock number 004-000-00345-4 when ordering copies. INTRODUCTION Your Caller ID phone stores and displays specific information, provided by your local te…

Text truncated - open the document above for the full version.

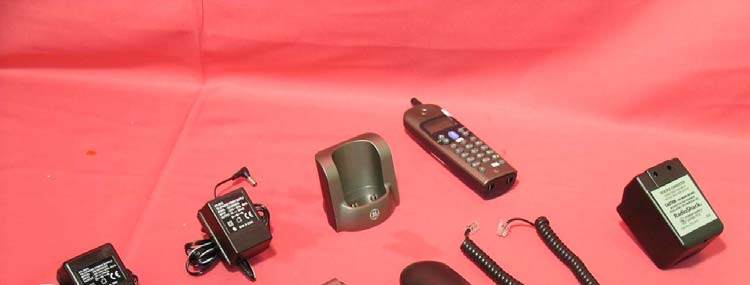

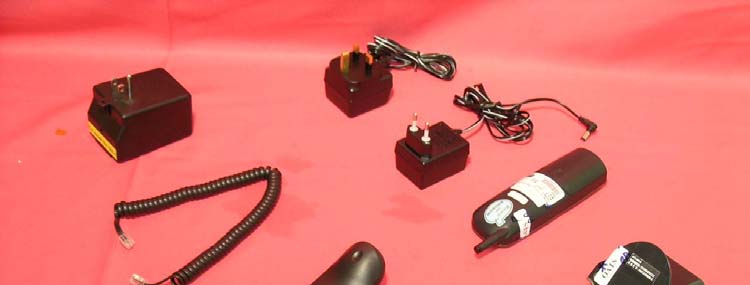

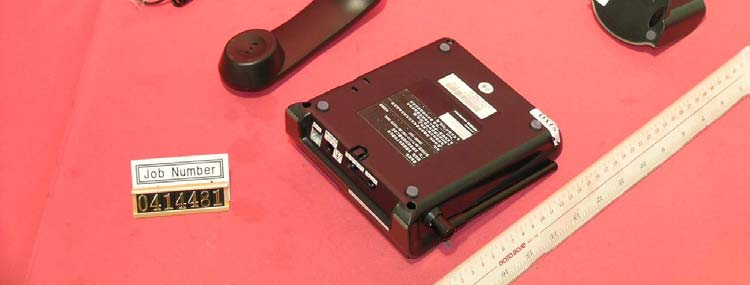

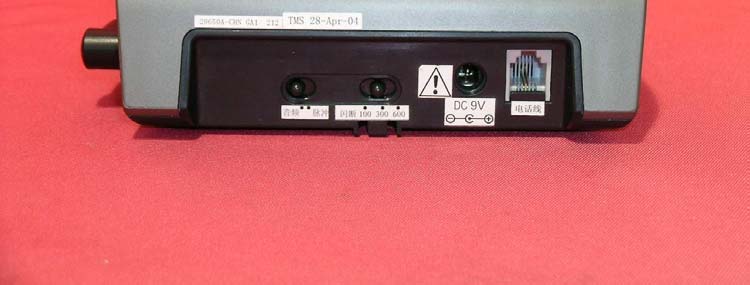

External photos FCC ID: NC82-9650 External photos FCC ID: NC82-9650

Internal photos FCC ID: NC82-9650 Base assembly Base Main PCB comp side Internal photos FCC ID: NC82-9650 Base Main PCB solder side Base Display front side Internal photos FCC ID: NC82-9650 Base Display rear side (View 1) Base Display rear side (View 2) Internal photos FCC ID: NC82-9650 Base Keypad front side Base Keypad rear side Internal photos FCC ID: NC82-9650 Handset assembly Handset Main PCB comp side Internal photos FCC ID: NC82-9650 Handset Main PCB solder side Handset Main PCB display front side Internal photos FCC ID: NC82-9650 Handset Main PCB display rear side (View 1) Handset Main PCB display rear side (View 2)

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: NC82-9650 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com CCT R&D Ltd. Application For Certification 46MHz/49MHz 10 Channel Analog Modulation Cordless Phone with Caller ID (FCC ID: NC82-9650) 04144811 TL/ Ann Choy September 10, 2004 INTERTEK TESTING SERVICES FCC ID: NC82-9650 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 : General Description EXHIBIT 2 : System Test Configuration EXHIBIT 3 : Emission Results EXHIBIT 4 : Frequency Deviation EXHIBIT 5 : Operating Bandwidth EXHIBIT 6 : Equipment Photographs EXHIBIT 7 : Product Labelling EXHIBIT 8 : Technical Specifications EXHIBIT 9 : Instruction Manual EXHIBIT 10 : Security Code Information INTERTEK TESTING SERVICES FCC ID: NC82-9650 ii MEASUREMENT/TECHNICAL REPORT CCT R&D Ltd. - MODEL: EX29650XXX-A, FH29650XXX-A, FS29650XXX-A, TW29650XXX-A, IN29650XXX-A, RU29650XXX-A, SB29650XXX-A FCC ID: NC82-9650 This report concerns (check one:) Original Grant X Class II Change Equipment Type: ETS - Cordless Telephone System Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08- 03 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: NC82-9650 iii List of attached file Exhibit type File Description filename Test Report Test Report report.doc Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Base config photos.doc Test Setup Photo Radiated Emission for Handset config photos.doc Test Report Conducted Emission Test Result conduct.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Base Bandwidth Plot bsbw.pdf Test Report Handset Bandwidth Plot hsbw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf User Manual FCC Information fcc information.pdf INTERTEK TESTING SERVICES FCC ID: NC82-9650 iv Table of Contents 1.0 General Description ....................................................................................................... 2 1.1 Product Description ................................................................................................. 2 1.2 Related Submittal(s) Grants ................................................................................... 3 1.3 Test Methodology .................................................................................................... 3 1.4 Test Facility ............................................................................................................. 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification ............................................................................................................. 5 2.2 EUT Exercising Software ......................................................................................... 5 2.3 Support Equipment List and Description....................................................................... 6 2.4 Measurement Uncertainty ....................................................................................... 7 2.5 Equipment Modification ........................................................................................... 7 3.0 Emission Results ..................................................................................................... 9 3.1 Field Strength Calculation ...................................................................................... 10 3.2 Radiated Emission Configuration Photograph - Base Unit......................................... 11 3.3 Radiated Emission Data - Base Unit .......................................................................... 12 3.4 Radiated Emission Configuration Photograph - Handset........................................... 14 3.5 Radiated Emission Data - Handset ........................................................................ 15 3.6 Line Conducted Configuration Photograph - Base Unit........................................... 17 3.7 Line Conducted Configuration Data - Base Unit ..................................................... 18 4.0 Frequency Deviation .............................................................................................. 21 4.1 Base Unit .............................................................................................................. 22 4.2 Handset ................................................................................................................ 24 5.0 Operating Bandwidth ............................................................................................. 27 5.1 Base Unit .............................................................................................................. 28 5.2 Handset ................................................................................................................ 30 6.0 Equipment Photographs .......................................................................................…

Text truncated - open the document above for the full version.

Report No.:04144811 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:04144811 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.:04144811 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:04144811 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results

The Worst Case Configuration Photographs FCC ID: NC82-9650 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: NC82-9650 Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: NC82-9650 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: NC82-9650 Conducted Emission Side View

The Worst Case Configuration Photographs FCC ID: NC82-9650 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: NC82-9650 Radiated Emission – Handset Front View Rear View The Worst Case Configuration Photographs FCC ID: NC82-9650 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: NC82-9650 Conducted Emission Side View
