NC8MA550900MHz/5.8GHz 40 Channel Cordless Phone (Base)

MA550 Series Cordless Phone Start Here > i WelcomeYour Motorola MA550 at a glance: Earphone jack Use for call waiting and 3-way calling Adjust volume Use if you hear interference or static Redial last number called (up to 32 digits) Mute or unmute; delete phone numbers Place call on hold Scroll Store phone number in memory Format phone number to include or omit area code or 1+ area code Cancel a command; hang up Turn ringer on (up) or off (down) Make or answer a call; hang up Welcome ii For a copy of a large-print version of this guide, or for product-related questions, please contact: 1-800-353-2729 U.S.A. 1-800-461-4575 Canada 1-888-390-6456 TTY (Text Telephone) Or visit us online: www.motorola.com/cordless Product registration is an important step toward enjoying your new Motorola product. Registering helps us facilitate warranty service, and permits us to contact you should your Motorola product require an update or other se rvice. Registration is not required for warranty coverage. To register your product online, visit:www.motorola.com/warranty/cordless Welcome iii Please retain your original dated sales receipt for your records. For warranty service of your Motorola Product, you will need to provide a copy of your dated sales receipt to confirm warranty status.Copyright © 2004 Motorola, Inc. All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from Motorola, Inc.Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including but not limited Welcome ivto, the implied warranties of merchantability and fitness for a particular purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time.MOTOROLA, the Stylized M Logo, and PhoneWrap are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their respective owners. Welcome v Welcome............................................ iImportant Safety Instructions ..... viiFCC and Interference Information.................................... xiiiGetting Started ................................ 1Battery Safety Instructions .................. 2Charging the Battery ........................... 3Setting Up the Phone .......................... 6Installation...................................... 11Installing the MA550 Cordless Phone on a Desk.......................................... 12Installing the MA550 Cordless Phone on a Wall ........................................... 13Installing or Removing the Belt Clip .. 17 How to Use .....................................19How to Locate a Lost Handset .......... 20Using Voice Mail ............................... 21Storing a Number into Memory ......... 22Storing a Caller ID Number nto Memory ....................................... 25Dialing a Number from Memory ........ 26Storing and Calling Emergency Numbers ........................ 27Reviewing and Deleting Numbers from Memory ..................................... 28Reviewing Caller ID Records ............ 29Dialing a Number from Caller ID ....... 30Deleting Caller ID Records ............... 31Troubleshooting ............................33Motorola Limited Warranty ..........37 Contents Contents vi Contents vii Important Safety InstructionsFollow these safety precautions when using your cordless phone to reduce the risk of fire, electric shock and injury to persons or property: Reduce risk of fire and shock by ™ Keep all slits and openings of the phone unblocked. Do not set the phone on a heating register or over a radiator. Ensure that proper ventilation is provided at the installation site. š Do not use while wet or while standing in water. › Do not use this product near water (for example, near a bath tub, kitchen sink, or swimming pool). œ Do not allow anything to rest on the power cord. Place the power cord so that it will not be walked on. Safety Information viii  Never insert objects of any kind into the product slits as that may result in fire or shock. ž Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. Ÿ Do not disassemble this product. If service or repair work is required, contact the Motorola address found in the back of this user’s guide. Do not overload wall outlets and extension cords. ¡ Avoid using during an electrical storm. Use a surge protector to protect the equipment. ¢ Do not use this cordless phone to report a gas leak, especially if you are in the vicinity of the gas line. Caution! To reduce the risk of fire, use only No. 26 AWG or larger UL Listed or CSA Certified Telecommunication Line Cord. Safety Information ix Unplug this cordless phone immediately from an outlet if: • The power cord or plug is damaged or frayed. • Liquid has been spille d into the product. • The product has been exposed to rain or water. Do not retrieve the handset or base until after you have unplugged the power and phone from the wall. Then retrieve the unit by unplugged cords. • The product has been dropped or the cabinet has been damaged. • The product exhibits a distinct change in performance. Installation Guidelines ™ Read and understand all instructions and save them for future reference. š Follow all warnings and instructions marked on the product. Safety Information x › Do not install this product near a bath tub, sink or shower. œ Operate this phone using only the power source that is indicated on the marking label. If you are unsure of the power supply to your home, consult with your dealer or local power company.  Do not place this product on an unstable cart, stand or table. This pr…

Text truncated - open the document above for the full version.

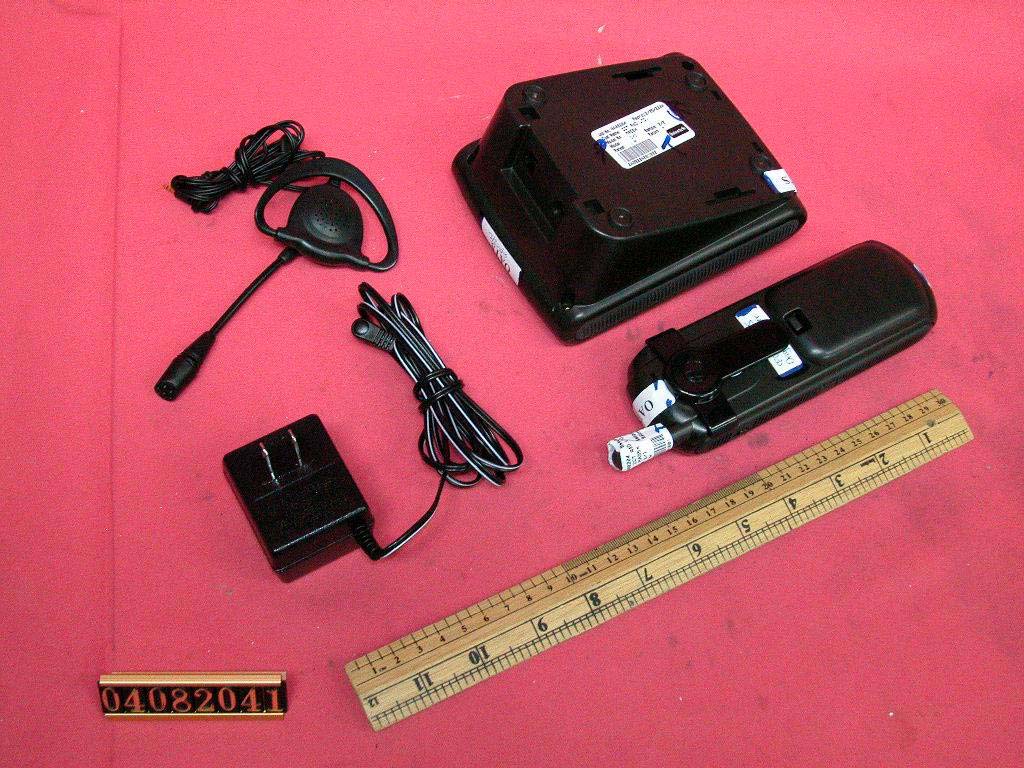

External photos FCC ID: NC8MA550 External photos FCC ID: NC8MA550

56.5 34.5 SCALE 100% 51.38 163.18 MA550-USA LABEL DRAWING DATE : 25 MAY 2004 HS Label Size: 28.5mm x 48mm BU Label Size: 56mm x 34mm

Internal photos FCC ID: NC8MA550 Base assembly (View 1) Base assembly (View 2) Internal photos FCC ID: NC8MA550 Base assembly (View 3) Base Main PCB comp side (View 1) Internal photos FCC ID: NC8MA550 Base Main PCB comp side (View 2) Base Main PCB solder side Internal photos FCC ID: NC8MA550 Base LED and Page Key front side Base LED and Page Key rear side Internal photos FCC ID: NC8MA550 Base Oscillator PCB comp side Base Oscillator PCB solder side

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization form Intertek Testing Services Limited FCC ID: NC8MA550 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2741 1693 Website: www.hk.intertek-etlsemko.com E CCT R&D Ltd. Application For Certification 900MHz/5.8GHz 40 Channel Analog Modulation Cordless Phone with Caller ID - Base Unit (FCC ID: NC8MA550) 04082041 TL/Ann Choy June 14, 2004 INTERTEK TESTING SERVICES FCC ID: NC8MA550 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Security Code Information INTERTEK TESTING SERVICES FCC ID: NC8MA550 ii MEASUREMENT/TECHNICAL REPORT CCT R&D Ltd. - MODEL: MA55X series FCC ID: NC8MA550 This report concerns (check one:) Original Grant X Class II Change Equipment Type : Cordless Telephone (example : computer, modem, transmitter, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] Provision. Report prepared by: Tommy Leung Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: NC8MA550 iii Table of Contents 1.0 General Description ............................................................................................2 1.1 Product Description..........................................................................................2 1.2 Related Submittal(s) Grants ............................................................................3 1.3 Test Methodology ............................................................................................3 1.4 Test Facility ......................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification.......................................................................................................5 2.2 EUT Exercising Software.................................................................................5 2.3 Support Equipment List and Description.........................................................6 2.4 Measurement Uncertainty ...............................................................................7 2.5 Equipment Modification ...................................................................................7 3.0 Emission Results ...................................................................................................9 3.1 Field Strength Calculation .............................................................................10 3.2 Radiated Emission Configuration Photograph - Base Unit ..........................11 3.3 Radiated Emission Data - Base Unit.............................................................12 3.4 Radiated Emission on the bandedge ............................................................15 3.5 Line Conducted Configuration Photograph - Base Unit ...............................17 3.6 Line Conducted Emission Data - Base Unit..................................................18 4.0 Equipment Photographs .....................................................................................21 5.0 Product Labelling .................................................................................................23 6.0 Technical Specifications .....................................................................................25 7.0 Instruction Manual ...............................................................................................27 8.0 Security Code Information ..................................................................................29 INTERTEK TESTING SERVICES FCC ID: NC8MA550 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission for Base config photos.doc Test Report Emission Plot emission.pdf Test Setup Photo Conducted Emission config photos.doc Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf User Manual FCC Information fcc information.pdf INTERTEK TESTING SERVICES FCC ID: NC8MA550 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NC8MA550 2 1.0 General Description 1.1 Product Description The MA550 is a 900MHz/5.8GHz 40 Channel Analog Modulation Cordless Phone with Caller ID - Base Unit. The unit is capable of either tone or pulse dialing. The internal power supply's isolation is accomplished through a power transformer having an adequate dielectric rating. The circuit wiring is consistent under the requirement of part 68. The handset unit consists of a keypad with twelve standard keys (0,...9,*,#), nine function keys (frmt, C, CID Up, CID down, mute/delete, mem, redial, hold, flash/settings), and one channel switch key. A Talk key is provided to control pick/release telephone line in a toggle bas…

Text truncated - open the document above for the full version.

Report No.:04082041 Talk Mode Ctrl No.:N/A PAGE 1 Tested By:Hong, Report No.:04082041 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 21 9k 30M EW0698 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.:04082041 Talk Mode Ctrl No.:N/A Tested By:Hong, Report No.:04082041 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 4.00000 40.5 56.0 Frequency AV Level AV Limit MHz dBuV dBuV 4.00000 40.4 46.0 20.00000 38.8 50.0 * limit exceeded

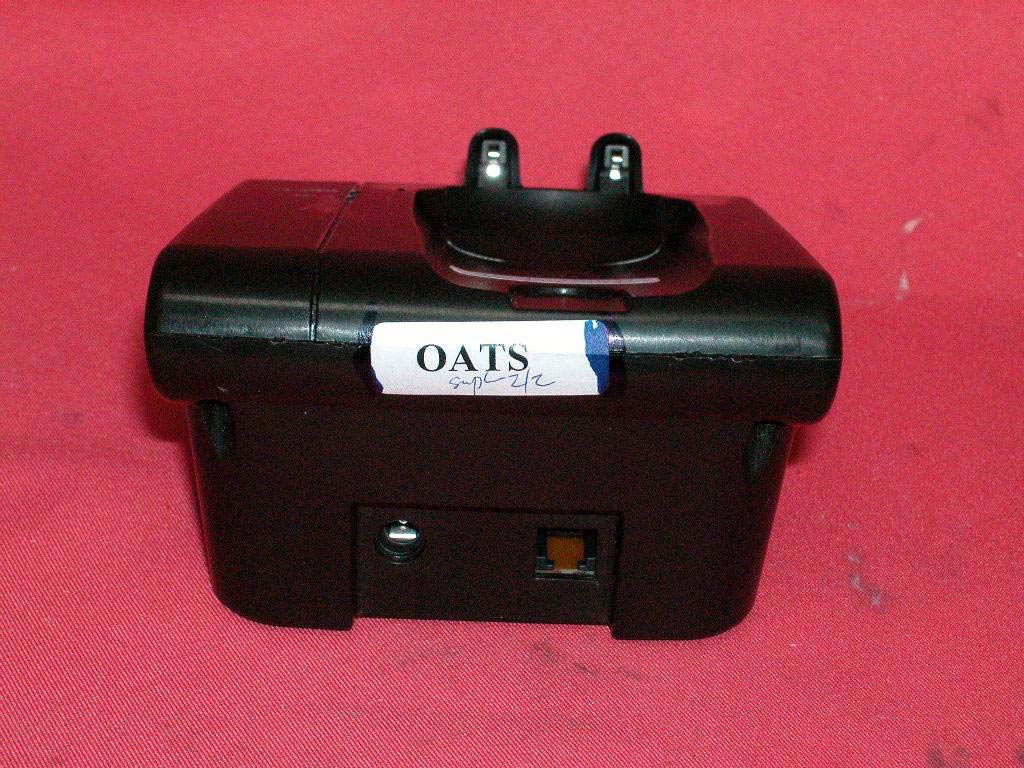

The Worst Case Configuration Photographs FCC ID: NC8MA550 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: NC8MA550 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: NC8MA550 Conducted Emission Side View

The Worst Case Configuration Photographs FCC ID: NC8MA550 Radiated Emission – Base Front View Rear View The Worst Case Configuration Photographs FCC ID: NC8MA550 Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: NC8MA550 Conducted Emission Side View
