NC8MD751Digital 2.4Ghz Cordless Telephone w/Caller ID

CCT Tech Advanced Products Limited
Digital 2.4Ghz Cordless Telephone  w/Caller ID - FCC ID NC8MD751 - CCT Tech Advanced Products Limited
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Aug 12, 2004
Application Purpose
Original Equipment
Date of Application
Aug 12, 2004
Equipment Note
Digital 2.4Ghz Cordless Telephone w/Caller ID
Frequency Range
5760.71900000 - 5838.31170000
Company
CCT Tech Advanced Products Limited
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MD750 Series User Guide Digital 5.8GHz i Welcome We l c o m e Congratulations on your purchase of a Motorola product! Your Motorola handset at a glance: ii Welcome For a copy of a large-print version of this guide, or for product-related questions, please contact: 1-800-353-2729 U.S.A. 1-800-461-4575 Canada 1-888-390-6456 TTY (Text Telephone) Or visit us online: www.motorola.com/cordless Product registration is an important step toward enjoying your new Motorola product. Registering helps us facilitate warranty service, and permits us to contact you should your Motorola product require an update or other service. Registration is not required for warranty coverage. To register your product online, visit: www.motorola.com/warranty/cordless Please retain your original dated sales receipt for your records. For warranty service of your Motorola Product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Copyright © 2004 Motorola, Inc. All rights reserved. No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or expressed, including but not limited to, the implied warranties of merchantability and fitness for a particular iii Welcome purpose. Motorola may make improvements or changes in the product(s) described in this manual at any time. MOTOROLA, the Stylized M Logo, and PhoneWrap are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their respective owners. iv Welcome v Contents Table of Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i Important Safety Instructions . . . . . . . . . . . . . . . . . . . vii FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Battery Safety Instructions . . . . . . . . . . . . . . . . . . . . . . 1 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Installing Backup Batteries . . . . . . . . . . . . . . . . . . . . . . 4 Using the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Using the Handset Display . . . . . . . . . . . . . . . . . . . . 5 Using the Soft Keys . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using the Navigation Key . . . . . . . . . . . . . . . . . . . . . 7 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installing the Phone on a Desk . . . . . . . . . . . . . . . . . . . 9 Installing the Phone on the Wall . . . . . . . . . . . . . . . . . 10 Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Personalizing Your Handset . . . . . . . . . . . . . . . . . . . . 13 Setting the Ring Volume . . . . . . . . . . . . . . . . . . . . . 13 Setting the Ring Tone . . . . . . . . . . . . . . . . . . . . . . . 14 Setting Key Beeps On or Off . . . . . . . . . . . . . . . . . 14 Naming a Handset . . . . . . . . . . . . . . . . . . . . . . . . . 15 Storing Area Codes for Caller ID . . . . . . . . . . . . . . . . 17 Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . 18 Setting the Language . . . . . . . . . . . . . . . . . . . . . . . . . 19 Setting Touch Tone or Pulse Dialing . . . . . . . . . . . . . . 19 vi Contents Using the Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Adjusting the Volume During a Call . . . . . . . . . . . . . . 21 Inserting Pauses in a Number . . . . . . . . . . . . . . . . . . 22 Using Automated Dialing . . . . . . . . . . . . . . . . . . . . . . 23 Using the Speakerphone . . . . . . . . . . . . . . . . . . . . . . 24 Muting a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Putting a Call on Hold . . . . . . . . . . . . . . . . . . . . . . . . 24 Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Finding a Lost or Misplaced Handset . . . . . . . . . . . . 25 Using the Phonebook . . . . . . . . . . . . . . . . . . . . . . . . 25 Storing a New Number . . . . . . . . . . . . . . . . . . . . . . 26 Storing a Recently Called Number . . . . . . . . . . . . . 27 Storing a Caller ID Number . . . . . . . . . . . . . . . . . . 28 Editing a Phonebook Entry . . . . . . . . . . . . . . . . . . 28 Deleting a Phonebook Entry . . . . . . . . . . . . . . . . . 29 Sorting the Phonebook . . . . . . . . . . . . . . . . . . . . . 29 Calling a Number from the Phonebook . . . . . . . . . 30 Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Reviewing the List of Caller ID Calls . . . . . . . . . . . 31 Deleting Caller ID Calls . . . . . . . . . . . . . . . . . . . . . 31 Using the Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Using the Intercom . . . . . . . . . . . . . . . . . . . . . . . . . 32 Enabling Auto-Answer . . . . . . . . . . . . . . . . . . . . . . 32 Transferring Calls to Other Handsets . . . . . . . . . . . 33 Multihandset Functions . . . . . . . . . . . . . . . . . . . . . . . 34 Conference Calling . . . . . . . . . . . . . . . . . . . . . . . . 34 Using the Intercom . . . . . . . . . . . . . . . . . . . . . . . . . 35 Enabling Auto-Answer . . . . . . . . . . . . . . . . . . . . . . 36 Transferring Calls to Other Handsets . . . . . . . . . . . 36 Monitoring a Room . . . . . . . . . . . . . . . . . . . . . . . . . 37 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 vii Safety Info Important Safety Instructions Follow these sa…

Text truncated - open the document above for the full version.

External Photos

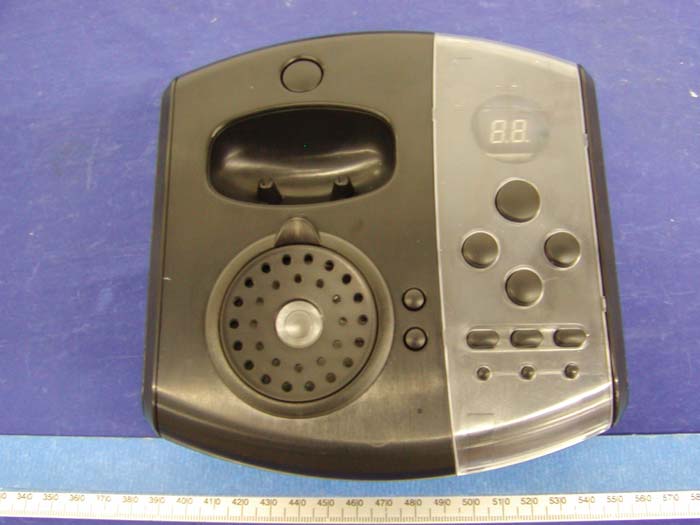

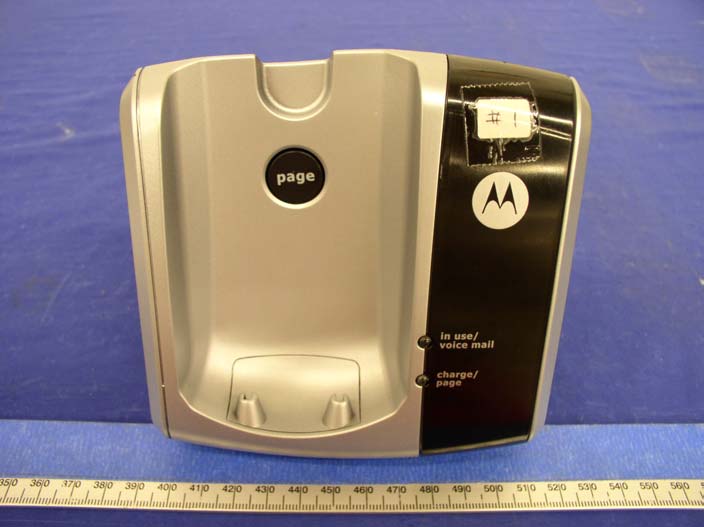

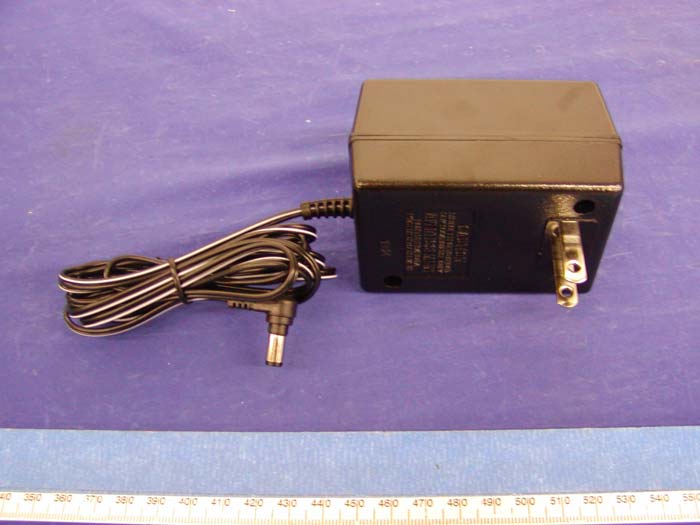

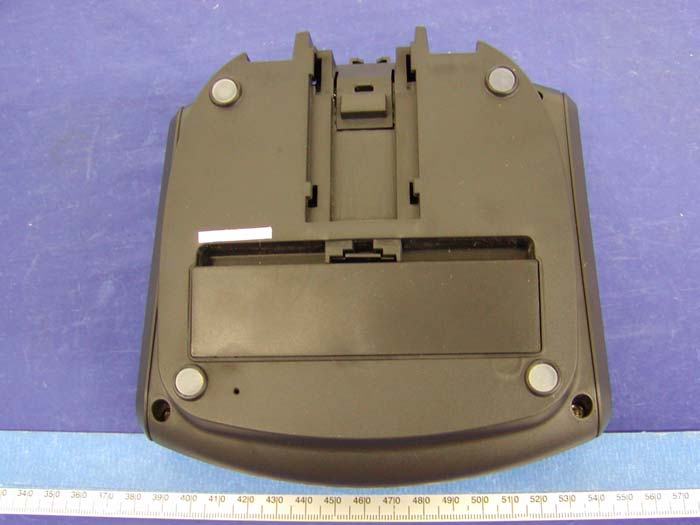

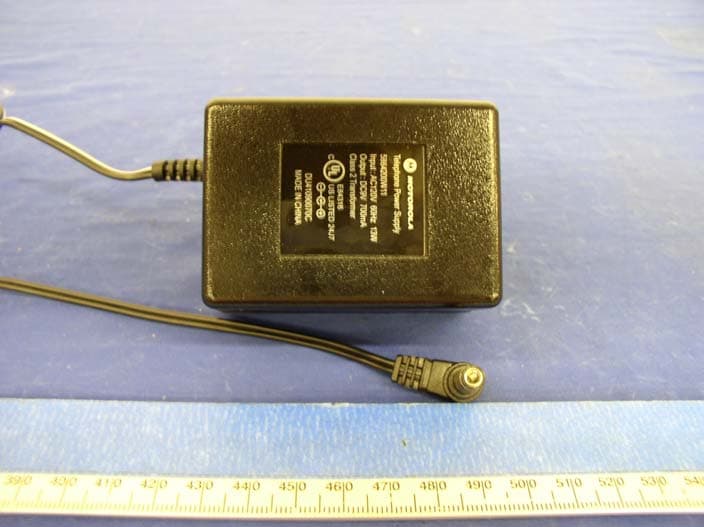

EXHIBIT C - EUT PHOTOGRAPHS Base MD751 - Top View Base MD751 - Bottom View Base MD761 - Top View Base MD761 - Bottom View Power Adapter View I Power Adapter View II

ID Label/Location Info

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of EUT/FCC ID Label FCC ID: I38-NA8300-001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0" FCC ID: NC8MD751 FCC ID: I38-NA8300-001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that m ay cause undesired operation. 2.1875" 1.0" FCC ID: I38-NA8300-001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

Internal Photos

Base MD751 – Chassis Cover off View Base MD751 - Main Board Component View with Shielding Base MD751 - Main Board Component View without Shielding Base MD751 - Main Board Solder View Base MD751 - Transceiver Component View Base MD751 – Interface Board Component View Base MD751 – Interface Board Solder View Base MD761 – Chassis Cover off View Base MD761 - Main Board Component View with Shielding Base MD761 - Main Board Component View without Shielding Base MD761 - Main Board Solder View Base MD761 - Transceiver Component View

RF Exposure Info

§15.247 (b)(4) - RF EXPOSURE According to §15.247(b)(4) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-15000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.33 (dBm ) Maximum peak output power at antenna input terminal: 85.7 (mW) Prediction distance: 20 (cm) Predication frequency: 5800 (MHz) Antenna Gain (typical): 0 (dBi) Maximum antenna gain: 1(numeric) Power density at predication frequency at 20 cm: 0.017(mW/cm^2) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Test Result The predicted power density level at 20 cm is 0.017 mW/cm^2. This is below the uncontrolled exposure limit of 1mW/cm^2 at 5800 MHz. The EUT is used at least 20cm away from user’s body. It is determined as mobile equipment.

Test Report

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15.247 EMI MEASUREMENT AND TEST REPORT For CCT R & D Limited 18F., CCT Telecom Building, 11 Wo Shing Street, Fo Tan, Shatin, N.T. FCC ID: NC8MD751 This Report Concerns: Original Report Equipment Type: Digital 2.4/5.8GHz Cordless Telephone System w/ Caller ID – Base Test Engineer: Ling Zhang / Report No.: R0407072(B) Report Date: 2004-08-02 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 CCT R & D Limited FCC ID: NC8MD751 Report # R0407072(B)Rpt Page 2 of 43 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EUT EXERCISE SOFTWARE..........................................................................................................................................6 SPECIAL ACCESSORIES.................................................................................................................................................6 SCHEMATICS / BLOCK DIAGRAM.................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................6 EXTERNAL I/O CABLING LIST AND DETAILS...............................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS FOR FCC PART 15............................................................................................8 ANTENNA REQUIREMENT ......................................................................................................................................9 §15.207(A) - CONDUCTED EMISSION...................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 TEST SETUP................................................................................................................................................................10 SPECTRUM ANALYZER SETUP....................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 SUMMARY OF TEST RESULTS.....................................................................................................................................11 CONDUCTED EMISSIONS TEST DATA.........................................................................................................................11 PLOT OF CONDUCTED EMISSIONS TEST DATA...........................................................................................................12 §15.205 & §15.209 - RADIATED EMISSION...........................................................................................................17 MEASUREMENT UNCERTAINTY..................................................................................................................................17 TEST SETUP................................................................................................................................................................17 SPECTRUM ANALYZER SETUP....................................................................................................................................17 TEST EQUIPM…

Text truncated - open the document above for the full version.

Test Setup Photos

EXHIBIT B - TEST SETUP PHOTOGRAPHS MD751 Conducted Emission - Front View MD751 Conducted Emission - Side View MD751 Base Radiated Emission - Front View MD751 Base Radiated Emission - Rear View MD761 Conducted Emission - Front View MD761 Conducted Emission - Side View MD761 Base Radiated Emission - Front View MD761 Base Radiated Emission - Rear View

Contact Information

Applicant

Ronilo Paredes(Senior Approval Engineer)
[email protected]852-2600-5295Fax: 852-2694-6165

Test Firm

Bay Area Compliance Laboratory Corp.John Chan
[email protected]4087329162Fax: 4087329164

Technical Specifications

#Rule PartsFrequency RangePower Output
115C5.76 GHz - 5.84 GHz85.70 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
