NC8T5700Transmitter Portion of FRS & GMRS

Models T5600, T5620, T5700, T5710, T5720 @6881042B60@ 6881042B60-A 021024a.eps 1042b60a.book Page 1 Friday , January 17, 2003 2:43 PM 1042b60a.book Page 2 Friday , January 17, 2003 2:43 PM Introduction 1 IntroductionCongratulations on your purchase of a Motorola product!Product registration is an important step. Registering helps us facilitate warranty service and permits us to contact you should your Motorola product require an update or other service. To register your product on-line, visit www.motorola.com/warranty/radios . Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warr anty status. Registration is not required for warranty coverage. For a copy of a large-print version of this guide, or for product-related questions, call: 1-800-353-2729 in the USA 1-888-390-6456 TTY (Text Telephone) On the web, please refer to www.motorola.com/talkabout 1042b60a.book Page 1 Friday , January 17, 2003 2:43 PM Contents 2 Contents Introduction . . . . . . . . . . . . . . . . . . . . . 1Safety and General In formation . . . . 3 FCC Licensing Information . . . . . . . 11Control Buttons - Models T5600, T5700 . . . . . . . . . . . . . . . . . . . . . . . . 12 Control Buttons - Models T5620, T5710, T5720 . . . . . . . . . . . . . . . . . 13 Getting Started . . . . . . . . . . . . . . . . . 14 Installing the AA Batteries . . . . . . . . . . .14Installing the NiCd Battery Pack . . . . . .14Battery Meter . . . . . . . . . . . . . . . . . . . .15Using the Desk Stand Charger (Optional Accessory) . . . . . . . . . . . .15 Attaching the Belt Clip . . . . . . . . . . . . . .17Removing the Belt Clip . . . . . . . . . . . . .17Turning Your Radio On and Off . . . . . .17Setting the Volume . . . . . . . . . . . . . . . .17Setting a Channel . . . . . . . . . . . . . . . . .18Channels and Frequencies . . . . . . . . . .19 Talking and Listening . . . . . . . . . . . . 20 Talk Range . . . . . . . . . . . . . . . . . . . . . .20Checking the Channel Before Transmitting . . . . . . . . . . . . . . . . . . .20 Special Features . . . . . . . . . . . . . . . . .21 Interference Eliminator Code . . . . . . . . 21Push to Talk Timeout Timer . . . . . . . . . 21Locking the Keypad . . . . . . . . . . . . . . . 22Scanning Channels (Models T5620, T5700, T5710 Only) . . . . . . . . . . . . . 22 Scan Advance . . . . . . . . . . . . . . . . . . . 23Removing Channels from the Scan List (Nuisance Delete Feature) . . . . . . . . 23 Alerts . . . . . . . . . . . . . . . . . . . . . . . . . .24 Channel Busy Indicator . . . . . . . . . . . . 24Setting and Transmitting Call Tones . . 24Transmitting a Talk Confirmation Tone 25QT Noise Filtering (Models T5700, T5710, T5720 Only) . . . . . . . . . . . . . 25 Accessories . . . . . . . . . . . . . . . . . . . .27 Using Audio Accessories . . . . . . . . . . . 27Voice Activation (VOX) Accessories (Models T5710, T5720 Only) . . . . . . 27 Setting the Sensitivity Level (Models T5710, T5720 Only) . . . . . . 28 Patent Information . . . . . . . . . . . . . . .29Export Law Assurances . . . . . . . . . .29 1042b60a.book Page 2 Friday , January 17, 2003 2:43 PM Safety and General Information 3 Safety and General InformationImportant Information on Safe and Efficient OperationRead This Information Before Using Your RadioThe information provided in this document supersedes the general safety information contained in user guides published prior to July 2000.Transmit and Receive ProcedureYour two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: • Transmit no more than 50% of the time. • To transmit (talk), press the Push to Talk (PTT) button. • To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance).Exposure to Radio Frequency EnergyYour Motorola radio is designed to comply with the following national and international standards and guidelines regarding exposure of human beings to radio frequency electromagnetic energy:• United States Federal Communications Commission, Code of Federal Regulations; 47 CFR part 2 sub-part J 1042b60a.book Page 3 Friday , January 17, 2003 2:43 PM Safety and General Information 4 • American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio Frequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz, 1999 • Australian Communications Authority Radiocommunications (Electromagnetic Radiation - Human Exposure) Standard 2001 (applicable to wireless phones only) • ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2002) “additional requirements for SMR, cellular, and PCS product certification.” To assure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures.Portable Radio Operation and EME ExposureAntenna CareUse only the supplied or an approved rep lacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna affects the effective range. 1042b60a.book Page 4 Friday , January 17, 2003 2:43 PM Safety and General Information 5 Two-Way Radio OperationWhen using your radio as a traditional two-way radio, hold the radio in a vertical position with the micro…

Text truncated - open the document above for the full version.

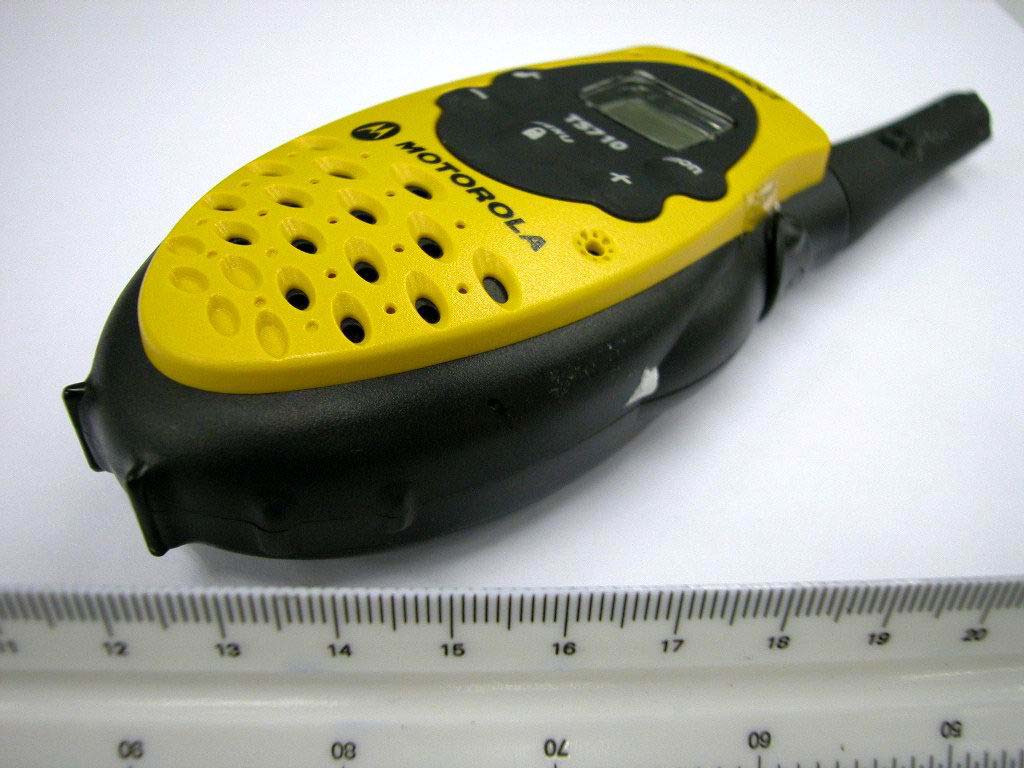

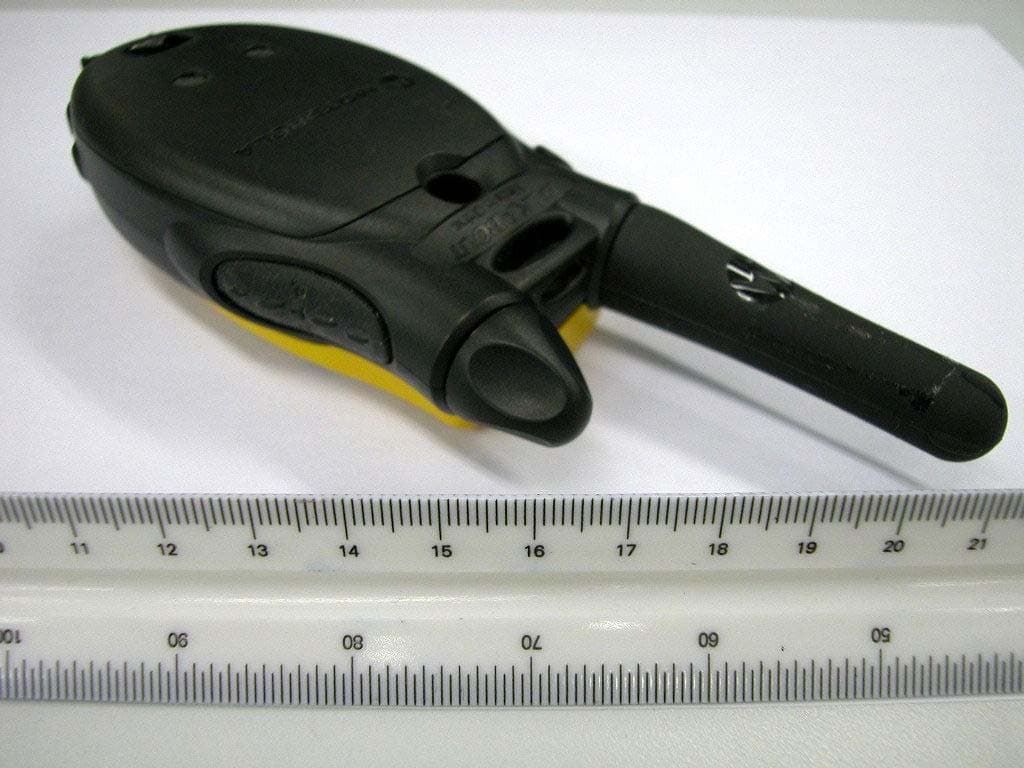

Test Setup FCCID : NC8T5700 External Photo -front External Photo - rear

MATERIAL: PT50 STICKER COLOR: BACKGROUND WHITE GRAPHIC BLACK SIZE: 45mm X 7mm DATE: MAY 27, 2003 REV.0

Test Setup FCC ID : NC8T5700 Internal Photo – 1 Internal Photo - 2 Test Setup FCC ID : NC8T5700 Internal Photo – 3 Internal Photo – 4 Test Setup FCC ID : NC8T5700 Internal Photo – 5

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed a refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 CCT Telecom (HK) Limited Application For Certification (FCC ID: NC8T5700) June 9, 2003 0303627 DL/Sandy June 9, 2003 INTERTEK TESTING SERVICES SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: RF Power Output EXHIBIT 4: Modulation Characteristics EXHIBIT 5: Occupied Bandwidth EXHIBIT 6: Spurious Emission EXHIBIT 7: Frequency Stability EXHIBIT 8: Technical Specifications EXHIBIT 9: Product Labelling EXHIBIT 10: Photographs EXHIBIT 11: Instruction Manual EXHIBIT 12: Tune Up Procedure EXHIBIT 13: Part List EXHIBIT 14: Input Current EXHIBIT 15: RF Exposure Info EXHIBIT 16: Confidentiality Request FCC ID: NC8T5700 i INTERTEK TESTING SERVICES MEASUREMENT/TECHNICAL REPORT Application : CCT Telecom (HK) Limited Trade Name/Model No : Motorola T5710 Motorola T5700 Motorola T5720 Date : June 9, 2003 This report concerns (check one:)Original Grant X Class II Change Equipment Type: GMRS + FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8504 Fax: 852-2371-0521 FCC ID: NC8T5700 ii INTERTEK TESTING SERVICES FCC ID: NC8T5700 Table of Contents 1.0 General Description............................................................................................................2 1.1 Product Description........................................................................................................2 1.2 Related Submittal(s) Grants..........................................................................................3 1.3 Test Methodology..........................................................................................................3 1.4 Test Facility...................................................................................................................3 2.0 System Test Configuration.................................................................................................5 2.1 Justification ....................................................................................................................5 2.2 EUT Exercising Software..............................................................................................6 2.3 Special Accessories.......................................................................................................6 2.4 Measurement Uncertainty.............................................................................................6 2.5 Equipment Modification................................................................................................6 3.0 RF Output Power (Section 95.639(d))................................................................................8 4.0 Modulation Characteristics (Section 95.637(a))..............................................................12 4.1 Modulation Frequiency Response.................................................................................13 4.2 Modulation Limiting Characteristic...............................................................................15 4.3 Audio Low Pass Filter Response.................................................................................17 5.0 Occupied Bandwidth (Section 95.633(c)) ........................................................................19 6.0 Spurious Emission (Section 95.635(b)) ............................................................................21 6.1 Field Strength of Spurious Radiation ............................................................................22 7.0 Frequency Stability (Section 95.627)...............................................................................28 7.1 Frequency Tolerance.....................................................................................................29 7.2 Temperature Extreme Condition...................................................................................31 7.3 Voltage Extreme Condition...........................................................................................34 8.0 Technical Specifications...................................................................................................37 9.0 Product Labelling.............................................................................................................41 10.0 Equipment Photographs.................................................................................................44 11.0 Instruction Manual.........................................................................................................46 12.0 Tune Up Procedure.........................................................................................................48 13.0 Part List...........................................................................................................................50 14.0 Input Current.................................................................................................................52 15.0 RF Exposure Info...........................................................................................................54 16.0 Confide…

Text truncated - open the document above for the full version.

Modulation Limiting Characteristic 0.000.501.001.502.002.50 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz

Modulation Frequency Response 0.000.501.001.502.00 200 700 1200 1700 2200 2700 3200 3700 4200 4700 Modulation Frequency (Hz) Frequency Deviation (kHz) Modulation Frequency Response 0.000.501.001.50 300 800 1300 1800 2300 2800 3300 3800 4300 4800 Modulation Frequency (Hz) Modulation Index (%)

Test Setup FCC ID : NC8T5700 Radiated -front Radiated - rear
