NDD9564761215

Edimax Technology Co Ltd

300N Wireless LAN Concurrent Dual Band Gigabit Router

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 24, 2013
Application Purpose: Original Equipment
Date of Application: Mar 24, 2013
Equipment Note: 300N Wireless LAN Concurrent Dual Band Gigabit Router
Frequency Range: 5755.00000000 - 5795.00000000
Company: Edimax Technology Co Ltd
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

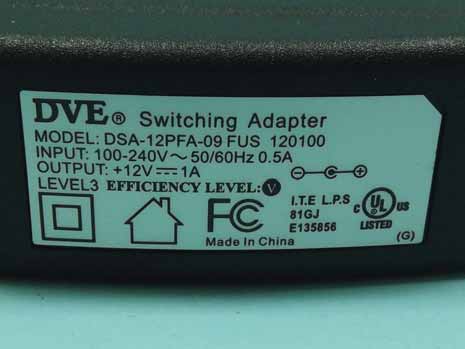

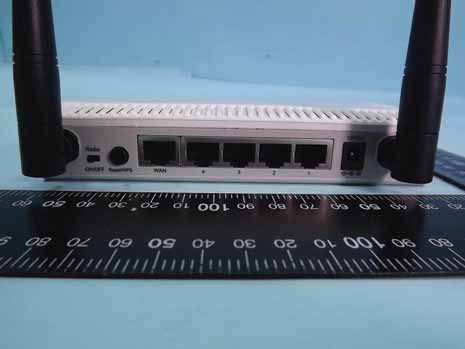

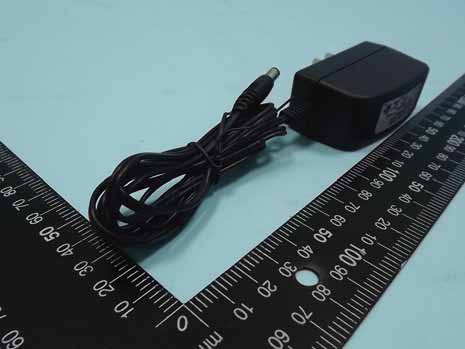

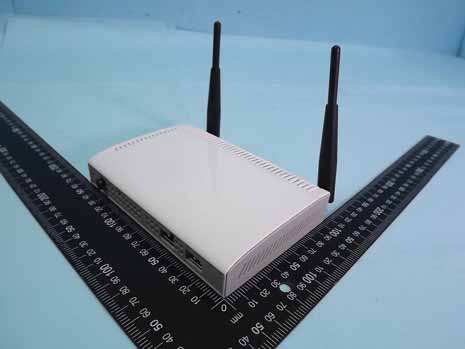

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
4	15C	5.75 GHz - 5.79 GHz	242.00 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is the maximum combined conducted peak output power as indicated in the filing. This device with it's antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. The antennas are self-colocated as documented in this filing and must not otherwise be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device is operating in a 2T2R Spatial Multiplexing MIMO configuration as described in this filing. When operating in 802.11n, 40 MHz mode, the operating frequency segment is limited to 2422 to 2452 MHz and 5755 to 5795 MHz respectively.
