NDD9573170504

Edimax Technology Co Ltd

802.11g Wireless LAN USB Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 08, 2005
Application Purpose: Original Equipment
Date of Application: Sep 08, 2005
Equipment Note: 802.11g Wireless LAN USB Module
Frequency Range: 2412.00000000 - 2462.00000000
Company: Edimax Technology Co Ltd
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

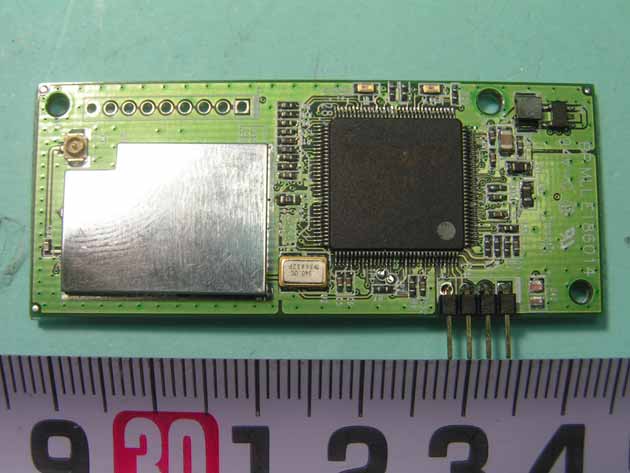

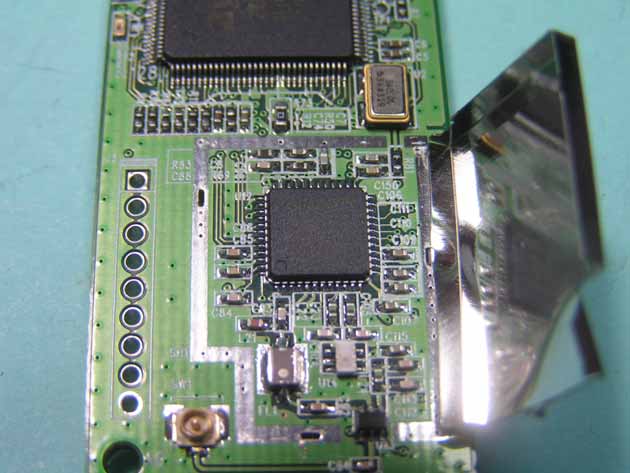

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Tracy Cheng(senior Specialist)

[email protected]+886-2-7739-6639Fax: +886-2-7739-6887

Technical Contact

Sporton International Inc.Wayne Hsu

[email protected]886-3-327-3456

No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, · TaoYuan Hsien · Taiwan

Test Firm

Sporton International Inc.Kathy Lin

[email protected]886-2-2696-2468Fax: 886-2-2696-2255

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	69.82 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval (LMA). Power Output listed is conducted. Modular approval. This module is approved for use in mobile only configurations. This module must be installed by the OEM or OEM integrator. Instructions on installation of this module may not be provided to the end user. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
