NET0547020Inductive Reader

September 24, 2001 David A. Case American TCB In reference to FCC ID NET05047020 Mr. Case 1. The device requires certification under 15.209. I have addressed the discrepancies and issued a corrected version of the report. Johann Roidt

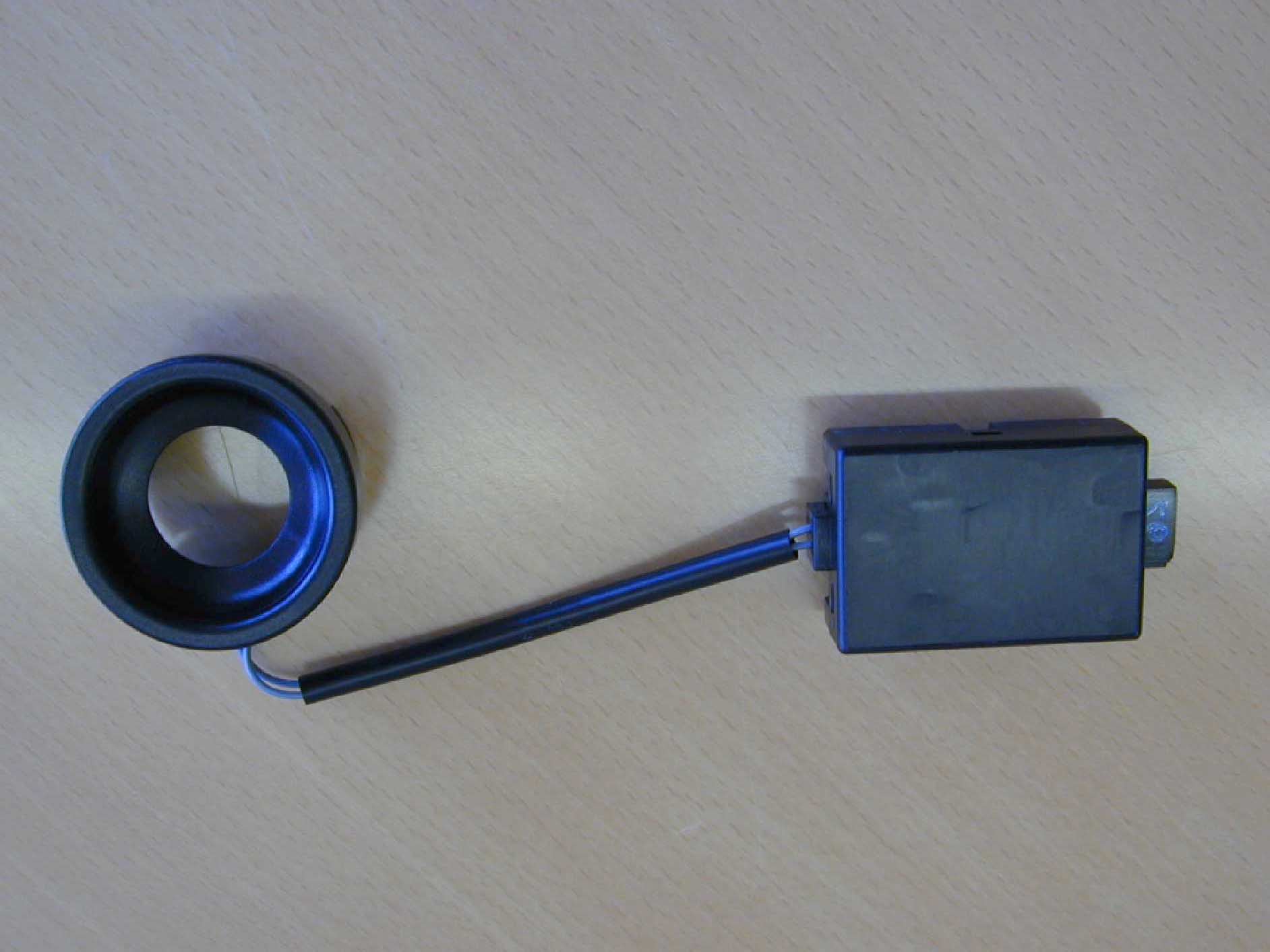

FCC ID: NET05047020External + Internal Photos Page 1 of 2 FCC ID NET05047020 External Photographs FCC ID: NET05047020External + Internal Photos Page 2 of 2

FCC ID: NET05047020External + Internal Photos Page 1 of 1 FCC ID NET05047020 Label Information

FCC ID: NET05047020External + Internal Photos Page 1 of 2 FCC ID NET05047020 External Photographs FCC ID: NET05047020External + Internal Photos Page 2 of 2

Page 1 of 34 Pages Straubing, August 28, 2001 T E S T - R E P O R T No. 51118-10523-2 for Immobilizer 05 470 20 Inductive Reader Applicant:Leopold Kostal GmbH & Co. KG Purpose of testing:To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section 15.209 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. FCC-ID: ---Test Report No. 51118-10523-2 Page 2 of 34 Pages Table of Contents 1. Administrative Data ....................................................................................3 2. Identification of Test Laboratory .................................................................4 3. Summary of Test Results ...........................................................................5 4. Operation Mode of EUT..............................................................................6 5. Configuration of EUT and Peripheral Devices............................................7 6. Measuring Methods ....................................................................................8 6.1. Radiated Emission 30 MHz - 1 GHz (FCC §15.205.a,b, §15.209, §15.231.b / RSS-210 Sections 6.1.1.b, 6.3)..........................9 6.2. Radiated Emission 1 GHz - 10 GHz (FCC §15.205.a,b, §15.209, §15.231.b / RSS-210 Sections 6.1.1.b, 6.3)........................11 7. Equipment List..........................................................................................13 8. Photographs Taken During Testing..........................................................15 9. List of Measurements According To FCC Part 15 Subpart C ...................18 10. List of Measurements According To Industry Canada RSS- 210............................................................................................................19 11. Referenced Regulations ...........................................................................20 12. Test Results..............................................................................................21 13. Charts taken during testing ......................................................................22 FCC-ID: ---Test Report No. 51118-10523-2 Page 3 of 34 Pages 1.Administrative Data Equipment Under Test (EUT): Immobilizer 05 470 20 Serial number(s):26 Type of equipment:Inductive Reader Parts/accessories:--- FCC-ID:--- Applicant:Leopold Kostal GmbH & Co. KG (full address)Hauert 11 D-44227 Dortmund Contract identification:--- Contact person:Roy Haasler Manufacturer:Leopold Kostal GmbH & Co. KG Receipt of EUT:July 26, 2001 Date of test:August 2001 Note:--- Responsible for testing:Johann Roidt Responsible for test report:Johann Roidt FCC-ID: ---Test Report No. 51118-10523-2 Page 4 of 34 Pages 2.Identification of Test Laboratory Test Laboratory:Senton GmbH EMI/EMC Test Center (full address):Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person:Mr. Johann Roidt Communication:Telephone(+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail:[email protected] FCC file number:31040/SIT 1300F2 Industry Canada file number:IC 3050 FCC-ID: ---Test Report No. 51118-10523-2 Page 5 of 34 Pages 3.Summary of Test Results The tested sample complies with the requirements set forth in the Code of Regulations Part 15 Subpart C, Section §15.209 (intentional radiators) of the Federal Communication Commission (FCC). Johann Roidt Technical Manager FCC-ID: ---Test Report No. 51118-10523-2 Page 6 of 34 Pages 4.Operation Mode of EUT Reading TAG continously FCC-ID: ---Test Report No. 51118-10523-2 Page 7 of 34 Pages 5.Configuration of EUT and Peripheral Devices Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable FCC-ID: ---Test Report No. 51118-10523-2 Page 8 of 34 Pages 6.Measuring Methods FCC-ID: ---Test Report No. 51118-10523-2 Page 9 of 34 Pages 6.1.Radiated Emission 30 MHz - 1 GHz (FCC §15.205.a,b, §15.209, §15.231.b / RSS-210 Sections 6.1.1.b, 6.3) Radiated emissions are measured over the frequency range from 30 MHz to 1 GHz. The bandwidth of the EMI-receiver is set to 120 kHz and the detector- function is set to CISPR quasi-peak. The test setup is made in accordance with ANSI C63.4-1992. Measurements are made in both the horizontal and vertical planes of polarization. Preliminary scans are taken in a semi-anechoic room using a spectrum analyzer with the detector function set to peak. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. All tests are performed at a test-distance of 3 meters. For final testing an open-area test-site is used. During the tests the EUT is rotated all around and the receiving-antenna is raised and lowered from 1 meter to 4 meters to find the maximum levels of emissions. The cables and equipment is placed and moved within the range of position likely to find their maximum emissions. See figure 2 for the measurement setup. Test equipment used (see equipment list for details): 01, 02, 05, 12, 38, 39, 40, 41, 58, 61, 64, 66 FCC-ID: ---Test Report No. 51118-10523-2 Page 10 of 34 Pages test-distance 3 m 4 5 6 3 1 2 Figure 2: Measurement setup for radiated emission test below 1 GHz 1 Transmitter (EUT) 4 Measurement antenna 2 Wooden pedestal (if necessary) 5 Test receiver 3 Wooden table 6 Turn table FCC-ID: ---Test Report No. 51118-10523-2 Page 11 of 34 Pages 6.2.Radiated Emission 1 GHz - 10 GHz (FCC §15.205.a,b, §15.209, §15.231.b / RSS-210 Sections 6.1.1.b, 6.3) Radiated emissions are measured in the frequency range 1 GHz to 10 GHz. Resolution and video bandwidth of the spectrum analyzer are set to 1 MHz. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission rela…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 24 Pages Straubing, September 24, 2001 T E S T - R E P O R T No. 51118-10523-2 a) for Immobilizer 05 0470 20 Inductive Reader Applicant:Leopold Kostal GmbH & Co. KG Purpose of testing:To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section 15.209 Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 2 of 24 Pages Table of Contents 1. Administrative Data.....................................................................................3 2. Identification of Test Laboratory .................................................................4 3. Summary of Test Results ...........................................................................5 4. Operation Mode of EUT..............................................................................6 5. Configuration of EUT and Peripheral Devices ............................................7 6. Measuring Methods ....................................................................................8 6.1. Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.231.b / RSS-210 Sections 6.1.1.b, 6.3)..........................9 6.2. Radiated Emission 1 GHz - 10 GHz (FCC ß15.205.a,b, ß15.209, ß15.231.b / RSS-210 Sections 6.1.1.b, 6.3)........................11 7. Equipment List ..........................................................................................13 8. Photographs Taken During Testing ..........................................................15 8.1. List of Measurements According To FCC Part 15 Subpart C ...........................................................................................18 8.2. List of Measurements According To Industry Canada RSS-210.............................................................................................19 9. Referenced Regulations ...........................................................................20 10. Test Results..............................................................................................21 Immobilizer 05 470 20.......................................................................................22 Immobilizer 05 470 20.......................................................................................23 Open Field Test Site .........................................................................................23 11. Charts taken during testing.......................................................................24 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 3 of 24 Pages 1.Administrative Data Equipment Under Test (EUT): Immobilizer 05 0470 20 Serial number(s):26 Type of equipment:Inductive Reader Parts/accessories: FCC-ID:FCC-ID Applicant:Leopold Kostal GmbH & Co. KG (full address)Hauert 11 D.44227 Dortmund Contract identification:--- Contact person:Roy Haasler Manufacturer:Leopold Kostal GmbH & Co. KG Receipt of EUT:July 26, 2001 Date of test:August 2001 Note: Responsible for testing:Johann Roidt Responsible for test report:Johann Roidt EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 4 of 24 Pages 2.Identification of Test Laboratory Test Laboratory:Senton GmbH EMI/EMC Test Center (full address):Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person:Mr. Johann Roidt Communication:Telephone(+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail:[email protected] FCC file number:31040/SIT 1300F2 Industry Canada file number:IC 3050 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 5 of 24 Pages 3.Summary of Test Results The tested sample complies with the requirements set forth in the Code of Regulations Part 15 Subpart C, Section ß15.209 (intentional radiators) of the Federal Communication Commission (FCC). Johann Roidt Technical Manager EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 6 of 24 Pages 4.Operation Mode of EUT Reading TAG continously EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 7 of 24 Pages 5.Configuration of EUT and Peripheral Devices Configuration of cables of EUT Not applicable Configuration of peripheral devices connected to EUT Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 8 of 24 Pages 6.Measuring Methods EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: FCC-IDTest Report No. 51118-10523-2 a) Page 9 of 24 Pages 6.1.Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.231.b / RSS-210 Sections 6.1.1.b, 6.3) Radiated emissions are measured over the frequency range from 30 MHz to 1 GHz. The bandwidth of the EMI-receiver is set to 120 kHz and the detector- function is set to CISPR quasi-peak. The test setup is made in accordance with ANSI C63.4-1992. Measurements are made in both the horizontal and vertical planes of polarization. Preliminary scans are taken in a semi-anechoic room using a spectrum analyzer with the detector function set to peak. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. All tests are performed at a test-distance of 3 meters. For final testing an open-area test-site is used. During the tests the EUT is rotated all around and the receiving-antenna is raised and lowered from 1 meter to 4 meters to find the maximum levels of emissions. The cables and equipment is placed and moved within the range of position likely to find their maximum emissions. See figure 2 for the measurement setup. Test equipment used (see equipment list for details): 01, 02, 05, 12, 38…

Text truncated - open the document above for the full version.

FCC-ID: ---Test Report No. 51118-10523-2 Page 16 of 34 Pages Photo No. 8.1 Test setup for radiated emission test 9 kHz - 30 MHz FCC-ID: ---Test Report No. 51118-10523-2 Page 17 of 34 Pages Photos No. 8.2 - 8.3 Test setup for radiated emission final test 30 MHz - 1 GHz
