NGJGPRS-100SGPRS Modem

Quick Guide for GPRS PCMCIA modem Install Mobile Phone Tool . Click Setup, Mobile Phone Tool will install automatically. Select the modem you have installed. If BVRP can not detect modem correctly, please click on Menu, Configuration, Change Configuration, Change Modem, then select the correct modem you have installed. You also can open Exchange dialog box to view how to control GPRS modem. If you have any question, please contact GPRS-100S Modem Installation without using BVRP software. To install the GPRS-100S as a modem, you need the MDM_LSMO1XX.inf file. This file exists on CD’s sub-directory “ Driver” section. Double-click the "Modems" icon in the "Control panel" Start - Settings - Control - Modems Click Add to install the driver Check the control box "Don't detect my modem,I will select it from a list " and click the "Next" button. Click on Have Disc to select an external driver from CD. Enter the drive and folder the MDM_LSMO1XX.inf file is stored in. You can select GPRS Modem for PCMCIA modem. With the "Browse" button you can search the file, should you be uncertain as to where you stored it. Choose the inf file. Then Open. Check if you have selected the right driver . Then Next Choose the serial interface e.g.COM1 .your mobile is connected to. Click on Next Finish the installation. Now the modem has been successfully installed How to Connect to Internet? Usually you can use Dialing Netwook to dial “ *99# ” or “ *99***1#” to connect to Internet. Please check with your ISP, this may be different in varies ISP. How to use Windows generic PCMCIA modem driver? You also can use Windows generic standard PCMCIA modem as driver. For Windows XP, plug GPRS PC card in to PCMCIA slot. XP will auto-detect it is a standard PCMCIA modem. Click “Yes” and “Next”, XP will auto-install PCMCIA driver. How to use HyperTerminal to control GPRS modem? Please open HyperTerminal, select correct COM port. choose correct DTE speed to match speed you use for driver. Type in “ATI3” for modem ID. If it response “MO1XX”, then modem is connected. You can use GPRS AT command set to control this modem. If there is any question, you are welcome to contact Peter Chen at [email protected] Hardware a. ANT (shown on housing): Antenna for GSM network The antenna has fix by horizontal way on unit. b. SIM : It is for inserting SIM card. c. Earphone : It is for plugging earphone cable for voice communication. d. NET: When unit connects to cellular service station, LED willstart blinking. e. PWR: When power is provided. This card needs 5VDC power. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance requirements, this device and its antenna must not be co-located or operating to conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

V 1.6 4 FCC ID: NGJGPRS-100S Device Name: GPRS Modem Model No.: GPRS-100S Date: 2009/1/5 Federal Communications Commission To whom it may concern: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Descriptions Part List Turn-Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. By: By: Peter Chen (Signature) (Printed) Title : Manager Applicant : LIGHTSPEED INTERNATIONAL CO. Address : 5F-1, NO.9, SEC 3, CHUNG HUA RD, HSINCHU, TAIWAN Tel : +886 3 5231352 Fax: +886 3 5231353

V 1.6 3 FCC ID: NGJGPRS-100S Device Name: GPRS Modem Model No.: GPRS-100S Date: 2009/1/5 Federal Communications Commission To whom it may concern: I, the undersigned, hereby authorize Mr . Joe Hsieh / Application Examiner of ELECTRONICS TESTING CENTER, TAIWAN and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr . Joe Hsieh of ETC on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, By: By: Peter Chen (Signature) (Printed) Title : Manager Applicant : LIGHTSPEED INTERNATIONAL CO. Address : 5F-1, NO.9, SEC 3, CHUNG HUA RD, HSINCHU, TAIWAN Tel : +886 3 5231352 Fax: +886 3 5231353

1 Mike Kuo From:Mike Kuo Sent: Friday, January 16, 2009 6:28 PM To: 'Joe Hsieh' Cc: Lucy Tsai Subject: RE: LIGHTSPEED INTERNATIONAL CO., FCC ID: NGJGPRS-100S, Assessment NO.: AN09T8758, Notice#1 Hi Joe: I have no more question. However, I need to verify the modification implementation on the production sample. I will issue the grant tonight with post‐market surveillance Request. Once you received the letter, please provide the production sample within 30 days. Best Regards Mike Kuo Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Direct: (510) 771‐1105 Fax: (510) 661‐0888 Main: (510) 771‐1000 e‐mail:[email protected] Web Site:www.ccsemc.com ‐‐‐‐‐Original Message‐‐‐‐‐ From: Joe Hsieh [mailto:[email protected]] Sent: Wednesday, January 14, 2009 1:18 AM To: Mike Kuo Cc: Mike Kuo; Lucy Tsai Subject: Re: LIGHTSPEED INTERNATIONAL CO., FCC ID: NGJGPRS‐100S, Assessment NO.: AN09T8758, Notice#1 Dear Mike, I re‐check following question: Re‐Q#1: Attached please find the schematics of the radio module portion. Re‐Q#2: Attached please find the declaration letter that mentions the modification will be implemented into the production line. Re‐Q#3: Attached please find the declaration letter that mentions the screw will not be accessible and rotated by the end user. Re‐Q#4: Attached please find the revised FCC ID label format. Re‐Q#5: The engineer has confirm again the test and result of the output power. The result is the same. Re‐Q#6: The ERP/EIRP result is basic on the device (include the modification). The modification has confirmed by the applicant. Re‐Q#7: The "hyper terminal program" is used to operate the device only. We use "R&S CMU200" equipment to control the test sample at max. power. Re‐Q#8: The output power is setting to the highest output power at SAR testing. The low result is according to the modification of the device. Re‐Q#9: Attached please find the new SAR report. The crest factor has revised. Re‐Q#10: The modification has changed the radiated emission of the device. Any questions please feel free to contact with me. Thanks. 2 Best regards, Joe ‐‐‐‐‐ Original Message ‐‐‐‐‐ From: <[email protected]> To: <[email protected]> Cc: <[email protected]>; <[email protected]> Sent: Thursday, January 08, 2009 7:40 AM Subject: LIGHTSPEED INTERNATIONAL CO., FCC ID: NGJGPRS‐100S, Assessment NO.: AN09T8758, Notice#1 > Hi Joe: > > Administrative Portion: > > Question #1: Schematic Diagram provided only covers digital portion of > PCMCIA card. Please provide radio module portion of schematic diagram. > > Question #2: As indicated in the internal photos, copper tape / > modification has been made at the antenna portion. By looking at the > copper tape placement, it is questionable how such modification is > capable of implementing on the product unit and maintain the radio > performance as tested on the pre‐production sample. Please provide a > modification report signed by the applicant to state that > modifications as documented in this filing will be implemented in the > final production units under this FCC ID number. > > Question #3: As indicated in the internal photos, a screw is used to > fix the antenna orientation so the antenna is capable of various orientation. > Please submit a statement signed by the applicant that the screw will > not be accessible by the end user and the antenna will not be able > rotate during normal operation. > > Question #4: Based upon proposed FCC ID label format, only FCC ID > number is listed on the label. However, PCMCIA card is also > classified as PC peripheral which subject to either FCC DoC procedure > or certification by TCB. If FCC DoC procedure is desired, then FCC > DoC logo , Trade name and model name must be included in the FCC label > format. If TCB certification is desired, then please file a > separation TCB application for JBP (PC > peripheral) device category. > > EMC portion: > > Question #5: This PCMICA card is capable of GSM/GPRS Class 10. By > comparing the peak and average output power on page 10, there are 8‐ > 10 dB differences between peak and average output power which are not > consistence with GSM specification. Please verify the peak and output > power measurement again. > > Question #6: Section 4.4 ERP/EIRP measurement: Please explain the low > EIRP power for 1900 MHz band. Based upon the RF conducted output > power, the EIRP output power is not reasonable. Please note: ERP/EIRP > output power will be listed on the FCC grant for this PCMCIA card with > integral antenna. > 3 > Question #7: As indicated in the test report, a hyper terminal program > is loaded in the laptop computer. Please provide detail information > on the capabilities and features of this program. For example, how > GSM/GPRS modulation and power class are controlled by the program. > > SAR Portion: > > Question #8: By reviewing the SAR plots, the reference value for 850 / > 1900 MHz is too low which means the output power is not set to the > highest output power. > > Question #9: Based upon the EMC test report, GRPS Class 10 has higher > average output power thus GPRS Class 10 mode of operation shall be > used for SAR measurement. Crest factor of 1:4 shall be used. > > Question #10: The SAR measurement as documented in the SAR report is > too low. Typically, PCS band will have higher SAR value than cellular band. > Please review your SAR measurement procedure and device mode of > operation in term of generating the max. output power and redo the SAR measurement. > > Best Regards > > Mike Kuo > > The items indicated above must be submitted before processing can > continue on the above referenced application. Failure to provide the > requested information within 30 days of the original e‐mail date may > result in application dismissal and forfeiture of the filing fee. > Also, please note that partial responses increase processing time and > should not be submitted. Any questions about the content of this > correspondence should be direct…

Text truncated - open the document above for the full version.

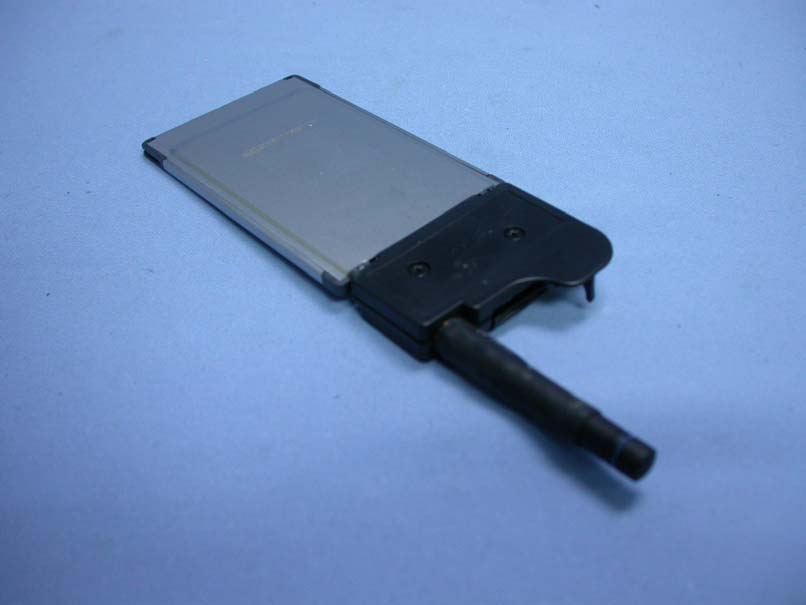

FCC ID: NGJGPRS-100S Sheet A1 of A1 Sheets ETC Report No. : 08-12-MAS-013-01 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC ID Label_Location Model: GPRS-100S FCC ID : NGJGPRS-100S

FCC ID: NGJGPRS-100S Sheet B1 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: NGJGPRS-100S Sheet B2 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 3. Inside View 3 of EUT 4. Inside View 4 of EUT FCC ID: NGJGPRS-100S Sheet B3 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 5. Inside View 5 of EUT 6. Inside View 6 of EUT FCC ID: NGJGPRS-100S Sheet B4 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 7. Inside View 7 of EUT 8. Inside View 8 of EUT FCC ID: NGJGPRS-100S Sheet B5 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 9. Inside View 9 of EUT 10. Inside View 10 of EUT FCC ID: NGJGPRS-100S Sheet B6 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 11. Inside View 11 of EUT 12. Module FCC ID: NGJGPRS-100S Sheet B7 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 13. Module 14. Front view of PCB FCC ID: NGJGPRS-100S Sheet B8 of B8 Sheets ETC Report No. : 08-12-MAS-013-01 15. Rear view of PCB

Report No.: 08-12-MAS-013-03 Page 1 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 1 SAR Evaluation Report for FCC OET Bulletin 65 Supplement C Report No.: 08-12-MAS-013-03 Client: LIGHTSPEED INTERNATIONAL CO. Product: GPRS Modem Model: GPRS-100S FCC ID: NGJGPRS-100S Manufacturer/supplier: LIGHTSPEED INTERNATIONAL CO. Date test item received: 2008/12/02 Date test campaign completed: 2008/12/17 Date of issue: 2008/12/24 Test Result: ■ Compliance □ Not Compliance Statement of Compliance: The SAR values measured for the test sample are below the maximum recommended level of 1.6 W/kg averaged over any 1g tissue according to FCC OET Bulletin 65 Supplement C (Edition 01-01). The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 71 pages Test Engineer Eric Lin Checked by Joe Hsieh Approved by Winpo Tsai The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. Report No.: 08-12-MAS-013-03 Page 2 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 2 Applicant Information Client : LIGHTSPEED INTERNATIONAL CO. Address : No.20 LANE 526 NIUPU EAST ROAD, HSIN CHU, TAIWAN Manufacturer : LIGHTSPEED INTERNATIONAL CO. Address : No.20 LANE 526 NIUPU EAST ROAD, HSIN CHU, TAIWAN EUT : GPRS Modem Trade Name : LIGHTSPEED Model No. : NGJGPRS-100S Standard Applied : FCC OET 65 Supplement C (Edition 01-01, June 2001) The GPRS Modem is in compliance with the FCC Report and Order 96-326 and the tests were performed according to the FCC OET65 Supplement C. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: n ISO9001: TüV Product Service o ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance p Filing: FCC, Industry Canada, VCCI q MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF Laboratory Information: ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 33383 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 Internet: www.etc.org.tw 0371 Report No.: 08-12-MAS-013-03 Page 3 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 3 Table of Contents EXECUTIVE SUMMARY........................................................................................................................ 5 1 GENERAL INFORMATION................................................................................................................. 6 1.1 Description of Equipment Under Test .......................................................................................... 6 1.2 Characteristics of Device .............................................................................................................. 6 1.3 Test Host ....................................................................................................................................... 6 1.4 Photograph of EUT ....................................................................................................................... 7 1.5 Environment Conditions ............................................................................................................... 7 1.6 FCC Requirements for SAR Compliance Testing ........................................................................ 7 1.6.1 RF Exposure Limits .............................................................................................................................8 1.7 The SAR Measurement Procudure for PCMCIA Wireless Device .............................................. 8 1.7.1 General Requirements ..........................................................................................................................8 1.7.2 Phantom Requirements ........................................................................................................................8 1.7.3 Test Positions .......................................................................................................................................8 1.7.4 Test Procedures ....................................................................................................................................8 2 DESCRIPTION OF THE TEST EQUIPMENT...................................................................................... 10 2.1 Test Equipment List .................................................................................................................... 10 2.2 DASY4 Measurement System Diagram ..................................................................................... 11 2.3 DASY4 Measurement Server...................................................................................................... 13 2.4 DAE (Data Acquisition Electronics)........................................................................................... 14 2.5 Phantom....................................................................................................................................... 15 2.6 Device Holder ............................................................................................................................. 15 2.7 Specifications of Probes .............................................................................................................. 16 2.8 SAR Measurement Procedures in DASY4 ................................................................................. 16 2.9 Simulating Liquids ....................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 08-12-MAS-013-03 Page 45 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 45 ANNEX B: DIPOLE CERTIFICATE Report No.: 08-12-MAS-013-03 Page 46 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 46 Report No.: 08-12-MAS-013-03 Page 47 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 47 Report No.: 08-12-MAS-013-03 Page 48 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 48 Report No.: 08-12-MAS-013-03 Page 49 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 49 Report No.: 08-12-MAS-013-03 Page 50 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 50 Report No.: 08-12-MAS-013-03 Page 51 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 51 Report No.: 08-12-MAS-013-03 Page 52 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 52 Report No.: 08-12-MAS-013-03 Page 53 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 53 Report No.: 08-12-MAS-013-03 Page 54 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 54 Report No.: 08-12-MAS-013-03 Page 55 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 55 Report No.: 08-12-MAS-013-03 Page 56 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 56 Report No.: 08-12-MAS-013-03 Page 57 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 57 Report No.: 08-12-MAS-013-03 Page 58 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 58 Report No.: 08-12-MAS-013-03 Page 59 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 59 Report No.: 08-12-MAS-013-03 Page 60 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 60 Report No.: 08-12-MAS-013-03 Page 61 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 61 Report No.: 08-12-MAS-013-03 Page 62 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 62 Report No.: 08-12-MAS-013-03 Page 63 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 63 ANNEX C: PROBE CERTIFICATE Report No.: 08-12-MAS-013-03 Page 64 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 64 Report No.: 08-12-MAS-013-03 Page 65 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 65 Report No.: 08-12-MAS-013-03 Page 66 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 66 Report No.: 08-12-MAS-013-03 Page 67 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 67 Report No.: 08-12-MAS-013-03 Page 68 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 68 Report No.: 08-12-MAS-013-03 Page 69 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 69 Report No.: 08-12-MAS-013-03 Page 70 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 70 Report No.: 08-12-MAS-013-03 Page 71 of 71 FCC ID: NGJGPRS-100S Electronics Testing Center, Taiwan (ETC) Rev. No.1.1 71

ETC Report No. : 08-12-MAS-013-01 Sheet 1 of 55 Sheets FCC ID:NGJGPRS-100S Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 22 Subpart H / Part 24 Subpart E Report No.: 08-12-MAS-013-01 Client: LIGHTSPEED INTERNATIONAL CO. Product: GPRS Modem Model: GPRS-100S FCC ID: NGJGPRS-100S Manufacturer/supplier: LIGHTSPEED INTERNATIONAL CO. Date test item received: 2008/12/02 Date test campaign completed: 2008/12/24 Date of issue: 2008/12/24 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 55 pages Total number of pages of photos: External photos 1 pages Internal photos 8 pages Setup photos 3 pages Test Engineer Checked By Approved By Ivan Tsai David You Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : 08-12-MAS-013-01 Sheet 2 of 55 Sheets FCC ID:NGJGPRS-100S Rev. No 1.0 TEST REPORT CERTIFICATION Client : LIGHTSPEED INTERNATIONAL CO. Address : No.20 LANE 526 NIUPU EAST ROAD, HSIN CHU, TAIWAN Manufacturer : LIGHTSPEED INTERNATIONAL CO. Address : No.20 LANE 526 NIUPU EAST ROAD, HSIN CHU, TAIWAN EUT : GPRS Modem Trade name : LIGHTSPEED Model No. : GPRS-100S Power Source : 5V dc (From Notebook PCMCIA Interfac) Regulations applied : FCC 47 CFR, Part 22 Subpart H and Part 24 Subpart E The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: z ISO9001: TüV Product Service z ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance z Filing: FCC, Industry Canada, VCCI z MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA z FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : 08-12-MAS-013-01 Sheet 3 of 55 Sheets FCC ID:NGJGPRS-100S Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ............................................................................................................5 1.1 Product Description.............................................................................................................................5 1.2 Characteristics of Device ....................................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Modifiction List of EUT .....................................................................................................................5 1.5 Test Facility.........................................................................................................................................5 2. SYSTEM TEST CONFIGURATION ...............................................................................................6 2.1 Justification .........................................................................................................................................6 2.2 Devices for Tested System..................................................................................................................6 3. PEAK POWER MEASUREMENT...................................................................................................7 3.1 Applicable Standard ............................................................................................................................7 3.2 Measurement Procedure......................................................................................................................7 3.3 Measuring Instrument .........................................................................................................................7 3.4 Test Result...........................................................................................................................................8 4. ERP & EIRP MEASUREMENT .....................................................................................................17 4.1 Standard Applicable .......................................................................…
